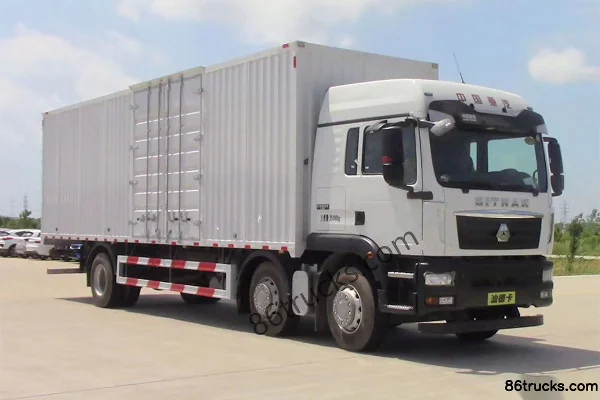

Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck

Export reference
From $40,111
MSRP ¥28.88M CNY
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 10.46ton
seating capacity: 2Personnel
Rated payload: 14.41ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck is a Heavy-duty cargo trucks featuring 9.52m cargo length, Van body cargo body, 2Personnel volume and 14.41t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 280 hp, 6X2 (8 wheels) drive and China V emissions.

China V 280 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5256XYKN56CGE1
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1800+5600mm
Box length class: 9.5m
engine: SinotrukMC07.28-50
transmission: SinotrukHW13709XSTCL
Rear Axle Ratio: 4.11
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 1923/1923mm
rear track: 1764mm
Curb Weight: 10.46ton
Rated payload: 14.41ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle: 10°
market segment: Urban Distribution
Front/rear suspension: 1.43/3.17m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13709XSTCL
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.52m
Cargo box width: 2.5m
Cargo box height: 2.7m
*Cargo box interior width: 2.5
Cab parameters
Cab: G5 High Roof Double Bunk
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle description: MCJ11
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 2/2/3+2,3/3/3+2,3/3/3+4
Tire
Tire Size: 11.00R20 18PR,295/80R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck, and what does it include?

Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck export reference is about From $40,111; MSRP is ¥28.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck?

Key specs of Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck: Drive: 6x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck suited for?

Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck differ from other variants in the same series?

Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck belongs to Sitrak G5 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak G5 Heavy Truck 280 hp 6X2(8 wheels) 9.52m Wing Opening Box Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
