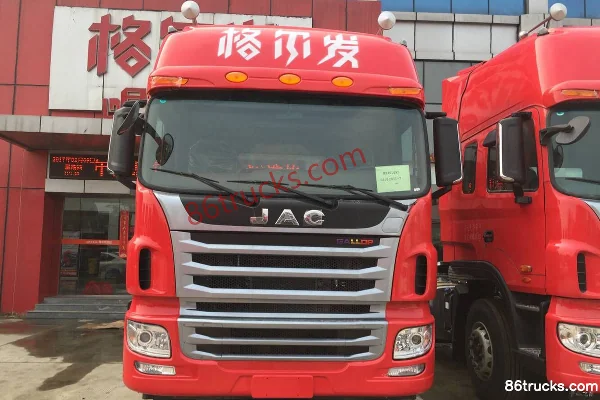

JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck

Export reference
From $23,417
MSRP ¥16.86M CNY
Fuel: Diesel
Gross Trailer Weight:: 22.3ton
Wheelbase:: 3500mm
Tire Size:: 10R22.5
Front axle allowable load:: 5600kg
Displacement:: 4.748L
Drive 4X2 (6 wheels)
Horsepower 190
Emission China V
Transmission FAW Jiefang

Overview

The JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck is a Medium-duty truck featuring 4X2 (6 wheels) drive, 190 hp, 16.2t GVW and China V emissions. Its segment focus covers Port transport, matching those duty cycles. On the powertrain side, it comes with a MaxxForce JND412D190-52 engine, FAW Jiefang transmission and Diesel fuel.

China V 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4161P3K1A35S5V
Drive type: 4X2
Wheelbase: 3500mm
engine: MaxxForce JND412D190-52
transmission: FAW JiefangCA6T138-85
Rear Axle Ratio: 4.875
Cab length: 5.88m
Cab width: 2.5m
Cab height: 3.14m
Front track width: 1810mm
Gross Trailer Weight: 22.3ton
rear track: 1800mm
Curb Weight: 4.7ton
GVWR: 16.2ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
market segment: Port transport
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: MaxxForce JND412D190-52
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.748L
Emission standard: China V
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 740N·m
Max torque speed: 1200-1800rpm
Rated speed: 2200rpm
Transmission Parameters
Transmission Model: FAW JiefangCA6T138-85
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
fuel tank
Fuel tank/air tank material: Steel
Fuel tank capacity: 200L
Cab parameters
Cab: Semi-high roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 3.5T
Fifth wheel: 50#
Front axle allowable load: 5600kg
Frame Dimensions: 245×75×7mm
rear axle description: 9T
rear axle allowable load: 10600kg
Axle ratio: 4.875
Leaf spring count: 3/9+7,3/4+3,9/9+7
Tire
Tire Size: 10R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:

Photos

0 photos

FAQ

What is the export price of JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck, and what does it include?

JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck export reference is about From $23,417; MSRP is ¥16.86M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck?

Key specs of JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck: Drive: 4x2; Horsepower: 190 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck suited for?

JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck differ from other variants in the same series?

JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck belongs to JAC Gallop A5 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5L Medium Truck 190hp 4X2(6 wheels) tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
