Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck

Export reference
From $13,861
MSRP ¥9.98M CNY
Horsepower: 132
Emission: China V
Fuel: Diesel
Engine: Isuzu494
Transmission: Changtai
Curb Weight:: 2.8ton
seating capacity: 3Personnel
Rated payload: 1.5ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck is a Light Truck featuring 4.16m cargo length, Van body cargo body, 3Personnel volume and 1.5t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Isuzu494 engine, 132 hp, 4X2 (6 wheels) drive and China V emissions.

China V 132 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW5040XXYHA1R5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: IsuzuJE4D28Q5F
transmission: Changtai SC7T48G
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.46m
Cab height: 3.45m
Front track width: 1765mm
rear track: 1645mm
Curb Weight: 2.8ton
Rated payload: 1.5ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 24°
market segment: Urban Distribution
Front/rear suspension: 1.285/1.35m
Energy Type: Diesel
Engine parameters
Engine Brand: Isuzu
Engine Model: IsuzuJE4D28Q5F
Engine info: Isuzu494
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.776L
Emission standard: China V
Max output power: 97kW
Max hp: 132Horsepower
Max torque: 320N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Inline, water-cooled, common rail, four-stroke
Transmission Parameters
Transmission Model: Changtai SC7T48G
Transmission Brand: Changtai
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.16m
Cargo box width: 2.4m
Cargo box height: 2.3m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1705kg
rear axle description: 1062
rear axle allowable load: 2790kg
Axle ratio: 4.875
Leaf spring count: 9/10+8
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

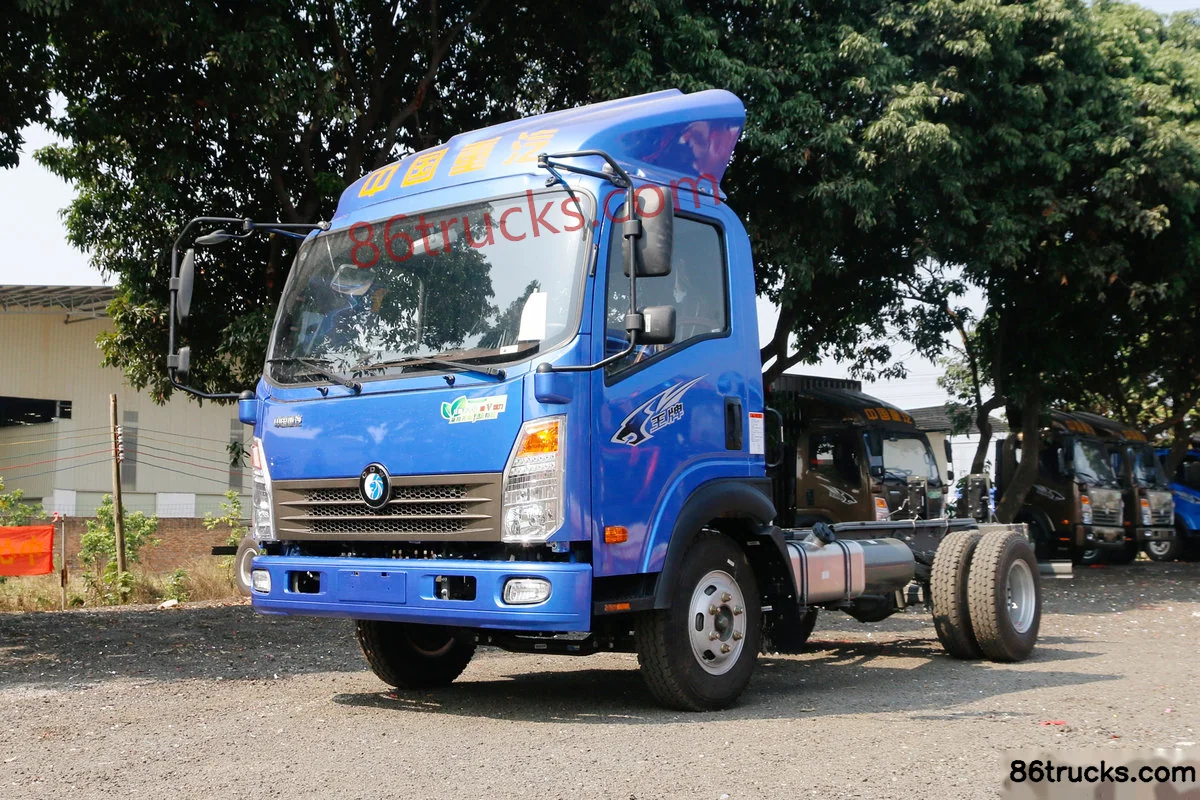

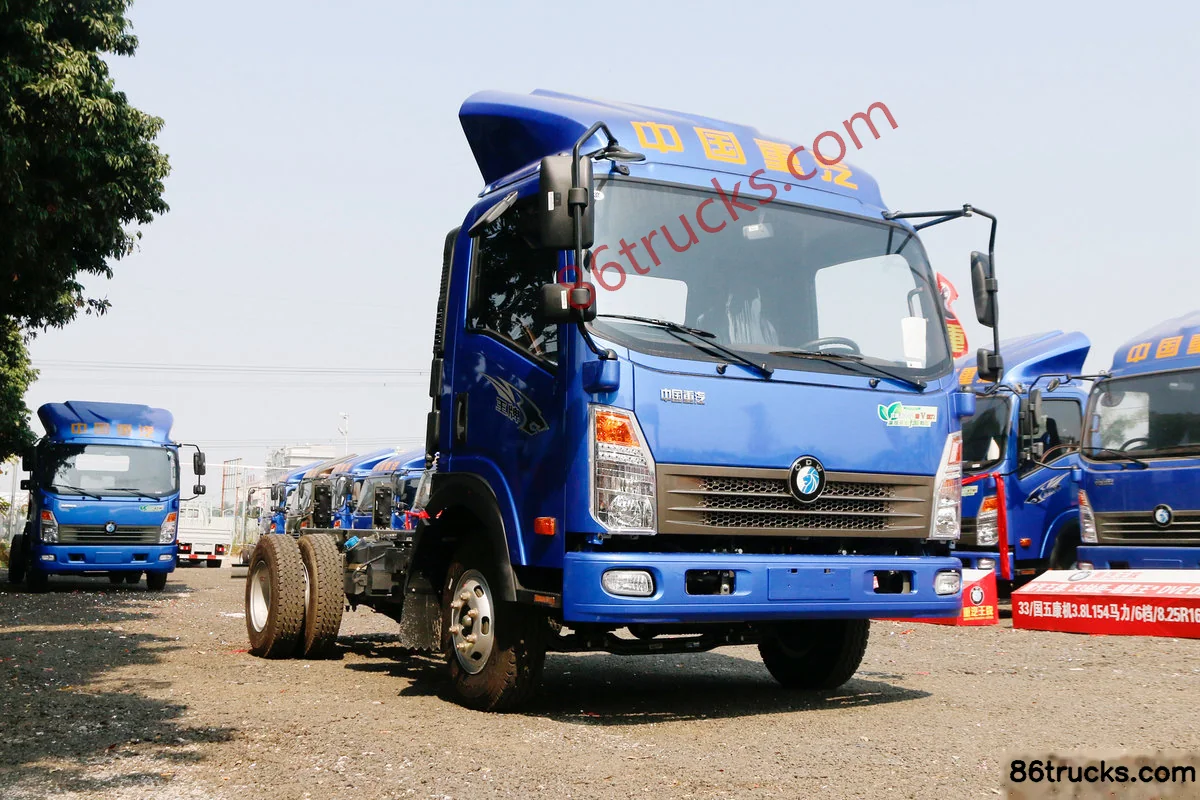

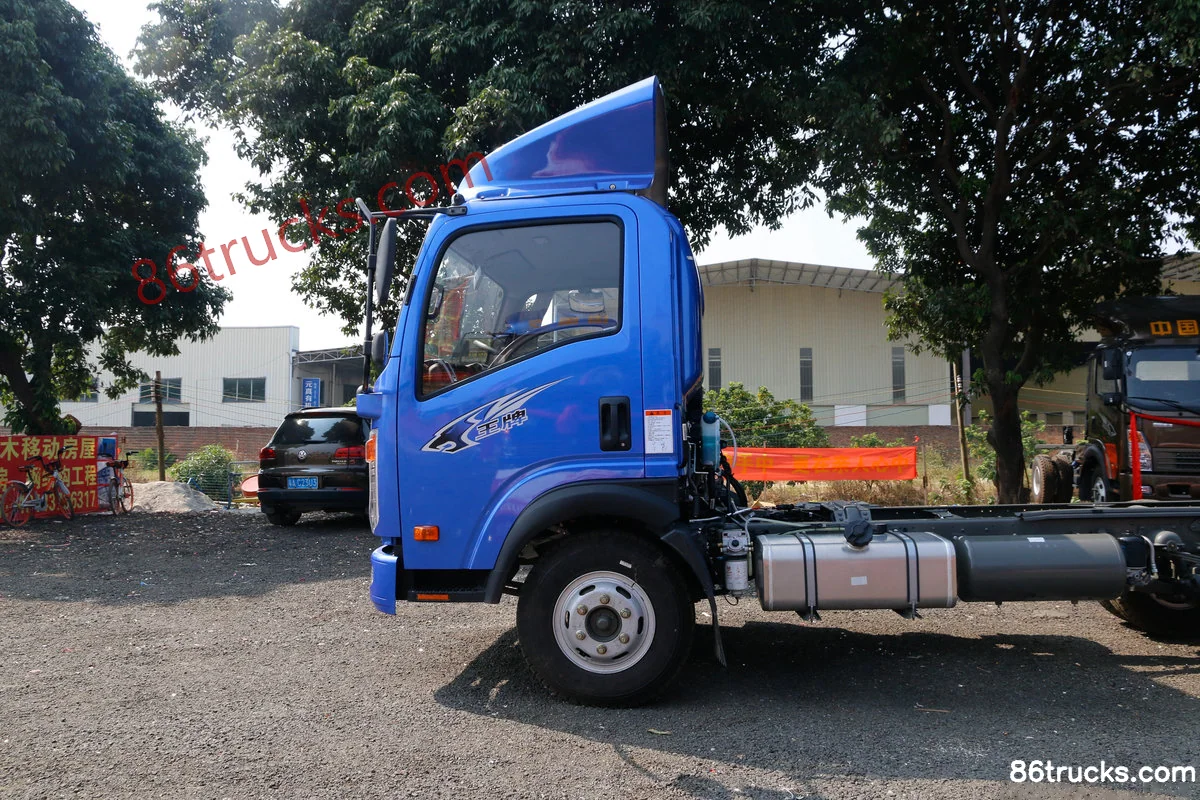

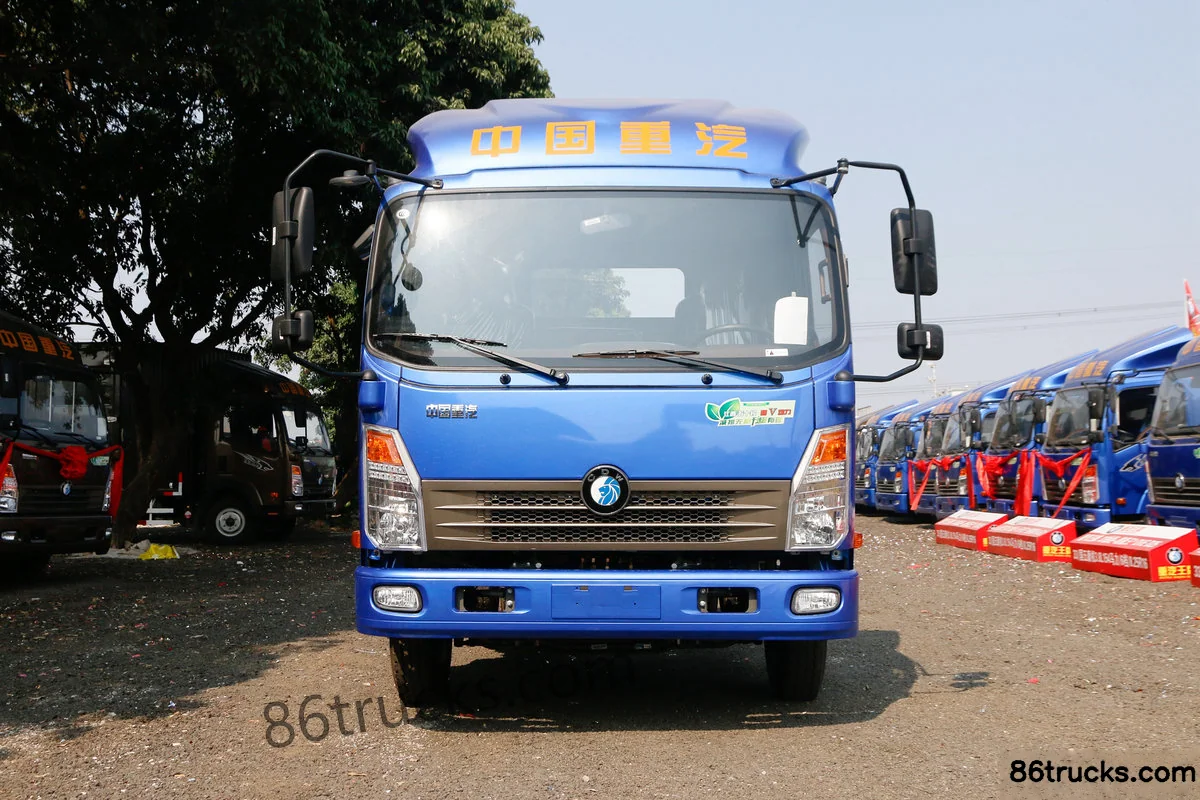

Exterior3

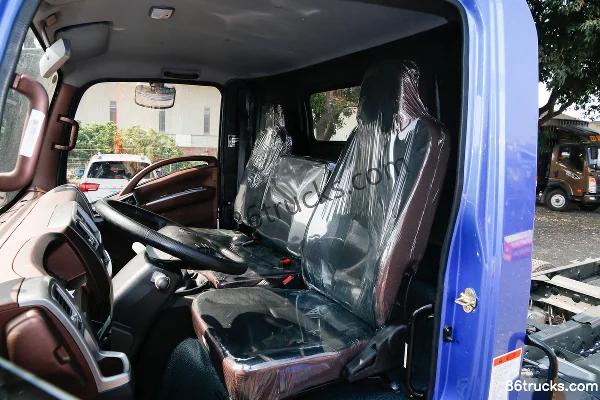

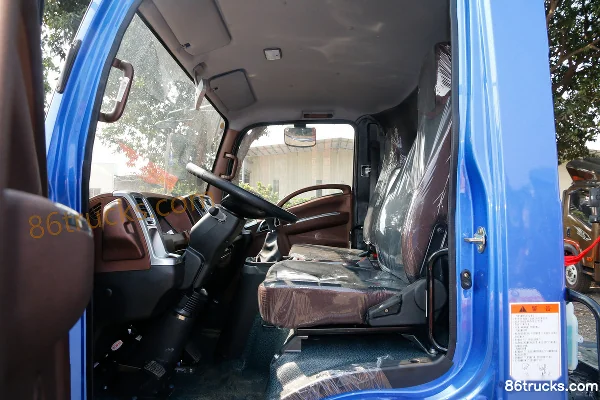

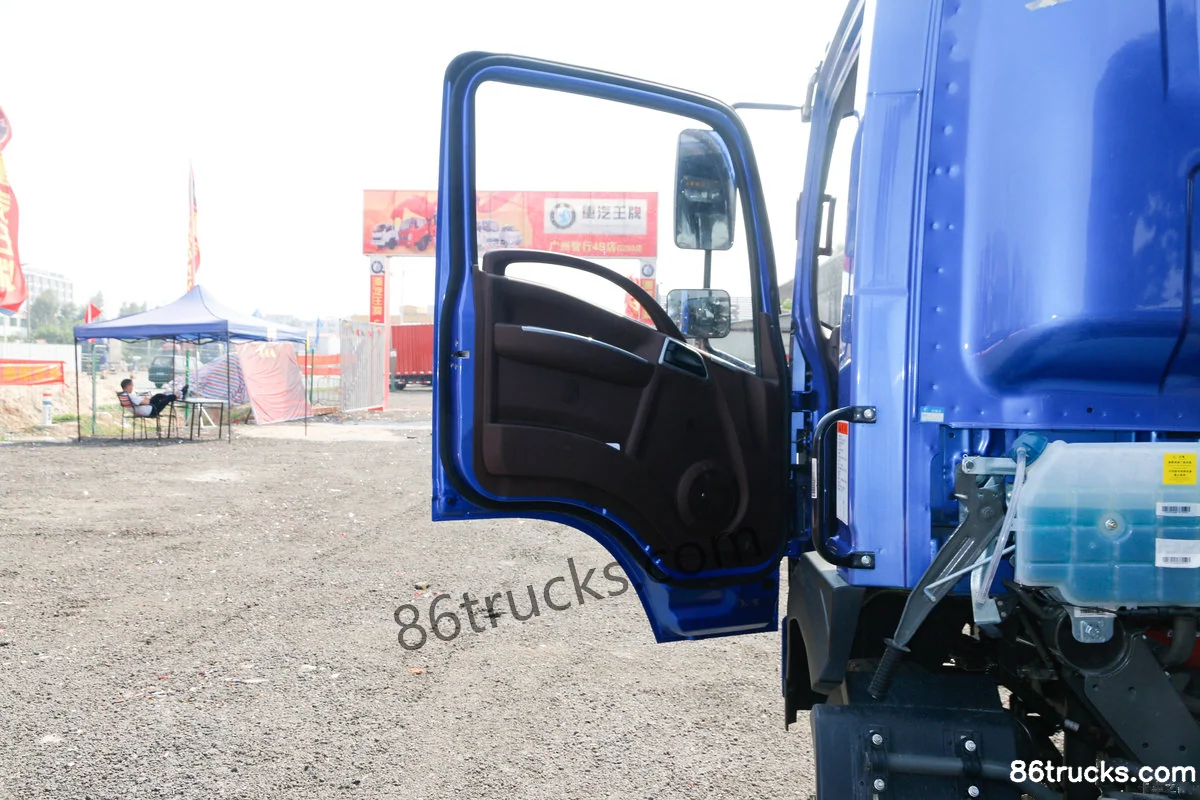

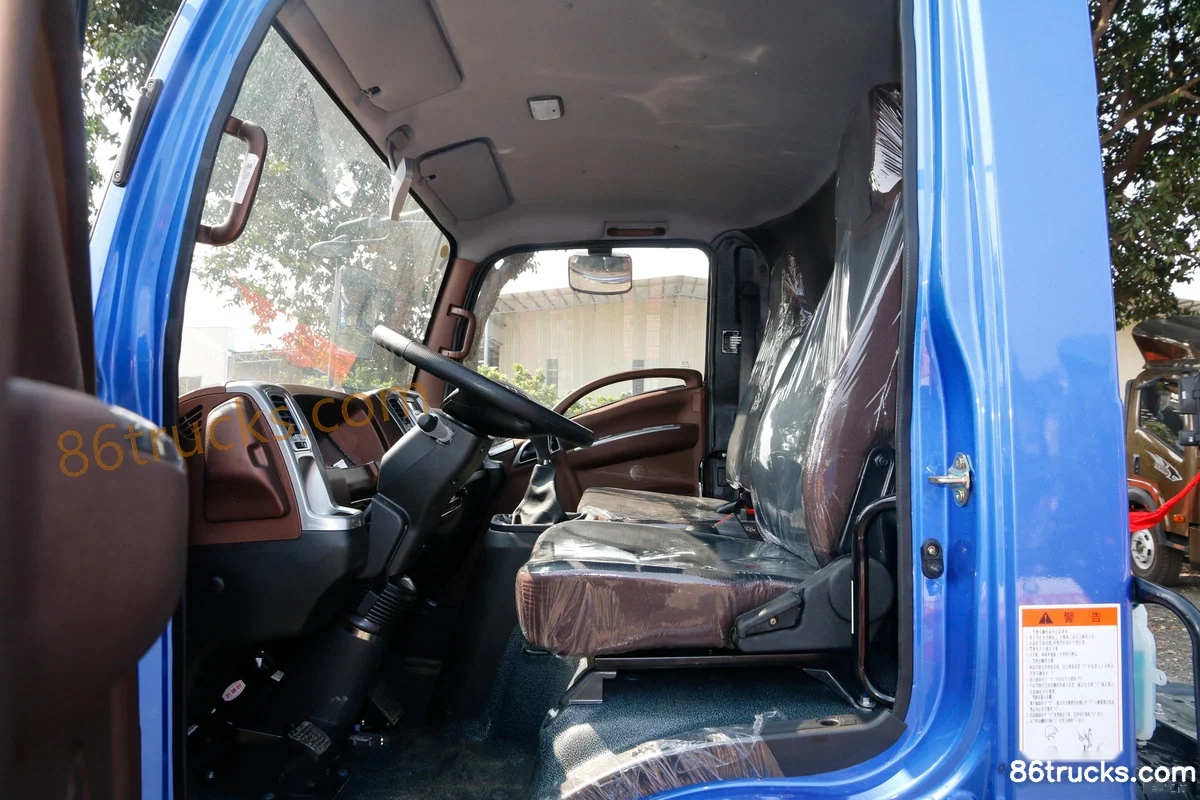

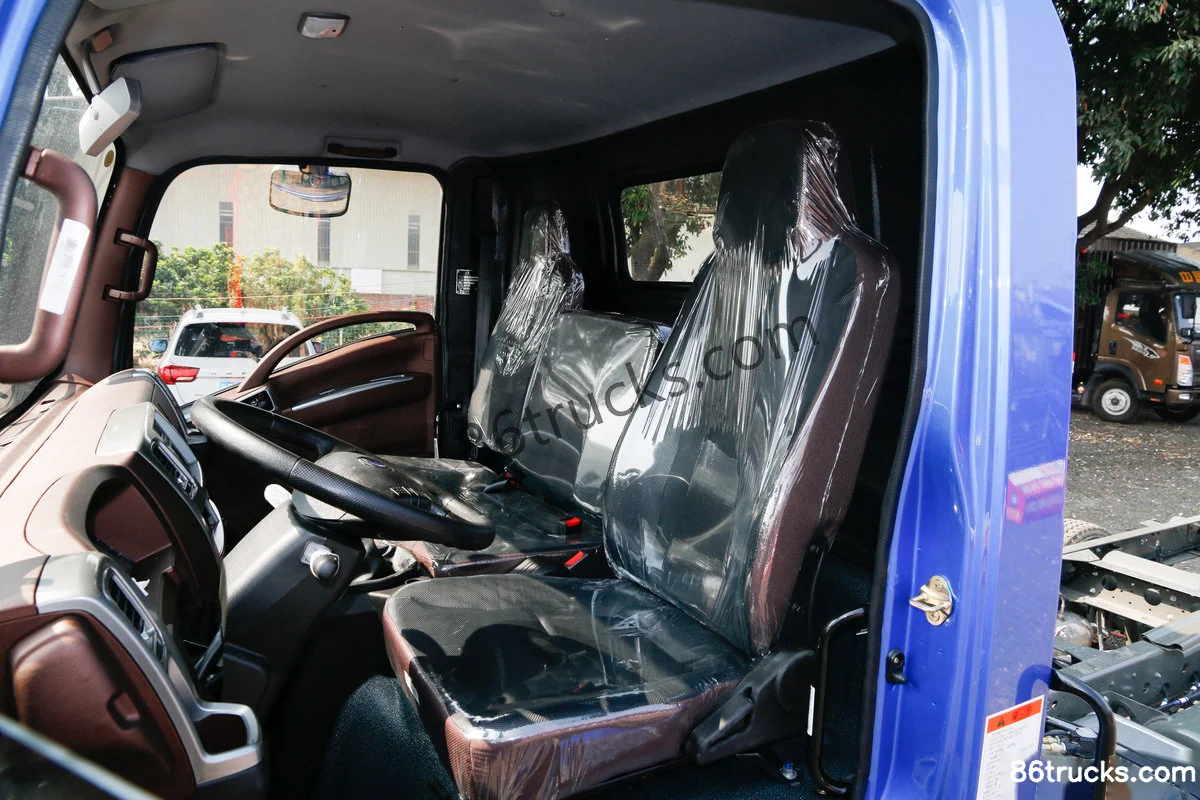

Cab3

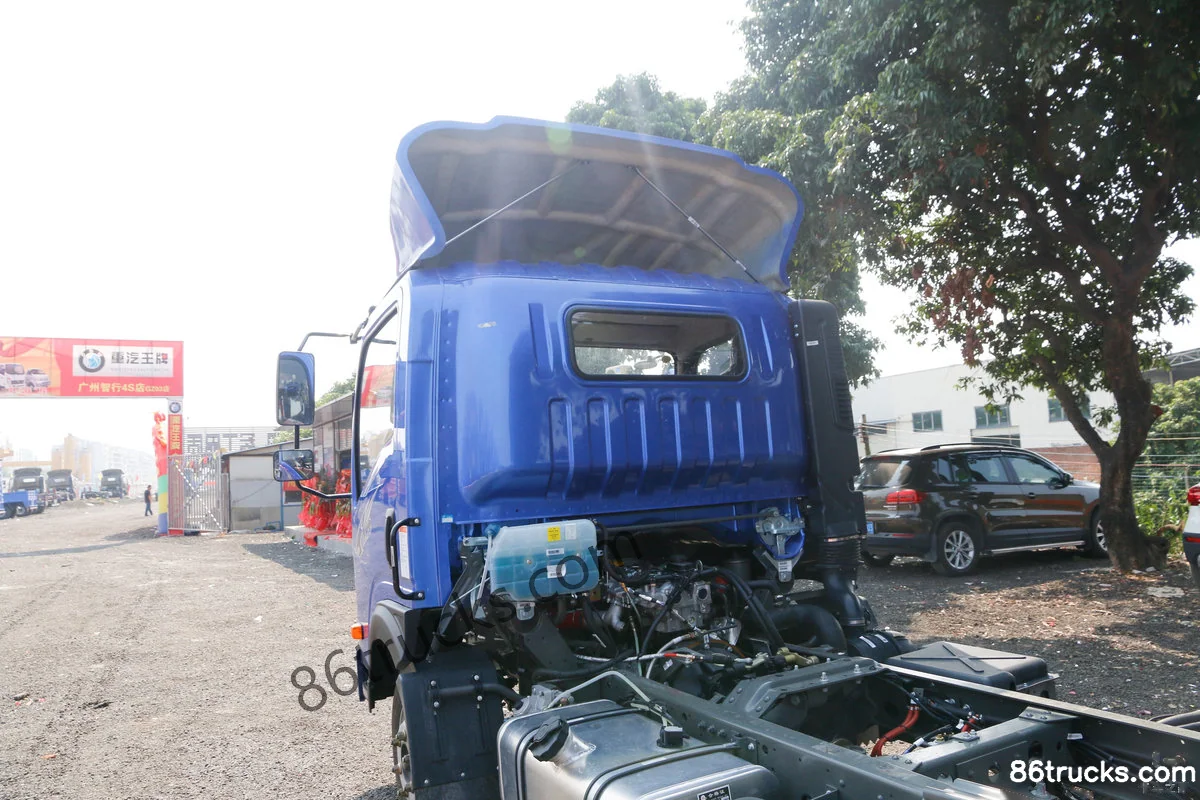

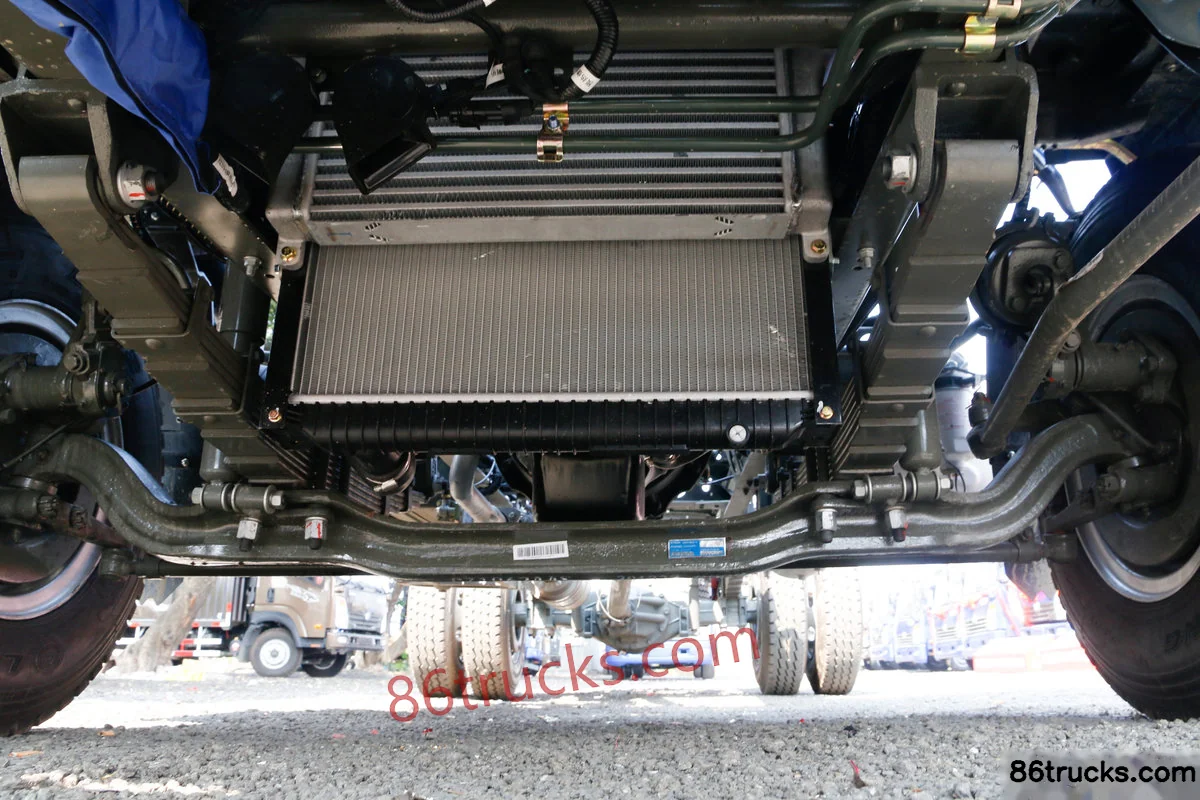

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck, and what does it include?

Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck export reference is about From $13,861; MSRP is ¥9.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck?

Key specs of Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck: Drive: 4x2; Horsepower: 132 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu494; Transmission: Changtai. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck suited for?

Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck differ from other variants in the same series?

Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck belongs to Sinotruk Wangpai 7 series light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai 7 Series 132 hp 4X2(6 wheels) 4.16m Single Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
