Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck

Export reference
MSRP N/A
Horsepower: 143
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 2.705ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck is a Light Truck featuring 3.8m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 143 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049V8CEA-FB
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: FotonISF3.8s4R141
transmission: WLYWLY6S46B
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.15m
Cab height: 2.9m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 2.705ton
Rated payload: 1.495ton
GVWR: 4.395ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.095/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4R141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 450N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY6S46B
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.8m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1615kg
rear axle allowable load: 2780kg
Axle ratio: 4.33
Leaf spring count: 3+1/6+7
Tire
Tire Size: 6.50-16,7.00-168PR,6.50R16,7.00R168PR,7.50-166PR,7.50R166PR
Number of tires: 6pcs

Photos

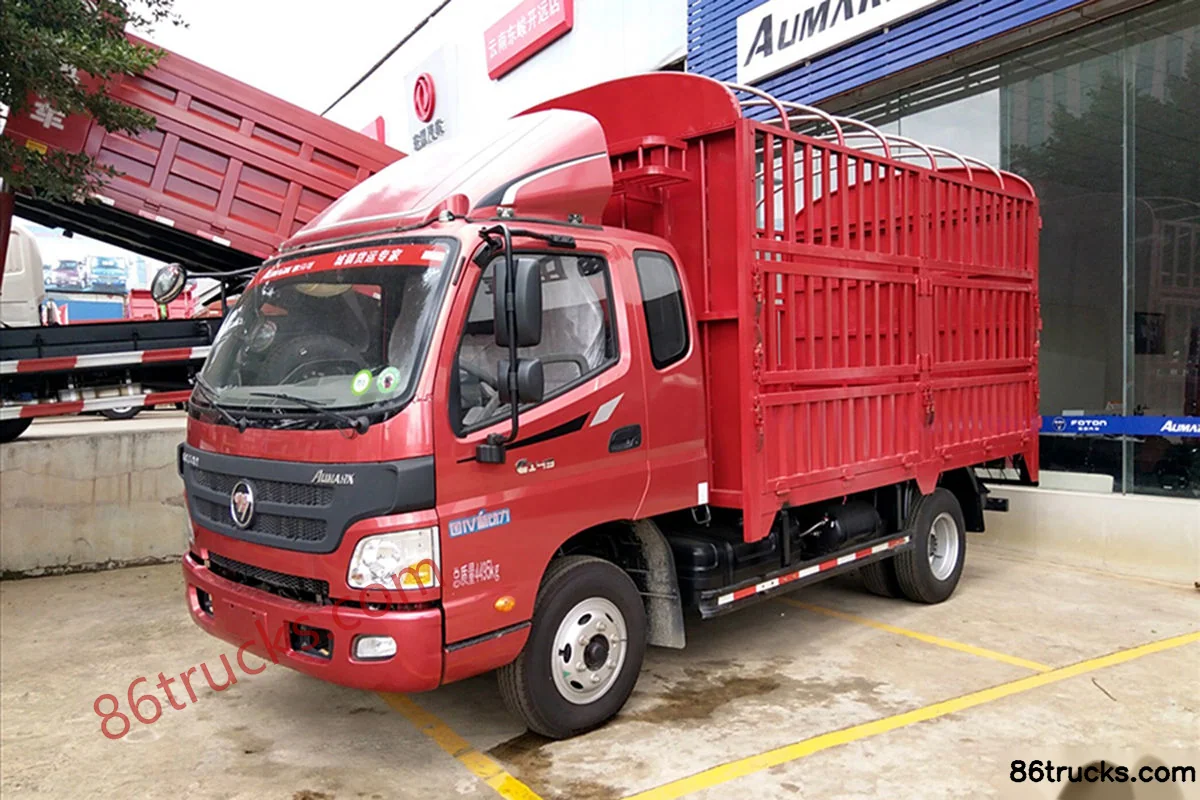

Exterior1

1 photos

FAQ

What emission standard does Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck?

Key specs of Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck: Drive: 4x2; Horsepower: 143 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck suited for?

Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck differ from other variants in the same series?

Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck belongs to Foton 3 Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark 3 Series 143hp 4X2(6 wheels) 3.8m Half-Panel Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
