Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3225+1350mm
Tire Size:: 12R22.5
Front axle allowable load:: 18000 (tandem axle group)kg
Displacement:: 12.419L
Drive 6X4 (10 wheels)
Horsepower 500
Emission China VI
Transmission Sinotruk

Overview

The Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI) is a Heavy truck featuring 6X4 (10 wheels) drive, 500 hp, 25t GVW and China VI emissions. Its segment focus covers Daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a SinotrukMC13.50-61 engine, Sinotruk transmission and Diesel fuel.

China VI 500 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ4256V324HF1B
Drive type: 6X4
Wheelbase: 3225+1350mm
engine: SinotrukMC13.50-61
transmission: Sinotruk 12-speed
Rear Axle Ratio: 3.36
Cab length: 7.125m
Cab width: 2.55m
Cab height: 3.29m
Front track width: 2022mm
Gross Trailer Weight: 40ton
rear track: 1830/1830mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy truck
market segment: Daily industrial goods transport
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC13.50-61
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.419L
Emission standard: China VI
Max output power: 371kW
Max hp: 500Horsepower
Max torque: 2400N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Sinotruk 12-speed
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: Flat roof
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 18000 (tandem axle group)kg
rear axle allowable load: 7000kg
Axle ratio: 3.36
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Remote key:
Exterior features
Air deflector:
Aluminum air tank:

Photos

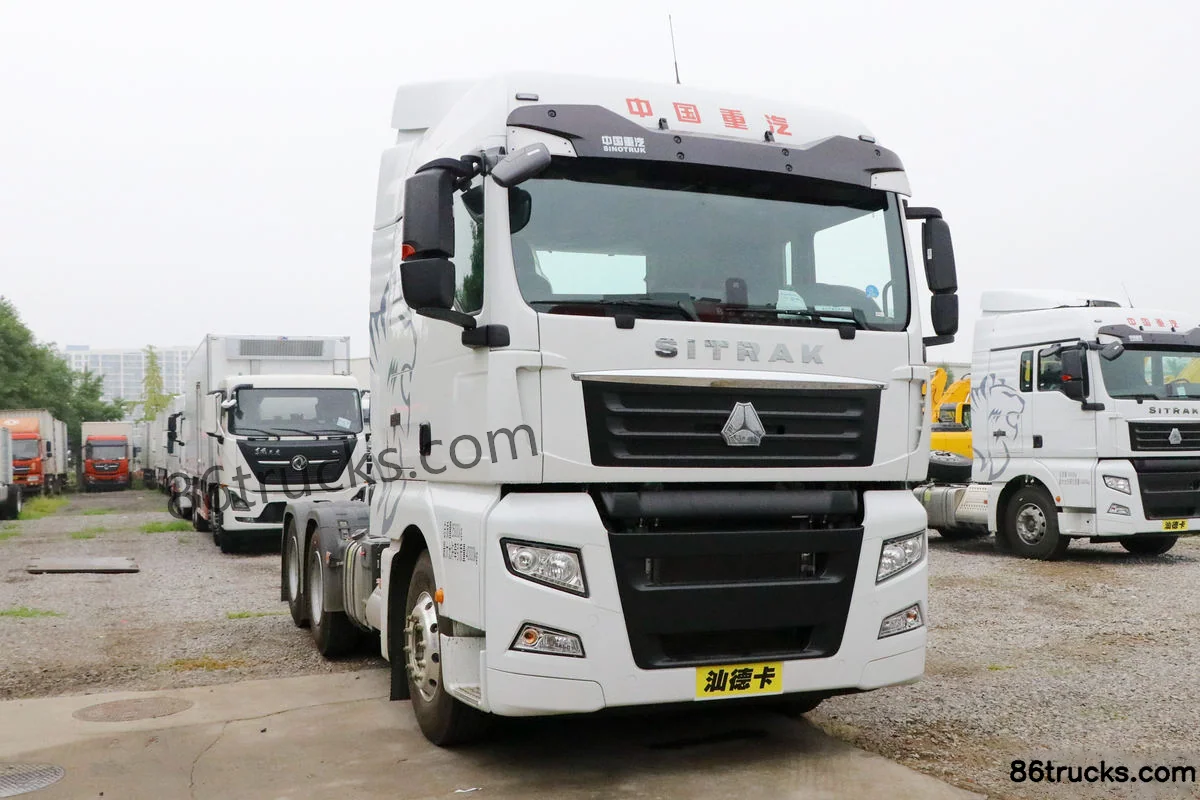

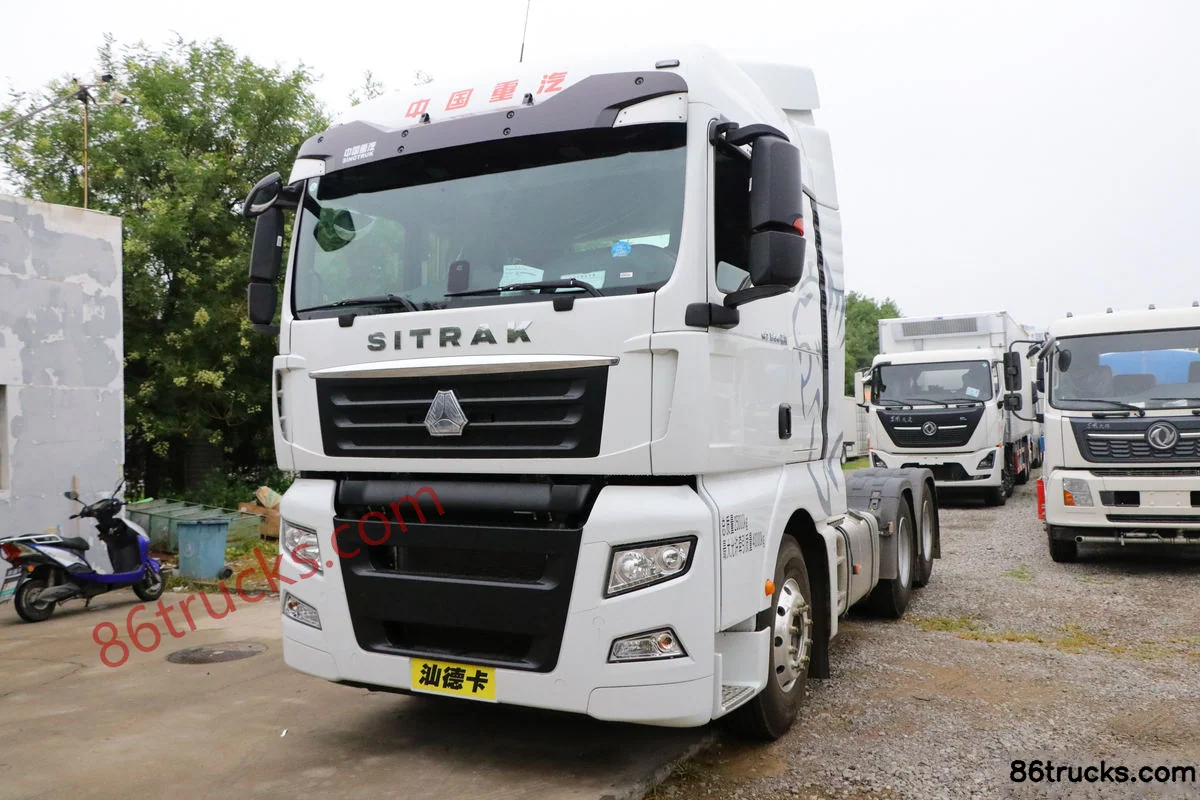

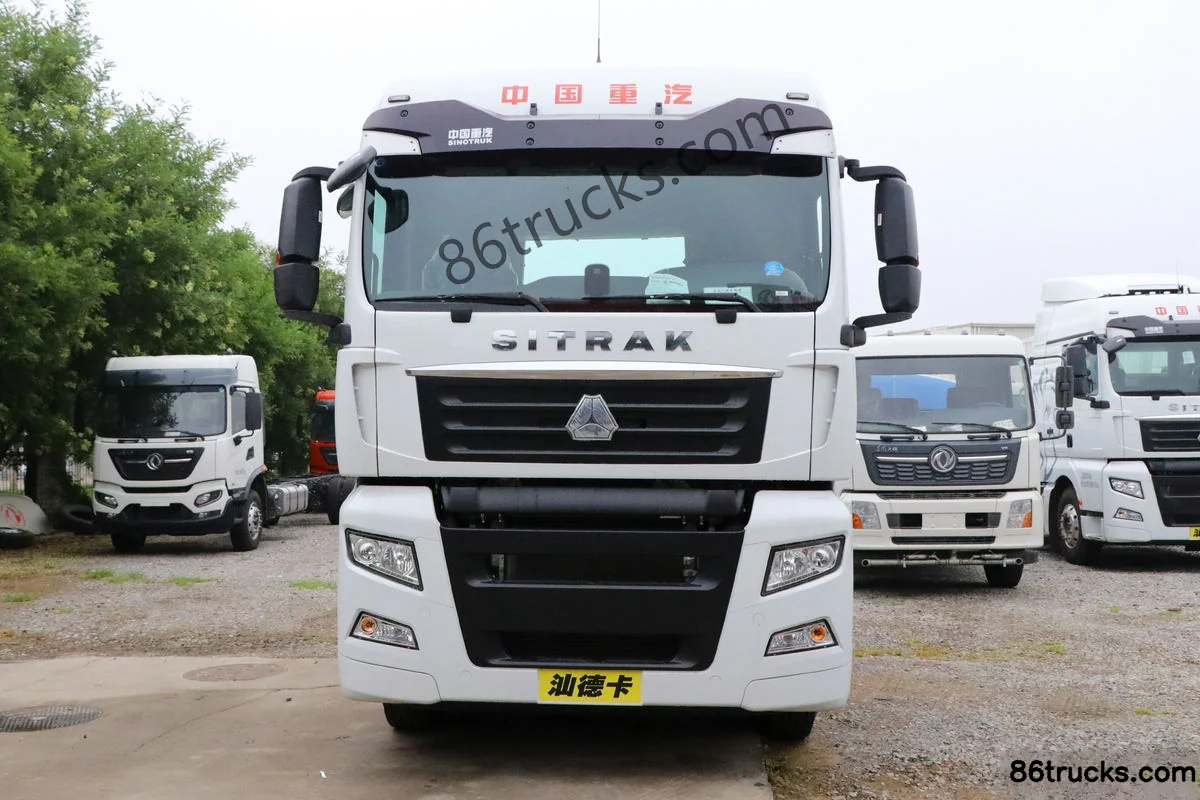

Exterior3

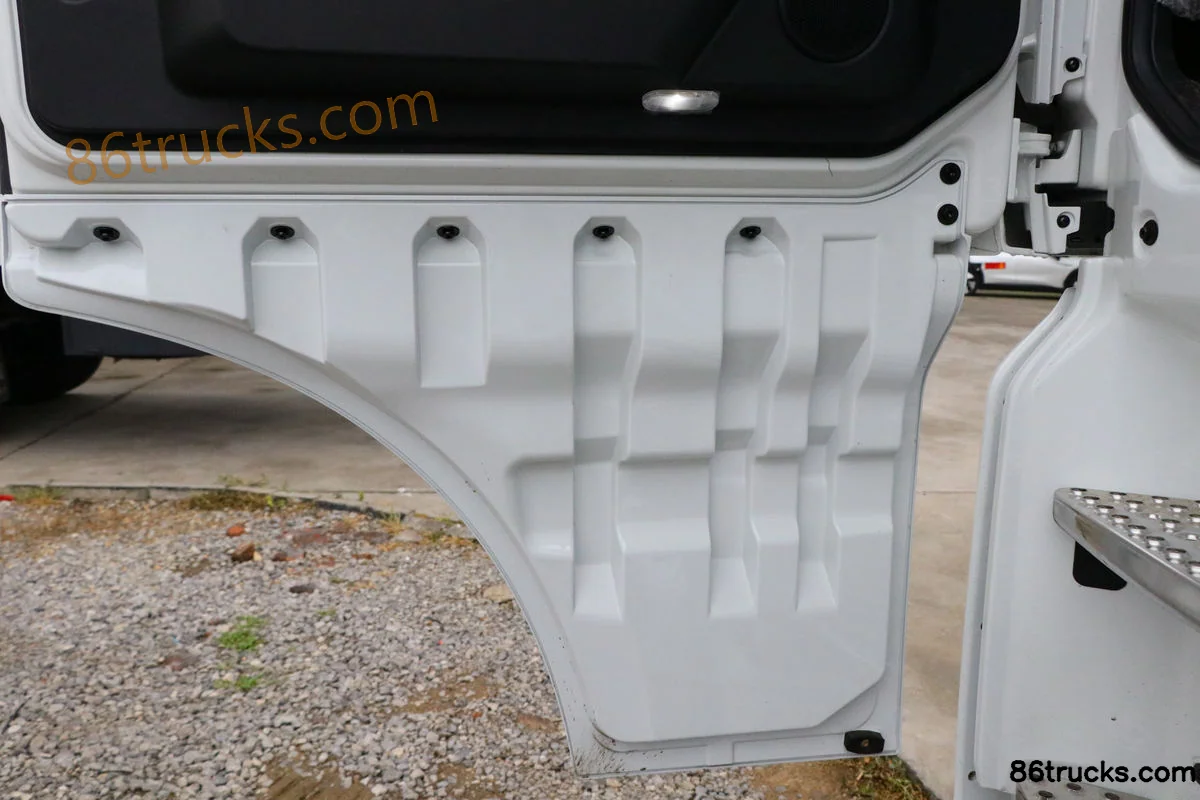

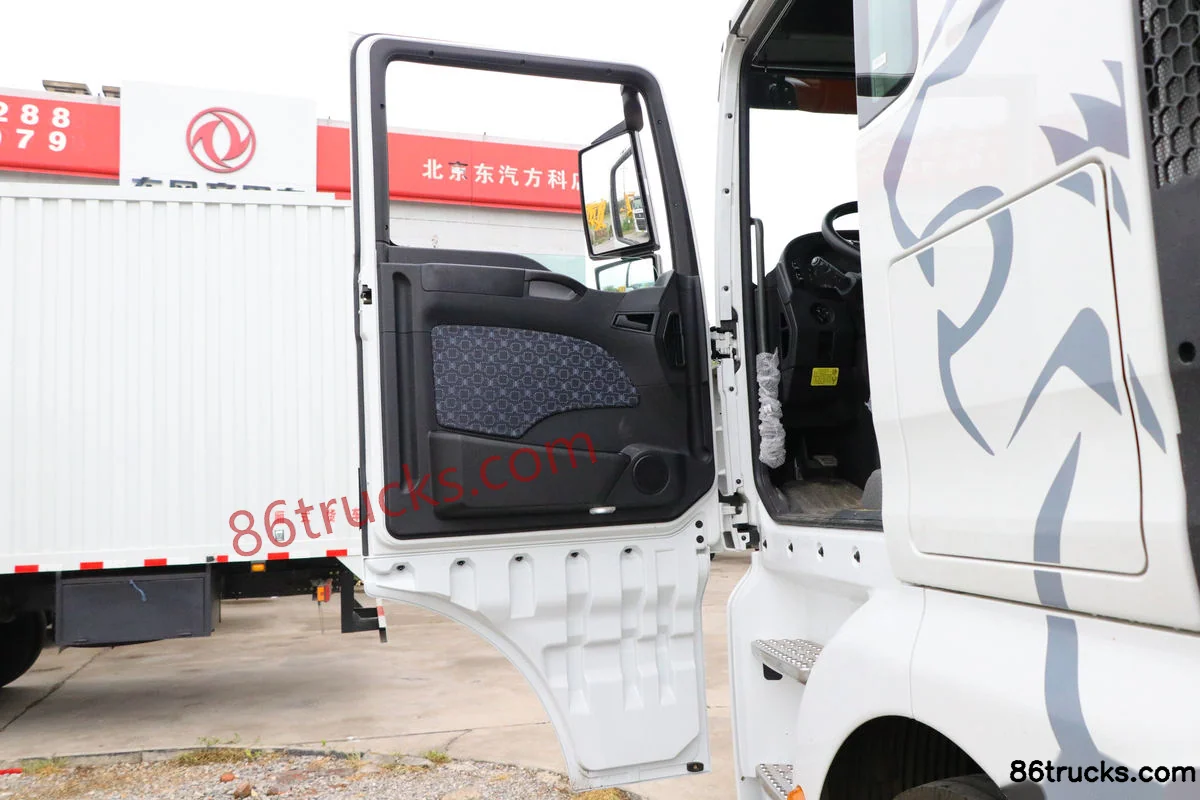

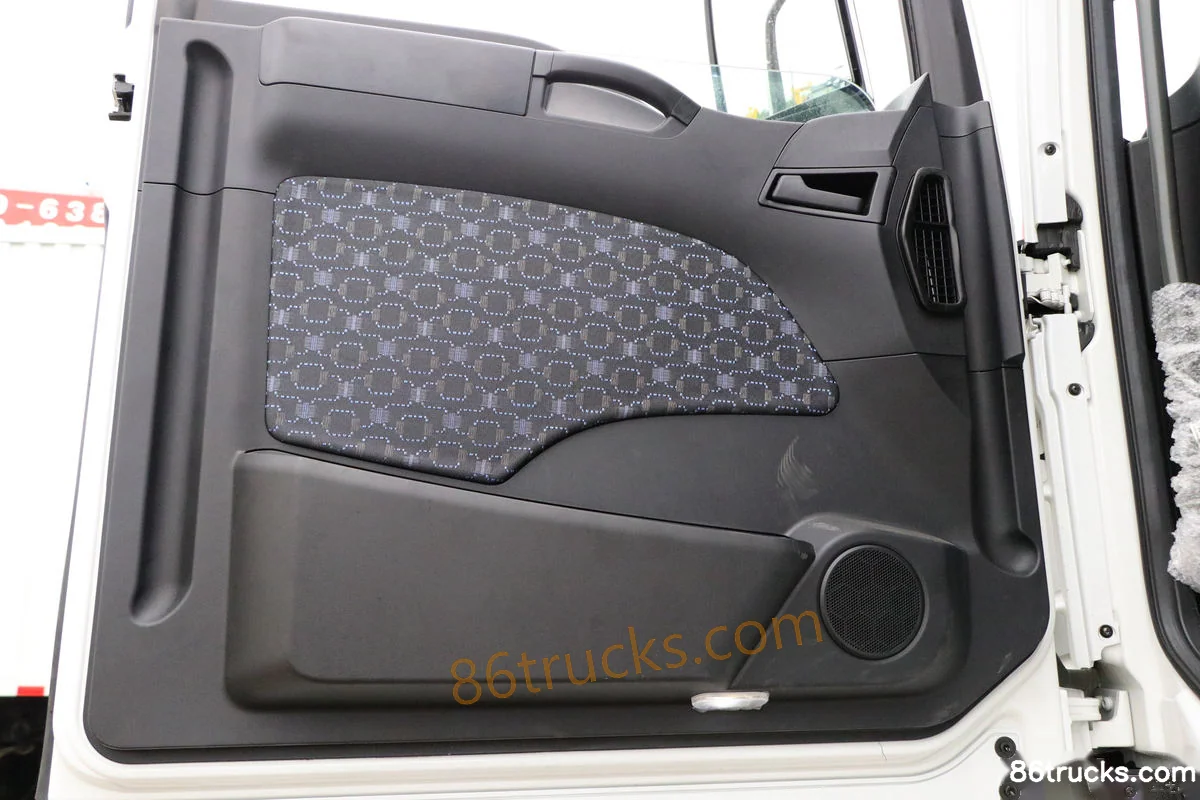

Cab3

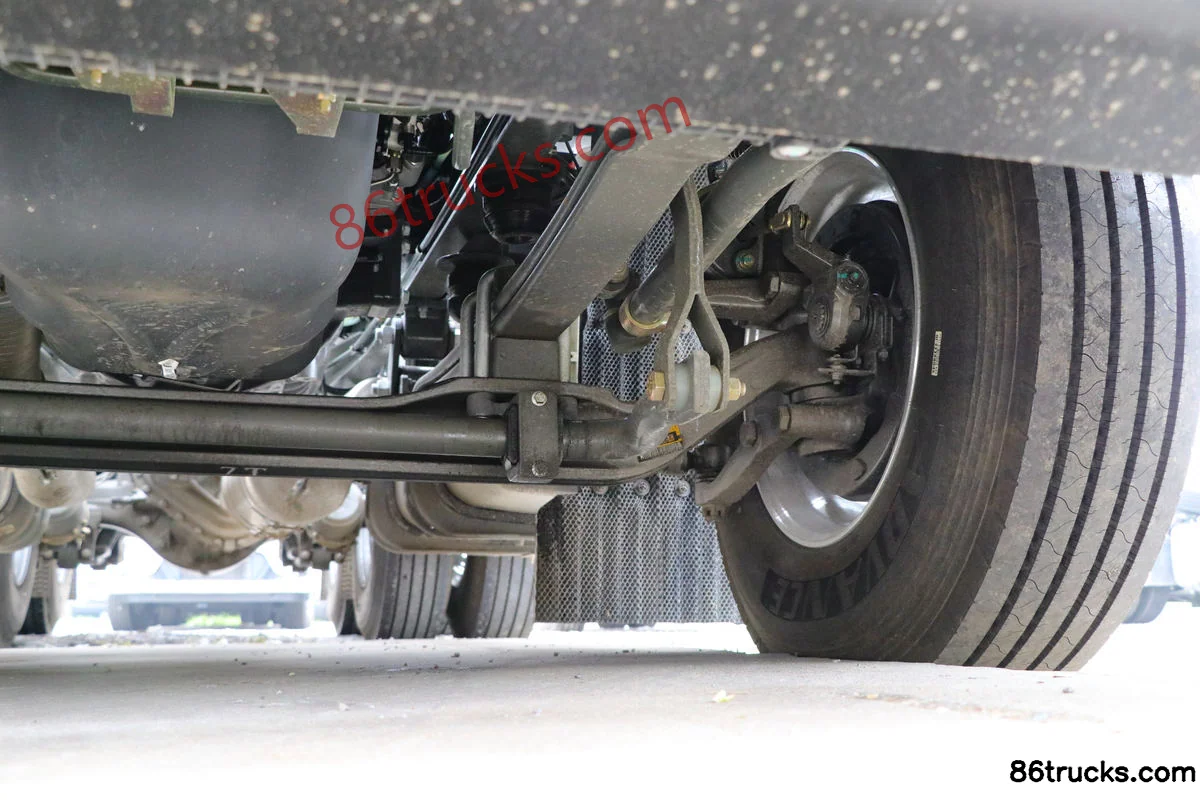

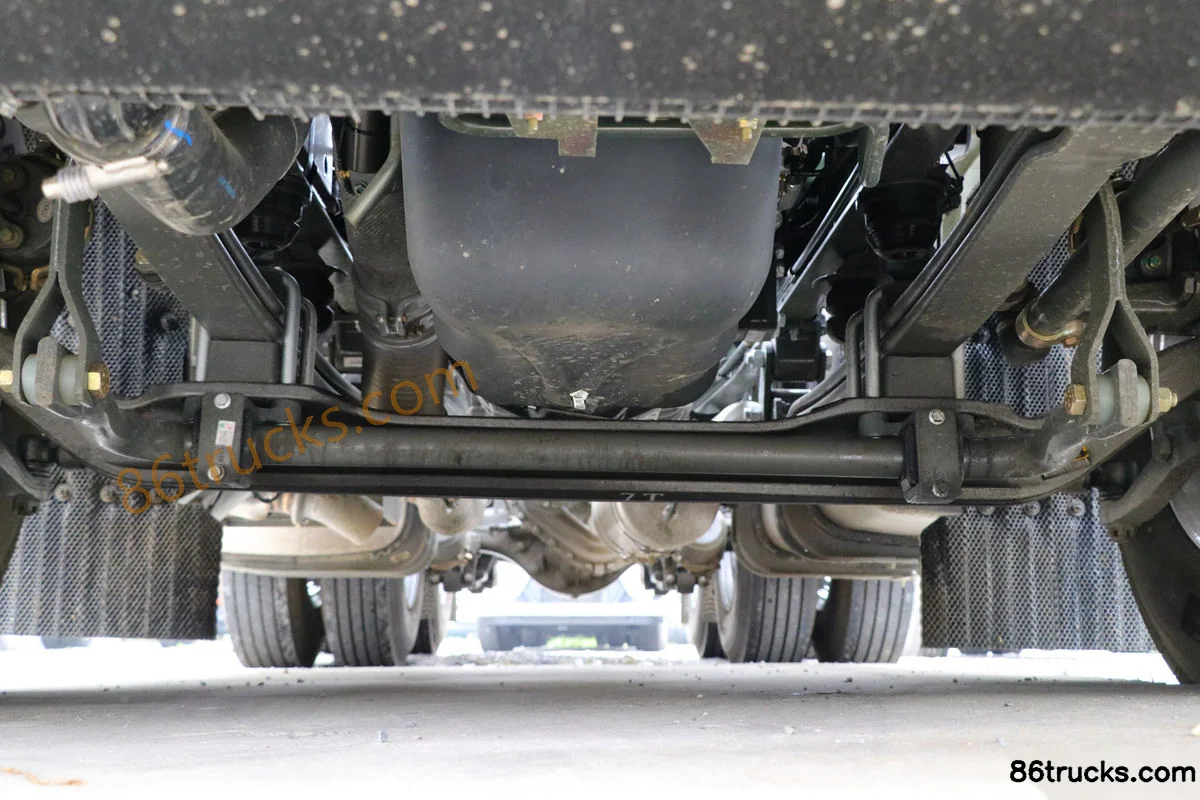

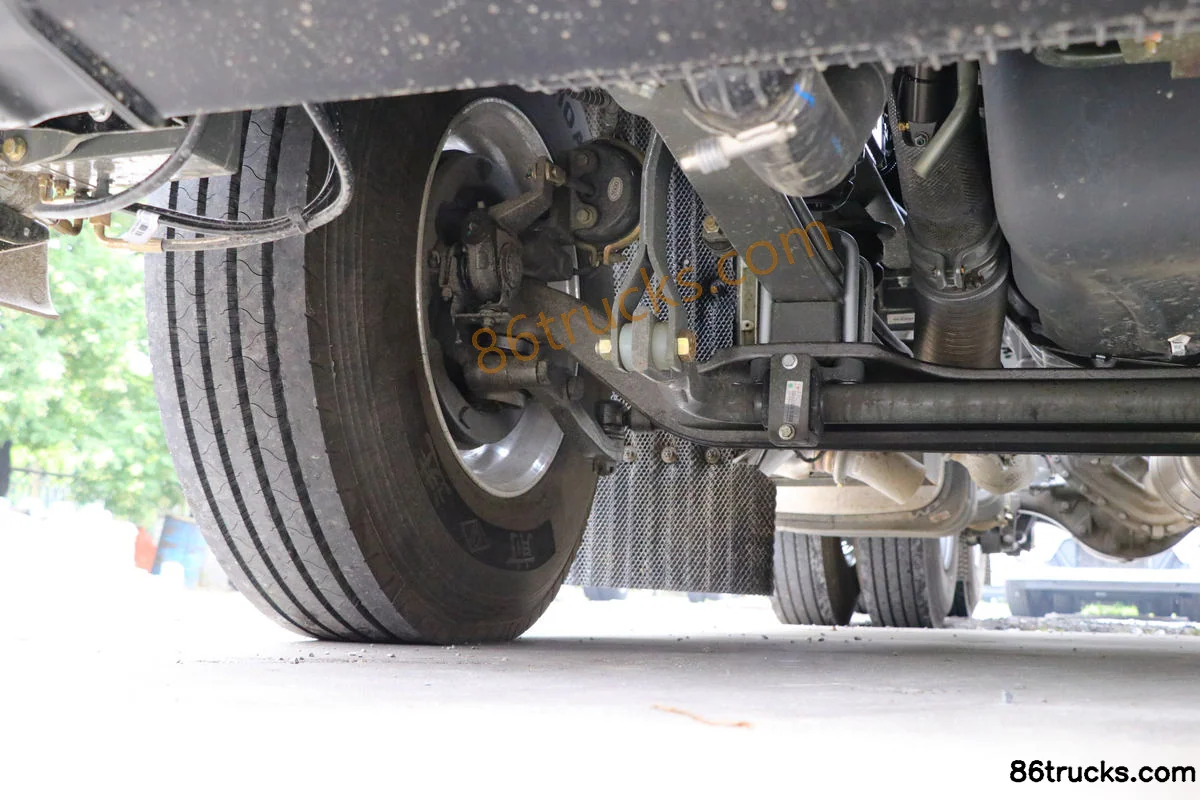

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI)?

Key specs of Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI): Drive: 6x4; Horsepower: 500 hp; Emission: China VI; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI) suited for?

Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI) differ from other variants in the same series?

Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI) belongs to Sitrak G7 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK G7 Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
