Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 4700mm
Cab dimensions:: 8.5×2.44×2.76m
Truck Type:: fuel tanker truck
Front track width:: 1960mm
rear track:: 1847mm
Drive 4X2 (6 wheels)
Horsepower 190
Curb Weight: 5.4ton
Emission China V

Overview

The Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis is a fuel tanker truck featuring 5.4ton GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 190 hp, China V emissions and Diesel fuel.

China V 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.5×2.44×2.76m
Truck Type: fuel tanker truck
Drive type: 4X2
Wheelbase: 4700mm
Front track width: 1960mm
rear track: 1847mm
Curb Weight: 5.4ton
Max. speed: 79km/h
Front/rear suspension: 1.365/2.435m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISD190 50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.7L
Emission standard: China V
Max output power: 144kW
Max hp: 190Horsepower
Max torque: 700N·m
Max torque speed: 1100-1700rpm
Rated speed: 2500rpm
Engine Type: Common Rail
Body Parameters
Transport medium: gasoline
Medium Density: 0.7ton/cubic meter
Body Brand: FotonAuman
Chassis Specs
Chassis Brand: FotonAuman
Chassis Series: AumanETX
Chassis Model: BJ5163GYY-AC
Frame Dimensions: 250mm
Steering gear: Domestic
rear axle description: 10T
Axle ratio: 4.875
Leaf spring count: 10/10+8
clutch: Φ395
Transmission Parameters
Number of gears: 6Gear
Transmission Model: DachiDC6J95TA(Q)
Cab parameters
Cab: ETX-2200 flat roof
Tire
Tire Size: 10.00R20,10R22.5
Number of tires: 6pcs

Photos

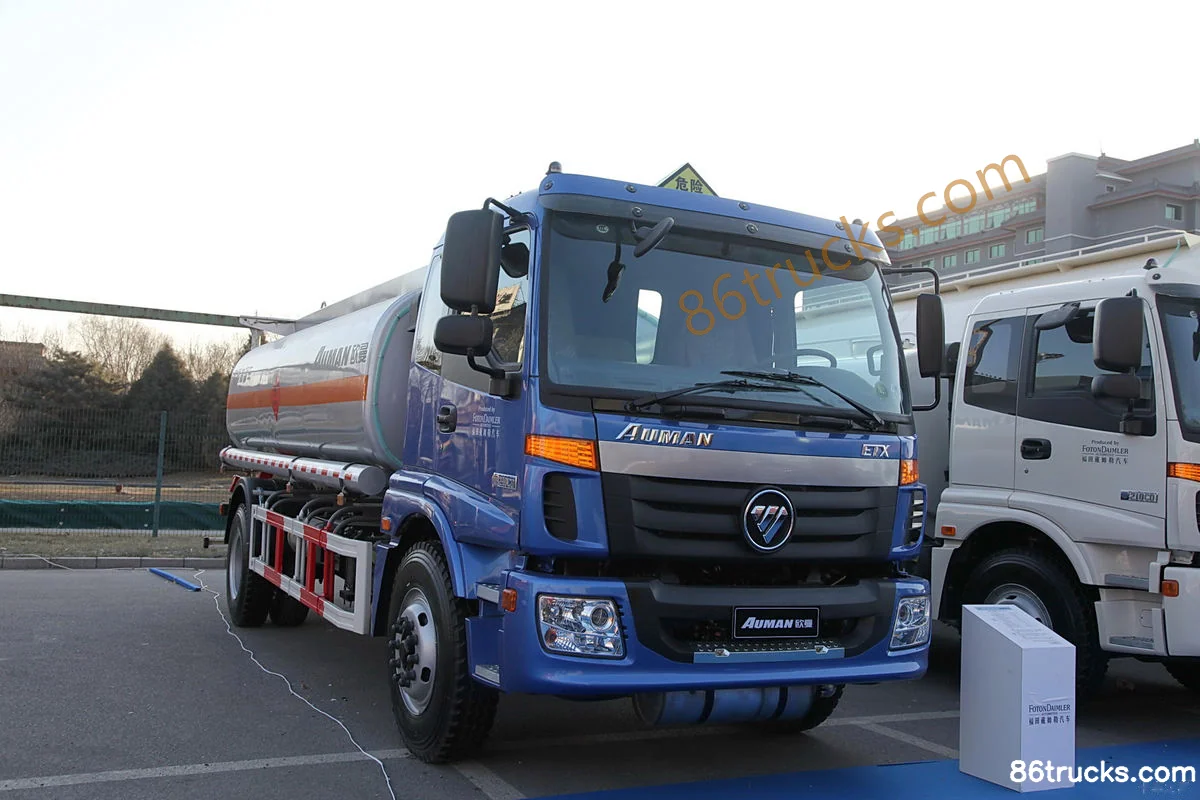

Exterior1

1 photos

FAQ

What emission standard does Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis?

Key specs of Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis: Drive: 4x2; Horsepower: 190 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis suited for?

Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis differ from other variants in the same series?

Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis belongs to Foton Auman ETX Heavy Truck (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman ETX 5 Series 190 hp 4X2(6 wheels) oil tanker chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
