SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck

Export reference
MSRP N/A
Horsepower: 150
Emission: China V
Fuel: Diesel
Engine: WeichaiWP3N
Transmission: Fast Gear
Curb Weight:: 2.805ton
seating capacity: 2Personnel
Rated payload: 1.56ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck is a Light Truck featuring 4.18m cargo length, Van body cargo body, 2Personnel volume and 1.56t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP3N engine, 150 hp, 4X2 (6 wheels) drive and China V emissions.

China V 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): YTQ5040XXYKJ332
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: WeichaiWP3NQ150E50
transmission: Fast GearC6J45TB
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.53m
Cab height: 2.91m
Front track width: 1614mm
rear track: 1551mm
Curb Weight: 2.805ton
Rated payload: 1.56ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Shandong Yantai
tonnage class: Light Truck
Approach angle: 18°
departure angle: 14°
market segment: Urban Distribution
Remarks: Standard: multimedia MP5, cornering assist lighting
Front/rear suspension: 1.13/1.565m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ150E50
Engine info: WeichaiWP3N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China V
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 430N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast GearC6J45TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.18m
Cargo box width: 2.3m
Cargo box height: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1610kg
rear axle description: Hande maintenance-free
rear axle allowable load: 2885kg
Axle ratio: 4.33
Leaf spring count: 3/3+2,7/9+8
Tire
Tire Size: 7.50R16LT 6PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
Front fog lamp:
daytime running lights:

Photos

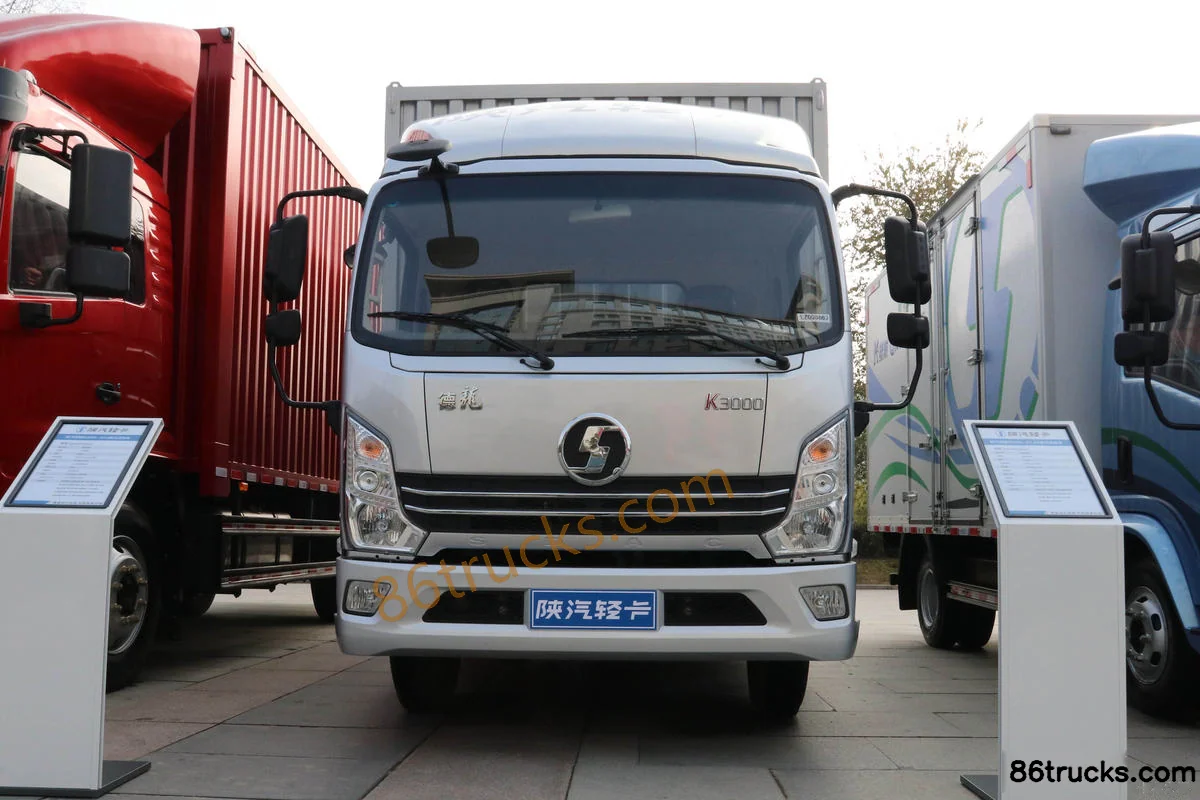

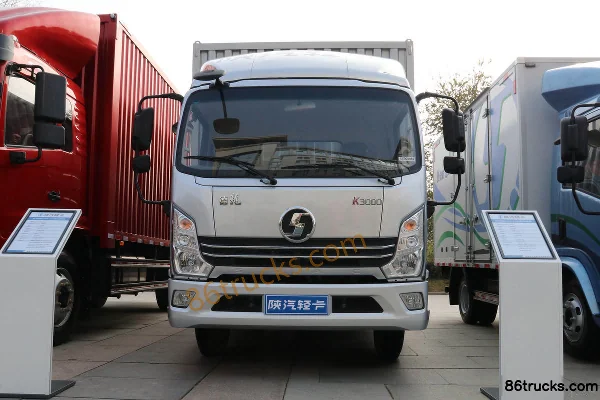

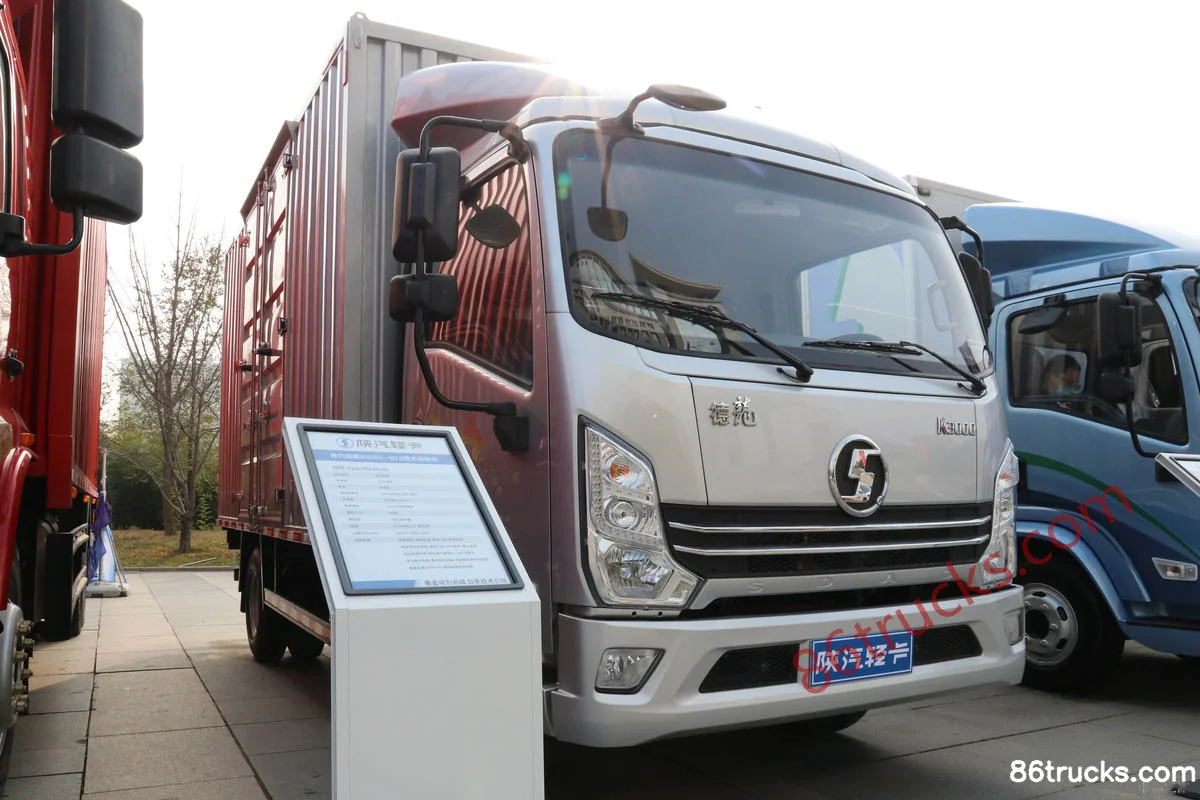

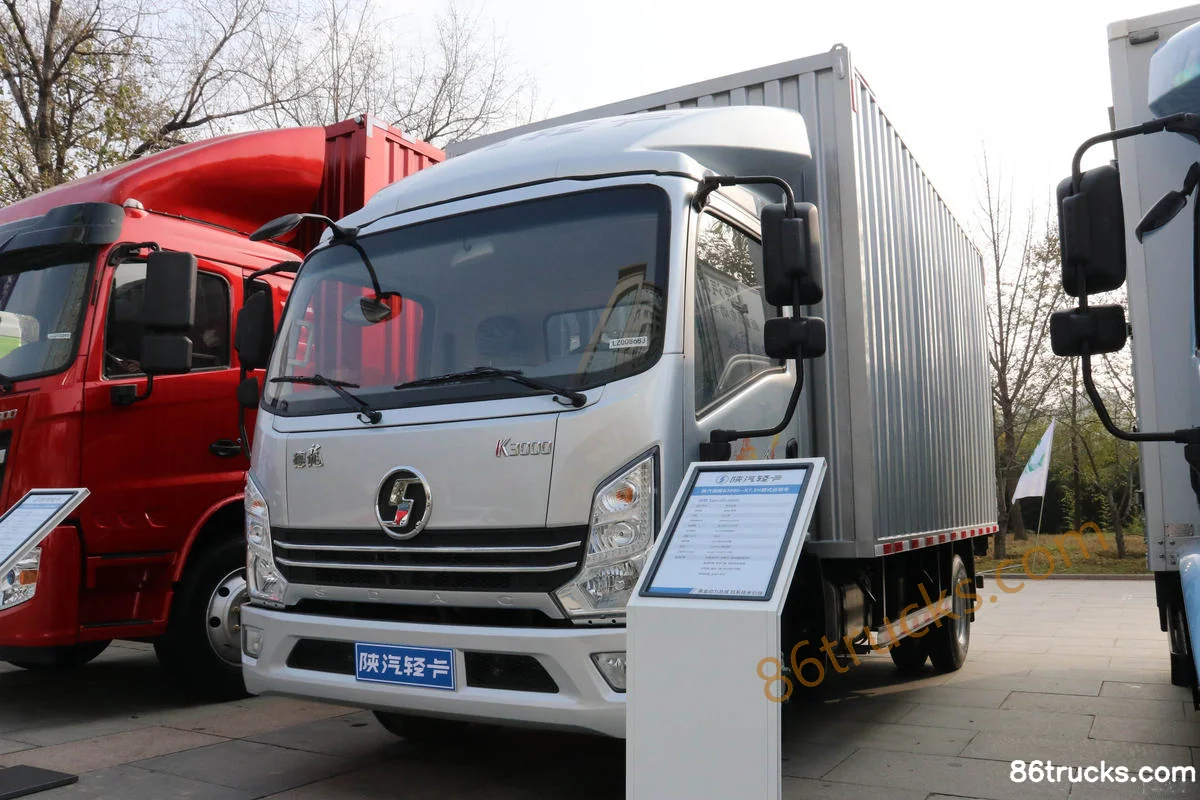

Exterior3

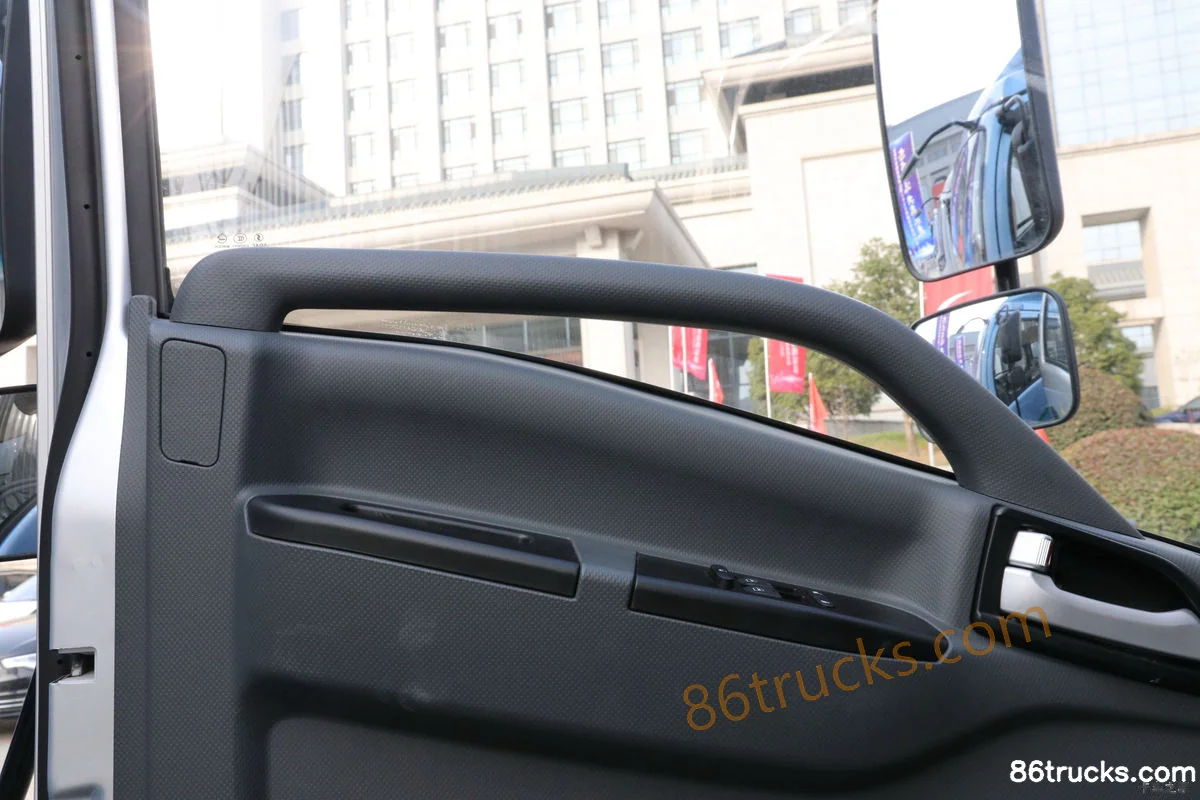

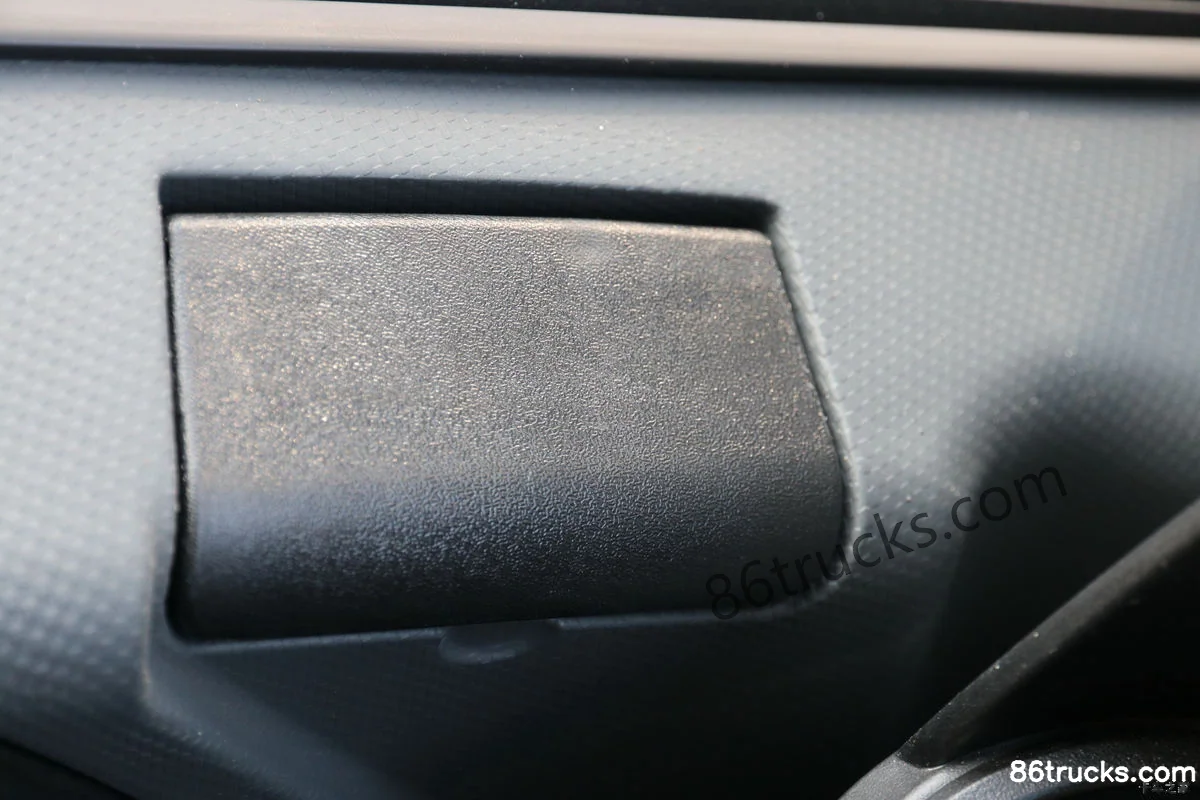

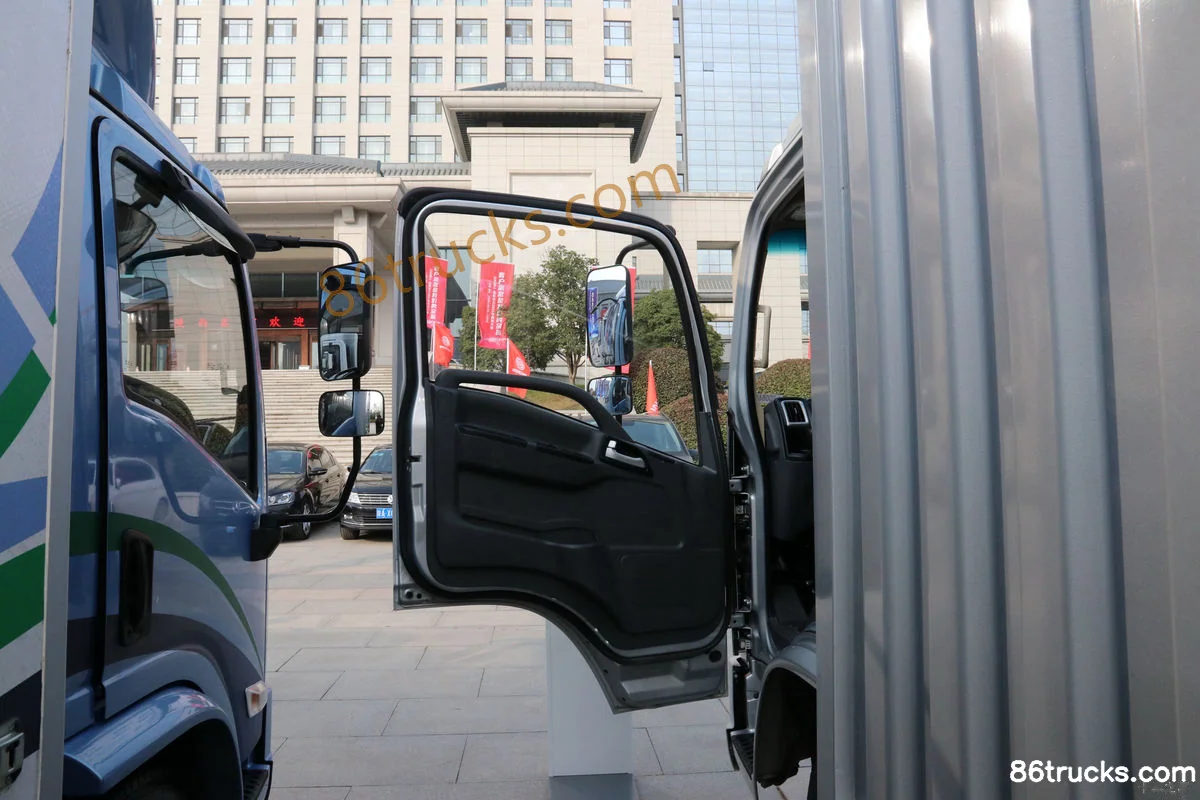

Cab3

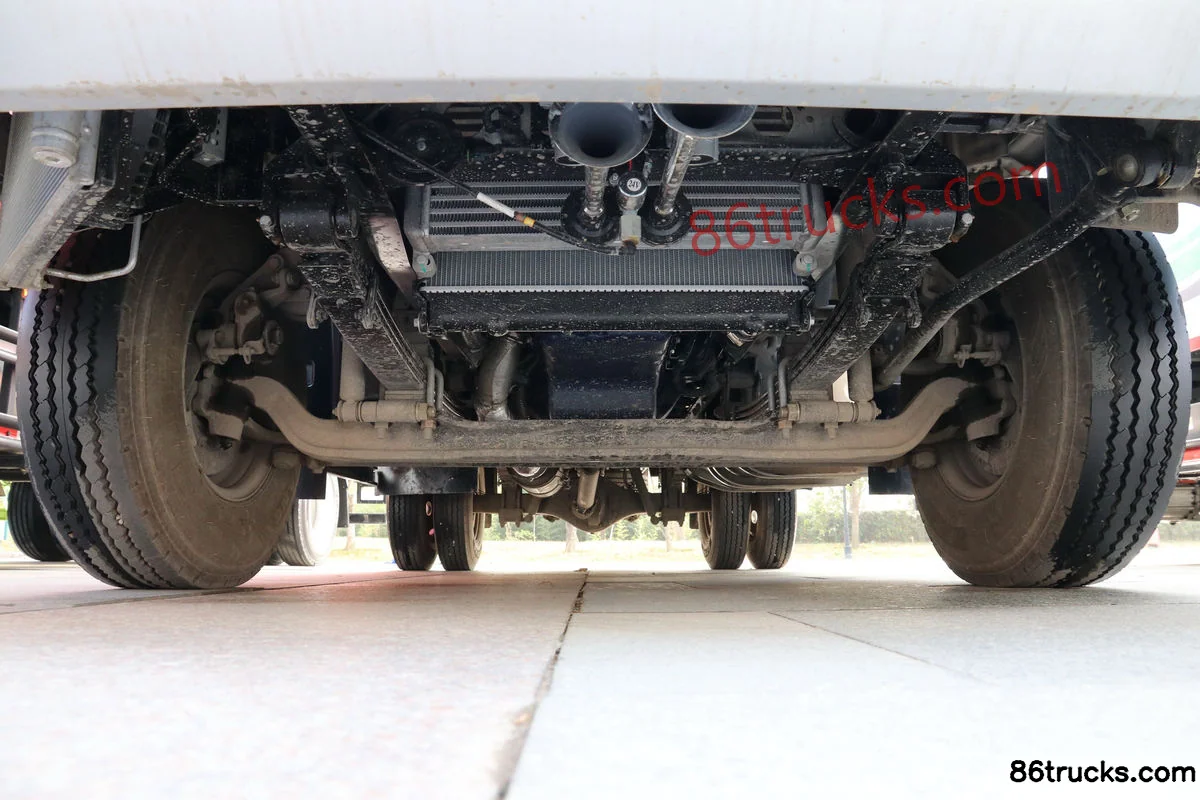

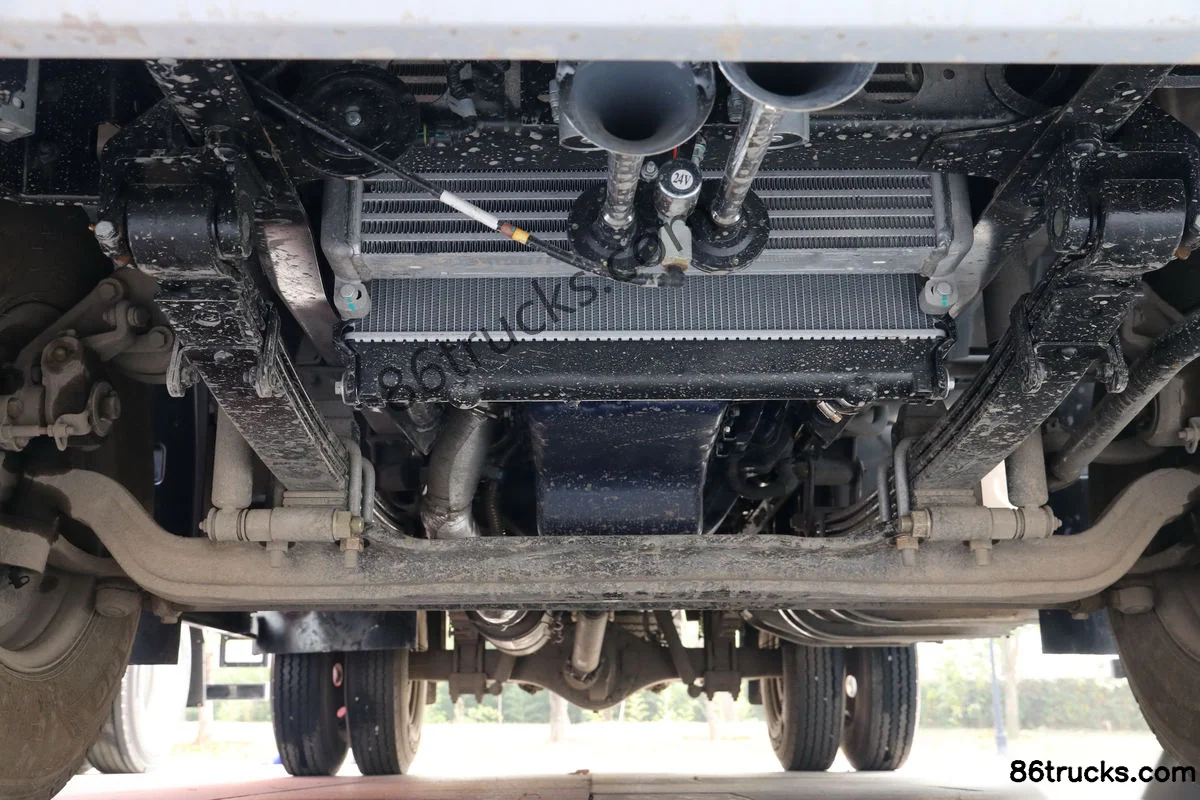

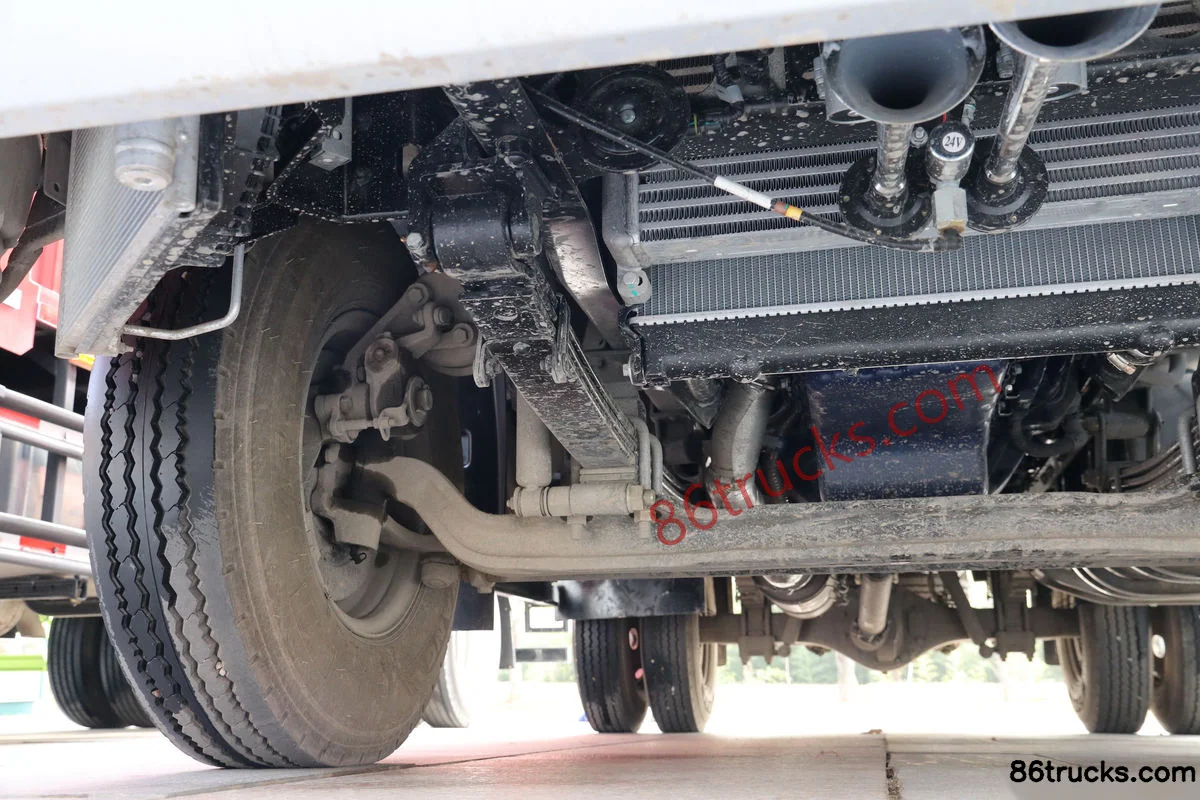

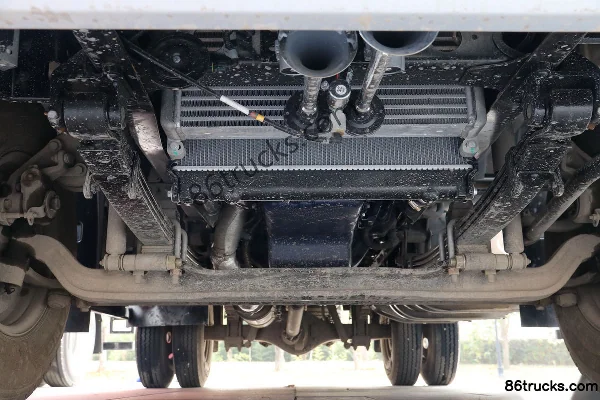

Chassis3

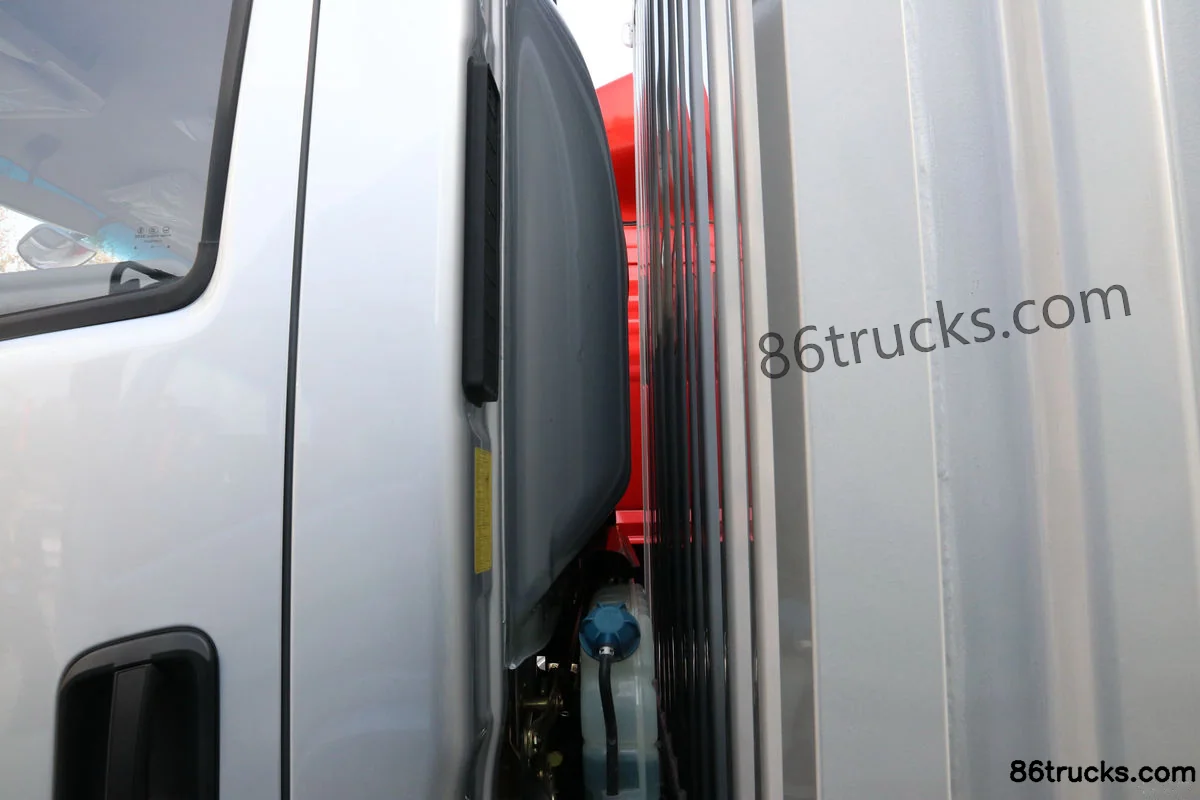

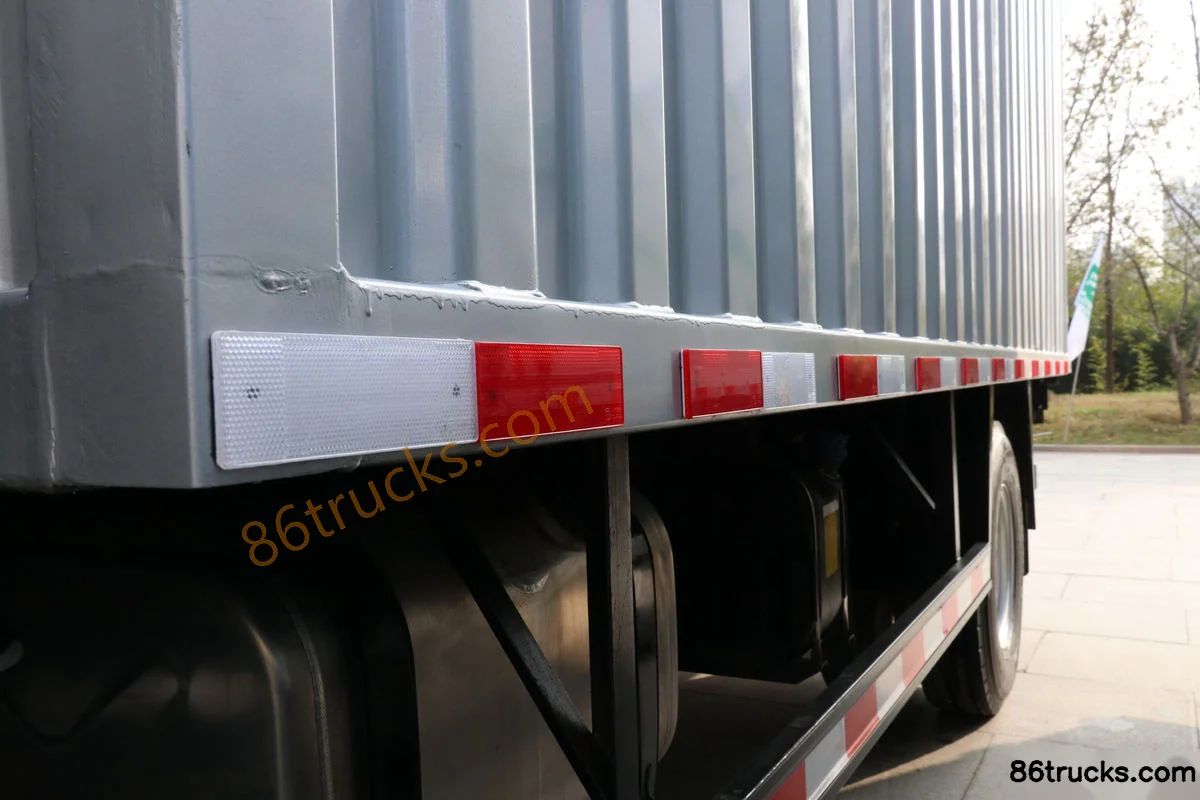

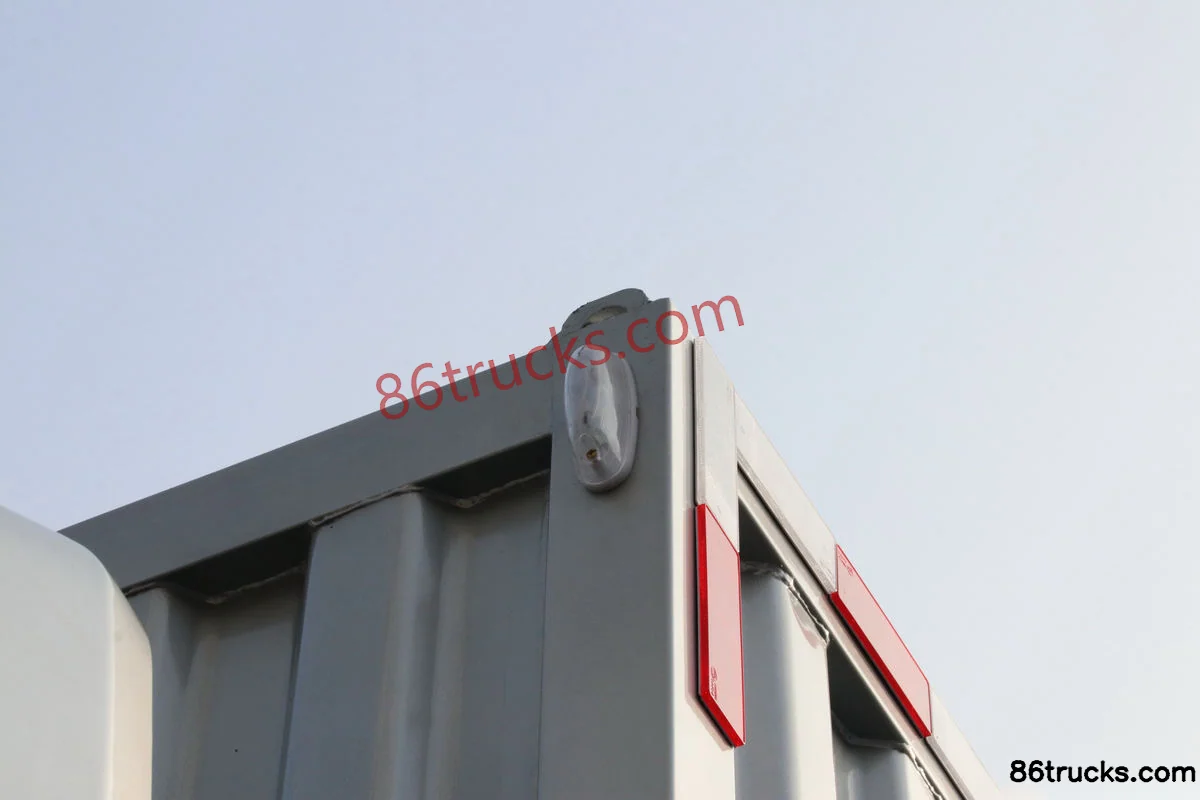

Body3

12 photos

FAQ

What emission standard does SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck?

Key specs of SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck: Drive: 4x2; Horsepower: 150 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP3N; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck suited for?

SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck differ from other variants in the same series?

SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck belongs to SHACMAN Delong K3000 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Light Truck Delong K3000 150hp 4X2(6 wheels) 4.18m Single Row Box Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
