Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh

Export reference
From $11,222
MSRP ¥8.08M CNY
Wheelbase:: 2800mm
Model code (announced):: SQR5023XXYBEVK06
Cab length:: 4.43m
GVWR:: 2.05ton
Max. speed:: 100km/h
Energy Type:: Electric
CLTC range: 235km
Motor 1 Brand: Honglin
Curb Weight: 1.39ton
Rated payload: 0.53ton

Overview

The Chery Commercial Vehicle Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh is a Electric Panel Van featuring 235km battery/range, Honglin motor, 0.53t payload and 2.05t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR5023XXYBEVK06
Wheelbase: 2800mm
Cab length: 4.43m
Cab width: 1.626m
Cab height: 1.93m
CLTC range: 235km
Curb Weight: 1.39ton
Rated payload: 0.53ton
GVWR: 2.05ton
Max. speed: 100km/h
Version:
Energy Type: Electric
electric motor
Motor 1 Brand: Honglin
Motor 1 Model: HLTZ220XS
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 20kW
Peak power: 60kW
total peak torque: 180N·m
Battery/Charging
Battery type: NMC lithium battery pack
Battery capacity: 34kWh
Battery rated voltage: 355.2V
Energy Density: 128
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Sliding side door
Tailgate type: single door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 175/70R14C
Rear Wheel Specification: 175/70R14C
Cab parameters
Seat rows:
Safety features
Remote key:
Control configuration
Stability control (ESP/DSC/VSC etc.):
interior configuration
Power Windows:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:

Photos

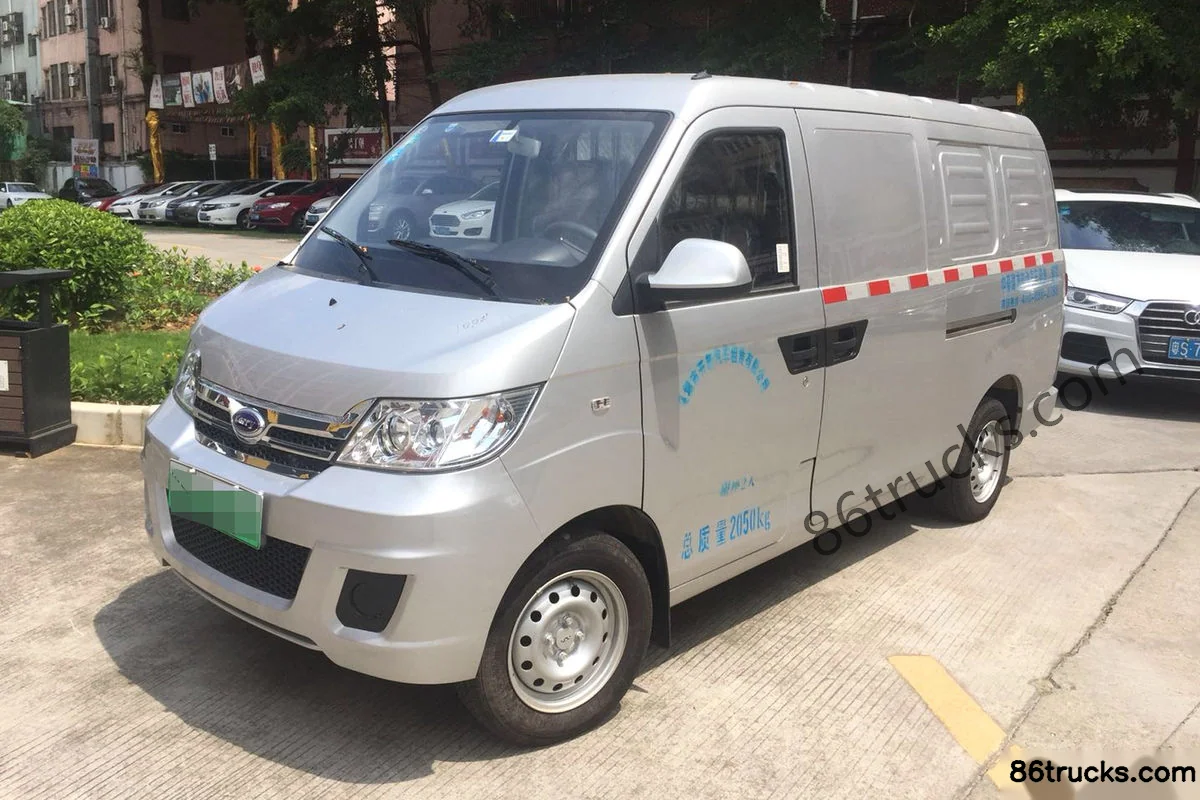

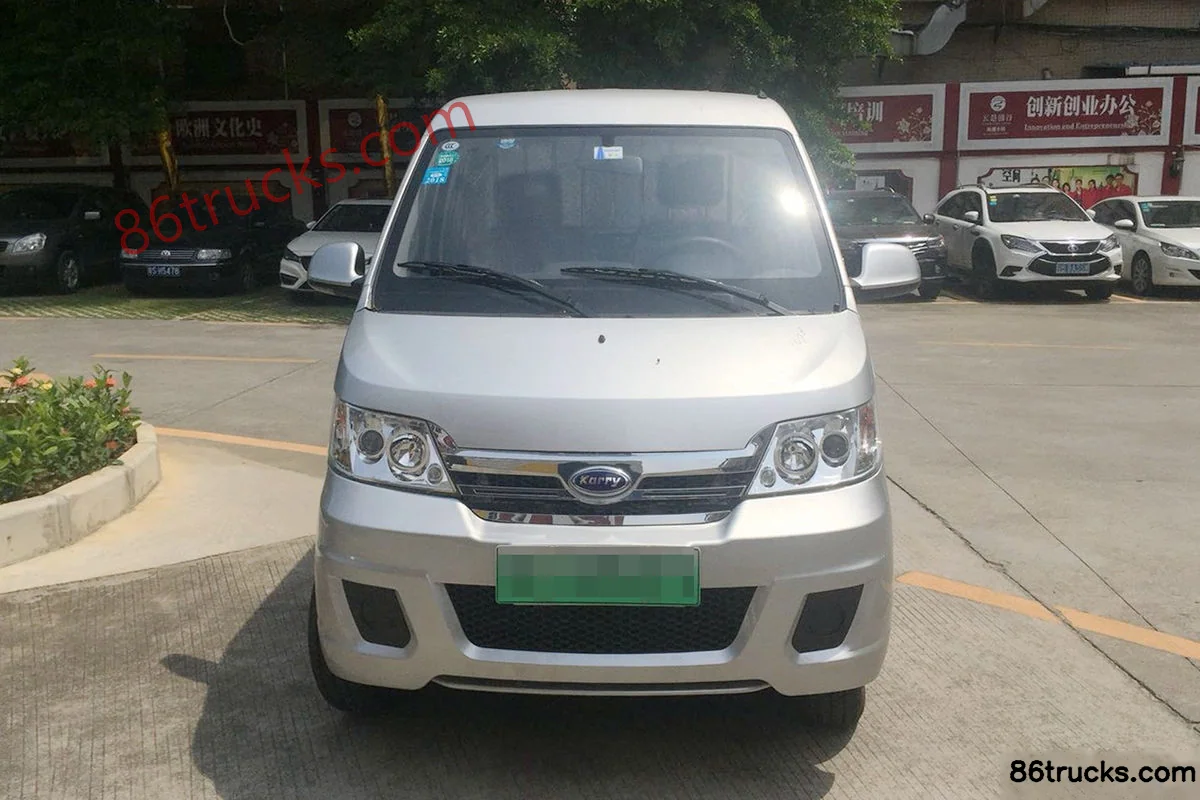

Exterior3

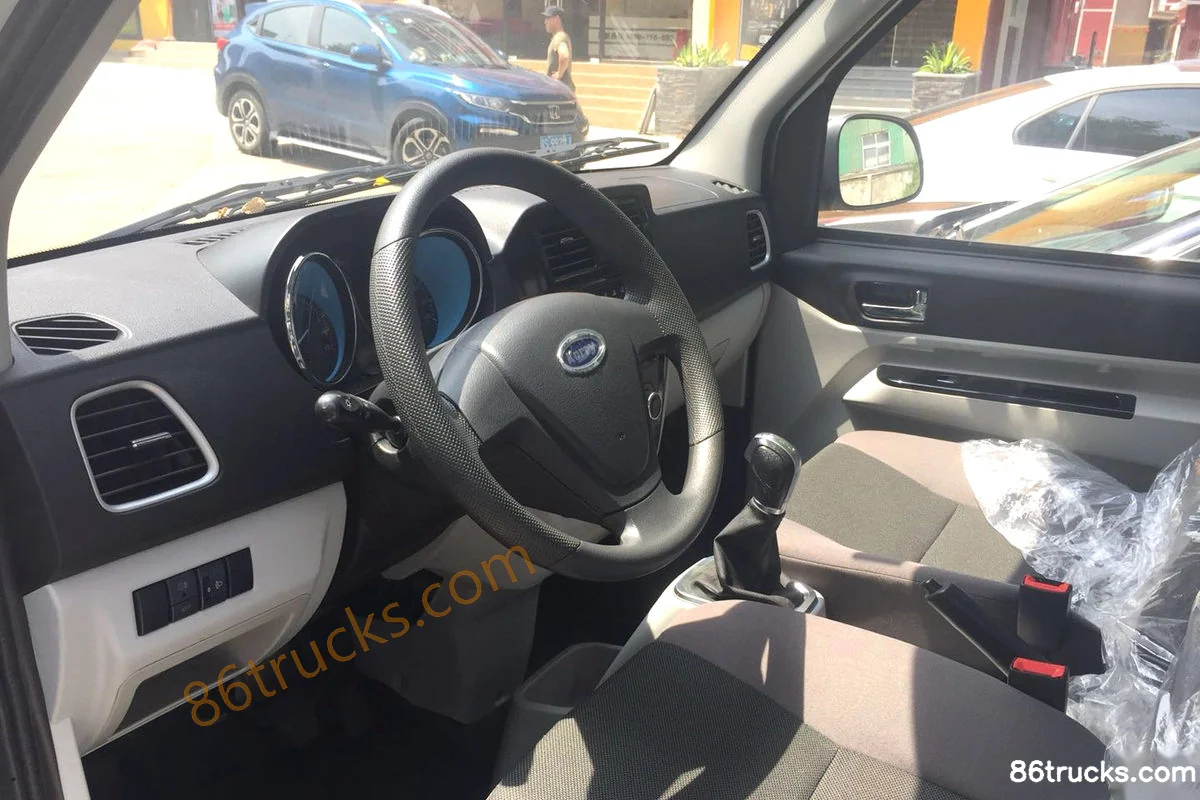

Cab1

4 photos

FAQ

What is the export price of Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh, and what does it include?

Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh export reference is about From $11,222; MSRP is ¥8.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh suited for?

Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh differ from other variants in the same series?

Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh belongs to Karry Youyou (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Youyou EV Standard Type 2T 4.43m Pure Electric Panel Van 34kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
