FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang)

Export reference
From $41,389
MSRP ¥29.8M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 13.36ton
Wheelbase:: 1900+4500+1350mm
Tire Size:: 11.00-20,11.00R20,12R22.5,295/80R22.5,295/60R22.5
Cab dimensions:: 11.995×2.54×3.99m
Rated payload: 17.51ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.435×2.375×2.49m
Horsepower 320

Overview

The FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang) is a Refrigerated Truck featuring 9.435×2.375×2.49m cargo body, 17.51t payload, TianV cab and 1900+4500+1350mm wheelbase. On the powertrain side, it comes with 320 hp, 8X4 (12 wheels) drive, China V emissions and Diesel fuel.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.995×2.54×3.99m
Drive type: 8X4
Truck Type: Refrigerated Truck
Vehicle origin: Qingdao, Shandong
Wheelbase: 1900+4500+1350mm
Front track width: 2020/2020mm
rear track: 1847/1847mm
Curb Weight: 13.36ton
Rated payload: 17.51ton
Max. speed: 102km/h
Front/rear suspension: 1.515/2.73m
Energy Type: Diesel
Engine parameters
Engine Model: XichaiCA6DL1-32E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China V
Max output power: 238kW
Max hp: 320Horsepower
Max torque: 1250N·m
Rated speed: 2300rpm
Cargo box parameters
Cargo box dimensions: 9.435×2.375×2.49m
Cargo box width: 2.375m
Cargo box height: 2.49m
Body Parameters
Body Brand: Binglingfang
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Tu V
Chassis Model: CA1313P2K2L7T4BE5A80
Axle ratio: 4.875
Leaf spring count: 11/11/12,12/12/10,10/10/10,3/3/4
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAWCA10TAX160M
Cab parameters
Cab: TianV
Tire
Tire Size: 11.00-20,11.00R20,12R22.5,295/80R22.5,295/60R22.5
Number of tires: 12pcs

Photos

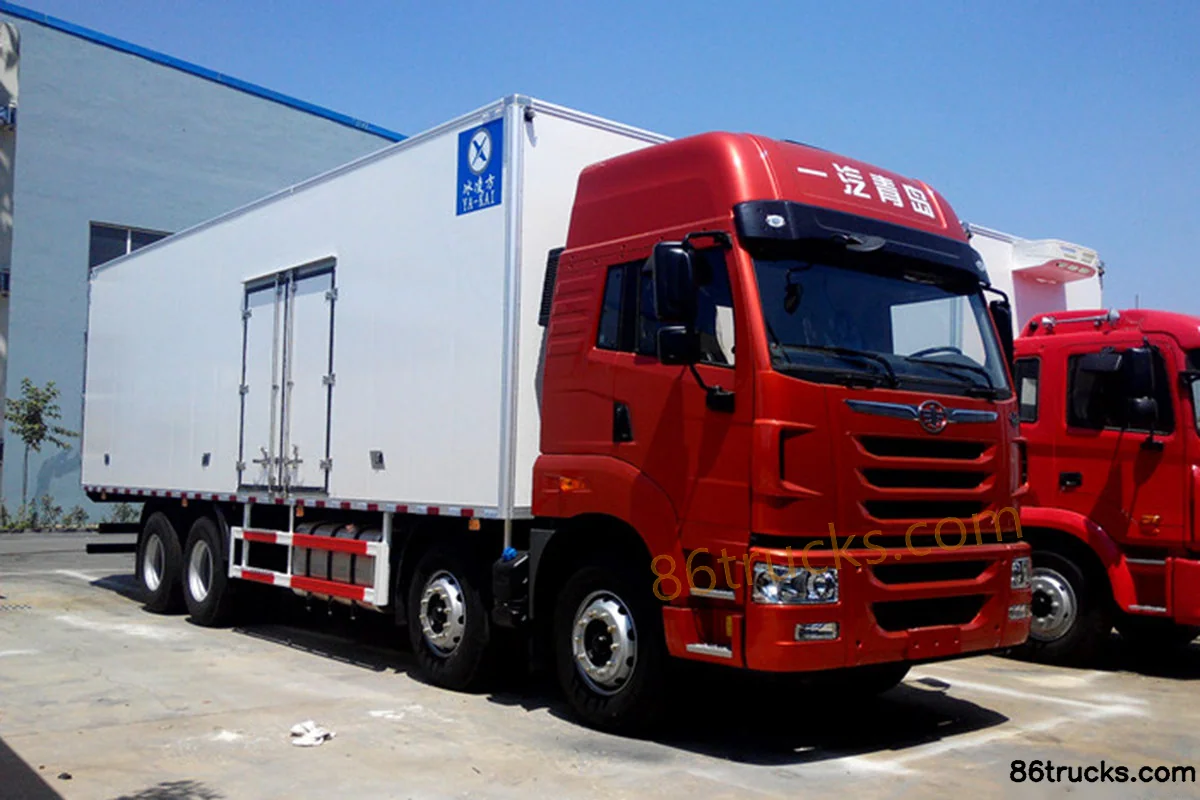

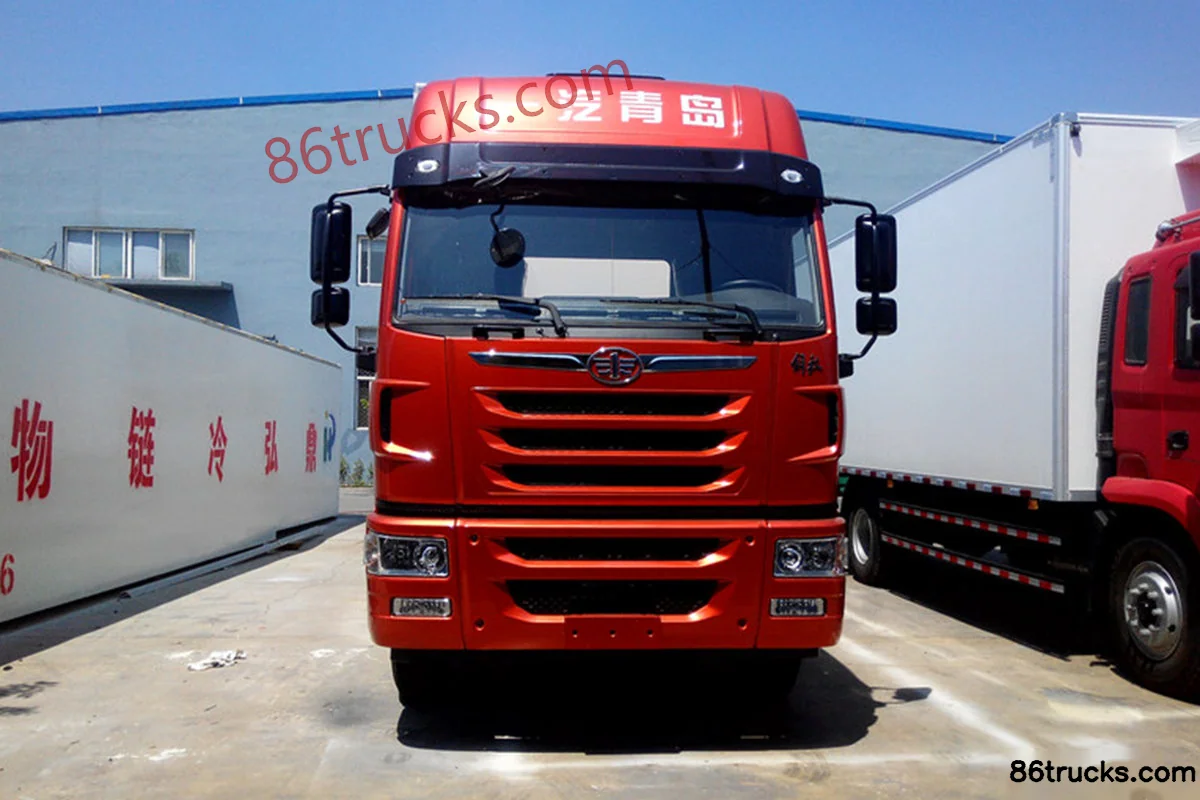

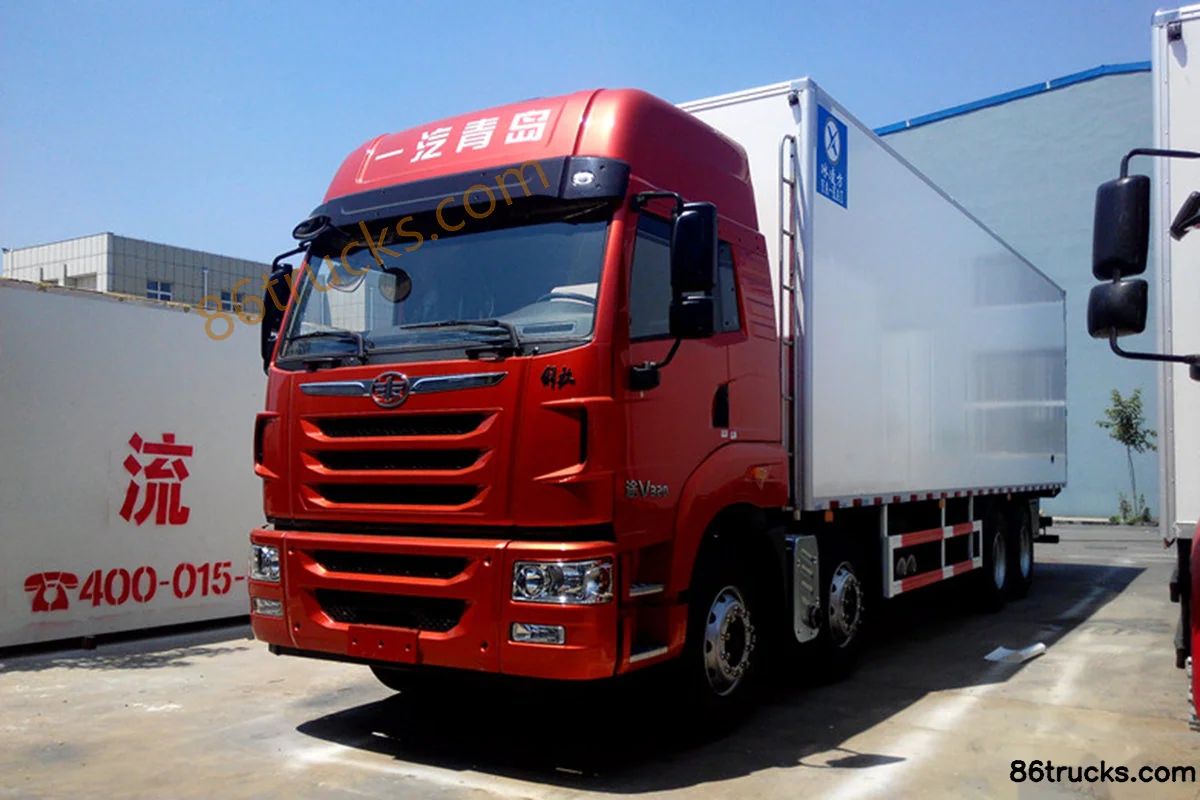

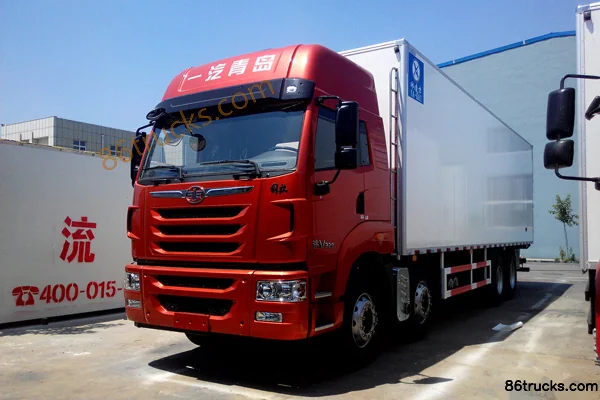

Exterior3

3 photos

FAQ

What is the export price of FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang), and what does it include?

FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang) export reference is about From $41,389; MSRP is ¥29.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang)?

Key specs of FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang): Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang) suited for?

FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang) differ from other variants in the same series?

FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang) belongs to Binglingfang FAW Jiefang Qingdao chassis (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Tu V Heavy Truck 320 hp 8X4(12 wheels) 9.435m Refrigerated Truck (Binglingfang)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
