Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck

Export reference
From $31,944
MSRP ¥23M CNY
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 9.2ton
seating capacity: 3Personnel
Rated payload: 8.67ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Van body cargo body, 3Personnel volume and 8.67t payload. Its segment focus covers Express parcel and LTL, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 240 hp, 4X2 (6 wheels) drive and China V emissions.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5186XXYN711GE1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.6m
engine: SinotrukMC07.24-50
transmission: SinotrukHW95508STCL
Rear Axle Ratio: 4.11
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2015mm
rear track: 1860mm
Curb Weight: 9.2ton
Rated payload: 8.67ton
GVWR: 18ton
Max. speed: 110km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle: 10°
market segment: Express parcel, LTL
Front/rear suspension: 1.43/3.47m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.24-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 925N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW95508STCL
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.5m
Cargo box height: 2.7m
*Cargo box interior width: 2.5
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: MCJ09BG
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 3/3+2
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

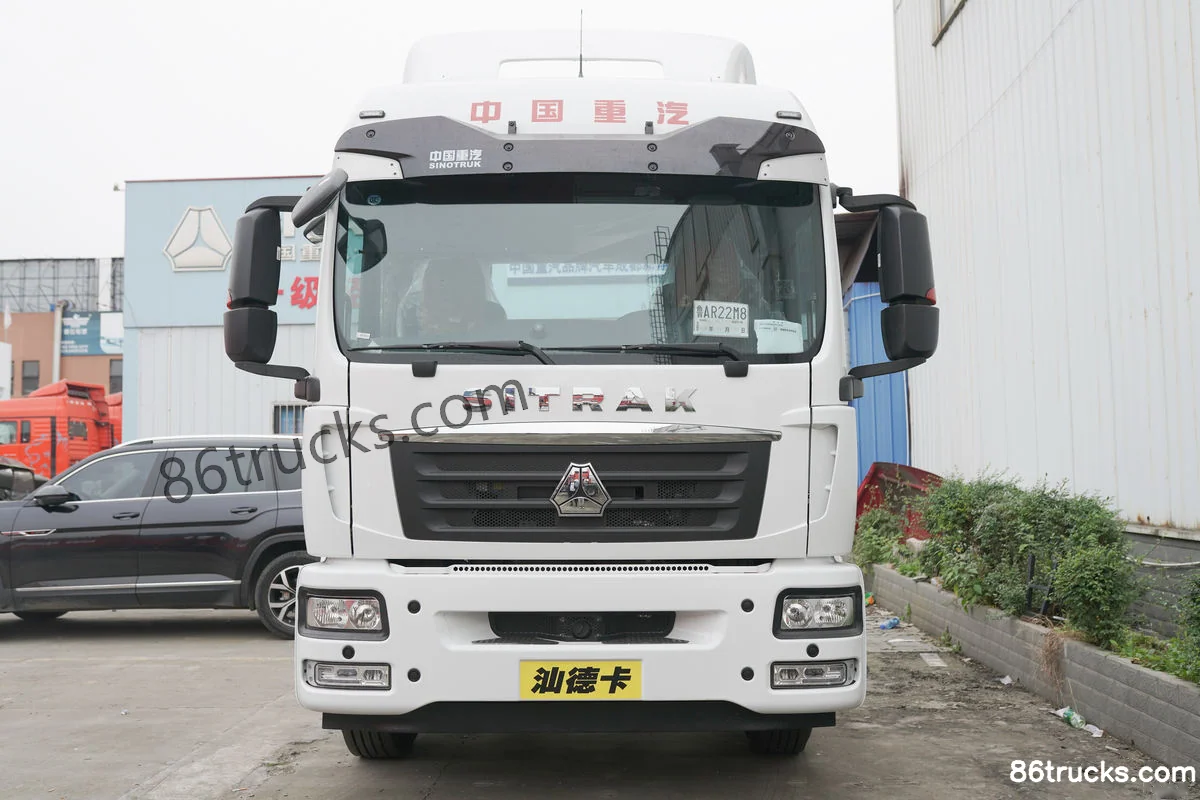

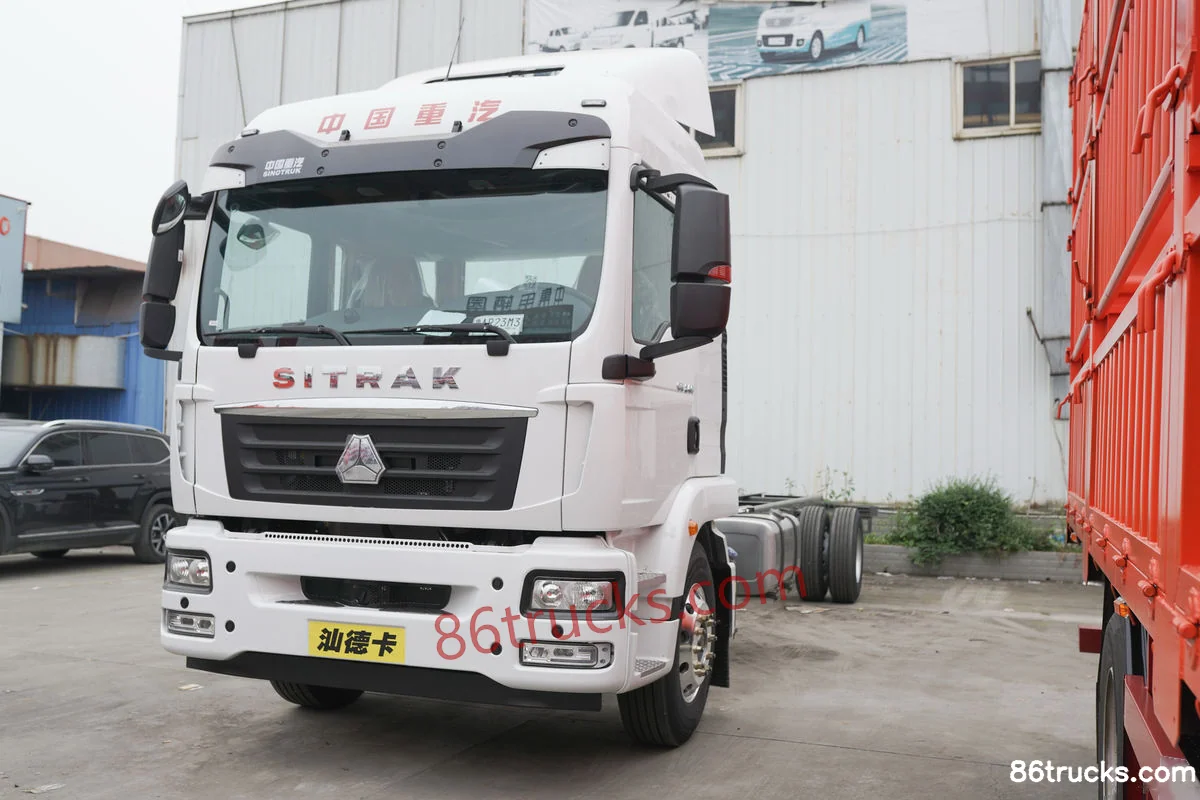

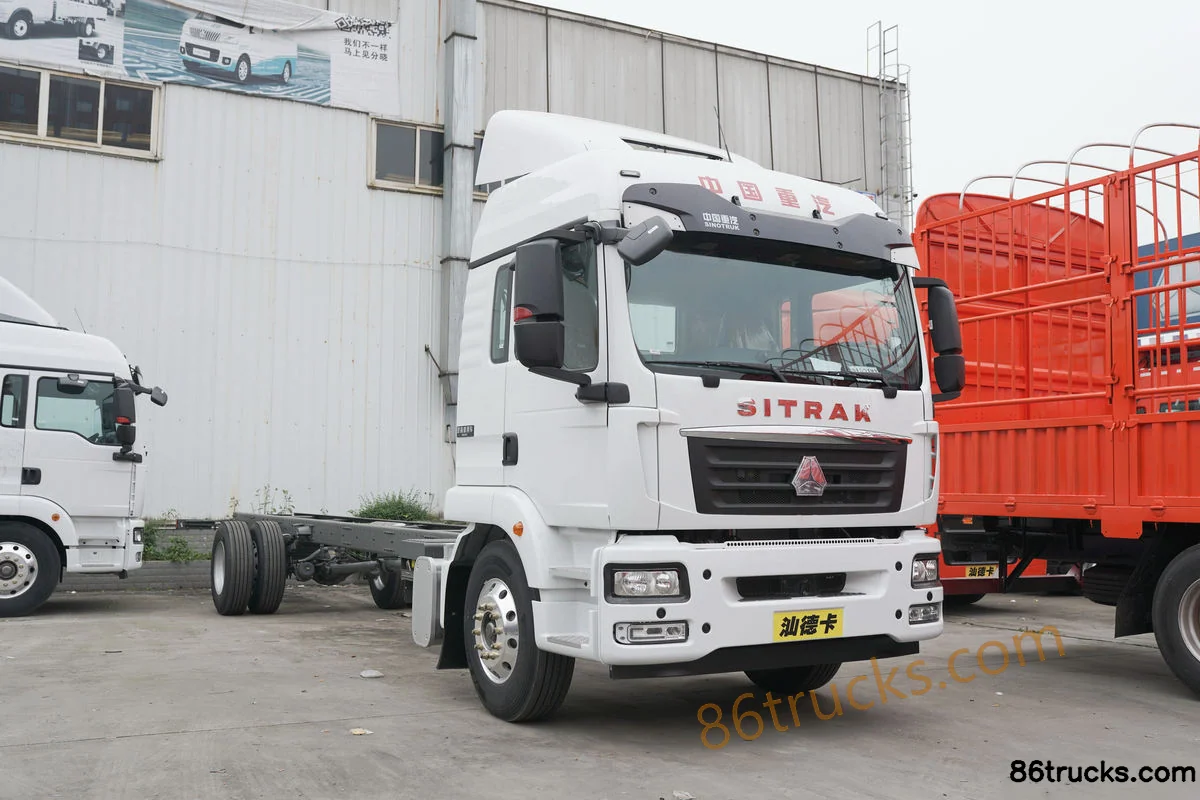

Exterior3

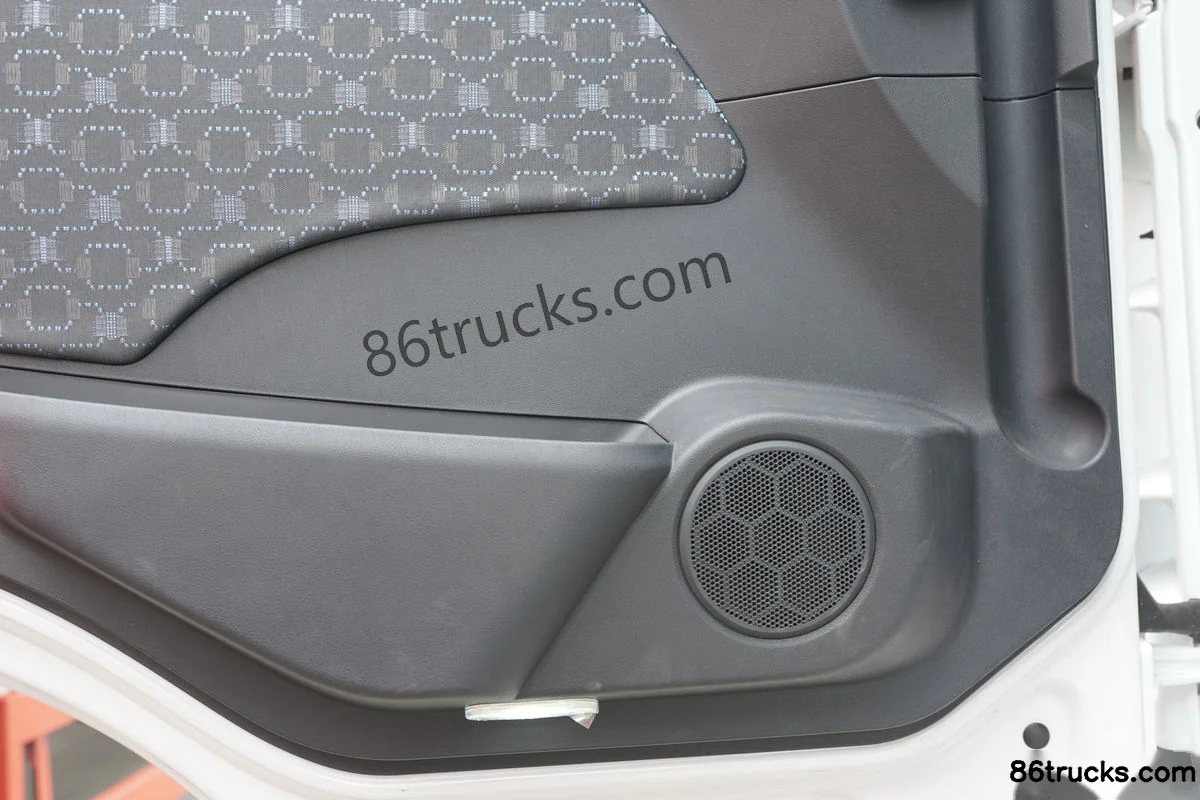

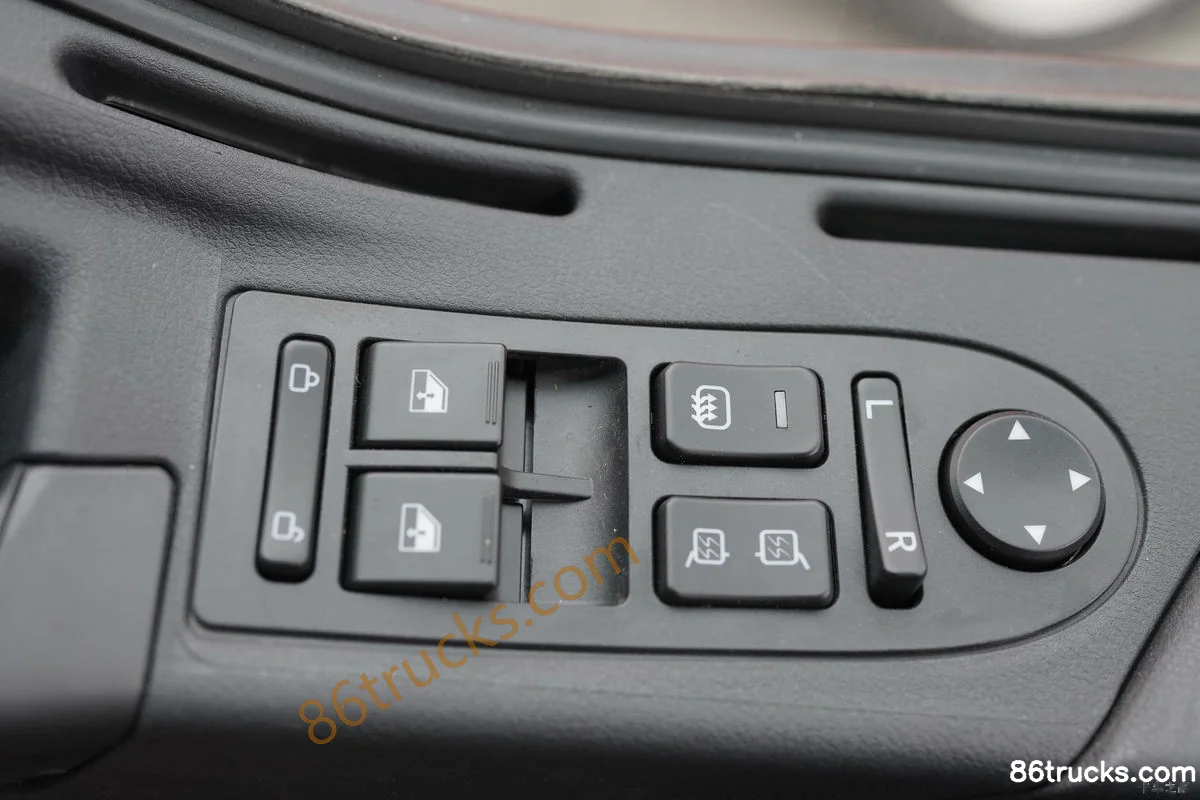

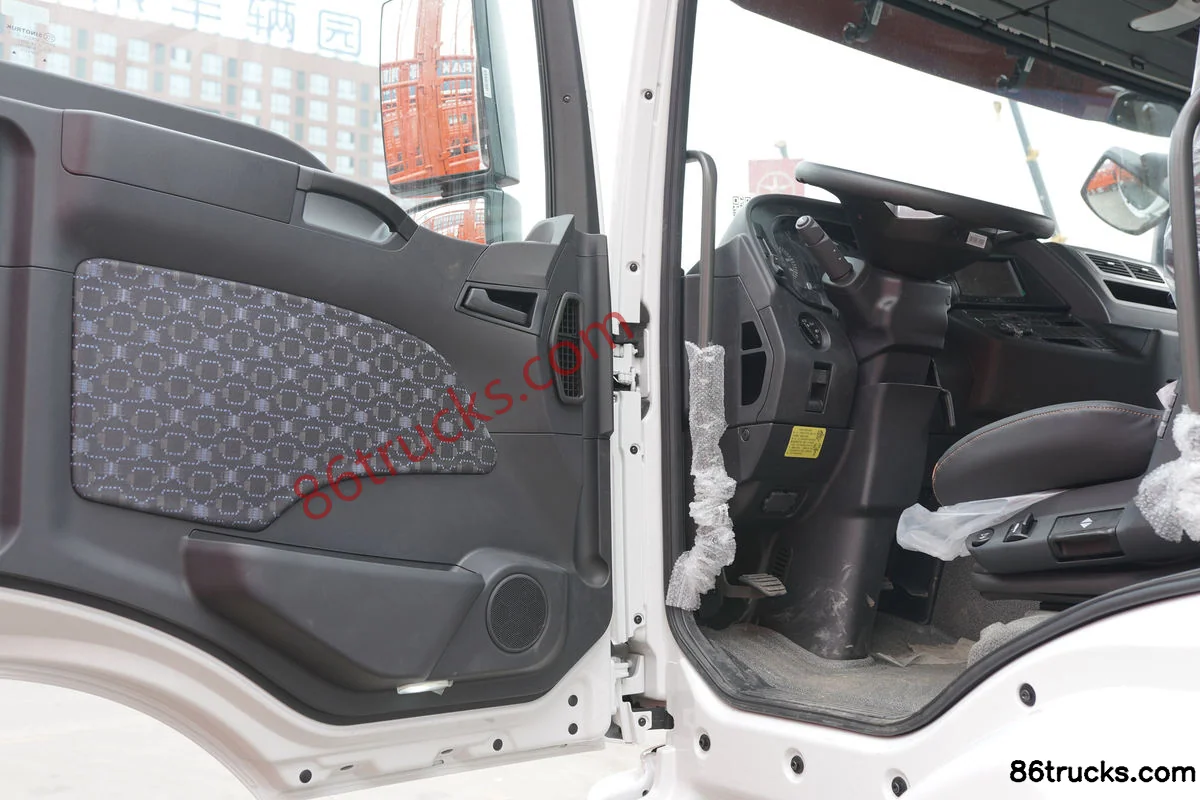

Cab3

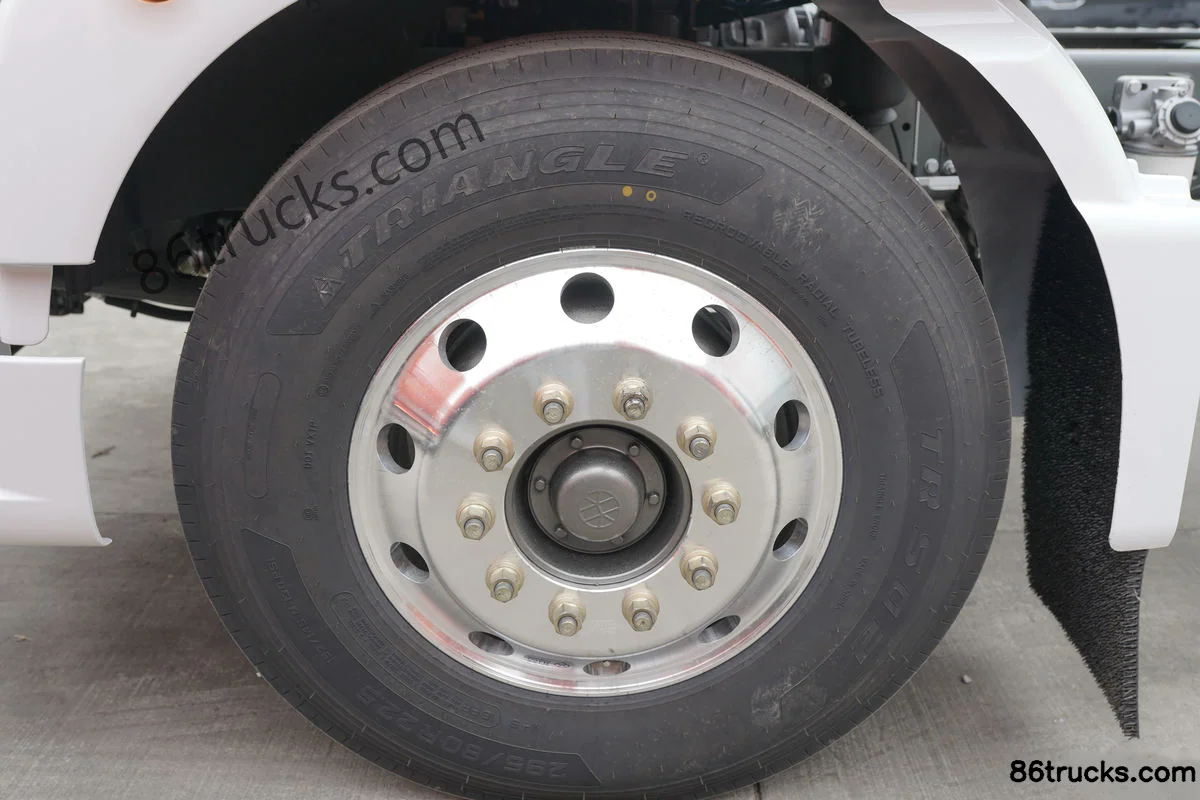

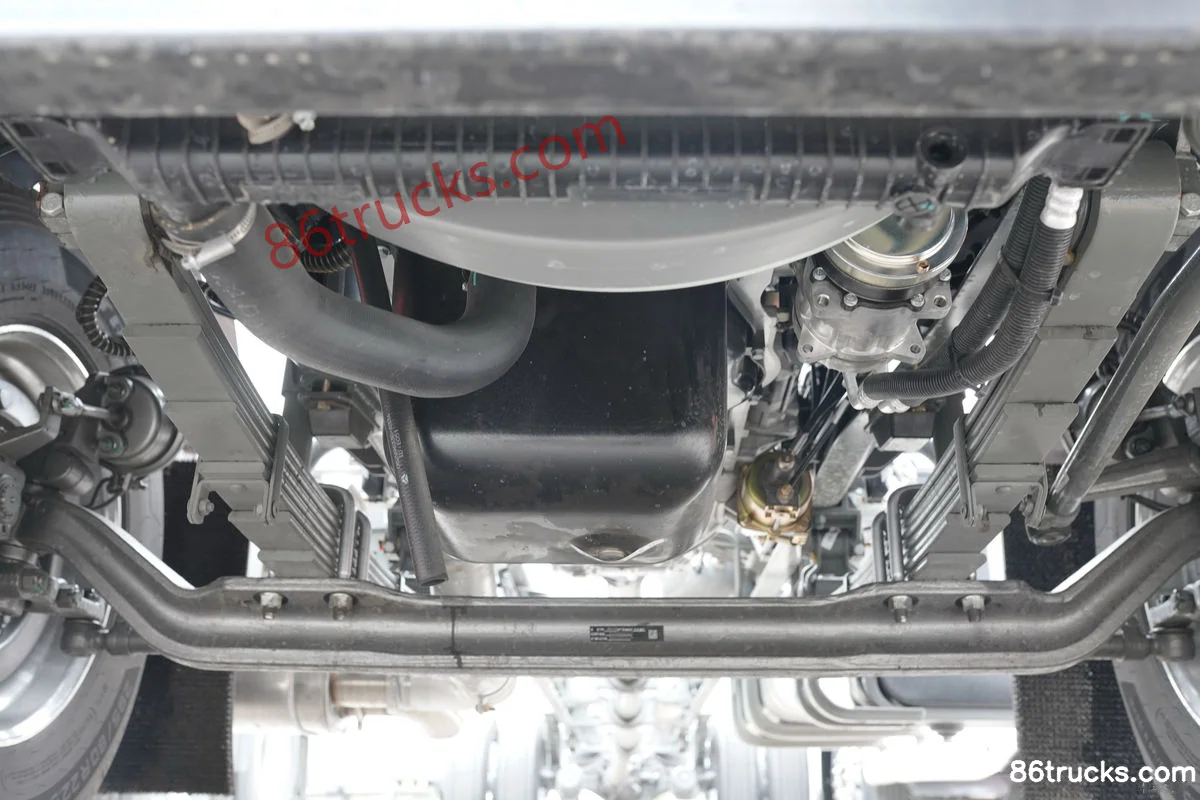

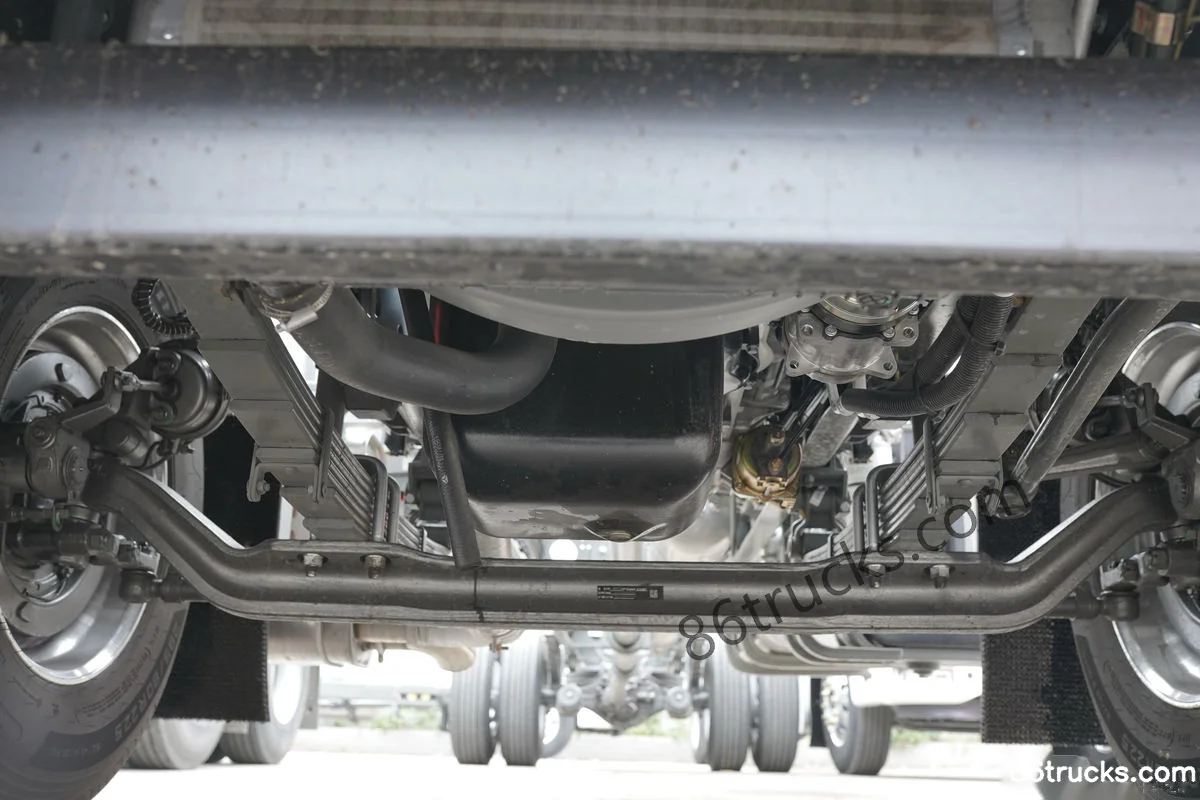

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck, and what does it include?

Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck export reference is about From $31,944; MSRP is ¥23M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck?

Key specs of Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck: Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck suited for?

Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck differ from other variants in the same series?

Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck belongs to Sitrak G5 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak G5 heavy truck 240 hp 4X2(6 wheels) 9.6m van truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
