FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: FAW Jiefang
Curb Weight:: 8.5ton
seating capacity: 3Personnel
Rated payload: 9.305ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck is a Heavy-duty cargo trucks featuring 9.7m cargo length, Van body cargo body, 3Personnel volume and 9.305t payload. Its segment focus covers Express & Freight, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China V emissions.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180XXYP62K1L7E5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.7m
engine: DachaiCA6DH1-24E5
transmission: FAW JiefangCA8TAX090M
Rear Axle Ratio: 4.111
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 1800mm
rear track: 1860mm
Curb Weight: 8.5ton
Rated payload: 9.305ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle: 10°
market segment: Express & Freight
Front/rear suspension: 1.4/3.5m
Version: ZhiHui Edition
Energy Type: Diesel

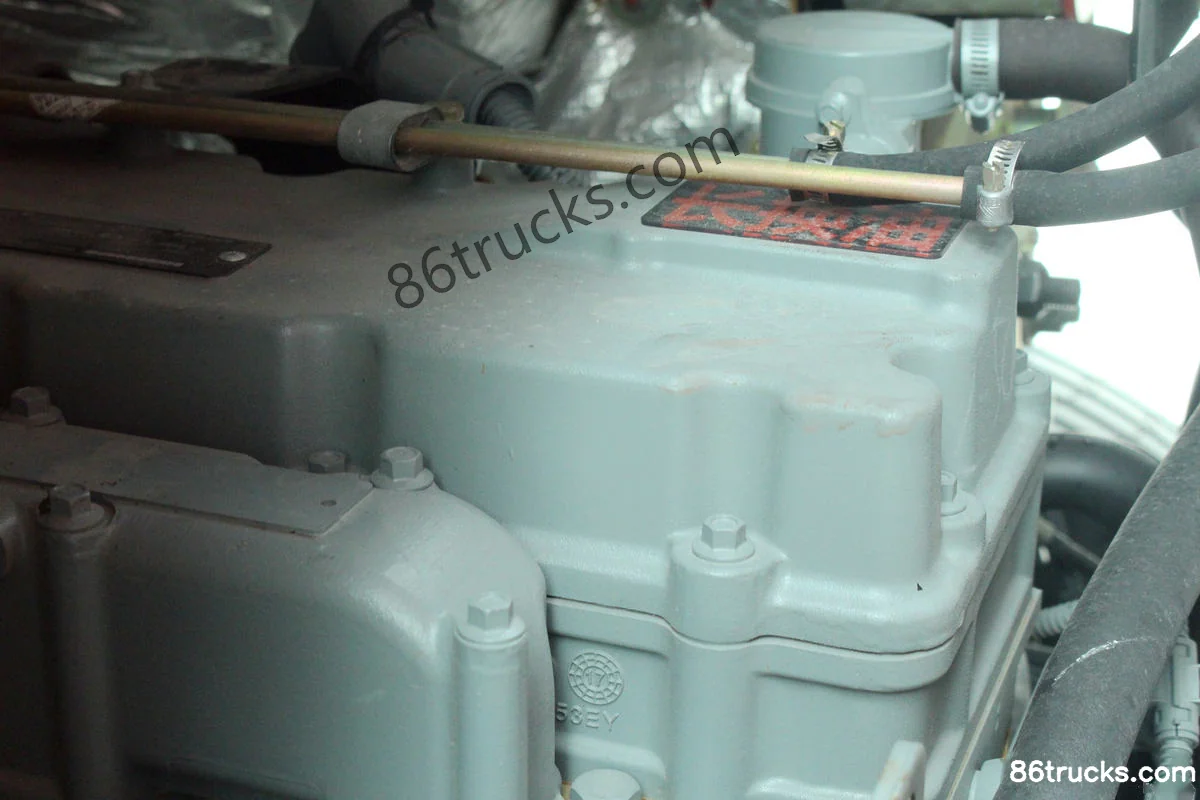

Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DH1-24E5
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.7L
Emission standard: China V
Max output power: 179kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1800rpm
Rated speed: 2500rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: FAW JiefangCA8TAX090M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.7m
Cargo box width: 2.46m
Cargo box height: 2.8m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: 2020 J6L flat roof cab
Cab width: 2250mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 1900 front axle
Front axle allowable load: 6500kg
Frame Dimensions: 237×75×7mm
rear axle description: ф378 cast axle
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 7/7+6
Tire

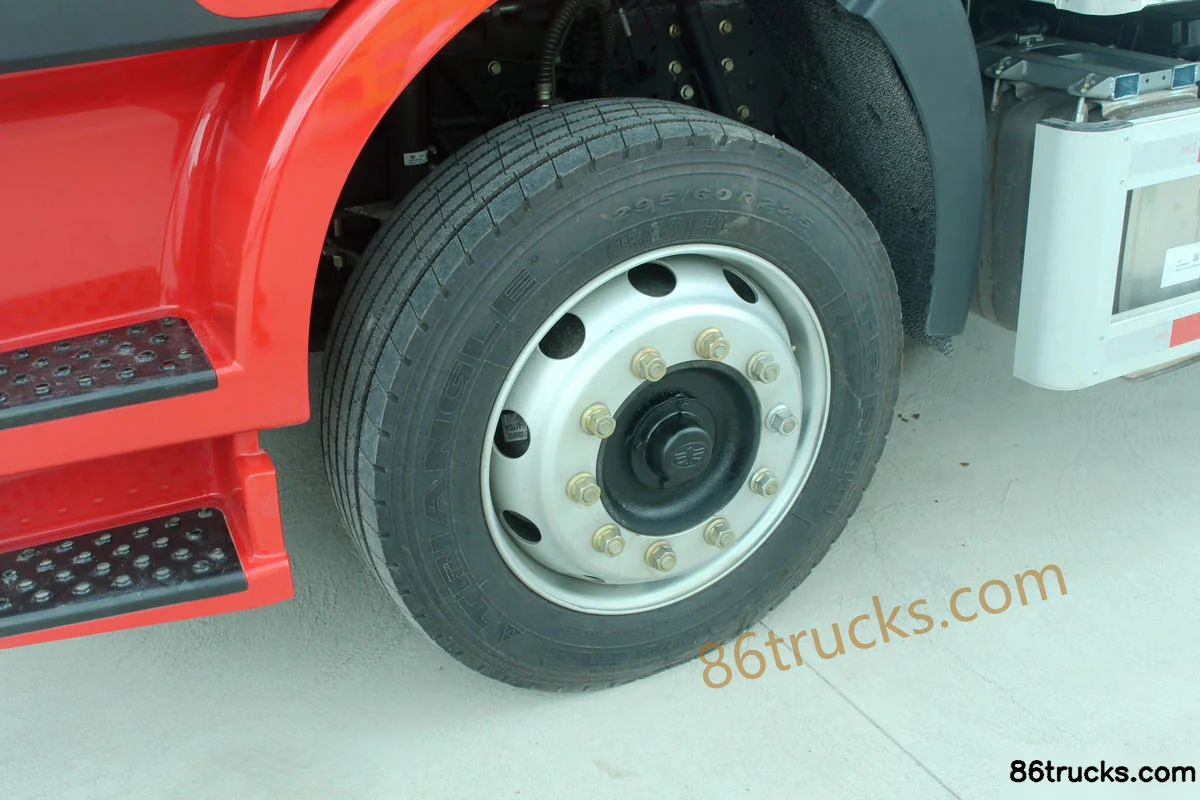

Tire Size: 275/80R22.5
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Independent Heater:

Photos

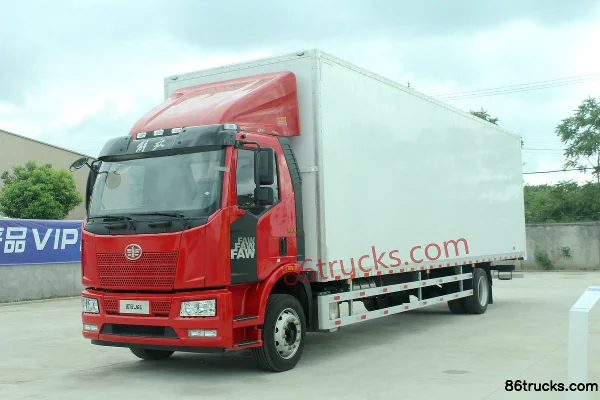

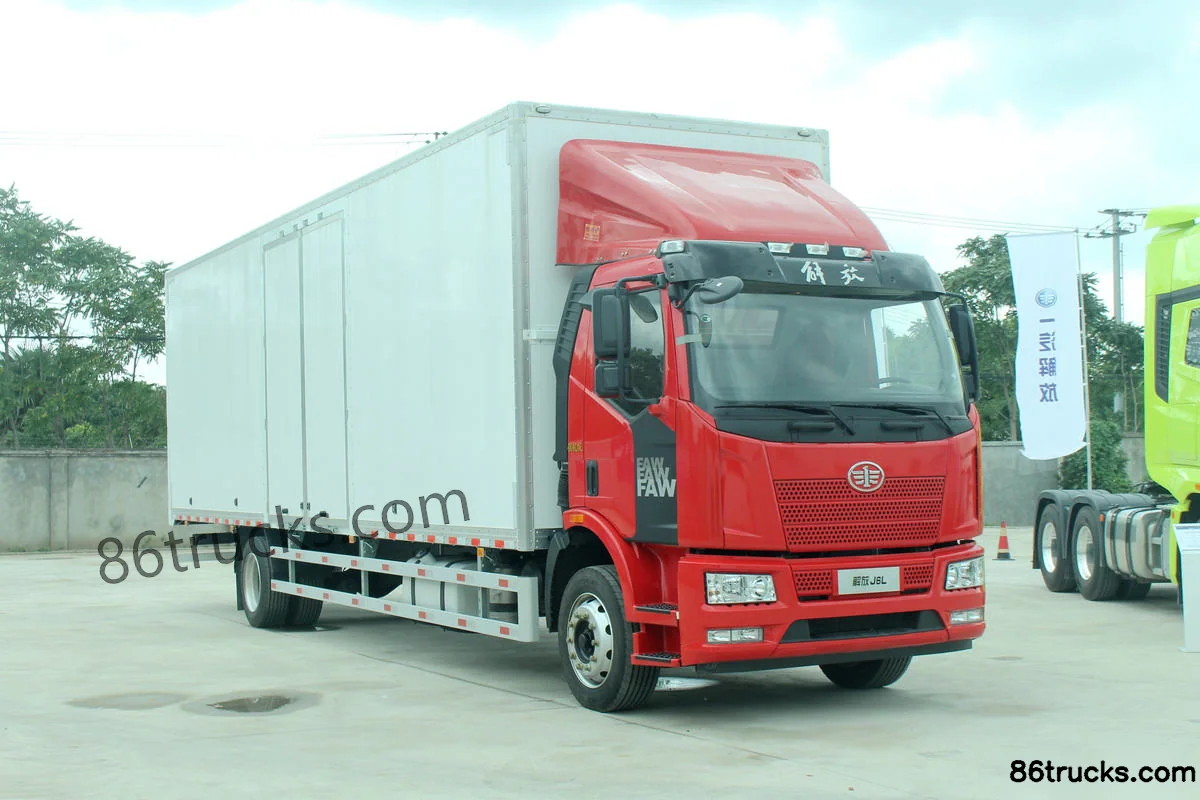

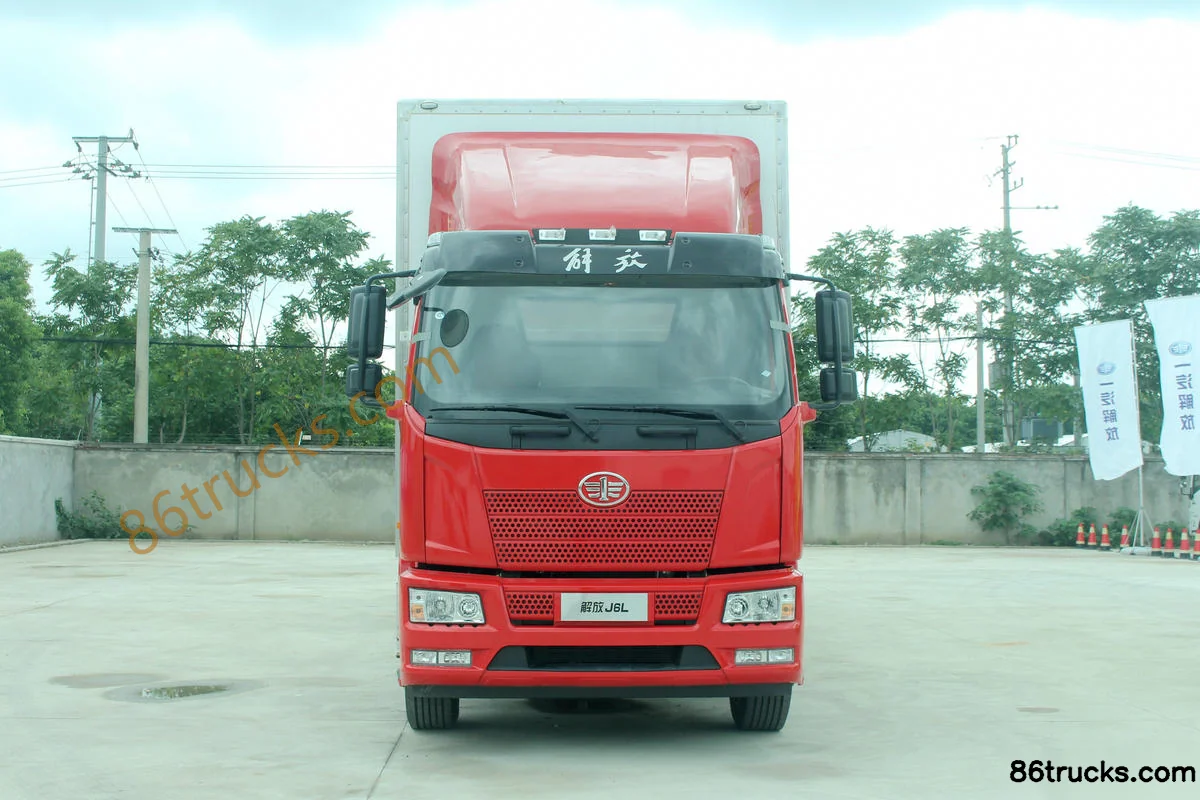

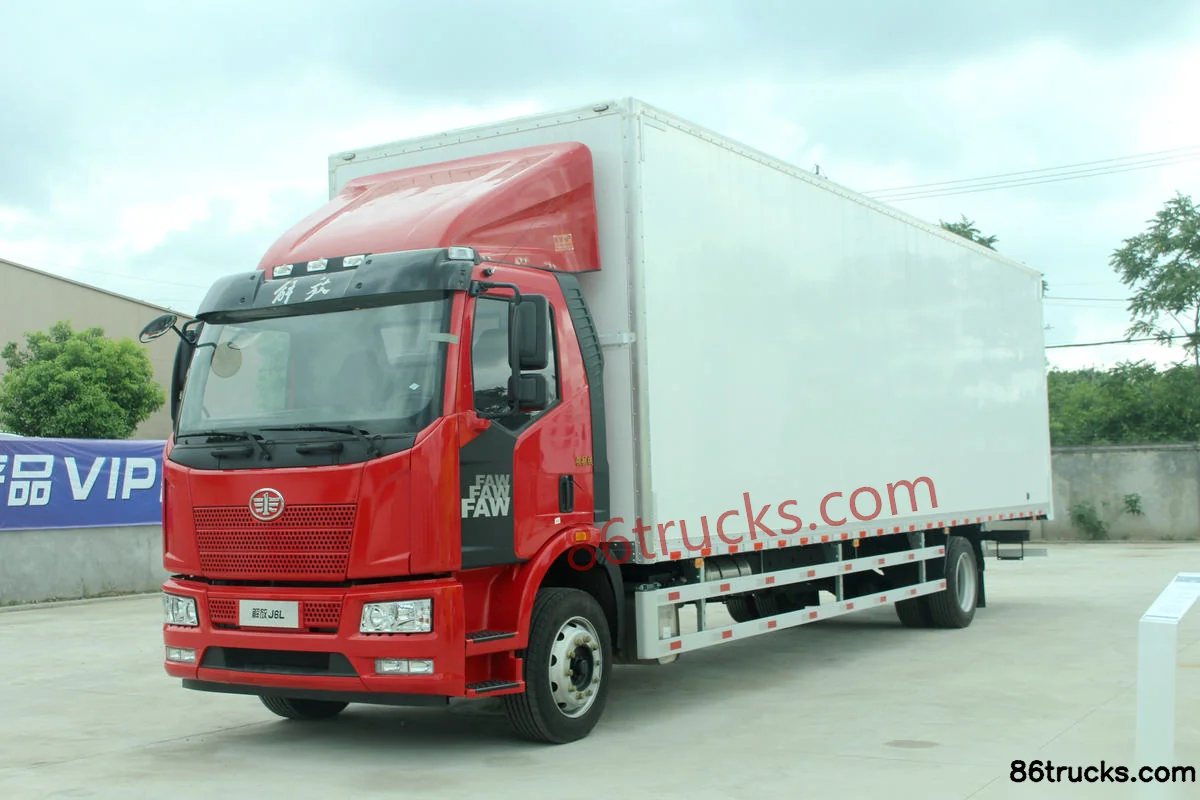

Exterior3

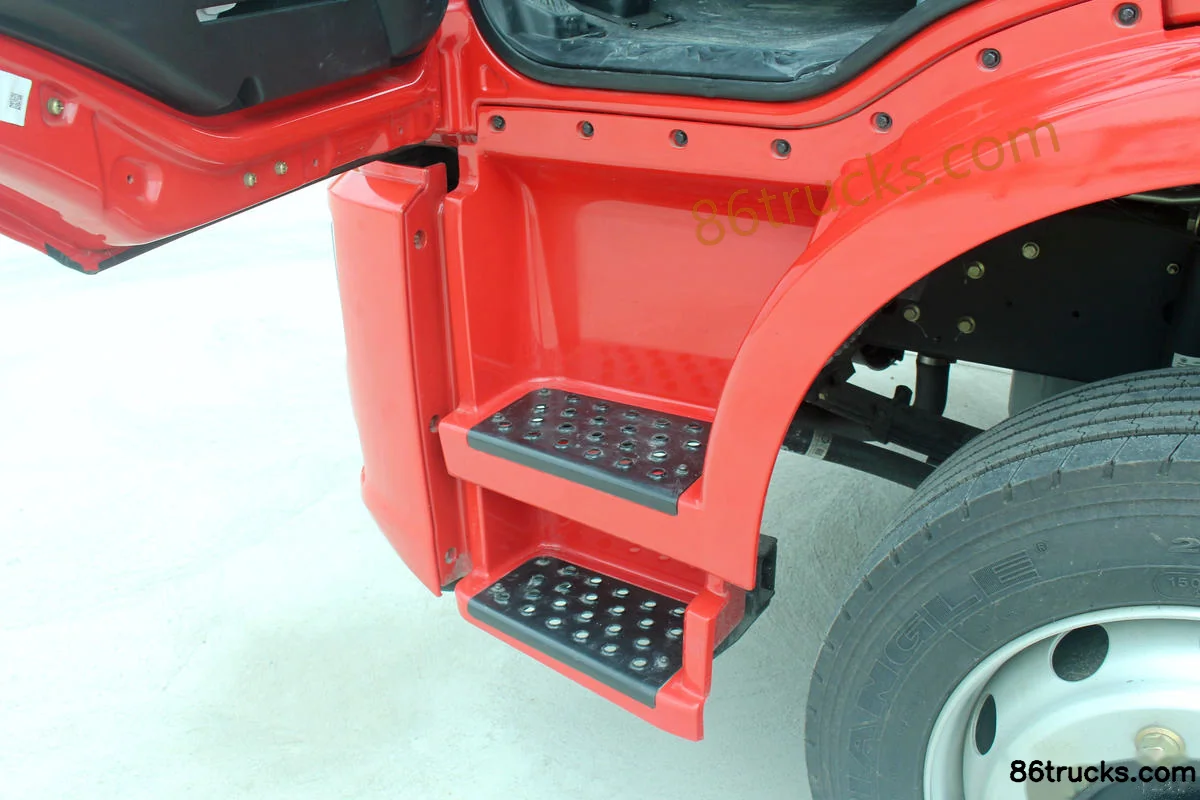

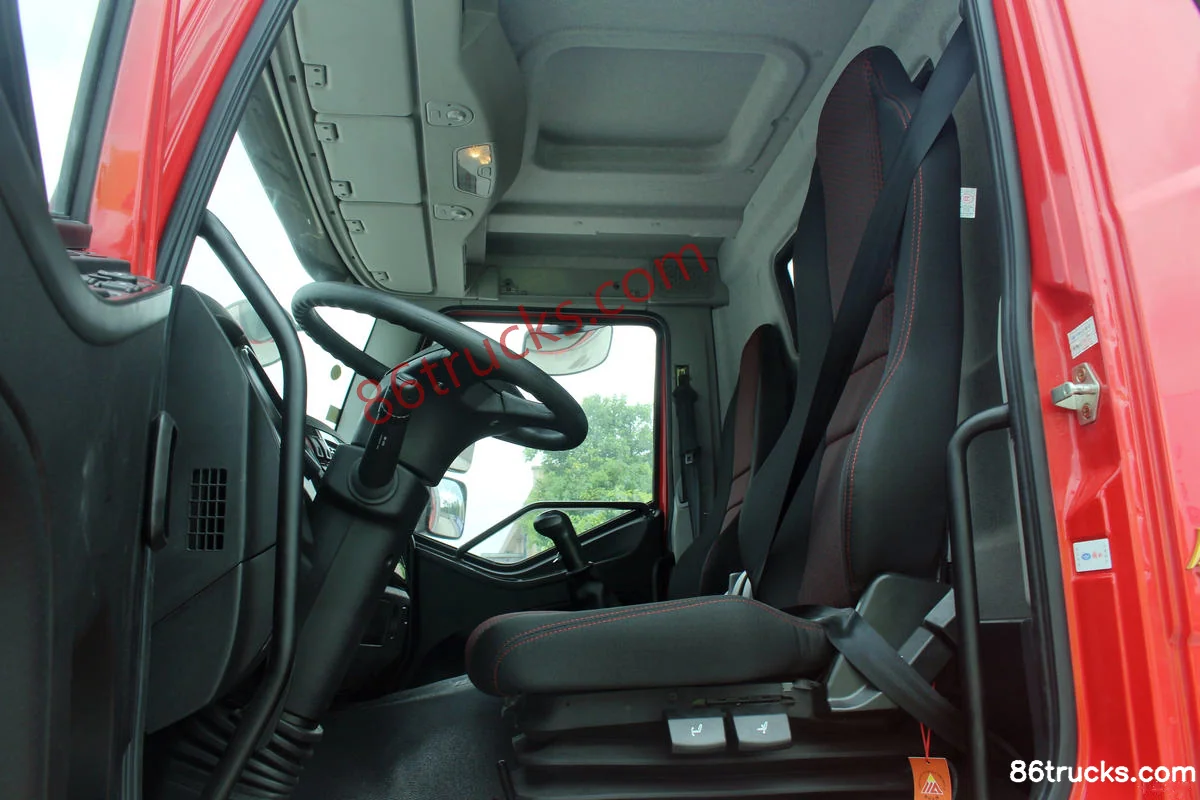

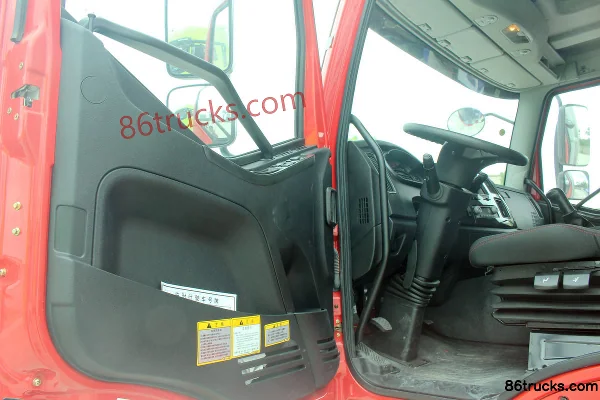

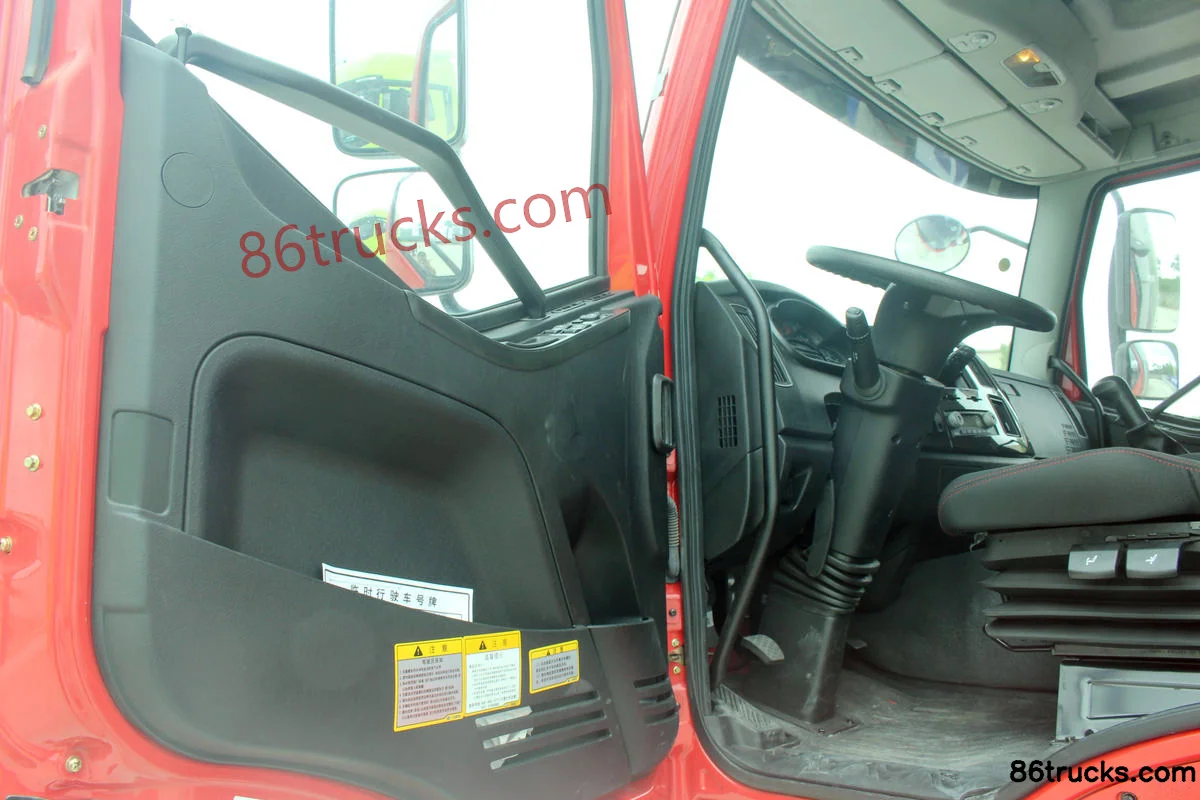

Cab3

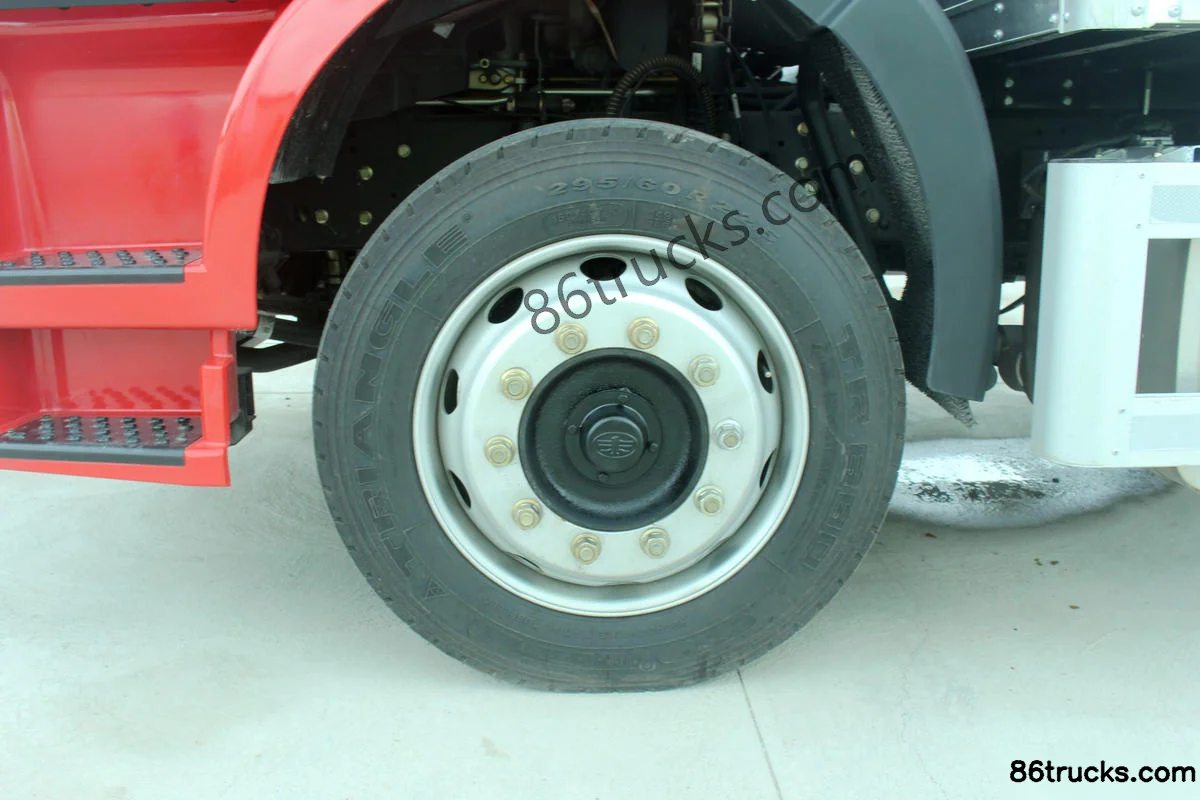

Chassis3

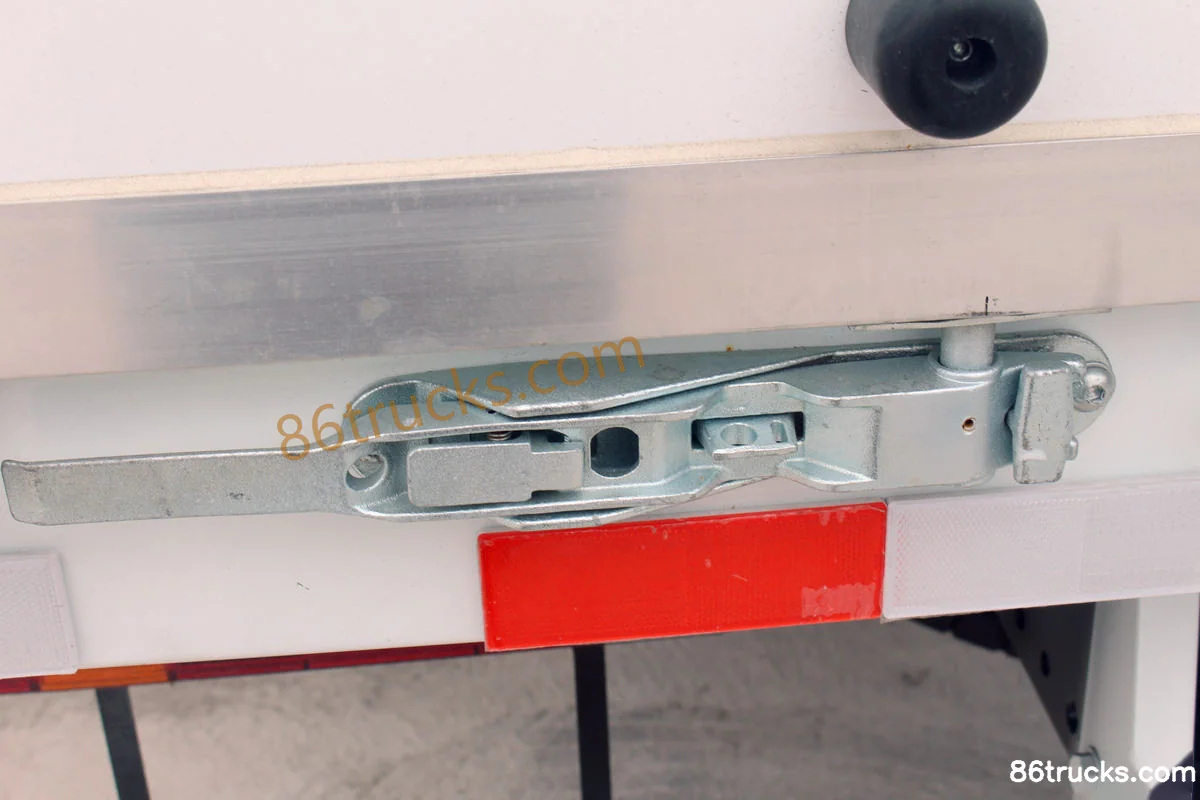

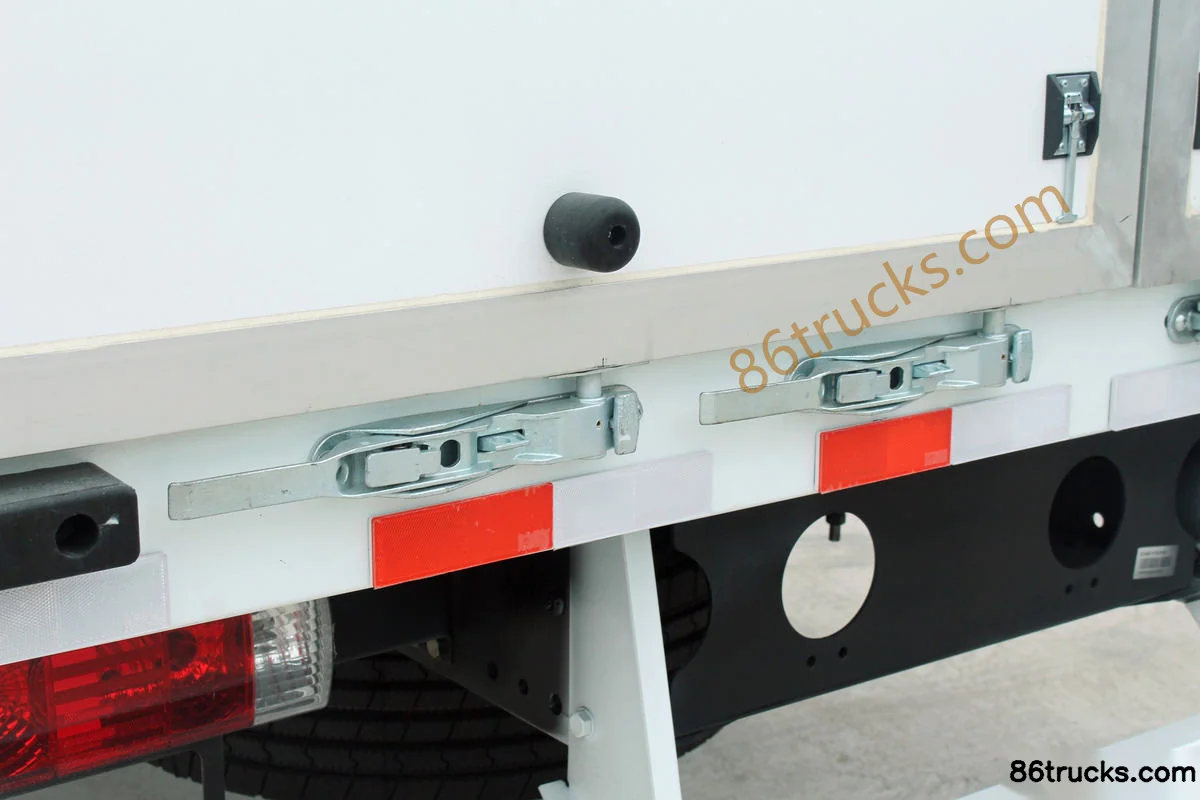

Body2

11 photos

FAQ

What emission standard does FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck?

Key specs of FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck suited for?

FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck differ from other variants in the same series?

FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Medium Truck 2020 Value Edition Cold Region 240hp 4X2(6 wheels) 9.7m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
