Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck

Export reference
From $25,417
MSRP ¥18.3M CNY
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Weichai4.6L
Transmission: Sinotruk
Curb Weight:: 7.3ton
seating capacity: 3Personnel
Rated payload: 10.57ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 10.57t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Weichai4.6L engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1187K501GF1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: WeichaiWP4.6NQ220E61
transmission: SinotrukHW95508STCL
Rear Axle Ratio: 4.33
Cab length: 8.65m
Cab width: 2.55m
Cab height: 2.89m
Front track width: 1950mm
rear track: 1848mm
Curb Weight: 7.3ton
Rated payload: 10.57ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Jinan, Shandong
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 17°
market segment: Building materials, agricultural products
Front/rear suspension: 1.43/2.45m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E61
Engine info: Weichai4.6L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.58L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR
Transmission Parameters
Transmission Model: SinotrukHW95508STCL
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.47m
Cargo box height: 0.6m
*Cargo box interior width: 2.47
Cab parameters
Cab: TX-K Flat Roof
Cab width: 2280mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.33
Leaf spring count: 11/9+8
Tire
Tire Size: 295/80R22.5,12R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

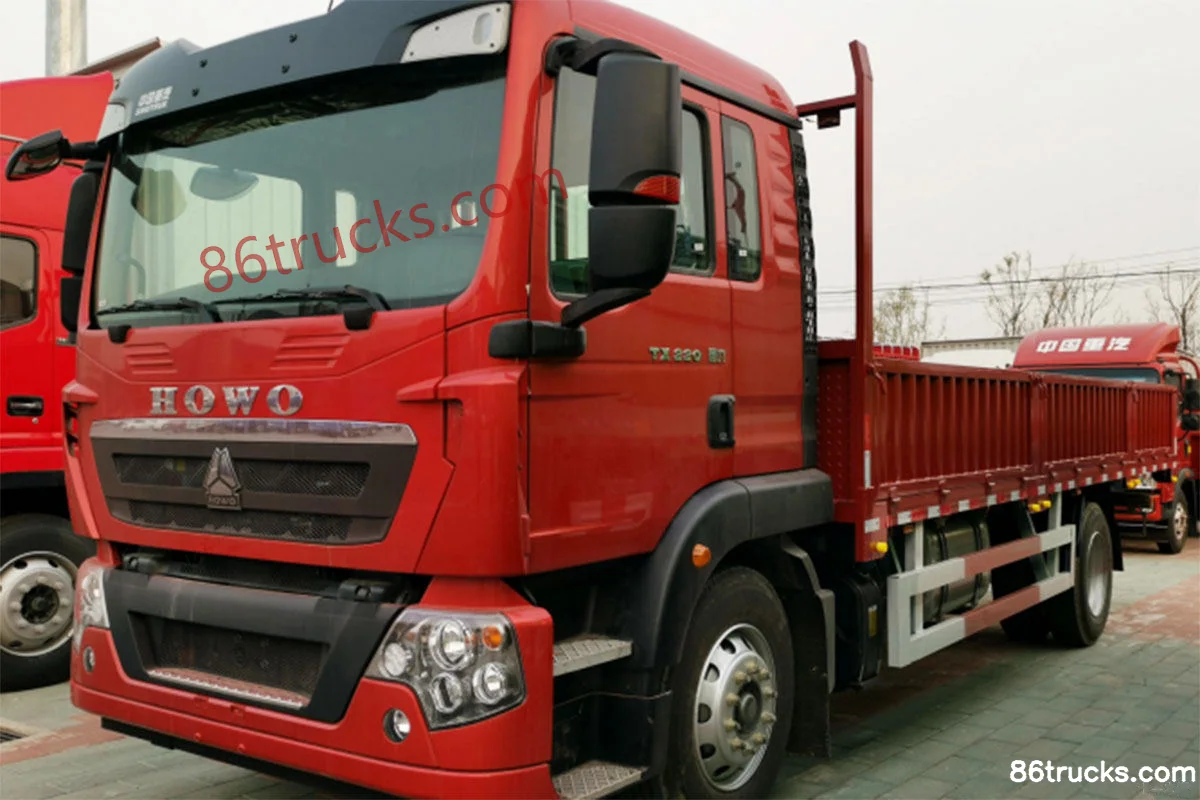

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck, and what does it include?

Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck export reference is about From $25,417; MSRP is ¥18.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck?

Key specs of Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck: Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Weichai4.6L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck suited for?

Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck differ from other variants in the same series?

Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck belongs to SinotrukHOWOHOWO TX7 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TX 220 hp 4X2(6 wheels) 6.8m flatbed cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
