FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter

Export reference
From $32,639
MSRP ¥23.5M CNY
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: FAW Jiefang
Curb Weight:: 10.5ton
seating capacity: 2Personnel
Rated payload: 7.305ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter is a Heavy-duty cargo trucks featuring Chassis cargo body, 2Personnel volume, 7.305t payload and J6L cab. On the powertrain side, it comes with a Dachai 6-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China V emissions.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JHP5185TCL
Type: Chassis
Drive type: 4X2
Wheelbase: 7100mm
engine: DachaiCA6DH1-24E5
transmission: FAW JiefangCA6T138
Rear Axle Ratio: 5.143
Cab length: 12m
Cab width: 2.55m
Cab height: 3.97m
Front track width: 1950mm
rear track: 1878mm
Curb Weight: 10.5ton
Rated payload: 7.305ton
GVWR: 18ton
Max. speed: 110km/h
tonnage class: Heavy-duty cargo trucks
Approach angle: 14°
departure angle:
Front/rear suspension: 1.4/3.5m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DH1-24E5
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.7L
Emission standard: China V
Max output power: 179kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1800rpm
Rated speed: 2500rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: FAW JiefangCA6T138
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: J6L
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 237×75×(7+4)mm
rear axle description: 435 cast axle
rear axle allowable load: 11500kg
Axle ratio: 5.143
Tire
Tire Size: 315/70R22.5,295/60R22.5,315/60R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Exterior features
Aluminum air tank:

Photos

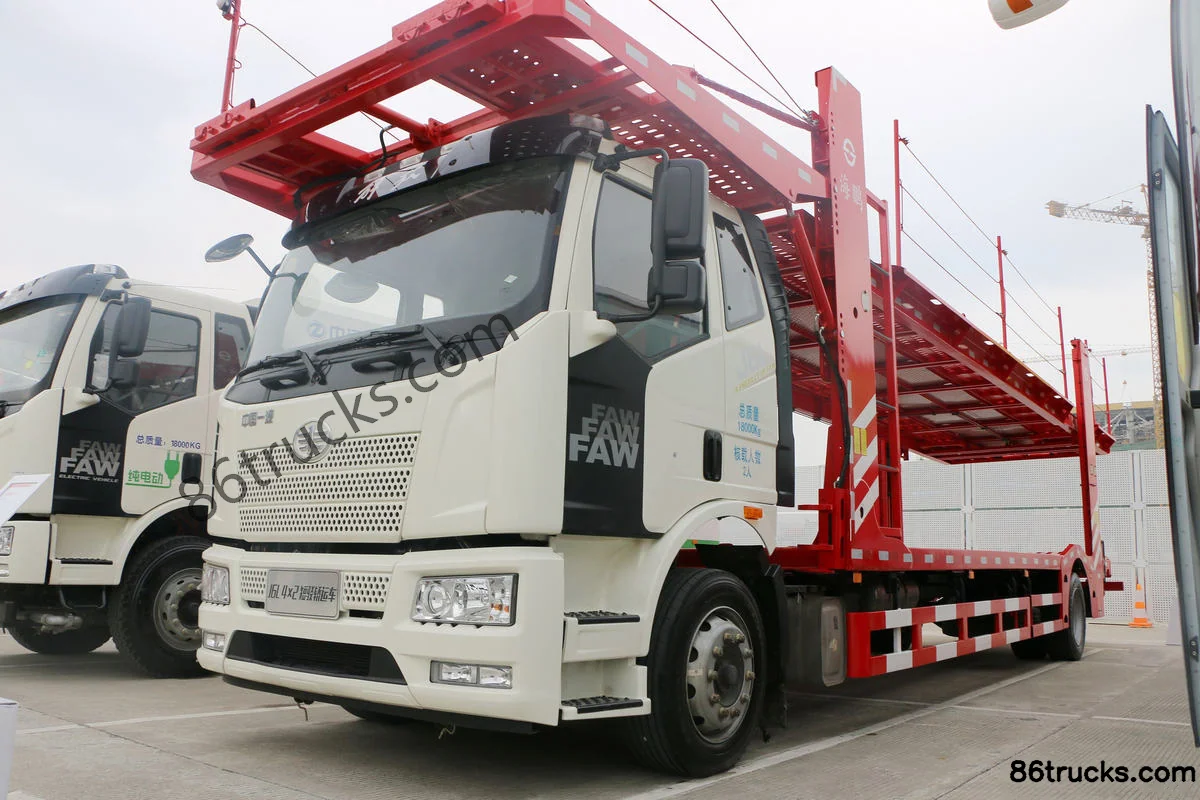

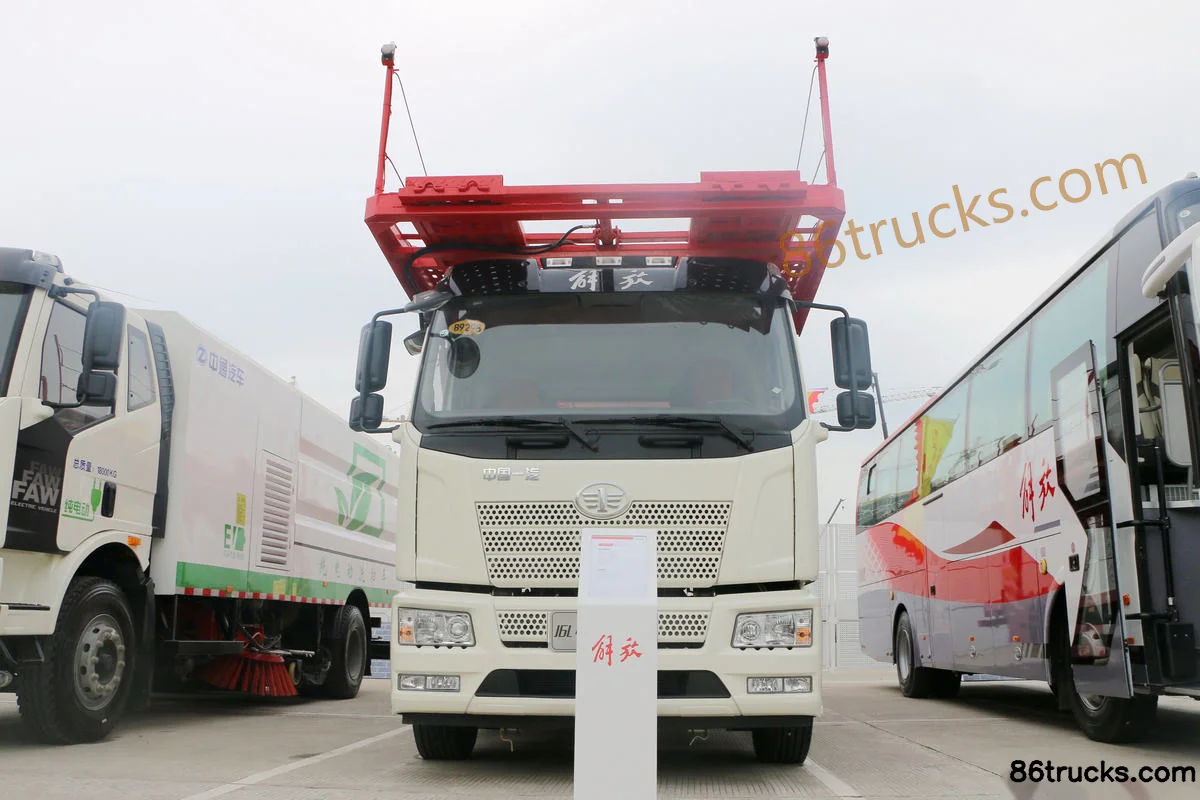

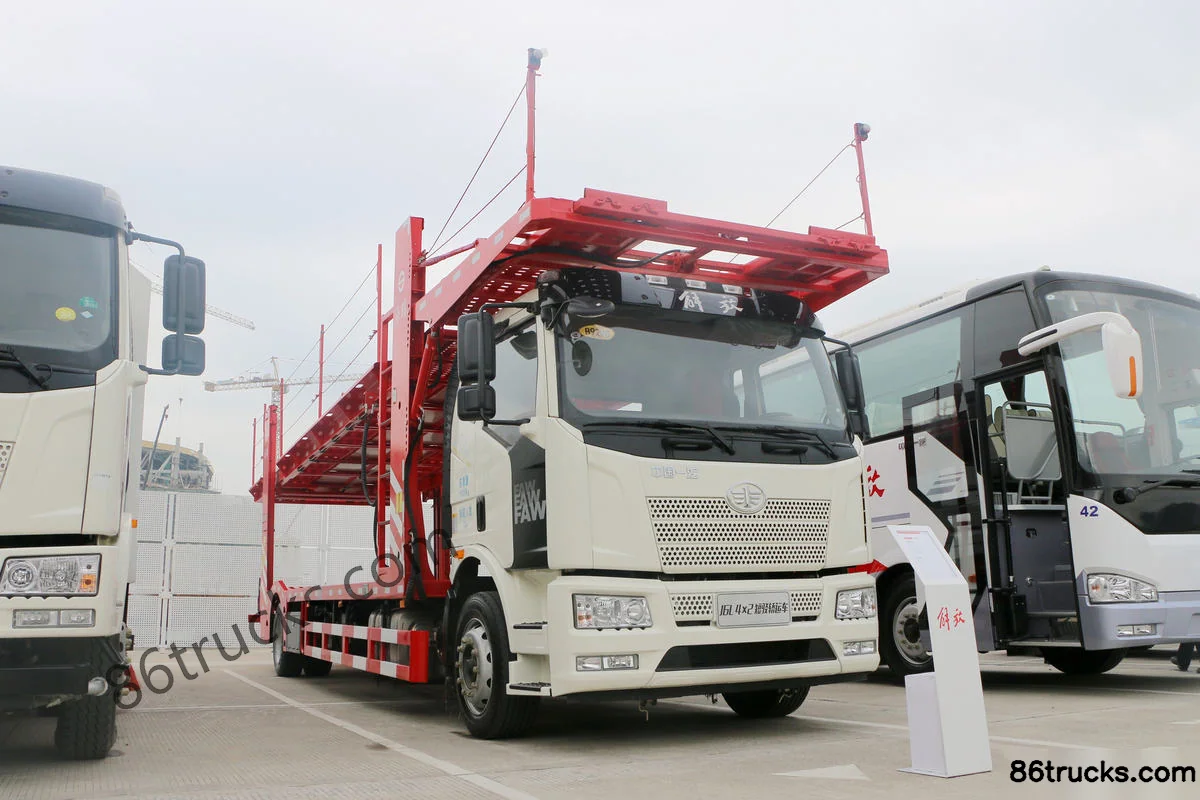

Exterior3

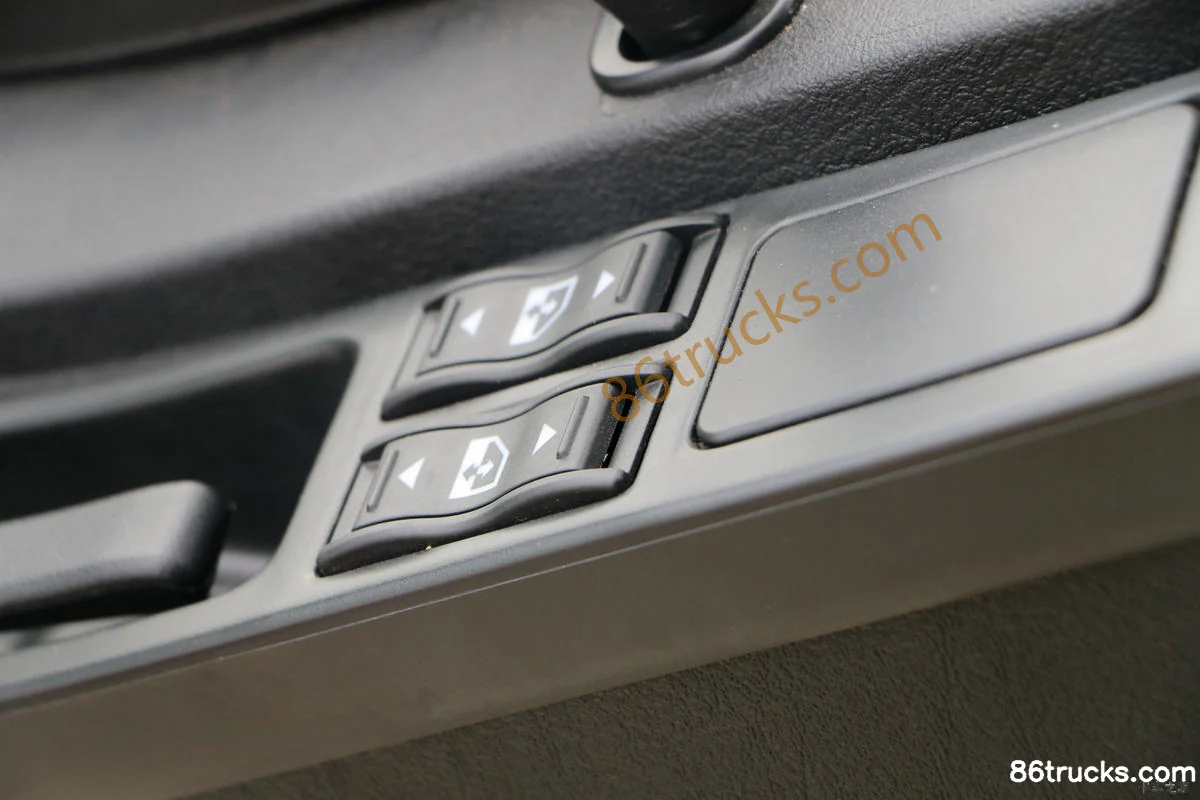

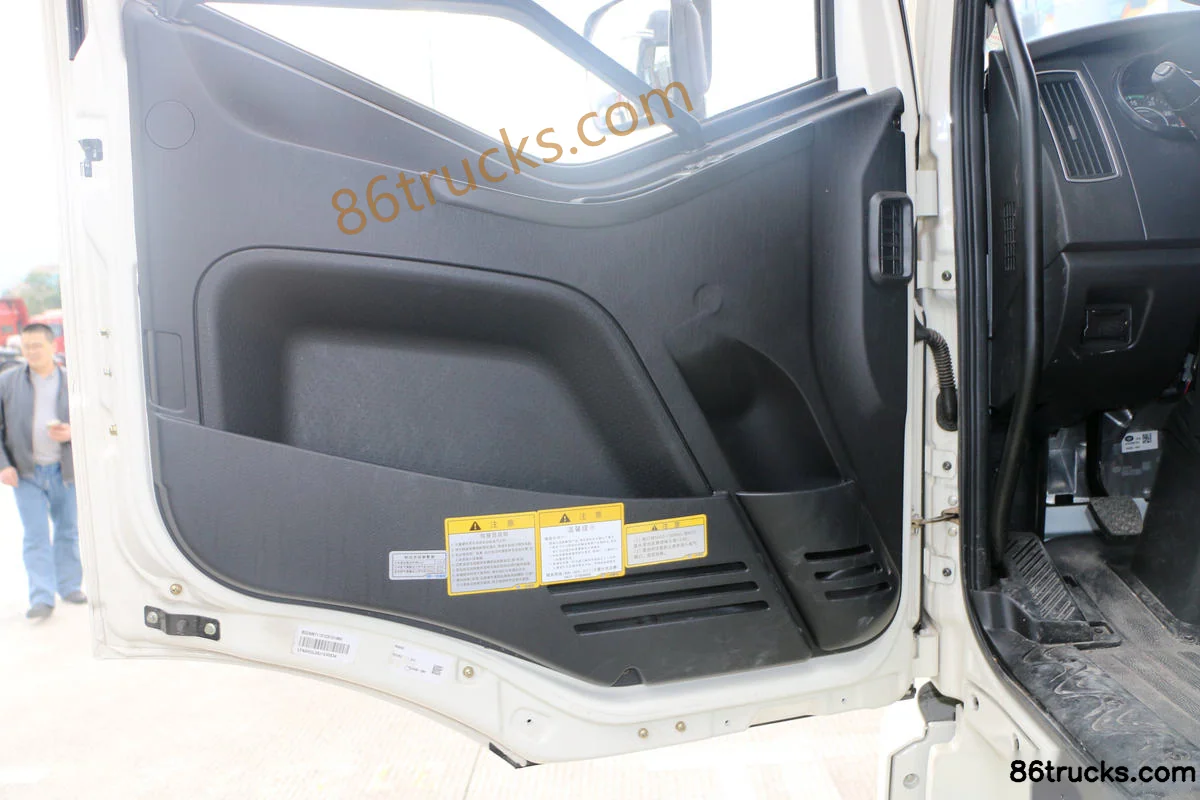

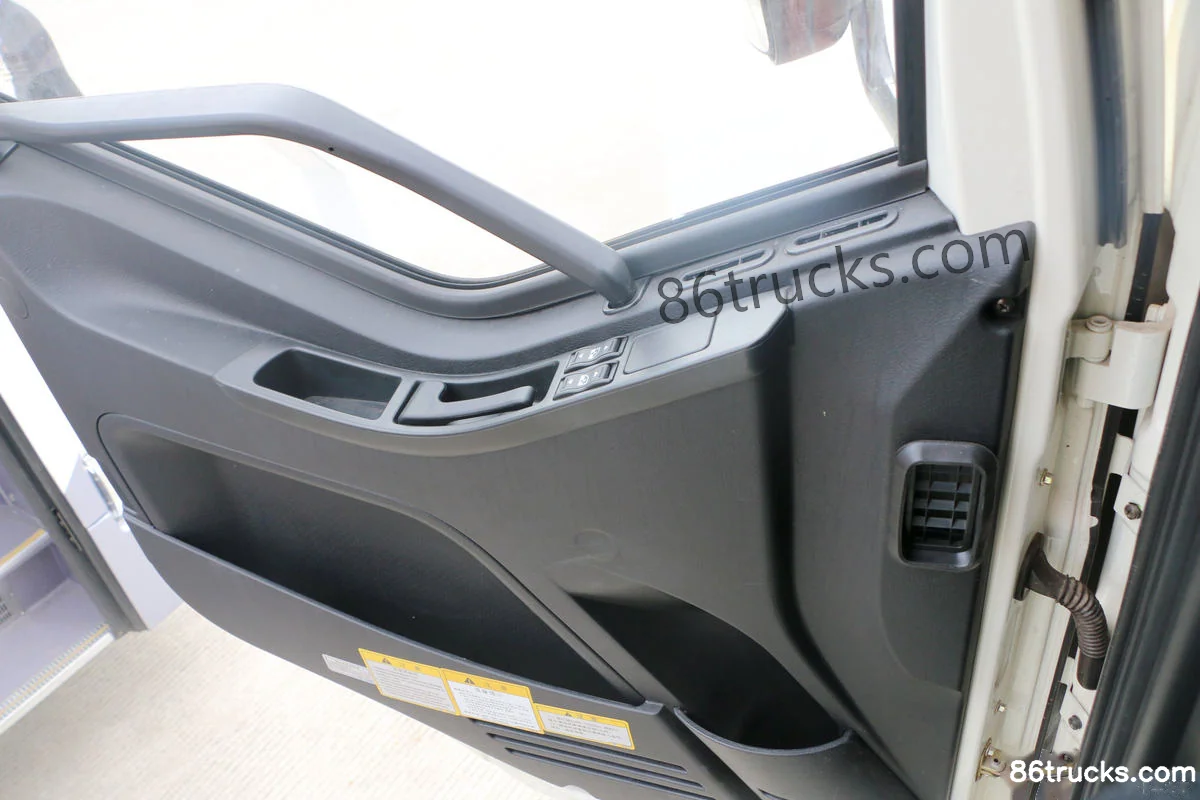

Cab3

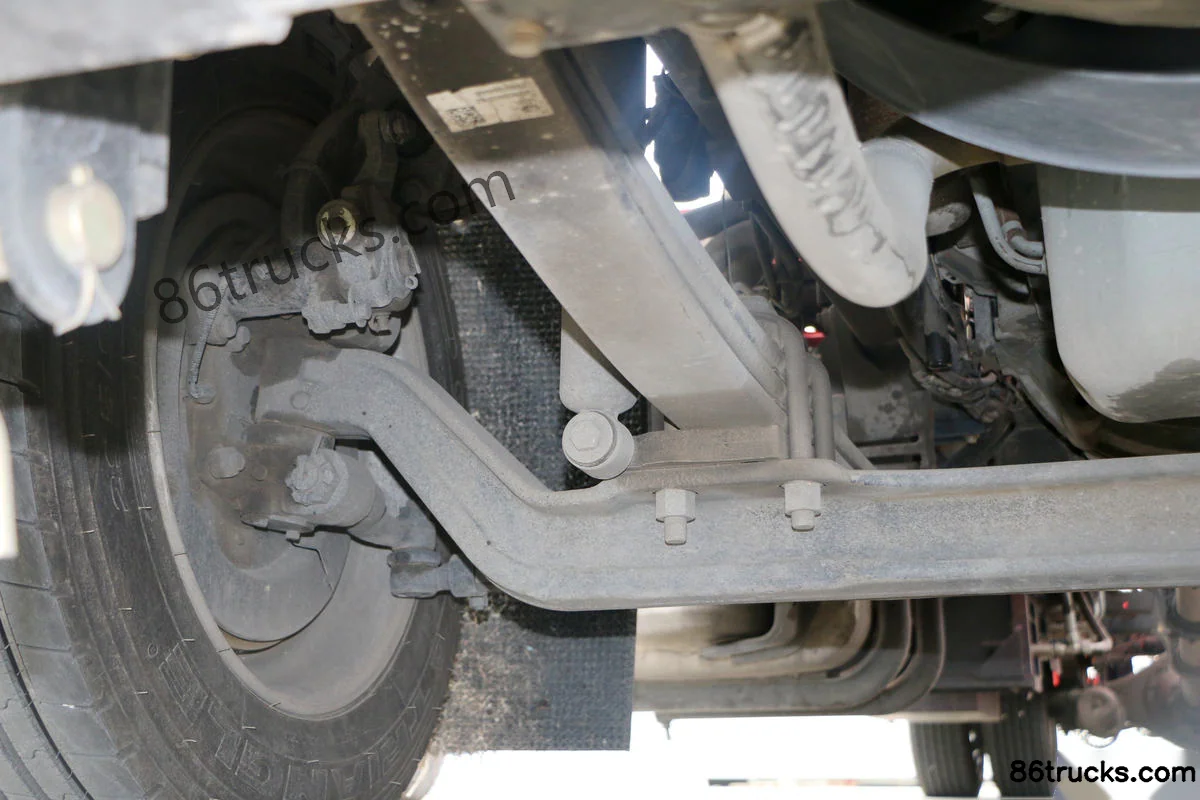

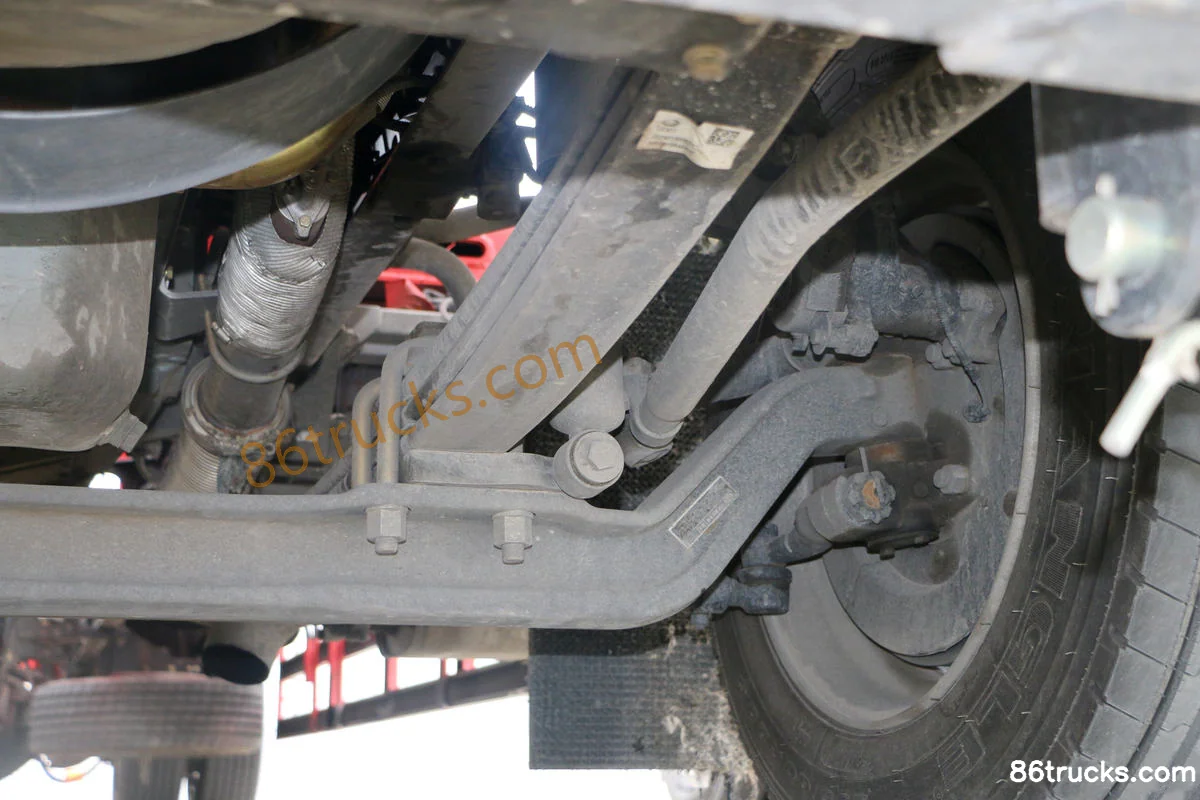

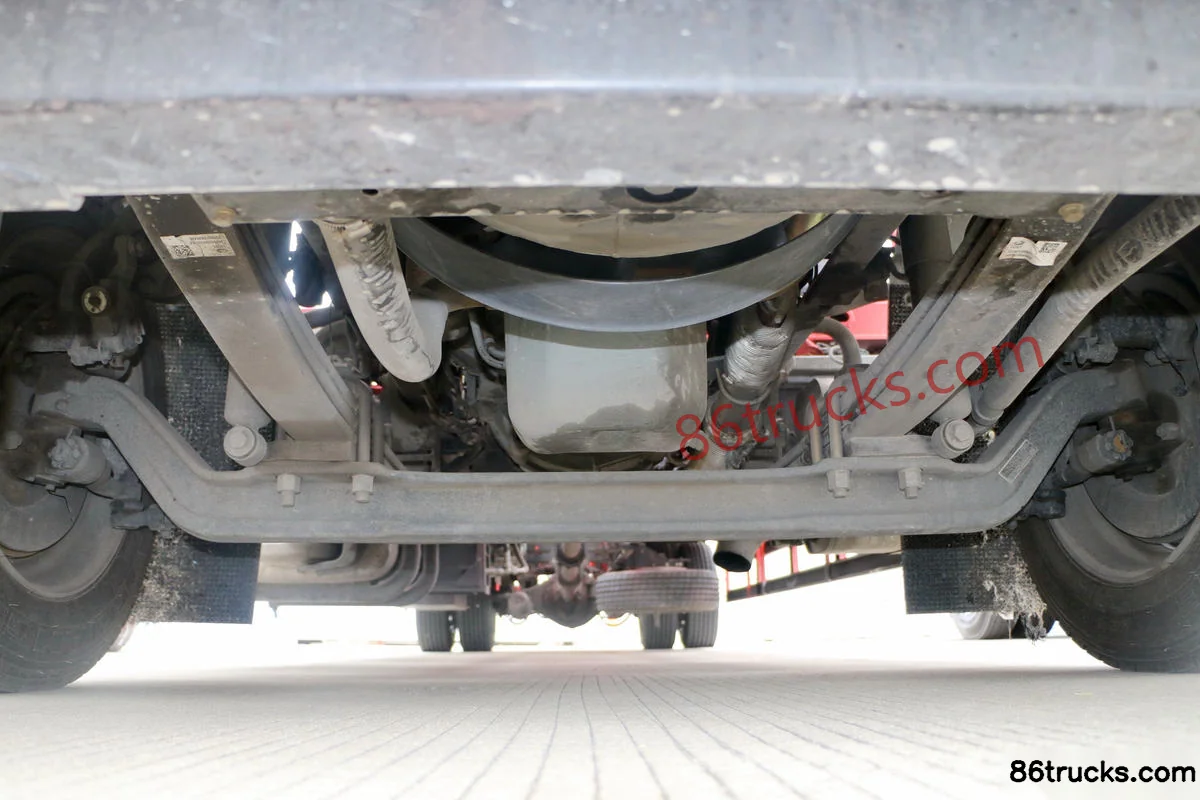

Chassis3

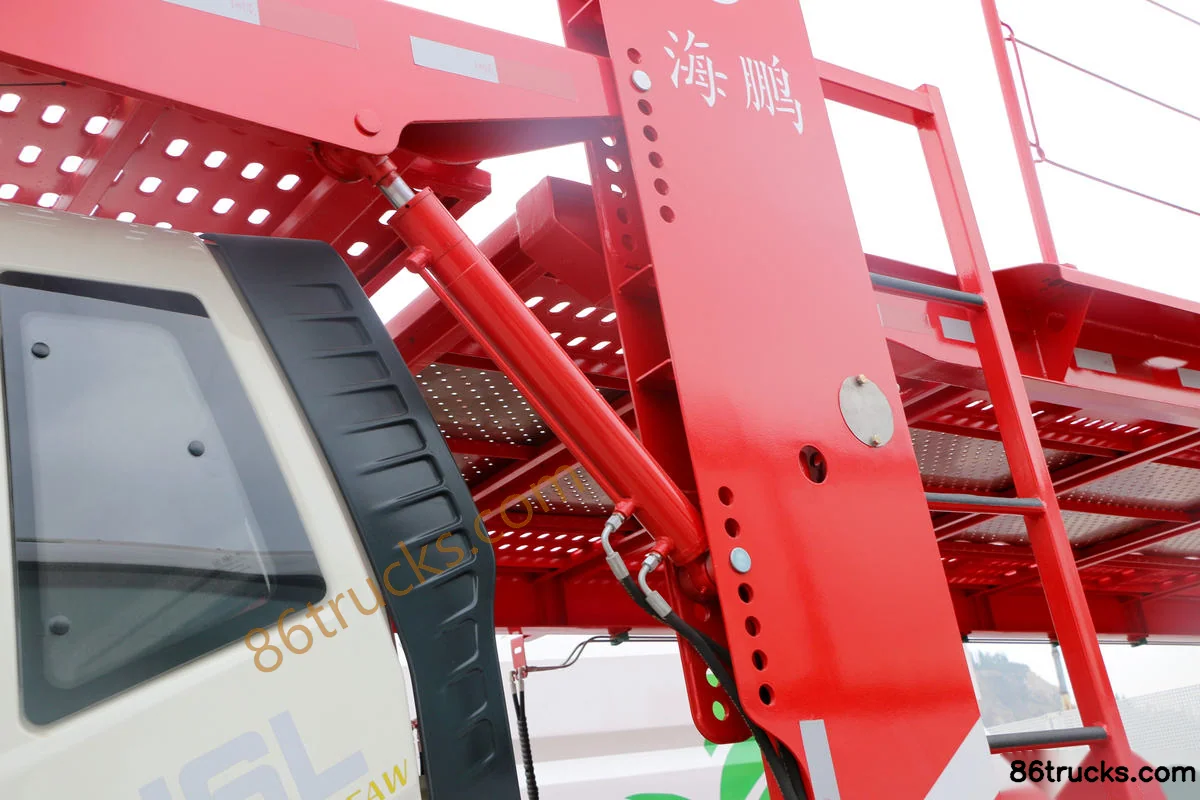

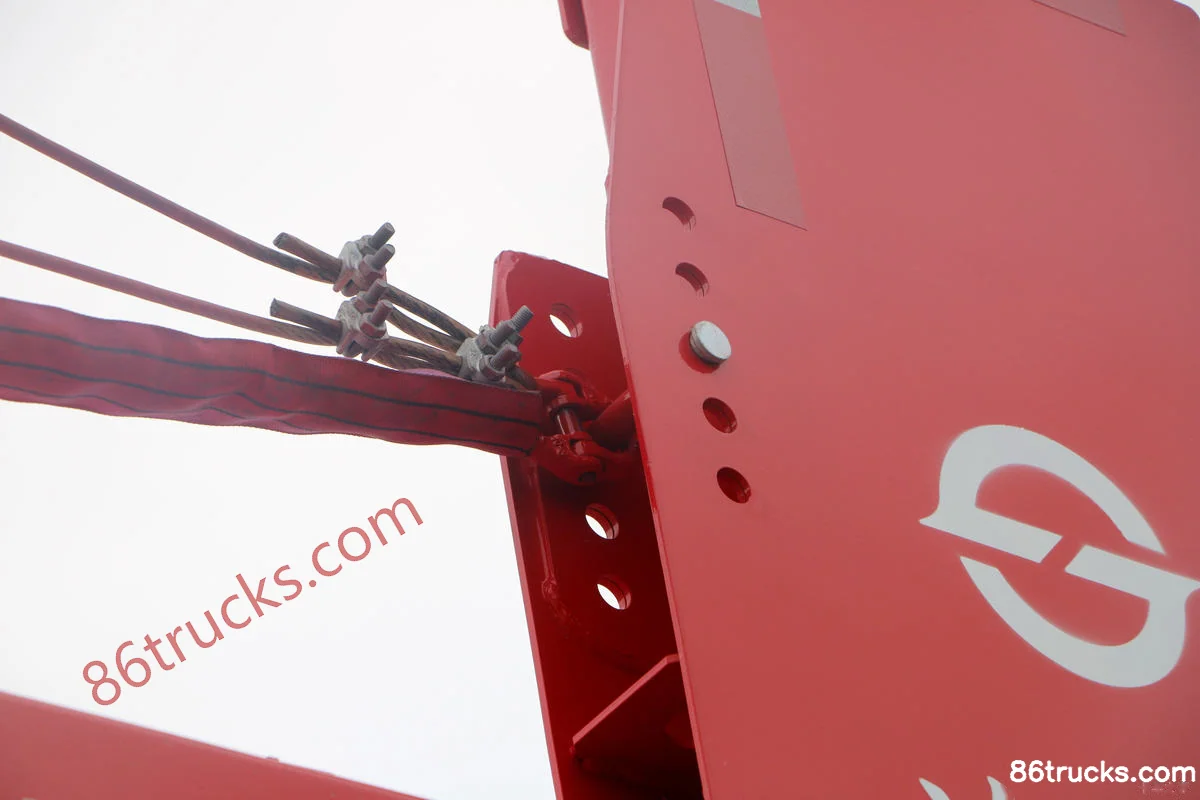

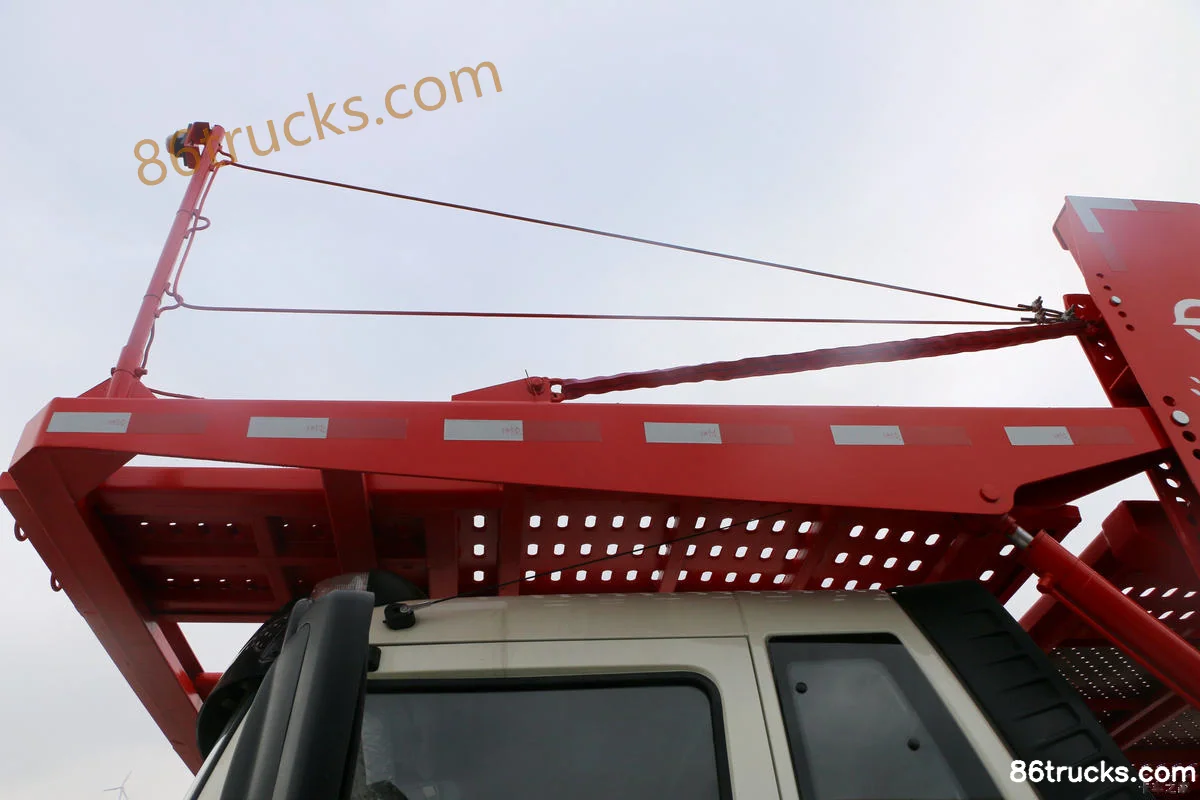

Body3

12 photos

FAQ

What is the export price of FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter, and what does it include?

FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter export reference is about From $32,639; MSRP is ¥23.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter?

Key specs of FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter: Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter suited for?

FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter differ from other variants in the same series?

FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Heavy Truck 240 hp 4X2(6 wheels) Car Transporter?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
