Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 4200mm
Tire Size:: 11.00R20
rear axle allowable load:: 13000kg
Displacement:: 12.155L
Drive 4X2 (6 wheels)
Horsepower 380
Emission China IV
Transmission Fast Gear

Overview

The Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck is a Heavy truck featuring 4X2 (6 wheels) drive, 380 hp, 18t GVW and China IV emissions. On the powertrain side, it comes with a United PowerYC6K1238-40 engine, Fast Gear transmission and Diesel fuel.

China IV 380 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR4181D6Z-2
Drive type: 4X2
Wheelbase: 4200mm
engine: United PowerYC6K1238-40
transmission: Fast Gear12JSD200TA
Rear Axle Ratio: 4.11
Cab length: 6.805m
Cab width: 2.5m
Cab height: 3.79m
Front track width: 2038mm
Gross Trailer Weight: 35ton
rear track: 1860mm
Curb Weight: 6.805ton
GVWR: 18ton
Max. speed: 108km/h
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: United Power
Engine Model: United PowerYC6K1238-40
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.155L
Emission standard: China IV
Max output power: 280kW
Max hp: 380Horsepower
Max torque: 1800N·m
Max torque speed: 1000-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD200TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
rear axle description: Front axle: forged I-beam, drum brake 7.5T; Rear axle: 457 single-stage stamped-welded axle
rear axle allowable load: 13000kg
Axle ratio: 4.11
Leaf spring count: 3/4+3
Tire
Tire Size: 11.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

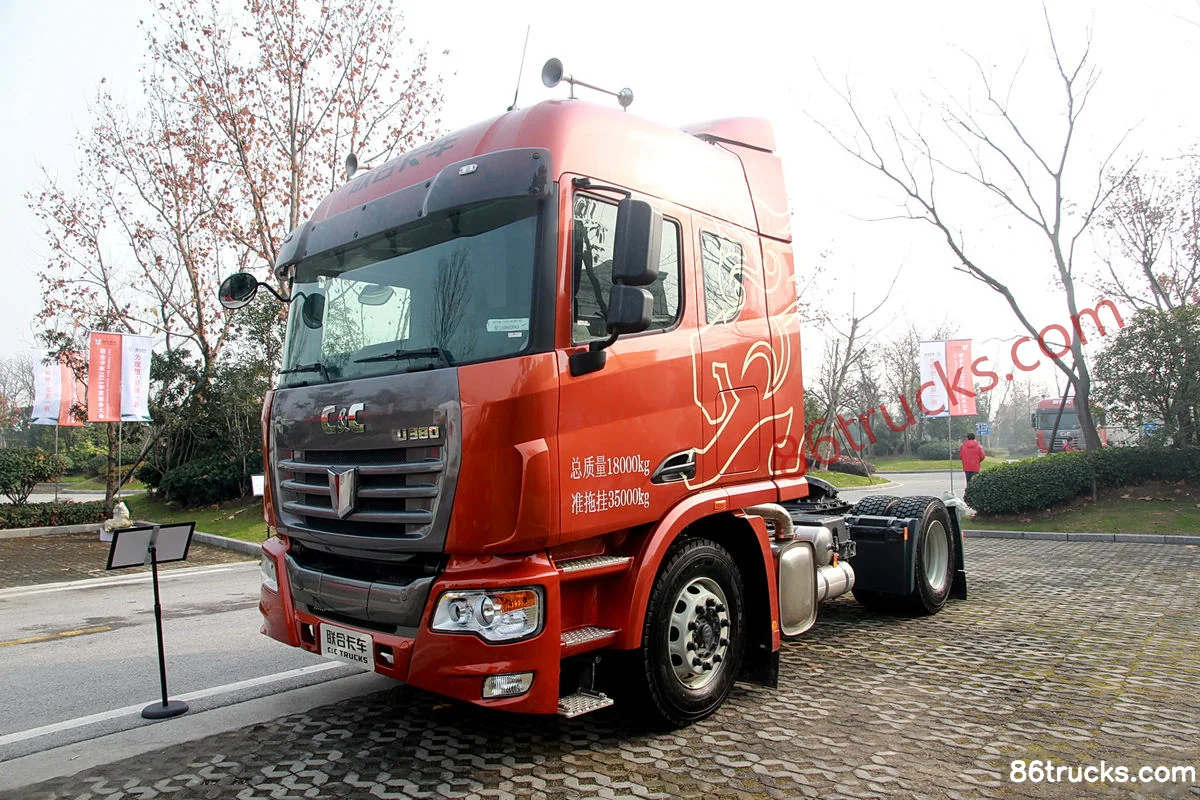

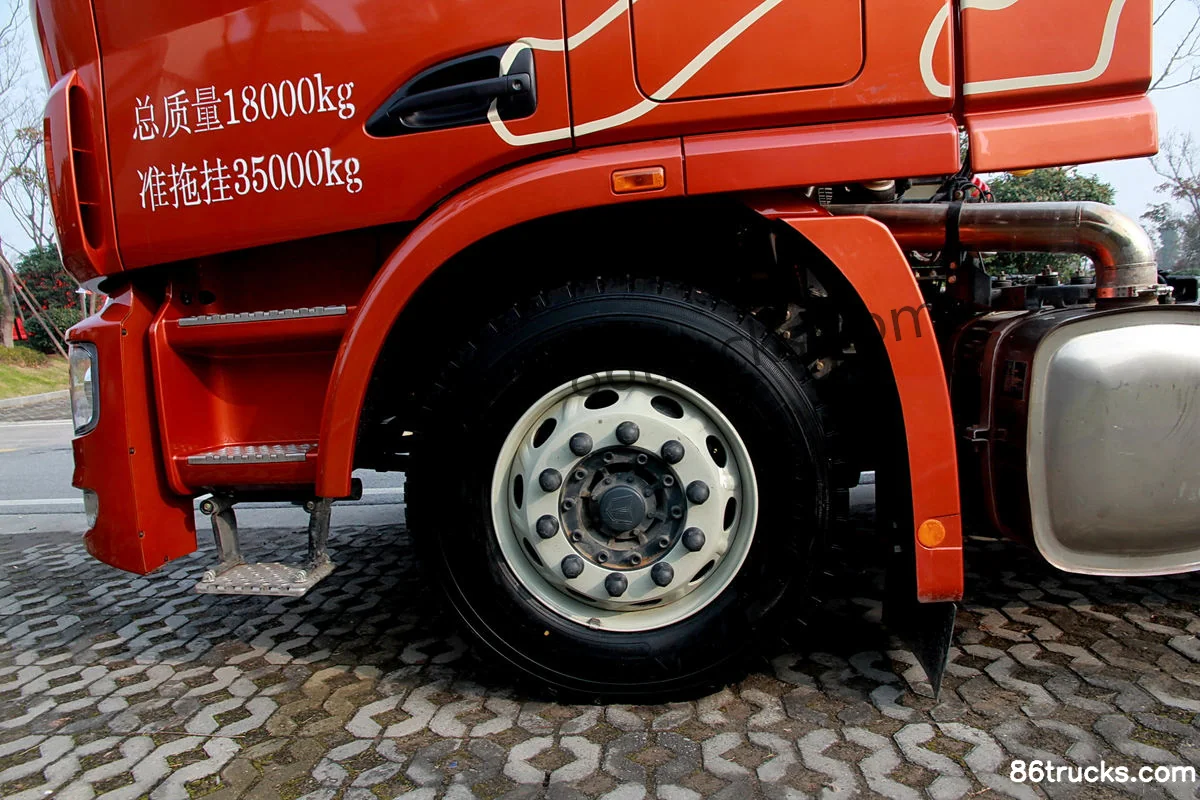

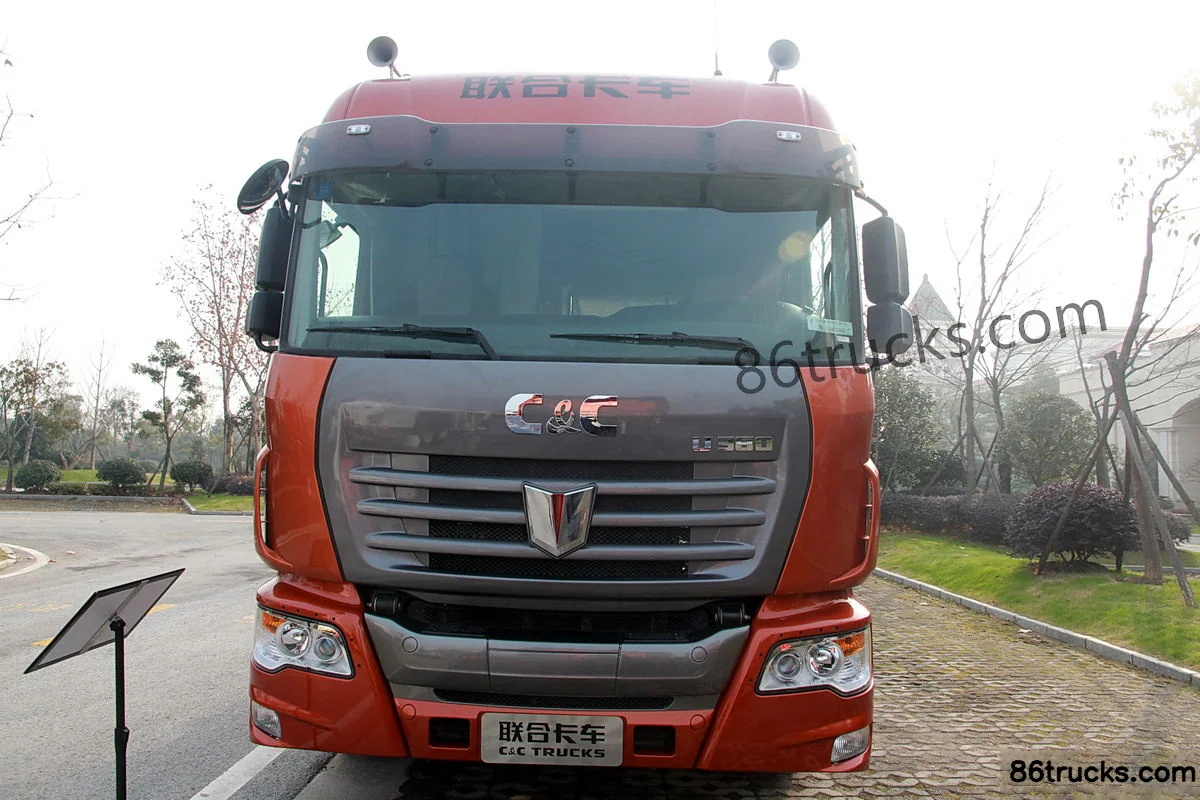

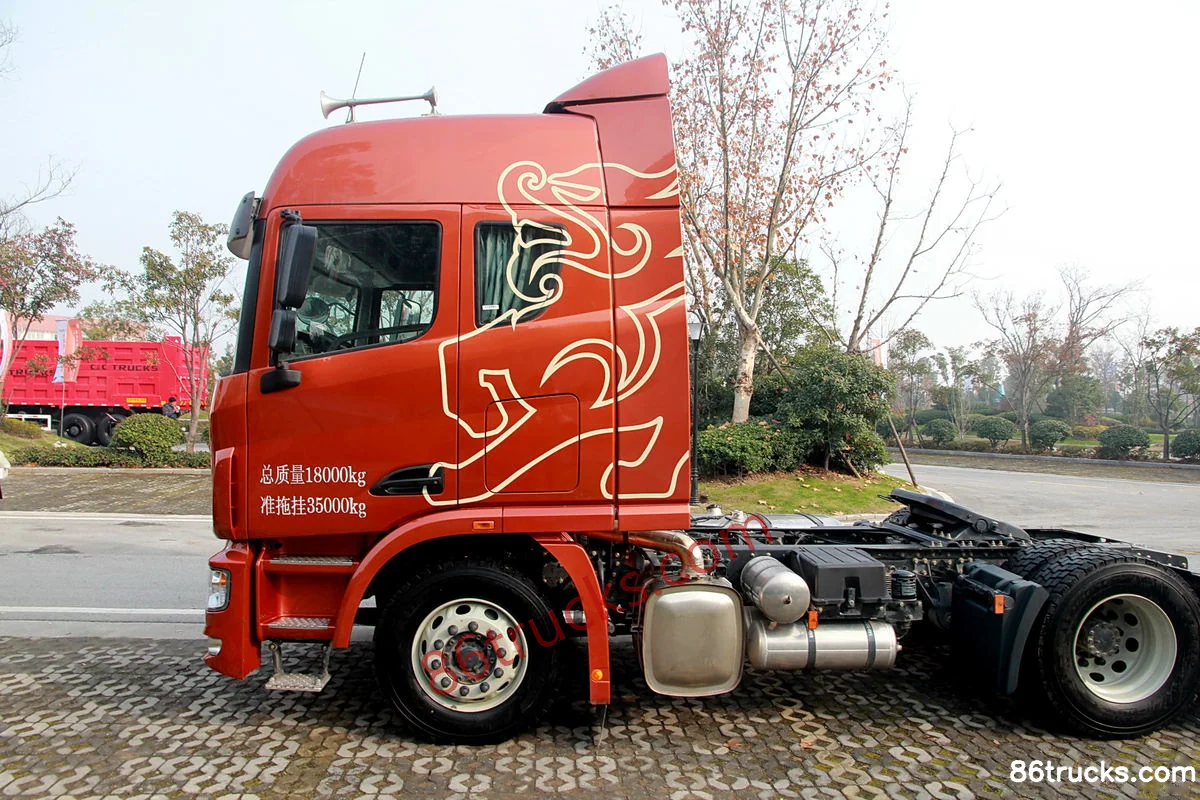

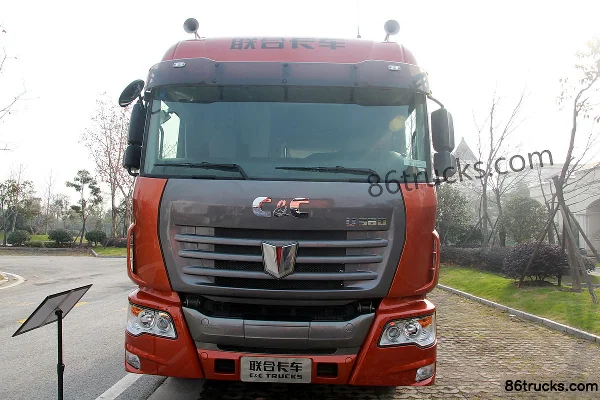

Exterior3

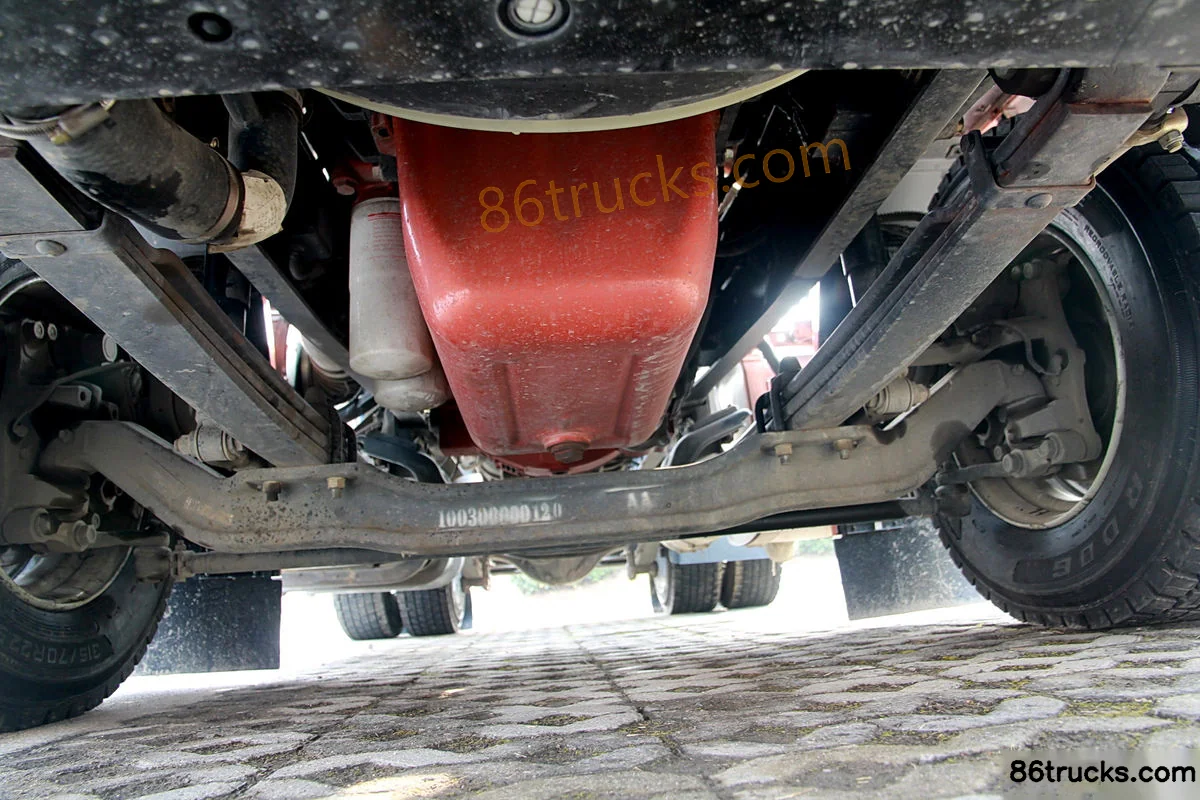

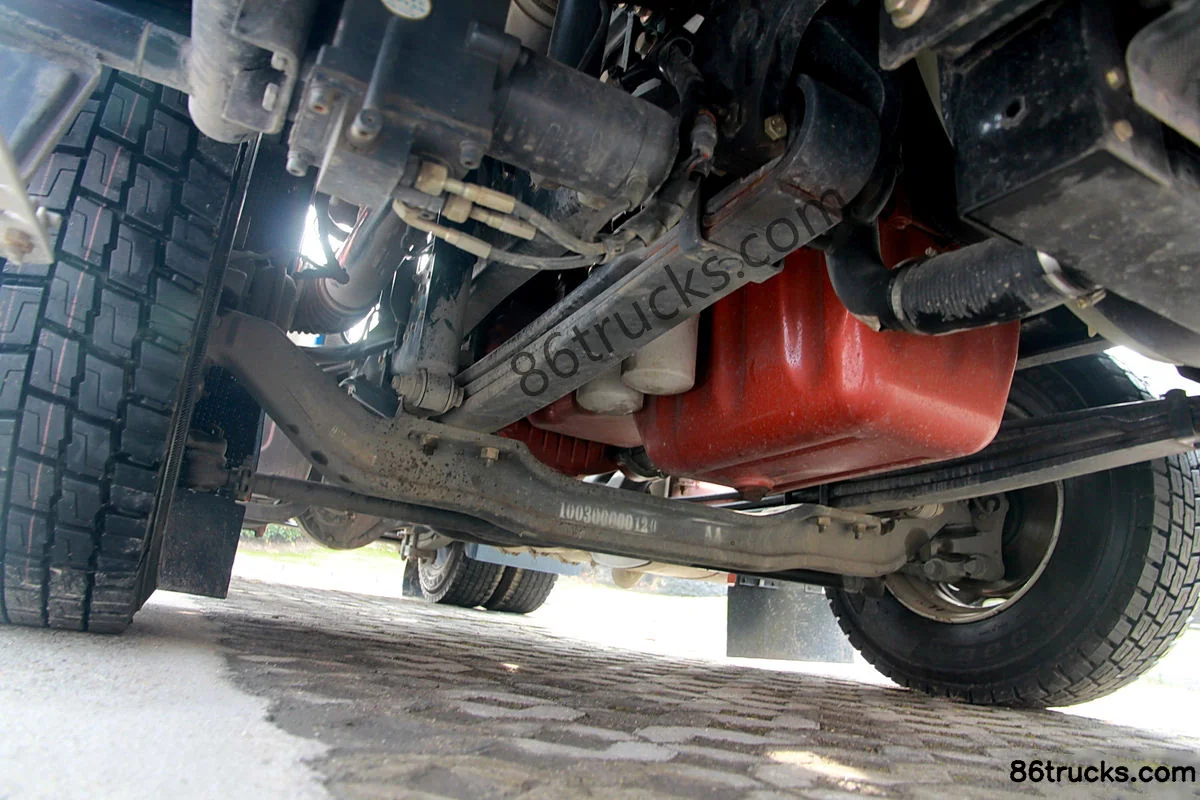

Chassis3

6 photos

FAQ

What emission standard does Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck?

Key specs of Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck: Drive: 4x2; Horsepower: 380 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck suited for?

Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck differ from other variants in the same series?

Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck belongs to Union Truck U-Series Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U380 heavy truck standard load type 380hp 4X2(6 wheels) low saddle tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
