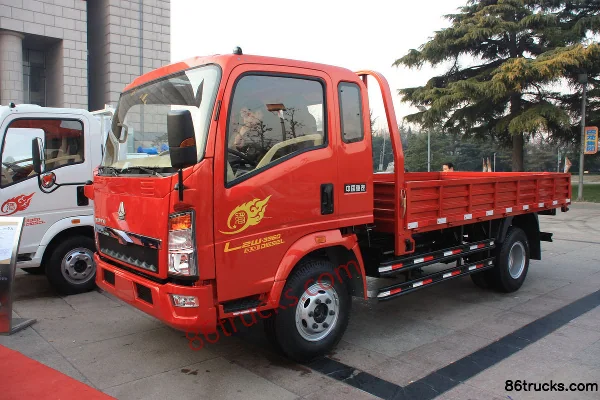

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck

Export reference
From $15,972
MSRP ¥11.5M CNY
Horsepower: 170
Emission: China V
Fuel: Diesel
Engine: Chaochai4SK
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Chaochai4SK engine, 170 hp, 4X2 (6 wheels) drive and China V emissions.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1047F341CE145
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 3.8m
engine: ChaochaiCY4SK151
transmission: WLYWLY6TS55
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.5m
Cab height: 2.45m
Front track width: 1605mm
rear track: 1555mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 18°
departure angle: 18°
market segment: Building materials, agricultural products
Remarks: Optional ratios: 4.33
Front/rear suspension: 1.16/1.675m
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4SK151
Engine info: Chaochai4SK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Inline 4-cylinder, water-cooled, turbocharged & intercooled, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.3m
Cargo box height: 0.5m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 1790kg
rear axle description: 7.2T
rear axle allowable load: 2705kg
Axle ratio: 4.875
Leaf spring count: 11/9+7
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck, and what does it include?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck export reference is about From $15,972; MSRP is ¥11.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck?

Key specs of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Engine: Chaochai4SK; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck suited for?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck differ from other variants in the same series?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck belongs to Sinotruk Hanjiang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
