JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body)

Export reference
From $15,278
MSRP ¥11M CNY
Horsepower: 109
Emission: China III / Euro III
Fuel: Diesel
Engine: JAC493
Transmission: JMC
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.725ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body) is a Light Truck featuring 4.13m cargo length, stake body cargo body, 3Personnel volume and 1.725t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a JAC493 engine, 109 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1043K103
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: JACHFC4DA1-2B1
Cab length: 5.98m
Cab width: 2.096m
Cab height: 2.25m
Front track width: 1665mm
rear track: 1525mm
Curb Weight: 2.56ton
Rated payload: 1.725ton
GVWR: 4.48ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
market segment: Building materials, agricultural products
Remarks: Optional power windows, dual batteries
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2B1
Engine info: JAC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China III / Euro III
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 240N·m
Max torque speed: 2000-2200rpm
Rated speed: 3600rpm
Engine Type: Vertical inline, water-cooled, 4-stroke, turbocharged intercooled with turbo
Transmission Parameters
Transmission Model: JMCMSB-5M
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.13m
Cargo box width: 1.96m
Cargo box height: 0.4m
*Cargo box interior width: 1.960000038147
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank

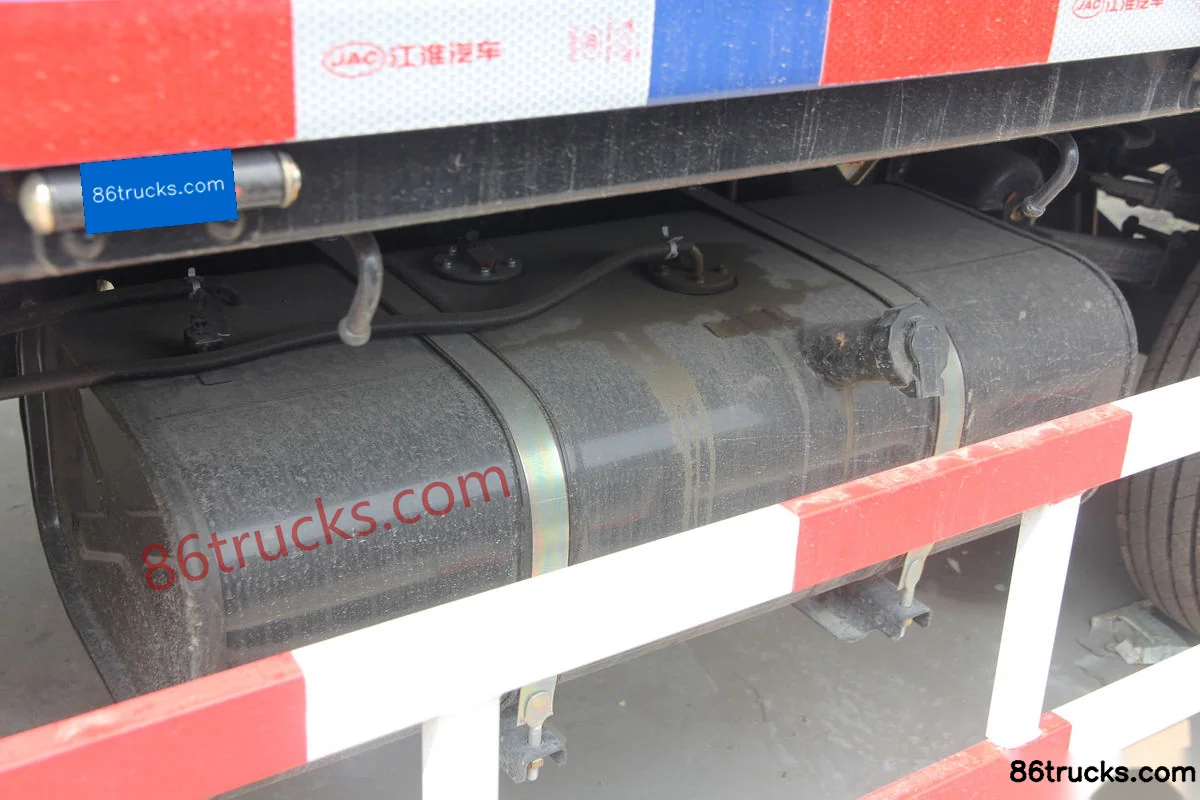

Fuel tank capacity: 100L
Chassis Specs
rear axle description: 2690
Leaf spring count: 12/8+6
Tire
Tire Size: 7.50R16
Number of tires: 6pcs

Photos

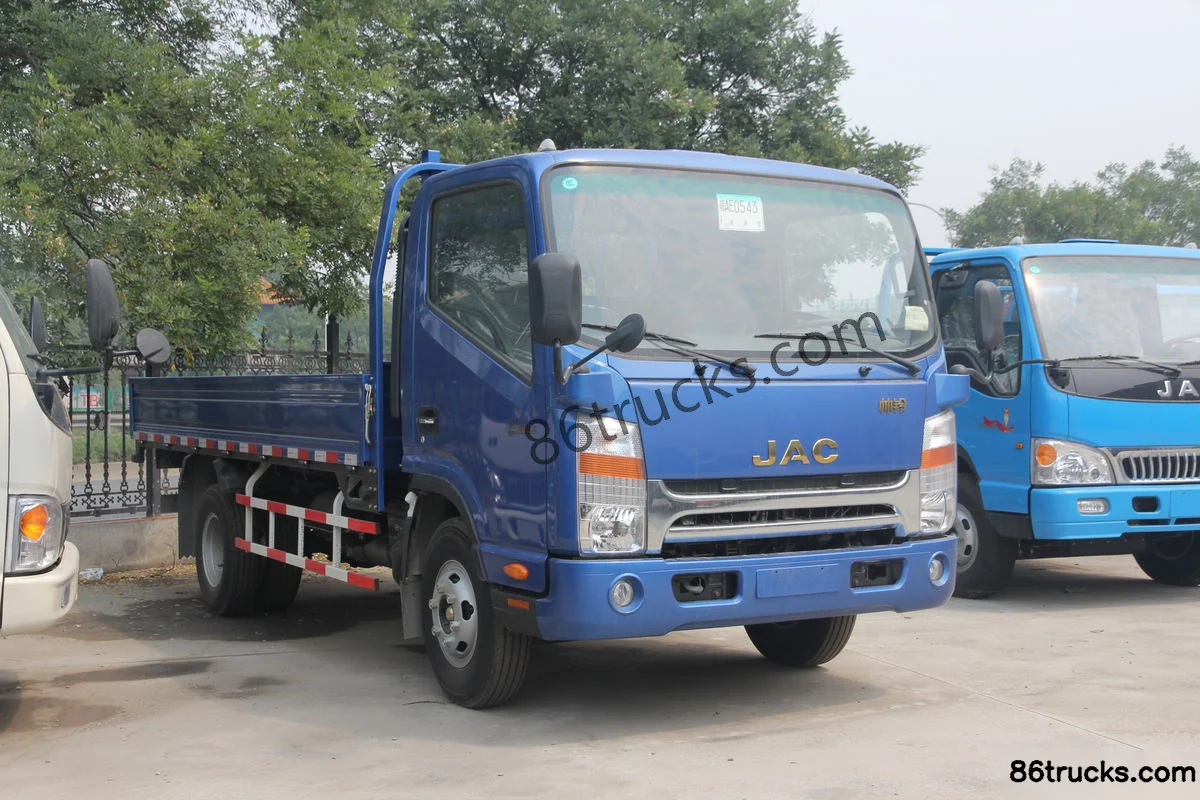

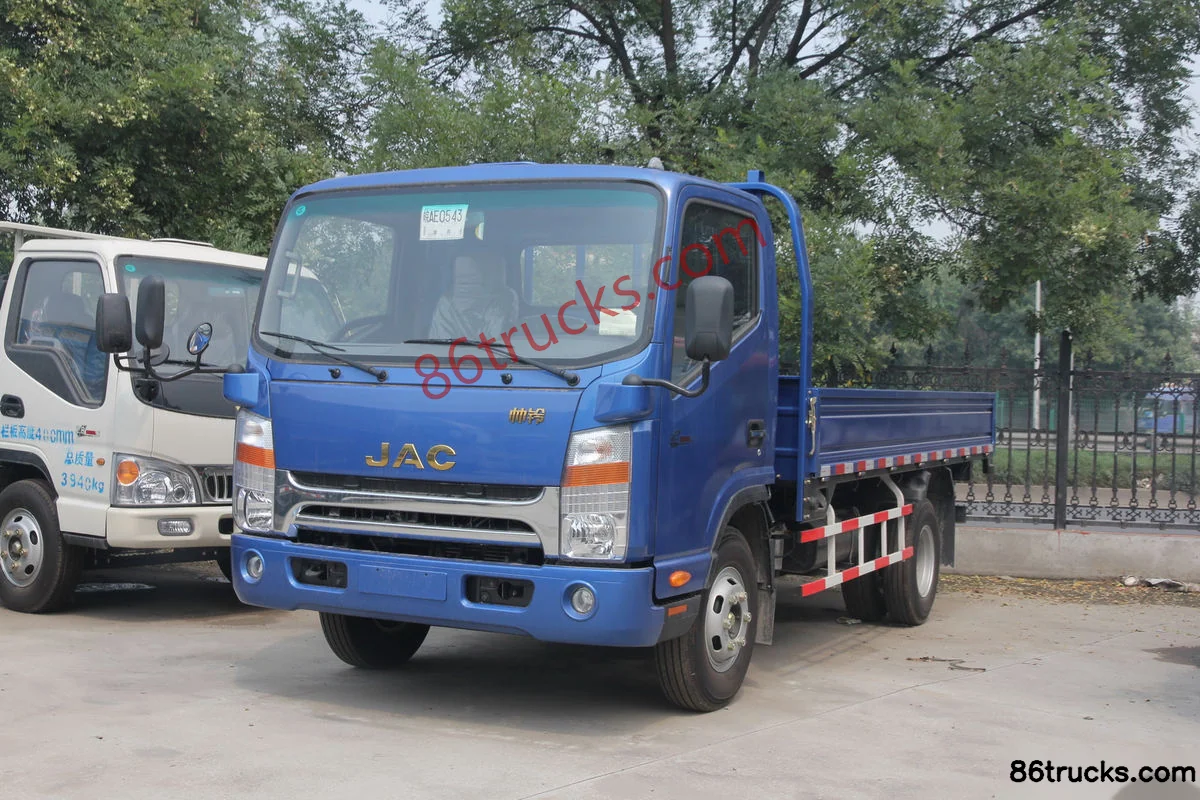

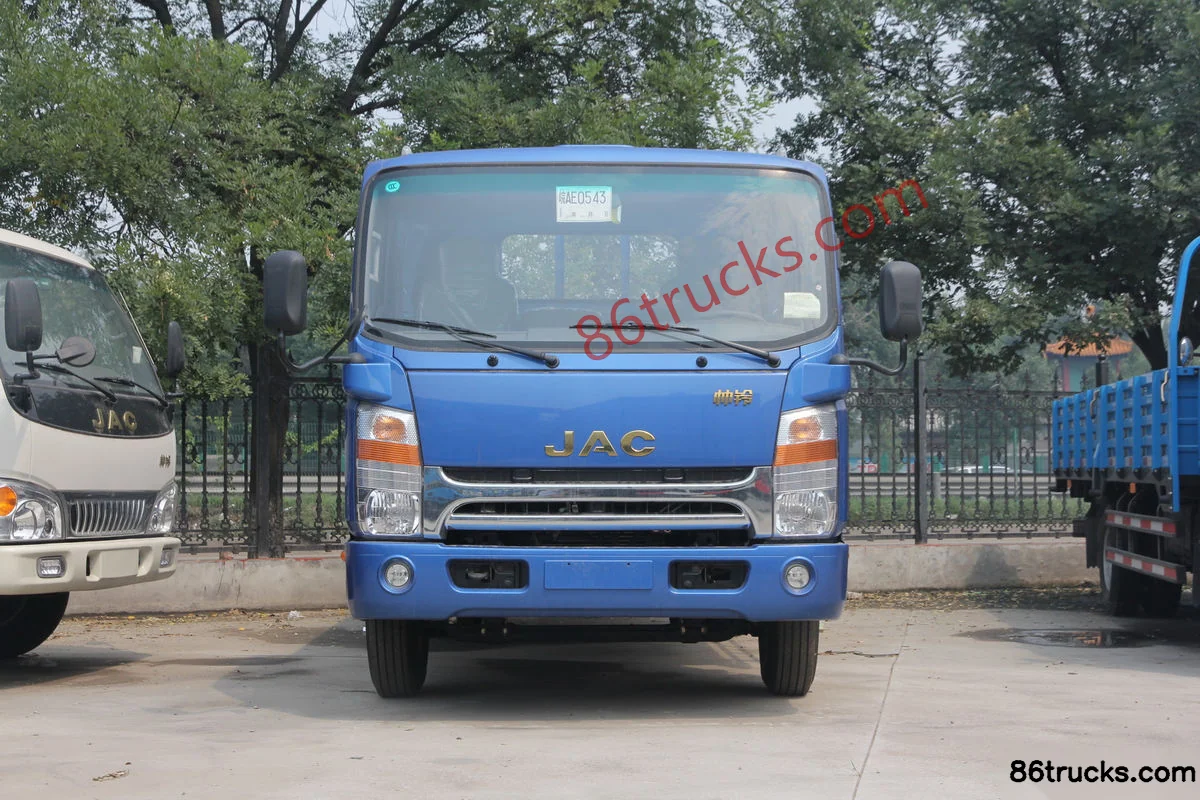

Exterior3

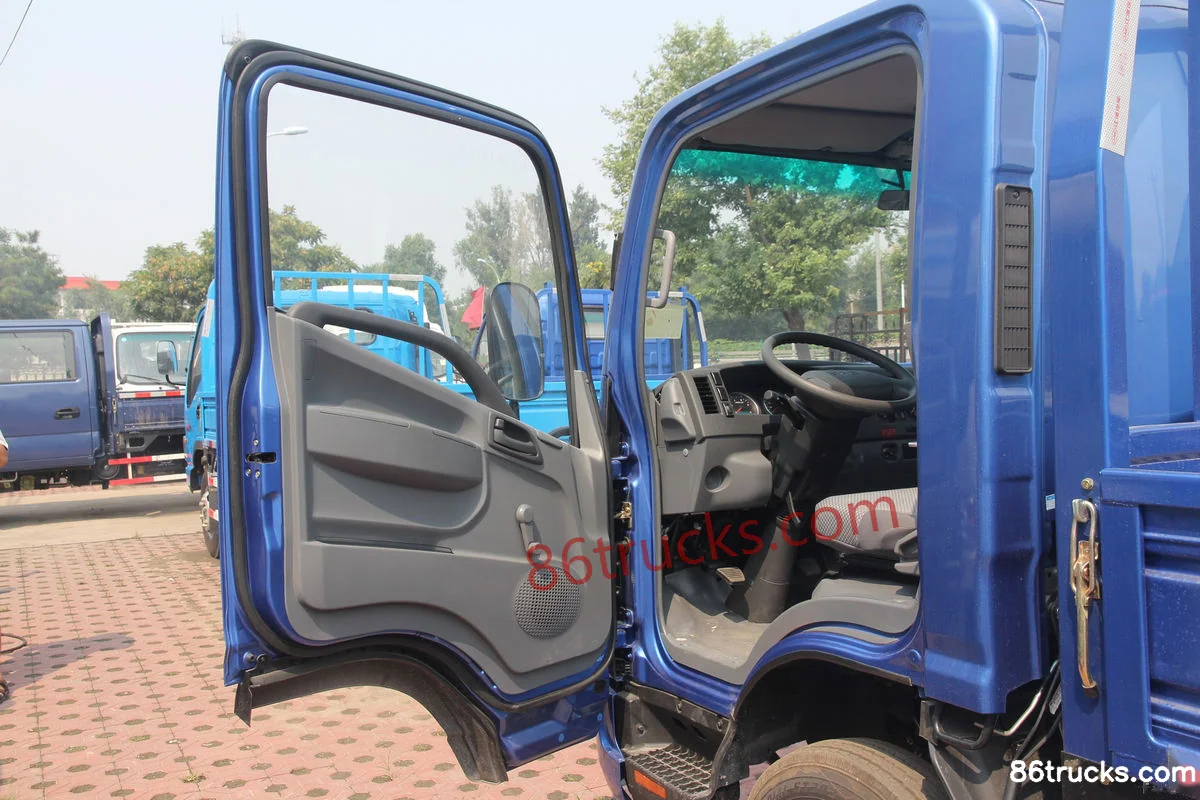

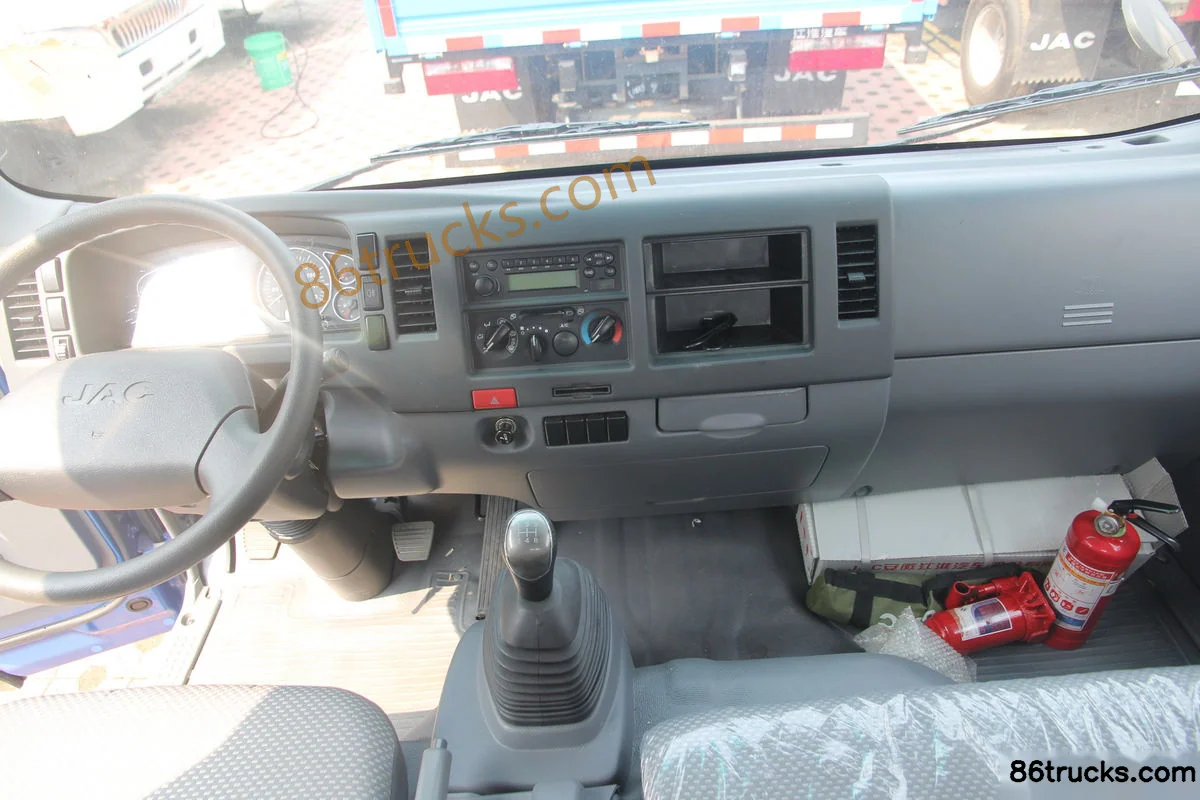

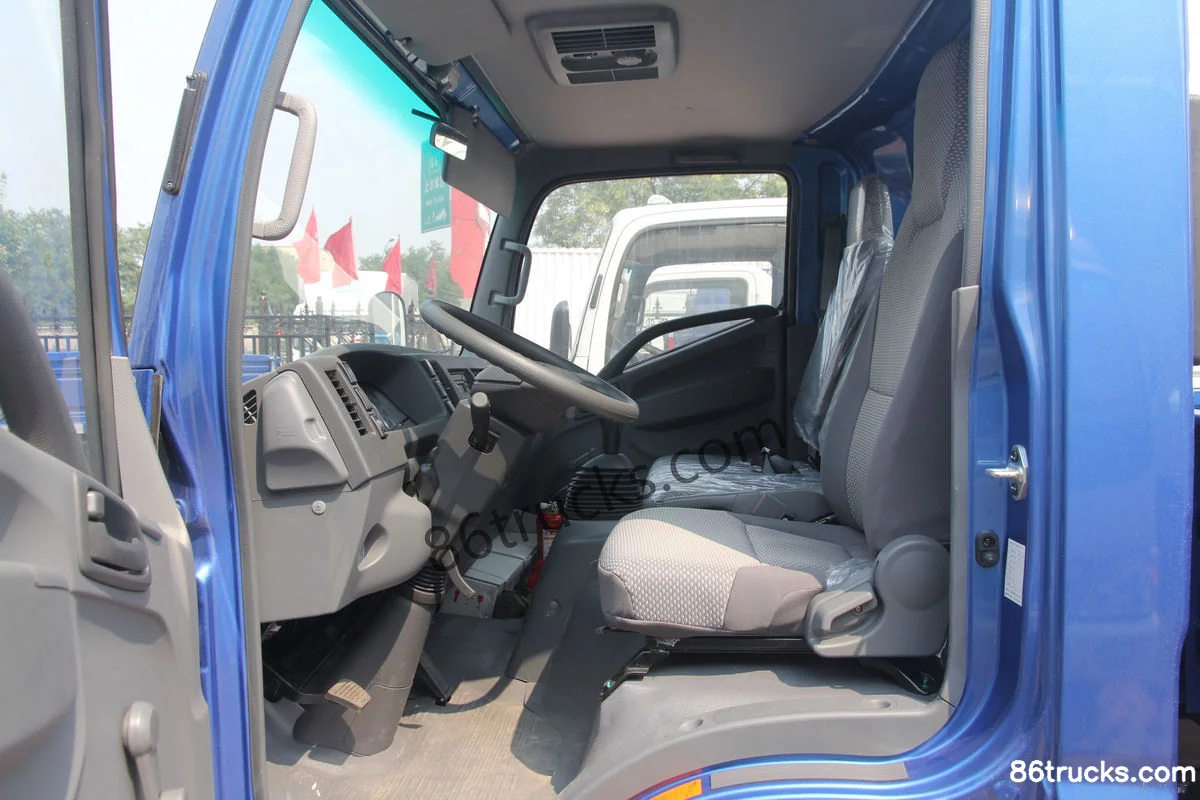

Cab3

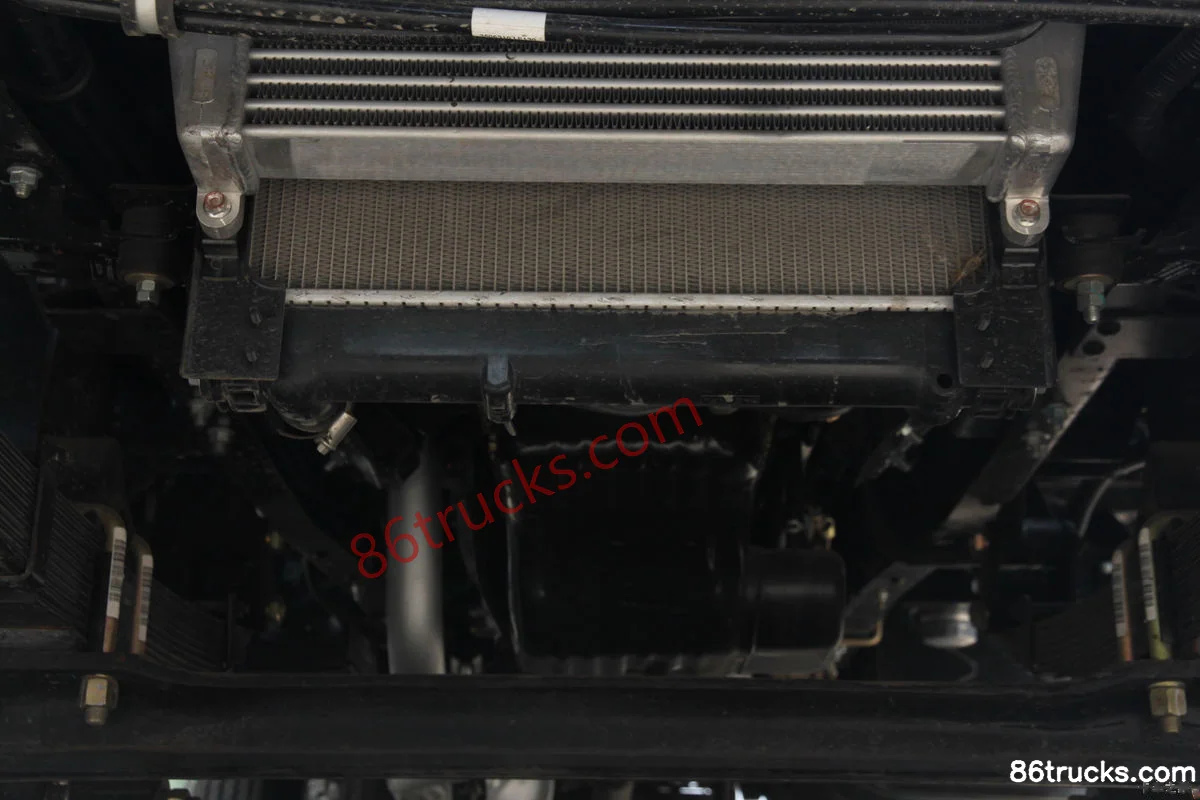

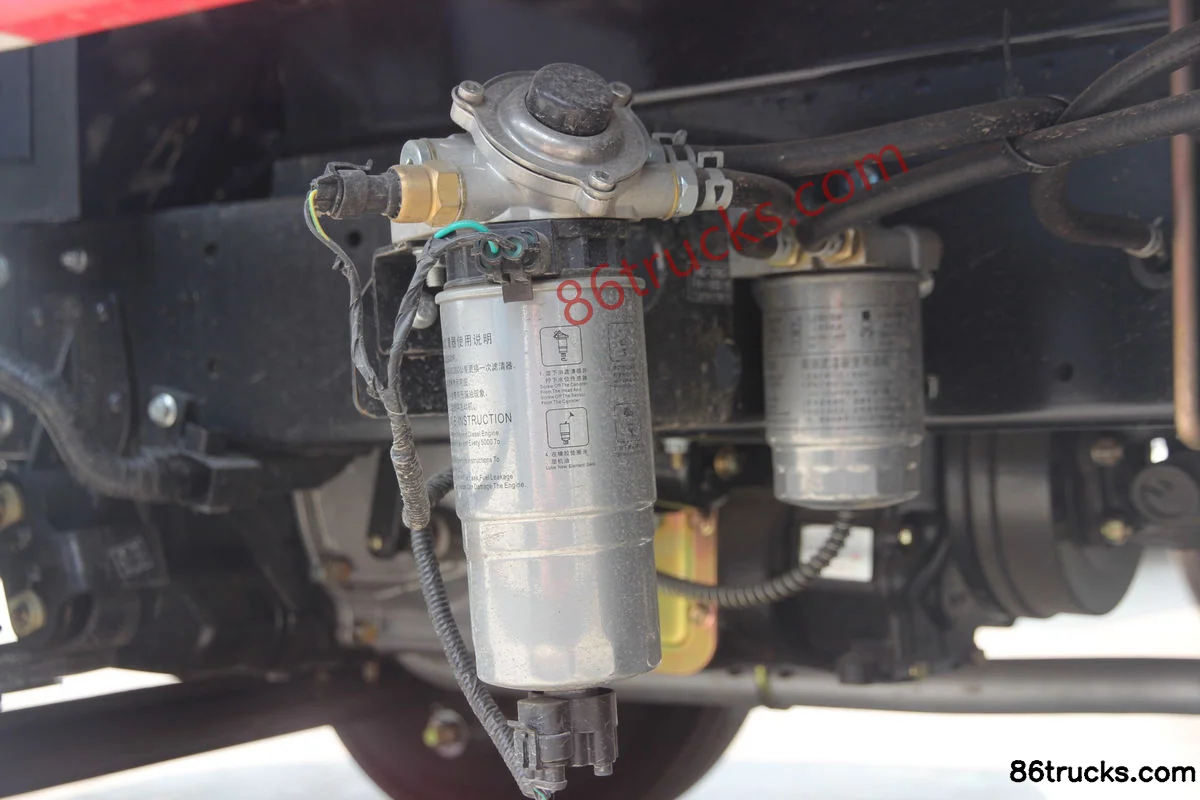

Chassis3

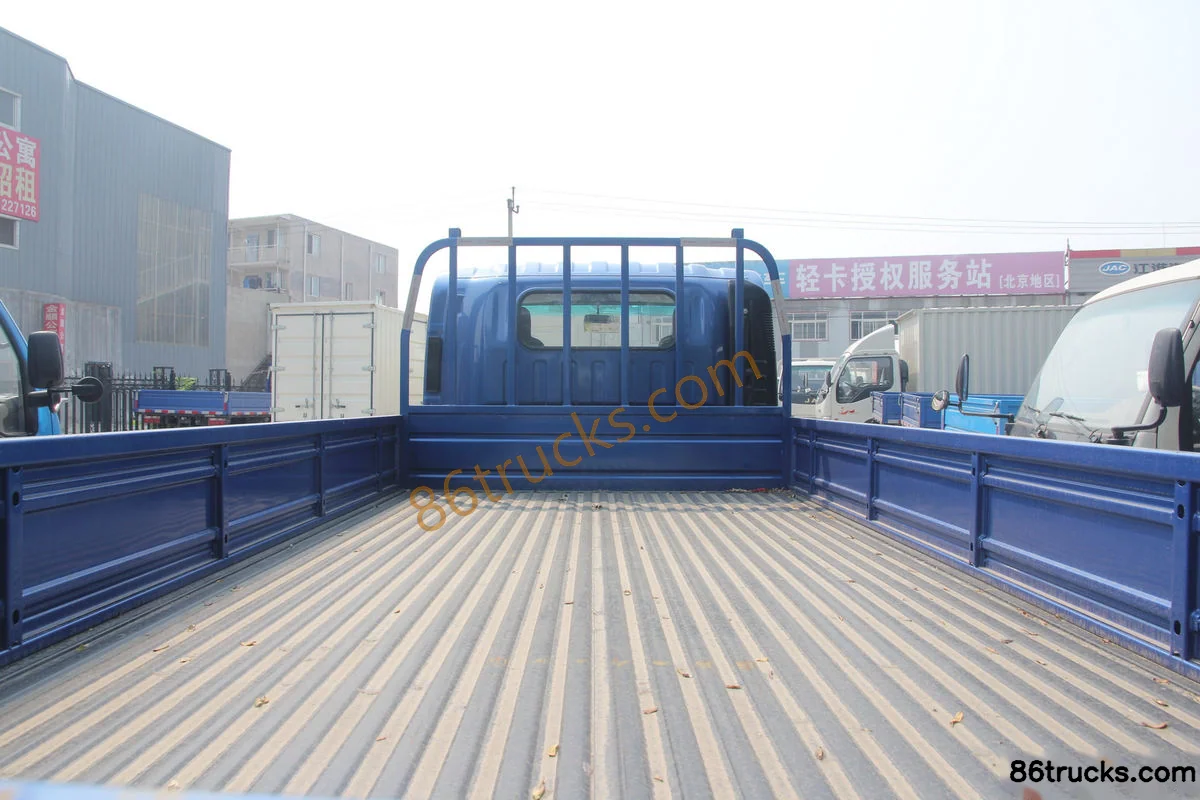

Body2

11 photos

FAQ

What is the export price of JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body), and what does it include?

JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body) export reference is about From $15,278; MSRP is ¥11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body)?

Key specs of JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body): Drive: 4x2; Horsepower: 109 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: JAC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body) suited for?

JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body) differ from other variants in the same series?

JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body) belongs to JAC H light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing H330 109 hp 4X2(6 wheels) 4.13m Single Row Flatbed Light Truck (Wide Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
