SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 245
Emission: China IV
Fuel: Diesel
Engine: WeichaiWP6
Transmission: Fast Gear
Curb Weight:: 10.28ton
seating capacity: 2Personnel
Rated payload: 14.59ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck is a Heavy-duty cargo trucks featuring 9.55m cargo length, Van body cargo body, 2Personnel volume and 14.59t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP6 engine, 245 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5256XXY4K549
Type: enclosed cargo truck
Drive type: 6X2
Box length class: 9.5m
engine: WeichaiWP6.245E40
transmission: Fast Gear9JS119
Rear Axle Ratio: 3.364
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2011/2011mm
rear track: 1860mm
Curb Weight: 10.28ton
Rated payload: 14.59ton
GVWR: 25ton
Max. speed: 100km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle:
market segment: Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Front/rear suspension: 1.525/2.44m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP6.245E40
Engine info: WeichaiWP6
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.75L
Emission standard: China IV
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 900N·m
Max torque speed: 1100-1700rpm
Rated speed: 2300rpm
Engine Type: Electronic high-pressure common rail + SCR
Technology route: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear9JS119
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.55m
Cargo box width: 2.45m
Cargo box height: 2.55m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: Hande 5.5t MAN technology front axle
Front axle allowable load: 7000/7000kg
rear axle description: Hande 11.5t MAN single reduction axle
rear axle allowable load: 11000kg
Axle ratio: 3.364
Leaf spring count: 3/3/10+6
Tire
Tire Size: 295/80R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

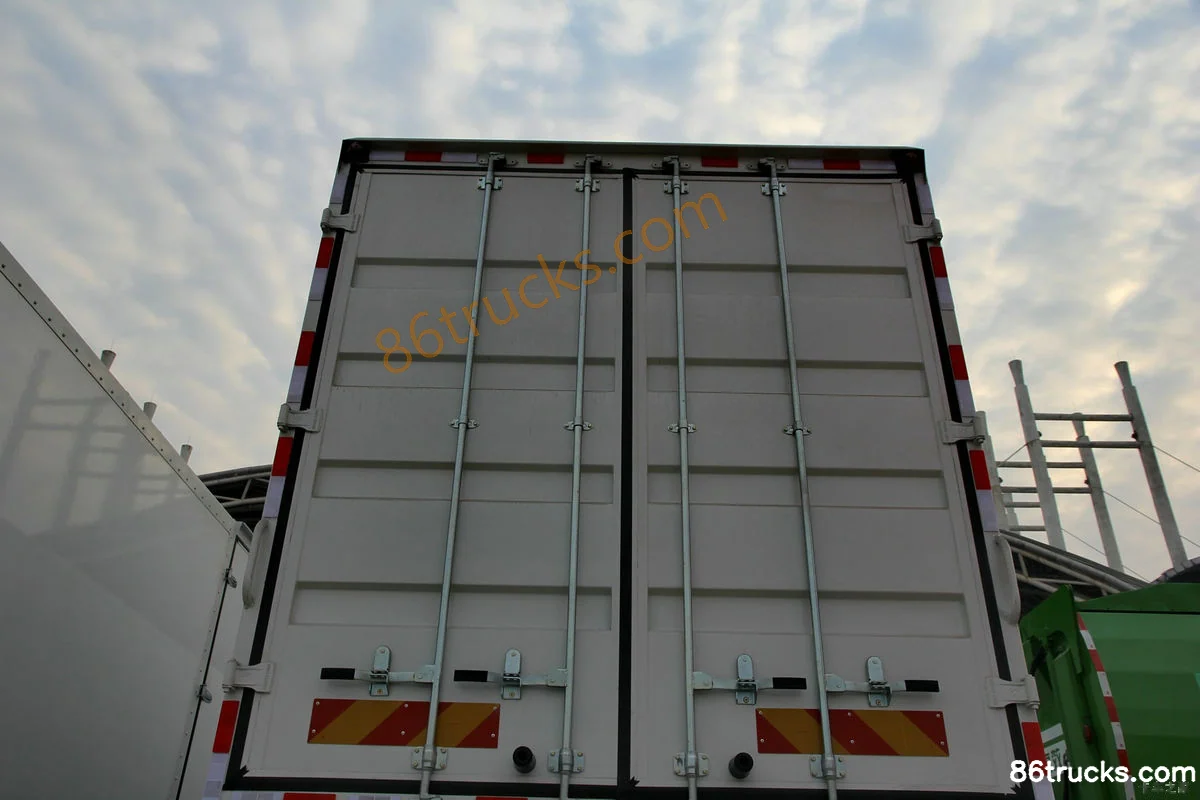

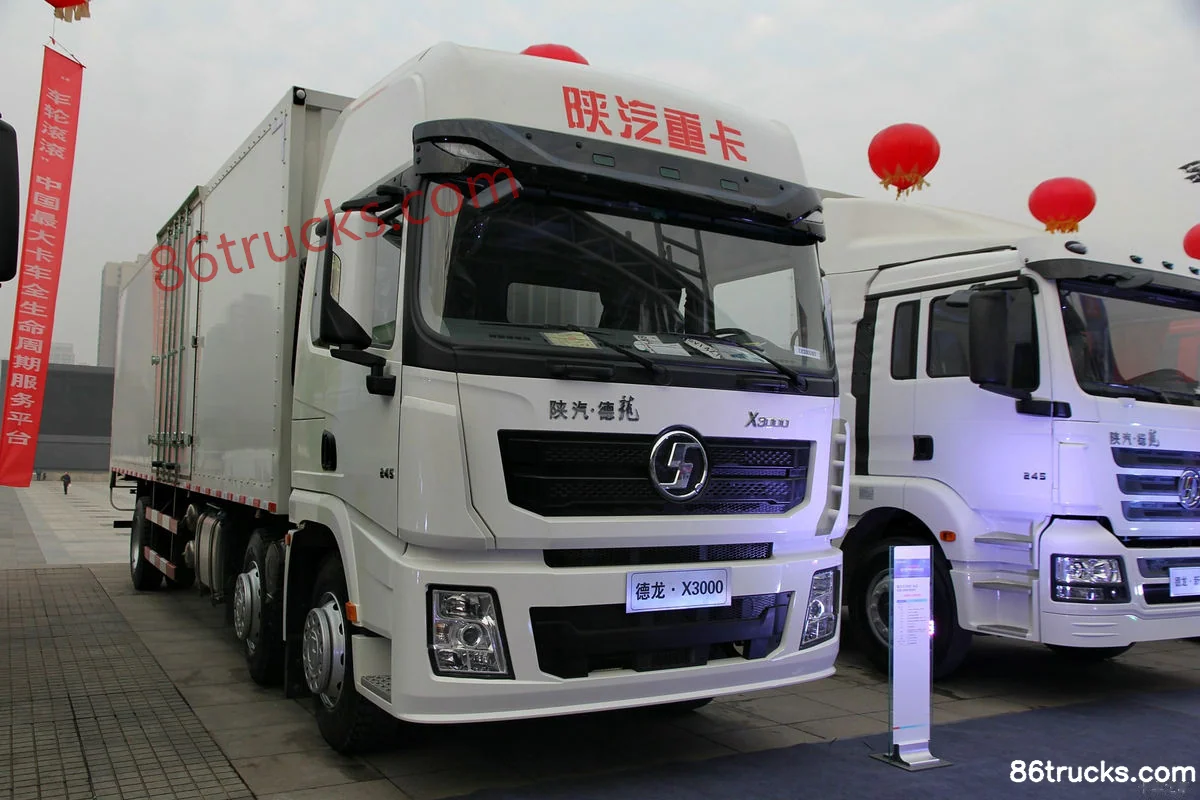

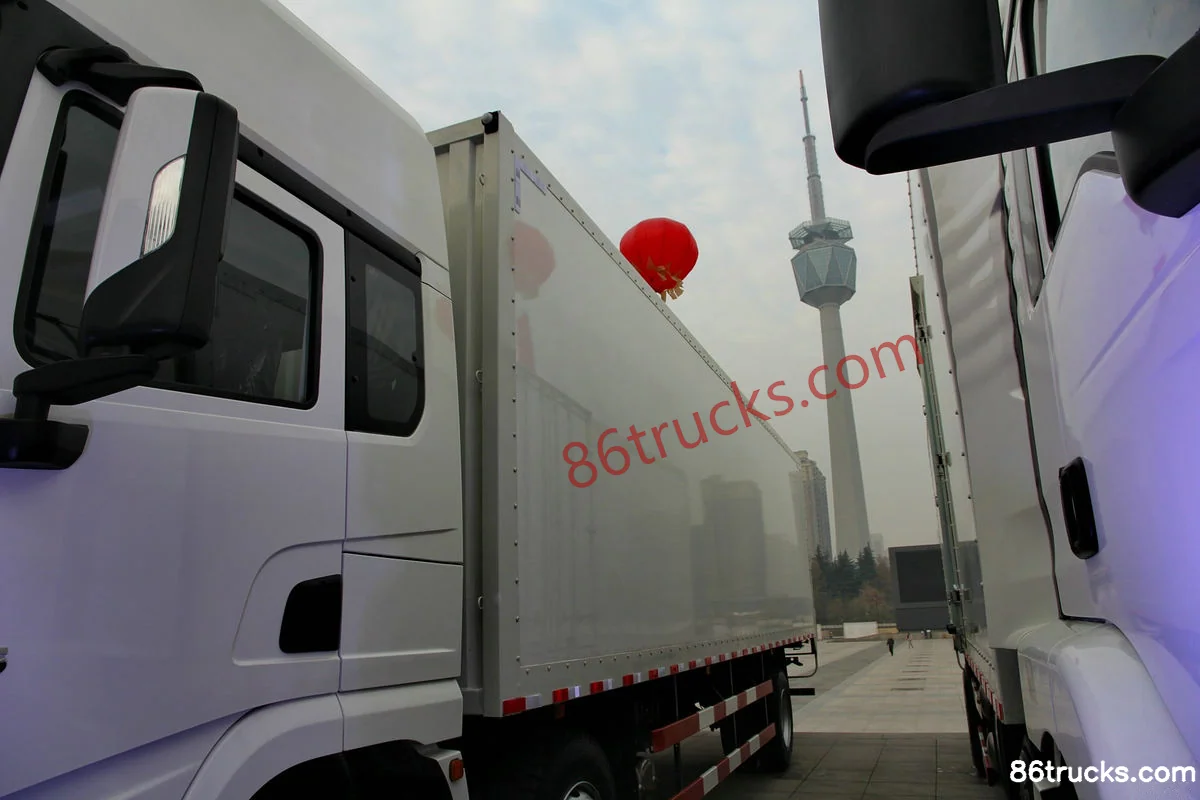

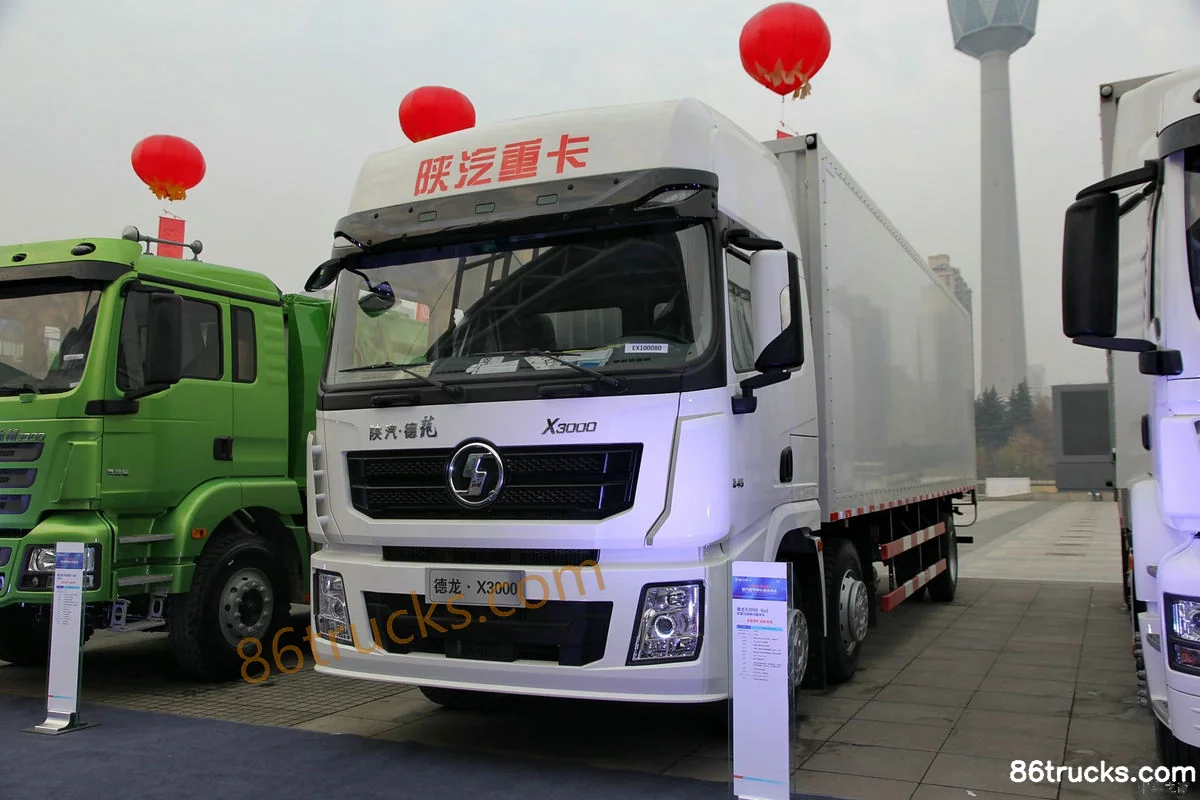

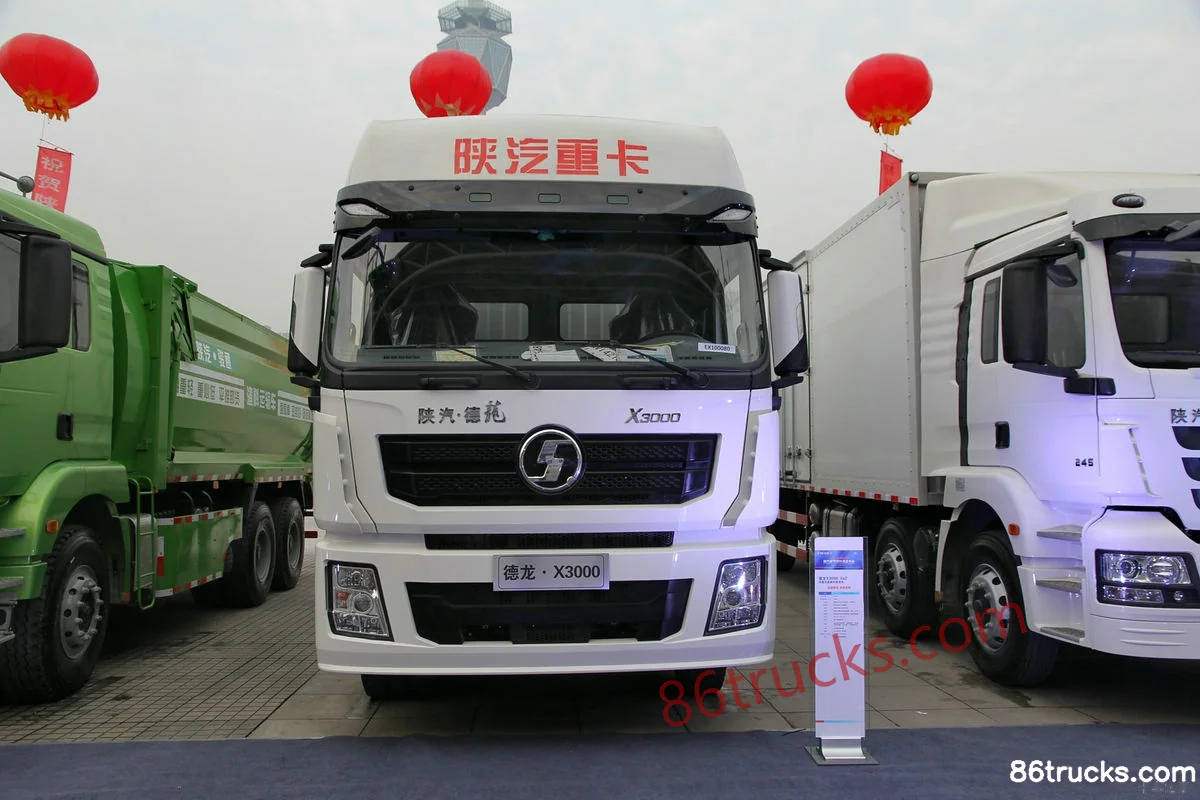

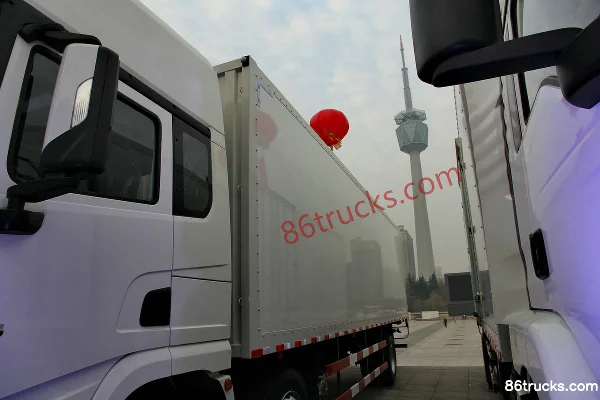

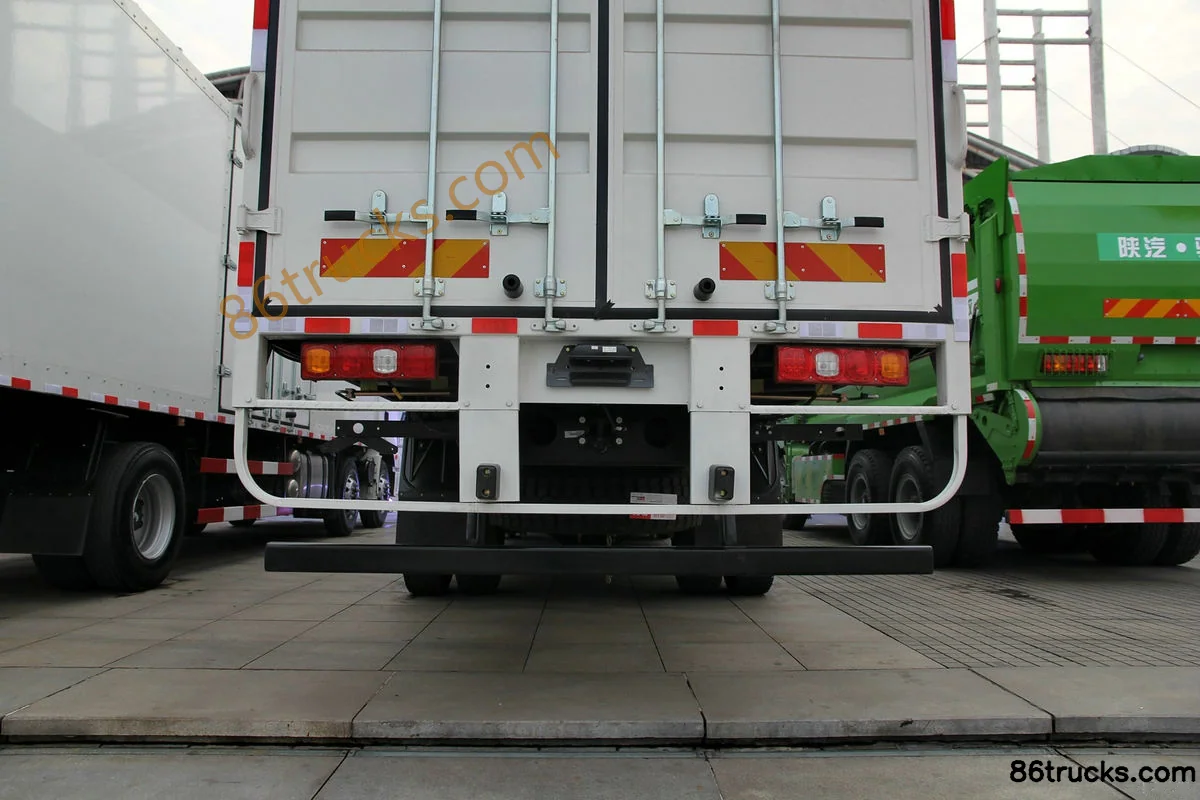

Exterior3

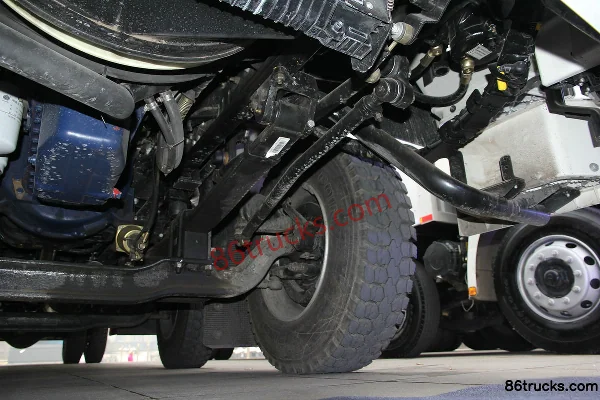

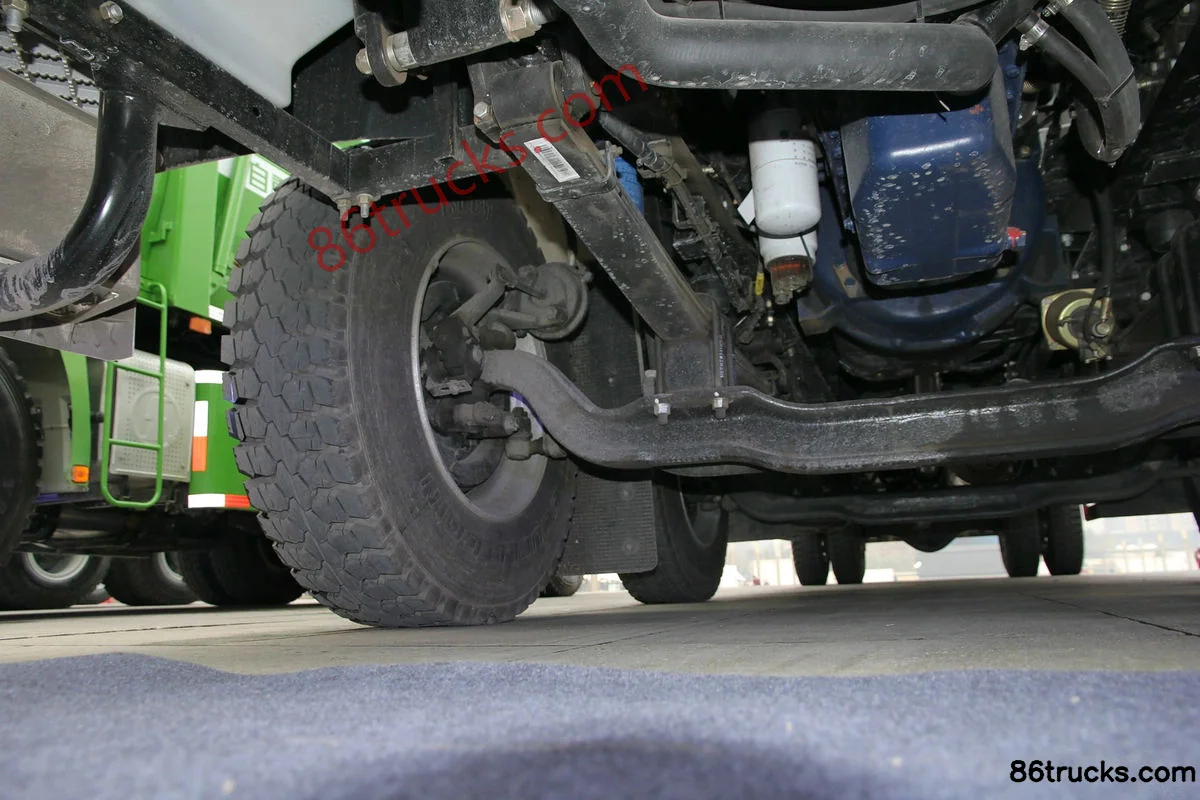

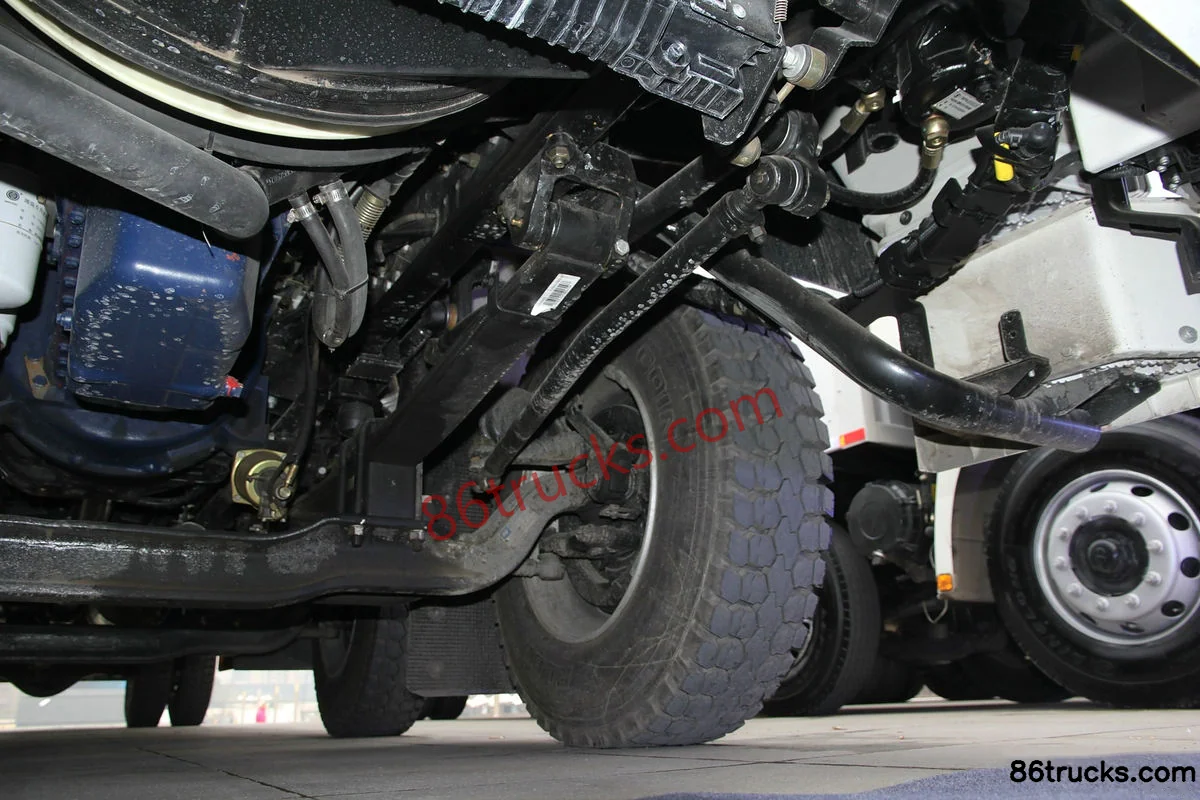

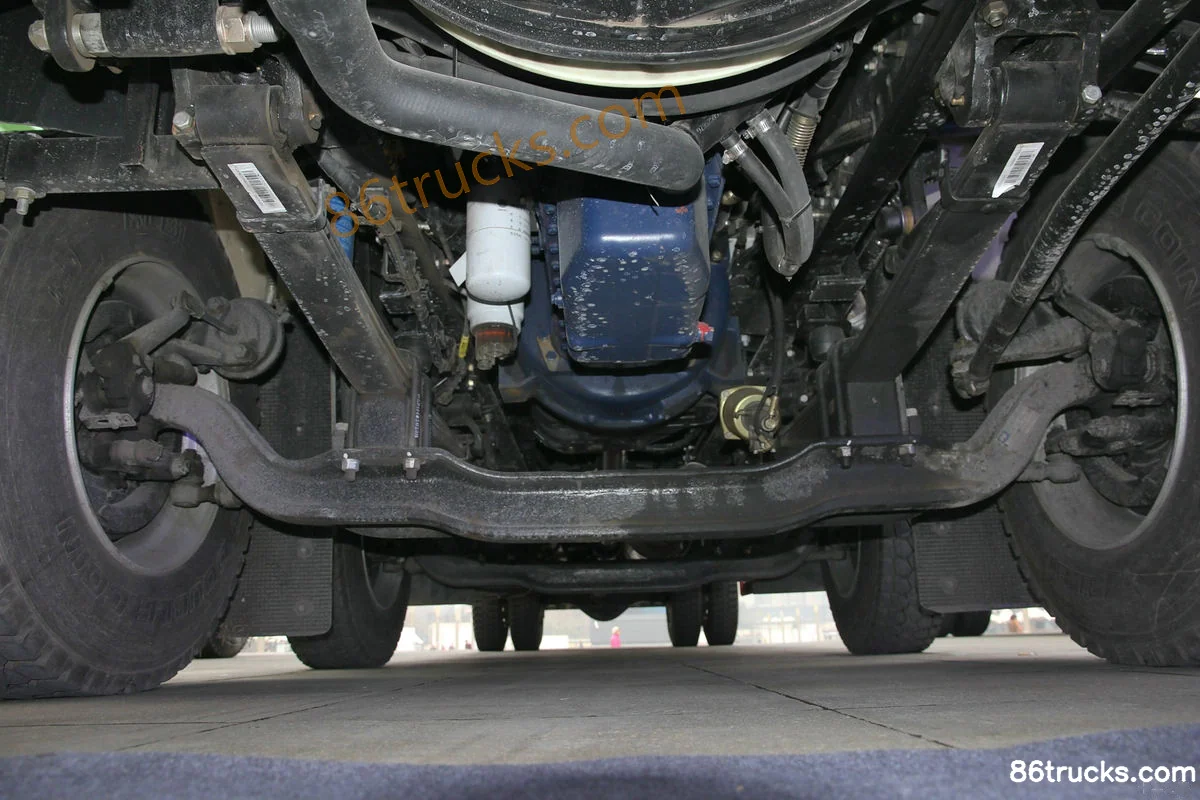

Chassis3

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck?

Key specs of SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck: Drive: 6x2; Horsepower: 245 hp; Emission: China IV; Fuel: Diesel; Engine: WeichaiWP6; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck suited for?

SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck differ from other variants in the same series?

SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck belongs to SHACMAN Delong X3000 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 245 hp 6X2(8 wheels) 9.5m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
