Luoxiang 13.75m Goose Neck Van Semi-Trailer

Export reference
MSRP N/A
Cab width:: 2.5m
suspension:: Maintenance-free or air suspension
Fifth Wheel Pin:: 50#/90#
Design load capacity:: 31.5ton
Cab height:: 4m
Wheel brand:: Luoxiang/Risheng
Axle Brand: Luoxiang/Fuwa/BPW
Curb Weight: 8.5ton
Cab length: 13.75m
Tire brand: Goodyear, Dunlop, Chaoyang

Overview

The Luoxiang Trailer Luoxiang 13.75m Goose Neck Van Semi-Trailer is a van semi-trailer featuring Luoxiang/Fuwa/BPW-axle setup, 8.5ton GVW, 13.75m length and 31.5ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 31.5ton
Cab length: 13.75m
Cab width: 2.5m
Cab height: 4m
Curb Weight: 8.5ton
Chassis Specs
Axle Brand: Luoxiang/Fuwa/BPW
Number of Axles: 3
Axle Load Rating: -/24000(tri-axle group)
Wheel brand: Luoxiang/Risheng
Number of wheels: 12
suspension: Maintenance-free or air suspension
Wheel Material: Steel/Aluminum alloy
Parts & accessories
Fifth Wheel Pin: 50#/90#
Outrigger: aluminum alloy
Toolbox: 2pcs
ABS: WABCO/Kemi
Body Parameters
Frame material: high-strength steel
Web Plate: 5mm
frame rail height: 470mm
upper wing panel: 8mm
Lower Wing Plate: 10mm
Cargo box parameters
Cargo box length: 13.6m
Cargo box width: 2.47m
Cargo box height: 3.45m
Other notes
Lead time for customization: 20 days
warranty period: 12 months
warranty method: Three guarantees policy
Tire
Tire brand: Goodyear, Dunlop, Chaoyang
Tire Size: 11.00R20 12PR,12R22.5 12PR,11R22.5 12PR,245/70R17.5 18PR
Number of tires: 12pcs

Photos

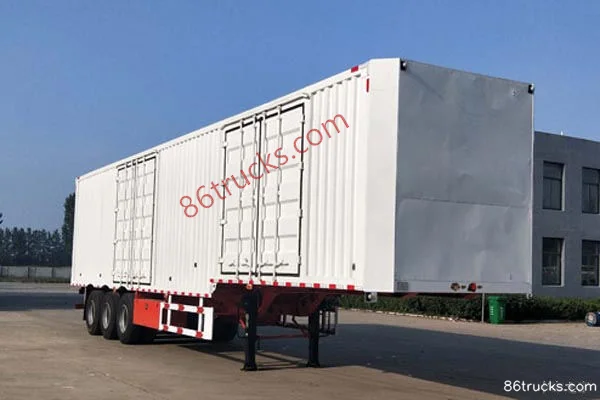

Exterior1

1 photos

FAQ

What transport jobs is Luoxiang 13.75m Goose Neck Van Semi-Trailer suited for?

Luoxiang 13.75m Goose Neck Van Semi-Trailer is a van semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Luoxiang 13.75m Goose Neck Van Semi-Trailer differ from other variants in the same series?

Luoxiang 13.75m Goose Neck Van Semi-Trailer belongs to Luoxiang Trailer 13.75m Series (van semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Luoxiang 13.75m Goose Neck Van Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Luoxiang 13.75m Goose Neck Van Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
