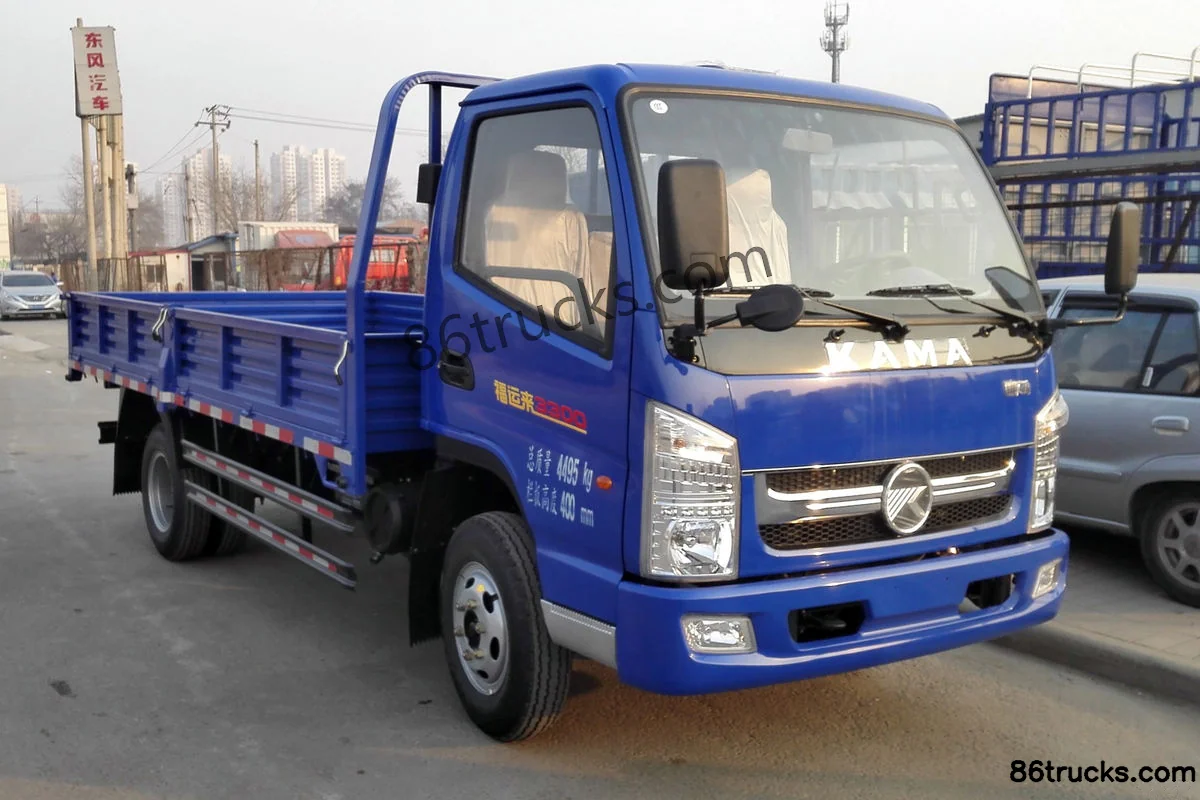

Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake)

Export reference
MSRP N/A
Horsepower: 87
Emission: China IV
Fuel: Diesel
Engine: Xichai490
Transmission: Lu'an
Curb Weight:: 2.54ton
seating capacity: 2Personnel
Rated payload: 1.76ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake) is a Light Truck featuring 4.2m cargo length, stake body cargo body, 2Personnel volume and 1.76t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Xichai490 engine, 87 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 87 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1042LLB33D4
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: Xichai4DW93-84E4
transmission: Lu'an LC5T32
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.1m
Cab height: 2.32m
Front track width: 1540mm
rear track: 1550mm
Curb Weight: 2.54ton
Rated payload: 1.76ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 25°
departure angle: 18°
market segment: Building materials, agricultural products
Front/rear suspension: 1.15/1.545m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW93-84E4
Engine info: Xichai490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.54L
Emission standard: China IV
Max output power: 64kW
Max hp: 87Horsepower
Max torque: 220N·m
Max torque speed: 1900-2100rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: Lu'an LC5T32
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 1.92m
Cargo box height: 0.4m
*Cargo box interior width: 1.9199999570847
Cab parameters
Cab: Medium-body Cab
Cab width: 1820mm
seating capacity: 2Personnel
Seat rows: Single Row
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 1860kg
Frame Dimensions: 180×65×5mm
rear axle allowable load: 2635kg
Axle ratio: 5.571
Leaf spring count: 7/9+5
Tire
Tire brand: Linglong
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

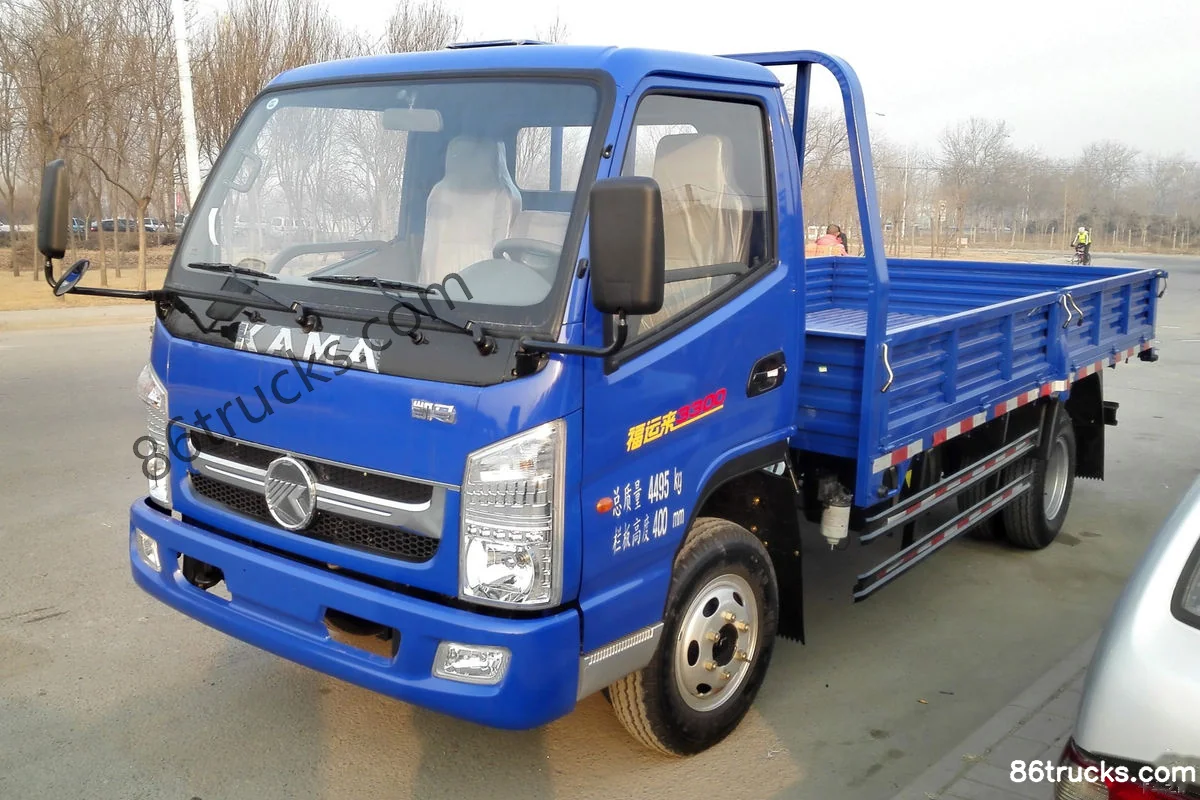

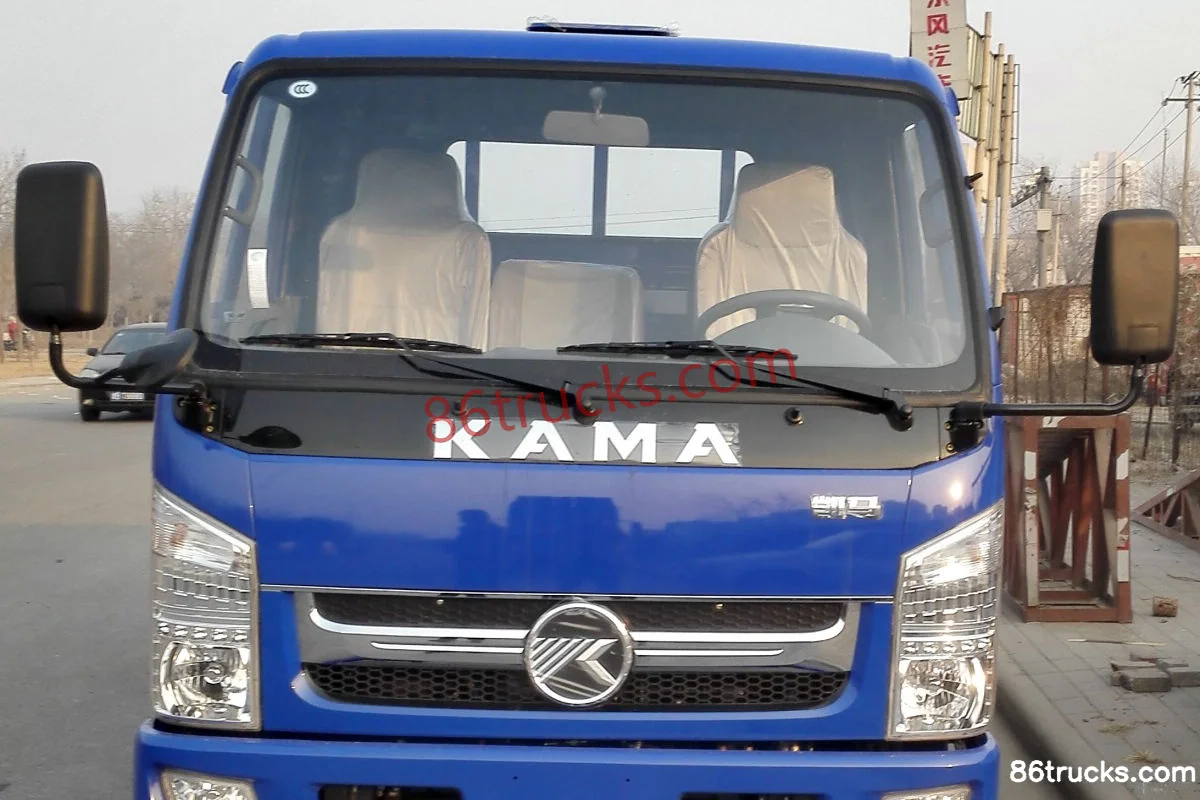

Exterior3

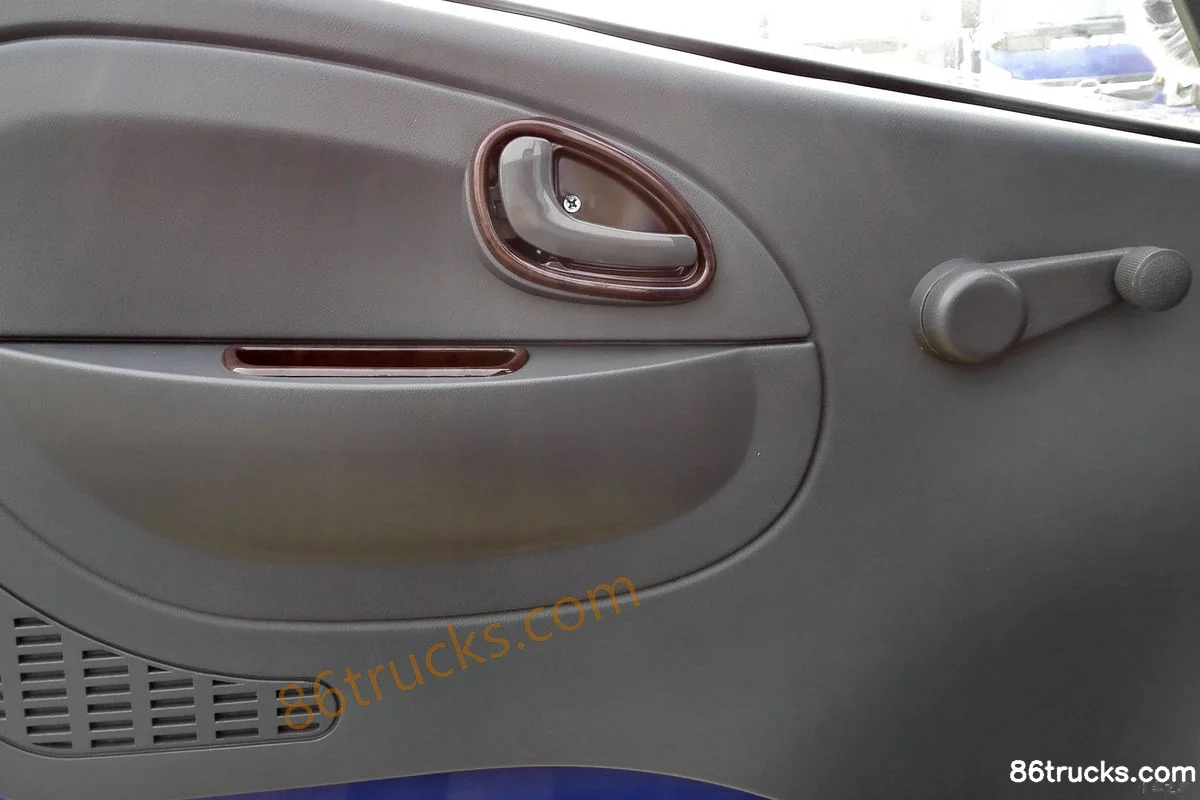

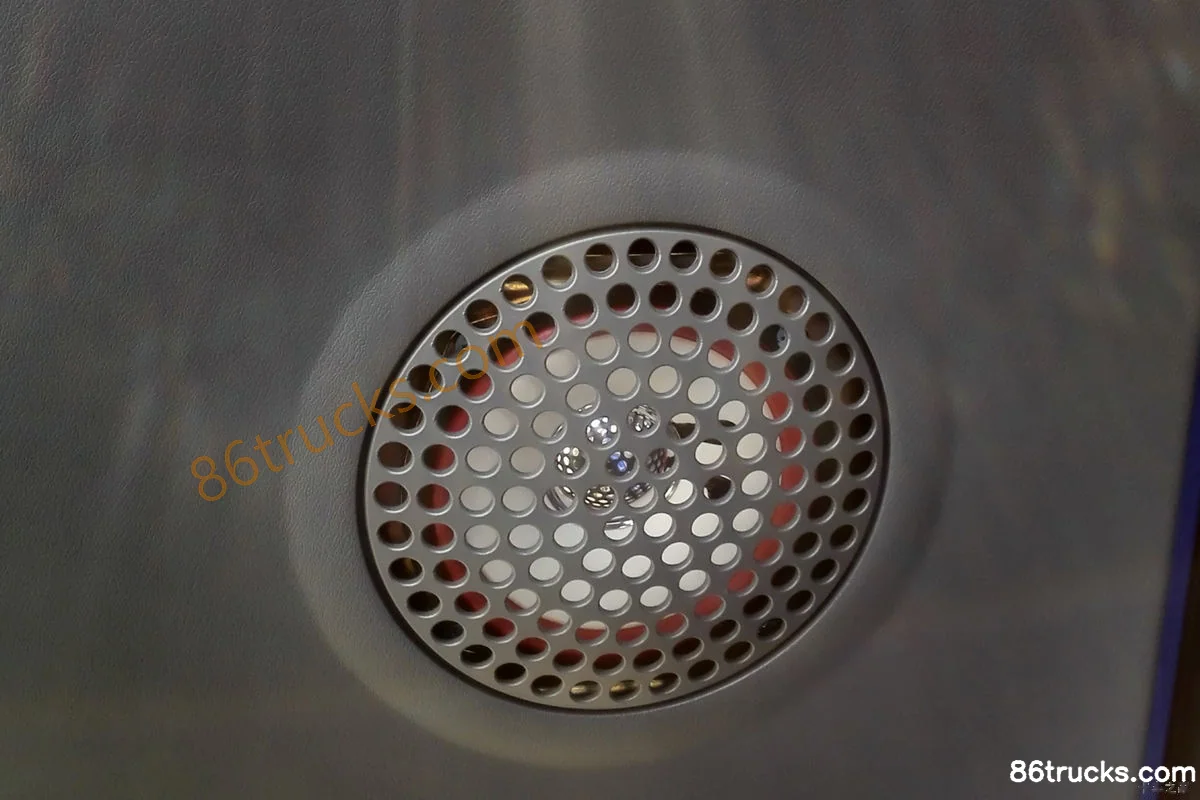

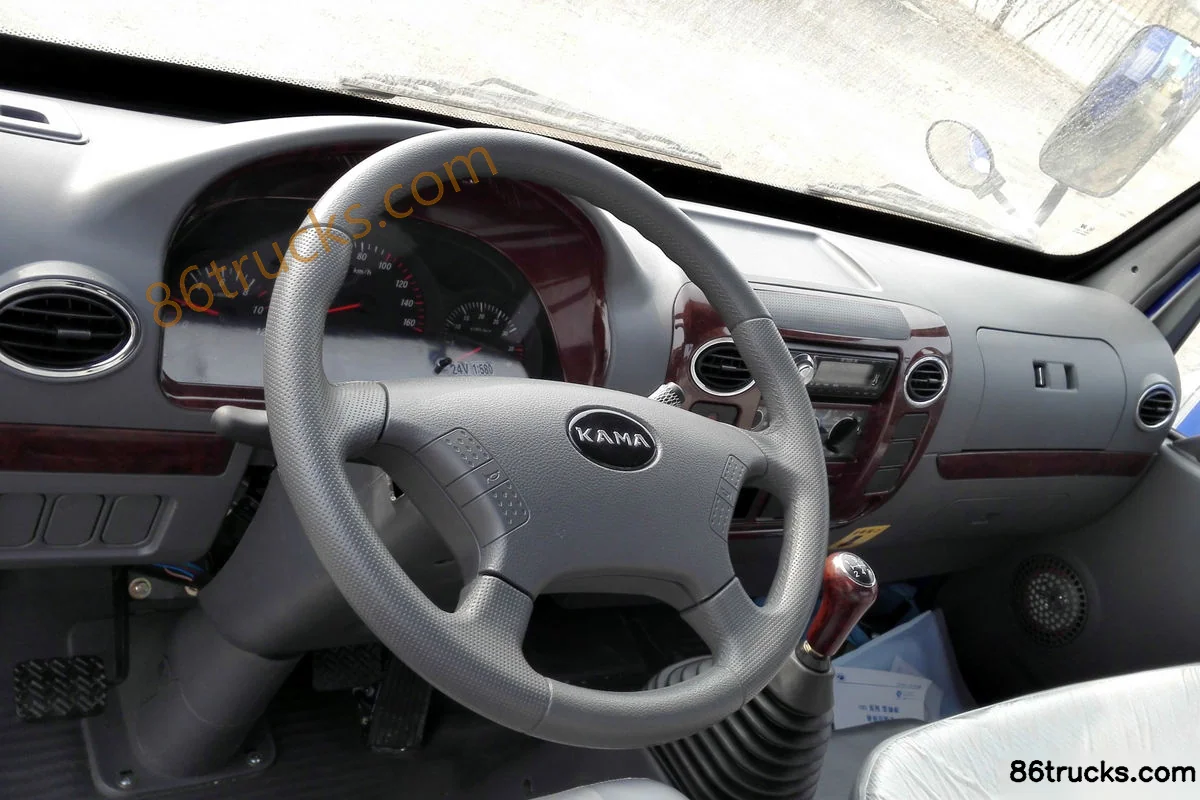

Cab3

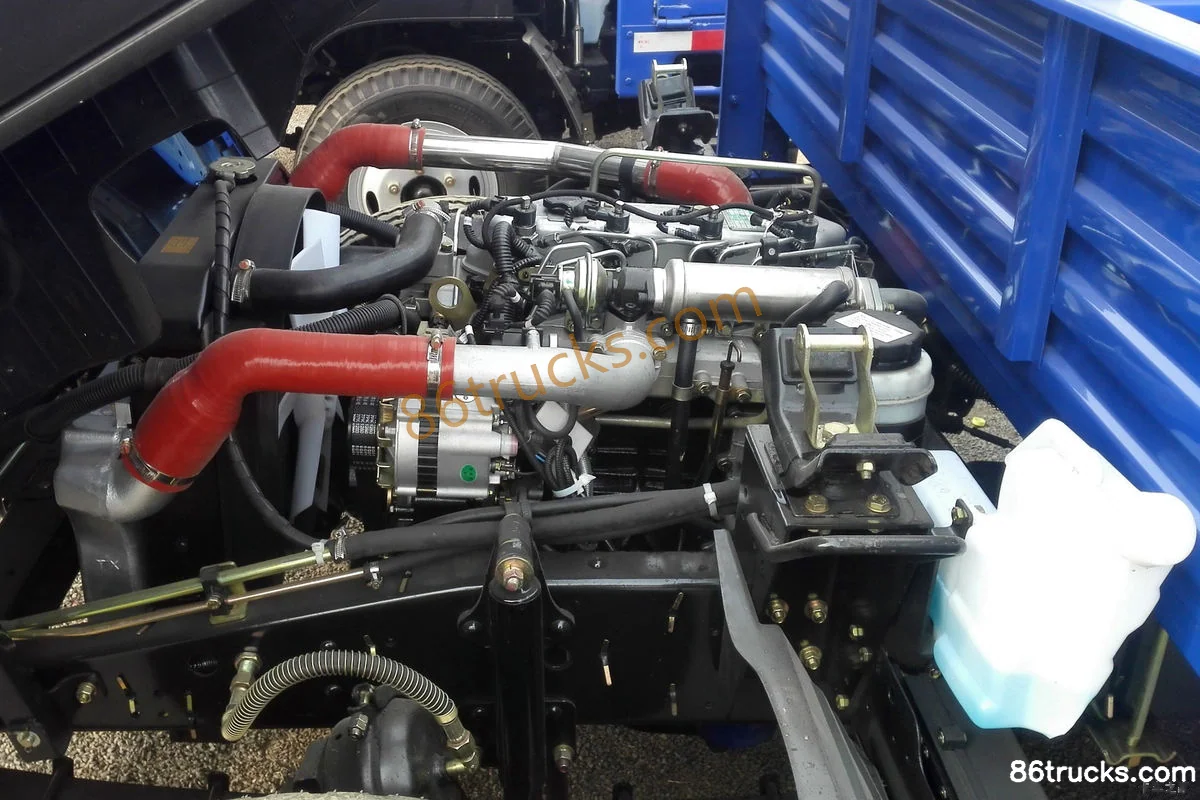

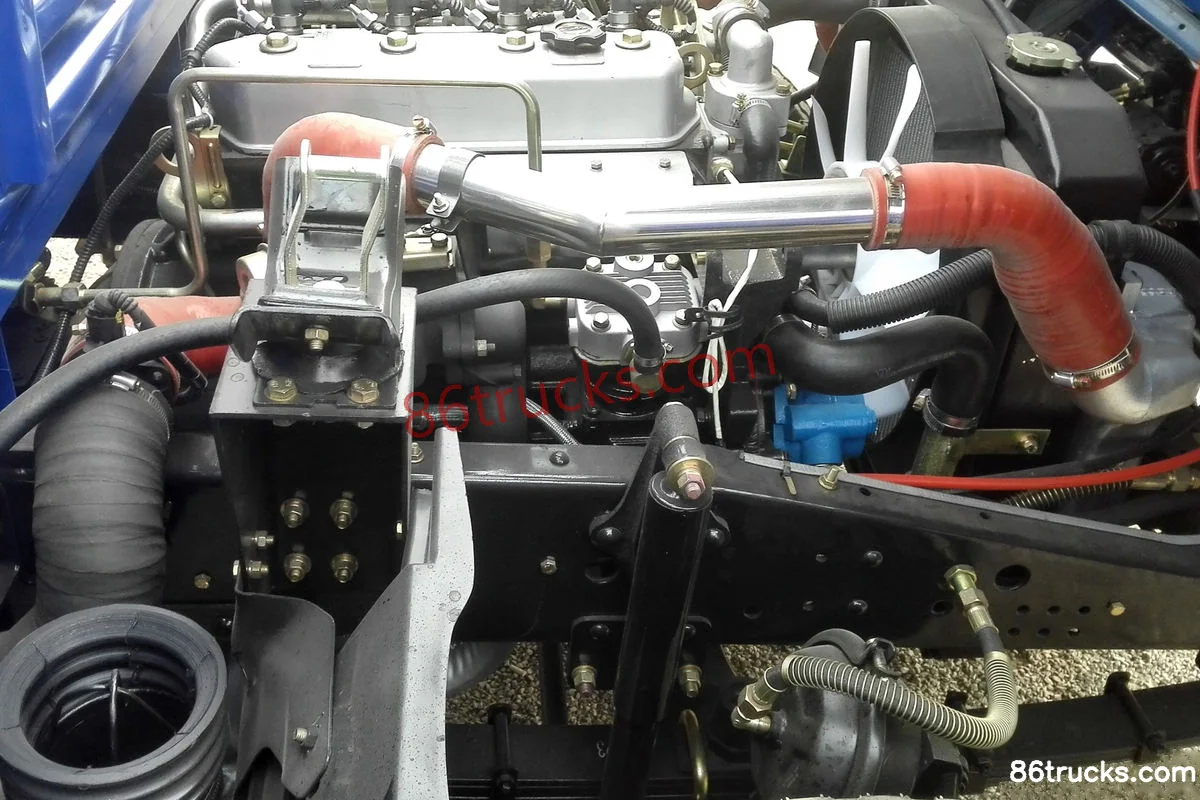

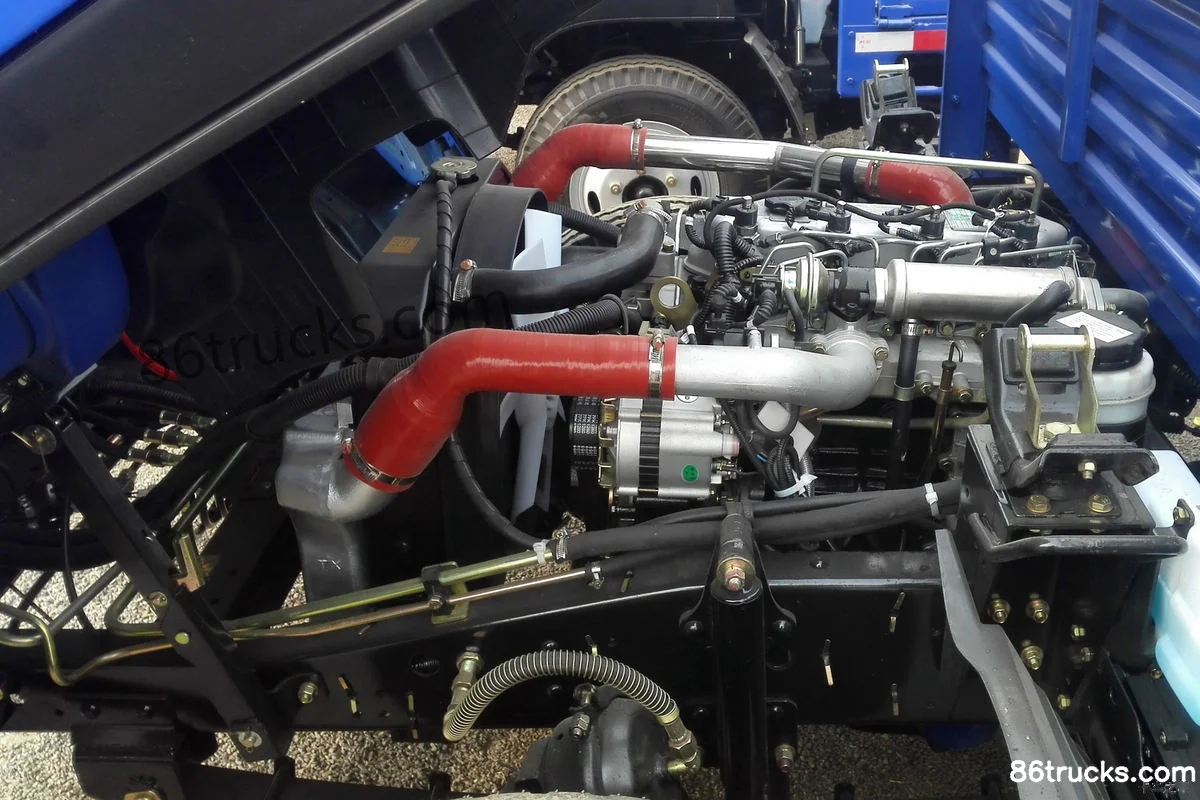

Chassis3

9 photos

FAQ

What emission standard does Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake)?

Key specs of Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake): Drive: 4x2; Horsepower: 87 hp; Emission: China IV; Fuel: Diesel; Engine: Xichai490; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake) suited for?

Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake) differ from other variants in the same series?

Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake) belongs to Kama K8 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Fuyunlai 87hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck (Air Brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
