JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai)

Export reference
From $18,056
MSRP ¥13M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.7ton
Wheelbase:: 2850mm
Tire Size:: 6.50R16
Cab dimensions:: 5.55×2.04×2.97m
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 3.7×1.81×1.85m
Horsepower 88

Overview

The JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai) is a Refrigerated Truck featuring 3.7×1.81×1.85m cargo body, 1.495t payload, 5.55×2.04×2.97m cab and 2850mm wheelbase. On the powertrain side, it comes with 88 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.55×2.04×2.97m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Hefei, Anhui
Wheelbase: 2850mm
Front track width: 1395mm
rear track: 1470mm
Curb Weight: 2.7ton
Rated payload: 1.495ton
Max. speed: 90km/h
Front/rear suspension: 1.09/1.61m
Energy Type: Diesel
Engine parameters
Engine Model: Quanchai4A2-88C50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.27L
Emission standard: China V
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 240N·m
Rated speed: 3200rpm
Cargo box parameters
Cargo box dimensions: 3.7×1.81×1.85m
Cargo box width: 1.81m
Cargo box height: 1.85m
Body Parameters
Vehicle certification code: HFC5040XLCP93K1B4V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Kangling J3
Chassis Model: HFC1040P93K1B4V
Axle ratio: 4.875
Leaf spring count: 7/5+3
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed
Tire
Tire Size: 6.50R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Independent Heater:
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
LED taillight:
Exterior features
Air deflector:
Aluminum air tank:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
Roadside assistance call:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Fatigue driving monitoring:

Photos

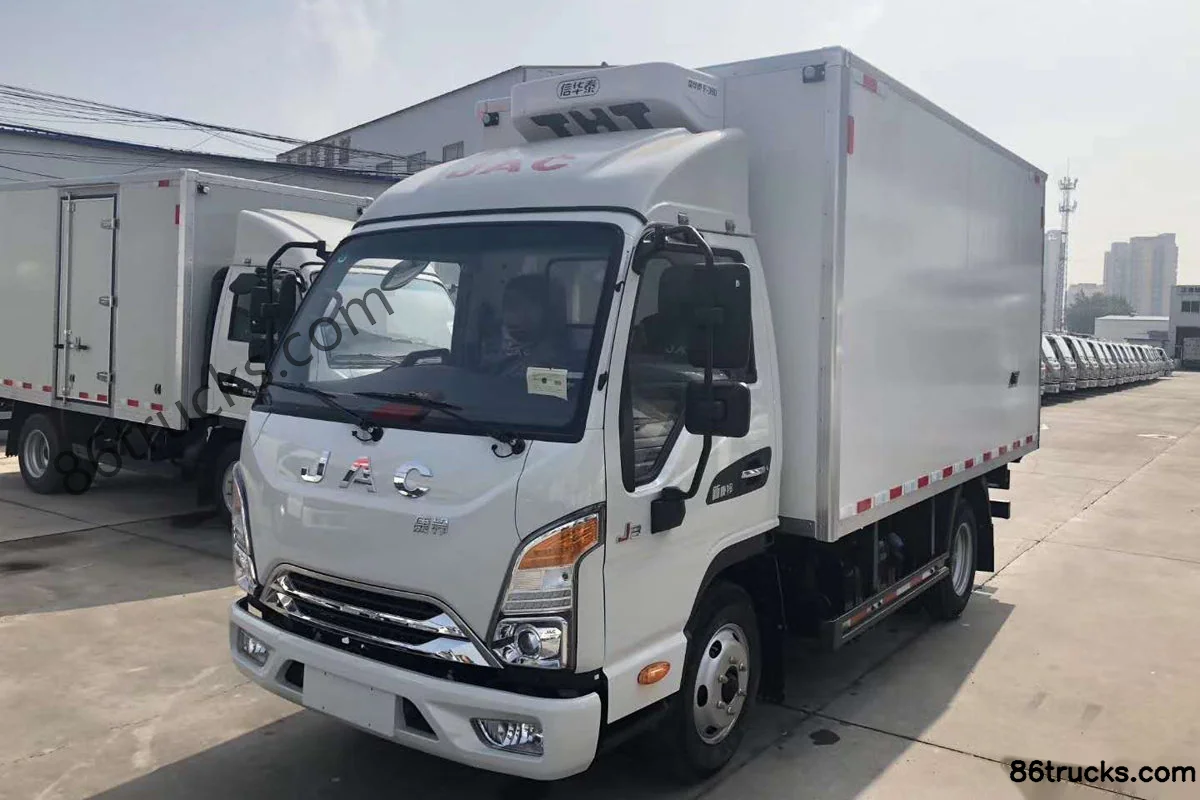

Exterior1

1 photos

FAQ

What is the export price of JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai), and what does it include?

JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai) export reference is about From $18,056; MSRP is ¥13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai)?

Key specs of JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai): Drive: 4x2; Horsepower: 88 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai) suited for?

JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai) differ from other variants in the same series?

JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai) belongs to JAC J3 light-duty truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling J3 88hp 4X2(6 wheels) 3.7m refrigerated truck (Quanchai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
