Ouyang Jude 13m Stake Semi-Trailer

Export reference

From $10,833

MSRP ¥7.8M CNY

Cab width:: 2.55m

suspension:: -/2400,-/2300,-/2100,-/1900(mm)

Fifth Wheel Pin:: 90#

Design load capacity:: 32ton

Cab height:: 4m

Number of wheels:: 12

Ouyang Jude 13m Stake Semi-Trailer exterior

View more photos (3)

Axle Brand: Fuwa, Huajin, BPW

Curb Weight: 8ton

Cab length: 13m

Tire brand: Double Coin, Chaoyang

Overview

The Ouyang Jude 13m Stake Semi-Trailer is a Stake Semi-trailer featuring Fuwa, Huajin, BPW-axle setup, 8ton GVW, 13m length and 32ton payload.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Design load capacity: 32ton

Cab length: 13m

Cab width: 2.55m

Cab height: 4m

Curb Weight: 8ton

Chassis Specs

Axle Brand: Fuwa, Huajin, BPW

Number of Axles: 3

Axle Load Rating: -/24000(tri-axle group)

Number of wheels: 12

suspension: -/2400,-/2300,-/2100,-/1900(mm)

Parts & accessories

Fifth Wheel Pin: 90#

Outrigger: Fuhua

Toolbox: aluminum alloypcs

Spare Tire Carrier:

ABS: Yes

Body Parameters

Frame material: Super-strength steel

Web Plate: 8mm

Floor Board: 4mm

upper wing panel: 10mm

Lower Wing Plate: 12mm

Box panel: 5,6

Side beam: 140mm

Other notes

Lead time for customization: 15 days

warranty period: 1 year

warranty method: Factory pickup / Door-to-door

Other: Corresponding floor-to-top height of the compartment grid: 2600mm, 2400mm, 2200mm, 2000mm, 1800mm. Optional two-layer or three-layer grid, front/rear arc plates and front ladder are optional. Optional double-door external lock rods, external half-length lock rods. Cargo compartment side panels optional: horizontal corrugated, vertical corrugated, square tube flat, square tube cross pattern flat rear door. Optional side panel structure. Optional internal lock structure. Optional license plate bracket style. Optional front panel style. Optional round column structure. Optional air suspension. Optional rear marker plate mounting position. Optional frame irregular hole structure. Optional rear style, optional license plate bracket style. Optional rectangular structure for rear combination lamp and fog lamp.

Tire

Tire brand: Double Coin, Chaoyang

Tire Size: 11.00R20 12PR,12R22.5 12PR,11R22.5 12PR

Number of tires: 12pcs

Photos

Exterior3

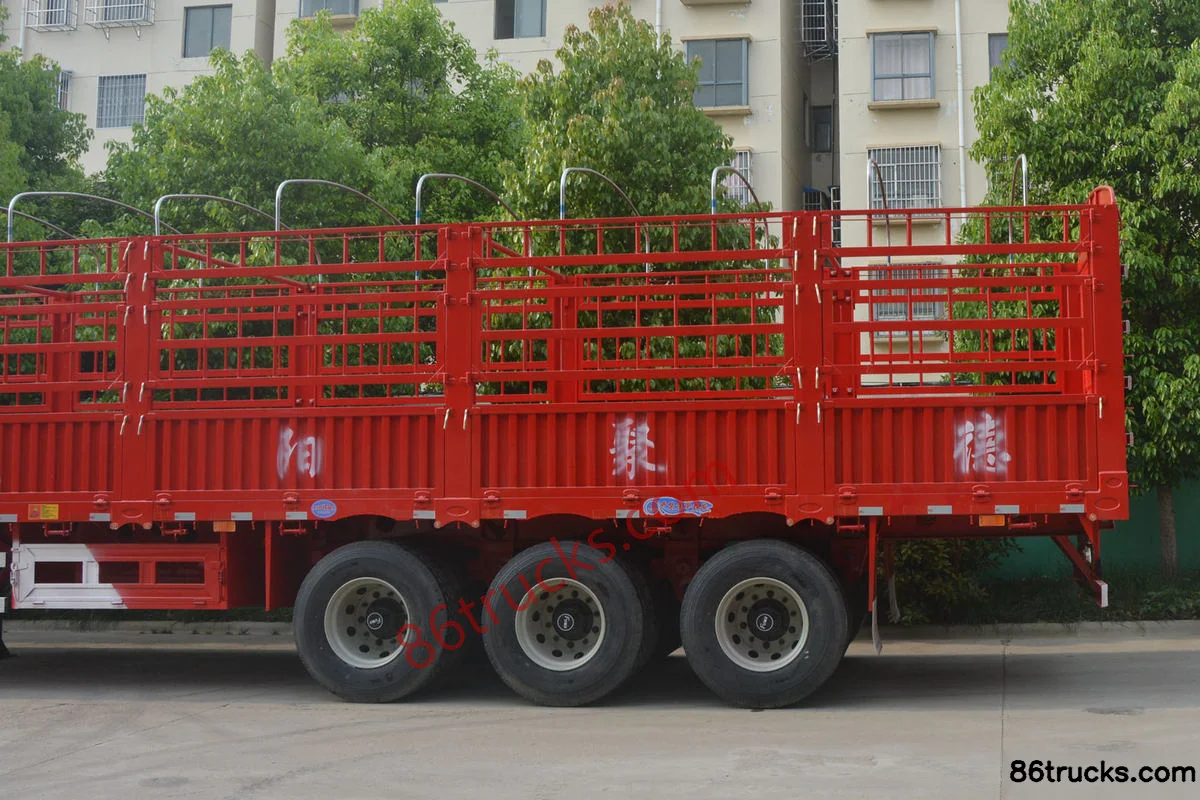

Ouyang Jude 13m Stake Semi-Trailer Exterior (1) | 86Trucks

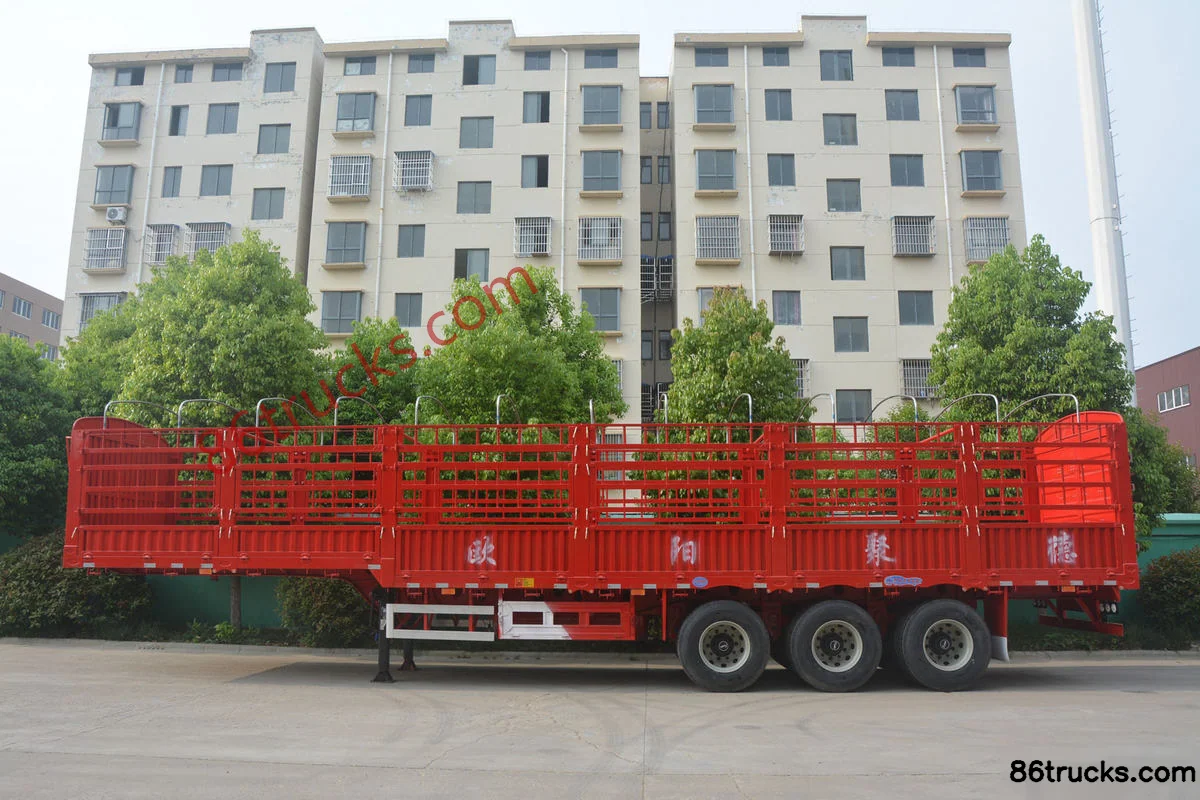

Ouyang Jude 13m Stake Semi-Trailer Exterior (2) | 86Trucks

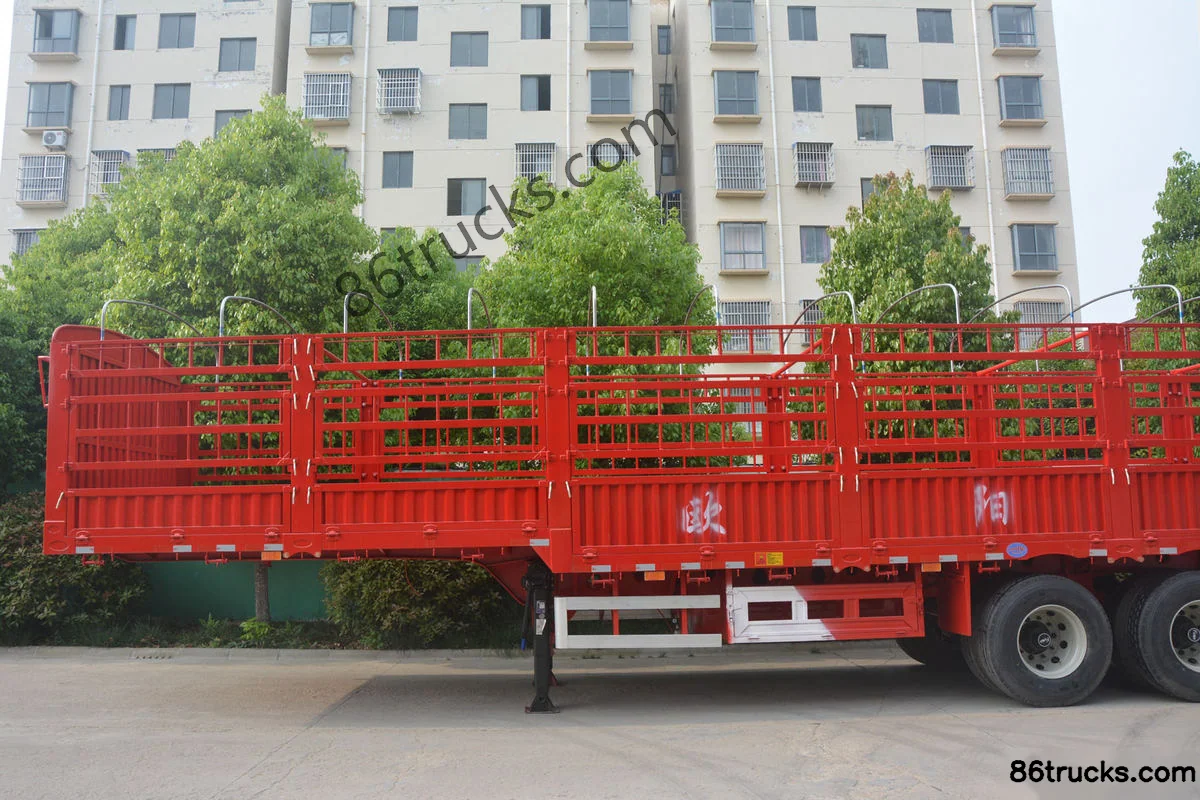

Ouyang Jude 13m Stake Semi-Trailer Exterior (3) | 86Trucks

3 photos

FAQ

What is the export price of Ouyang Jude 13m Stake Semi-Trailer, and what does it include?

Ouyang Jude 13m Stake Semi-Trailer export reference is about From $10,833; MSRP is ¥7.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Ouyang Jude 13m Stake Semi-Trailer suited for?

Ouyang Jude 13m Stake Semi-Trailer is a Stake Semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Ouyang Jude 13m Stake Semi-Trailer differ from other variants in the same series?

Ouyang Jude 13m Stake Semi-Trailer belongs to Ouyang Huajun 13m Series (Stake Semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Ouyang Jude 13m Stake Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Ouyang Jude 13m Stake Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
