FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck

Export reference
MSRP N/A
Horsepower: 620
Fuel: Diesel
Engine: Xichai13.2L
Transmission: FAW Jiefang
Curb Weight:: 13.8ton
Wheelbase:: 2000+4400+1350mm
FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stak
View more photos (12)
seating capacity: 2Personnel
Rated payload: 18.005ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck is a Heavy truck featuring 9.4m cargo length, Stake type cargo body, 2Personnel volume and 18.005t payload. On the powertrain side, it comes with a Xichai13.2L engine, 620 hp, 8X4 (12 wheels) drive and FAW Jiefang transmission.

620 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5320CCYP35K25L7T4E6A80
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 2000+4400+1350mm
Box length class: 9.4m
engine: XichaiCA6DV1-62E66
transmission: FAW JiefangCA12TA300ART
Rear Axle Ratio: 2.389
Cab length: 12m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 2020/2020mm
rear track: 1900/1900mm
Curb Weight: 13.8ton
Rated payload: 18.005ton
GVWR: 32ton
Max. speed: 89km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 11°
Front/rear suspension: 1.515/2.735m
Version: Business Cabin
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: CA6DV1-62E66
Engine info: Xichai13.2L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.2L
Max output power: 459kW
Max hp: 620Horsepower
Transmission Parameters
Transmission Model: CA12TA300ART
Transmission Brand: FAW Jiefang
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.4m
Cargo box width: 2.46m
*Cargo box interior width: 2.46
Cab parameters
Cab: Yingtu Business Class Cab
Cab suspension: Four-point air suspension
Cab width: 2500mm
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Chassis Specs
Front axle description: F5N front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300*80*8mm
rear axle description: 440 axle
rear axle allowable load: 19000(two-axle group)kg
Axle ratio: 2.389
Leaf spring count: 2/3/-
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
LCD instrument cluster:

Photos

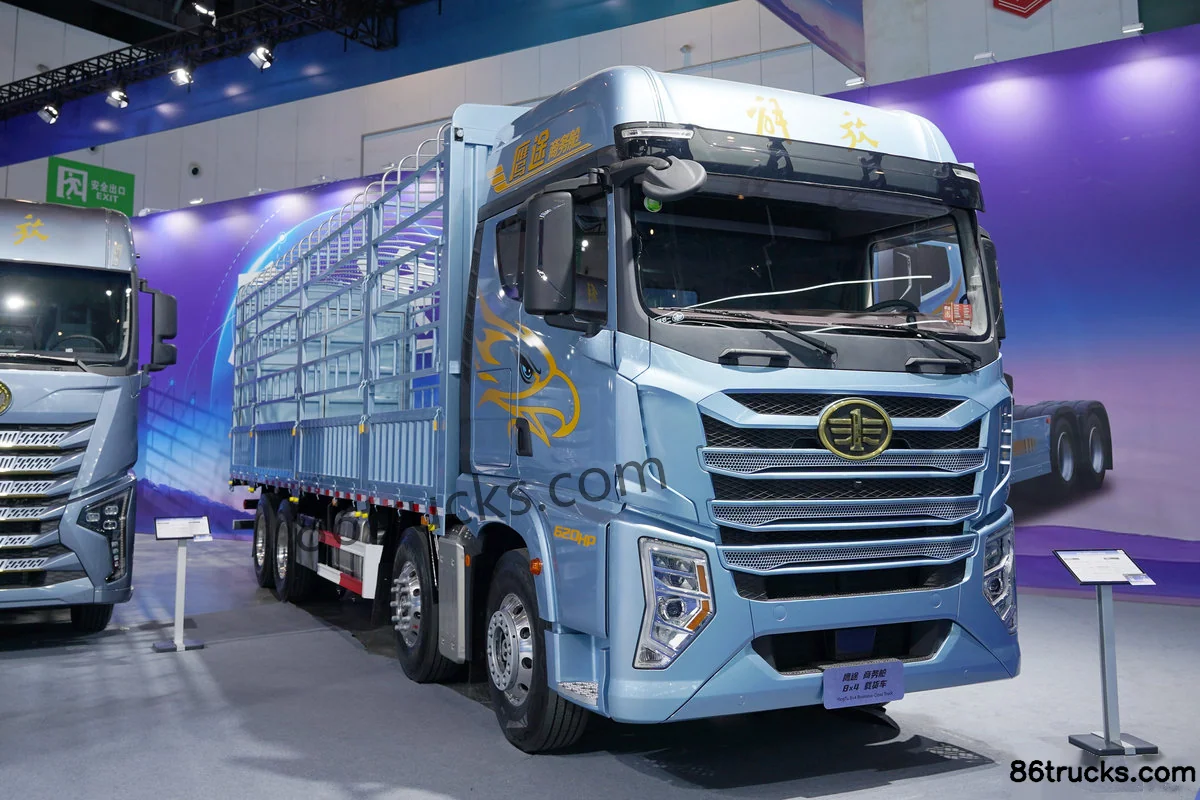

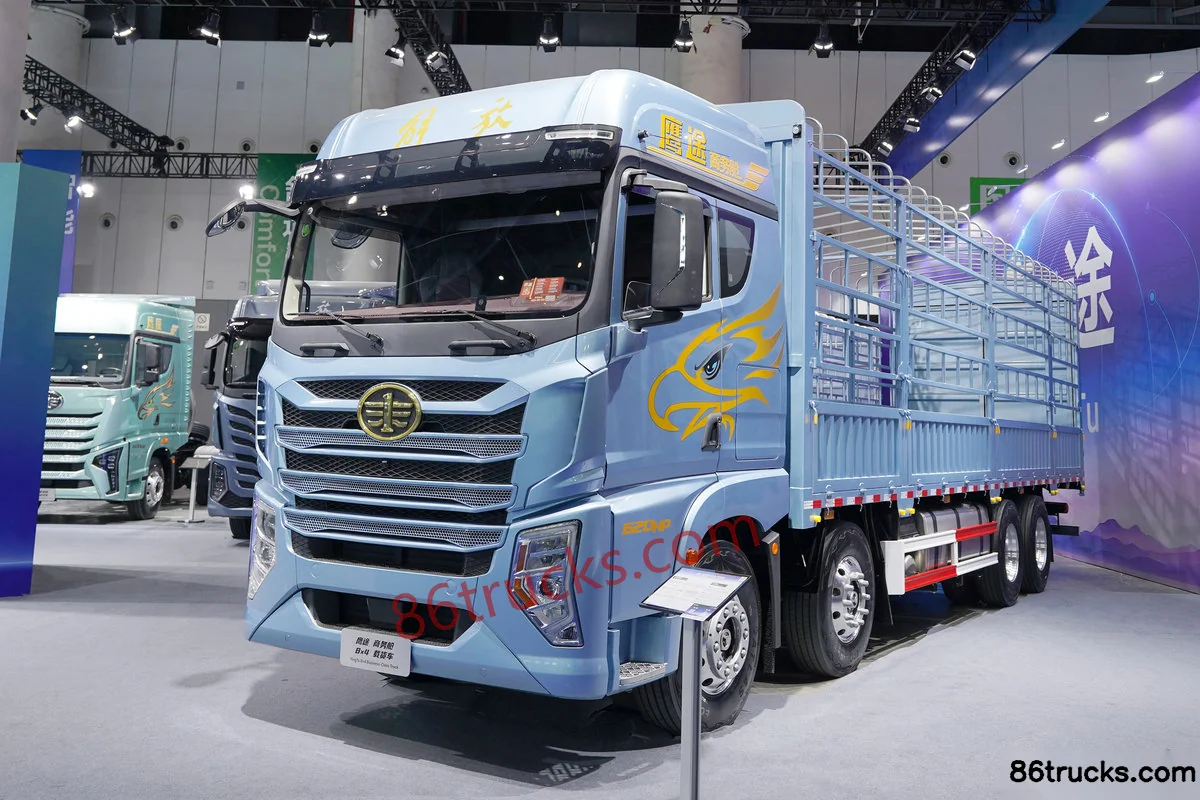

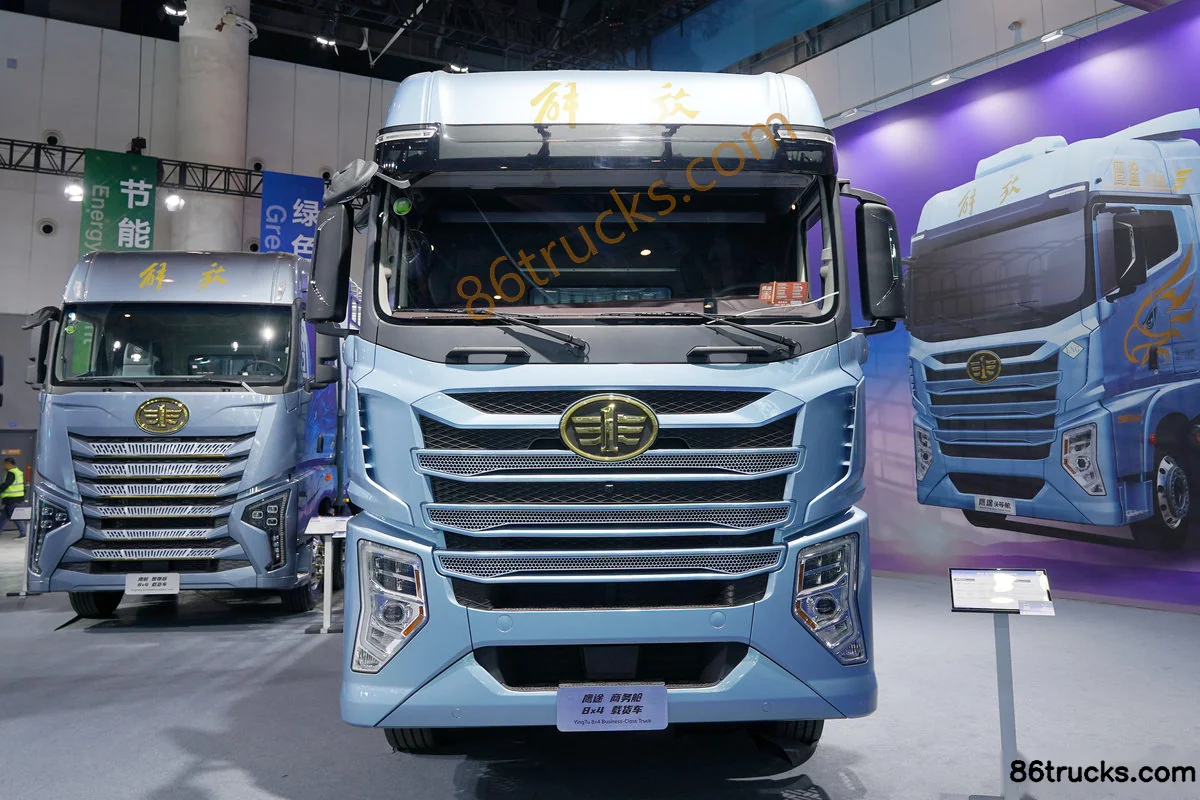

Exterior3

FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Exteri FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Exteri FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Exteri

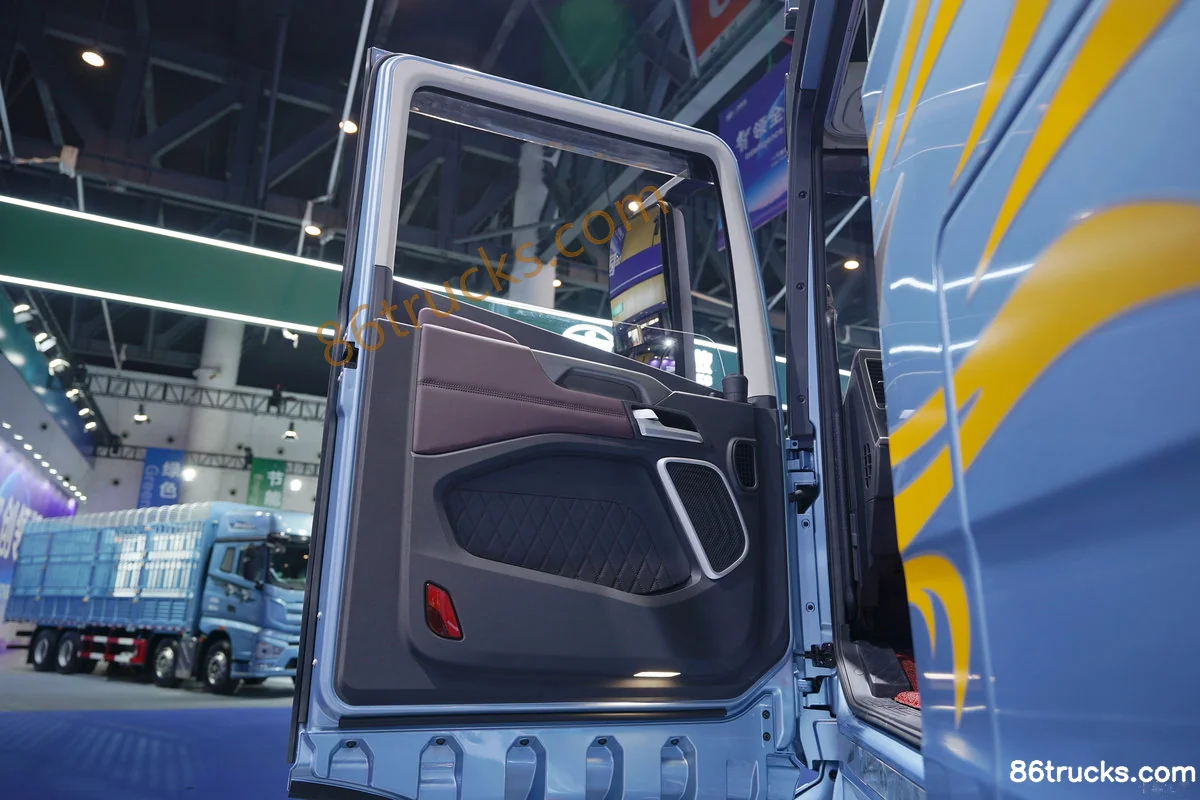

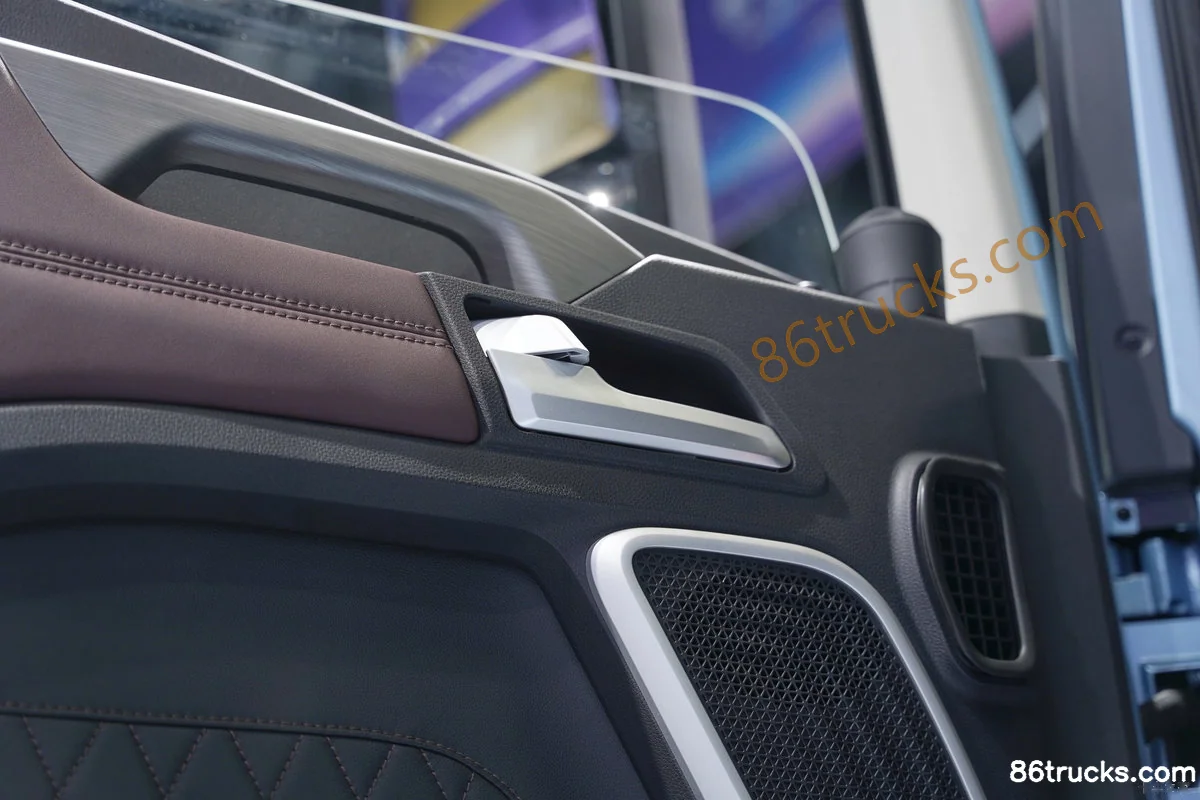

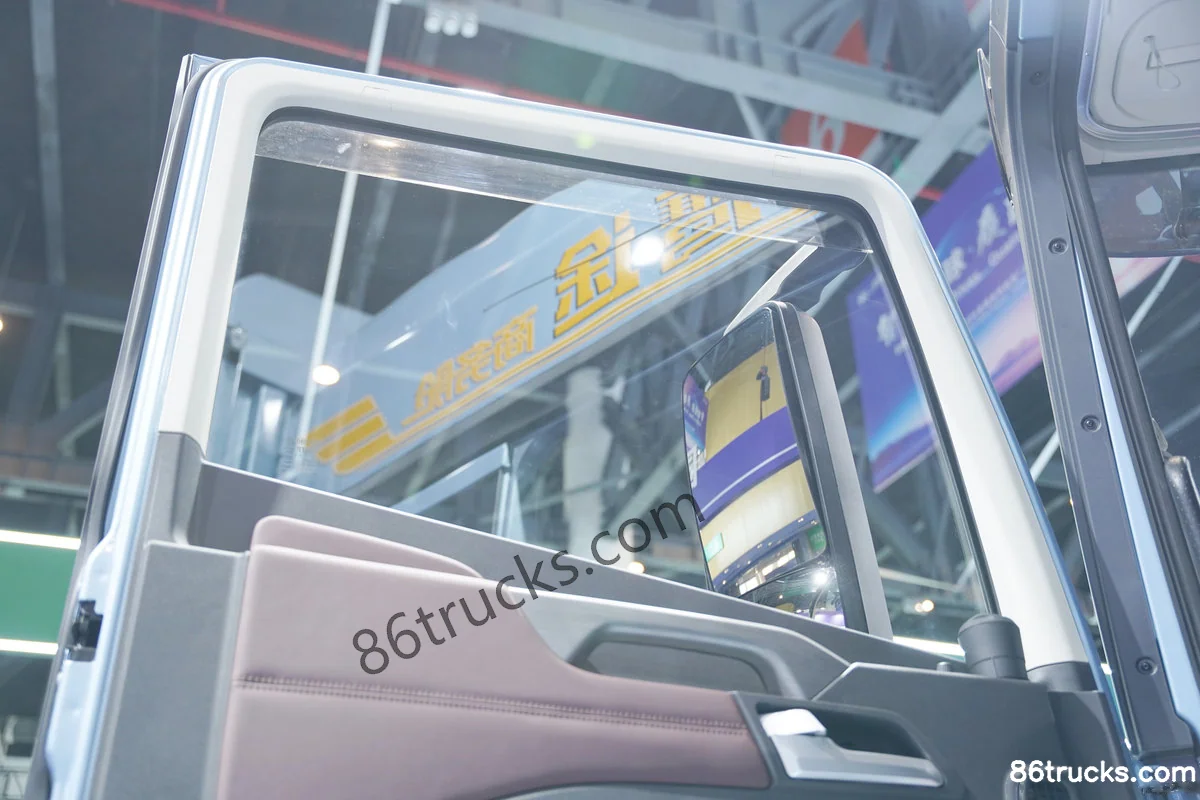

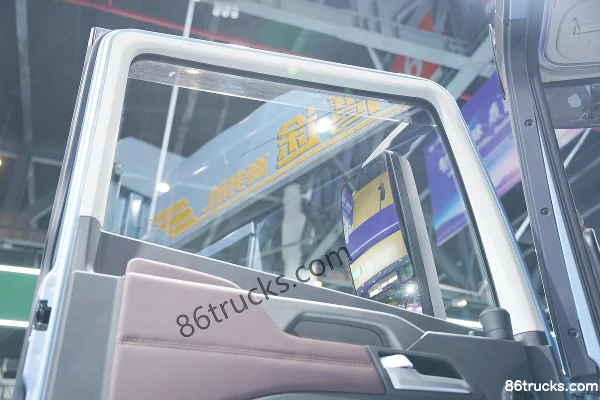

Cab3

FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Cab (1 FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Cab (2 FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Cab (3

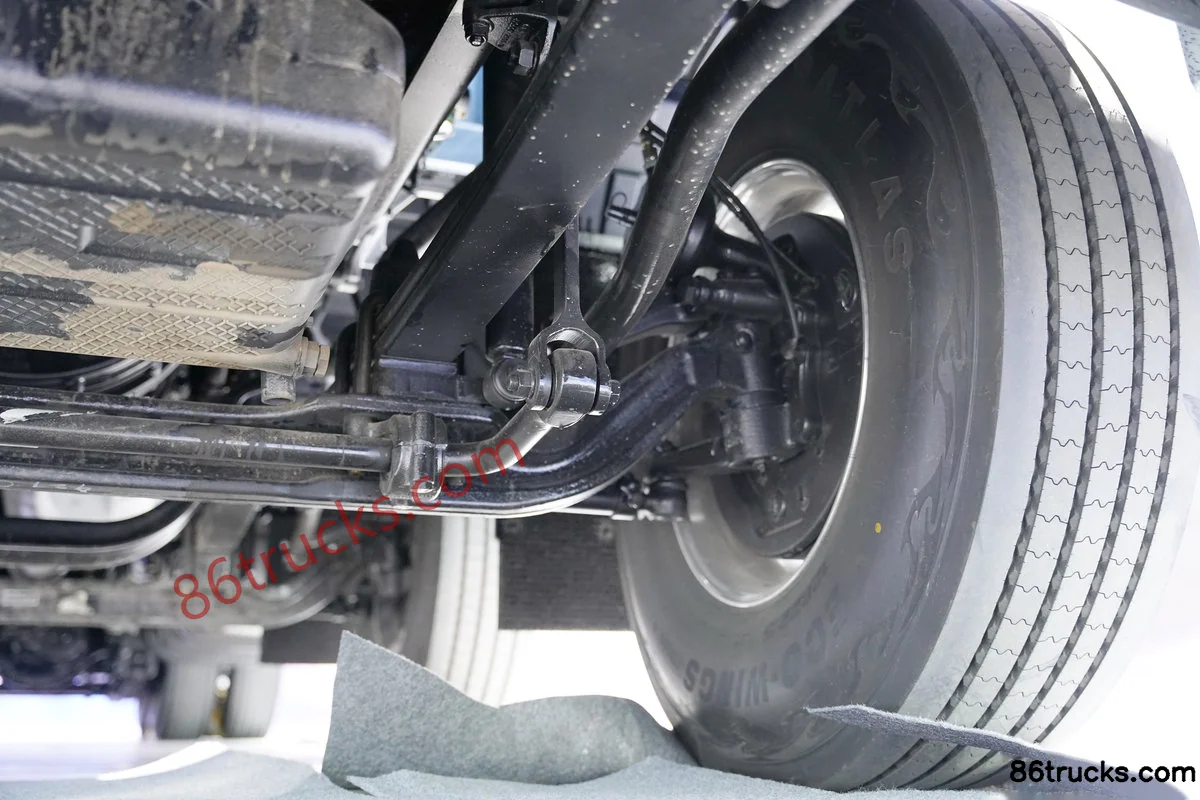

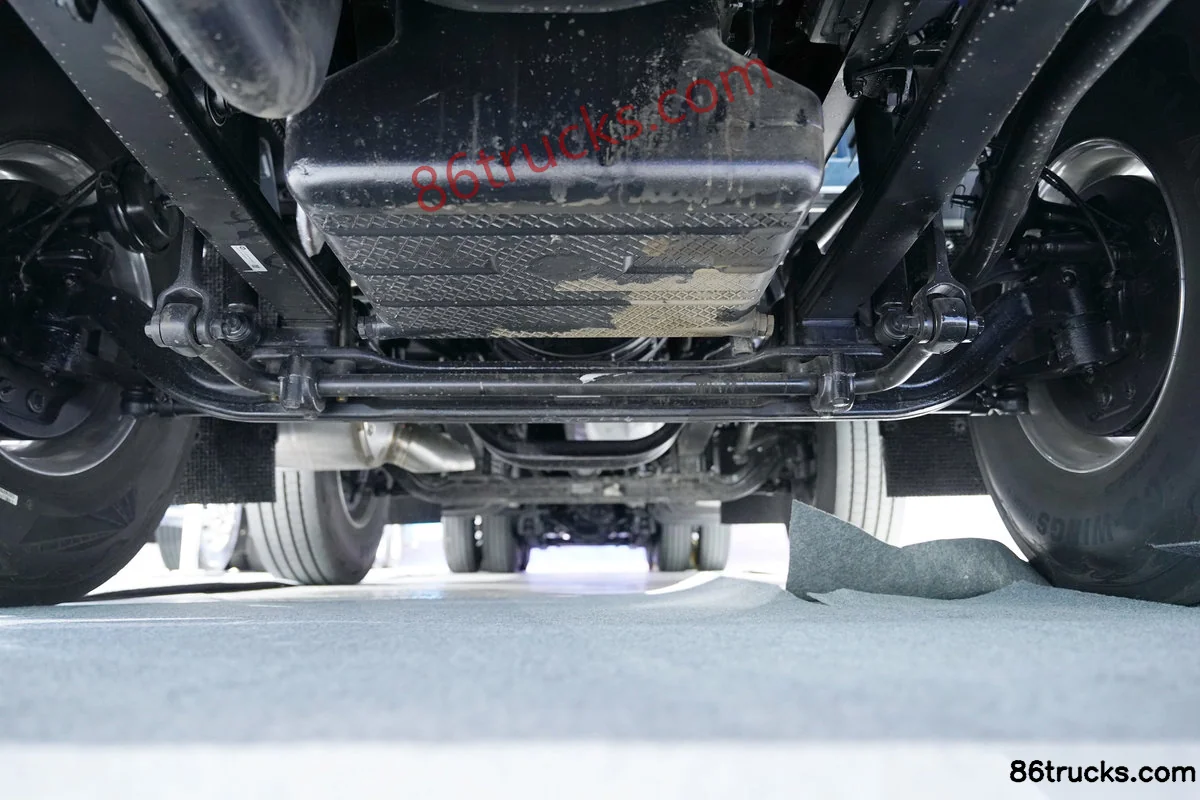

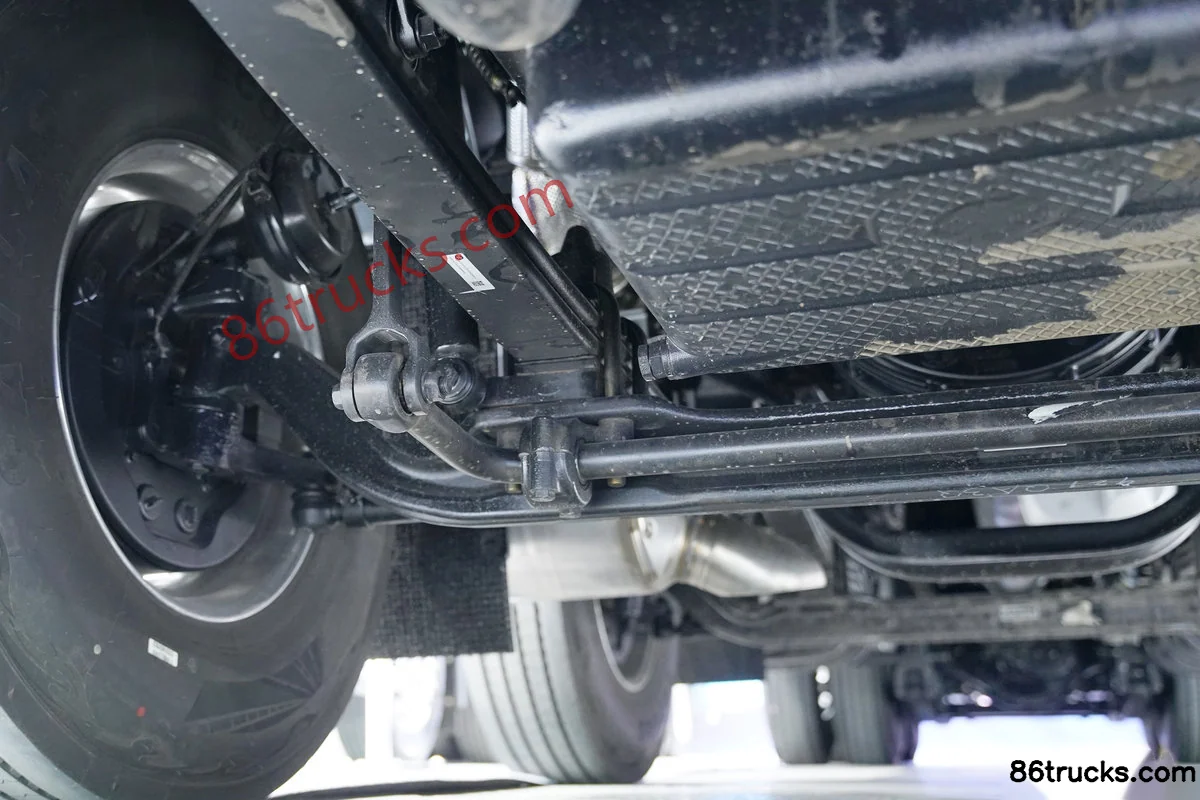

Chassis3

FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Chassi FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Chassi FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Chassi

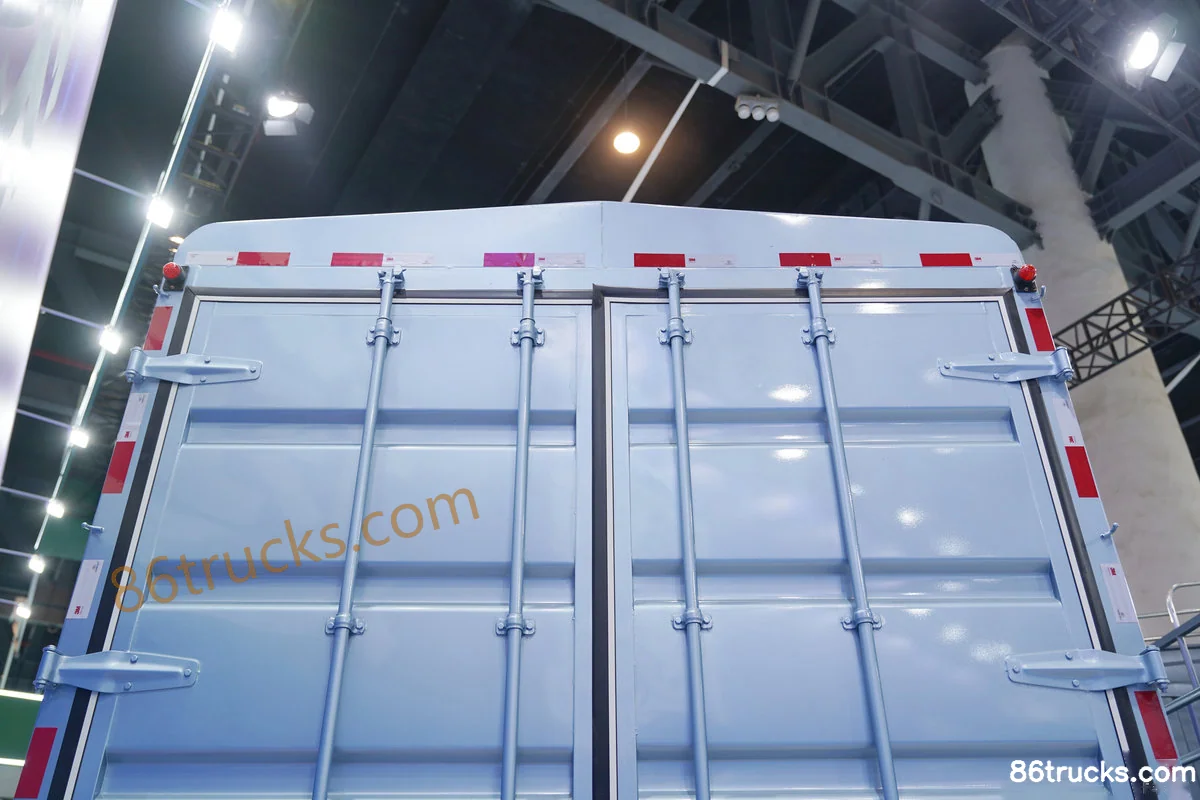

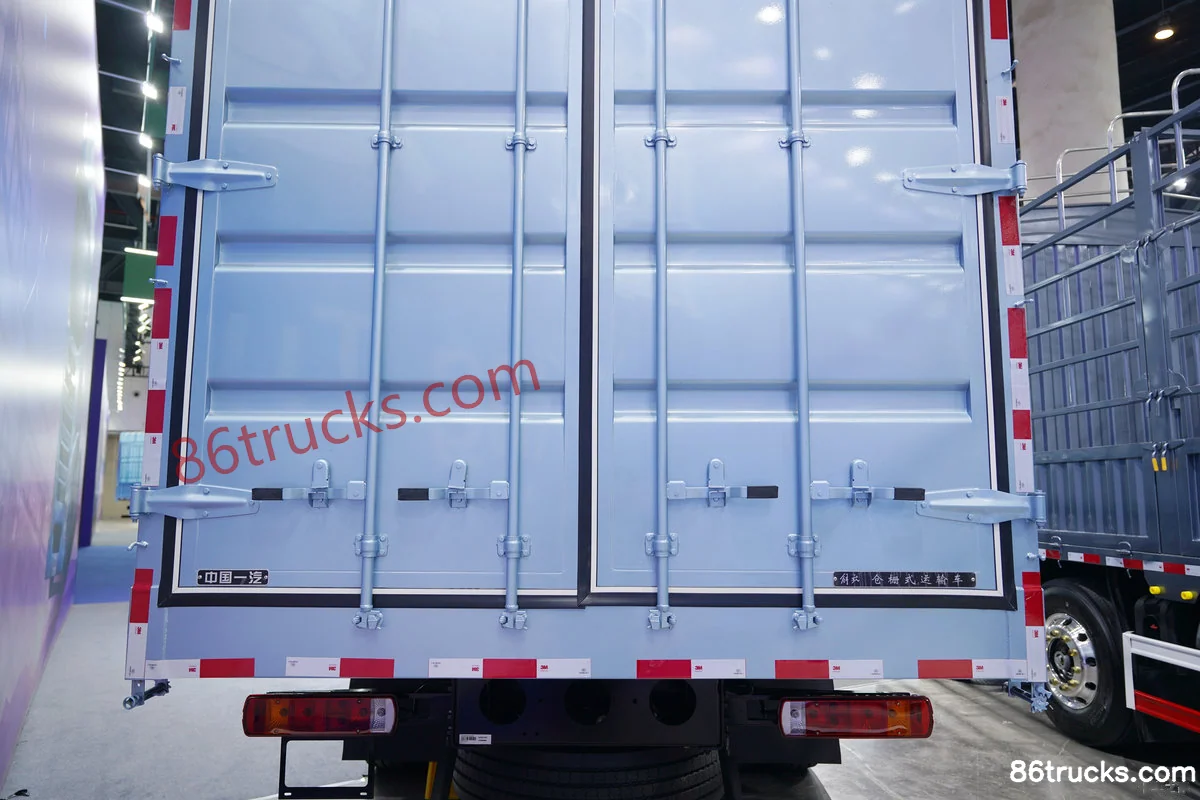

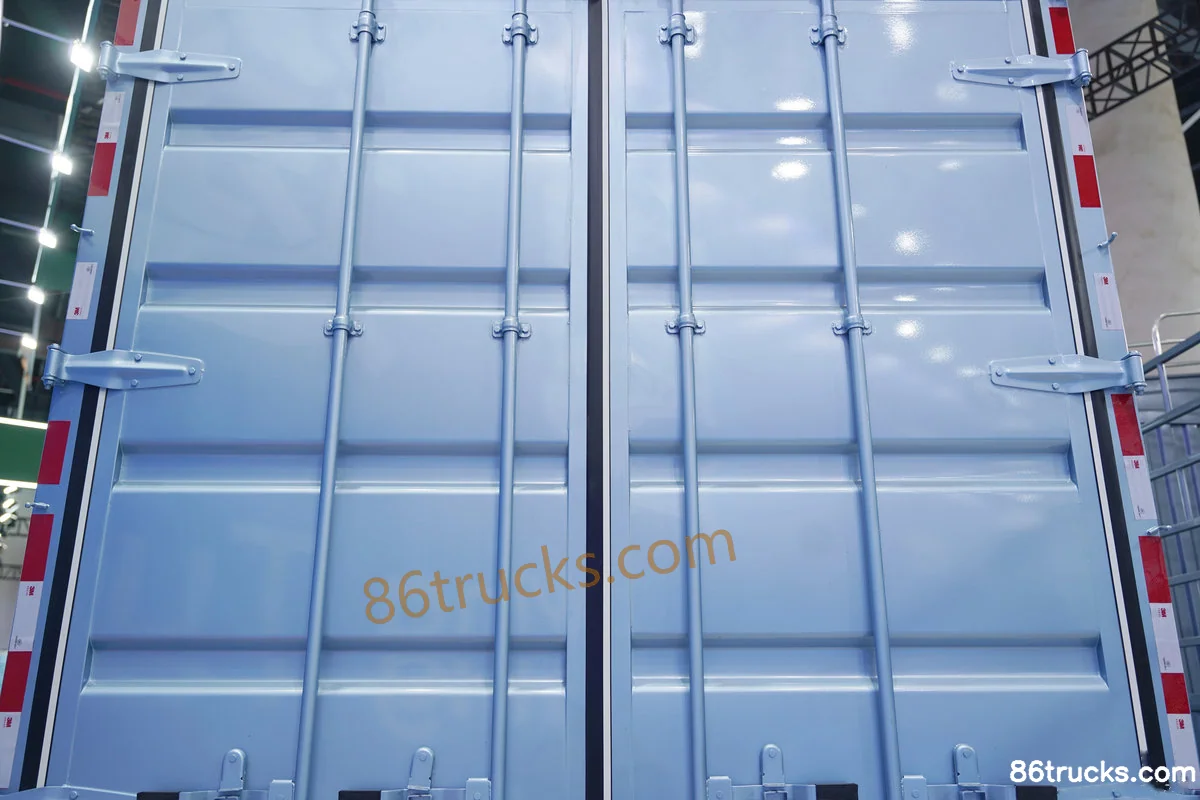

Body3

FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Body ( FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Body ( FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck Body (

12 photos

FAQ

What are the key specs of FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck?

Key specs of FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck: Drive: 8x4; Horsepower: 620 hp; Fuel: Diesel; Engine: Xichai13.2L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck suited for?

FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck differ from other variants in the same series?

FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck belongs to FAW Jiefang Qingdao Yingtu Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Yingtu Business Class 13.2L Diesel 620hp 8X4(12 wheels) FAW Jiefang 12-speed AMT Automatic 9.4m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
