JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body)

Export reference
From $11,250
MSRP ¥8.1M CNY
Horsepower: 124
Emission: China IV
Fuel: Diesel
Engine: Chaochai4102
Curb Weight:: 3.2ton
Wheelbase:: 3308mm
seating capacity: 3Personnel
Rated payload: 4.88ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body) is a Light Truck featuring 3.82m cargo length, Van body cargo body, 3Personnel volume and 4.88t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Chaochai4102 engine, 124 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 124 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5080XXYP91K1C2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: ChaochaiCY4102-CE4C
transmission: 5-speed transmission
Cab length: 5.995m
Cab width: 2.19m
Cab height: 3.1m
Front track width: 1665mm
rear track: 1525mm
Curb Weight: 3.2ton
Rated payload: 4.88ton
GVWR: 8.275ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
market segment: Urban Distribution
Remarks: 1. The correspondence of overall width / cargo box inner length / cargo box inner width is: for single-row cab 1)2130/4150/2000, 2)2190/4150/2060; for semi-row cab 1)2130/3820/2000, 2)2190/3820/2060; 2. Cargo box top closed, non-openable; 3. Optional front panel, grille, front bumper, front combination lights, front fog lights as per chassis; 4. Optional semi-row cab; 5. Cargo box style can be painted sheet or corrugated sheet; 6. Optional cargo box without right-side door; 7. Optional side guard; 8. Side and rear underrun guard material is Q235, connection by bolts, rear guard section size (L×W): 120mm×60mm, ground clearance 520mm
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4102-CE4C
Engine info: Chaochai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China IV
Max output power: 91kW
Max hp: 124Horsepower
Max torque: 345N·m
Max torque speed: 1300-1500rpm
Rated speed: 2800rpm
Engine Type: Vertical in-line, 4-stroke, turbocharged & intercooled, electronic high-pressure common rail
Technology route: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.82m
Cargo box width: 2.06m
Cargo box height: 2m
*Cargo box interior width: 2.0599999427795
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 80L
Chassis Specs
rear axle description: 5295
Leaf spring count: 12/8+6
Tire
Tire Size: 7.50-1614PR,7.50R1614PR
Number of tires: 6pcs

Photos

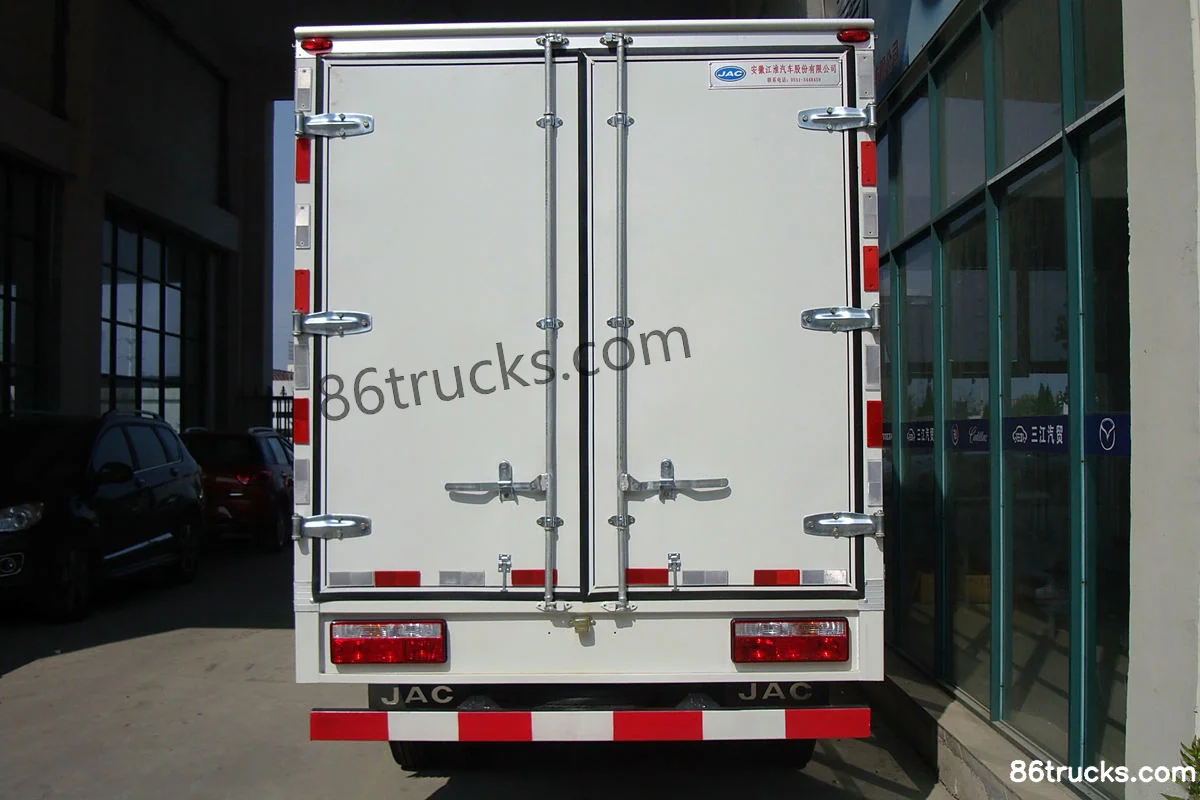

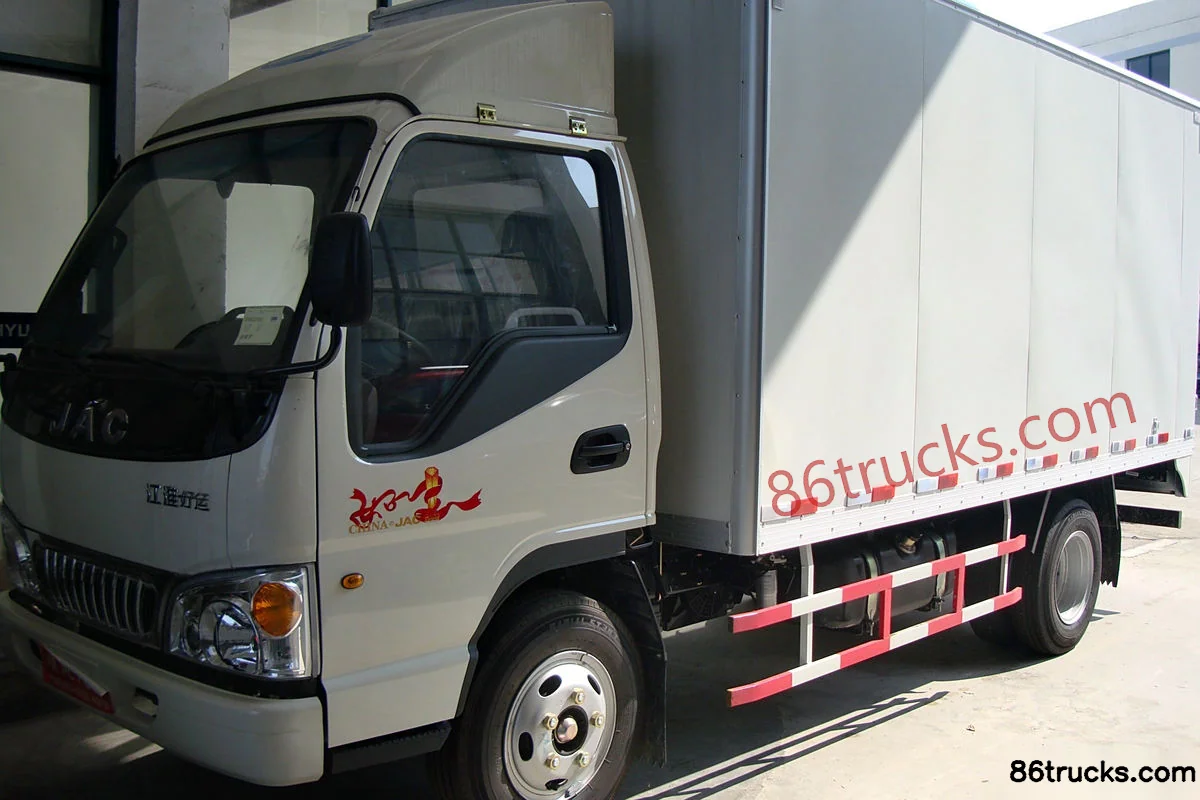

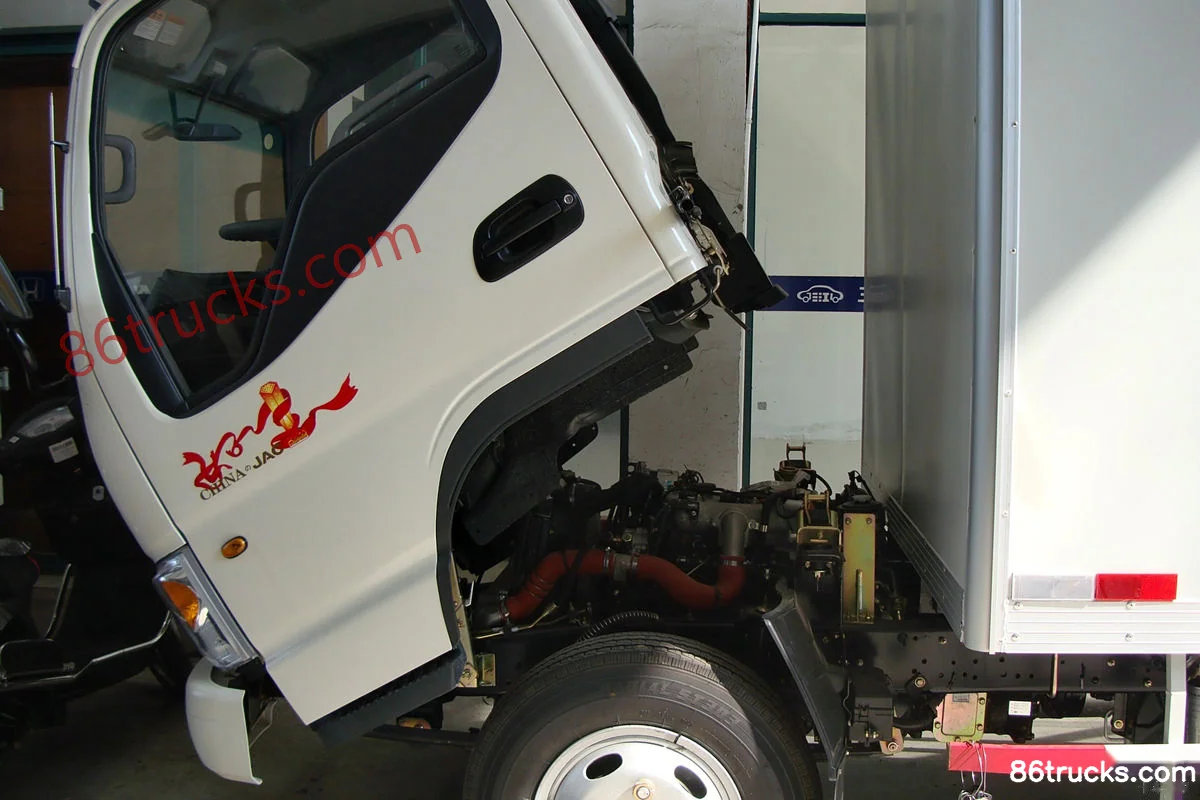

Exterior3

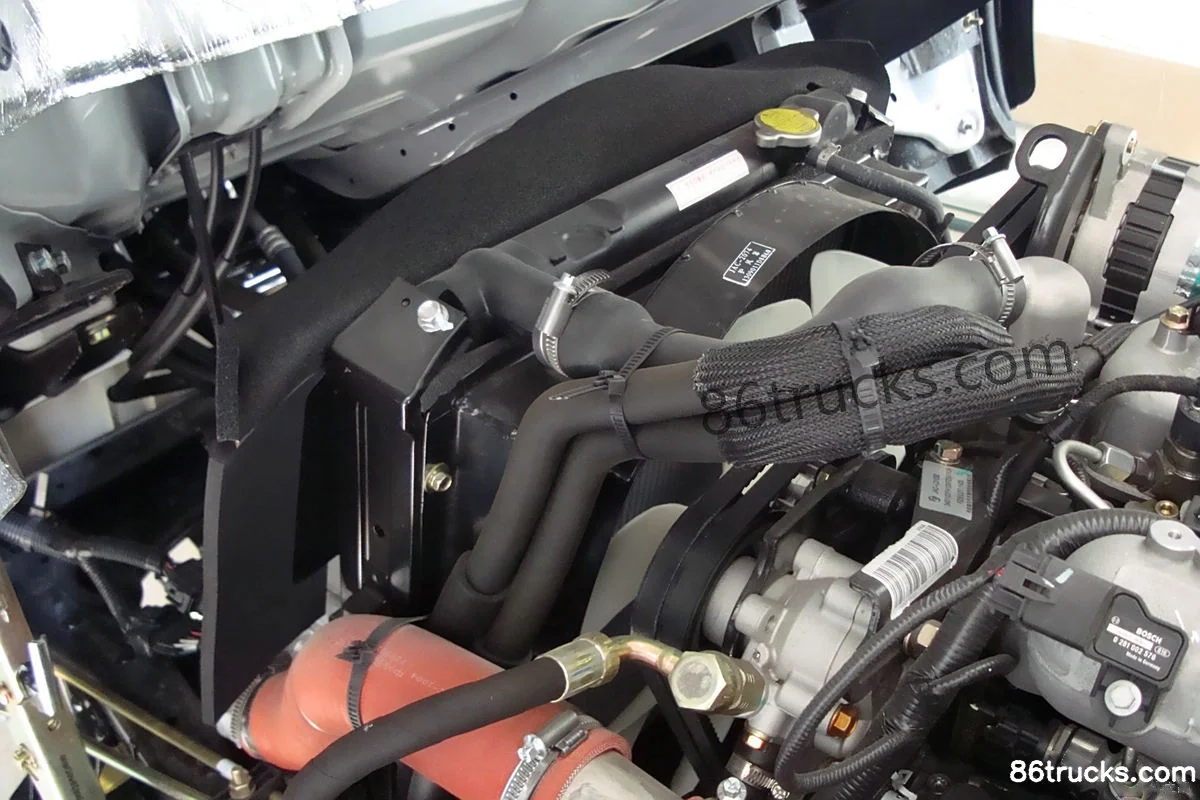

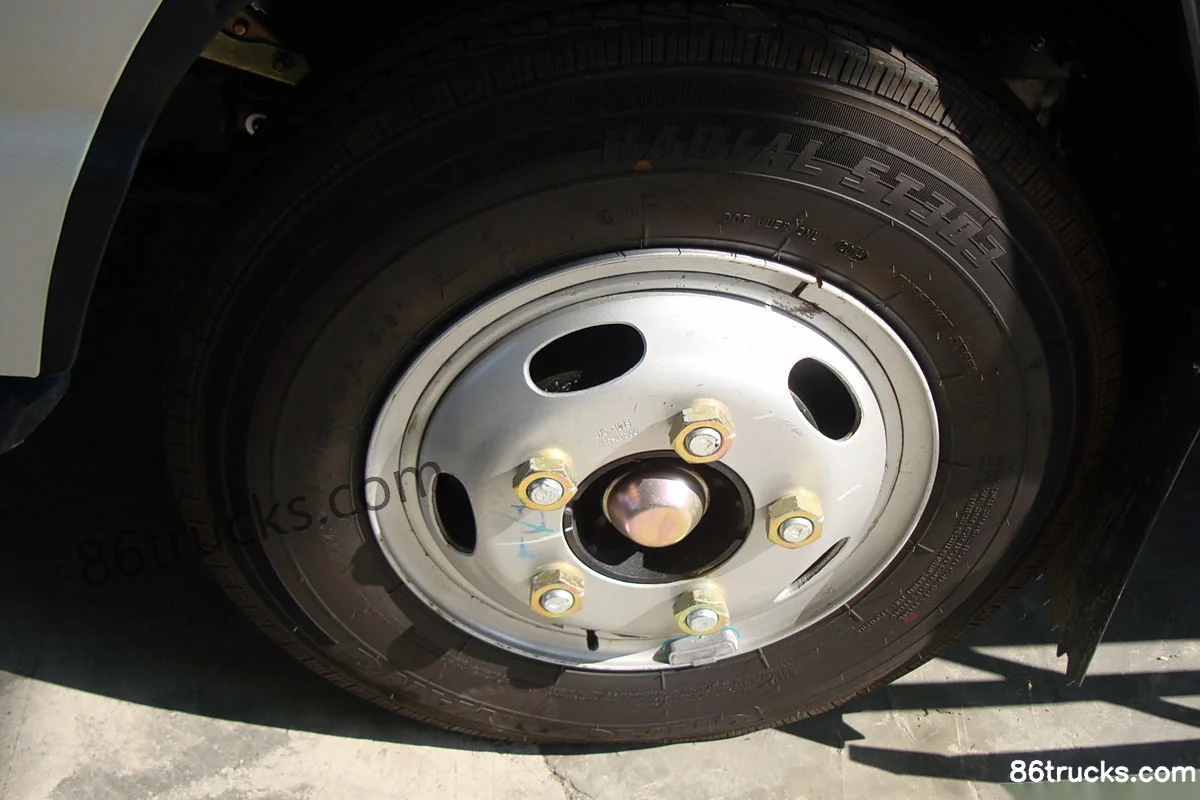

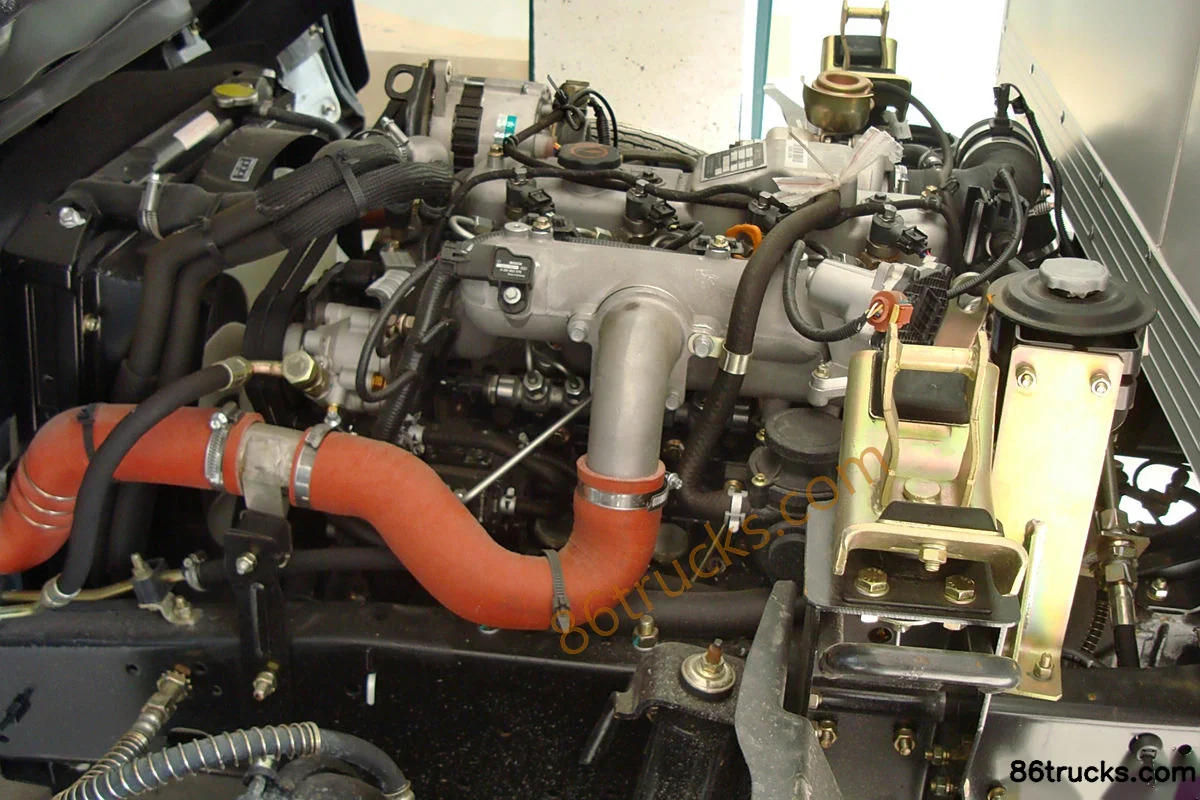

Chassis3

6 photos

FAQ

What is the export price of JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body), and what does it include?

JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body) export reference is about From $11,250; MSRP is ¥8.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body)?

Key specs of JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body): Drive: 4x2; Horsepower: 124 hp; Emission: China IV; Fuel: Diesel; Engine: Chaochai4102. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body) suited for?

JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body) differ from other variants in the same series?

JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body) belongs to JAC Haoyun light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haoyun 33 124 hp 4X2(6 wheels) 3.8m one-and-a-half-row van light truck (wide body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
