FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck

Export reference
From $9,542
MSRP ¥6.87M CNY
Horsepower: 120
Emission: China III / Euro III
Fuel: Diesel
Engine: Dachai498
Transmission: WLY
Curb Weight:: 2.76ton
seating capacity: 3Personnel
Rated payload: 4.905ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 4.905t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai498 engine, 120 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1083P40K2L1EA85
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3260mm
Box length class: 3.8m
engine: DachaiCA498E3-12
transmission: WLYWLY5-35
Rear Axle Ratio: 5.571
Cab length: 5.998m
Cab width: 2.1m
Cab height: 2.33m
Front track width: 1650mm
rear track: 1525mm
Curb Weight: 2.76ton
Rated payload: 4.905ton
GVWR: 7.86ton
Max. speed: 98km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
market segment: Building materials, agricultural products
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA498E3-12
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China III / Euro III
Max output power: 90kW
Max hp: 120Horsepower
Max torque: 320N·m
Max torque speed: 2100rpm
Rated speed: 3200rpm
Engine Type: Inline, four-stroke, water-cooled, air-to-air intercooled, turbocharged
Transmission Parameters
Transmission Model: WLYWLY5-35
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2m
Cargo box height: 0.6m
*Cargo box interior width: 2
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: 1058 stamped-welded axle
Axle ratio: 5.571
Leaf spring count: 7/10+3
Tire
Tire Size: 7.50R16 14PR
Number of tires: 6pcs

Photos

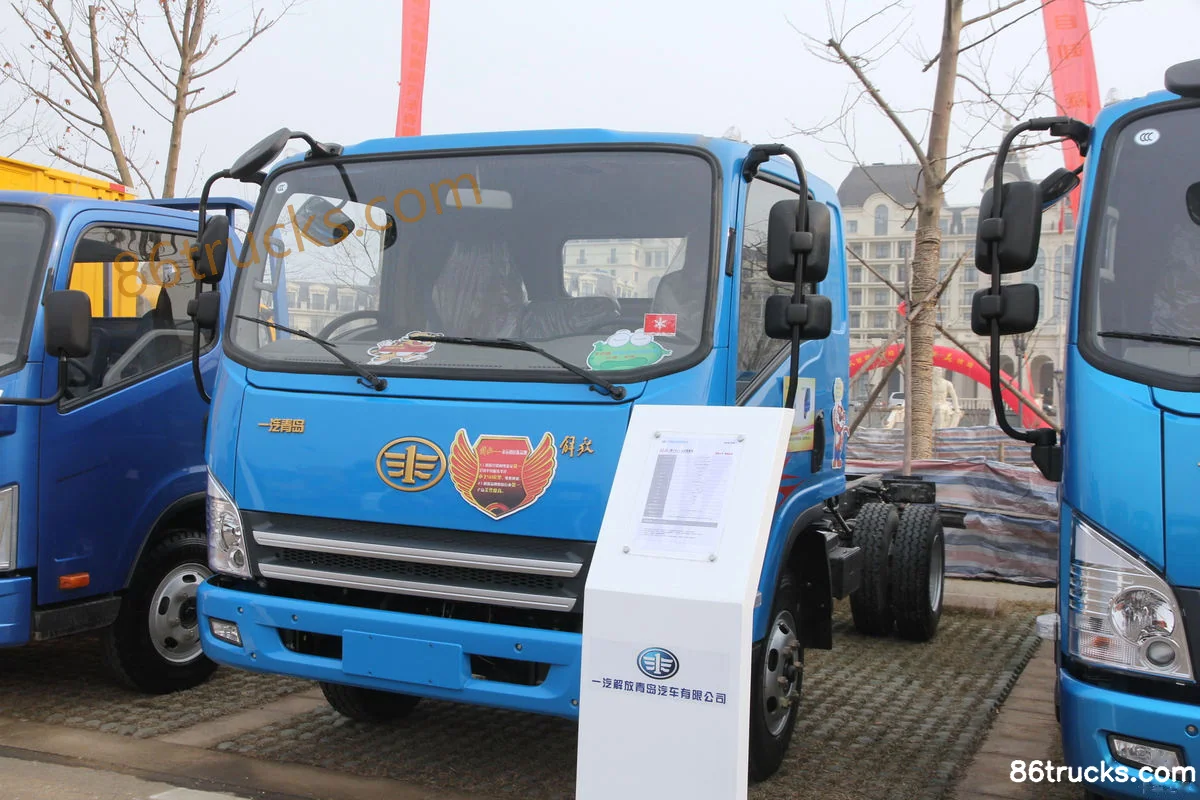

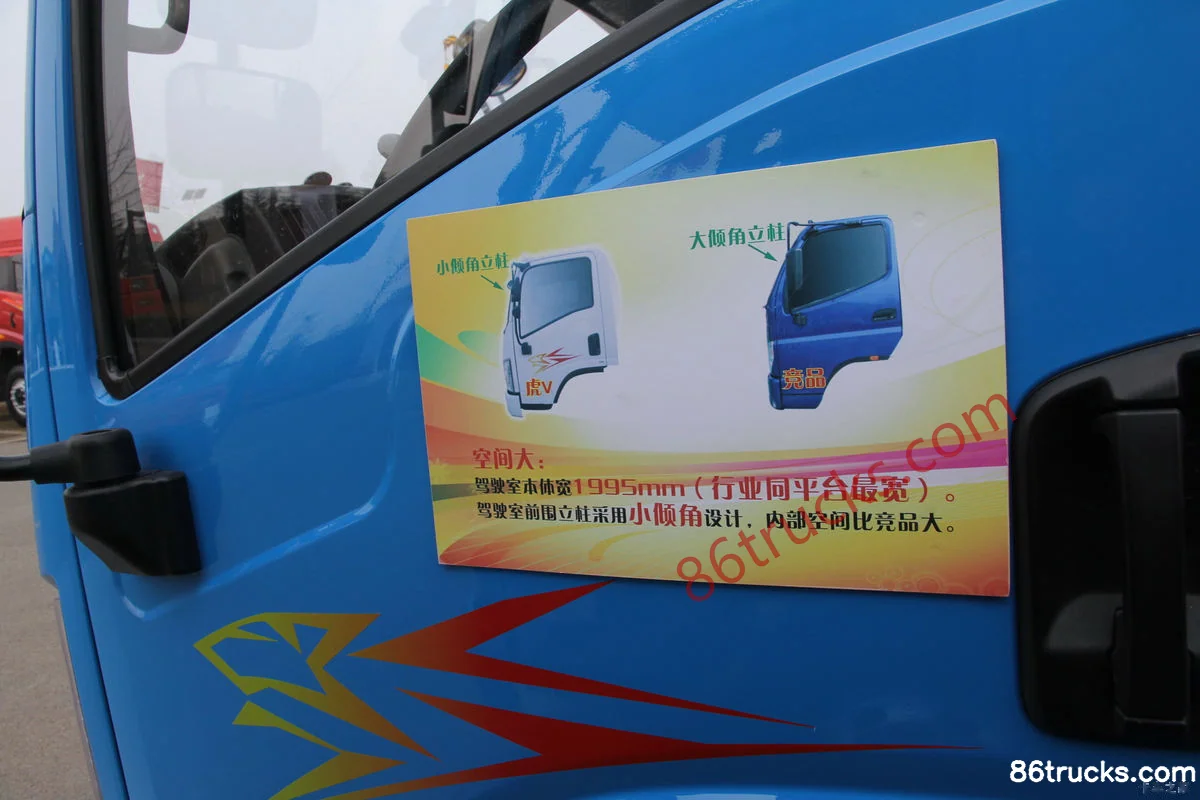

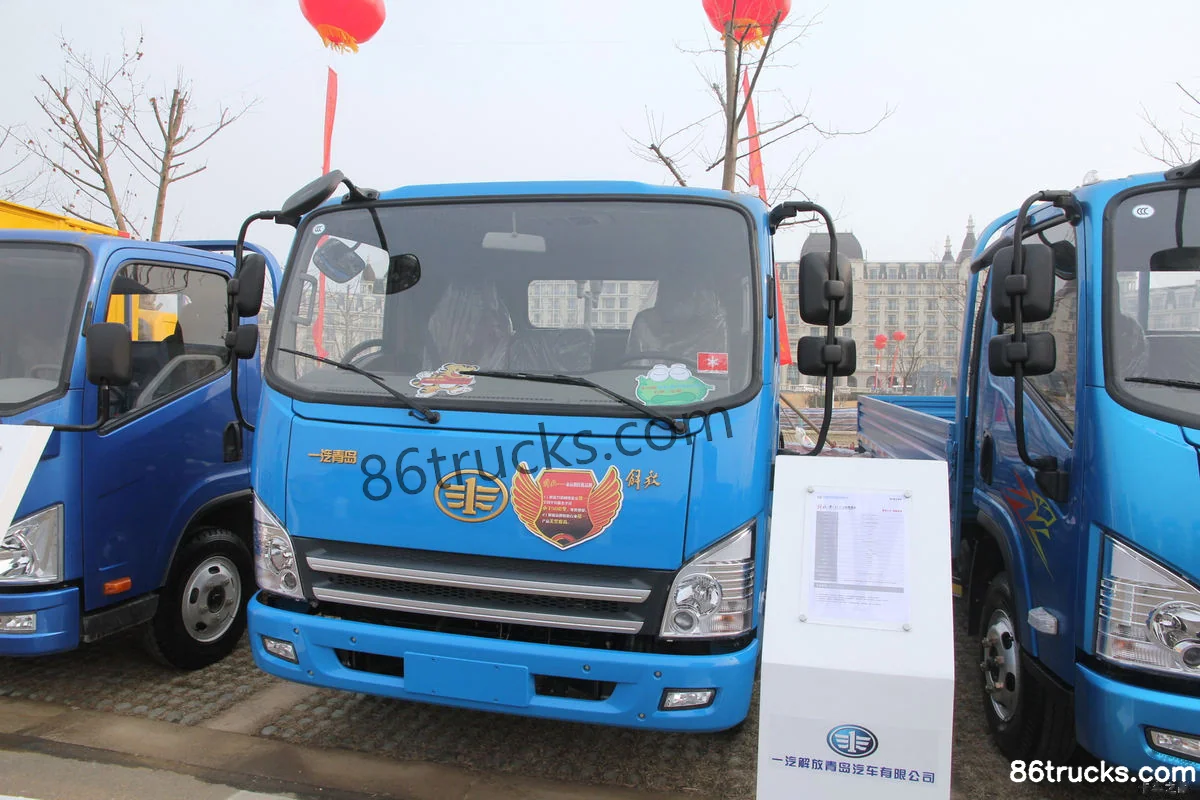

Exterior3

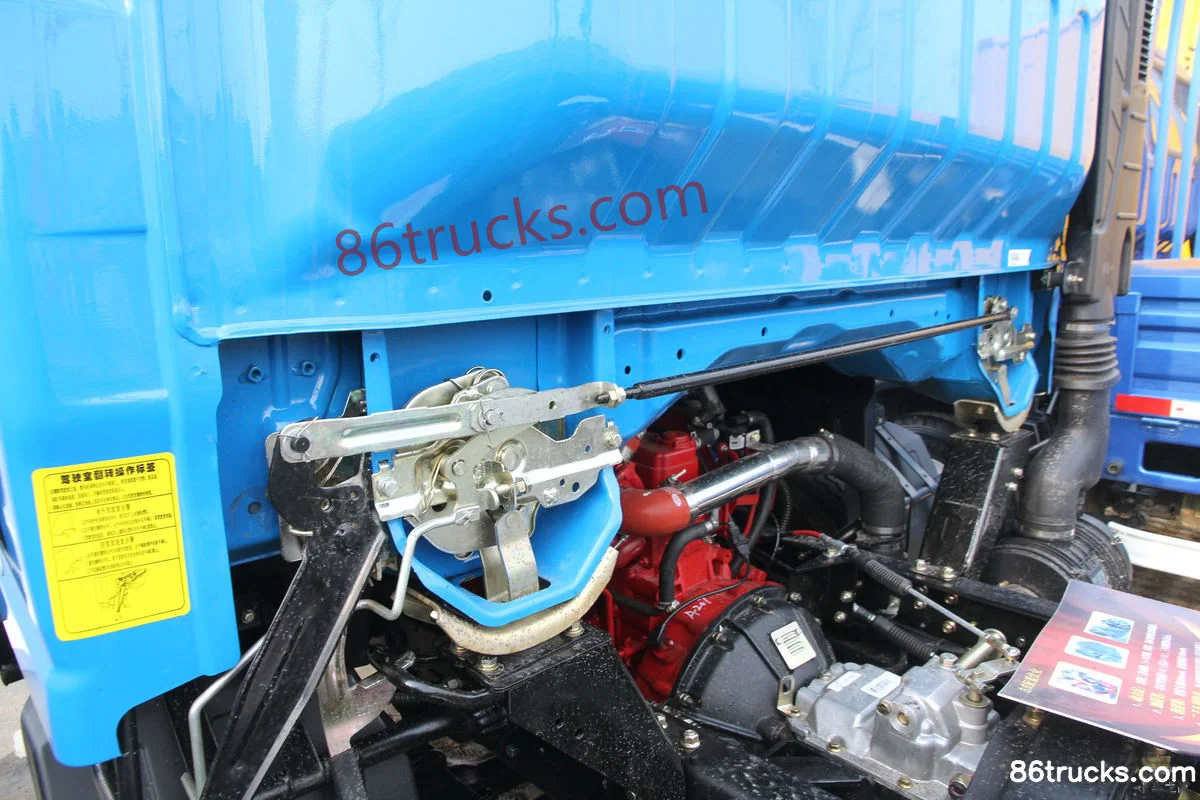

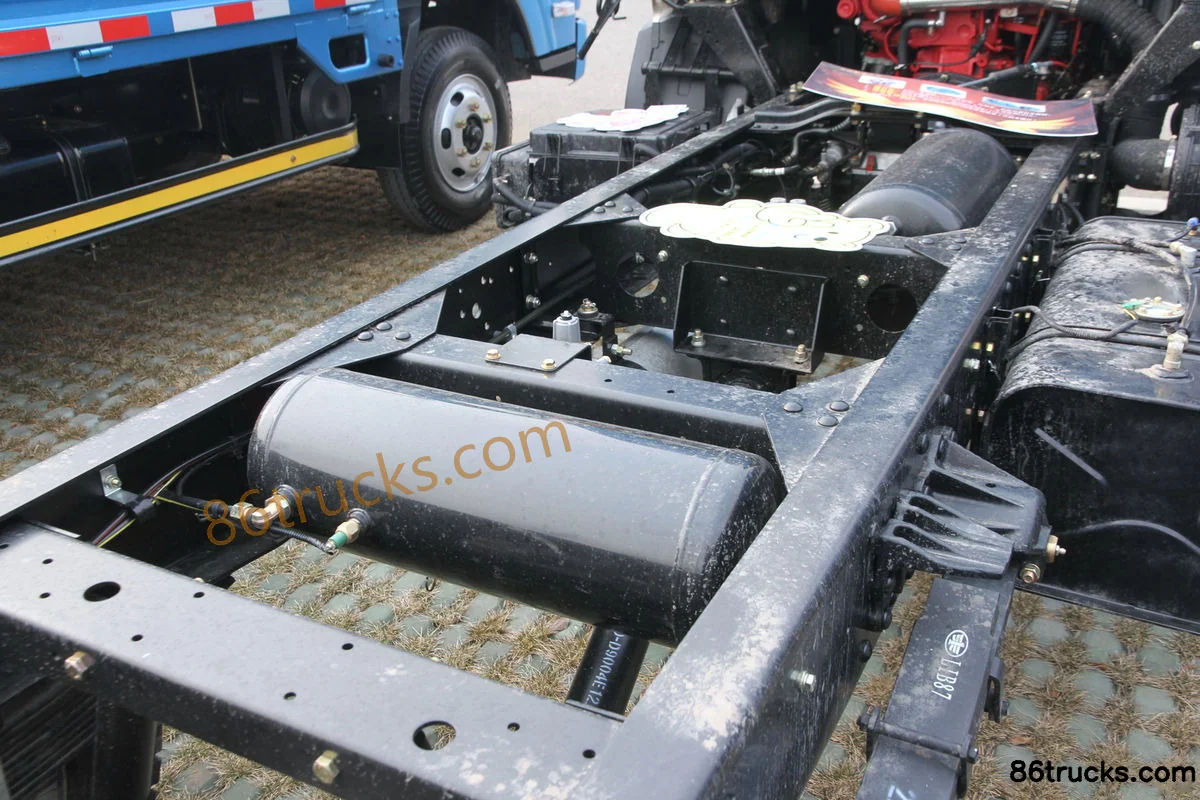

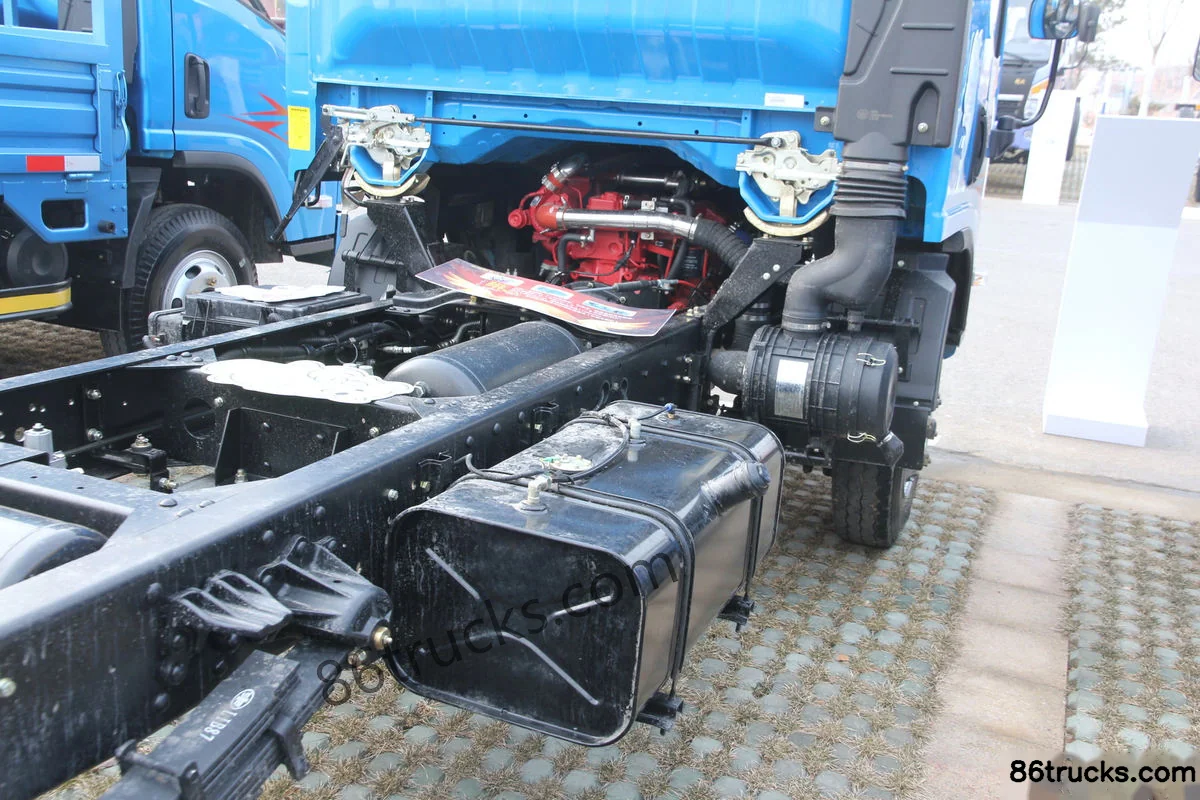

Chassis3

6 photos

FAQ

What is the export price of FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck, and what does it include?

FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck export reference is about From $9,542; MSRP is ¥6.87M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck?

Key specs of FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Dachai498; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck suited for?

FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck differ from other variants in the same series?

FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang HuV 120hp 4X2(6 wheels) 3.8m Day Cab Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
