Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck

Export reference
From $45,111
MSRP ¥32.48M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5,295/80R22.5
Front axle allowable load:: 7000kg
Displacement:: 10.338L
Drive 6X4 (10 wheels)
Horsepower 420
Emission China V
Transmission Fast Gear

Overview

The Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 420 hp, 25t GVW and China V emissions. Its segment focus covers Logistics distribution, coal transport and sand & gravel transport, matching those duty cycles. On the powertrain side, it comes with a United PowerYC6K1042-50 engine, Fast Gear transmission and Diesel fuel.

China V 420 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QCC4252D654-4
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: United PowerYC6K1042-50
transmission: Fast Gear12JSD180TA
Rear Axle Ratio: 4.11
Cab length: 6.873m
Cab width: 2.55m
Cab height: 3.65m
Front track width: 2040mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Wuhu, Anhui
tonnage class: Heavy truck
market segment: Logistics distribution, coal transport, sand & gravel transport, bulk material transport
Remarks: Optional ratio 3.7
Energy Type: Diesel
Engine parameters
Engine Brand: United Power
Engine Model: United PowerYC6K1042-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.338L
Emission standard: China V
Max output power: 309kW
Max hp: 420Horsepower
Max torque: 1970N·m
Max torque speed: 1300rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD180TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 700L
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: Fuwa 6.5T
Front axle allowable load: 7000kg
Frame Dimensions: 300×80×7mm
rear axle description: Fuwa Q470 / Pangxiang QL350
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.11
Leaf spring count: 3/4,2/4,3/-,3/11,9/11,10/12,12/13
Tire
Tire Size: 12R22.5,295/80R22.5
Number of tires: 10pcs
Control configuration
ABS:

Photos

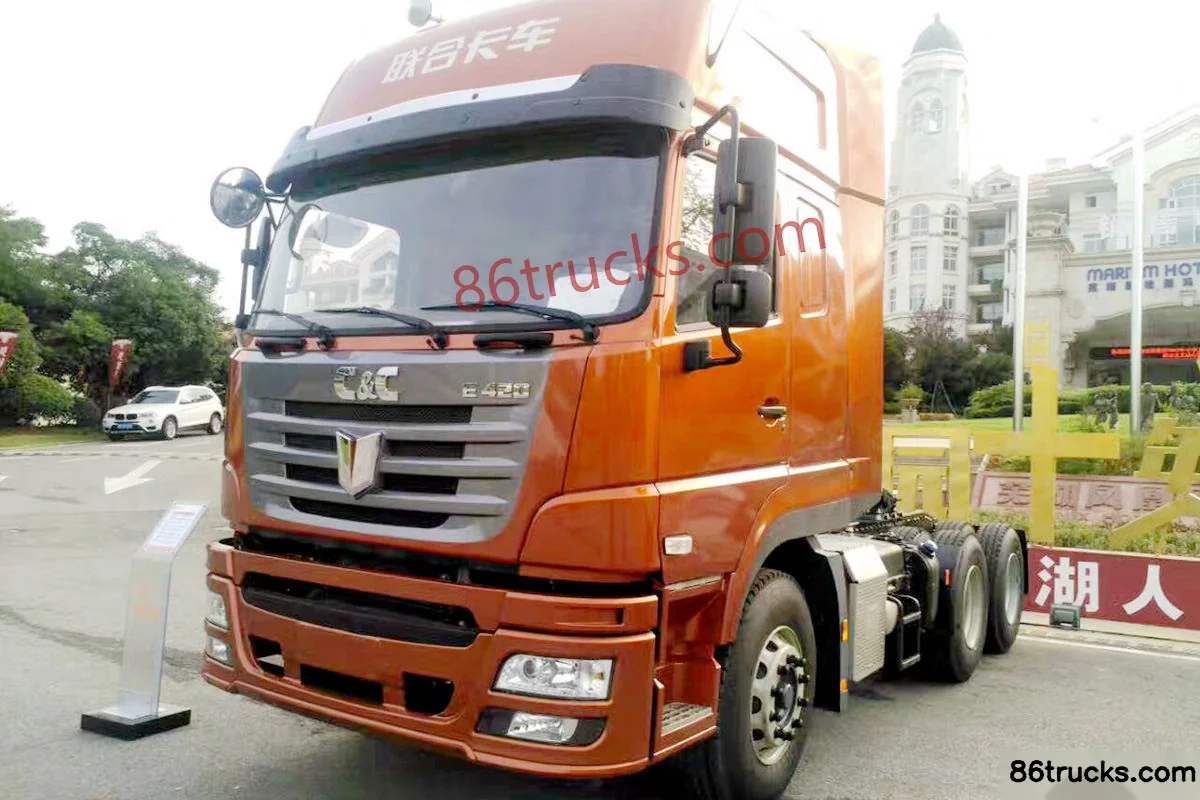

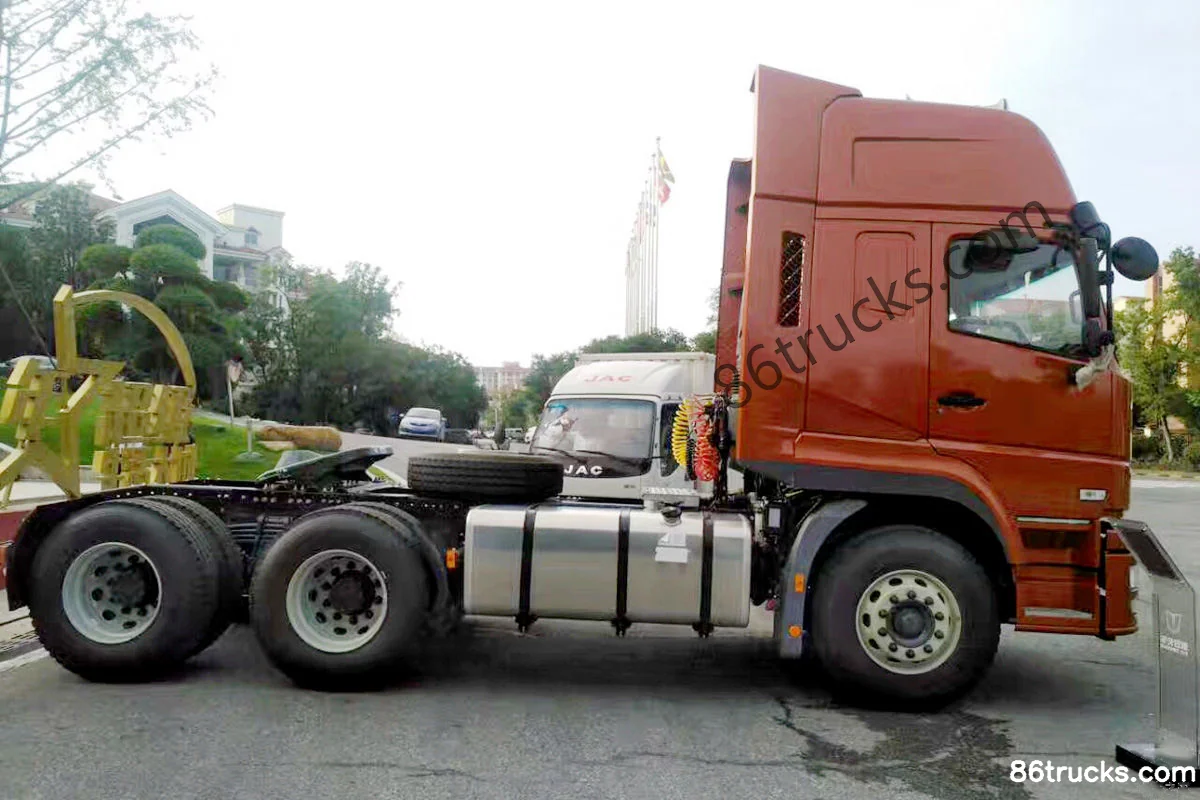

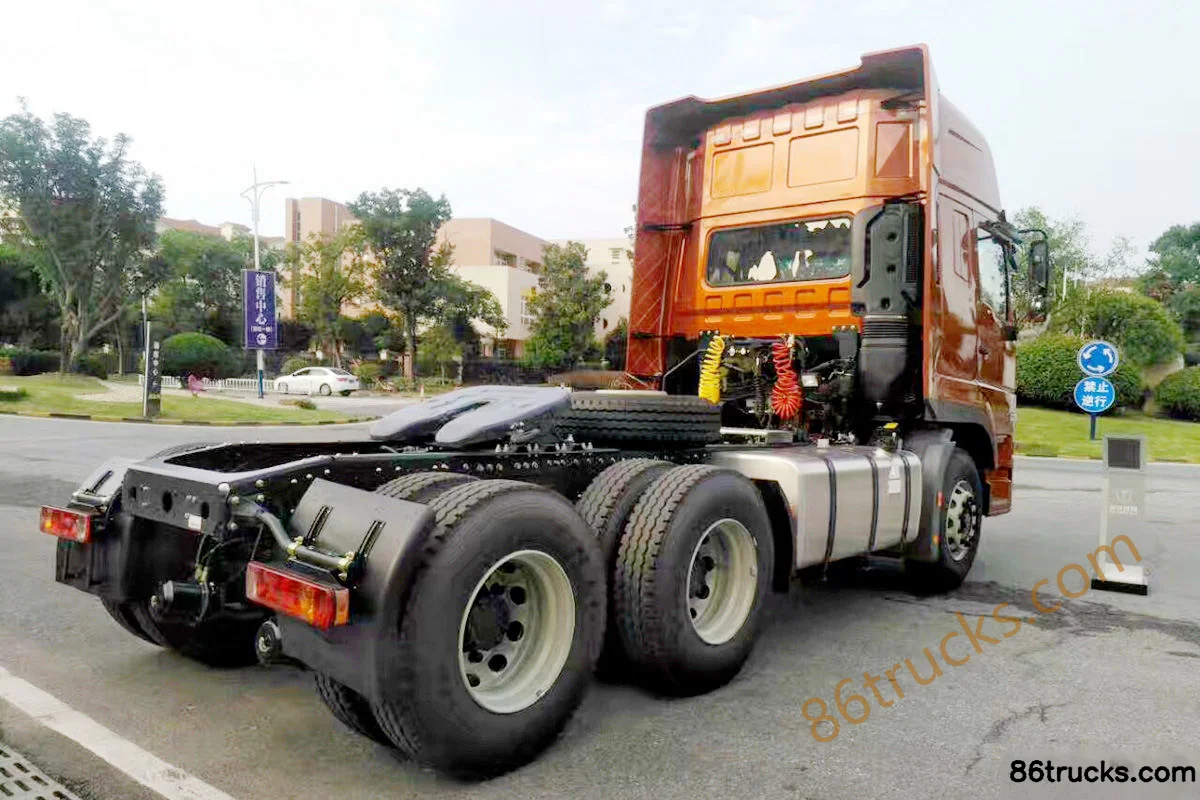

Exterior3

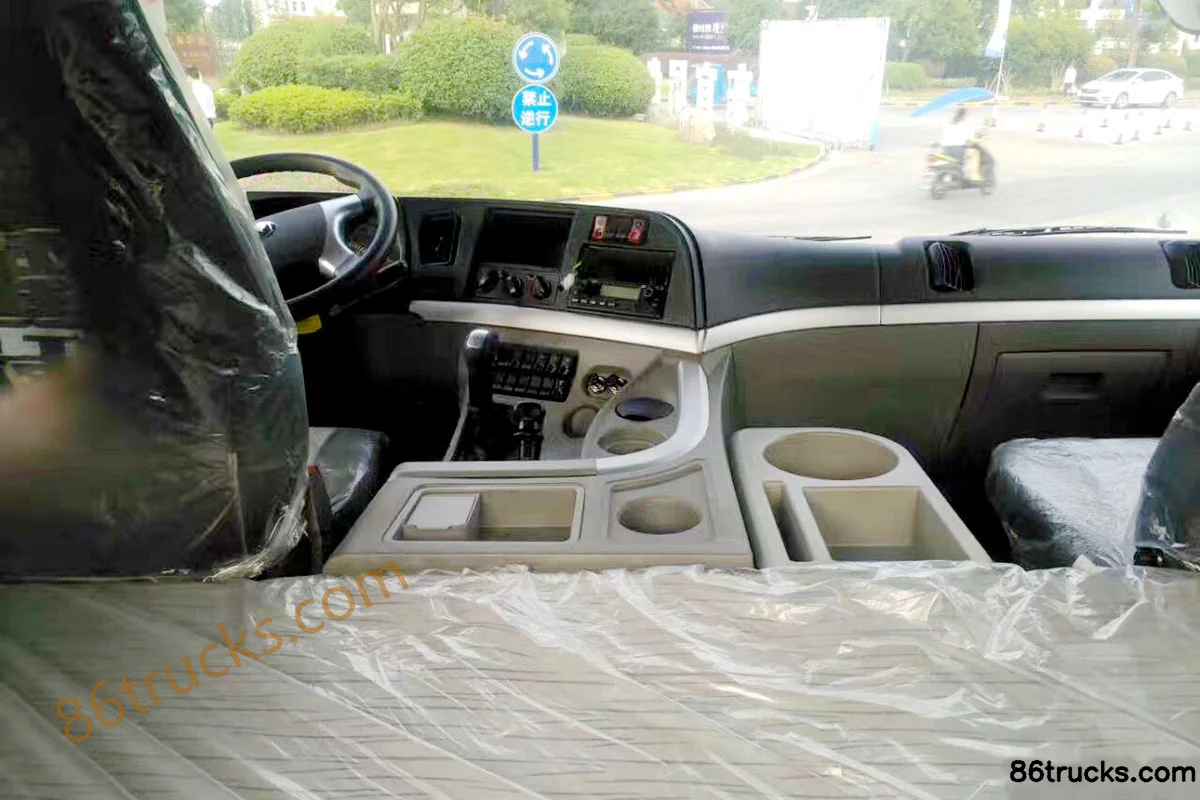

Cab1

4 photos

FAQ

What is the export price of Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck, and what does it include?

Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck export reference is about From $45,111; MSRP is ¥32.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck?

Key specs of Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck: Drive: 6x4; Horsepower: 420 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck suited for?

Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck differ from other variants in the same series?

Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck belongs to Union Truck E-Series Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck E420 Heavy Truck 420 hp 6X4(10 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
