FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis

Export reference
MSRP N/A
Horsepower: 180
Emission: China IV
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 6.155ton
seating capacity: 3Personnel
Rated payload: 9.45ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.45t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5167CCYPK2L2E4A80-1
Type: Chassis
Drive type: 4X2
Wheelbase: 5270mm
engine: DachaiBF6M2012-18E4
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.875
Cab length: 8.545m
Cab width: 2.499m
Cab height: 3.79m
Front track width: 1800mm
rear track: 1740mm
Curb Weight: 6.155ton
Rated payload: 9.45ton
GVWR: 15.8ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.312/2.313m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF6M2012-18E4
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.06L
Emission standard: China IV
Max output power: 139kW
Max hp: 180Horsepower
Max torque: 660N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: Electronically controlled
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.282m
Cargo box height: 0.6m
*Cargo box interior width: 2.2820000648499
Cab parameters
Cab: Long V Mid-High Roof Semi-Floating Sunroof Cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5800kg
Frame Dimensions: 237×75×(7+4)mm
rear axle description: Upgraded 435 stamped-welded axle
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 7/10+3
clutch: Φ380
Tire
Tire Size: 9.00R20 16-ply
Number of tires: 6pcs
Control configuration
ABS:

Photos

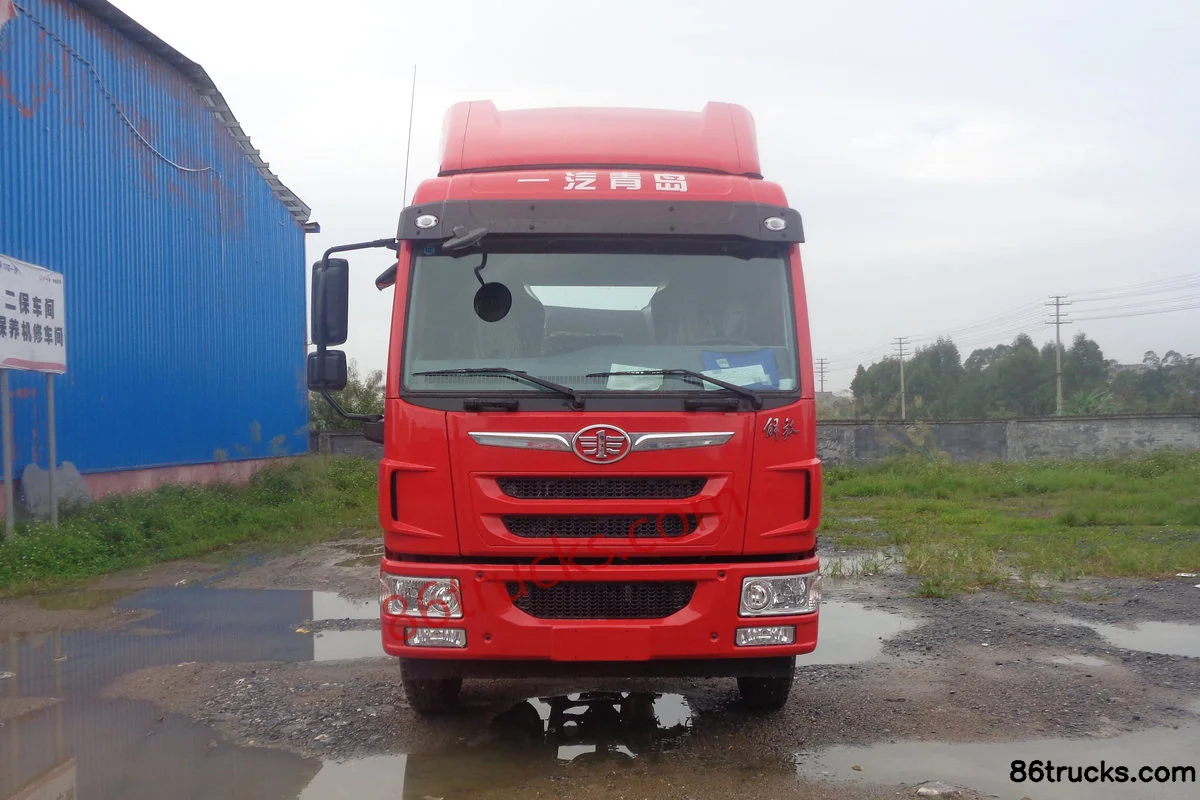

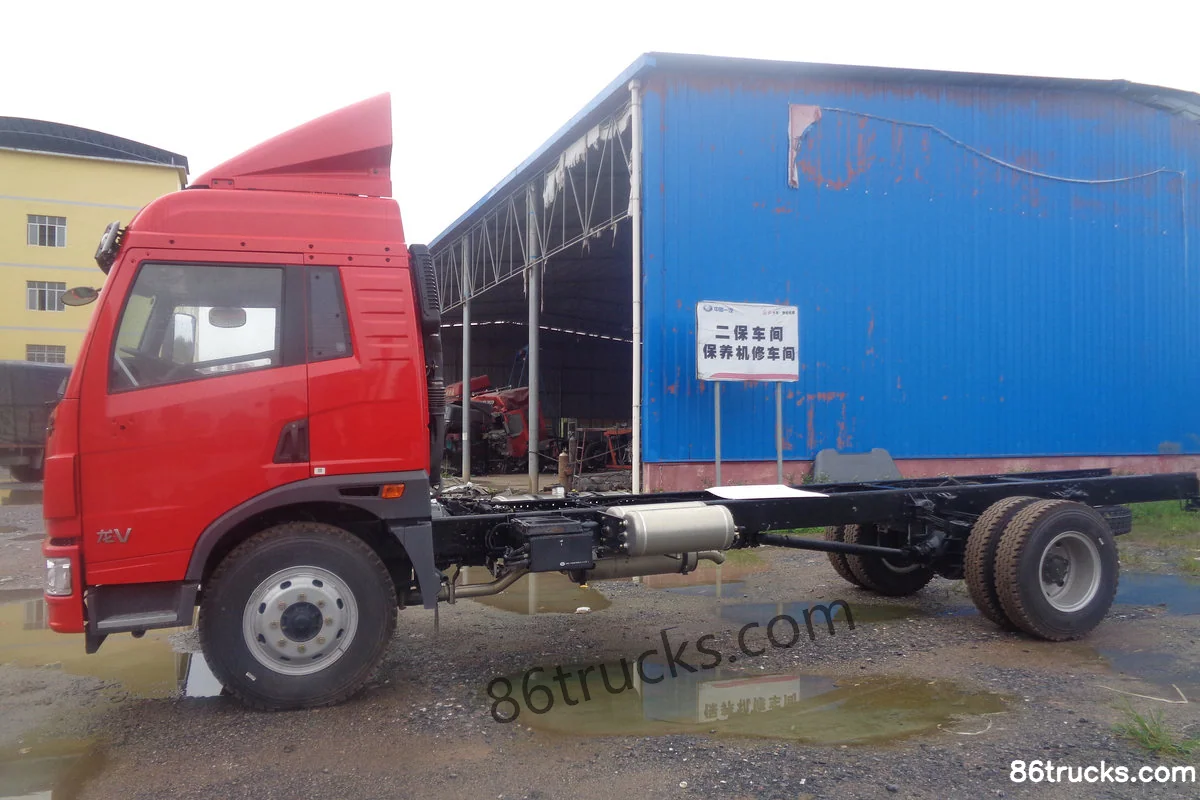

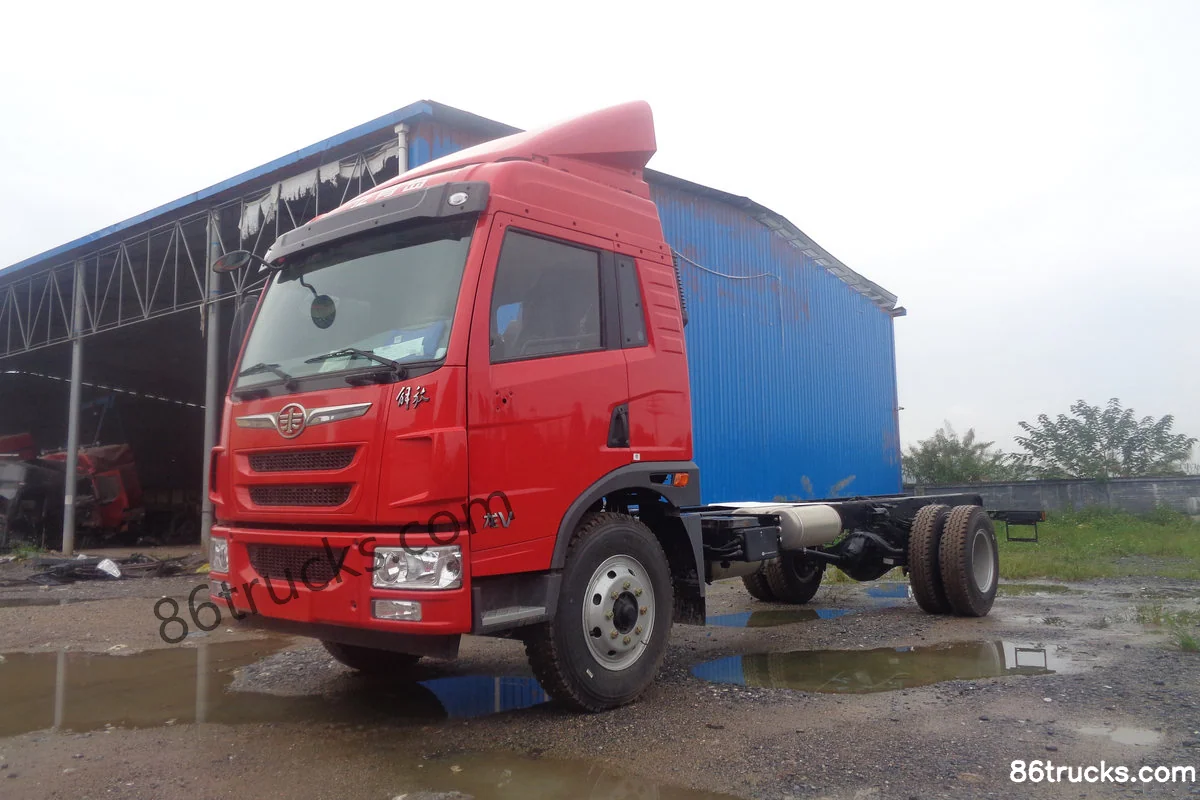

Exterior3

3 photos

FAQ

What emission standard does FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis?

Key specs of FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis suited for?

FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis differ from other variants in the same series?

FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis belongs to FAW Jiefang Qingdao Long V Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Long V medium-duty truck 180hp 4X2(6 wheels) stake cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
