Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck

Export reference
From $105,556
MSRP ¥76M CNY
Horsepower: 380
Emission: China III / Euro III
Fuel: Diesel
Curb Weight:: 8.12ton
Wheelbase:: 4600mm
Tire Size:: 295/80R22.5,11.00R20
seating capacity: 3Personnel
Rated payload: 8.75ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck is a Heavy-duty cargo trucks featuring 5.68m cargo length, stake body cargo body, 3Personnel volume and 8.75t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with 380 hp, 4X2 (6 wheels) drive, China III / Euro III emissions and Diesel fuel.

China III / Euro III 380 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JHW1170D46C1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4600mm
engine: VolvoD9
Cab length: 8.607m
Cab width: 2.5m
Cab height: 3.37m
Front track width: 2038mm
rear track: 1837mm
Curb Weight: 8.12ton
Rated payload: 8.75ton
GVWR: 17ton
Max. speed: 109km/h
Origin: Sweden
tonnage class: Heavy-duty cargo trucks
market segment: Building materials, agricultural products
Remarks: This vehicle may be ordered without the air deflector
Energy Type: Diesel
Engine parameters
Engine Brand: Volvo
Engine Model: VolvoD9
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.4L
Emission standard: China III / Euro III
Max output power: 279kW
Max hp: 380Horsepower
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.68m
Cargo box width: 2.3m
Cargo box height: 0.55m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6000kg
rear axle allowable load: 11000kg
Tire
Tire Size: 295/80R22.5,11.00R20
Number of tires: 6pcs

Photos

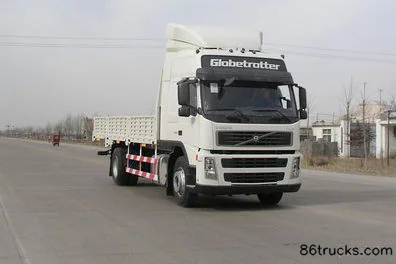

Exterior1

1 photos

FAQ

What is the export price of Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck, and what does it include?

Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck export reference is about From $105,556; MSRP is ¥76M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck?

Key specs of Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck: Drive: 4x2; Horsepower: 380 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck suited for?

Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck differ from other variants in the same series?

Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck belongs to Volvo FM heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Volvo FM Heavy Truck 380 hp 4X2(6 wheels) Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
