FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck

Export reference
From $41,667
MSRP ¥30M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3150+1350mm
Tire Size:: 11.00R20 18PR,12.00R20 16PR,12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 8.6L
Drive 6X4 (10 wheels)
Horsepower 350
Emission China V
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck is a Heavy truck featuring 6X4 (10 wheels) drive, 350 hp, 25t GVW and China V emissions. Its segment focus covers dangerous goods transport, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DL2-35E5 engine, Fast Gear transmission and Diesel fuel.

China V 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4255P2K2T1E5A80
Drive type: 6X4
Wheelbase: 3150+1350mm
engine: XichaiCA6DL2-35E5
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 3.7
Cab length: 6.815m
Cab width: 2.5m
Cab height: 3.82m
Front track width: 2020mm
Gross Trailer Weight: 40ton
rear track: 1830/1830mm
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 80km/h
Origin: Qingdao/Chengdu
tonnage class: Heavy truck
market segment: dangerous goods transport
Version: hazardous material version
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-35E5
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.6L
Emission standard: China V
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1470rpm
Rated speed: 2100rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 600L
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Lower Bunk Width: 800mm
Chassis Specs
Front axle allowable load: 7000kg
Fifth wheel: 约斯特90 fifth wheel plate
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 9/12,9/-,3/-,3/4,3/12,2/3
Tire
Tire Size: 11.00R20 18PR,12.00R20 16PR,12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

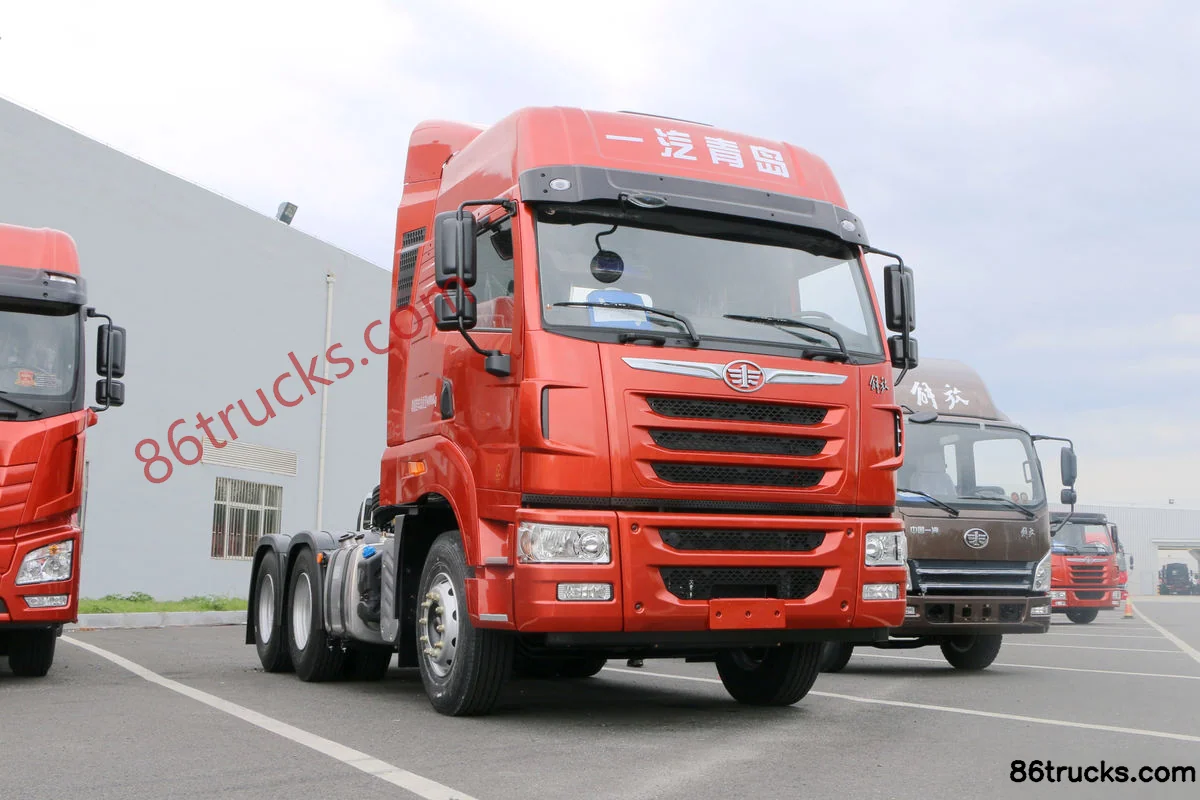

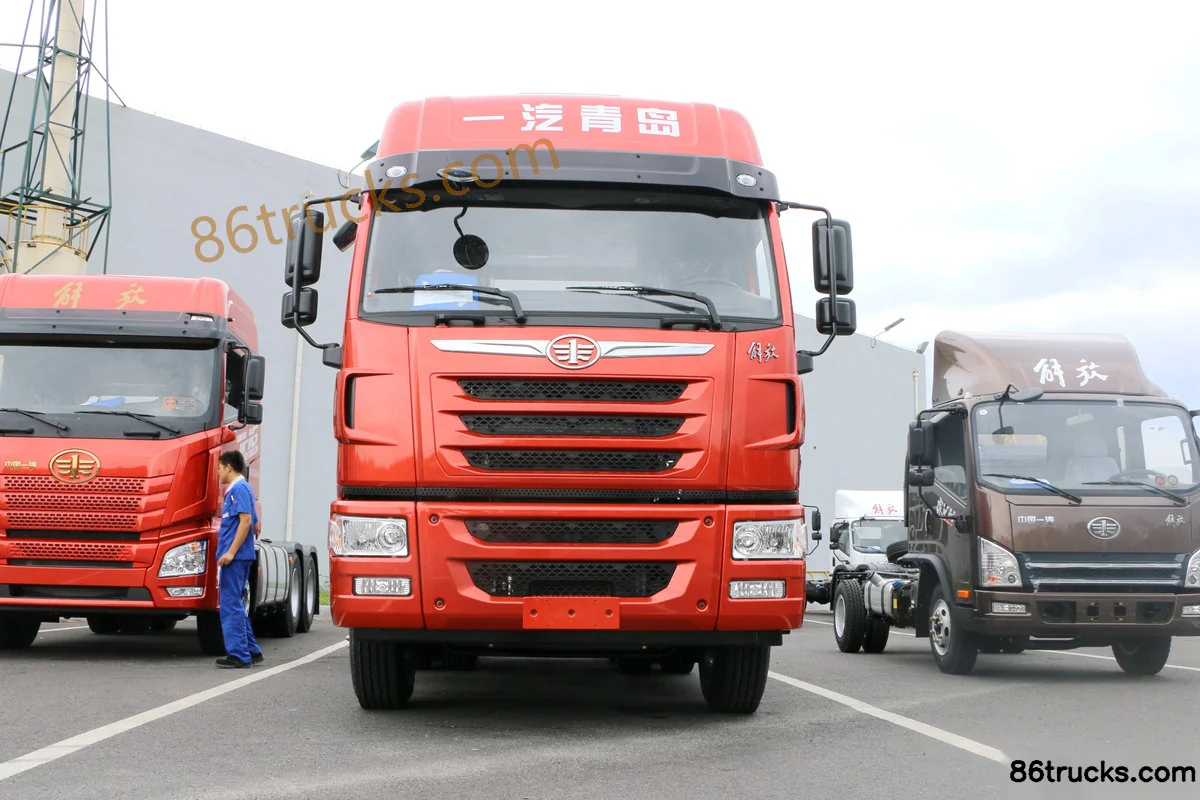

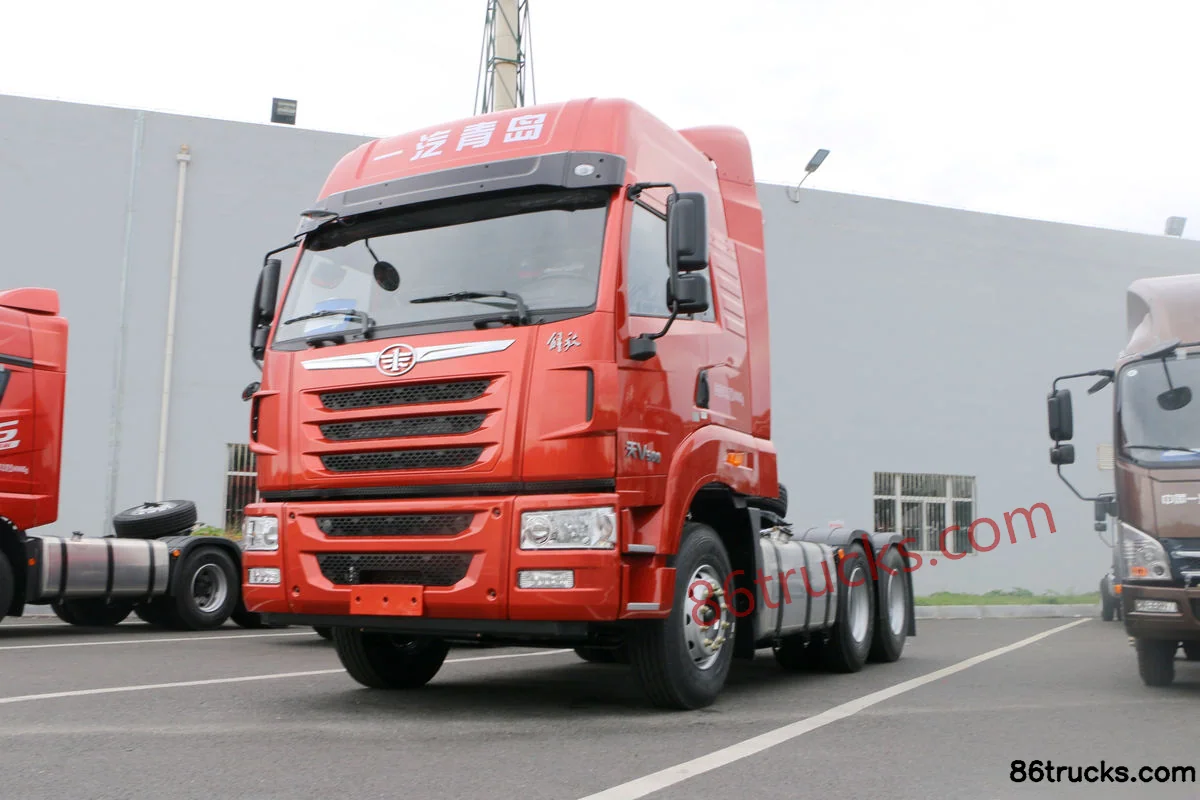

Exterior3

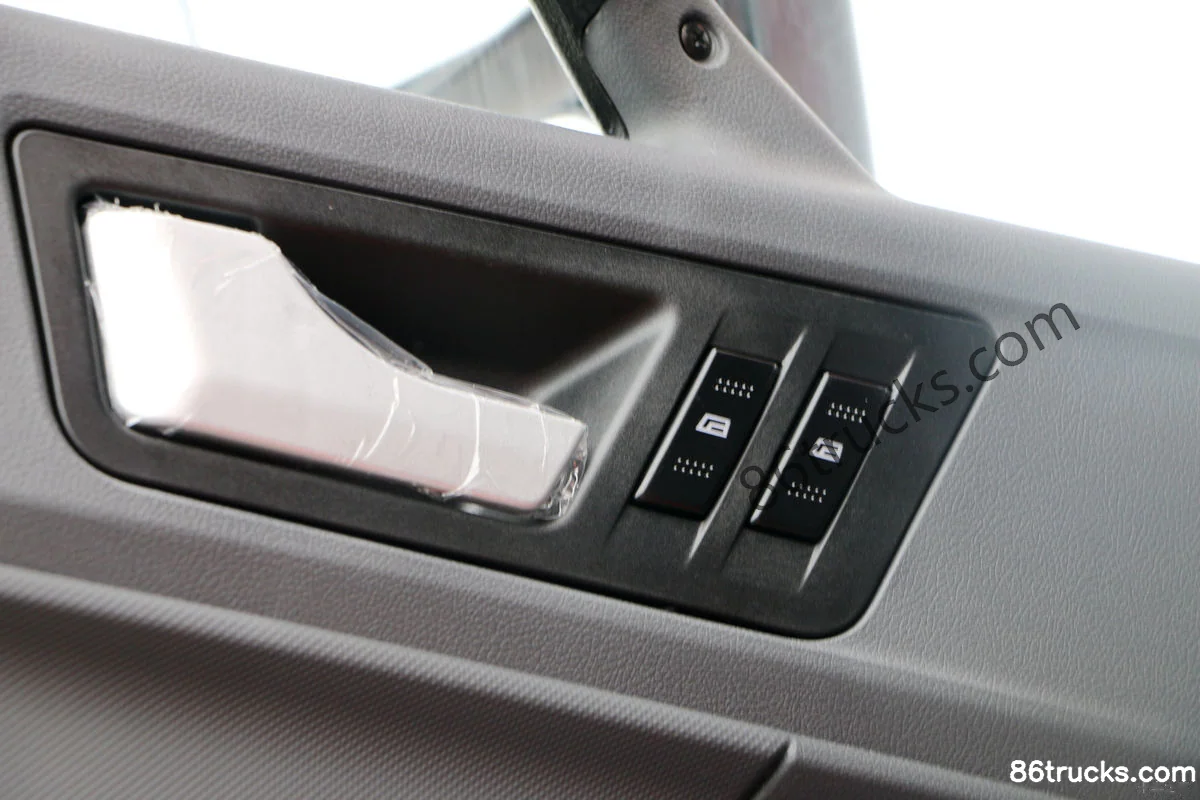

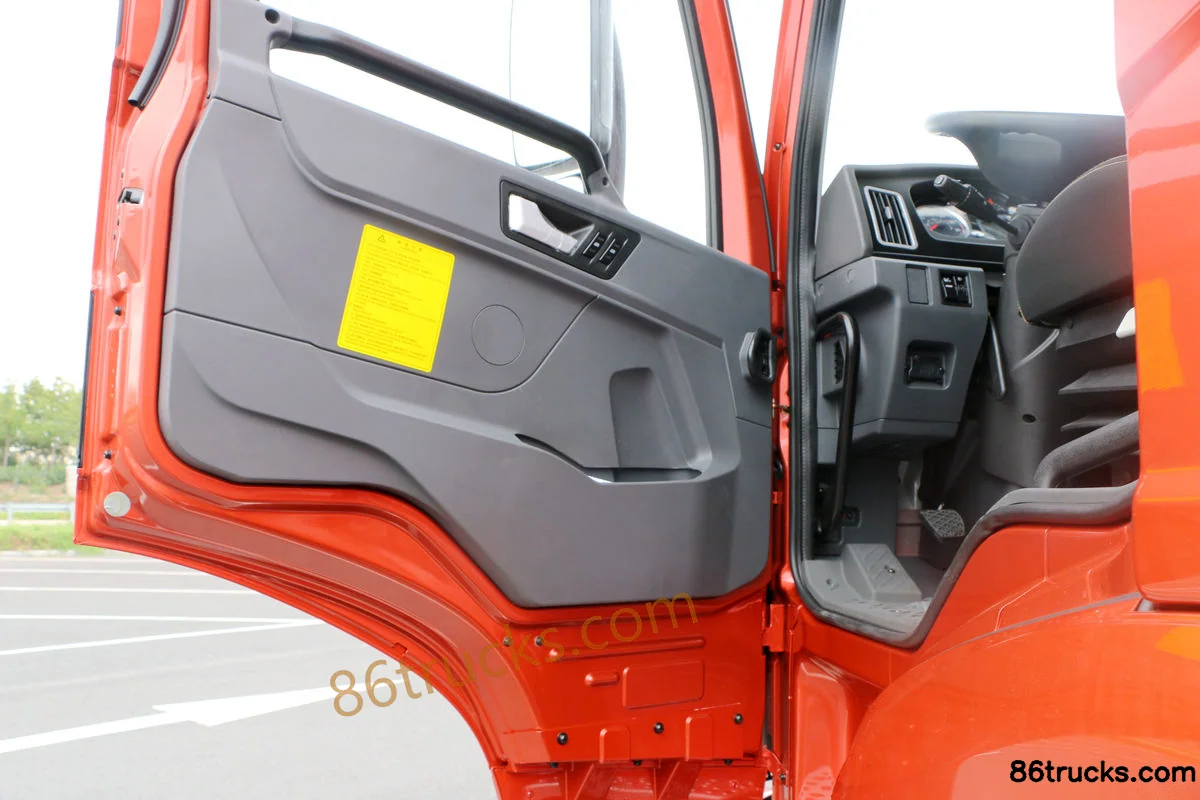

Cab3

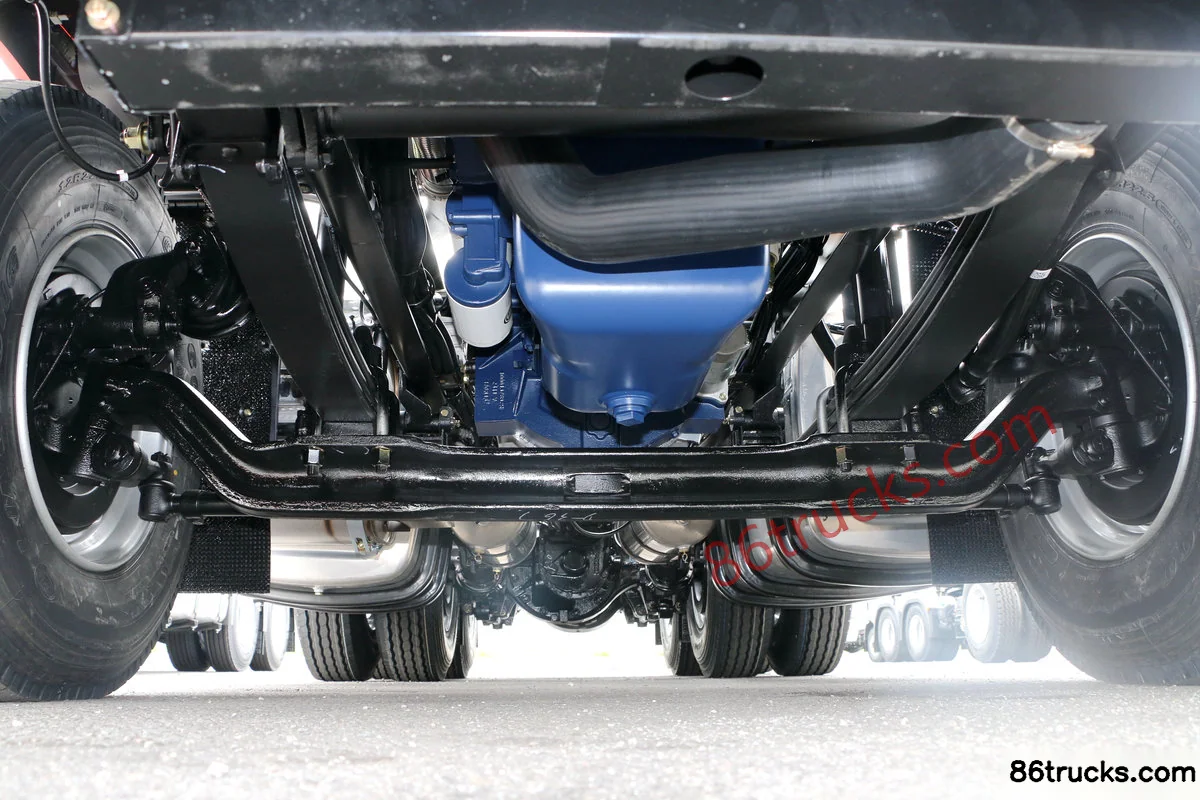

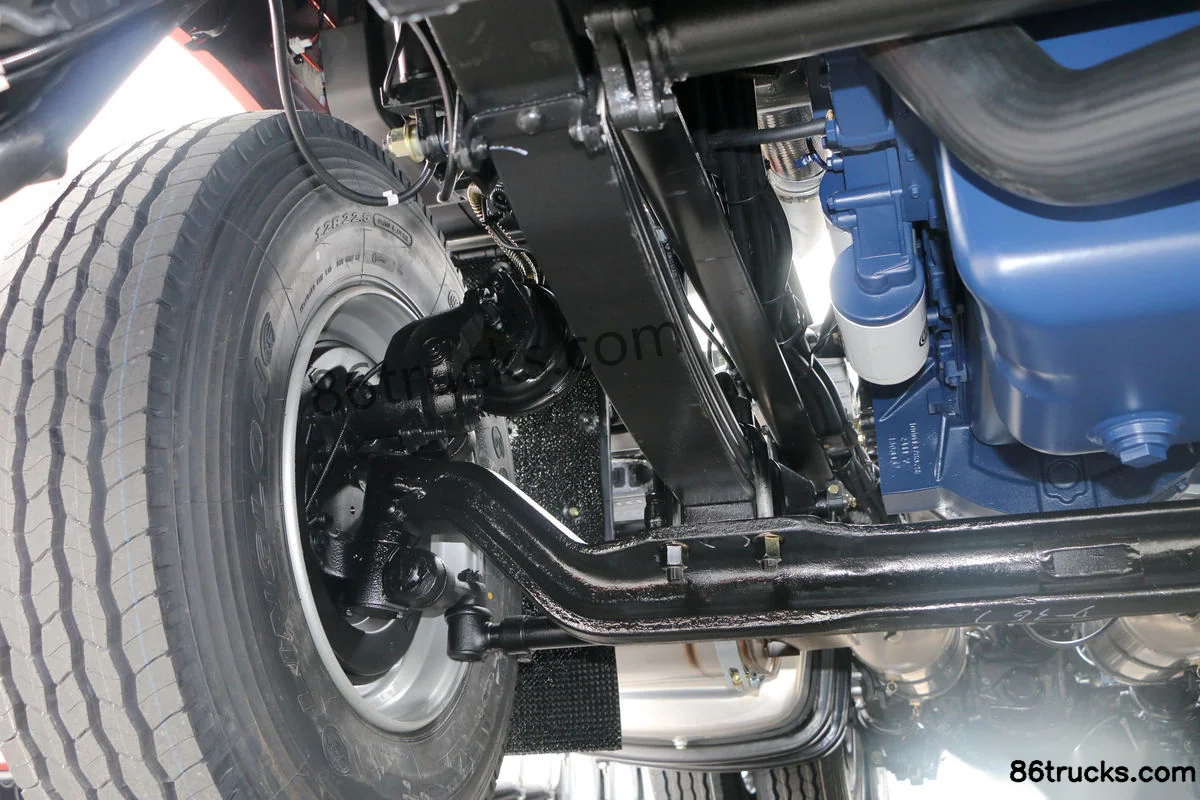

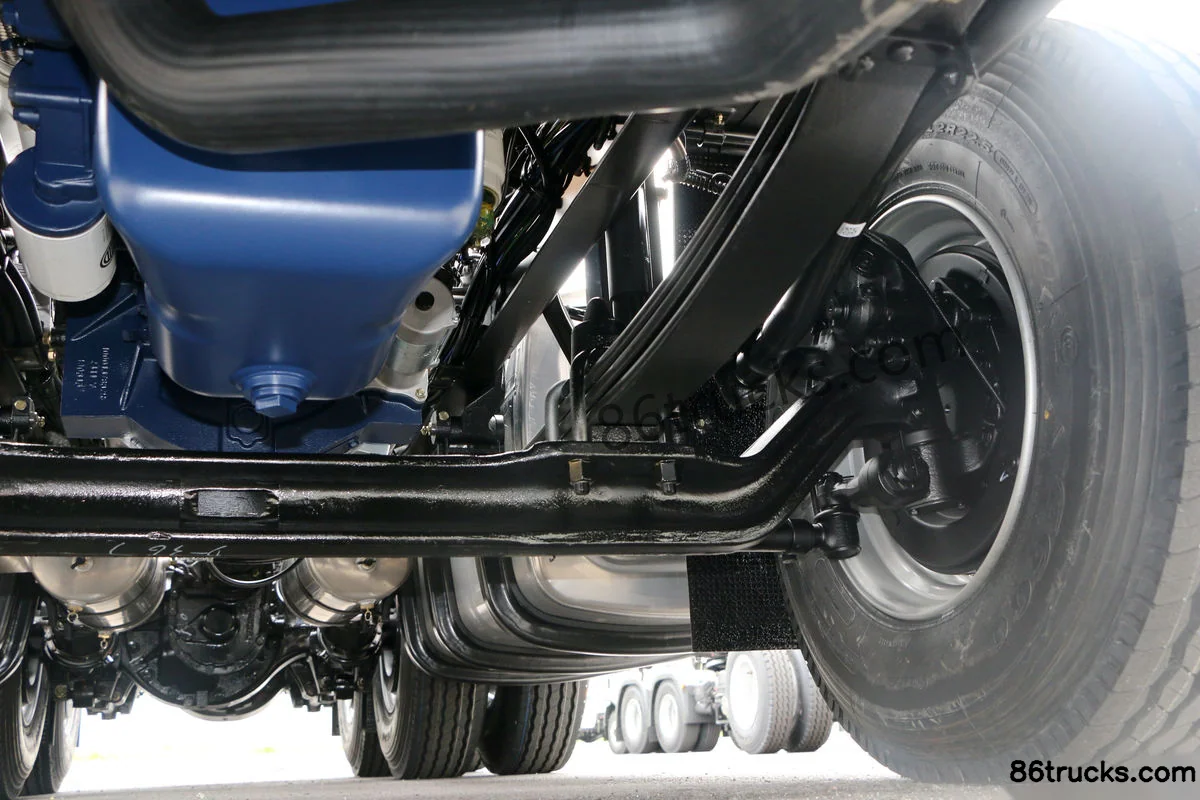

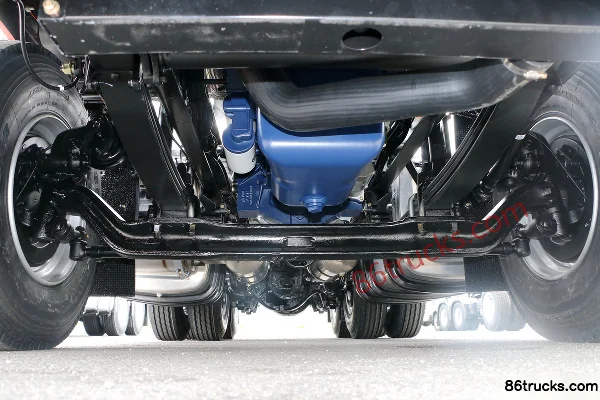

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck, and what does it include?

FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck export reference is about From $41,667; MSRP is ¥30M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck?

Key specs of FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck: Drive: 6x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck suited for?

FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck differ from other variants in the same series?

FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck belongs to FAW Jiefang Qingdao Tian V Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Tian V heavy truck 350 hp 6X4(10 wheels) hazardous material tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
