Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis

Export reference
From $18,472
MSRP ¥13.3M CNY
Emission: China V
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 4.3ton
Wheelbase:: 3800mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 160

Overview

The Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume and 3800mm wheelbase. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ1180GD5DJ1
Type: Chassis
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYC4E160-56
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.88
Cab length: 6.35m
Cab width: 2.5m
Cab height: 2.55m
Front track width: 1810mm
rear track: 1800mm
Curb Weight: 4.3ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 25°
departure angle: 23°
Front/rear suspension: 1.25/1.3m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab suspension: Front: rigid connection; Rear: mechanical
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 6500
rear axle allowable load: 11500kg
Axle ratio: 6.88
Leaf spring count: 9/12+10
Suspension (front/rear): leaf spring suspension
Tire
Tire brand: Dongfeng
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

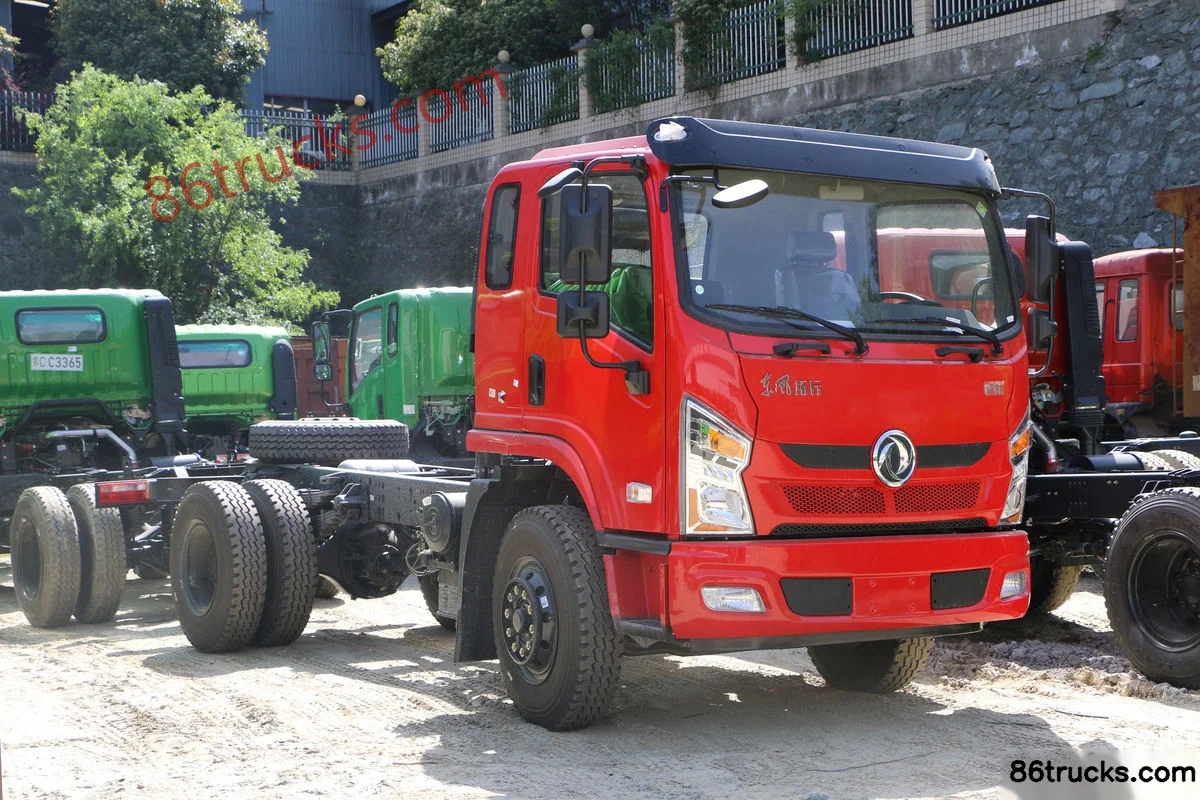

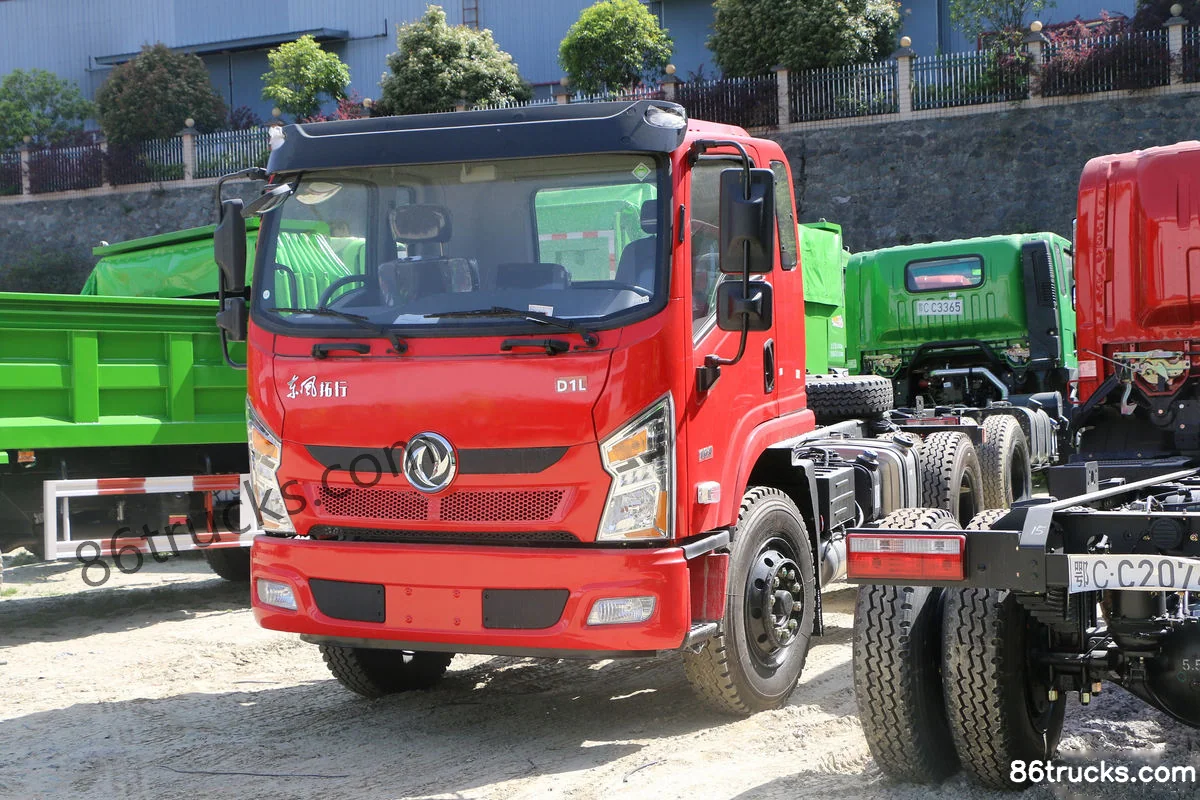

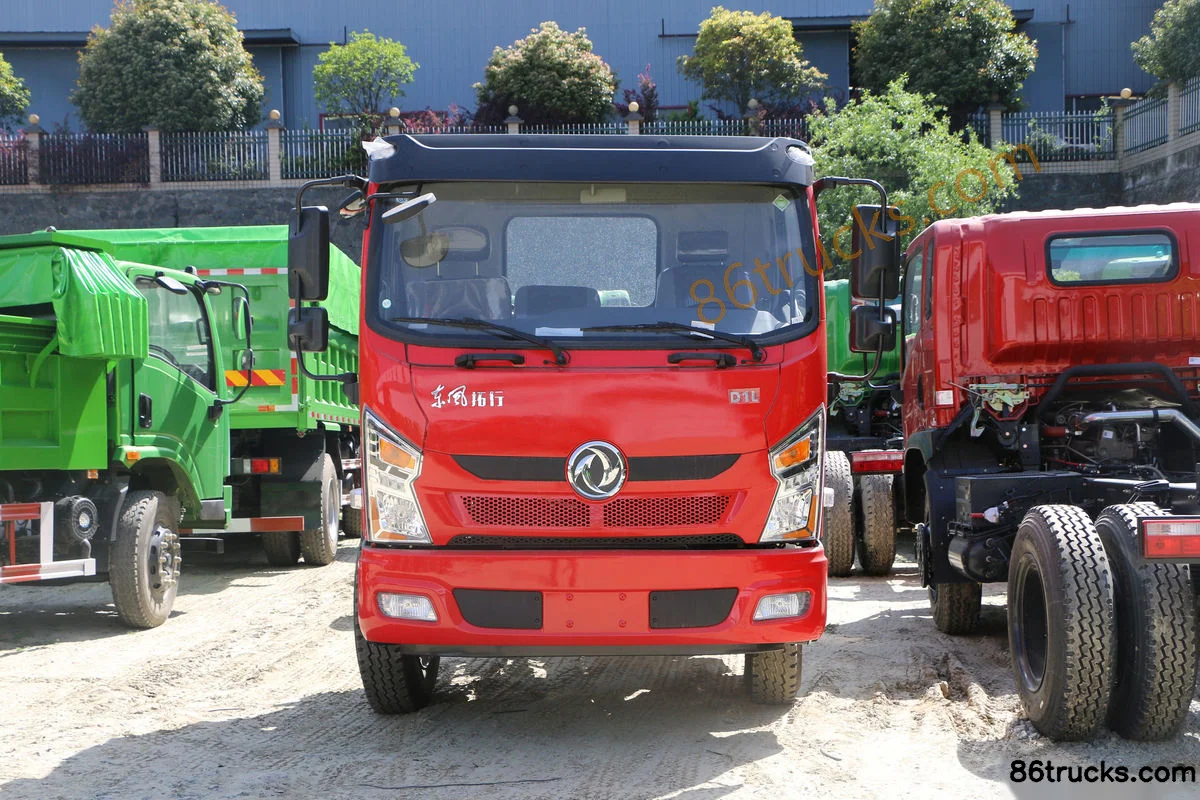

Exterior3

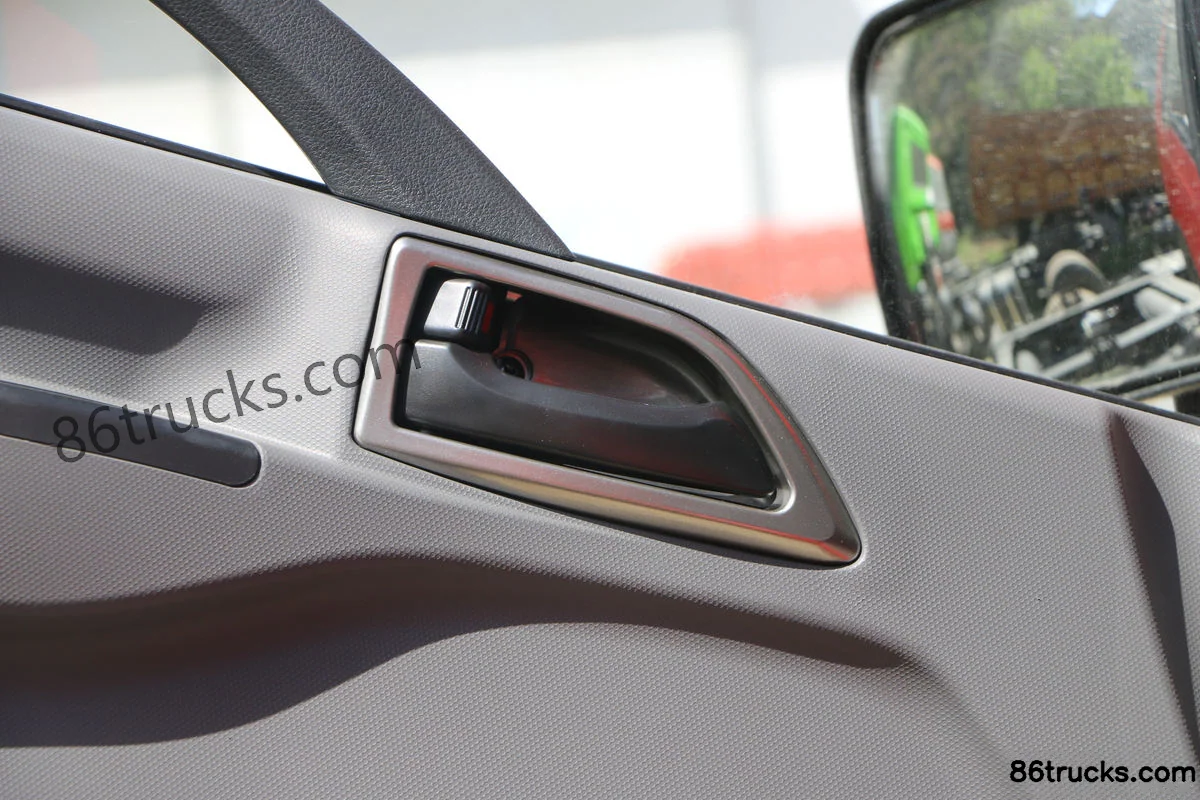

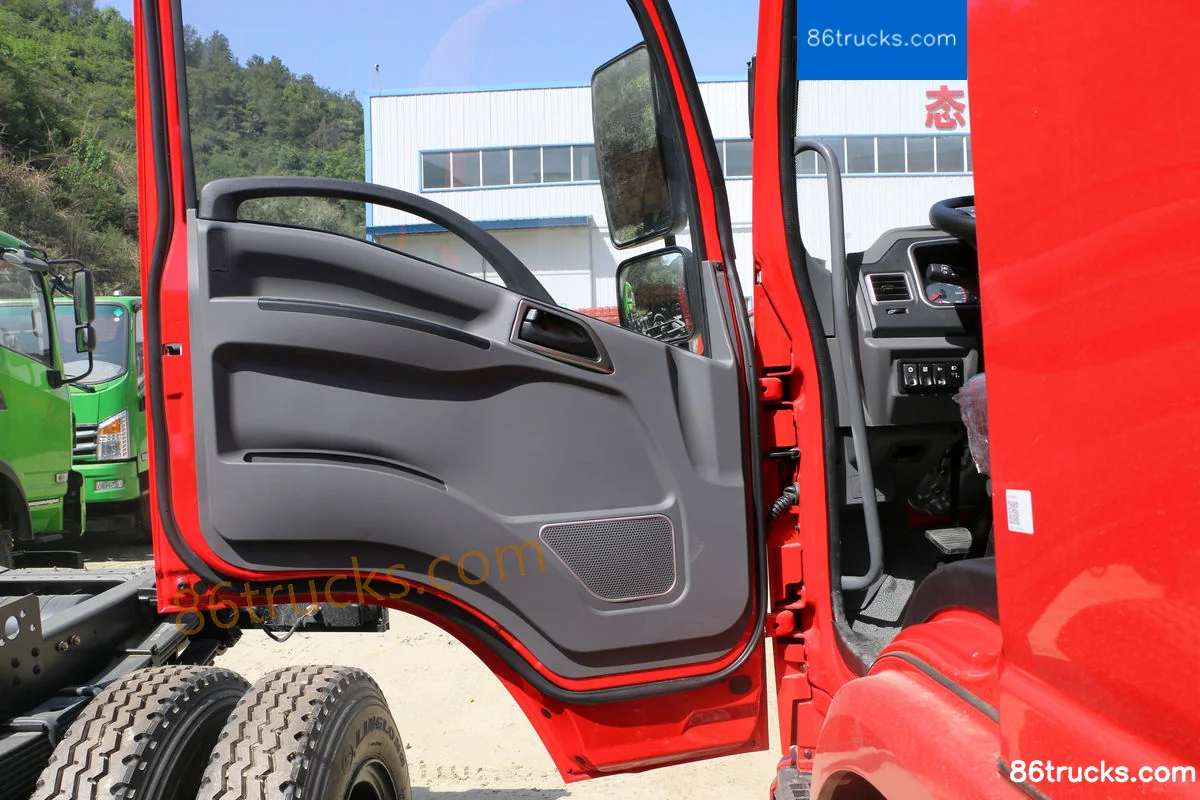

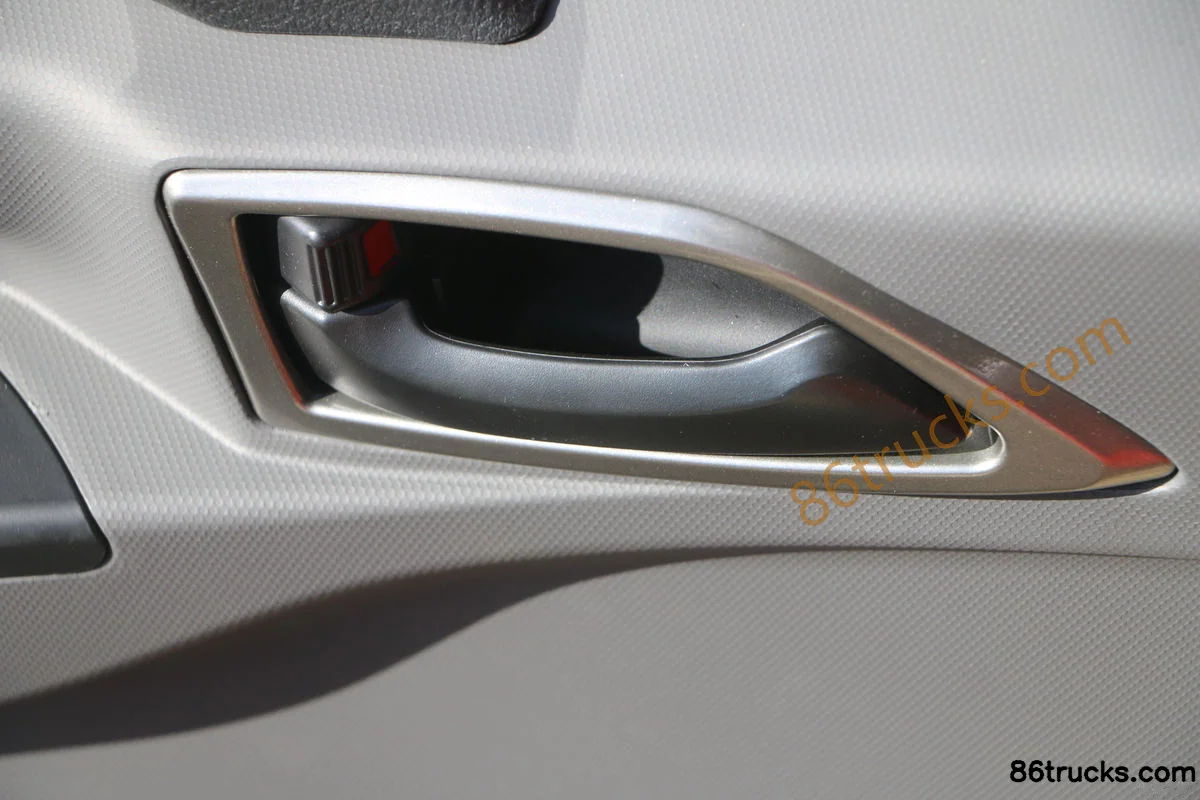

Cab3

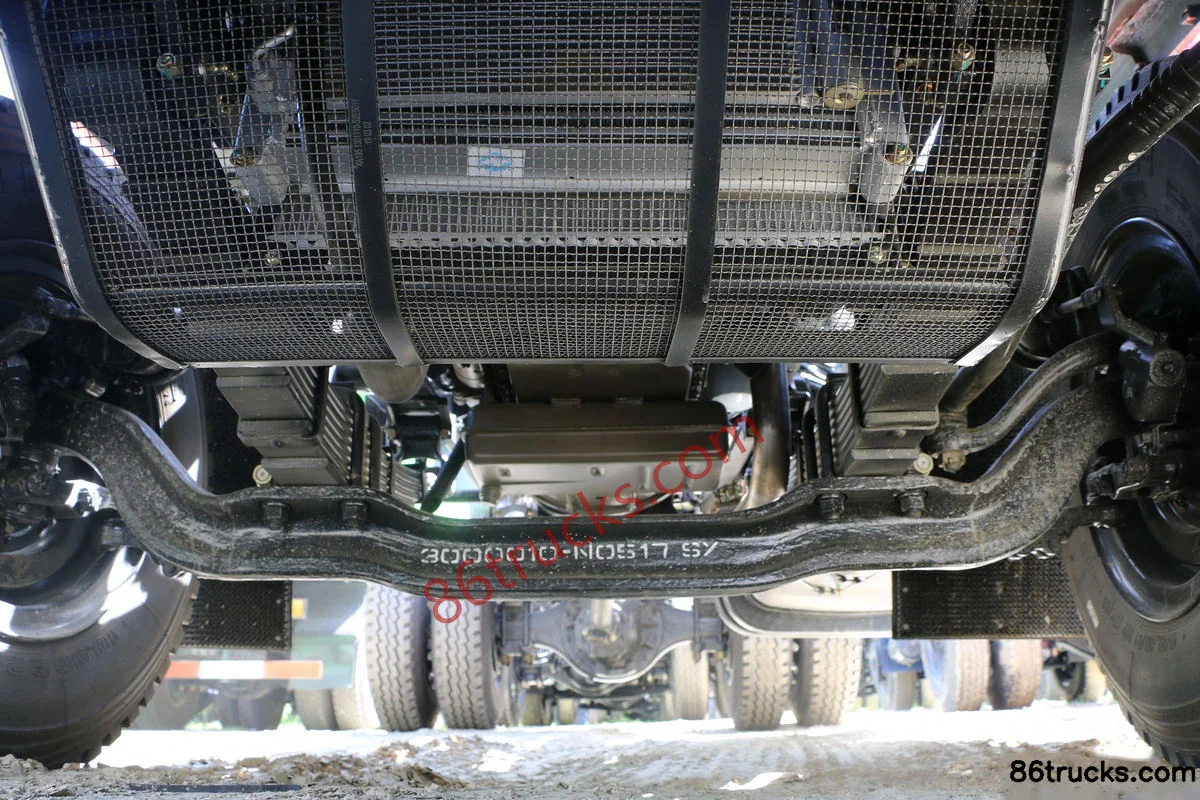

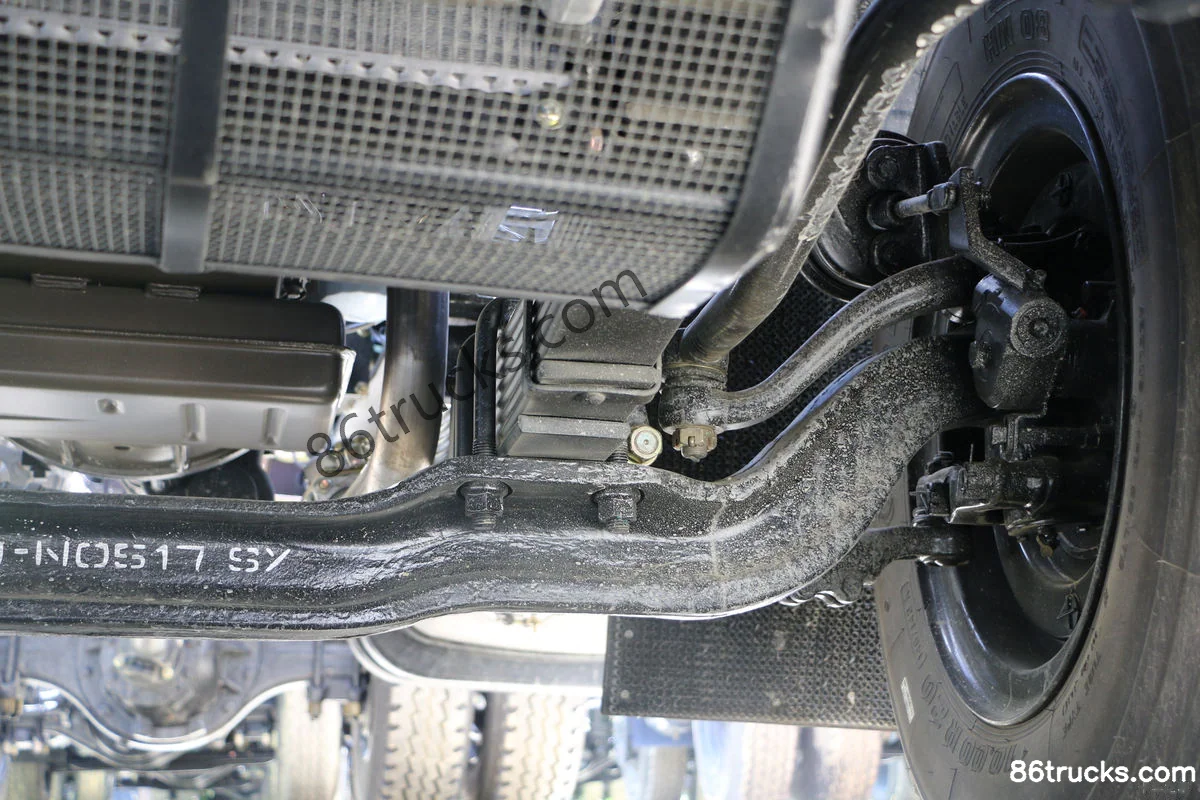

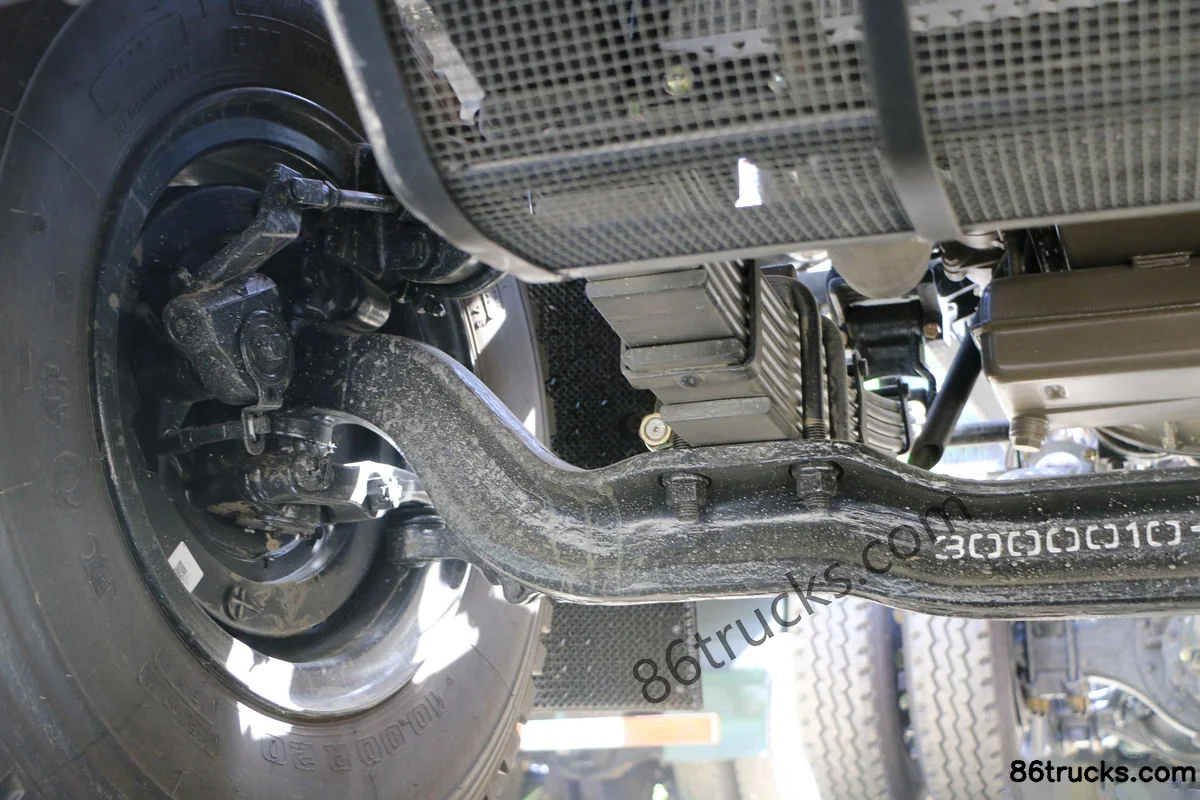

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis, and what does it include?

Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis export reference is about From $18,472; MSRP is ¥13.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis?

Key specs of Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis suited for?

Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis differ from other variants in the same series?

Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis belongs to Dongfeng Changxing (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tuoxing D1 160hp 4X2(6 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
