Sanhuan Shitong Haolong Luxury Edition 280hp 8X2(10 wheels) 9.6m Van Cargo Truck

Export reference
From $36,792
MSRP ¥26.49M CNY
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 12ton
seating capacity: 3Personnel
Rated payload: 18.805ton
Drive 8X2 (10 wheels)
Cargo box type: Van body

Overview

The Sanhuan Shitong Haolong Luxury Edition 280hp 8X2(10 wheels) 9.6m Van Cargo Truck is a Medium-duty truck featuring 9.6m cargo length, Van body cargo body, 3Personnel volume and 18.805t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 280 hp, 8X2 (10 wheels) drive and China V emissions.

China V 280 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ5311XXYA5
Type: enclosed cargo truck
Drive type: 8X2
Wheelbase: 1850+4500+1300mm
Box length class: 9.6m
engine: YuchaiYC6L280-50
transmission: Fast Gear9JS119
Rear Axle Ratio: 4.444
Cab length: 11.99m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 1940/1940mm
rear track: 1940/1860mm
Curb Weight: 12ton
Rated payload: 18.805ton
GVWR: 31ton
Max. speed: 88km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 25°
departure angle: 13°
market segment: Daily industrial goods transport, agricultural and sideline products transport, cold chain transport, logistics distribution, LTL transport, daily bulk cargo
Remarks: 4-in-1 lock, air dryer, widened bumper, aluminum air tank, quick-connect fittings, electric hydraulic tilt cab, added front guard bar
Front/rear suspension: 1.5/2.84m
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L280-50
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.424L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: Vertical, Water-cooled, Four-stroke, Inline six-cylinder, Electronically controlled direct injection
Transmission Parameters
Transmission Model: Fast Gear9JS119
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.48m
Cargo box height: 2.77m
*Cargo box interior width: 2.4800000190735
Cab parameters
Cab: Haolong T280 high-roof double bunk
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 153 wide brake dual front + air lift axle
Front axle allowable load: 6590/6590/6470kg
Frame Dimensions: 280×(8+4)mm
rear axle description: 457 wide brake
rear axle allowable load: 11350kg
Axle ratio: 4.444
Leaf spring count: 3/4+3,3/10+8
Tire
Tire Size: 10.00R20 18PR,295/80R22.5 16PR
Number of tires: 10pcs
Control configuration
ABS:
ASR traction control:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:

Photos

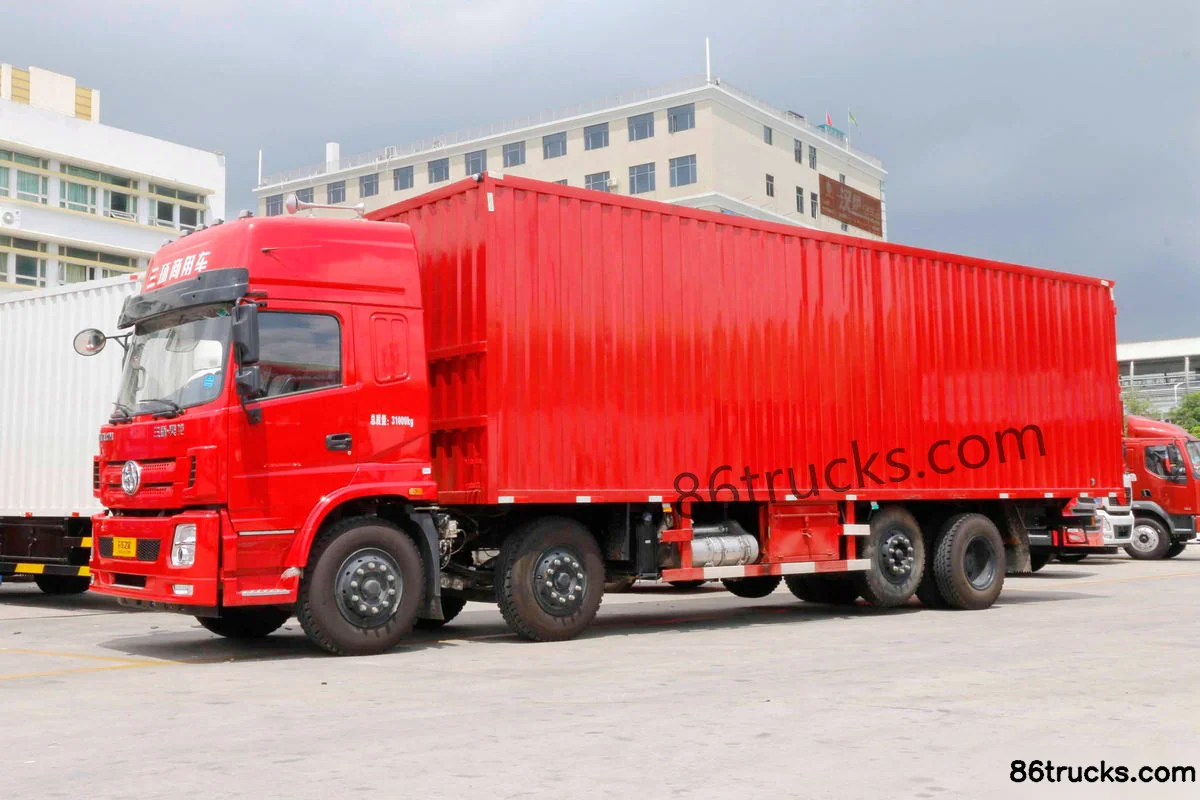

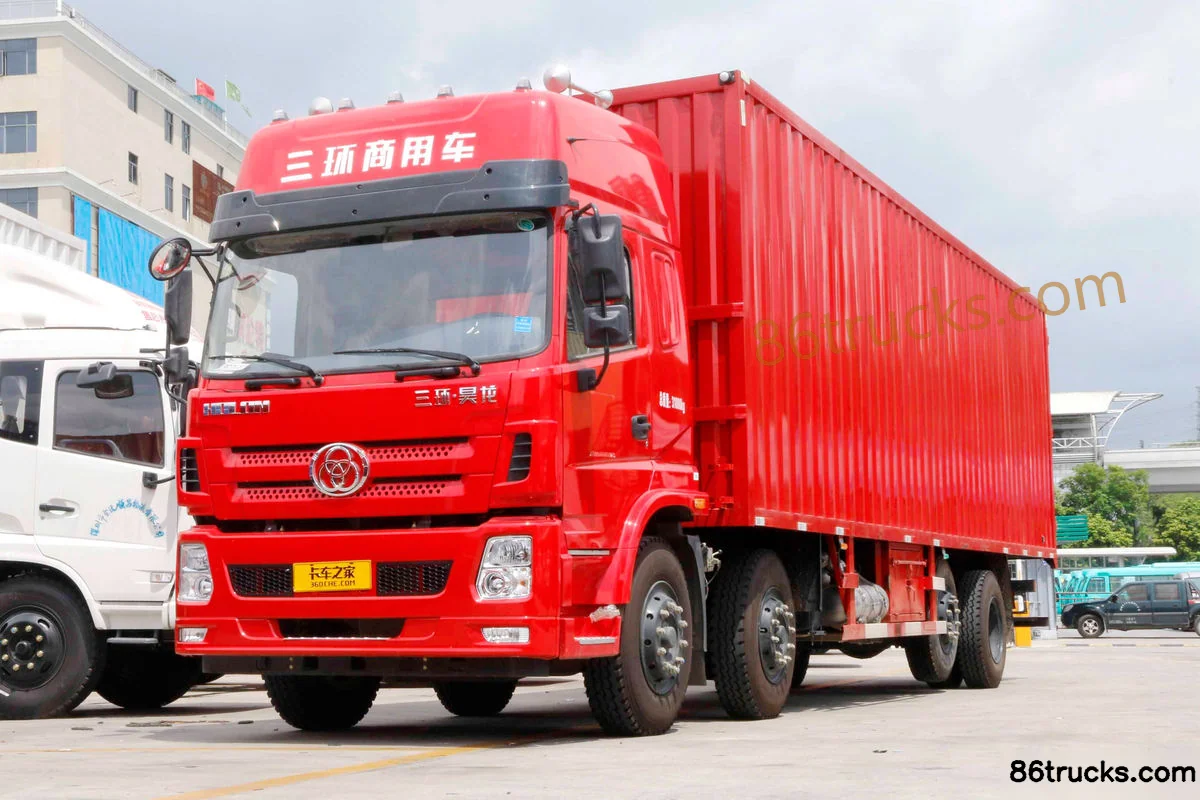

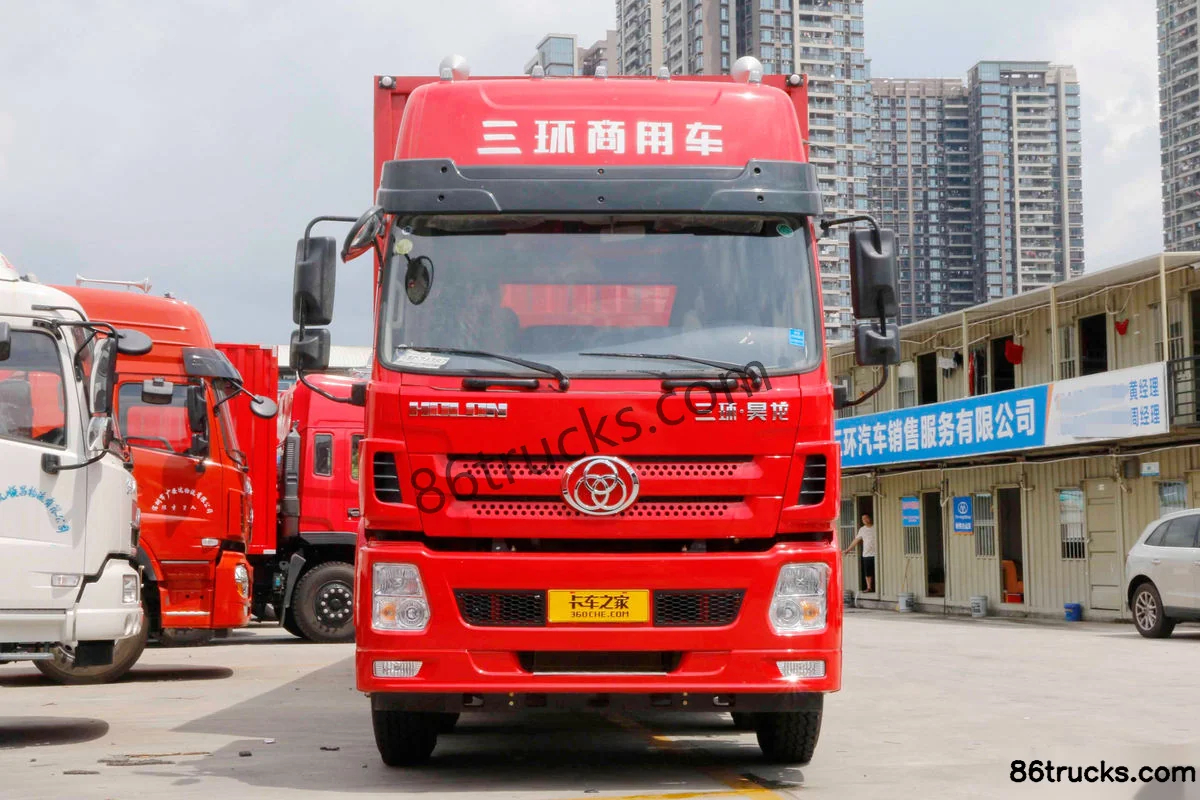

Exterior3

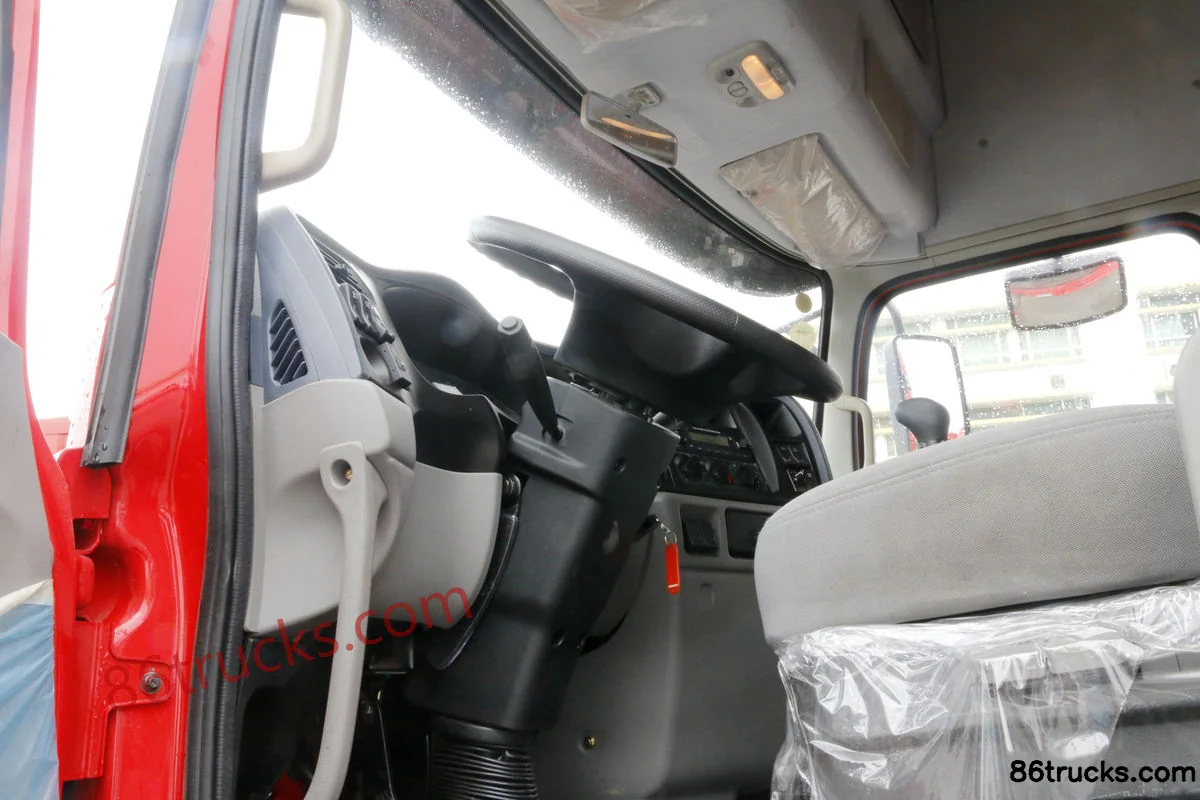

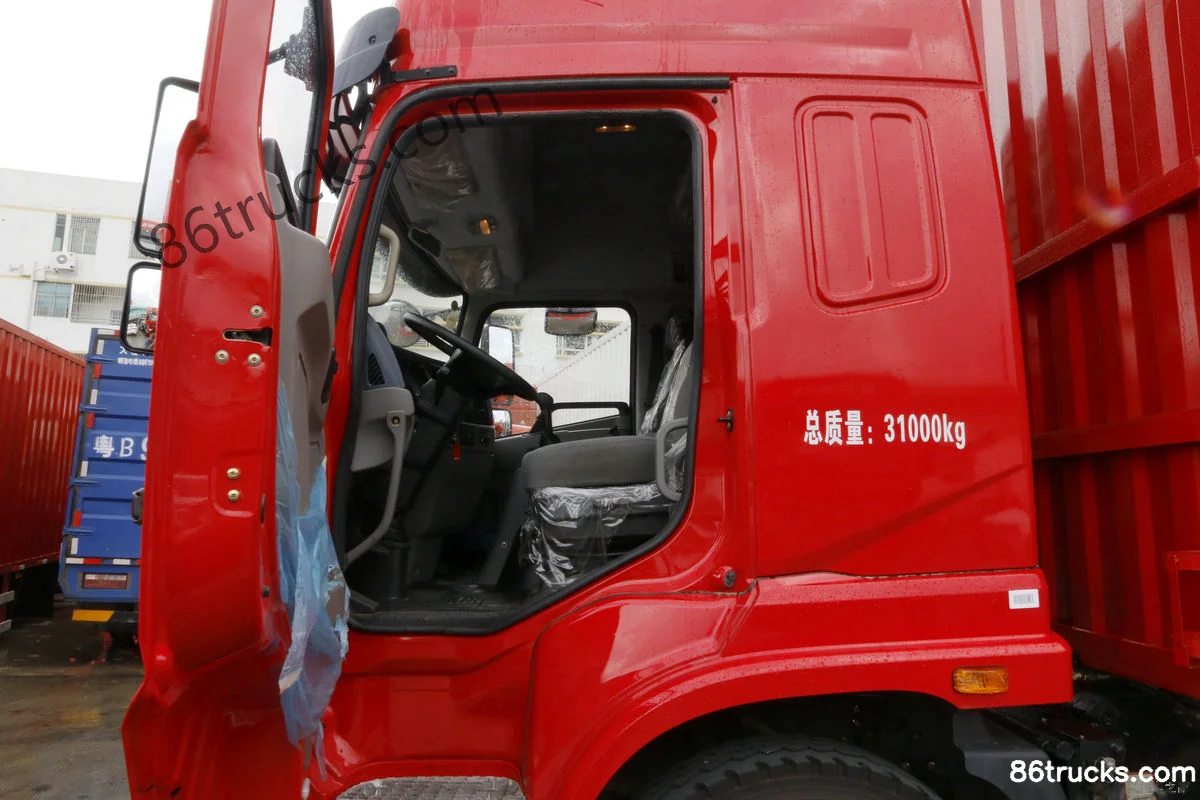

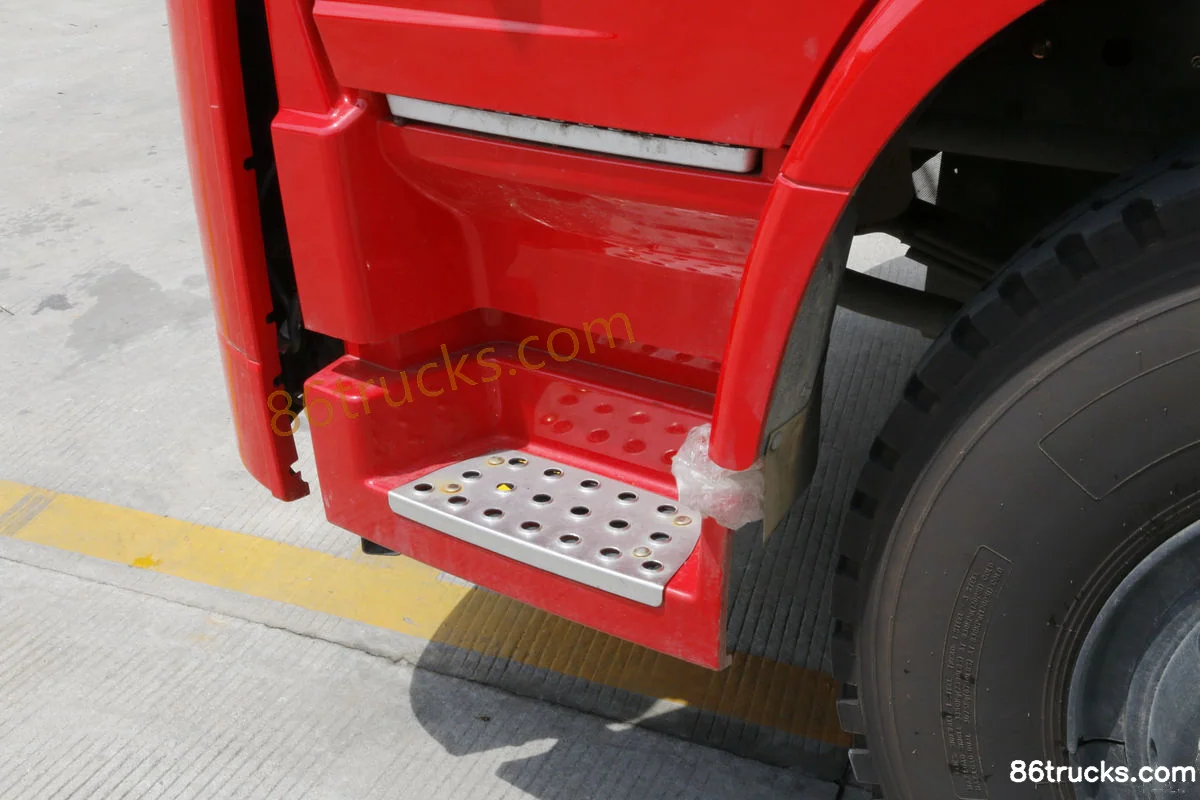

Cab3

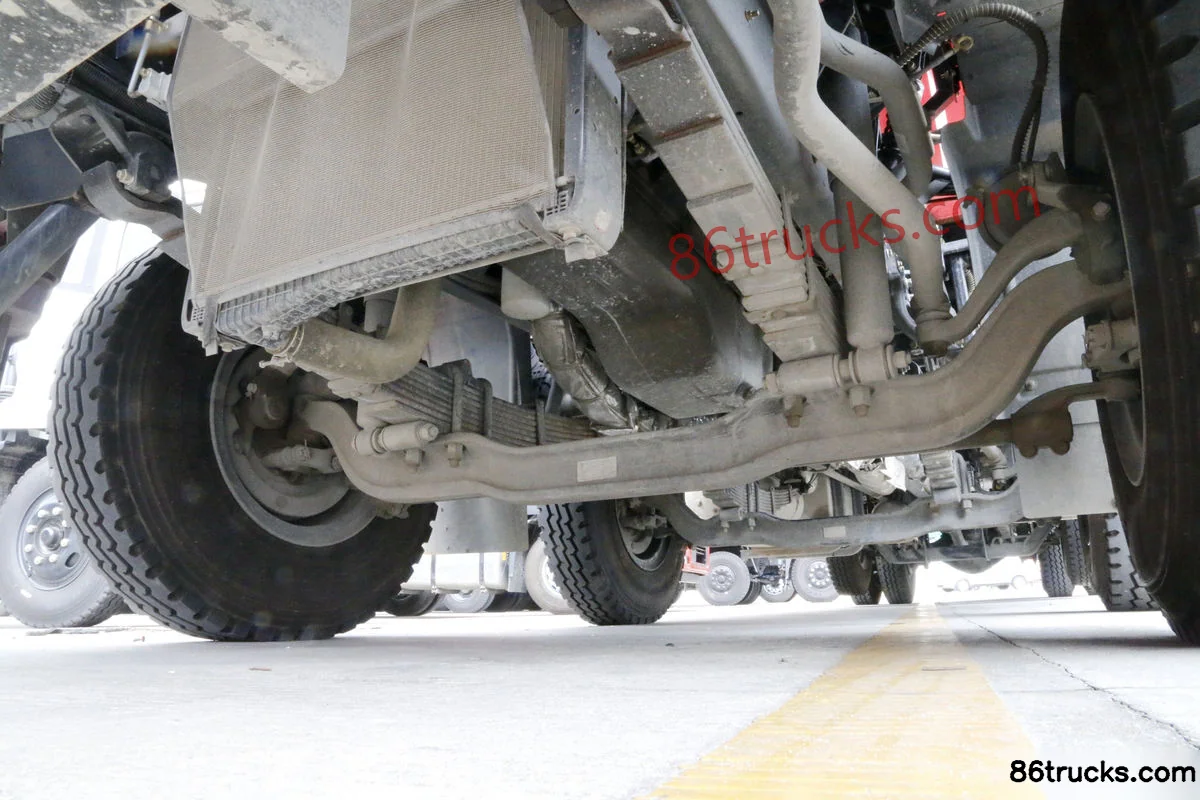

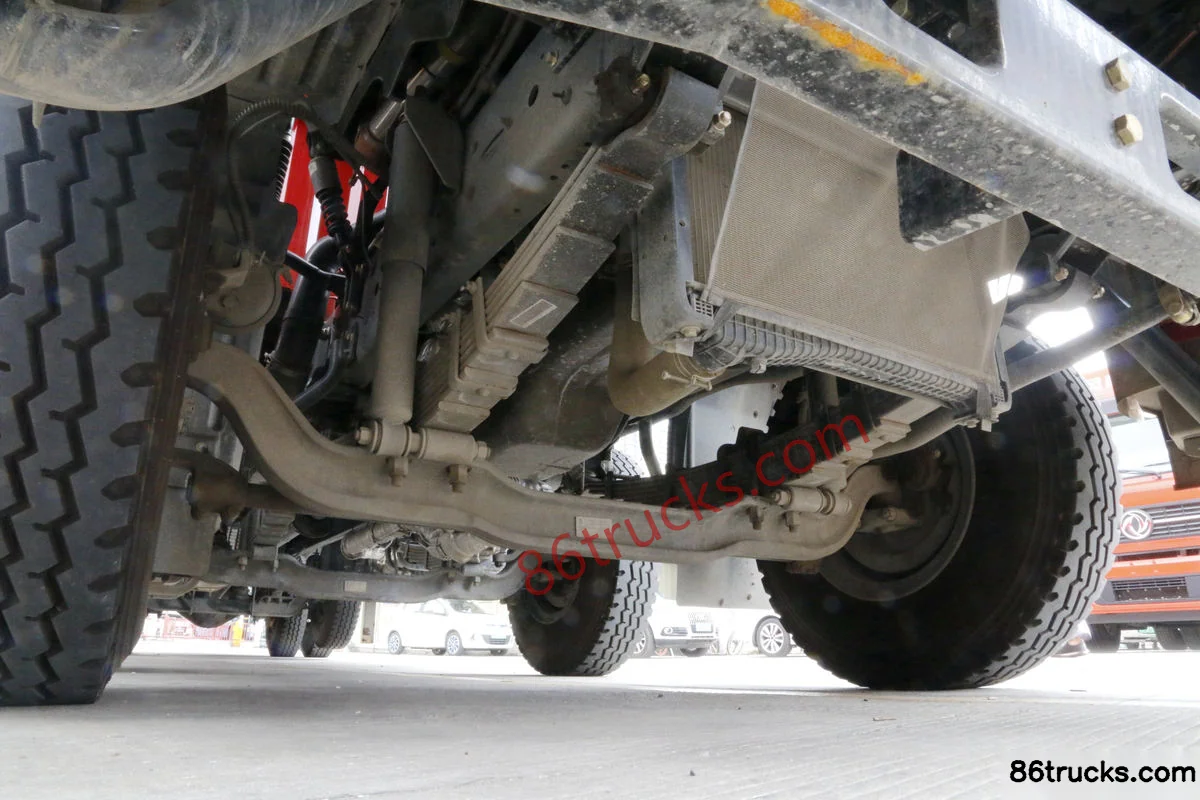

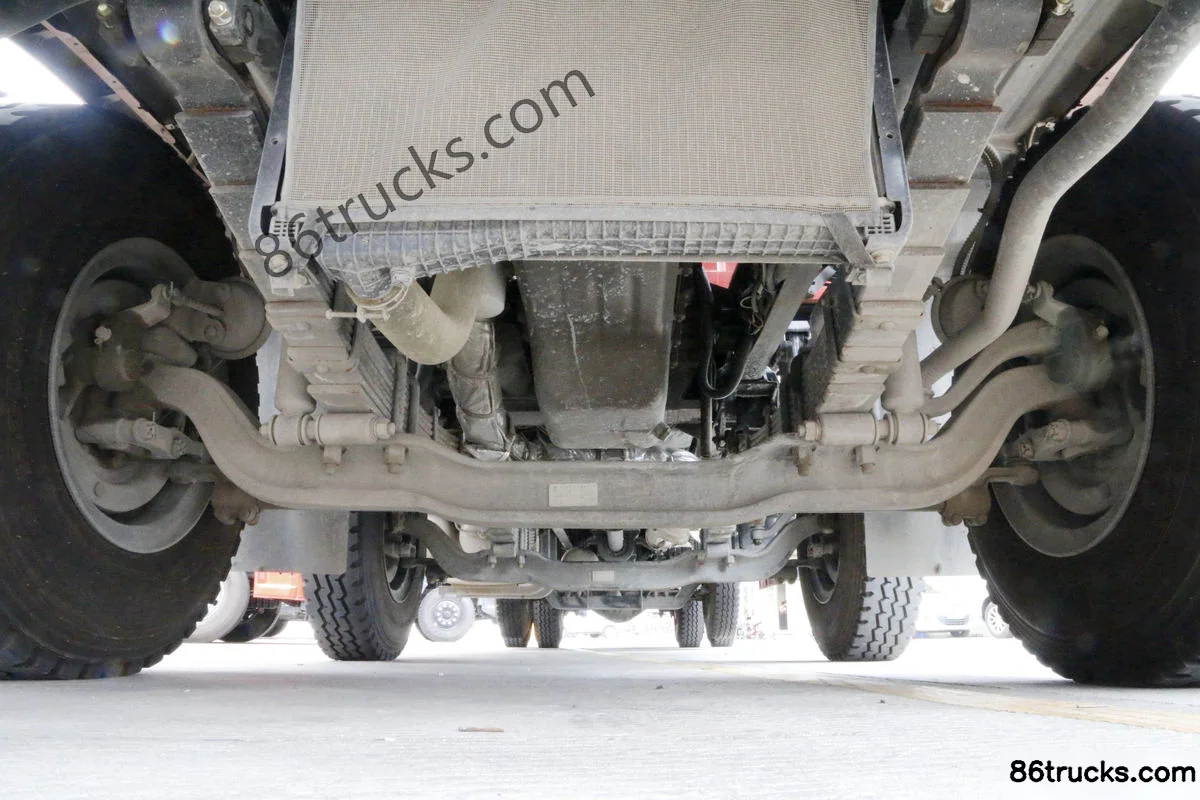

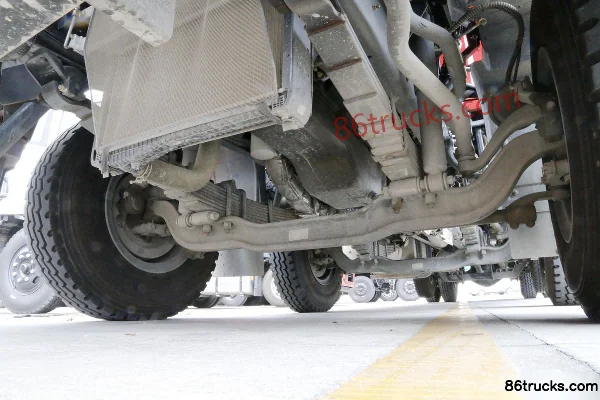

Chassis3

9 photos
