Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh

Export reference
From $23,444
MSRP ¥16.88M CNY
Rated payload:: 1.205ton
Wheelbase:: 3600mm
Cargo box type:: Van body
Model code (announced):: HQG5031XXYEVT32
Type:: enclosed cargo truck
Box length class:: 4m
Drive 4X2 (6 wheels)
CLTC range: 275km
Motor 1 Brand: Dadihe
Curb Weight: 2.16ton

Overview

The Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh is a mini truck featuring 275km battery/range, Dadihe motor, 4X2 (6 wheels) drive and 1.205t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HQG5031XXYEVT32
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3600mm
Box length class: 4m
Cab length: 5.99m
Cab width: 1.82m
Cab height: 2.62m
CLTC range: 275km
Curb Weight: 2.16ton
Rated payload: 1.205ton
GVWR: 3.495ton
Max. speed: 90km/h
Origin: Suizhou, Hubei
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Dadihe
Motor 1 Model: TZ180XSD01
Motor Type: Permanent magnet synchronous motor
total rated power: 35kW
Peak power: 70kW
total rated torque: 90N·m
total peak torque: 230N·m
Electronic Control
ECU Brand: Dadihe
Battery/Charging
Charging method: Fast Charge
Battery Brand: Guoxuan
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 57.6kWh
Battery rated voltage: 384V
Energy Density: 144.8
Battery Model: IFP42100140A-63Ah
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.01m
Cargo box width: 1.76m
Cargo box height: 1.7m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1100kg
rear axle allowable load: 2395kg
Tire
Tire Size: 185R15LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
EBS electronic braking system:
interior configuration
steering wheel adjustment:
Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

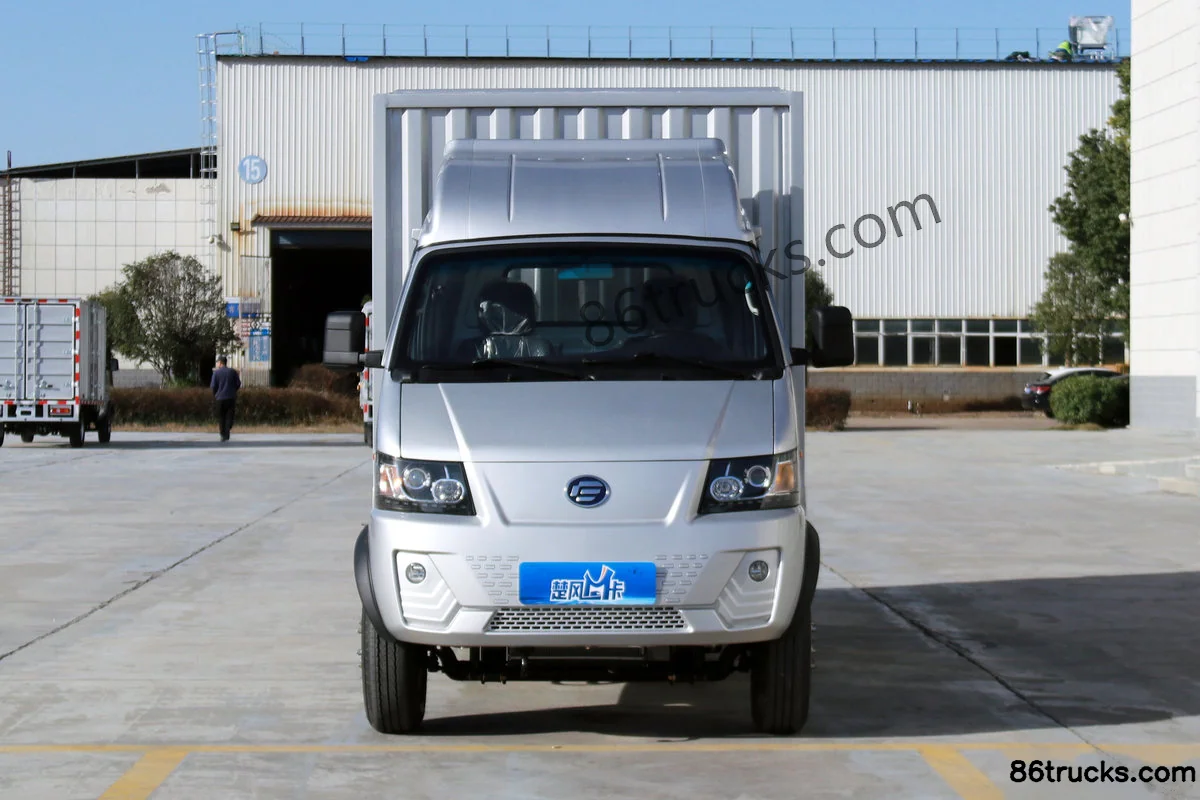

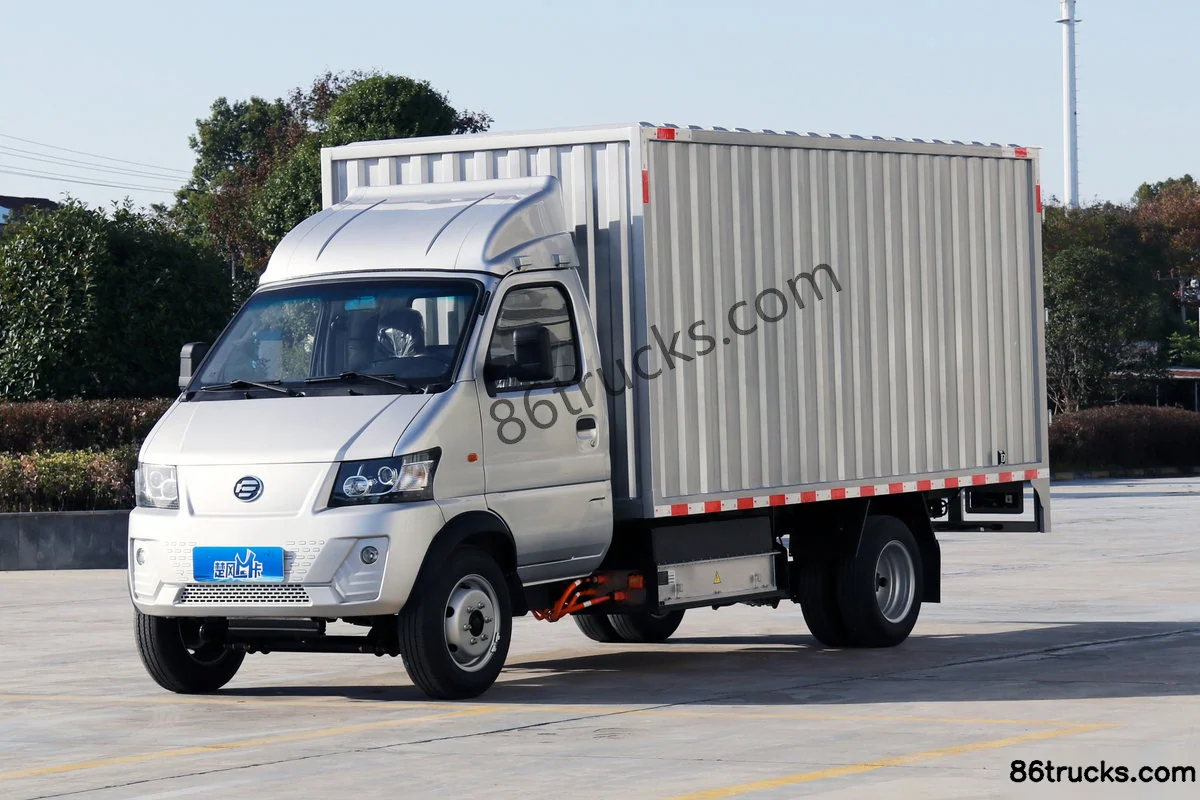

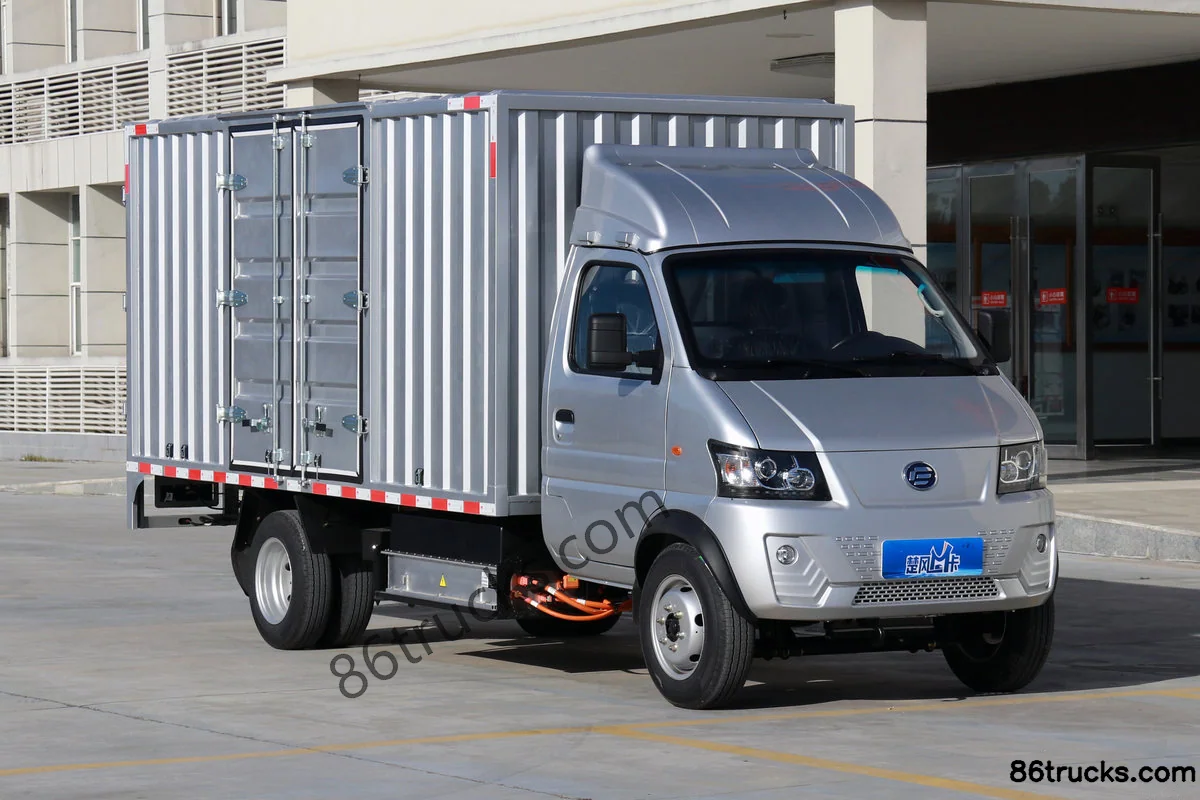

Photos

Exterior3

3 photos

FAQ

What is the export price of Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh, and what does it include?

Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh export reference is about From $23,444; MSRP is ¥16.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh?

Key specs of Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh suited for?

Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh differ from other variants in the same series?

Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh belongs to Xinchufeng Chufeng M Card Mini Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Xinchufeng M Card Electric 4X2(6 wheels) Hydraulic Brake 4.01m Single Row Van Micro Truck Guoxuan 57.6kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
