Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 1950+4500+1350mm
Cab dimensions:: 12.0×2.55×3.96m
Type:: truck-mounted crane
GVWR:: 31ton
Front/rear suspension:: 1.512/2.688m
Drive 8X4 (12 wheels)
Horsepower 350
Rated mass: 14.71ton
Emission China V

Overview

The Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane is a truck-mounted crane featuring 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with a Yuchai engine, 350 hp, China V emissions and Diesel fuel.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12.0×2.55×3.96m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 1950+4500+1350mm
Rated mass: 14.71ton
GVWR: 31ton
Front/rear suspension: 1.512/2.688m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai
Engine Model: YuchaiYC6L350-50
fuel type: Diesel
Displacement: 8.4L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Body Parameters
Vehicle certification code: LZ5310JSQM5FB
Body Brand: DongfengLiuqi
Chassis Specs
Chassis Brand: DongfengLiuqi
Chassis Series: ChenglongM5
Chassis Model: LZ1310M5FBT
Axle ratio: 4.1
Leaf spring count: 11/11/13
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD140T
Tire
Tire Size: 11.00R20,11.00-20
Number of tires: 12pcs

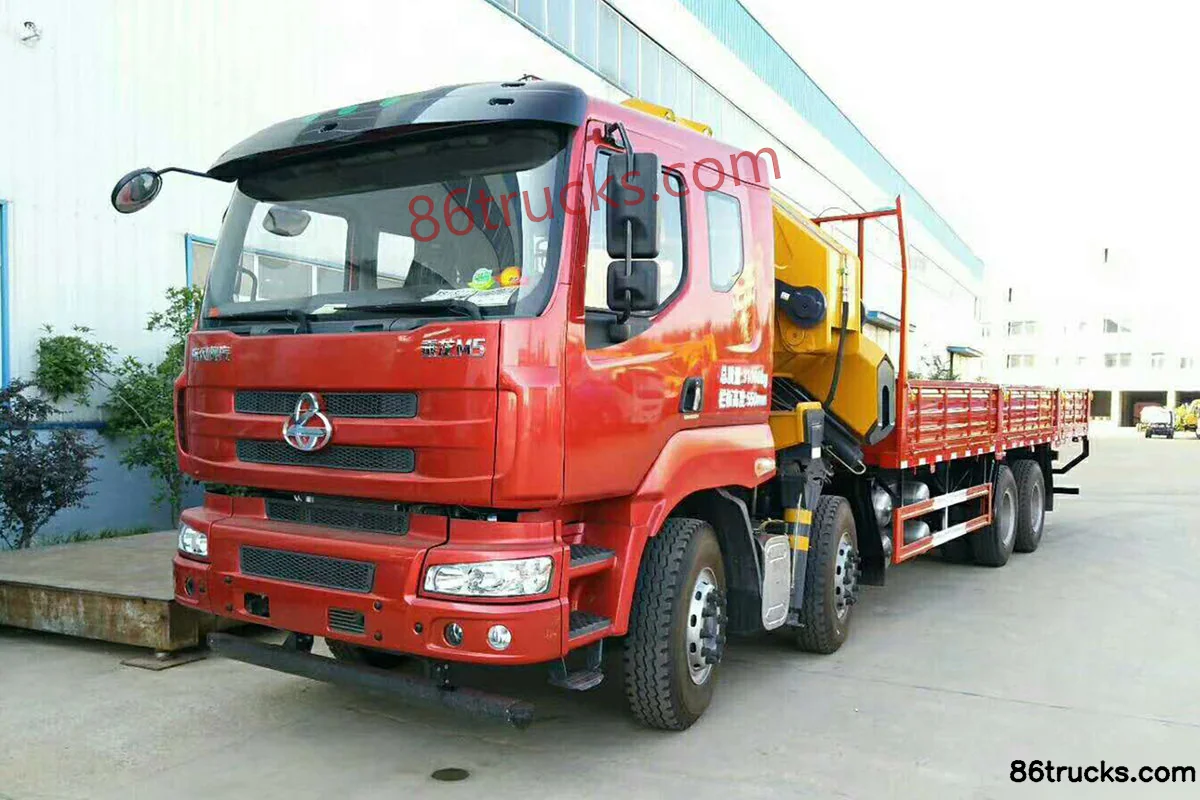

Photos

Exterior1

1 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane?

Key specs of Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane suited for?

Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane differ from other variants in the same series?

Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane belongs to Dongfeng M5 heavy truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
