Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Transmission: Sinotruk
Wheelbase:: 4400+1400mm
Emission: China VI
Fuel: Diesel
Model code (announced):: ZZ4257W444XF1HEV
Drive 6X4 (10 wheels)
Battery Brand: CATL
Horsepower 580
Gross Trailer Weight: 39ton

Overview

The Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh is a Heavy truck featuring CATL battery/range, 6X4 (10 wheels) drive, 7000kg payload and 25t GVW. On the powertrain side, it comes with 580 hp and Sinotruk transmission.

China VI 580 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ4257W444XF1HEV
Drive type: 6X4
Wheelbase: 4400+1400mm
Front/rear track width: Front track: 2080mm; Rear track: 1848/1848mm
Cab length: 8.38m
Cab width: 2.51m
Cab height: 3.95m
Gross Trailer Weight: 39ton
Curb Weight: 9.8ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Jinan, Shandong
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
total rated power: 150kW
Peak power: 275kW
Engine parameters
Engine Brand: Sinotruk
Engine Model: MC13.58-61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.419L
Emission standard: China VI
Max output power: 429kW
Max hp: 580Horsepower
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 60kWh
Transmission Parameters
Transmission Model: HW27712XUL
Transmission Brand: Sinotruk
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: MCY12BGS single rear axle + MCE12ZG
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):

Photos

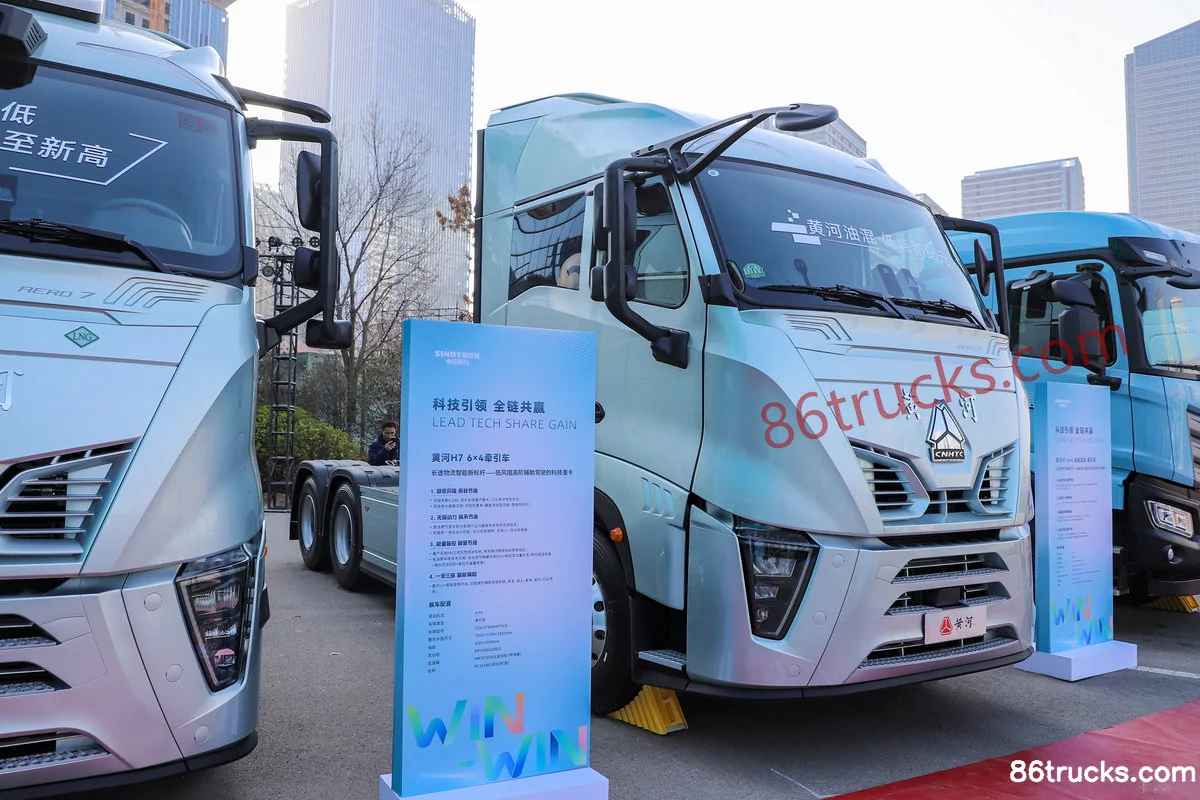

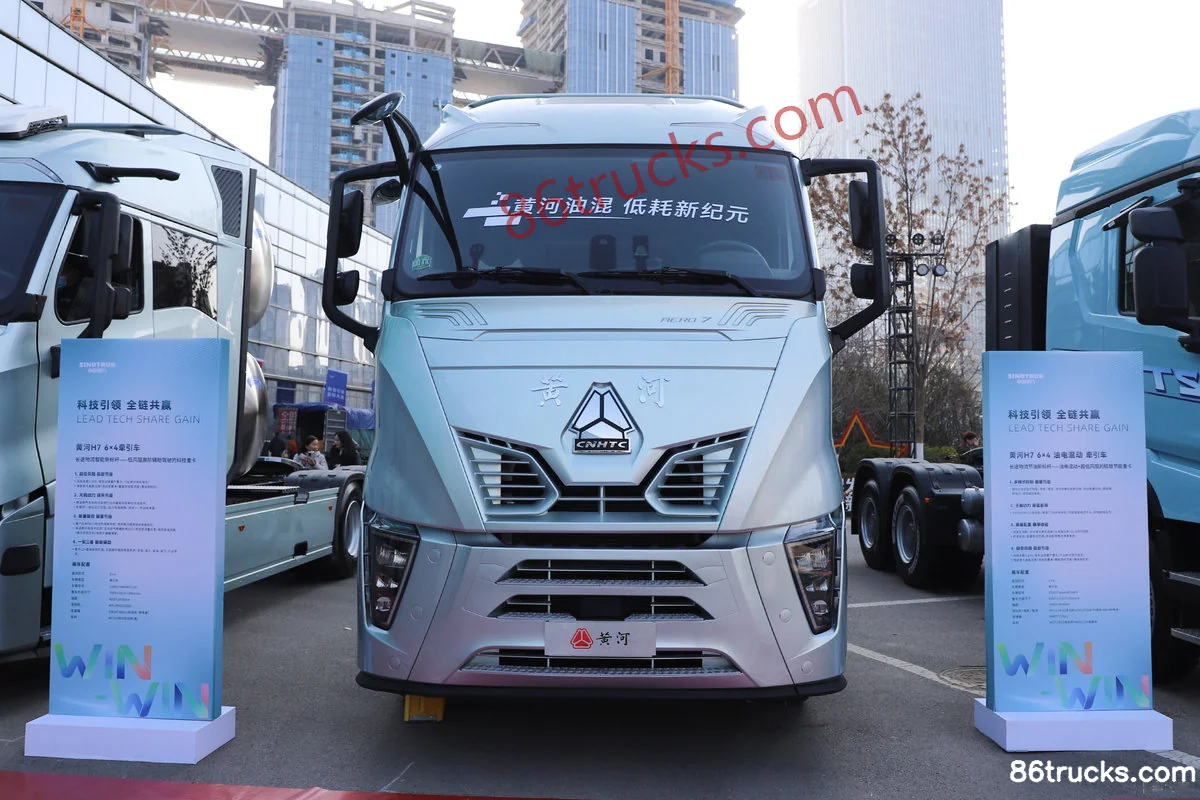

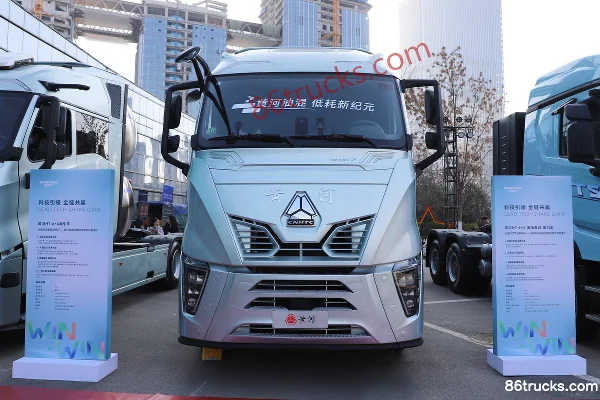

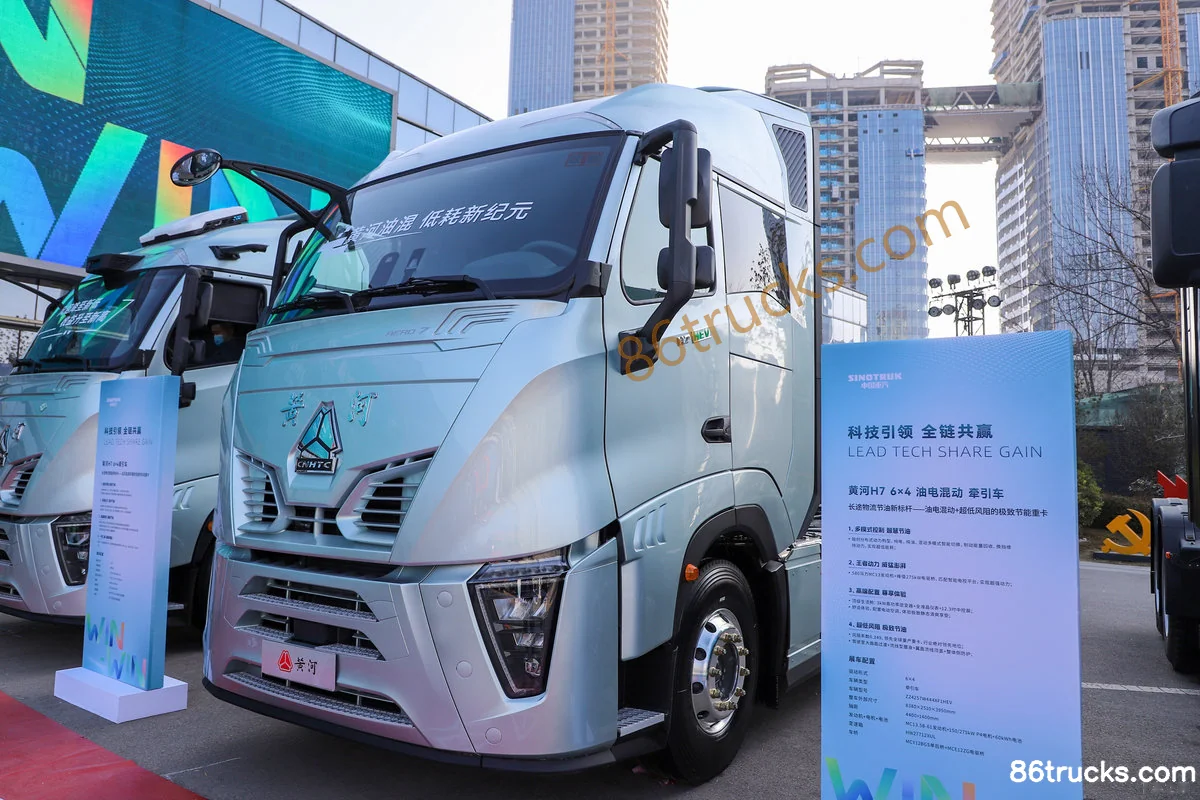

Exterior3

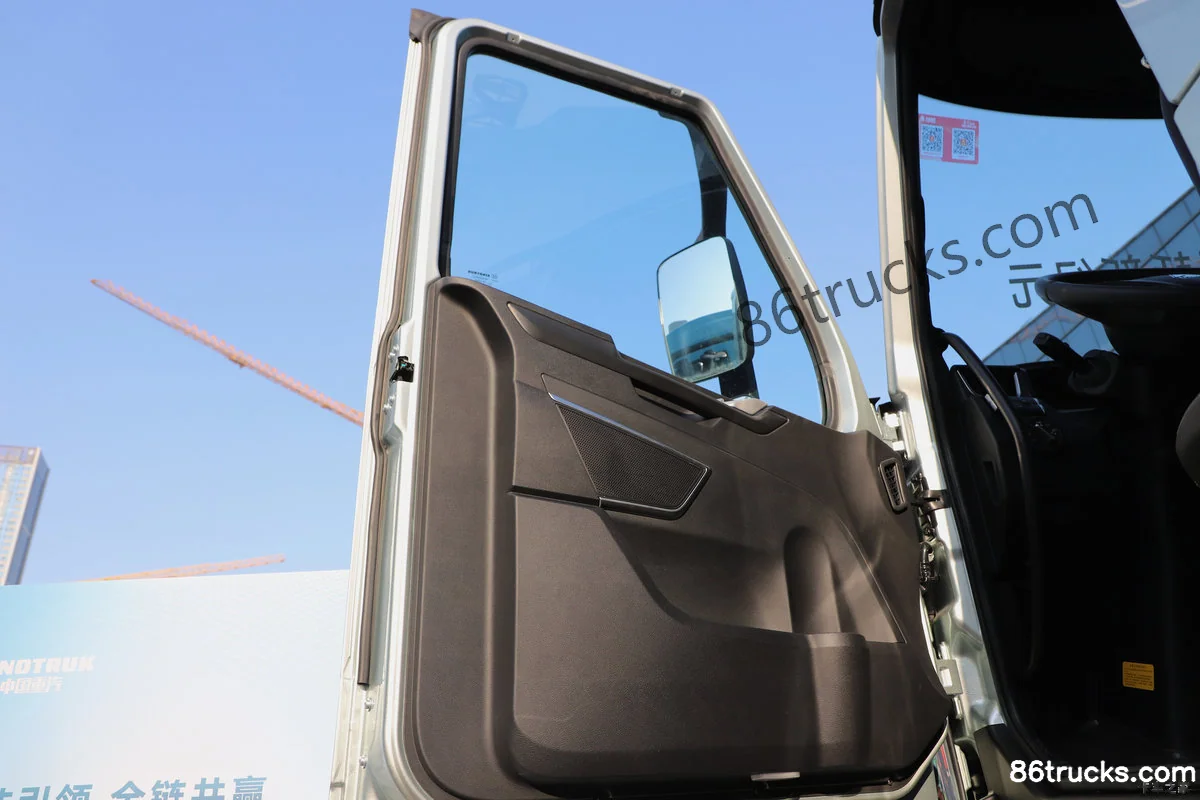

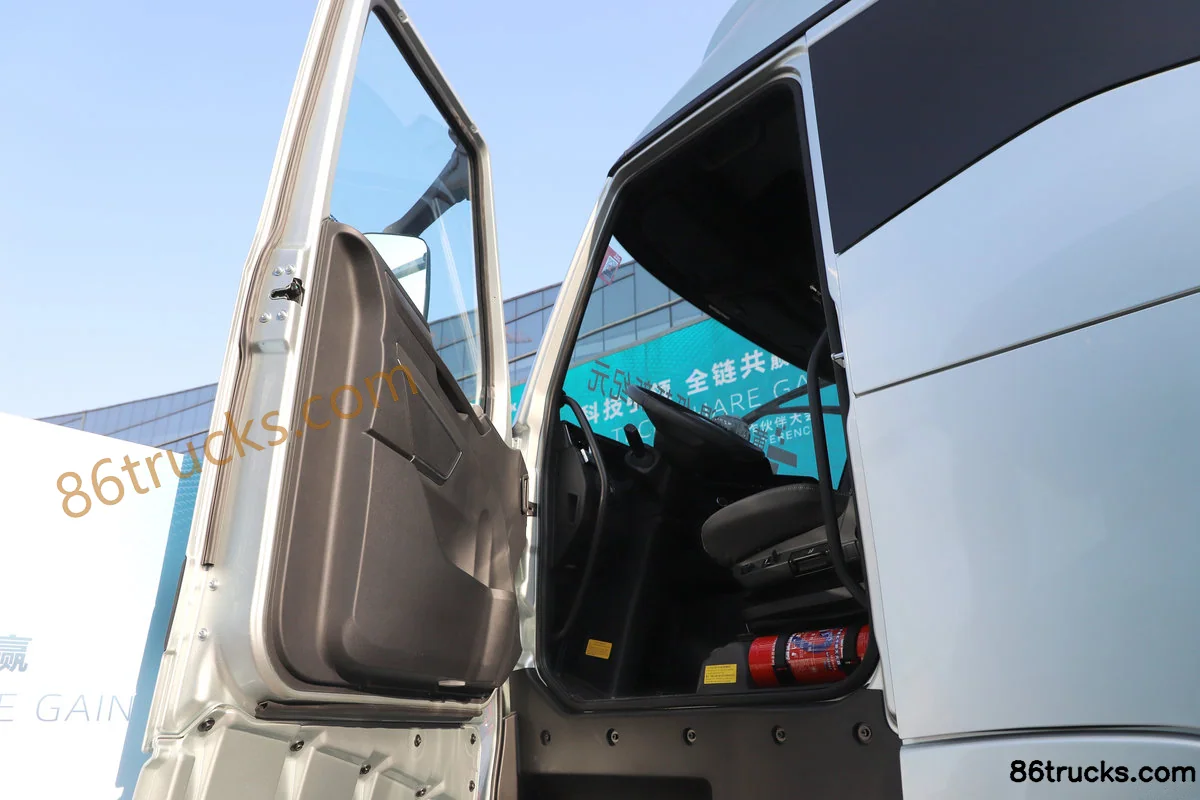

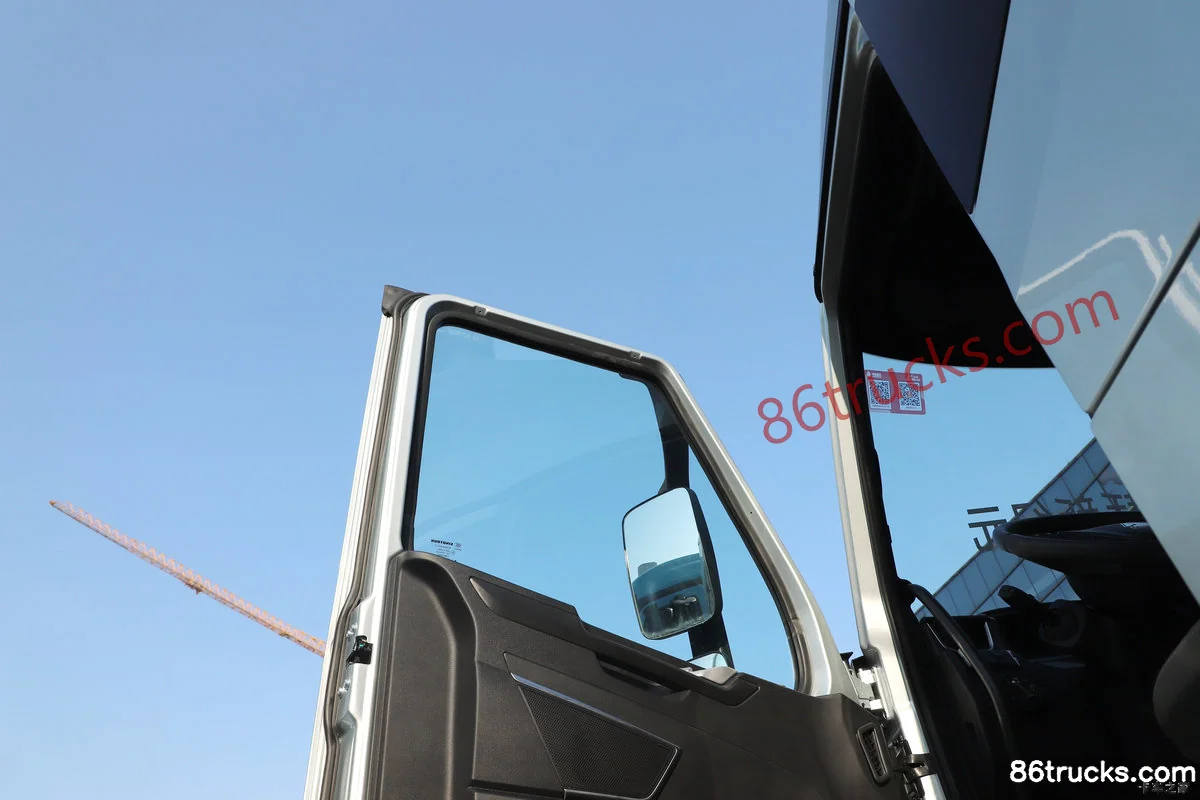

Cab3

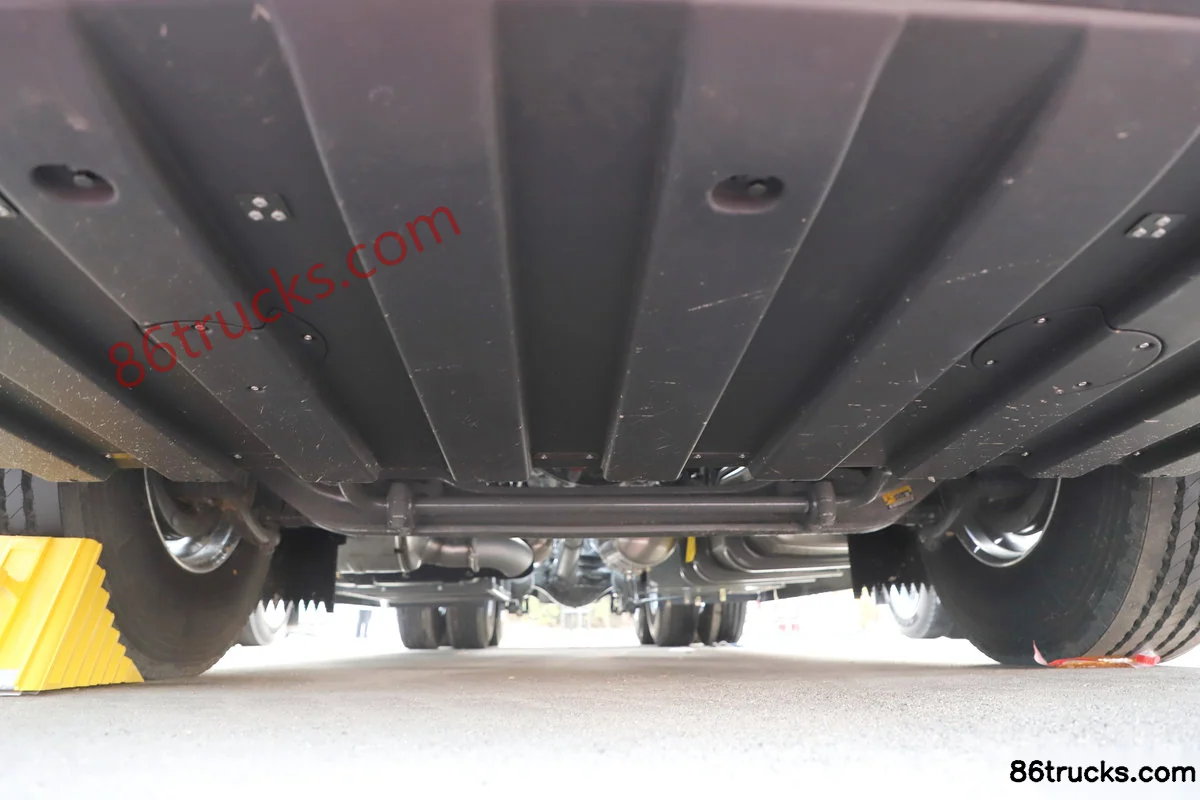

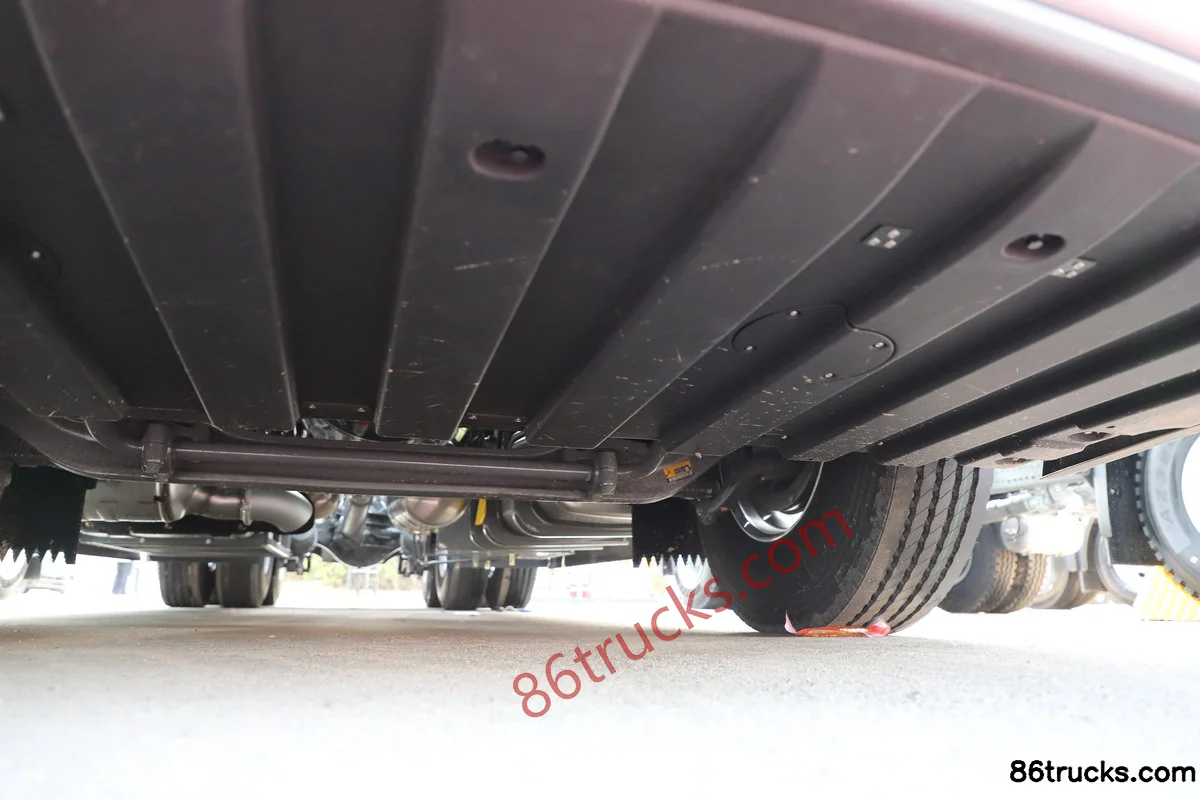

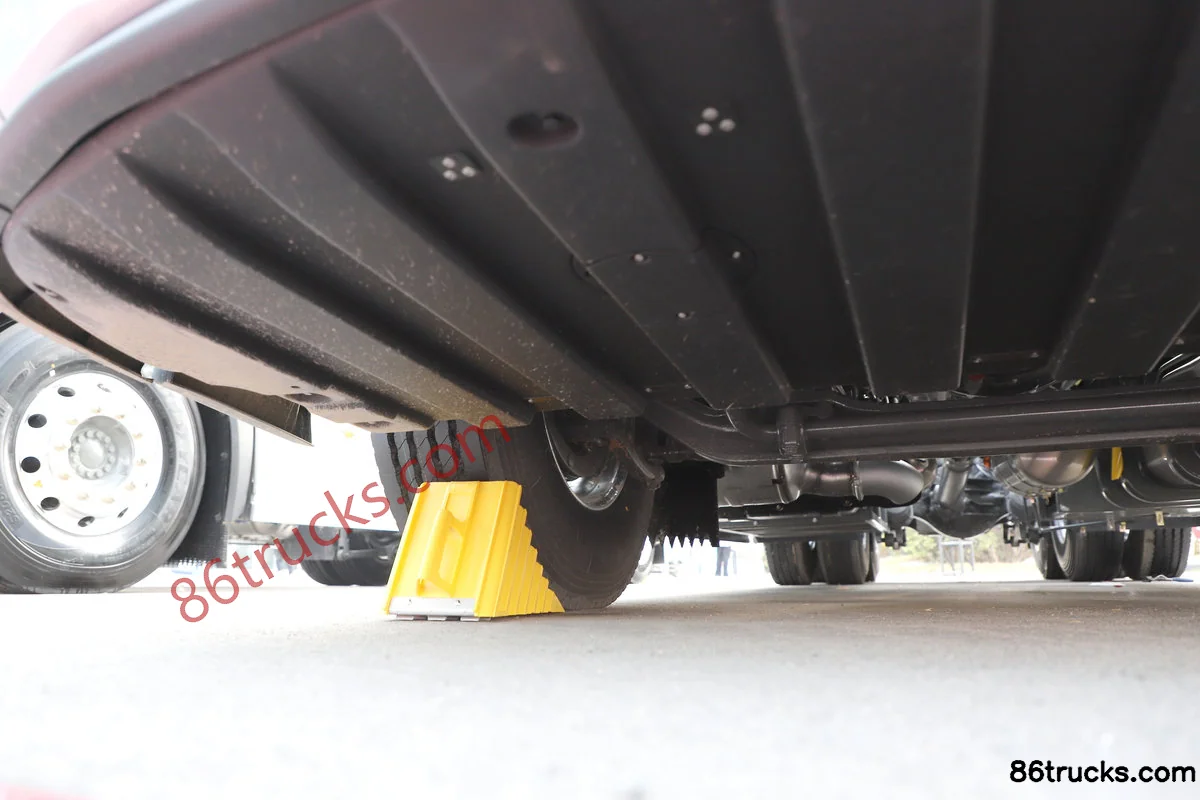

Chassis3

9 photos

FAQ

What emission standard does Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh?

Key specs of Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh: Drive: 6x4; Horsepower: 580 hp; Emission: China VI; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh suited for?

Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh differ from other variants in the same series?

Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh belongs to Sinotruk Yellow River H7 Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk H7 6X4(10 wheels) hybrid tractor truck CATL 60kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
