Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck

Export reference
From $28,750
MSRP ¥20.7M CNY
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 9.815ton
Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 15.055ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck is a Medium-duty truck featuring 9.7m cargo length, Stake type cargo body, 3Personnel volume and 15.055t payload. Its segment focus covers Agricultural and sideline product transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 220 hp, 6X2 (8 wheels) drive and China V emissions.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ5250CCYM3CB
Type: stake truck
Drive type: 6X2
Wheelbase: 1950+5450mm
Box length class: 9.7m
engine: YuchaiYC6JA220-50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.444
Cab length: 11.995m
Cab width: 2.5m
Cab height: 3.995m
Front track width: 2080/2080mm
rear track: 1860mm
Curb Weight: 9.815ton
Rated payload: 15.055ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
market segment: Agricultural and sideline product transport
Remarks: Laminated glass, electromagnetic clutch fan, multi-state switch, all-new interior, LCD instrument cluster, automatic climate control, color-matched bumper, ABS, external sun visor, cruise control, remote central door lock, automatic slack adjuster, leather multifunction steering wheel, integrated unit (tachograph + MP5 + reverse camera), speed limiter <90 km/h
Front/rear suspension: 1.445/3.15m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA220-50
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.7m
Cargo box width: 2.42m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: H53S
Cab suspension: 4-point mechanical suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle description: 2×5.5T
Front axle allowable load: 6750/6750kg
Frame Dimensions: 282(8)mm
Steering gear: Domestic
rear axle description: 153
rear axle allowable load: 11500kg
Axle ratio: 4.444
Leaf spring count: 10/10/12+9
clutch: Φ395
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
smart configuration
Cruise control (CCS):

Photos

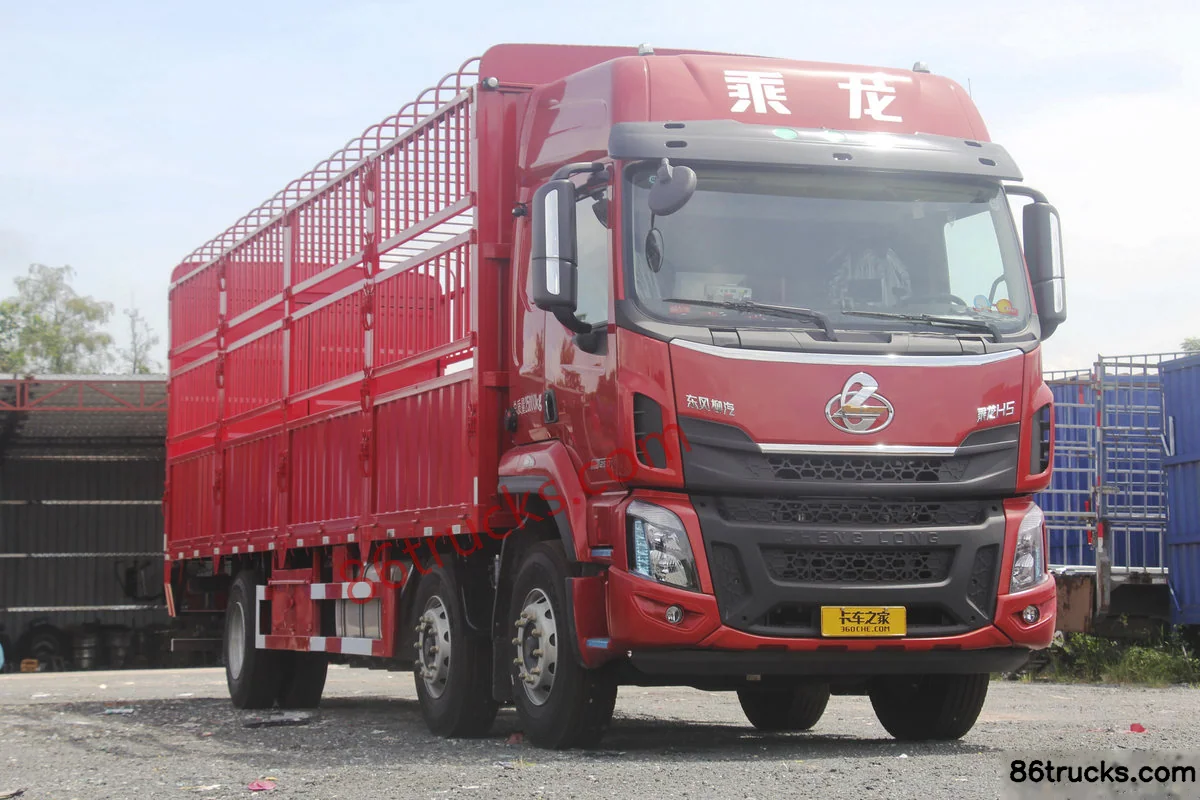

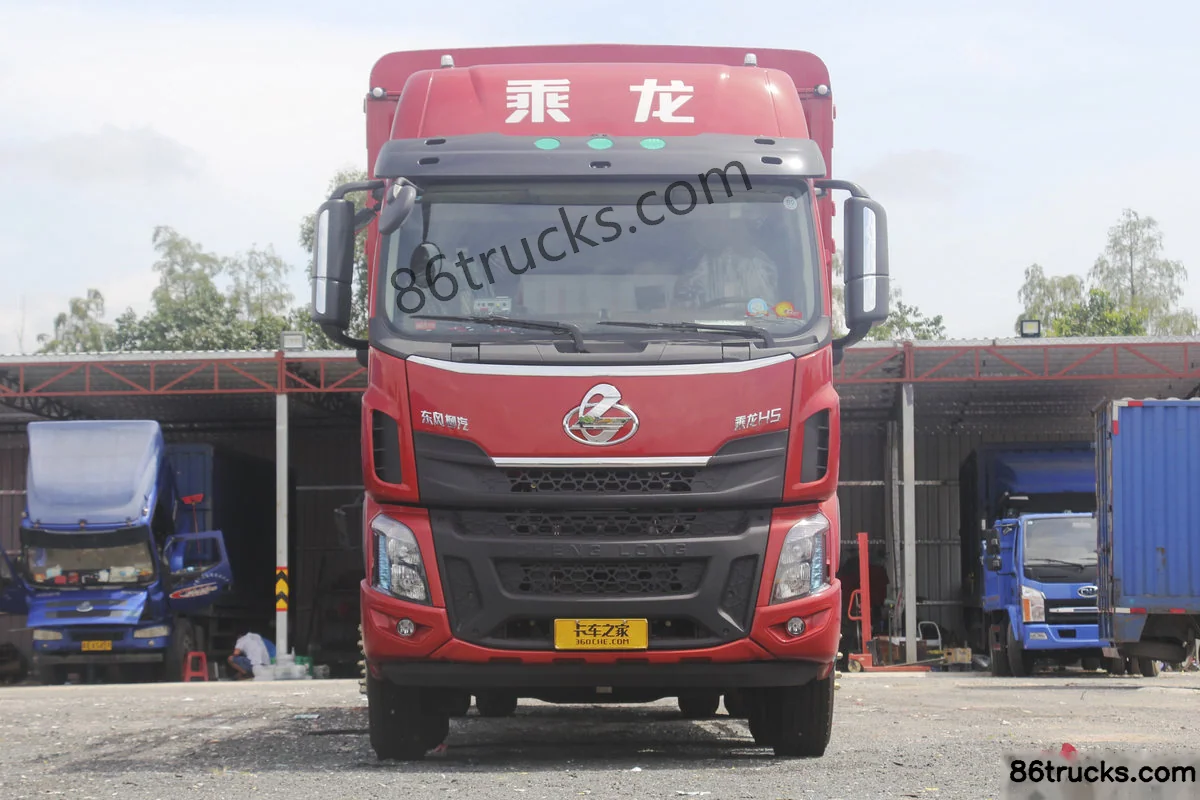

Exterior3

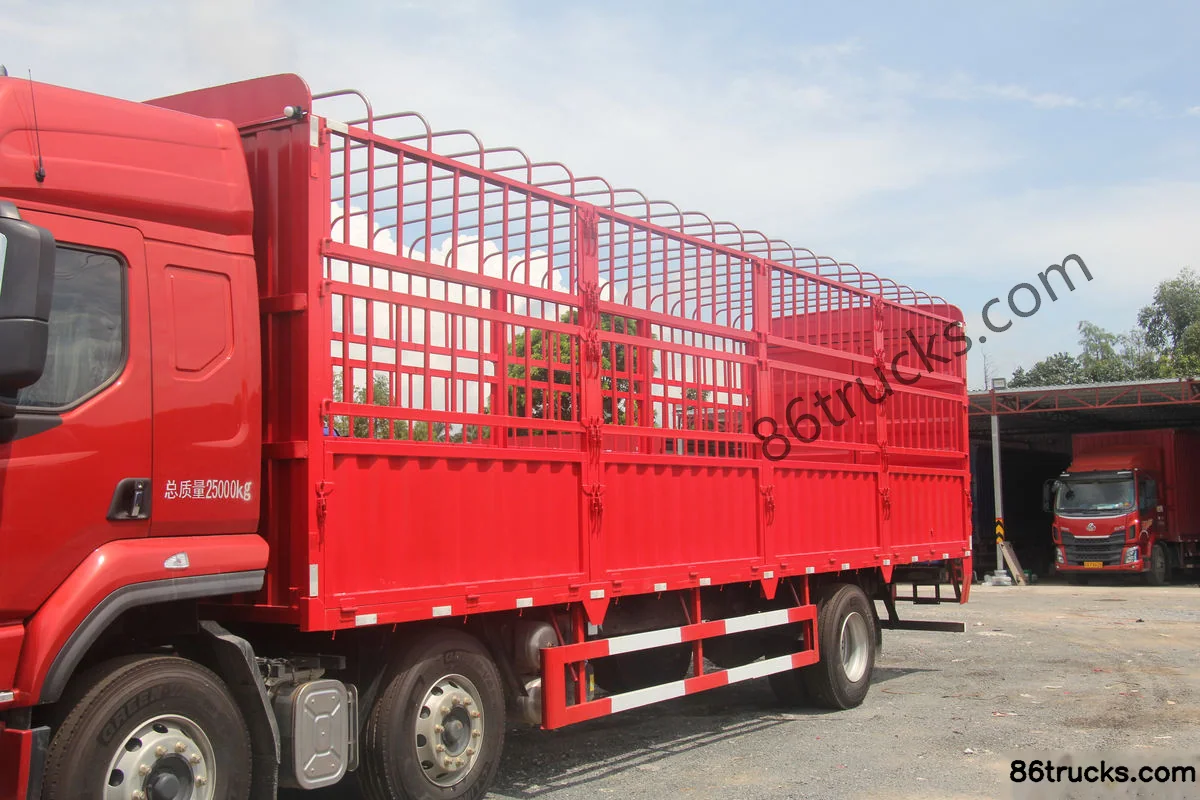

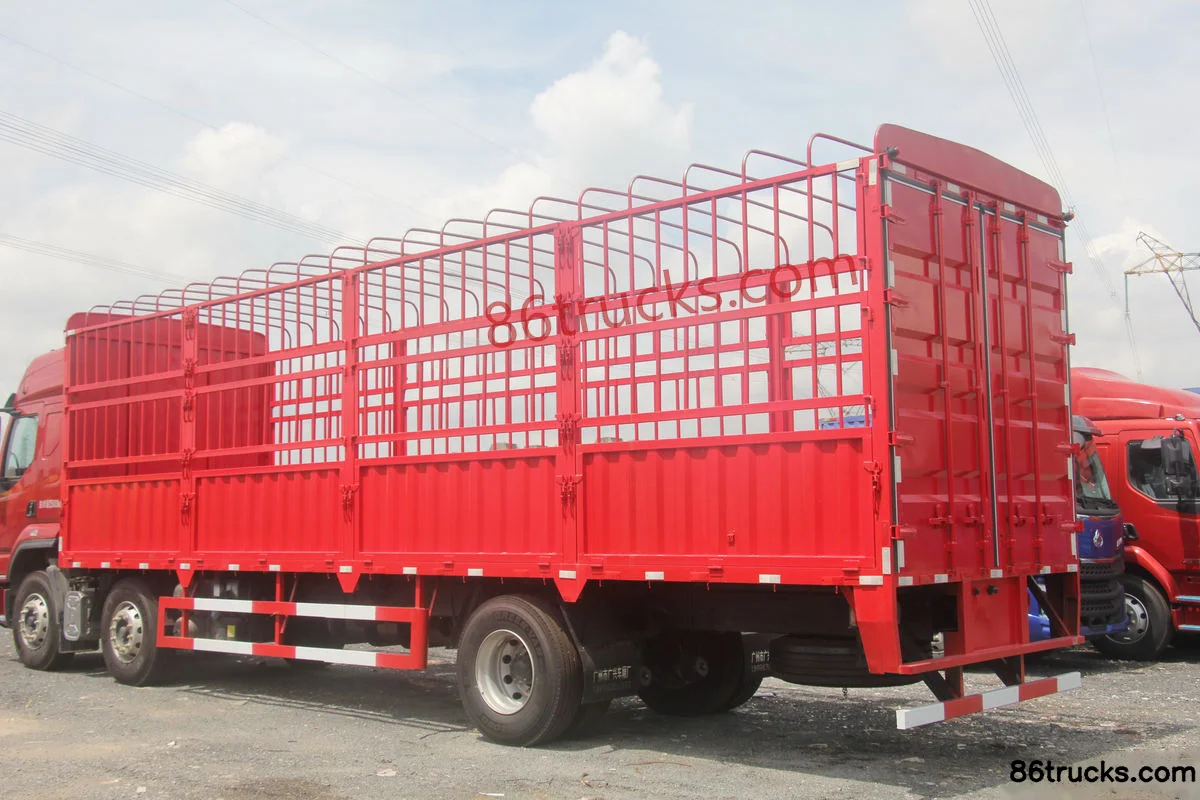

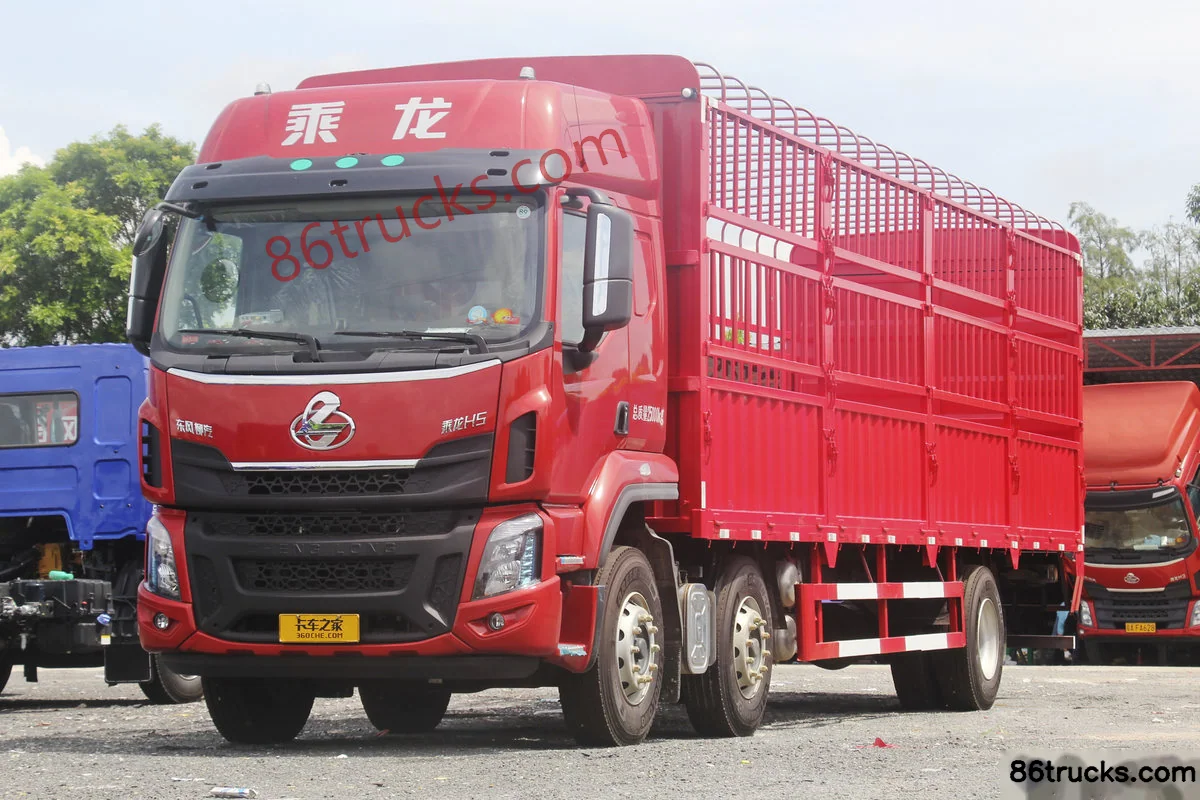

Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Exterior (1) | 86Trucks Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Exterior (2) | 86Trucks Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Exterior (3) | 86Trucks

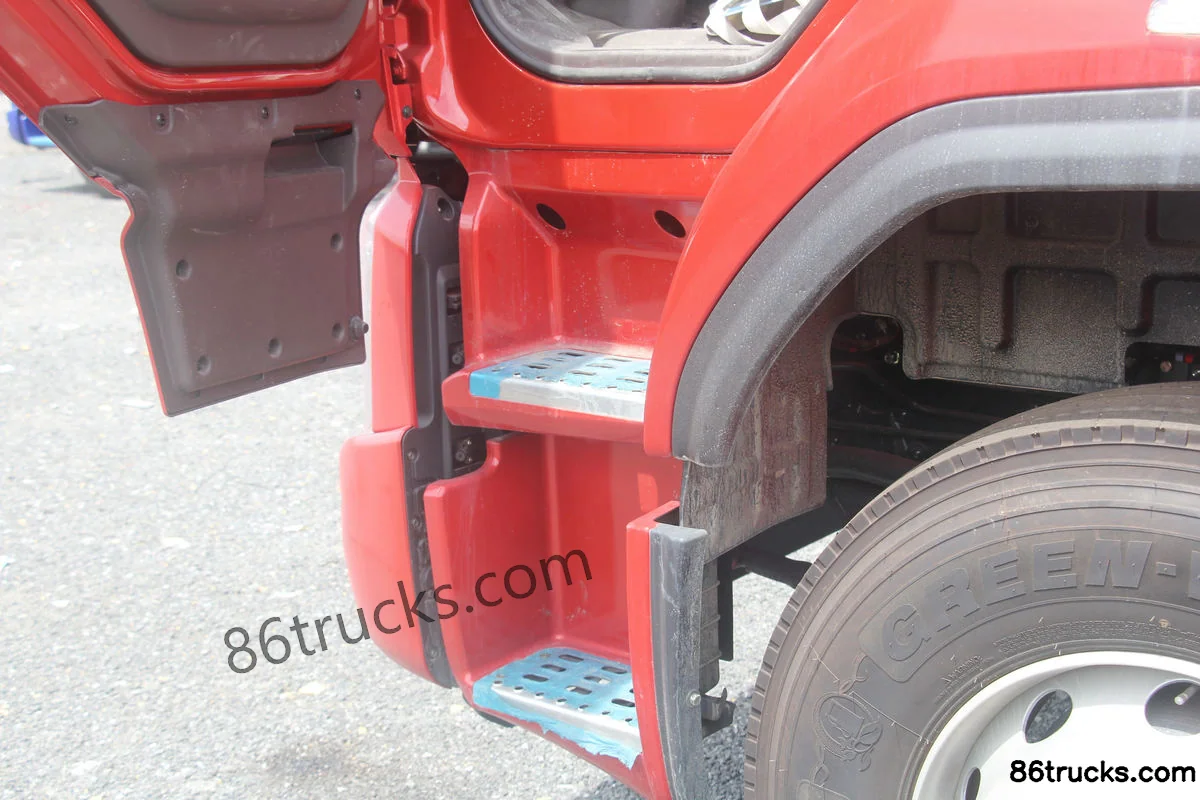

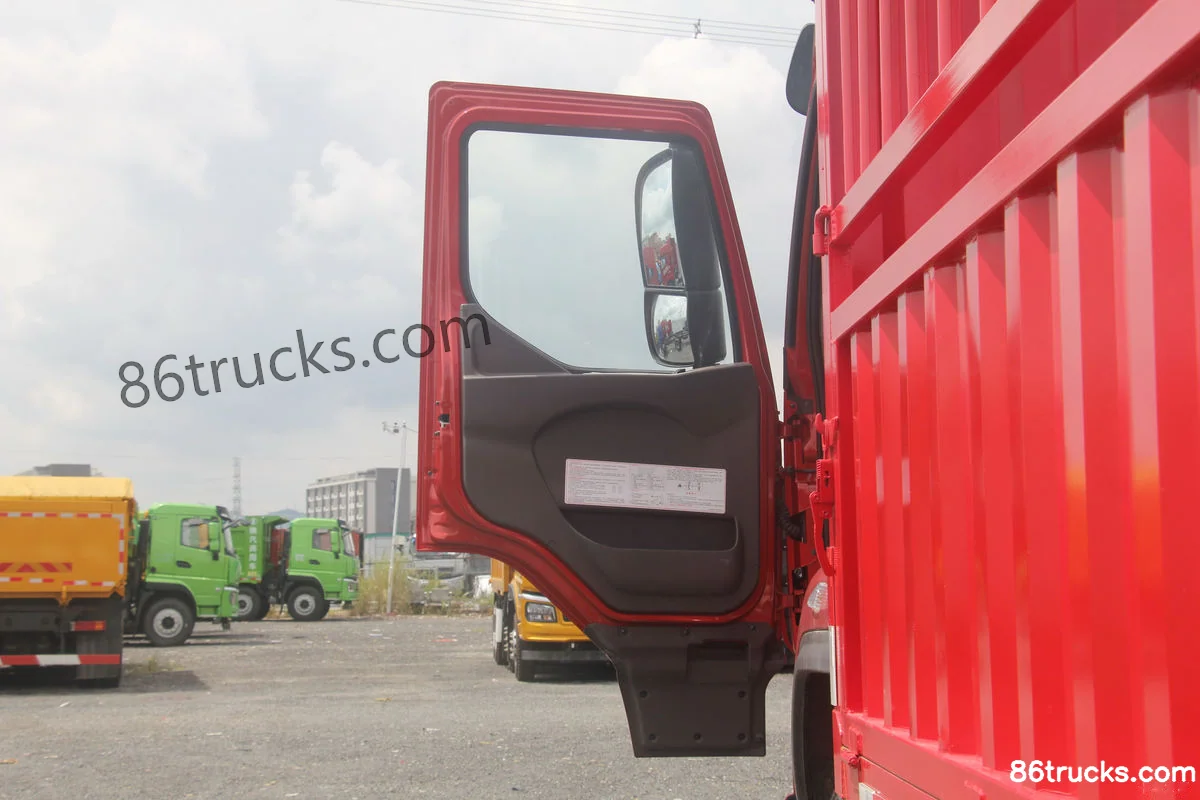

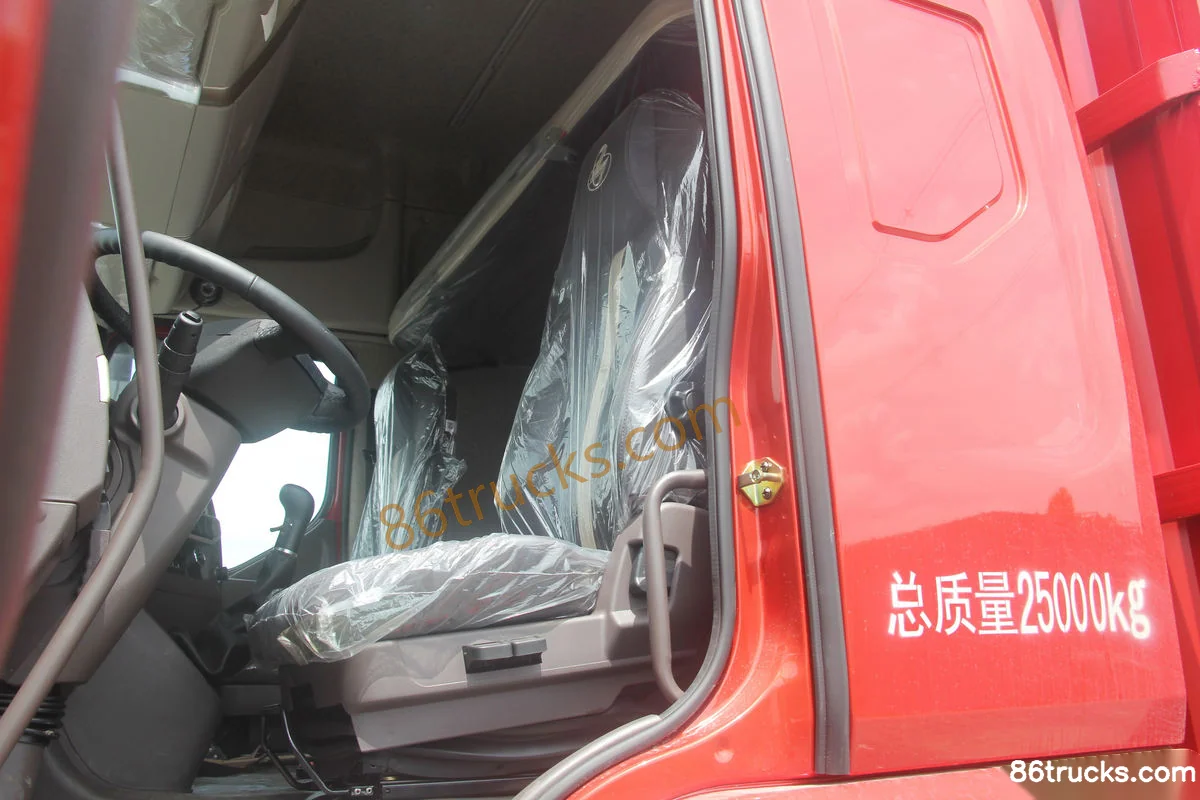

Cab3

Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Cab (1) | 86Trucks Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Cab (2) | 86Trucks Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Cab (3) | 86Trucks

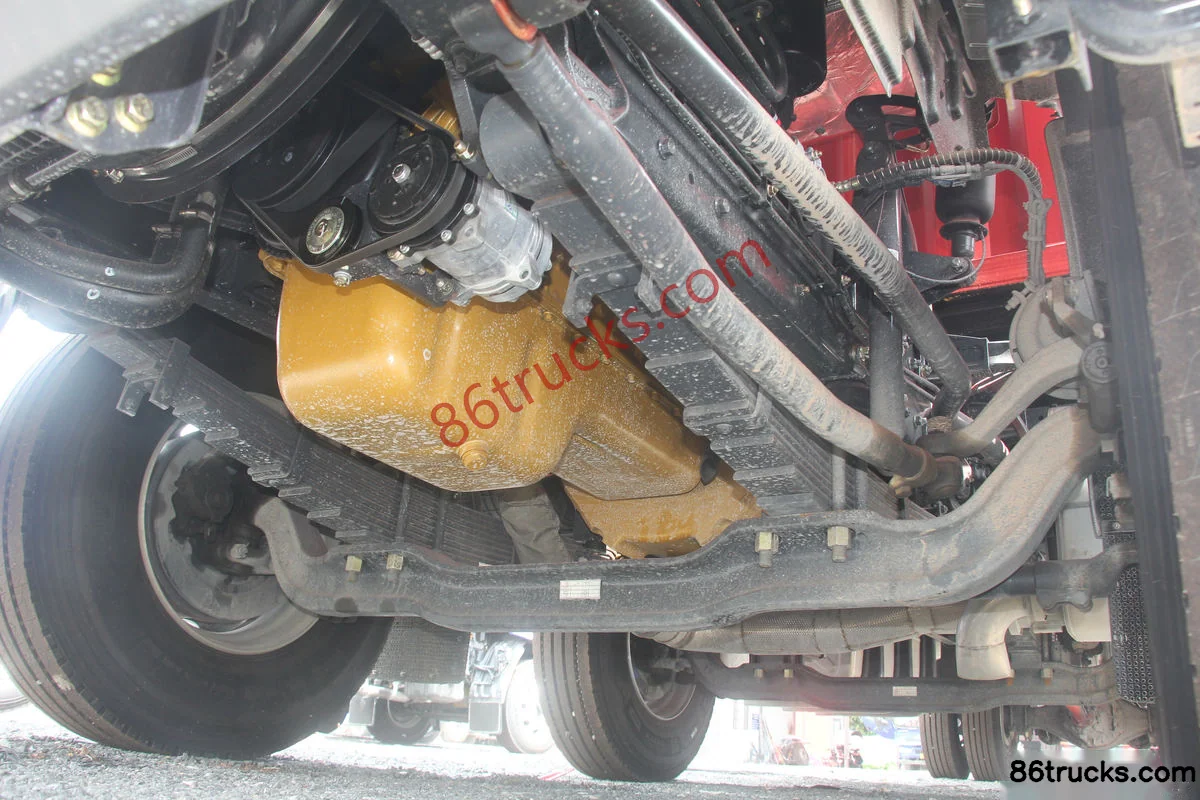

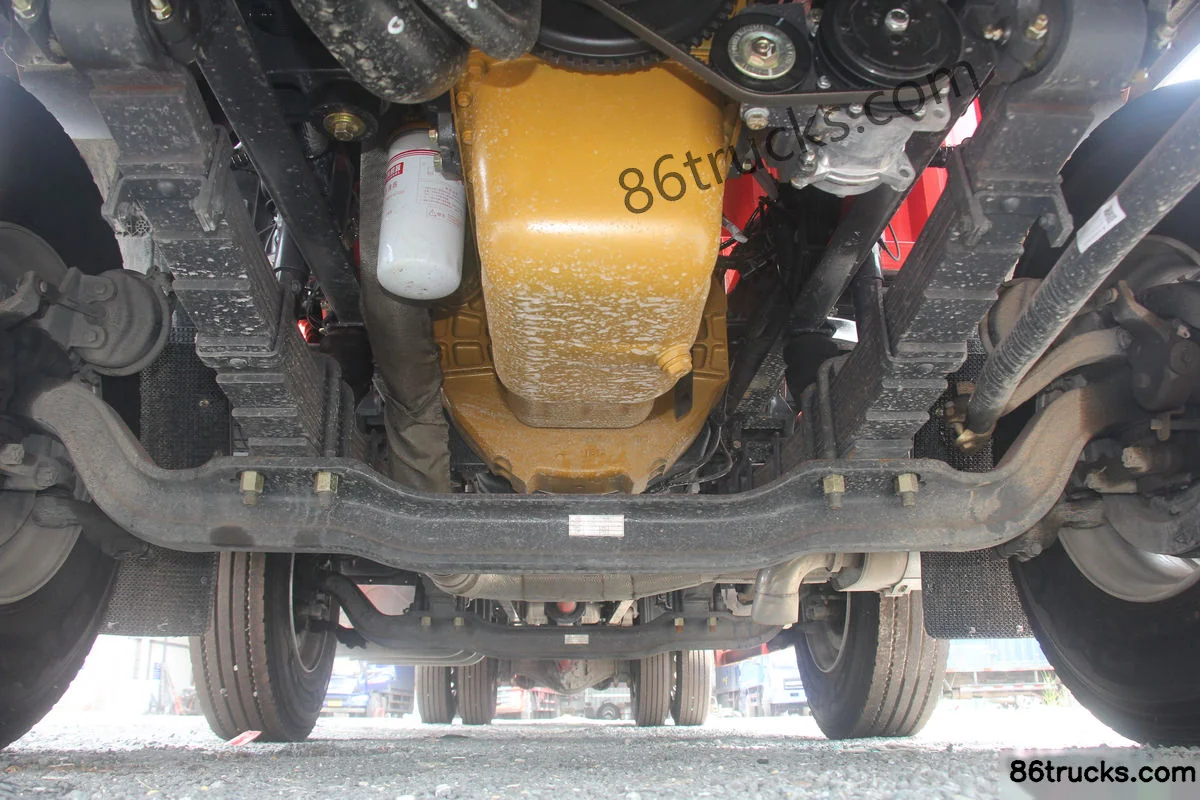

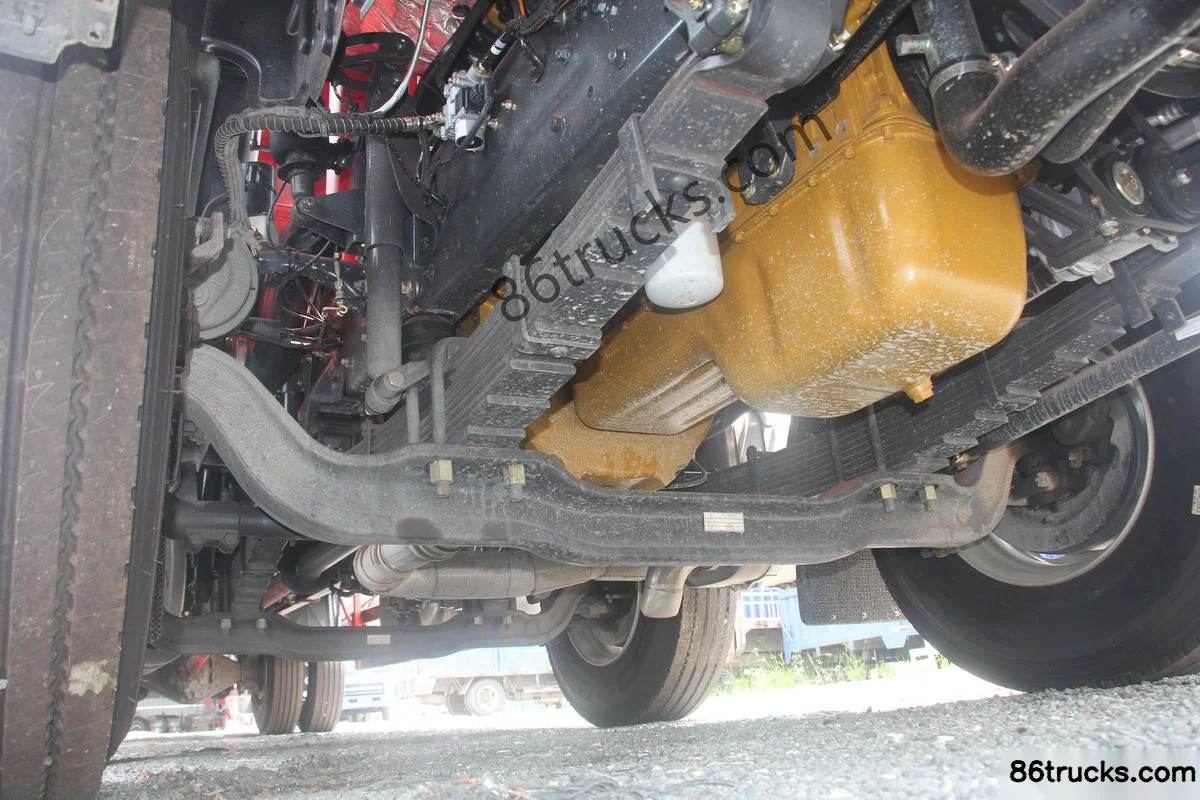

Chassis3

Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Chassis (1) | 86Trucks Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Chassis (2) | 86Trucks Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Chassis (3) | 86Trucks

Body3

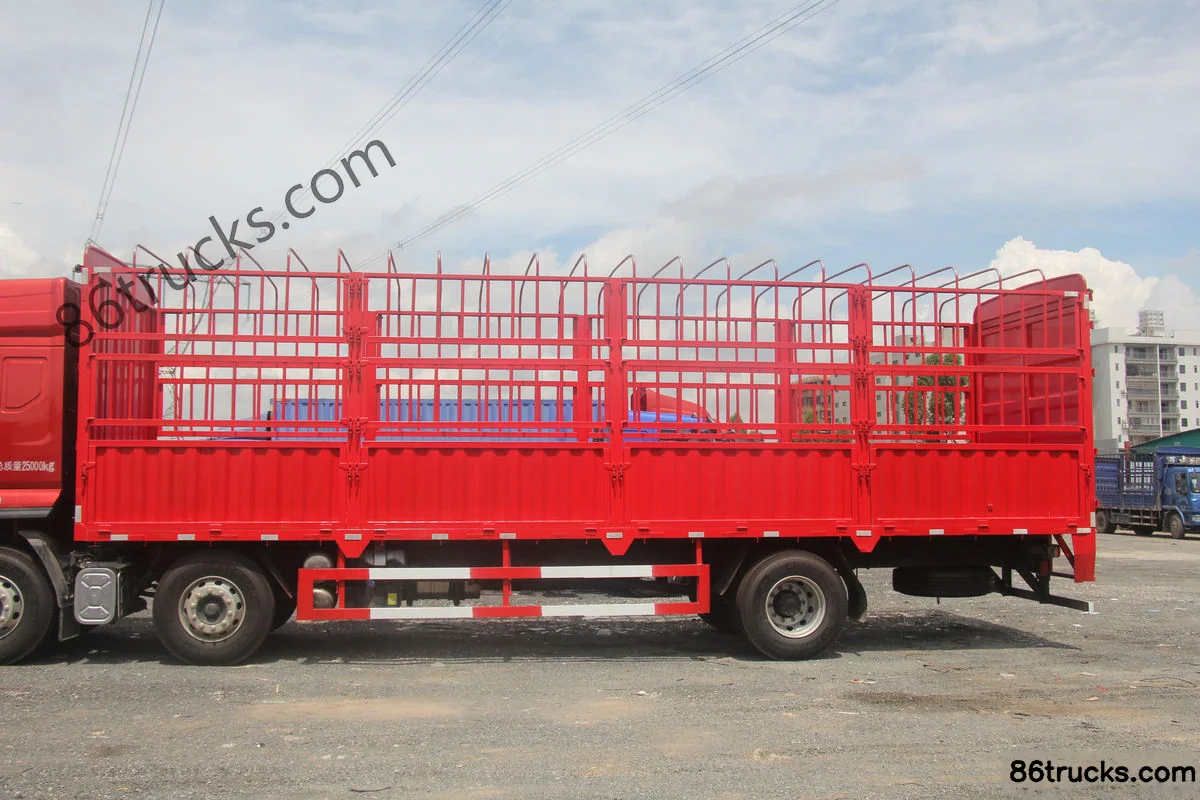

Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Body (1) | 86Trucks Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Body (2) | 86Trucks Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck, and what does it include?

Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck export reference is about From $28,750; MSRP is ¥20.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck?

Key specs of Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck suited for?

Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck belongs to Dongfeng H5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 Medium Truck 220hp 6X2(8 wheels) 9.7m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
