Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck

Export reference
From $18,056
MSRP ¥13M CNY
Horsepower: 150
Emission: China VI
Fuel: Diesel
Engine: Yunnei Dewei D25
Transmission: ZF
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Forland Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck is a Light Truck featuring 4.17m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. On the powertrain side, it comes with a Yunnei Dewei D25 engine, 150 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1044V9JDA-06
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Yunnei PowerD25TCIF1
transmission: ZFZF6S508
Rear Axle Ratio: 4.11
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.35m
Front track width: 1730mm
rear track: 1615mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 120km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIF1
Engine info: Yunnei Dewei D25
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.5L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 400N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: ZFZF6S508
Transmission Brand: ZF
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.17m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 1880mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2645kg
Axle ratio: 4.11
Leaf spring count: 3/6+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
lighting configuration
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

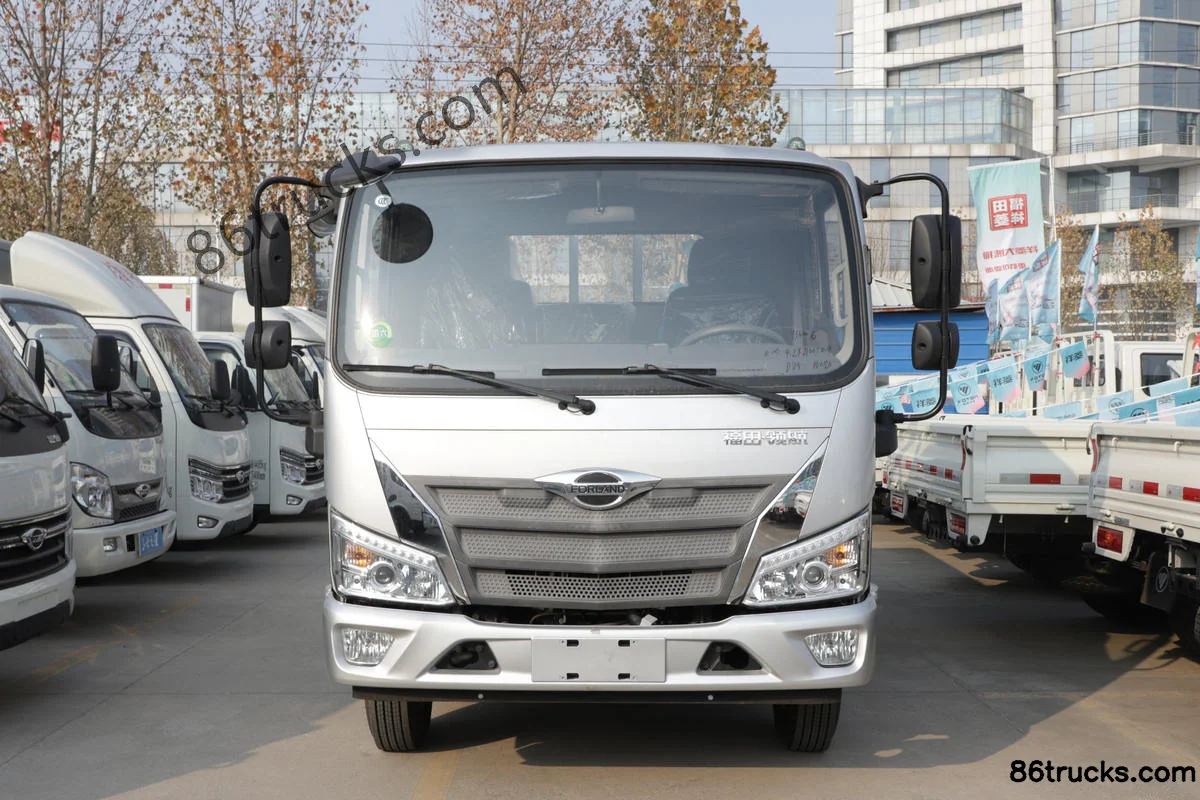

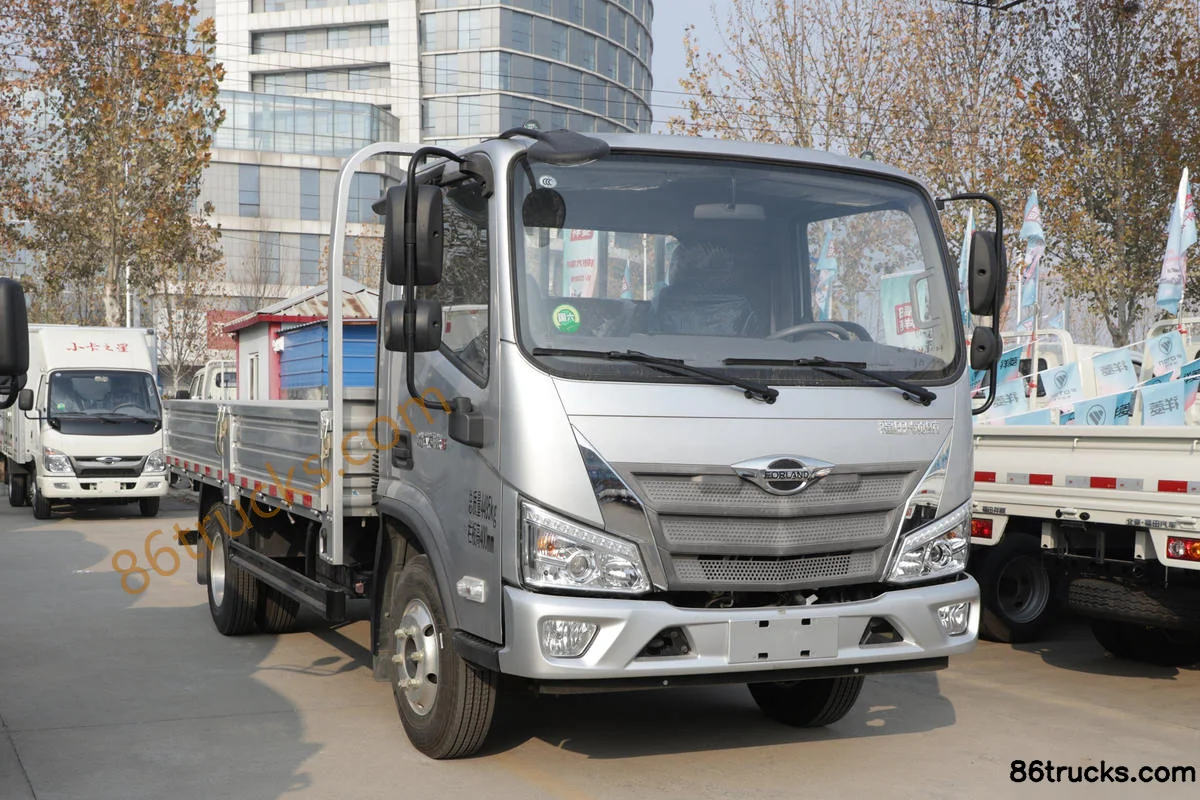

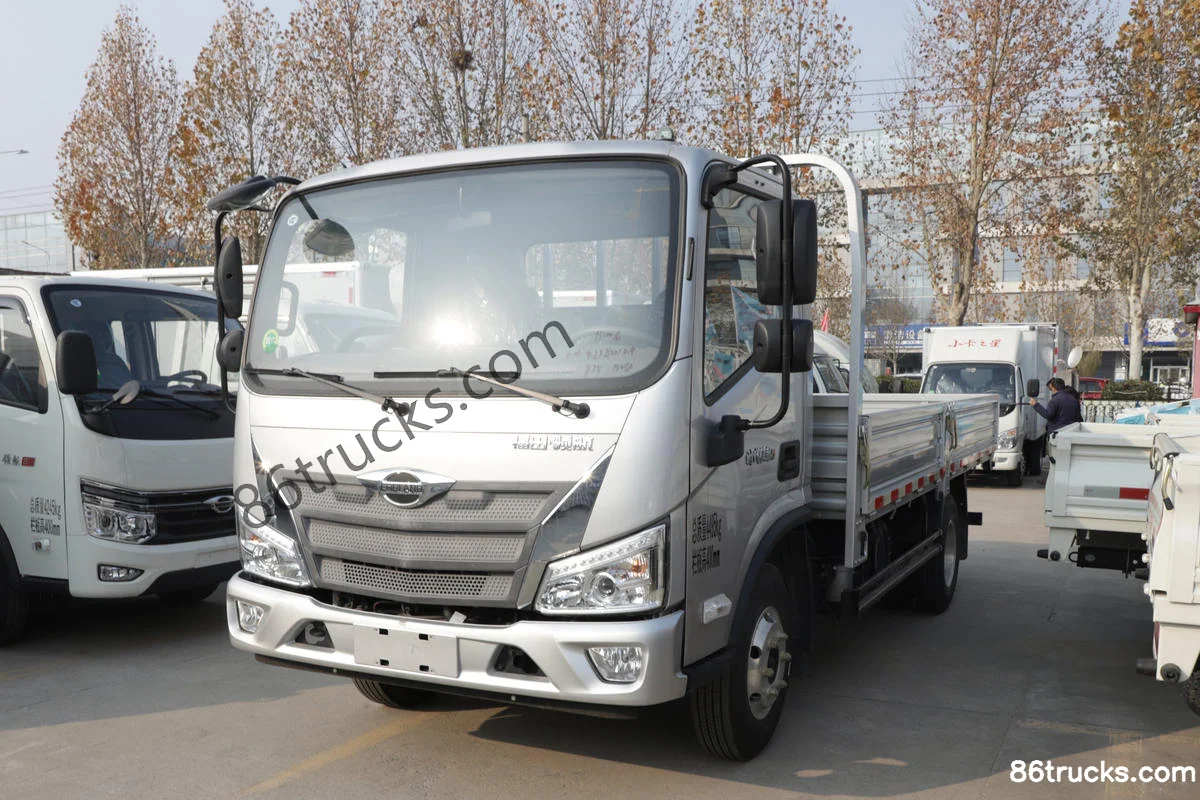

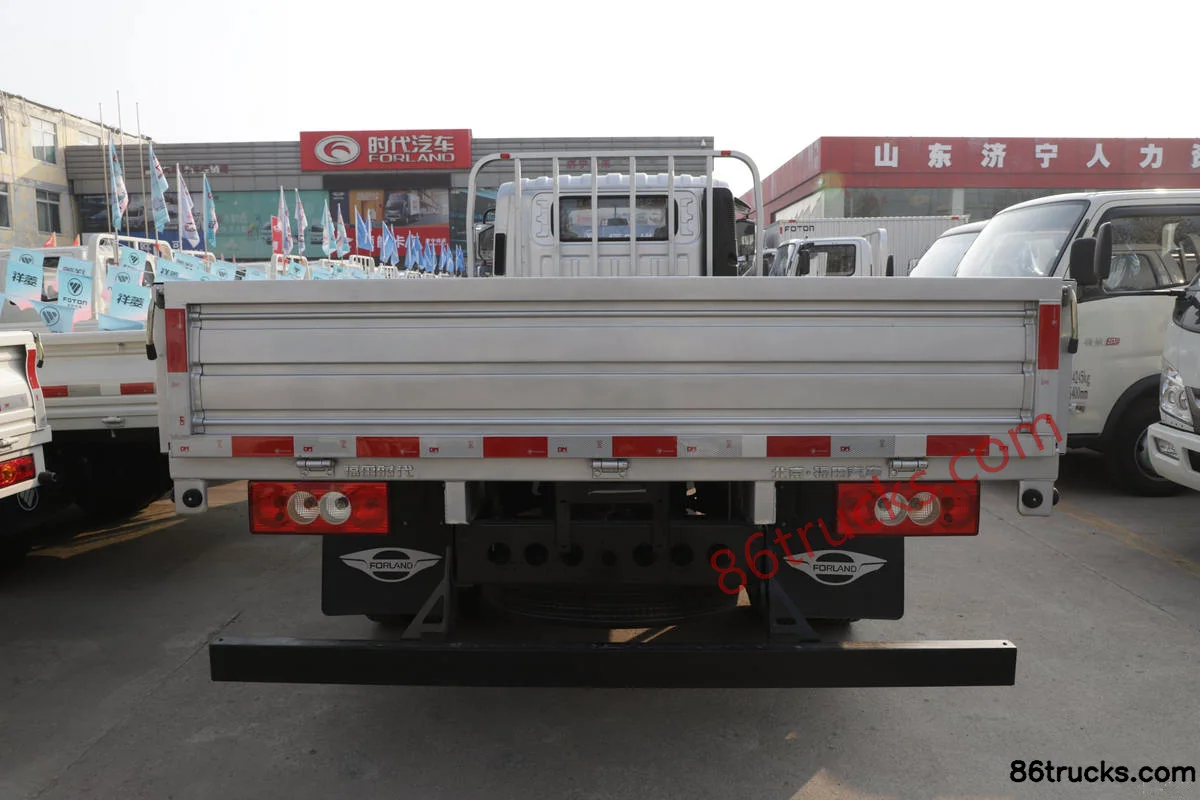

Exterior3

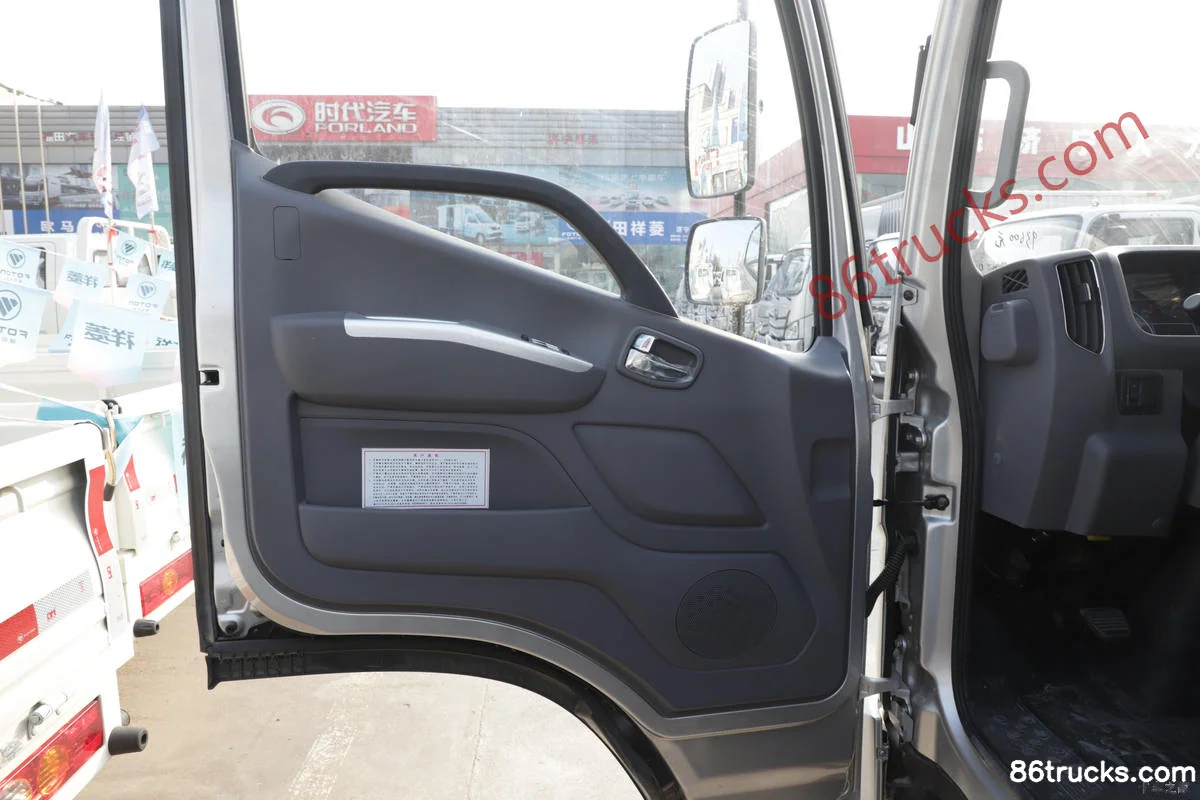

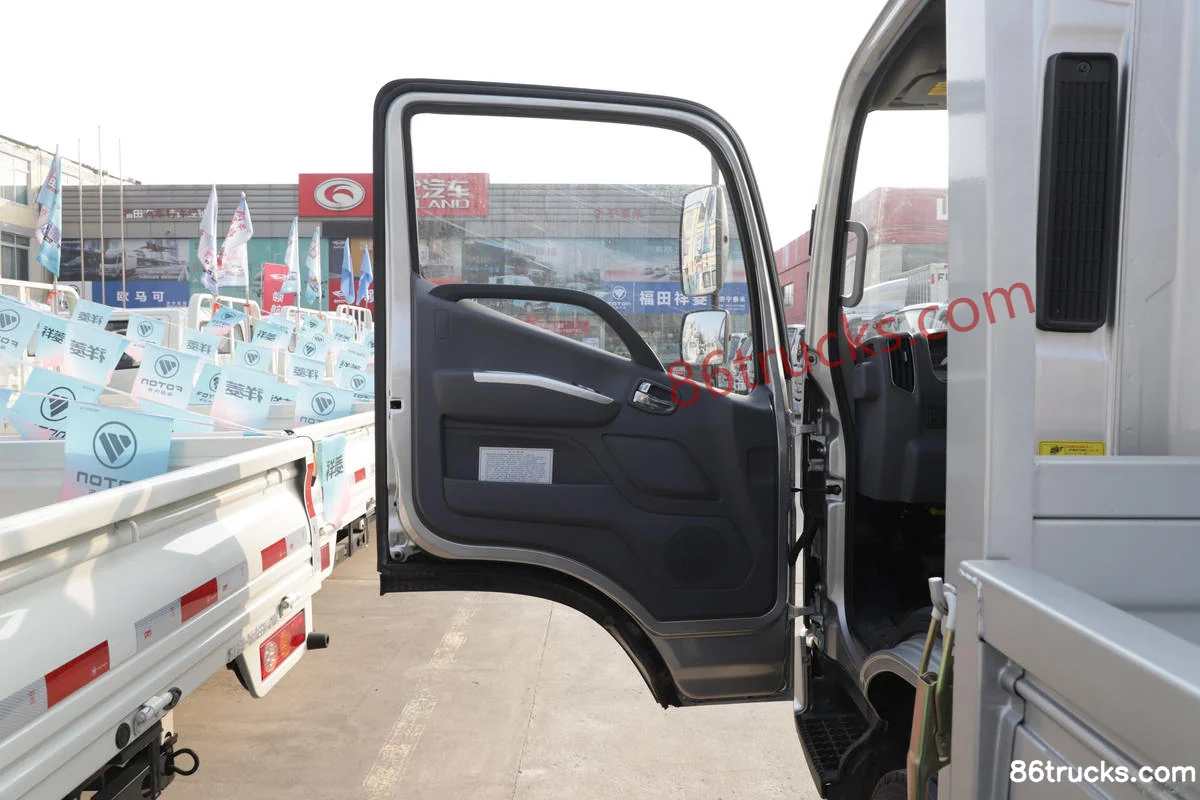

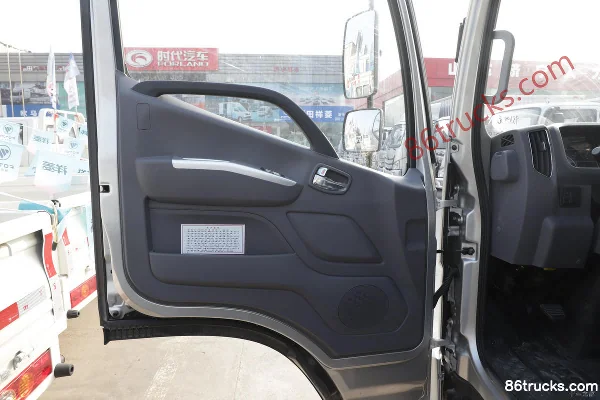

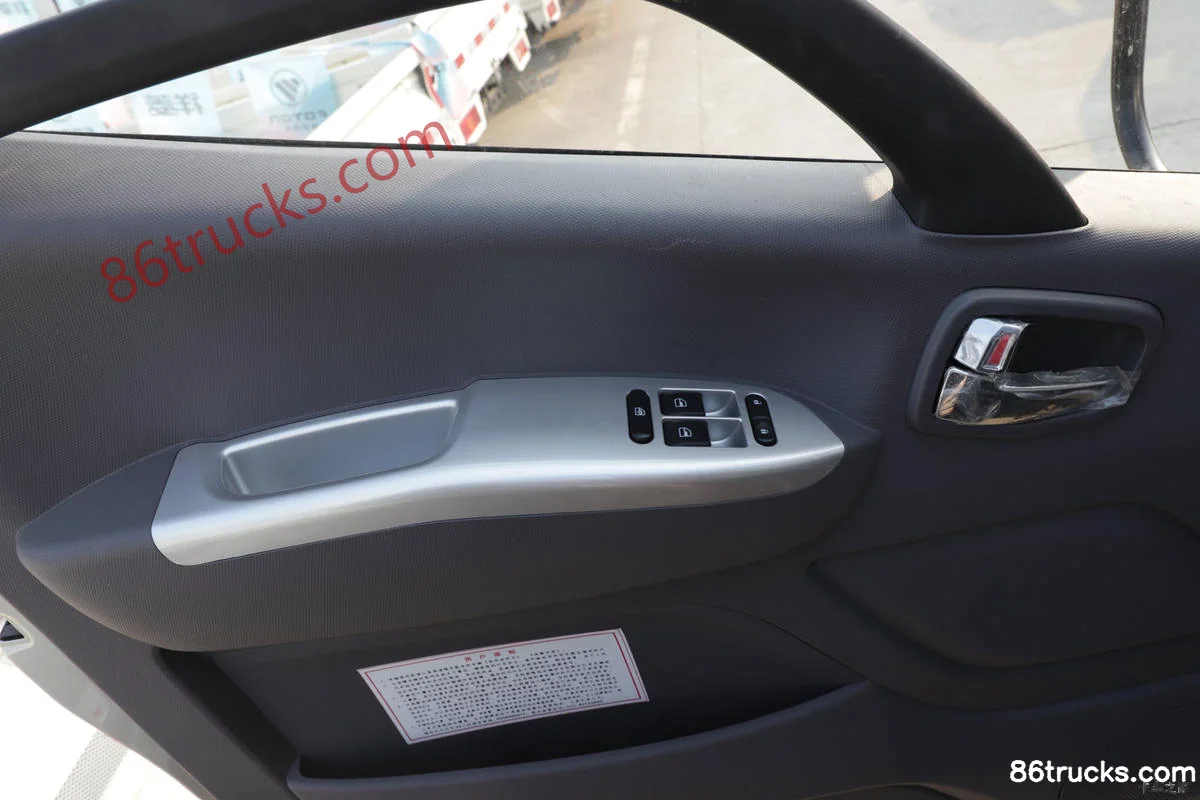

Cab3

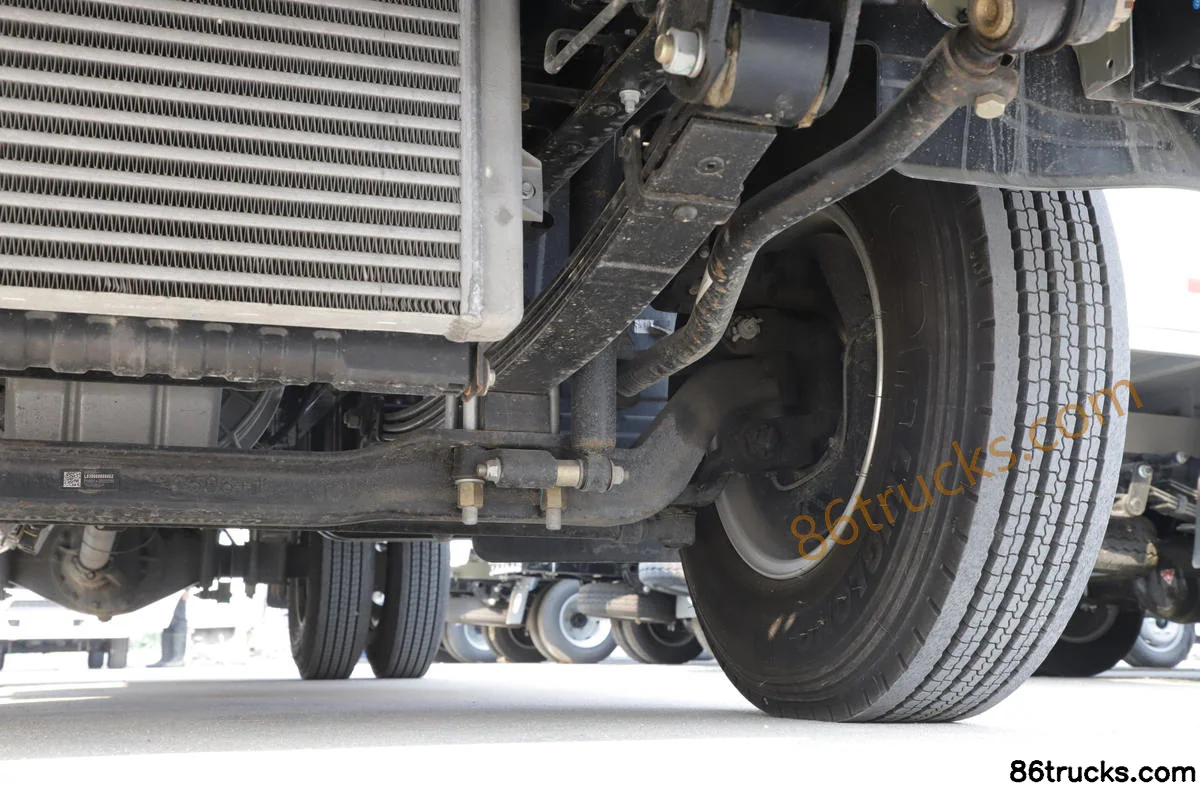

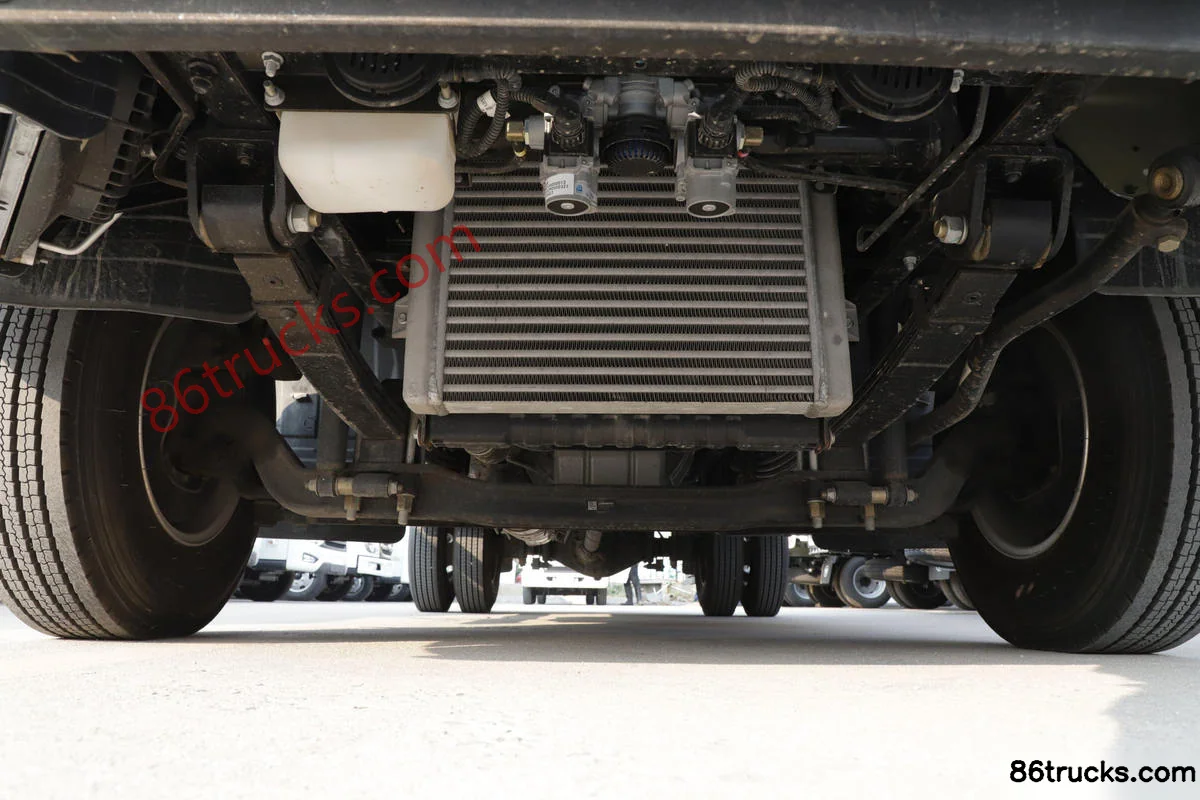

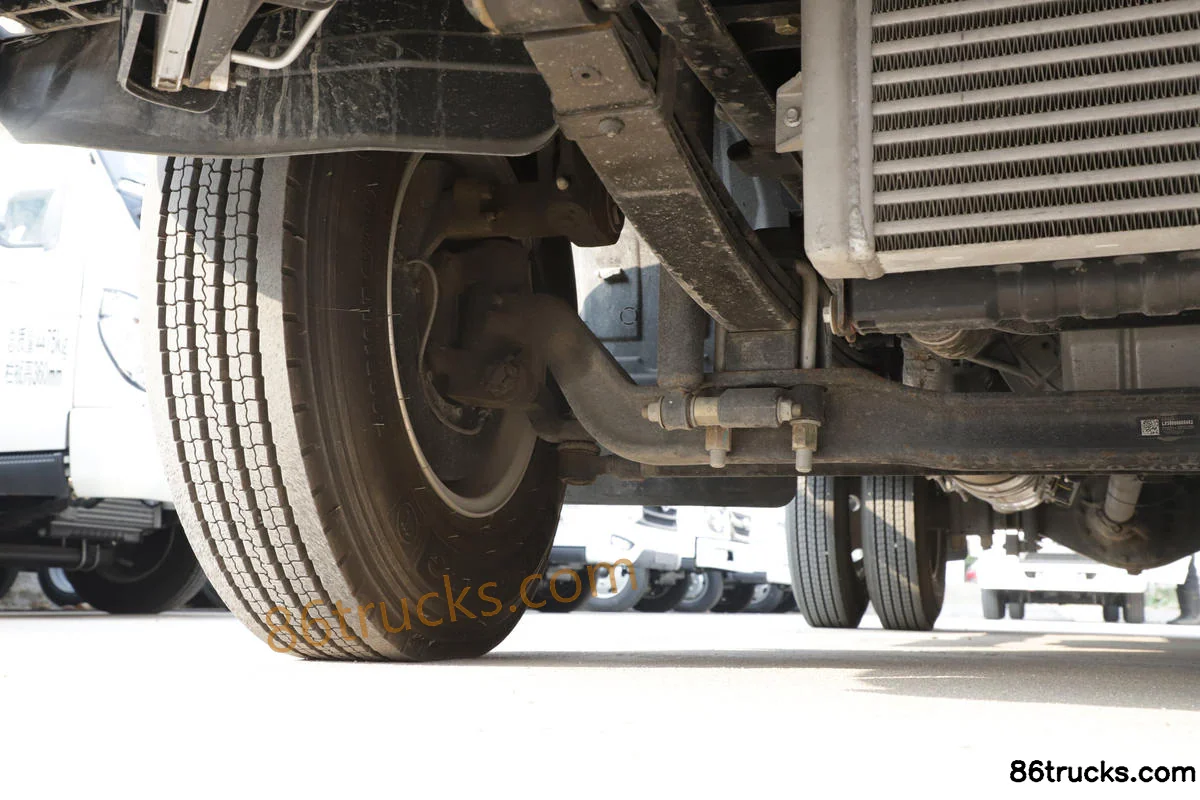

Chassis3

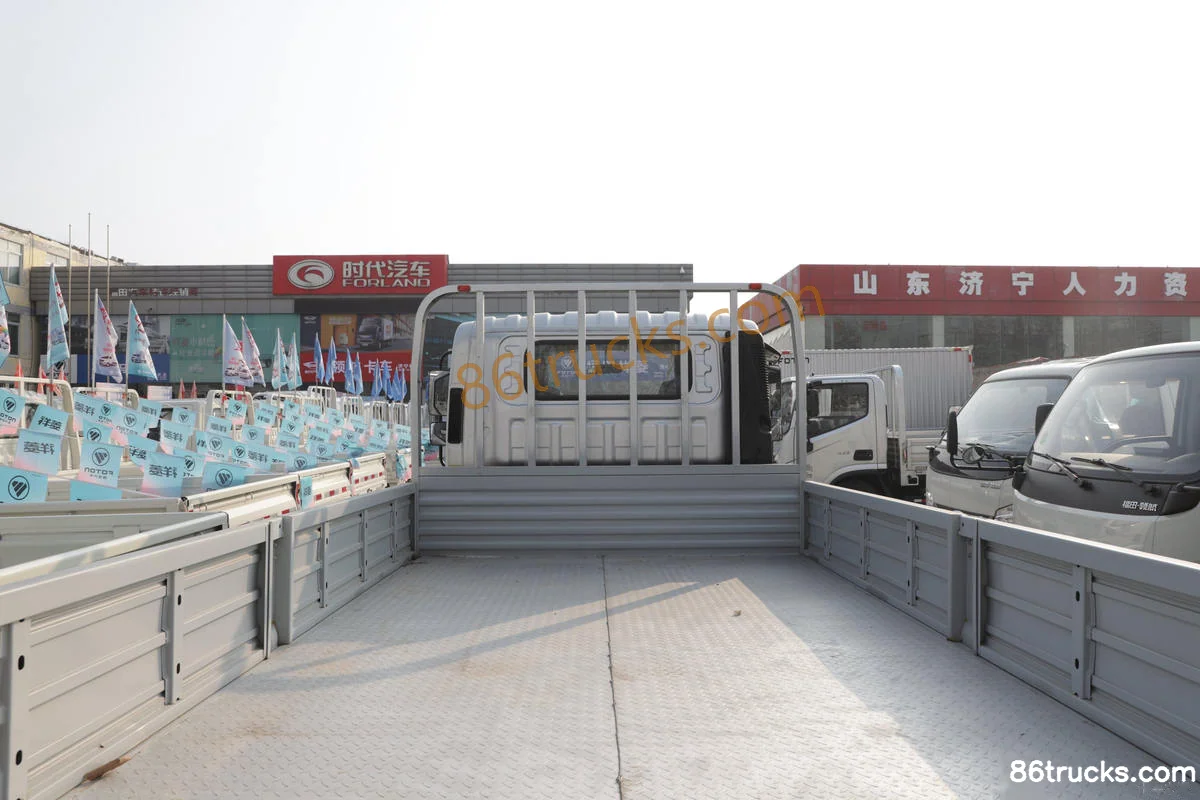

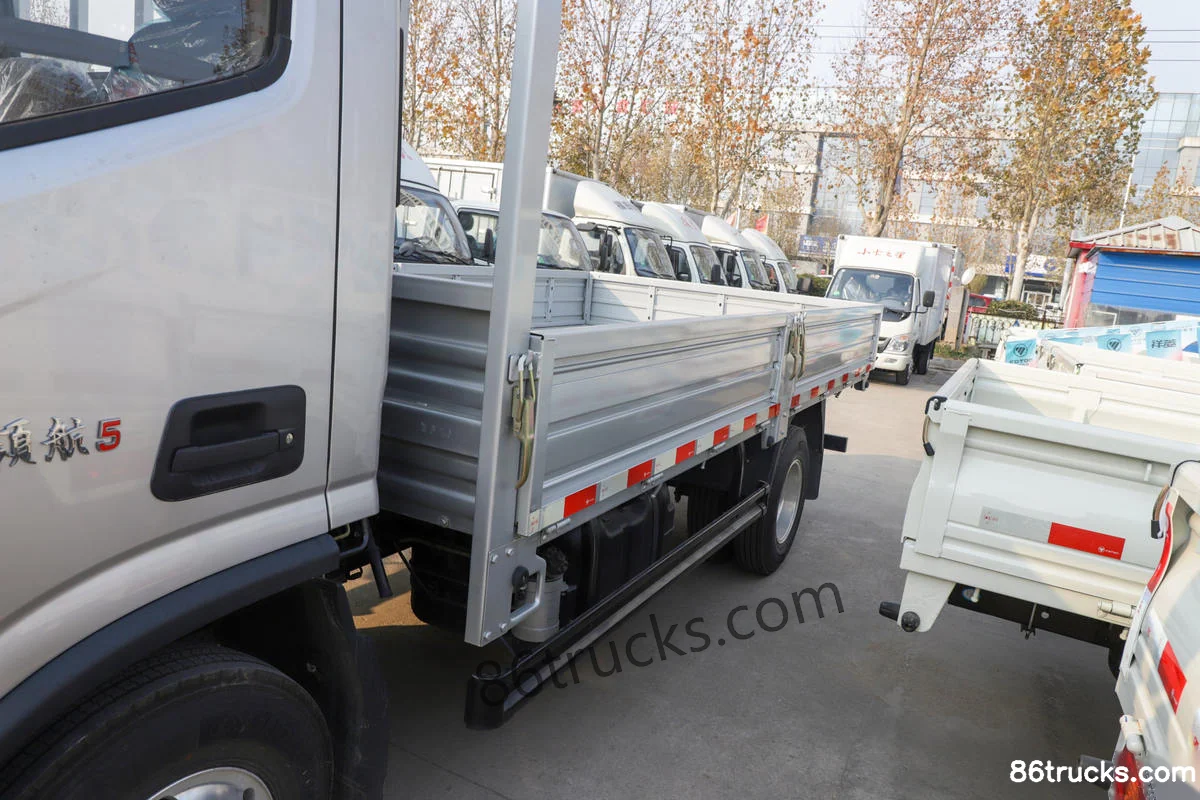

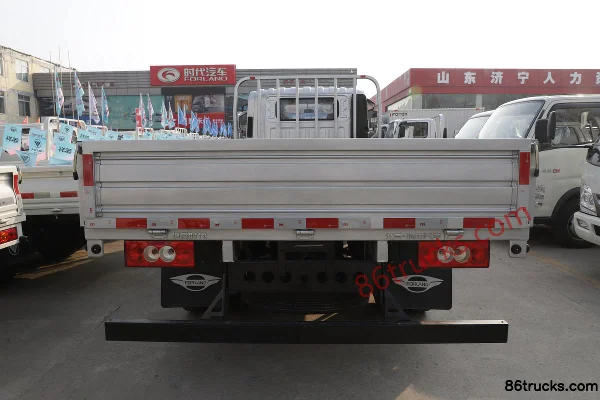

Body3

12 photos

FAQ

What is the export price of Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck, and what does it include?

Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck export reference is about From $18,056; MSRP is ¥13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck?

Key specs of Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck: Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel; Engine: Yunnei Dewei D25; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck suited for?

Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck differ from other variants in the same series?

Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck belongs to Foton Forland Linghang G5 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Leader 5 150hp 4X2(6 wheels) 4.17m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
