SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck

Export reference
From $17,444
MSRP ¥12.56M CNY
Horsepower: 148
Emission: China V
Fuel: Diesel
Engine: Fukang F2.8
Transmission: Fast Gear
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck is a Light Truck featuring 4.15m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Green Pass, matching those duty cycles. On the powertrain side, it comes with a Fukang F2.8 engine, 148 hp, 4X2 (6 wheels) drive and China V emissions.

China V 148 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX1040NP5331
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: FotonISF2.8s5148T
transmission: Fast GearC6J45TB
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.45m
Front track width: 1760mm
rear track: 1590mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Xi'an, Shaanxi
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
market segment: Green Pass
Remarks: Cab bunk mat, halogen headlights, radio (with 5-inch screen), Tianxingjian Zhiya BD onboard terminal, fire extinguisher mounting bracket, illuminated emblem; chassis: close-fitting air filter, 80Ah maintenance-free battery, seatbelt buckle alarm, automatic brake slack adjuster, brake wear alarm device
Front/rear suspension: 1.2/1.495m
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF2.8s5148T
Engine info: Fukang F2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China V
Max output power: 110kW
Max hp: 148Horsepower
Max torque: 360N·m
Max torque speed: 1500-2900rpm
Rated speed: 2900rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: Fast GearC6J45TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: Yi9
Cab width: 1835mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.2T
Front axle allowable load: 1500kg
Frame Dimensions: 192-132/4.5 single layermm
rear axle description: 3.5T
rear axle allowable load: 2995kg
Axle ratio: 4.33
Leaf spring count: 2/2+1
Tire
Tire Size: 7.00R16LT/8PR tubeless
Number of tires: 6pcs
Control configuration
ABS:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
Radio:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Disc

Photos

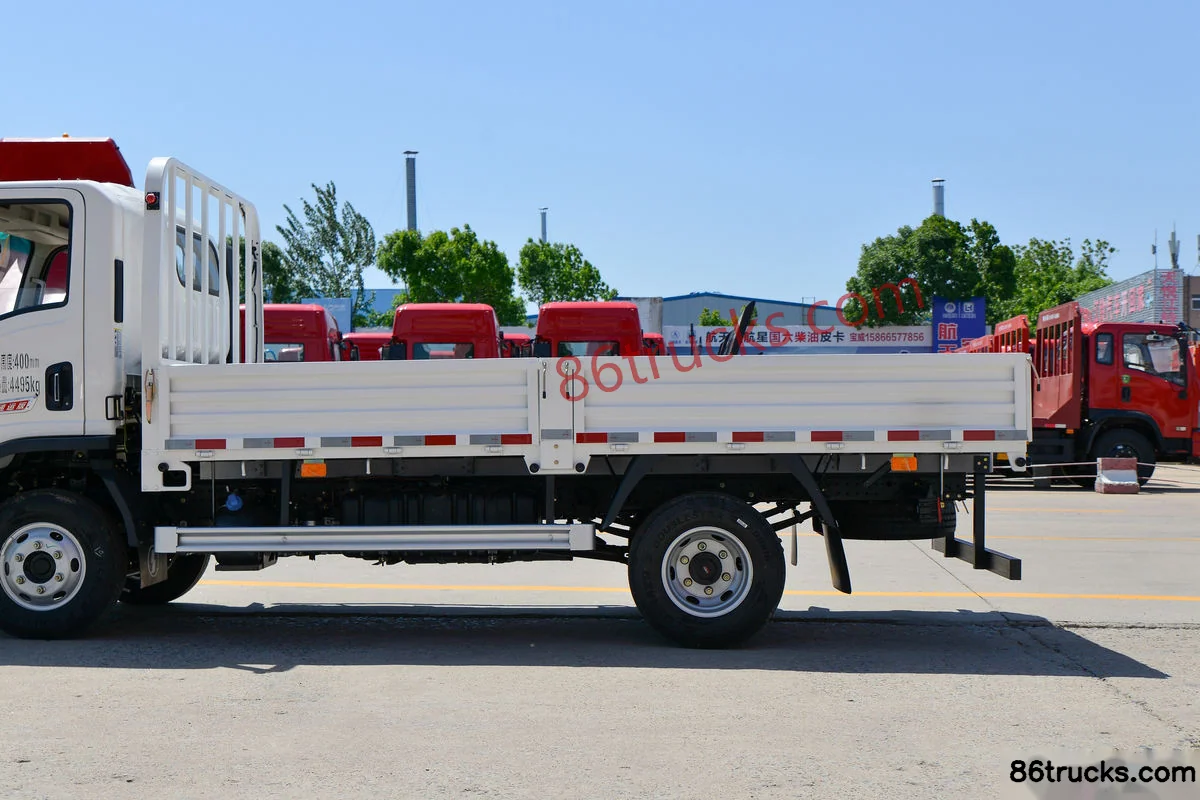

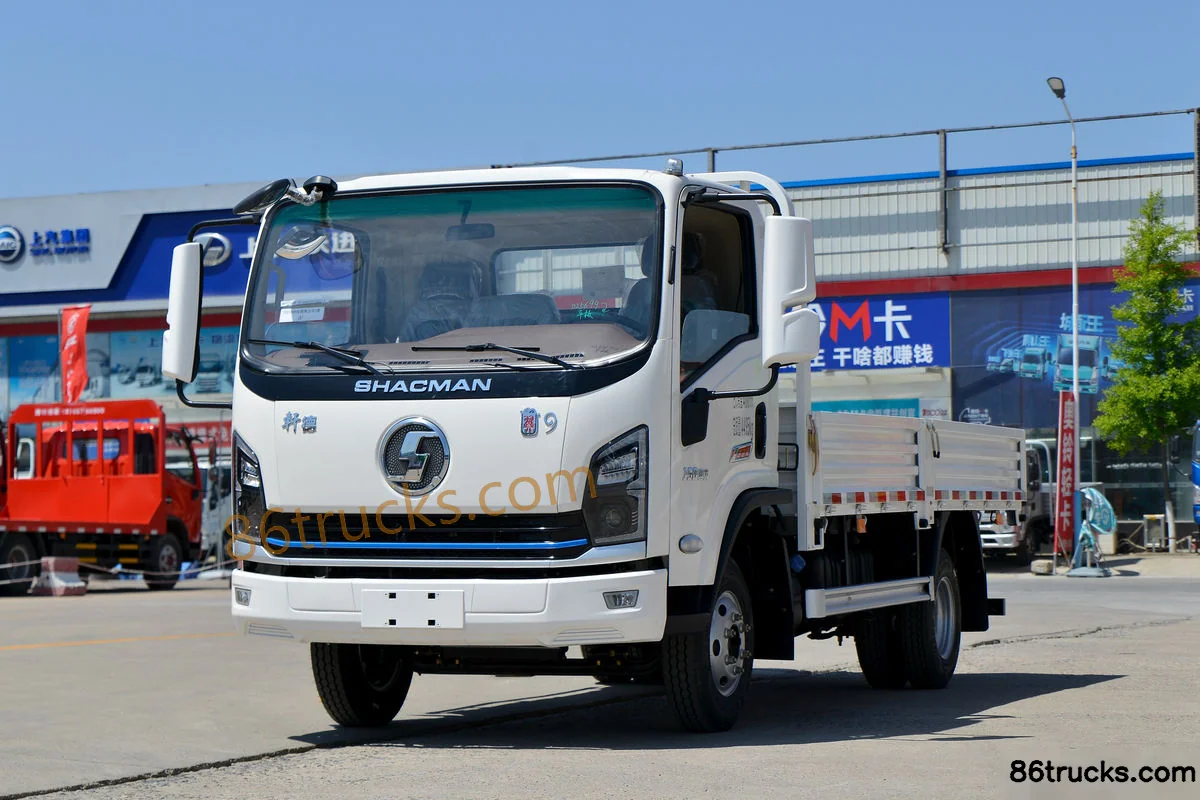

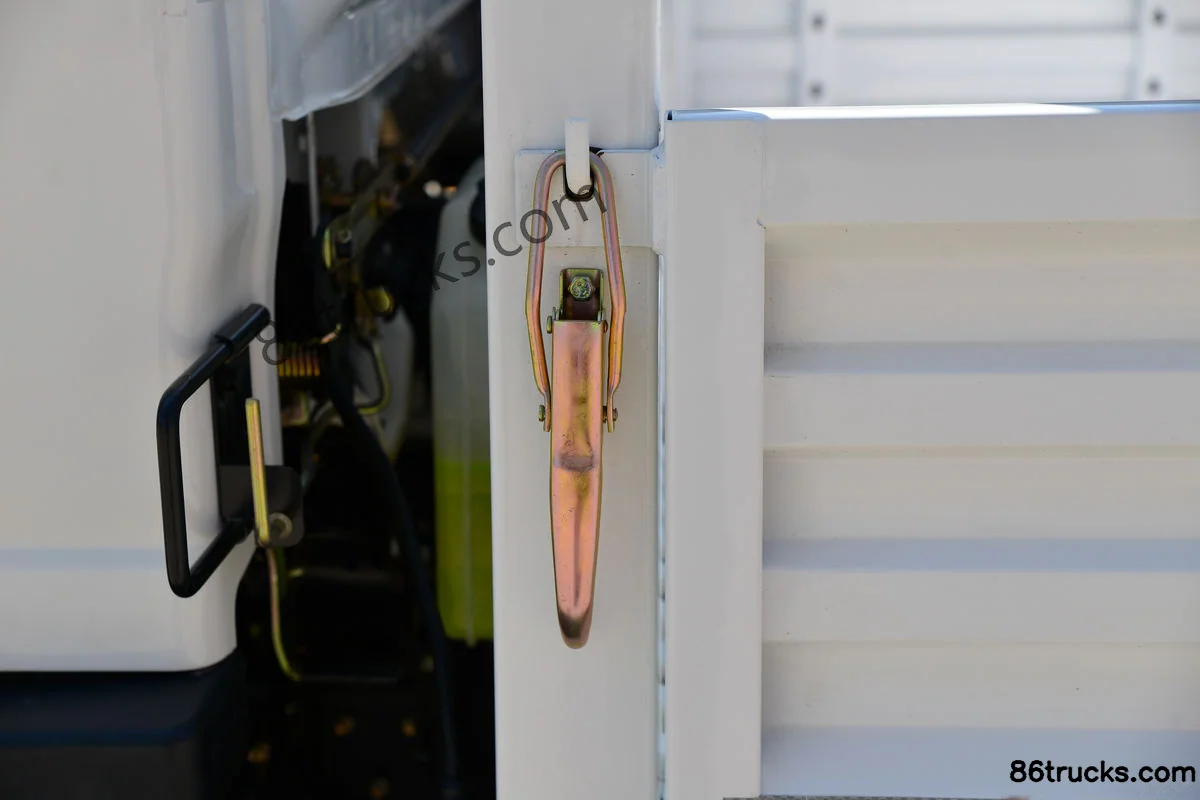

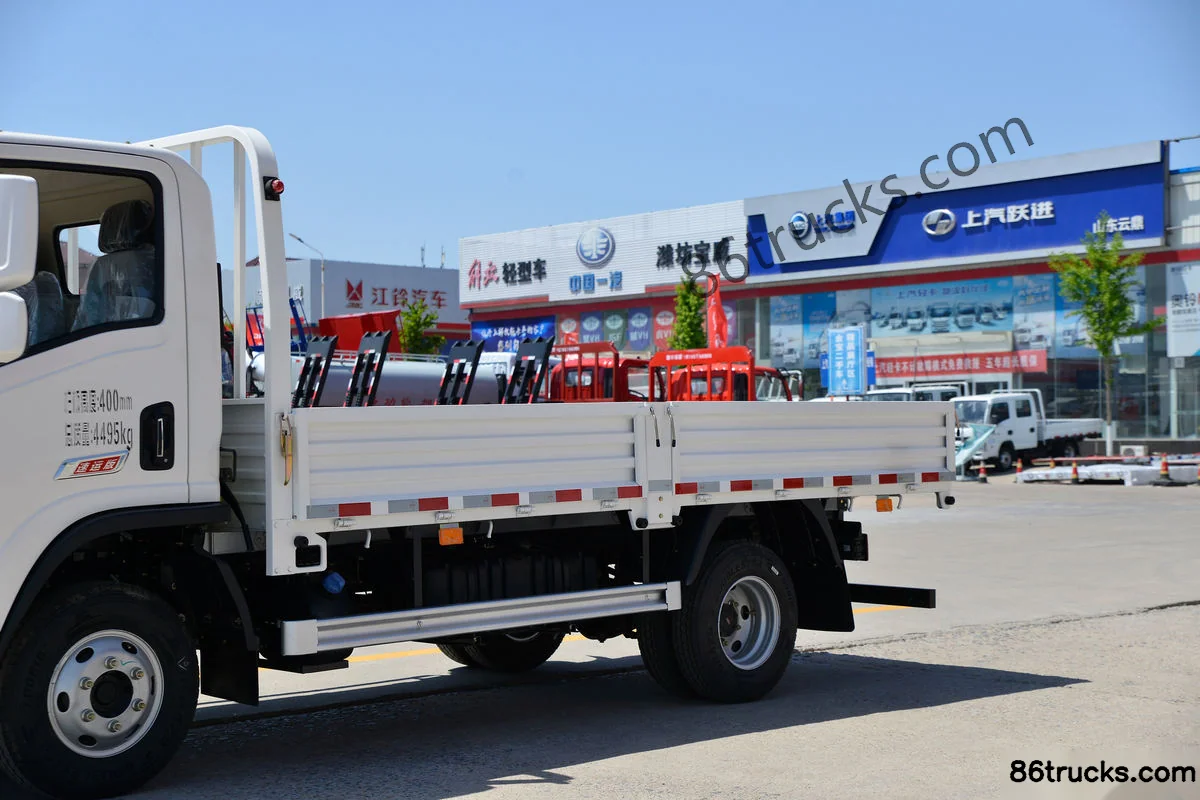

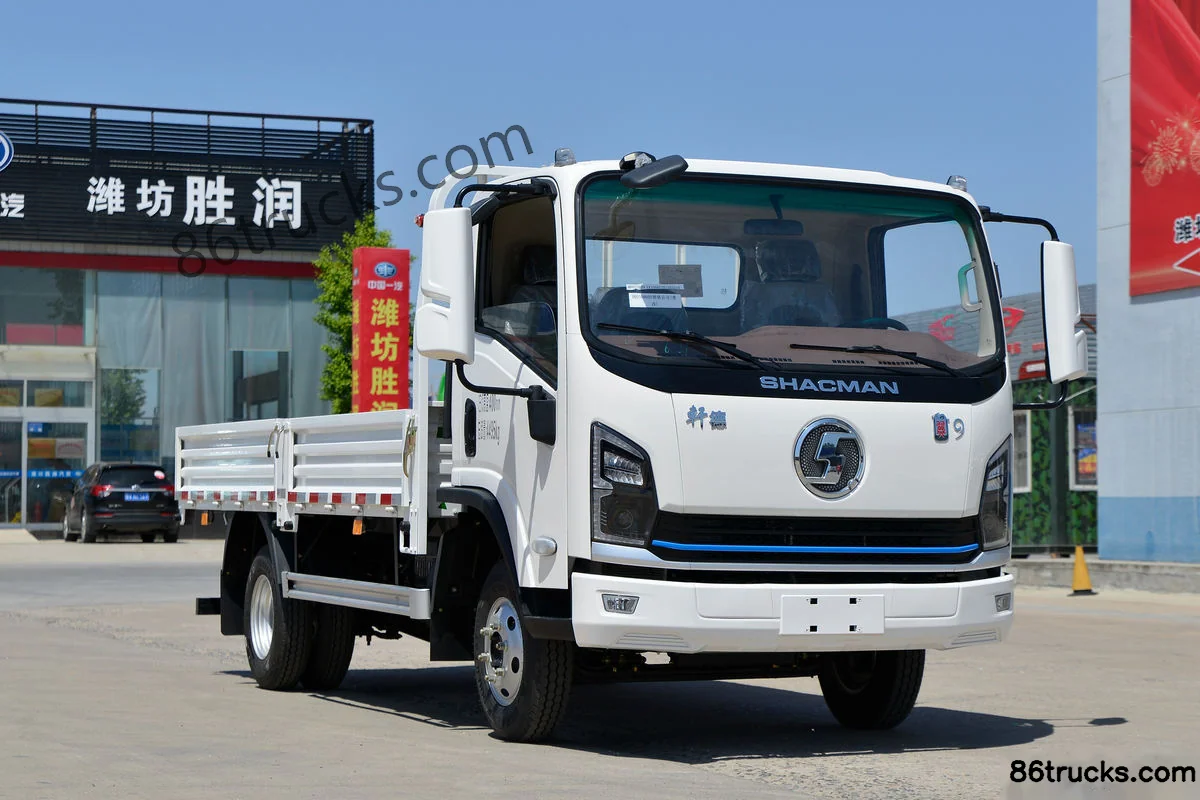

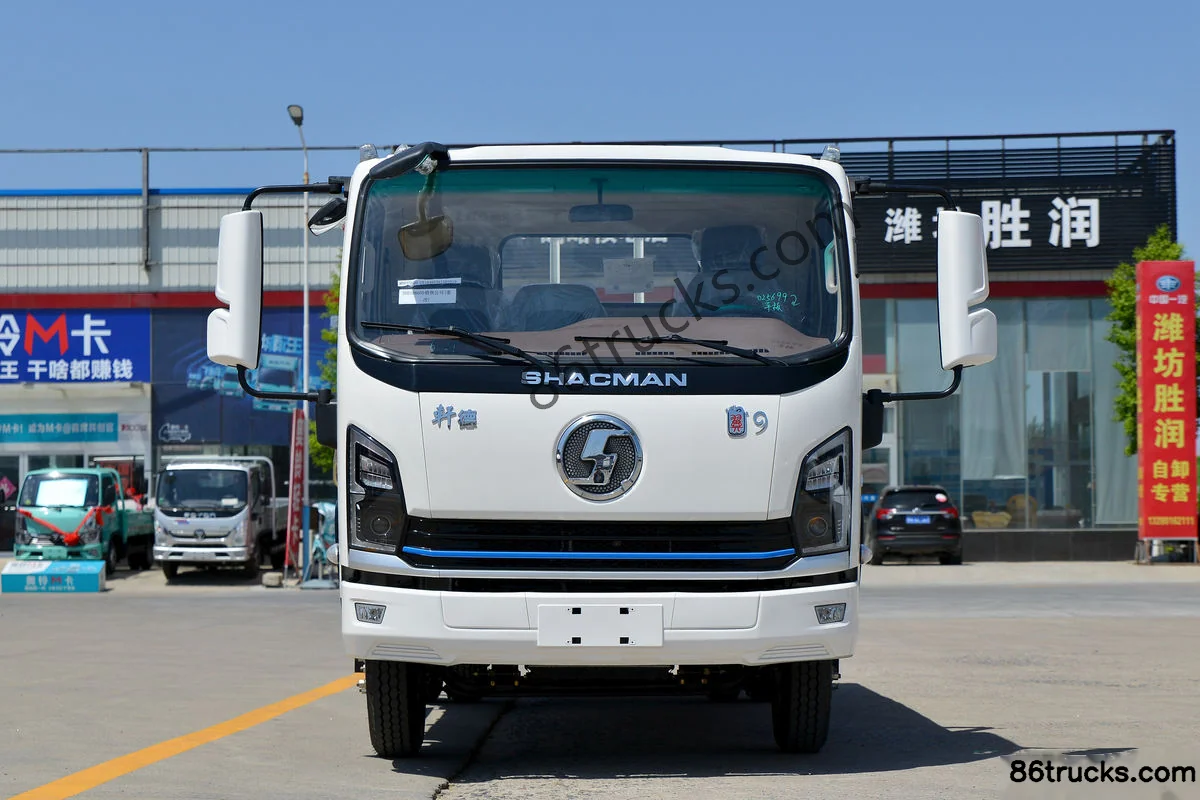

Exterior3

Official Photos3

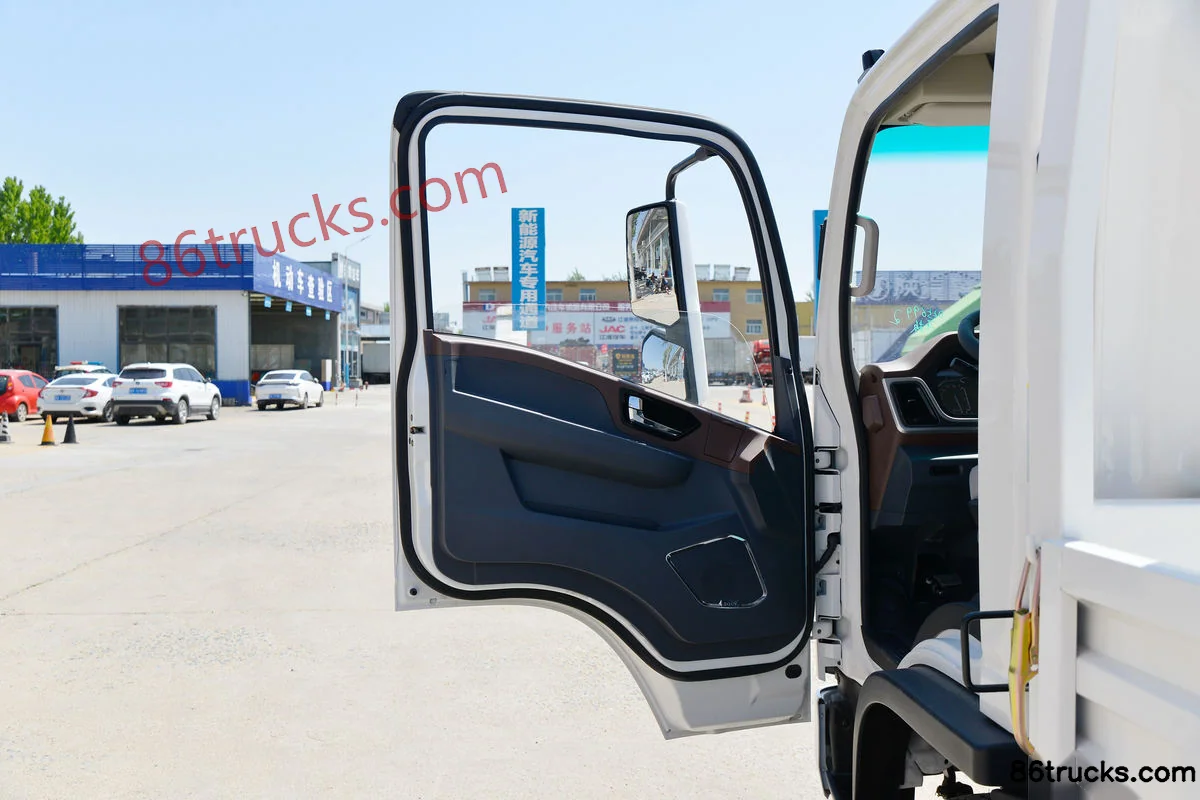

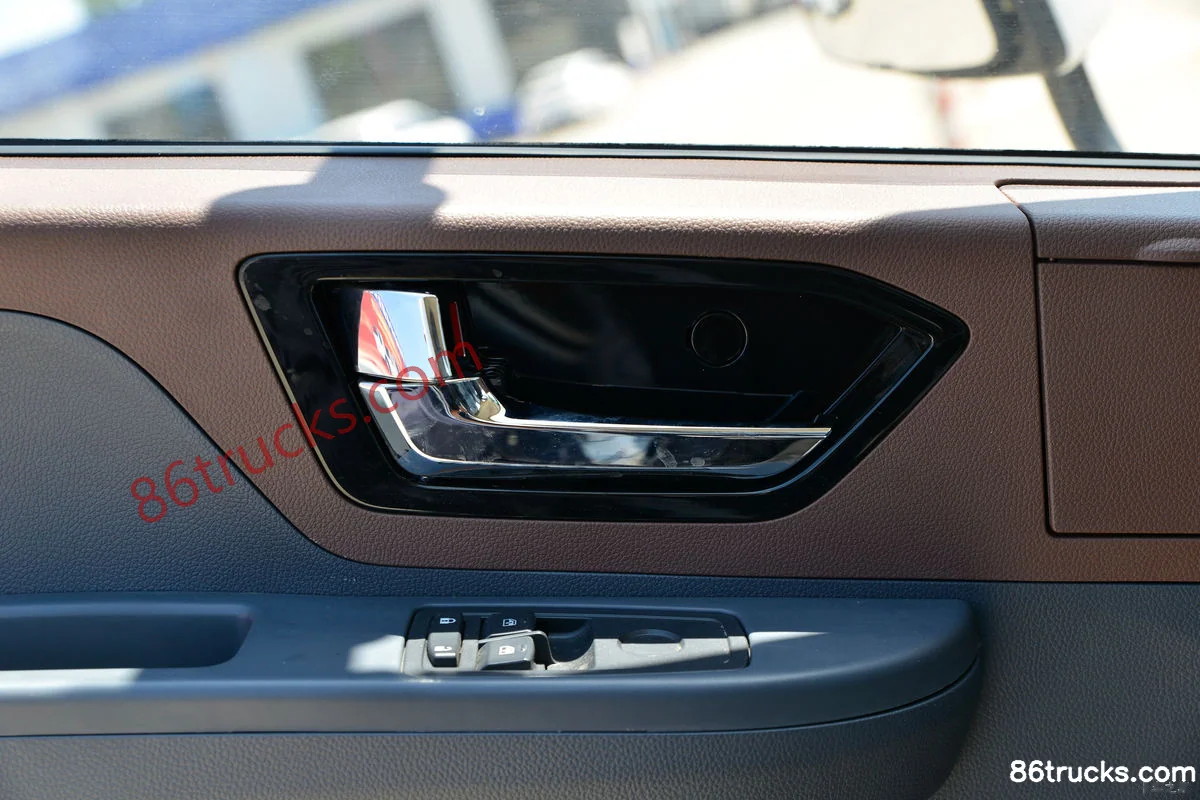

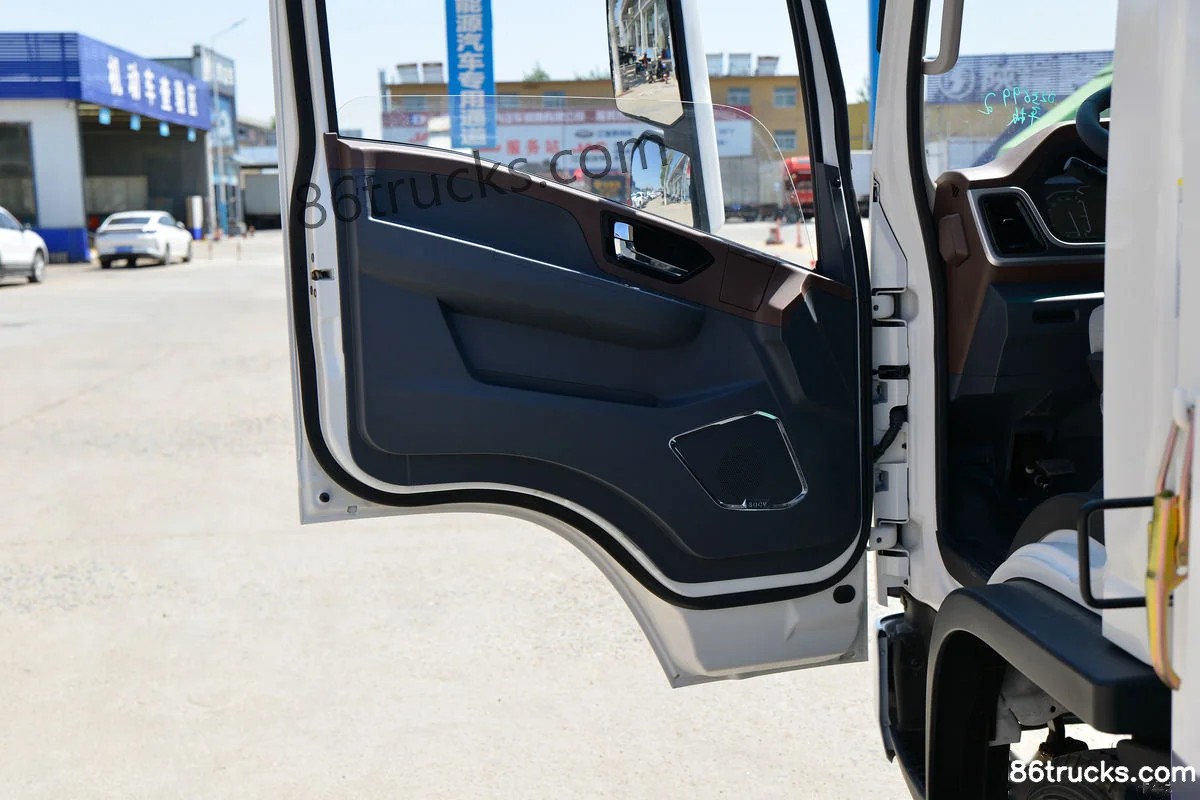

Cab3

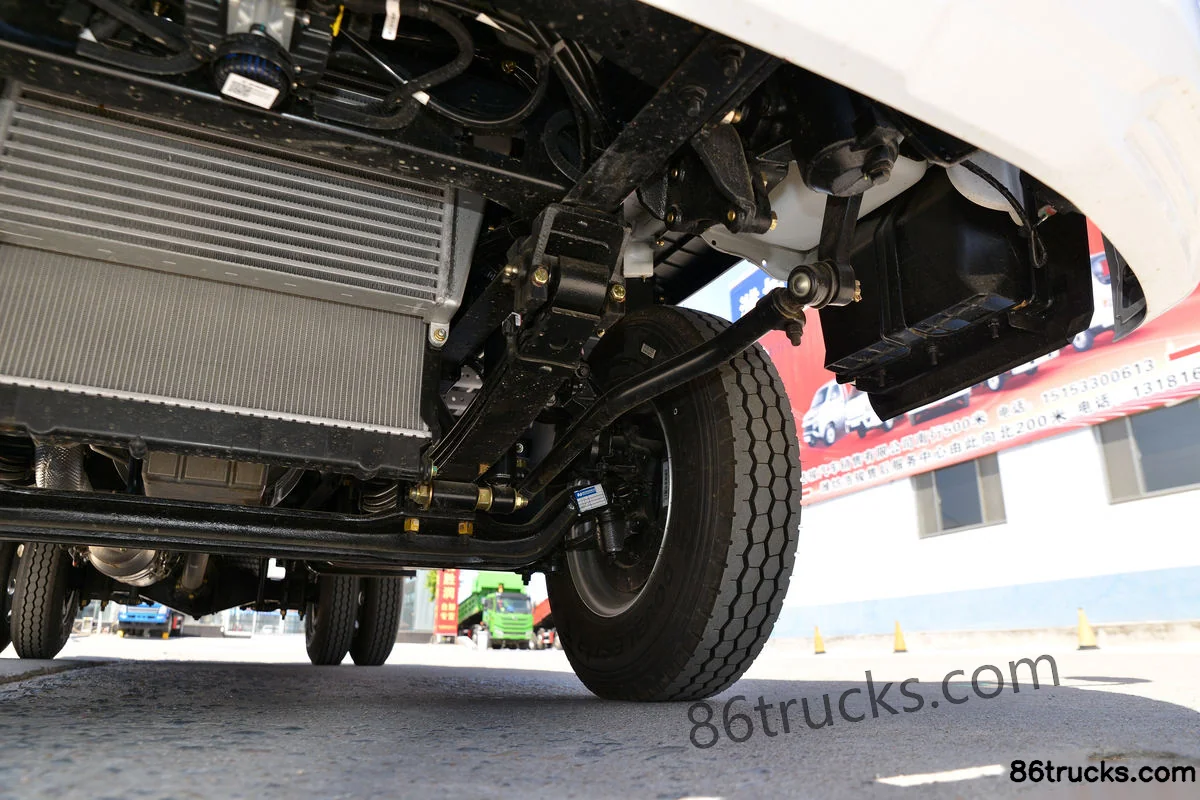

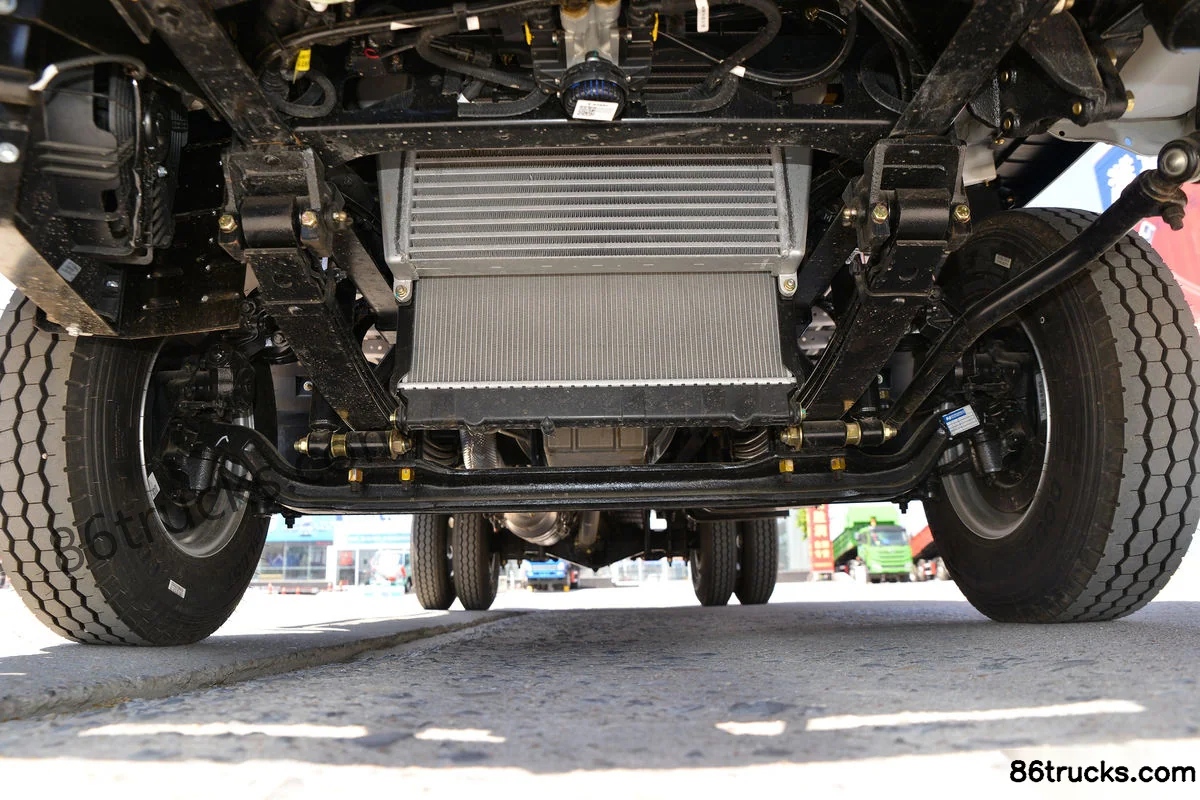

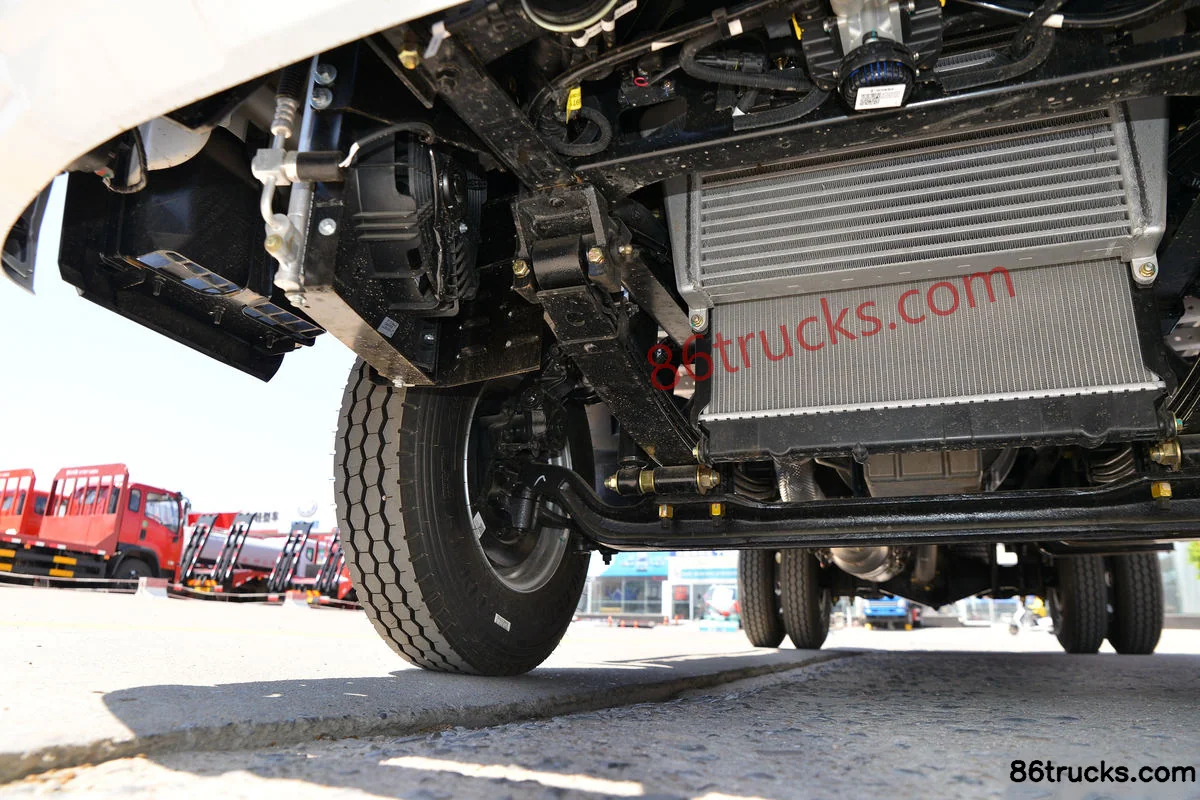

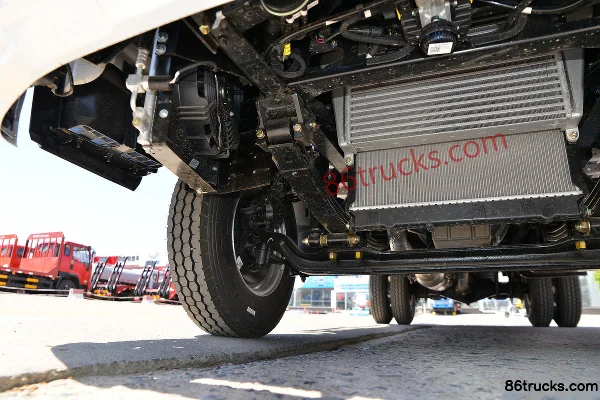

Chassis3

12 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck, and what does it include?

SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck export reference is about From $17,444; MSRP is ¥12.56M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck?

Key specs of SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 148 hp; Emission: China V; Fuel: Diesel; Engine: Fukang F2.8; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck suited for?

SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck belongs to SHACMAN Commercial Vehicle Xuande Yi 9 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Yi9 Standard Load Edition 148hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
