Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3825+1350mm
Model code (announced):: QCC4253BEVH4B3
Front/rear track width:: Front track: 2068mm; Rear track: 1860/1860mm
Cab length:: 7.413m
GVWR:: 25ton
Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh exterior
View more photos (9)
Drive 6X4 (10 wheels)
CLTC range: 400km
Motor 2 Brand: Lingdong Smart Truck
Gross Trailer Weight: 37.32ton

Overview

The Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh is a Heavy truck featuring 400km battery/range, Lingdong Smart Truck motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QCC4253BEVH4B3
Drive type: 6X4
Front/rear track width: Front track: 2068mm; Rear track: 1860/1860mm
Wheelbase: 3825+1350mm
Cab length: 7.413m
Cab width: 2.55m
Cab height: 3.995m
Gross Trailer Weight: 37.32ton
CLTC range: 400km
Curb Weight: 11.55ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Wuhu, Anhui
battery swap support: Charging
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 2 Brand: Lingdong Smart Truck
Motor 2 Model: TZ306XY115AM
Motor 1 Brand: Lingdong Smart Truck
Motor 1 Model: TZ306XY115AM
Motor Type: Permanent magnet synchronous motor
total rated power: 480kW
Peak power: 780kW
Motor 1 Peak Power: 390kW
Motor 2 Peak Power: 390kW
Number of drive motors: Dual Motor
Battery/Charging
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600kWh
Cab parameters
Cab: wide high-roof single bunk cab
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Driver seat type: air suspension seat
Lower Bunk Width: 80mm
Sunroof:
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
Aluminum air tank:
interior configuration
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
lighting configuration
Headlight height adjustment:
LED taillight:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):

Photos

Exterior3

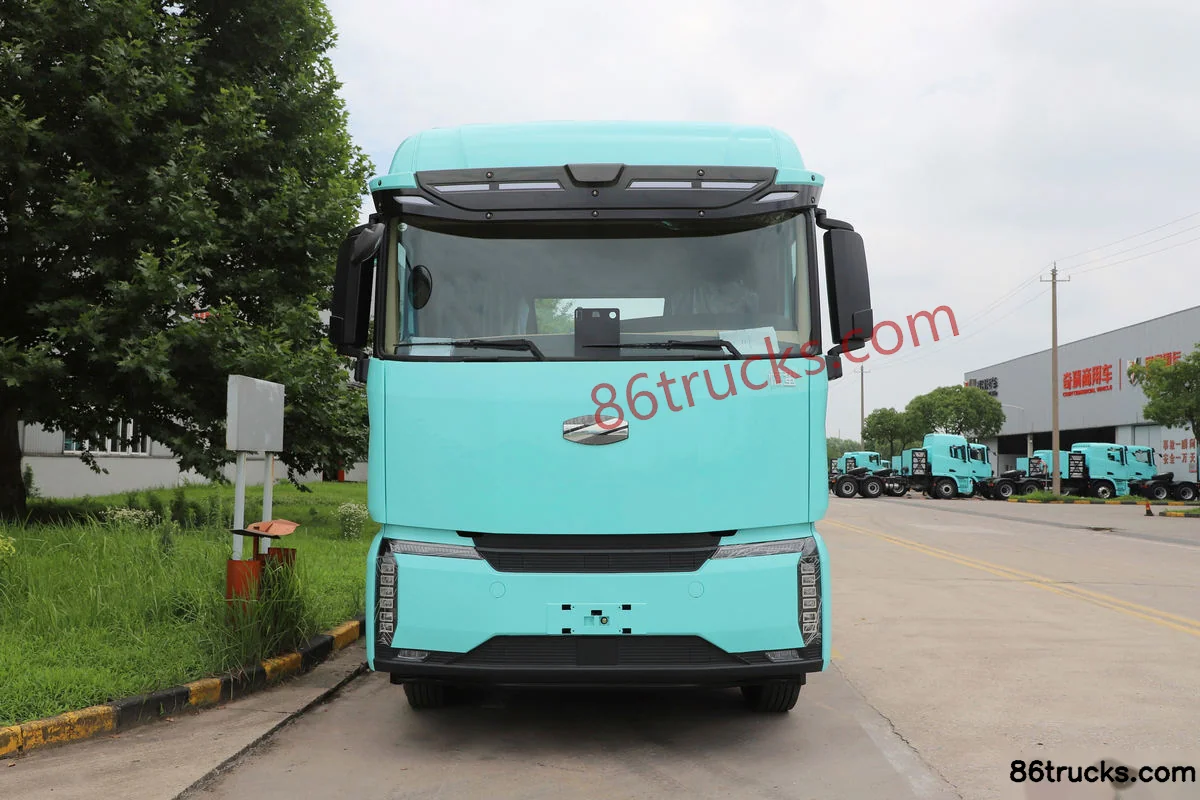

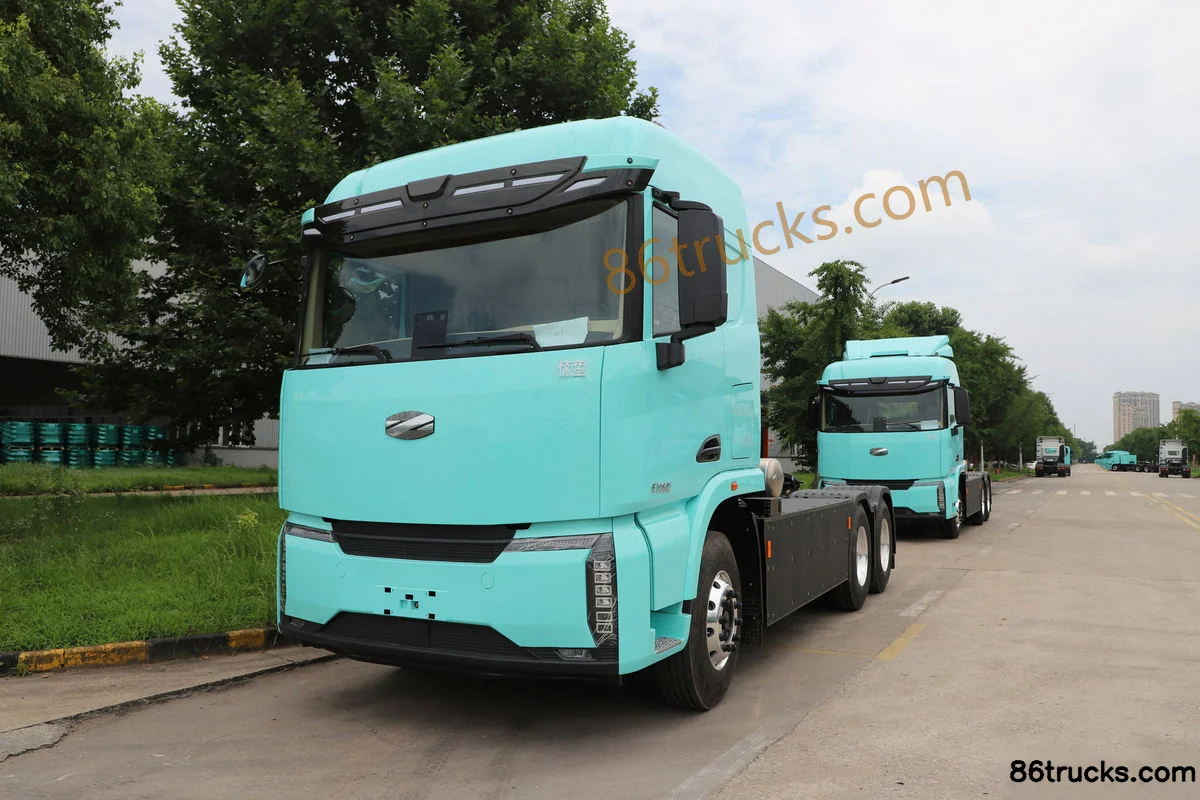

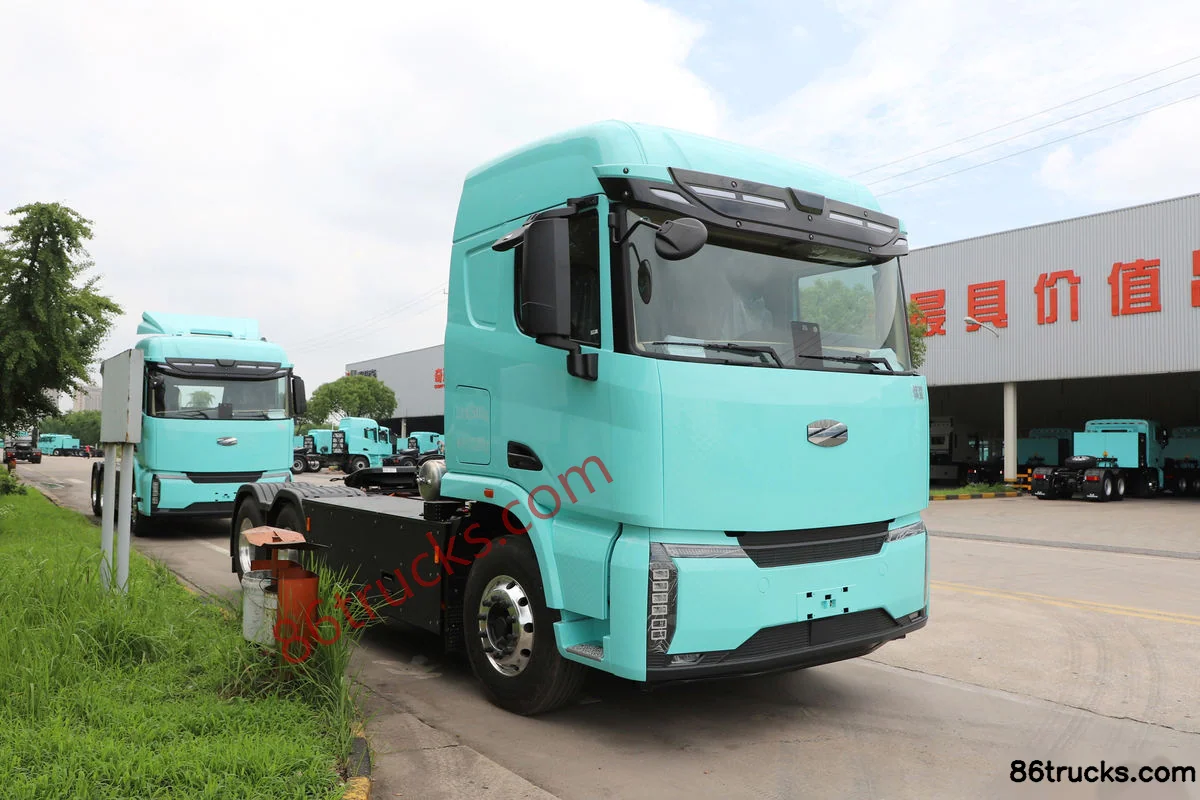

Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Exterior (1) | 86Trucks Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Exterior (2) | 86Trucks Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Exterior (3) | 86Trucks

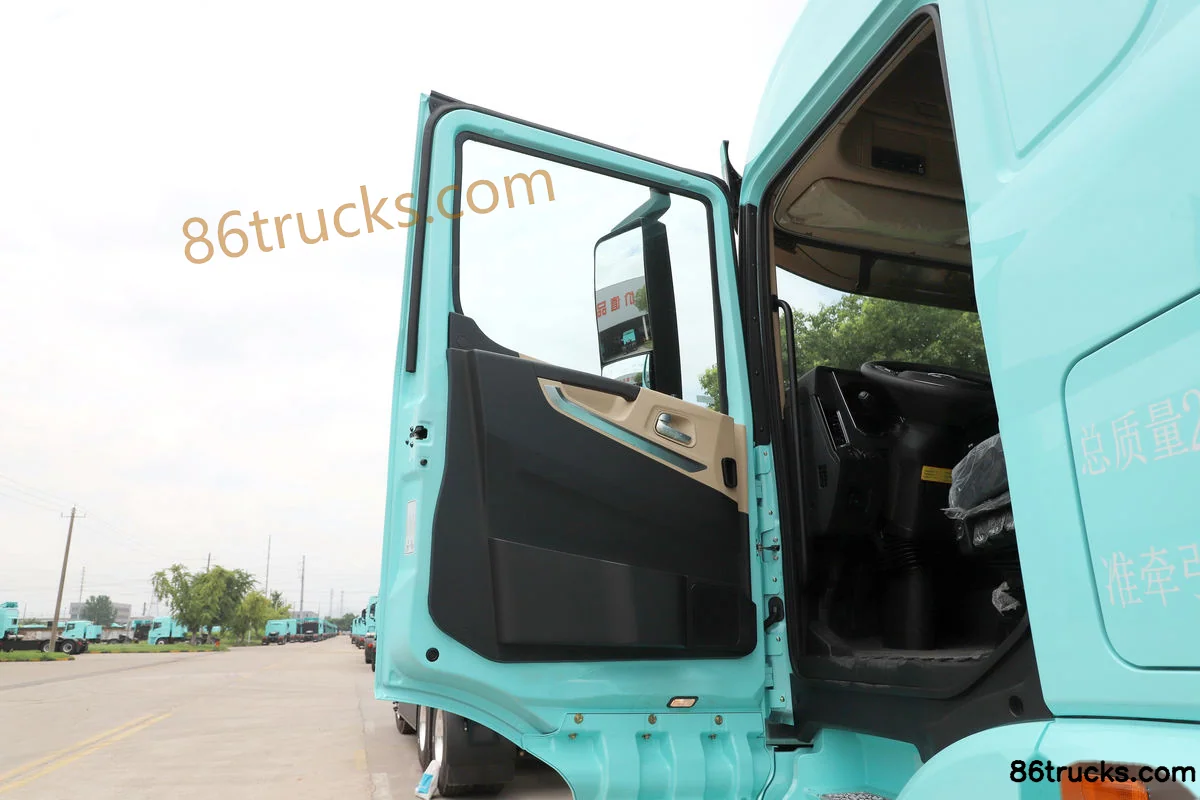

Cab3

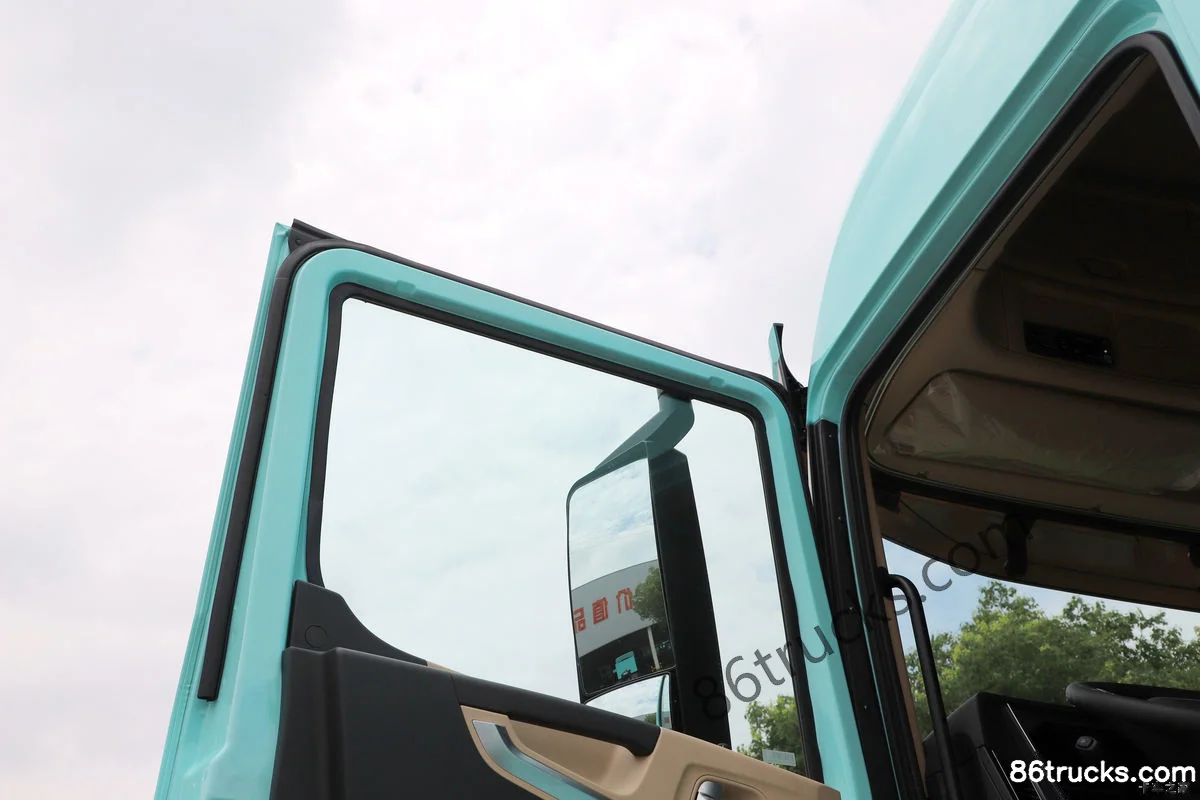

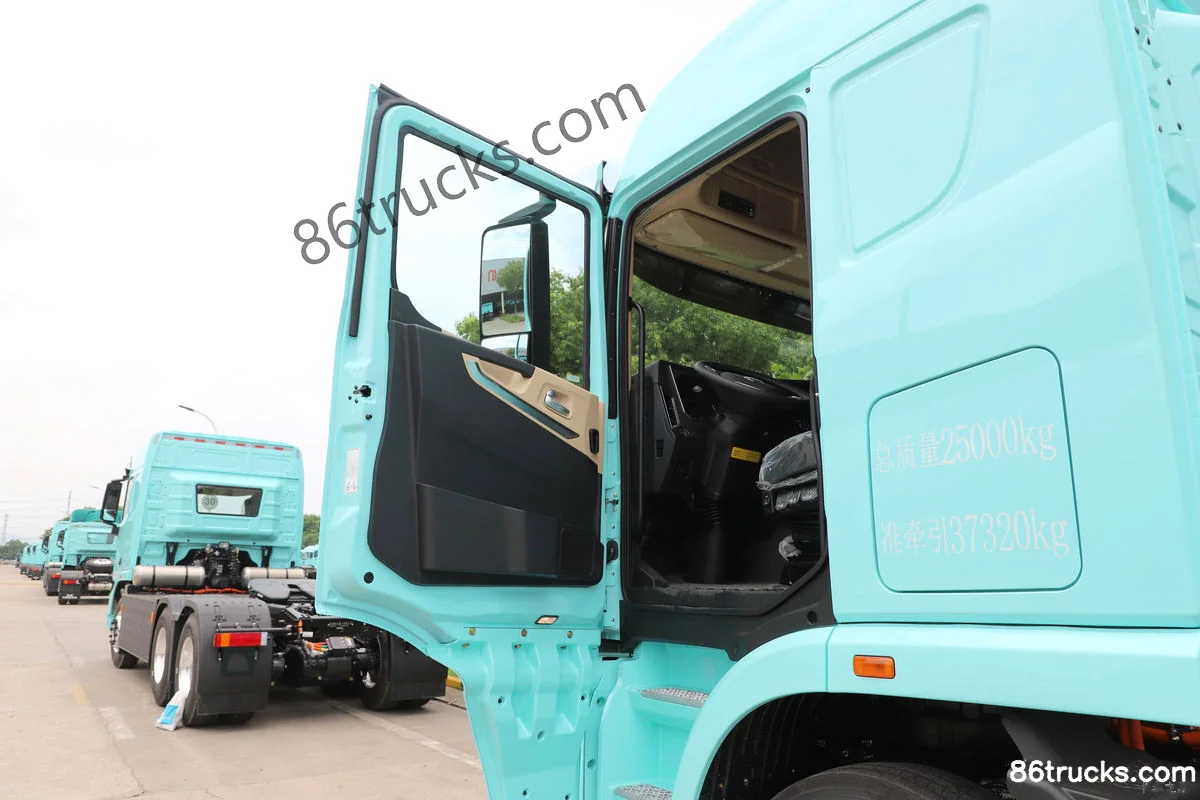

Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Cab (1) | 86Trucks Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Cab (2) | 86Trucks Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Cab (3) | 86Trucks

Chassis3

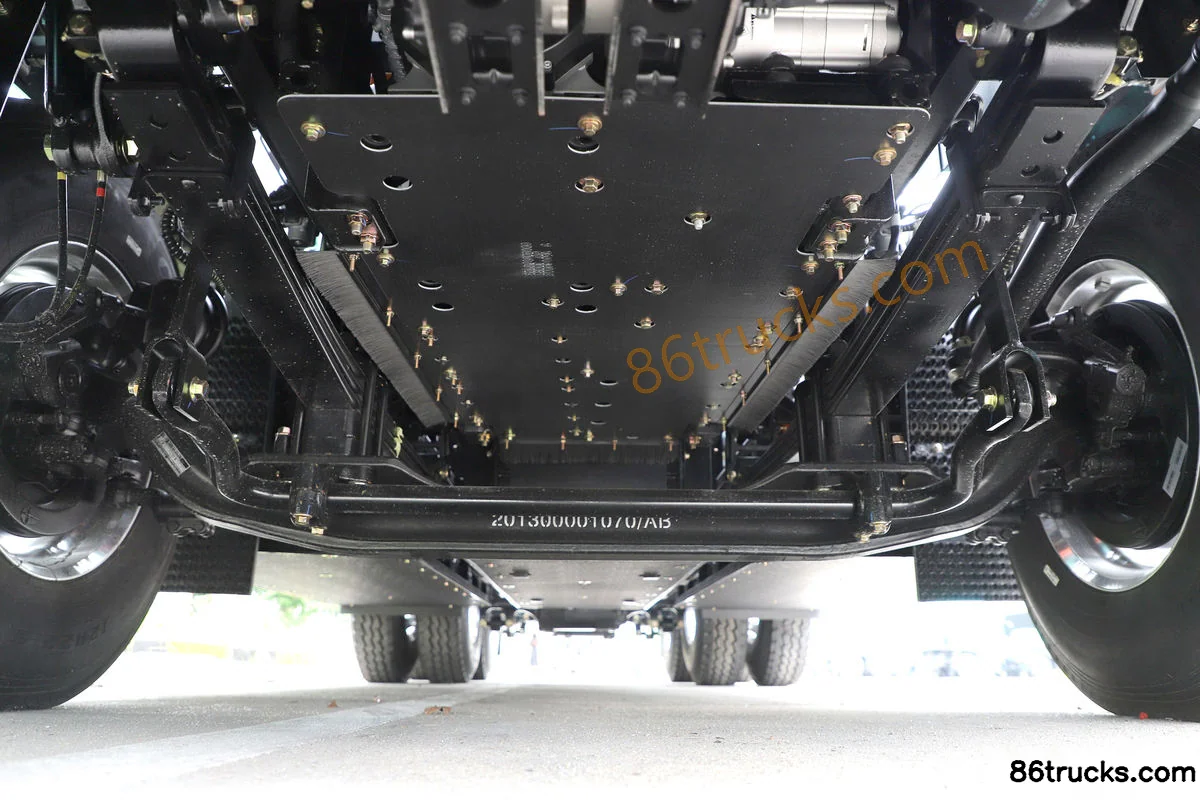

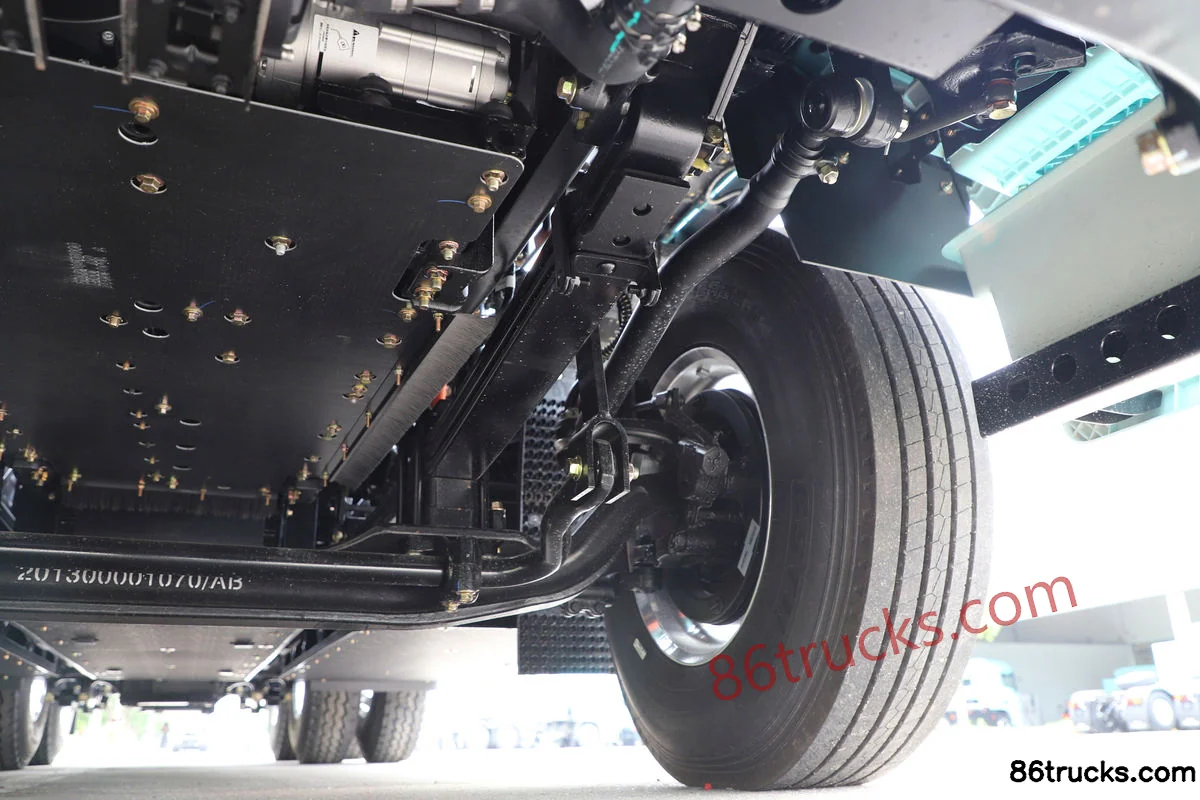

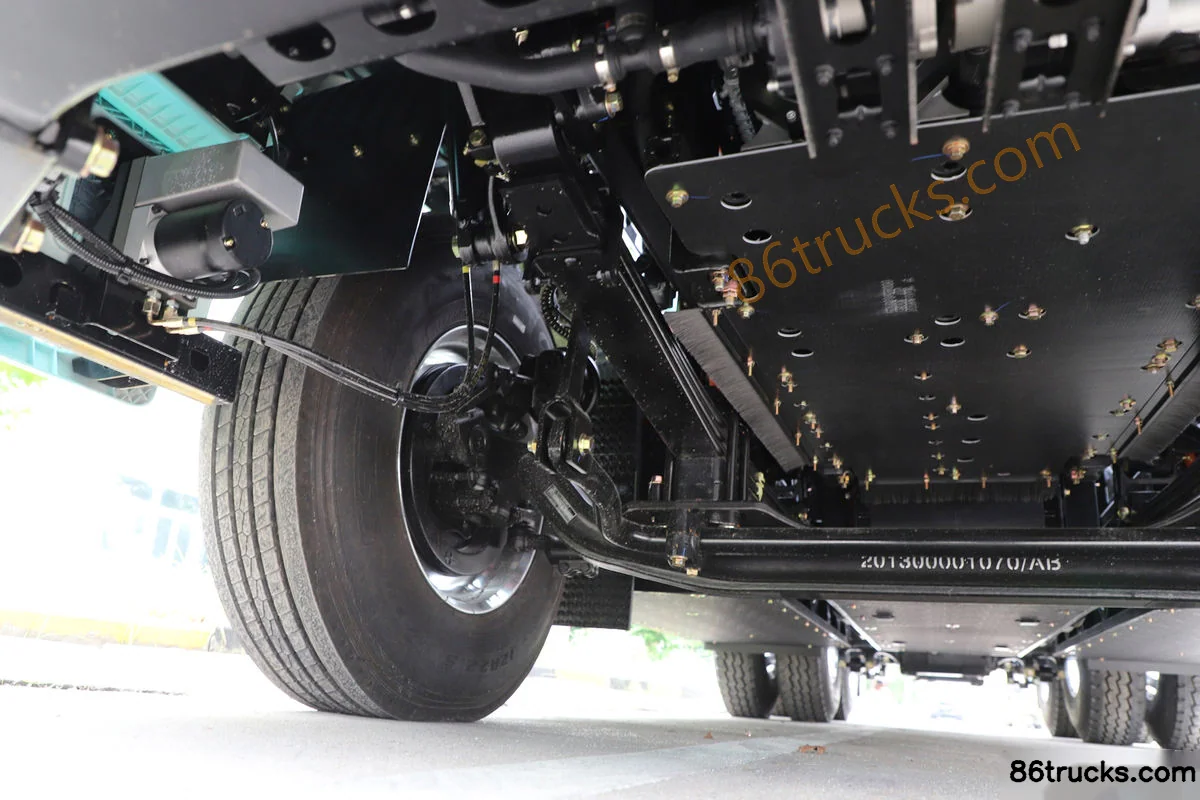

Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Chassis (1) | 86Trucks Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Chassis (2) | 86Trucks Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh?

Key specs of Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh suited for?

Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh differ from other variants in the same series?

Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh belongs to Lingyi Auto Jingzhe (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Lingyi Auto Jingzhe 6X4(10 wheels) Electric Tractor Truck 600kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
