Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift)

Export reference
From $23,819
MSRP ¥17.15M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7ton
Wheelbase:: 2400+1250mm
Tire Size:: 11.00R20 18PR
Rated payload: 17.805ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift) is a Medium-duty truck featuring 17.805t payload, 25t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04220-66 engine, 220 hp, China VI emissions and Fast Gear transmission.

China VI 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3256L03Y3D6
Drive type: 6X2
Wheelbase: 2400+1250mm
engine: YuchaiYCS04220-66
transmission: Fast Gear10JS90A
Rear Axle Ratio: 5.143
Cab length: 6.79m
Cab width: 2.5m
Cab height: 2.95m
Front track width: 1760,mm
rear track: 1760/1750mm
Curb Weight: 7ton
Rated payload: 17.805ton
GVWR: 25ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 15°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04220-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.6m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: T3 Sleeper
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: Mercedes-Benz hub reduction
rear axle allowable load: 6500/11500kg
Axle ratio: 5.143
Leaf spring count: 9/7+-/10+8
clutch: Φ380
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: Plastic
Multifunction steering wheel:
AC control type: Manual

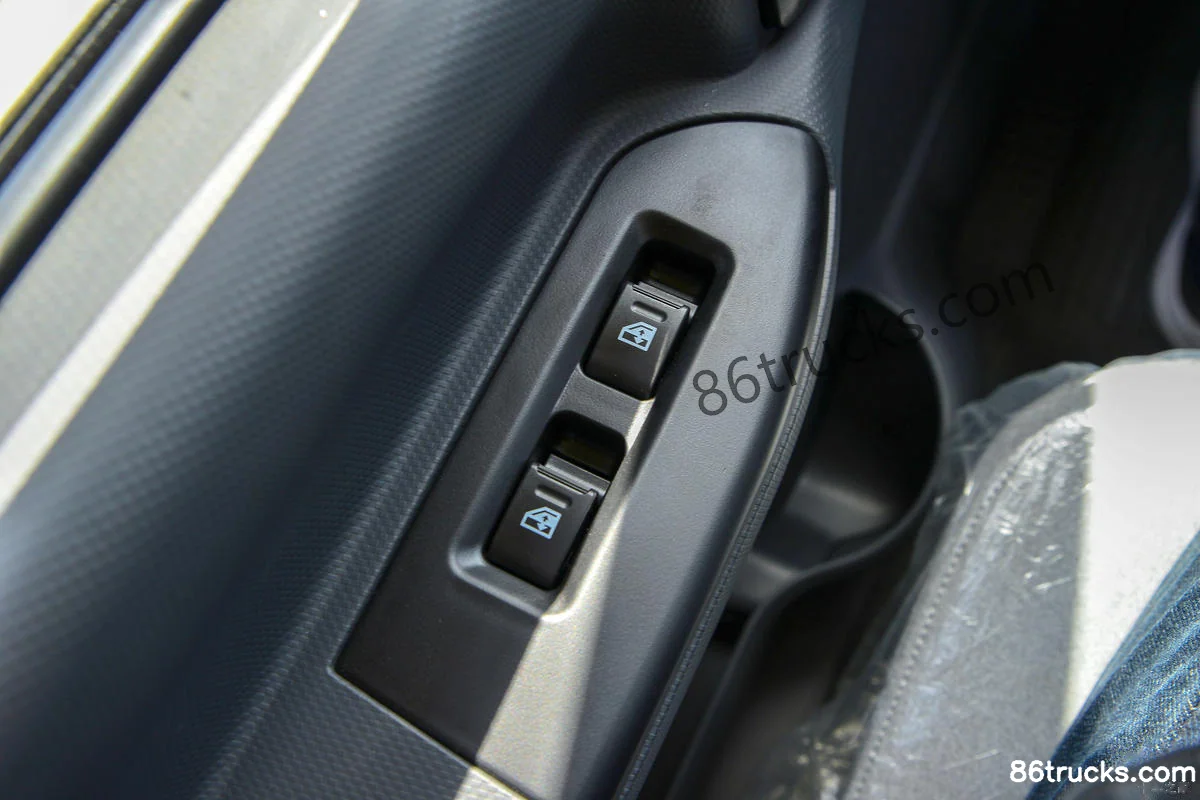

Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Radio:
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

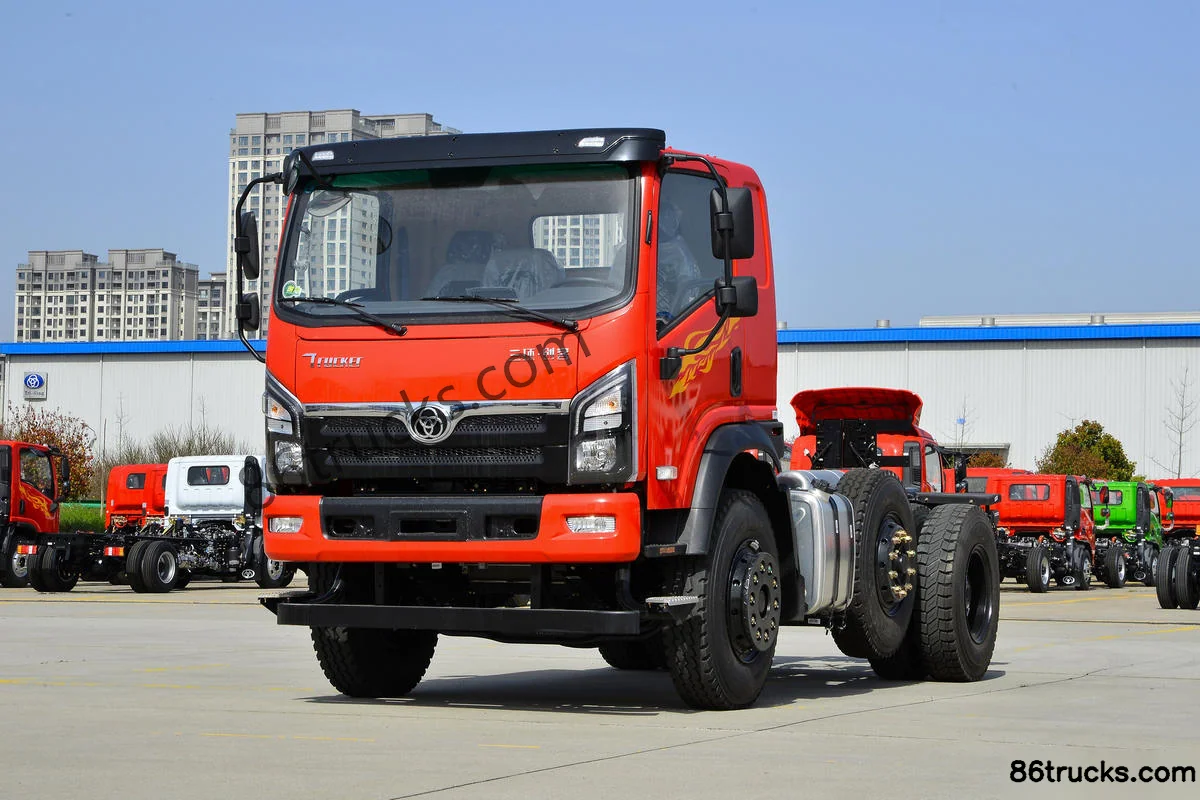

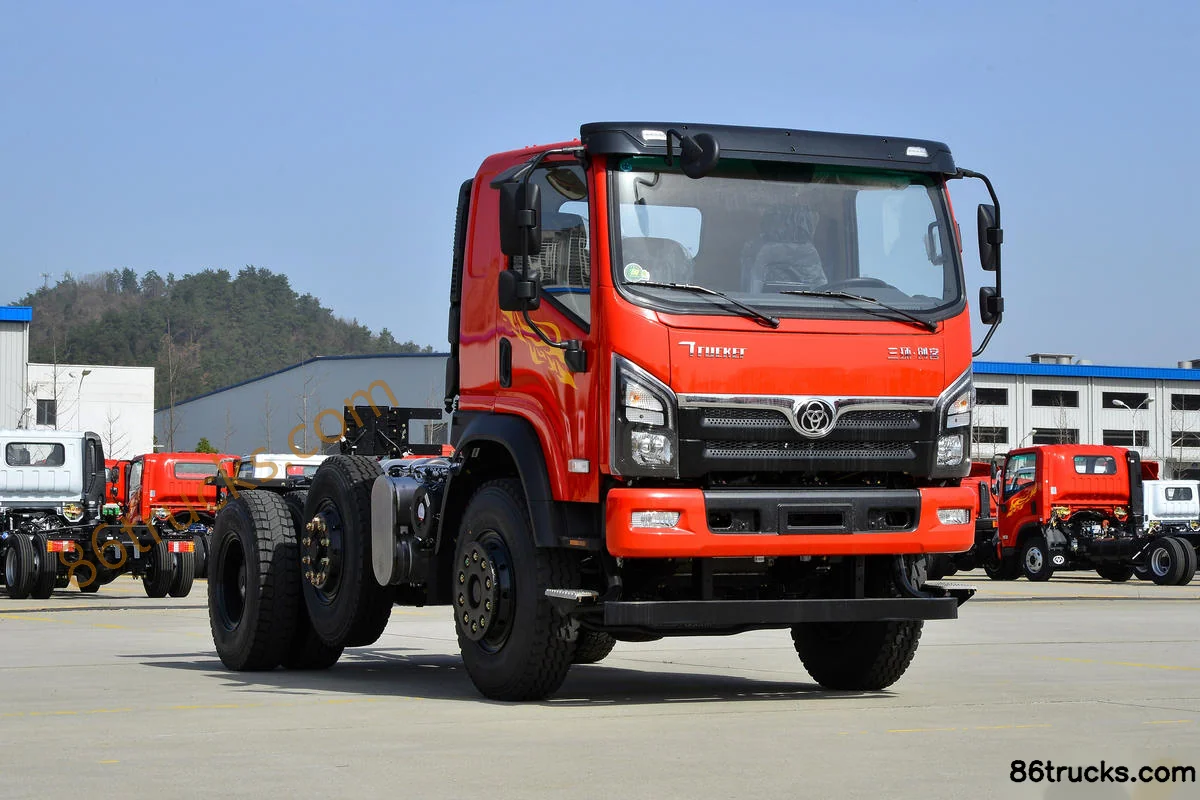

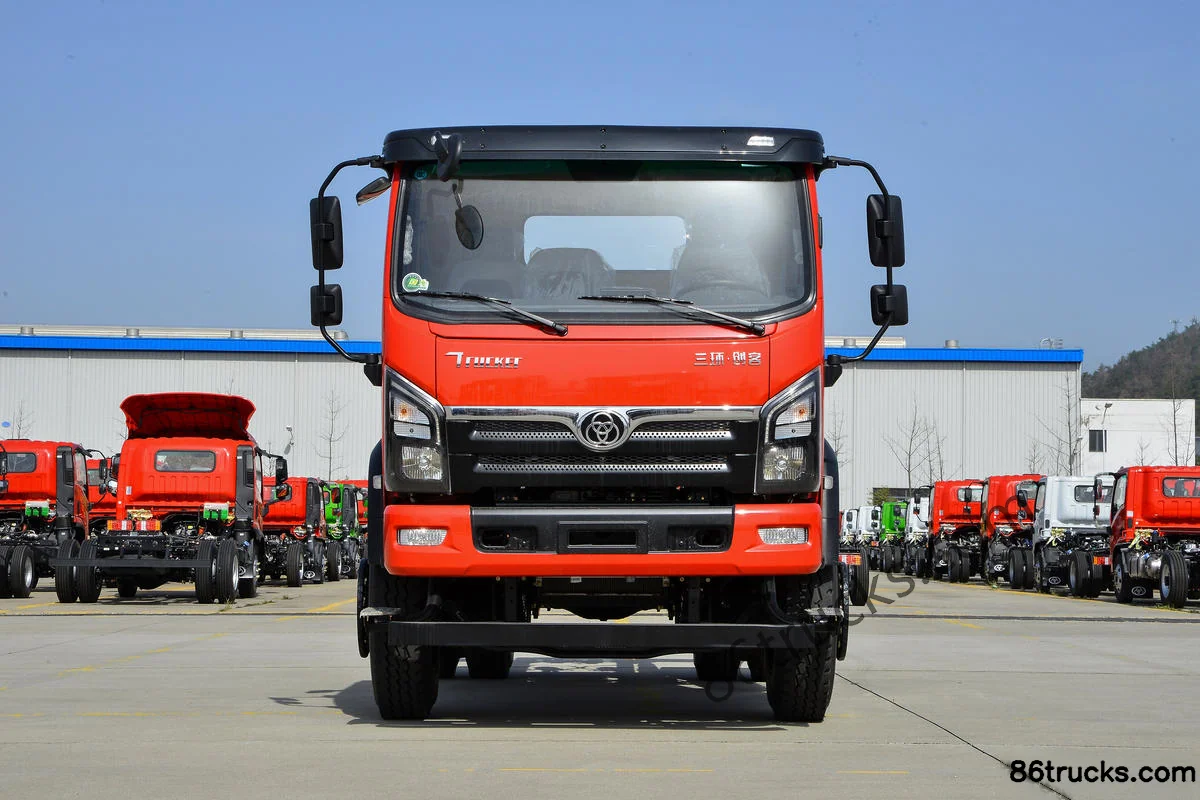

Exterior3

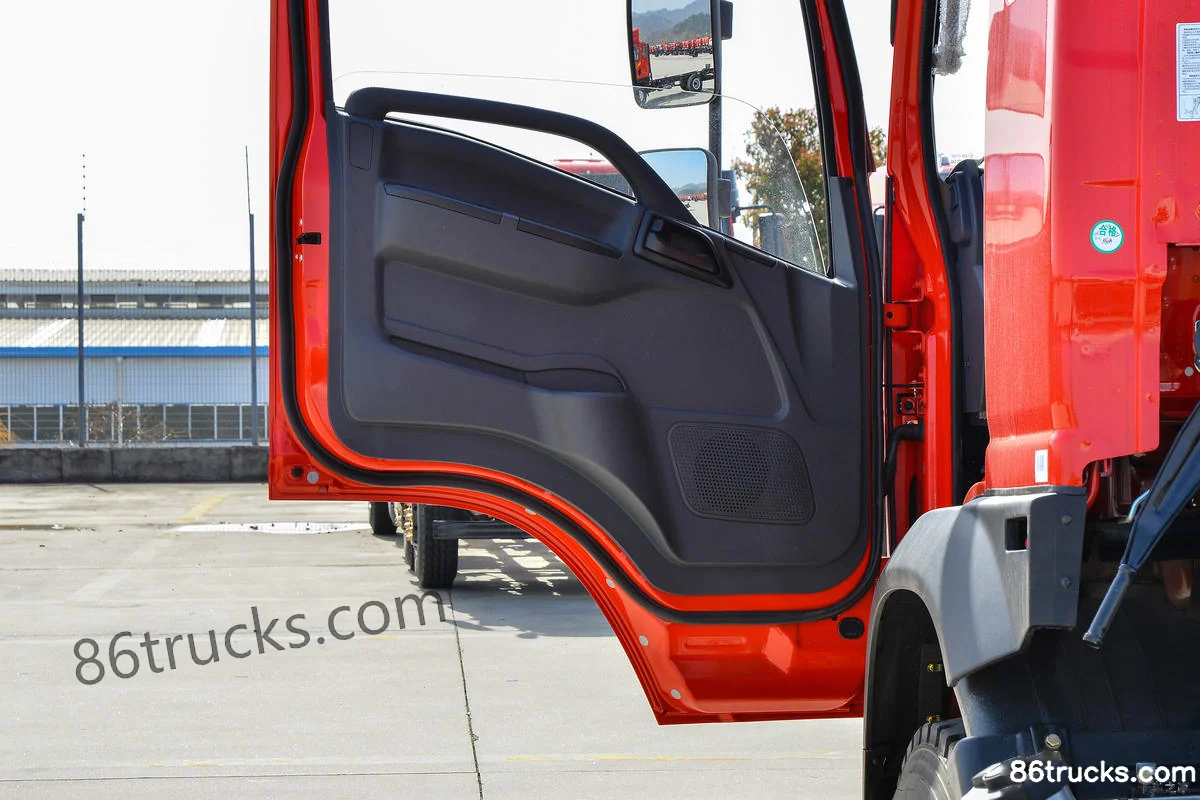

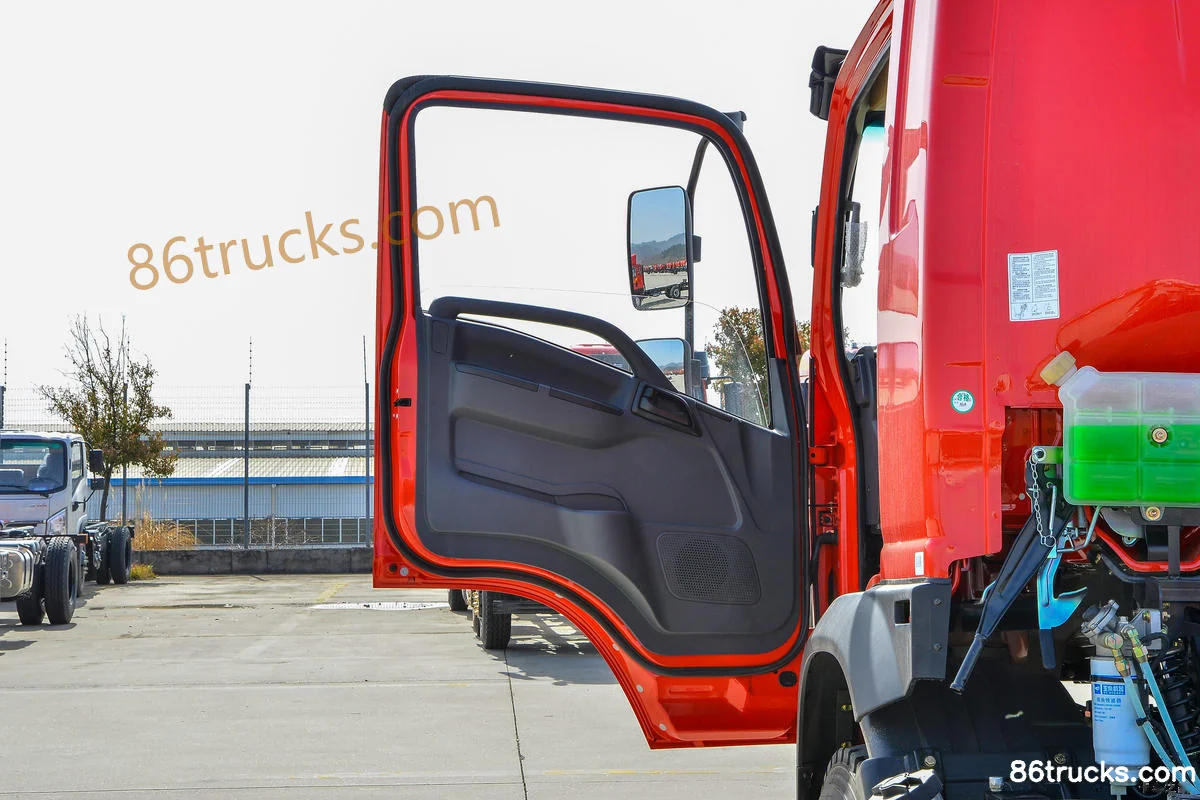

Cab3

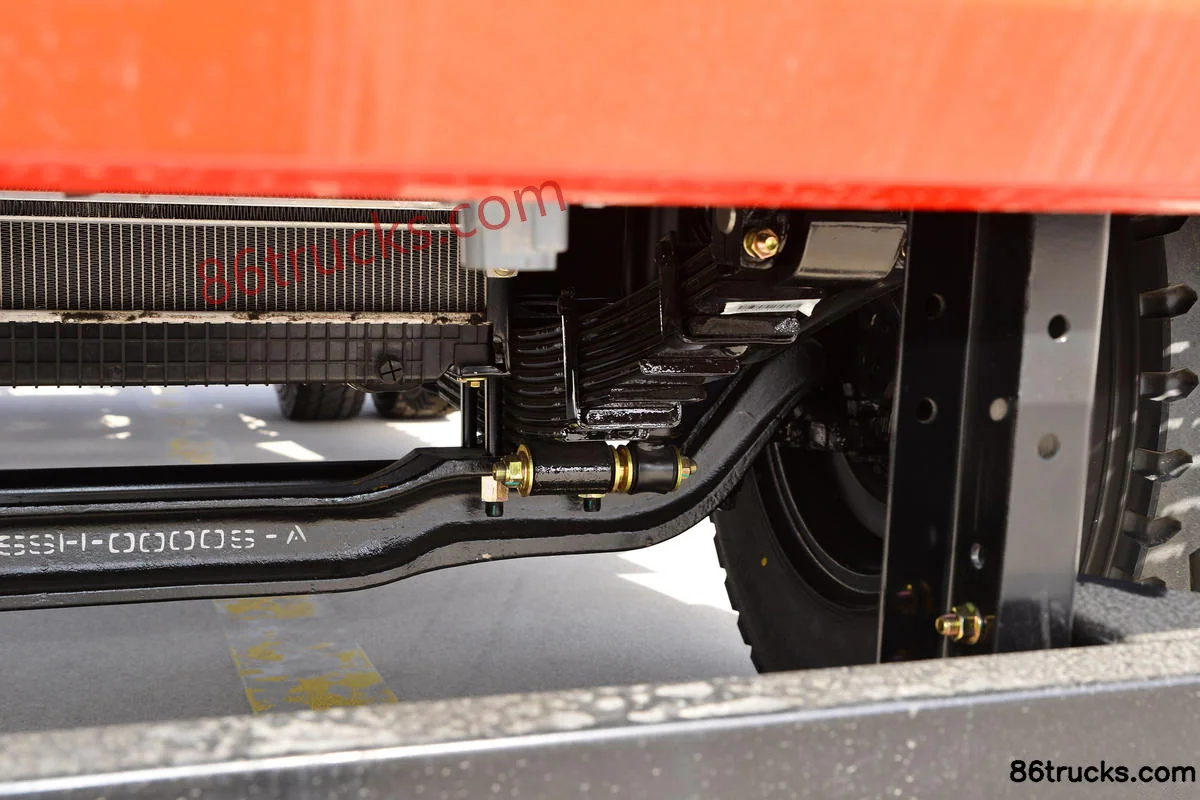

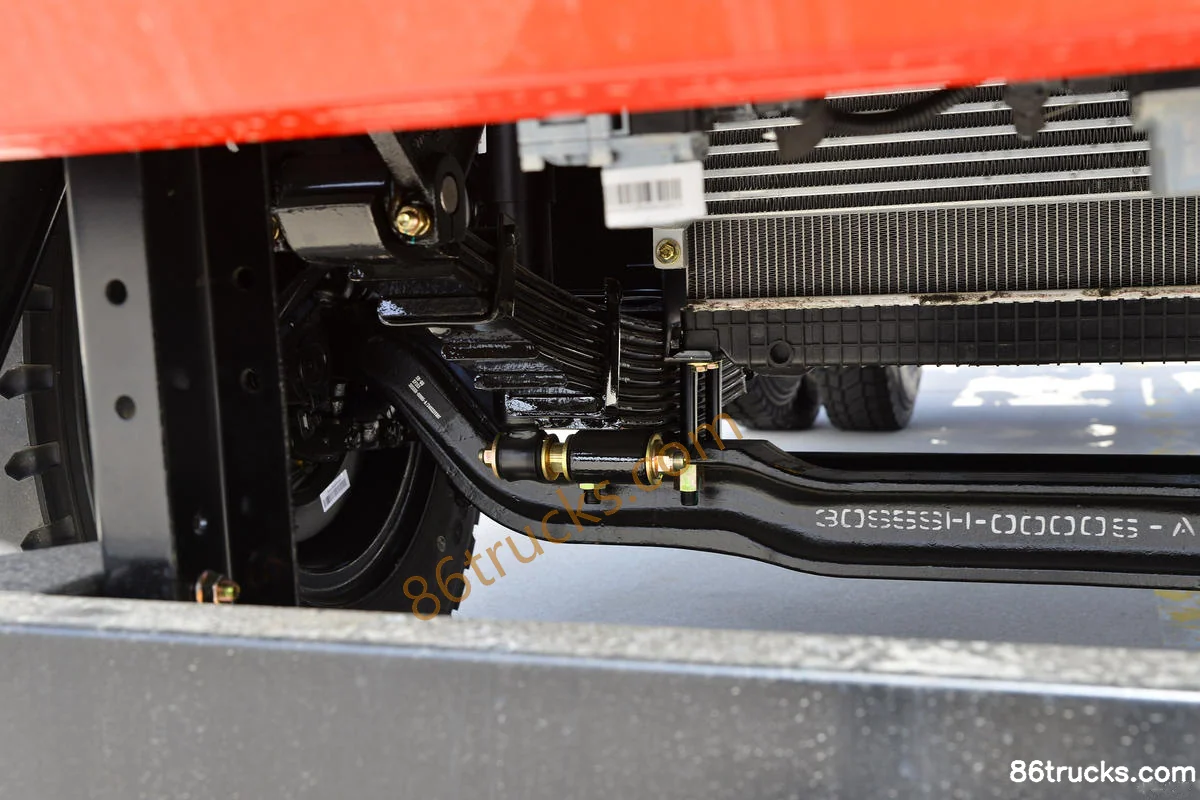

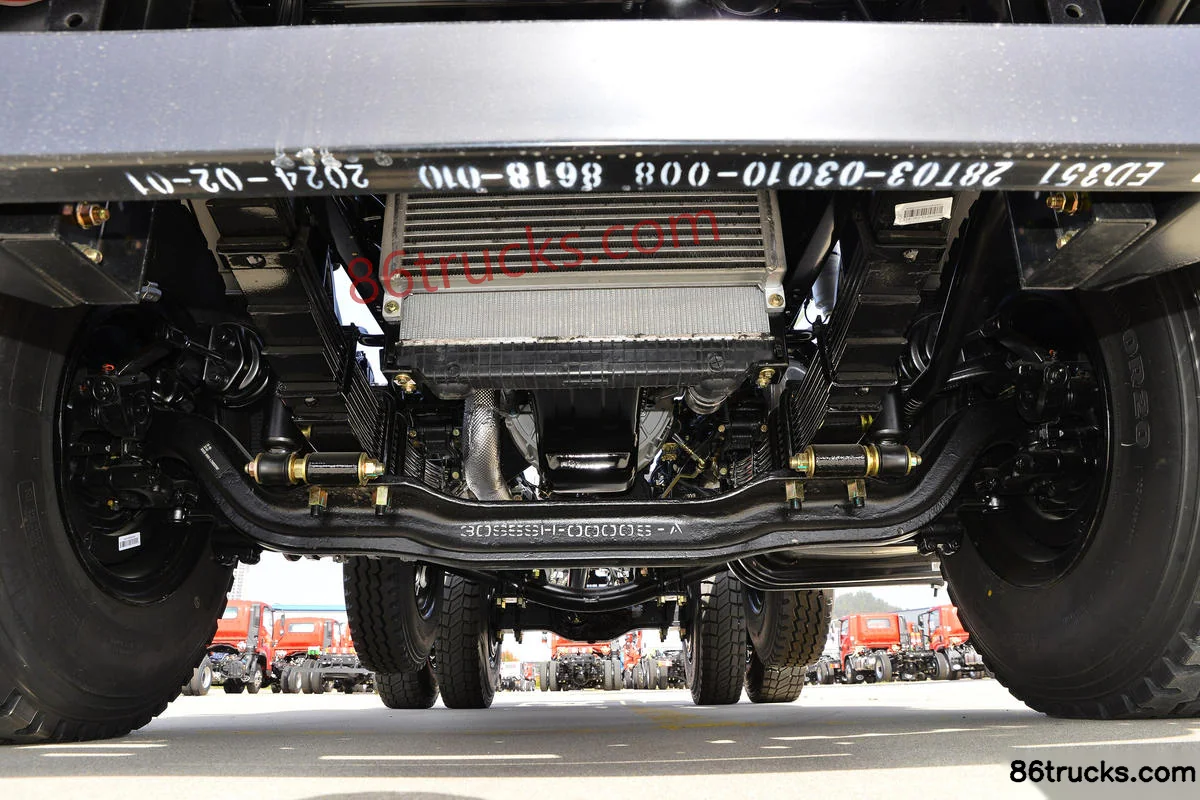

Chassis3

9 photos

FAQ

What is the export price of Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift), and what does it include?

Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift) export reference is about From $23,819; MSRP is ¥17.15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift)?

Key specs of Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift): Drive: 6x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift) suited for?

Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift) differ from other variants in the same series?

Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift) belongs to Sanhuan Shitong Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.6m Dump Truck (Mid-lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
