Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck

Export reference
From $53,000
MSRP ¥38.16M CNY
Horsepower: 470
Emission: China VI
Fuel: Diesel
Engine: Fukang 11.8L
Transmission: ZF
Curb Weight:: 12.2ton
seating capacity: 2Personnel
Rated payload: 18.67ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck is a Heavy truck featuring 9.56m cargo length, Stake type cargo body, 2Personnel volume and 18.67t payload. On the powertrain side, it comes with a Fukang 11.8L engine, 470 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 470 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5319CCYY6GRL-01
Type: stake truck
Drive type: 8X4
Wheelbase: 2100+4400+1350mm
Box length class: 9.6m
engine: FotonX12NS6B470
transmission: ZF12TX2420TD
Rear Axle Ratio: 2.533
Cab length: 12m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 2080/2080mm
rear track: 1865/1865mm
Curb Weight: 12.2ton
Rated payload: 18.67ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Huairou, Beijing
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 11°
Remarks: Optional ratio 2.643, 2.389
Front/rear suspension: 1.46/2.64m
Version: Pro
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: X12NS6B470
Engine info: Fukang 11.8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China VI
Max output power: 346kW
Max hp: 470Horsepower
Max torque: 2300N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZF12TX2420TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 4pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.56m
Cargo box width: 2.45m
*Cargo box interior width: 2.45
Cab parameters
Cab suspension: Four-point air suspension
Cab width: 2490mm
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
upper bunk width: 580mm
Lower Bunk Width: 880mm
Sunroof: Power Sunroof
fuel tank
Fuel tank capacity: 850L
Chassis Specs
Front axle description: AM5 front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 286×80×7mm
rear axle description: New 440 single reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.533
Leaf spring count: 2/2/3
Aluminum wheels:
clutch: Φ430
Tire
Tire Size: 12R22.5 16PR
Number of tires: 12pcs
Control configuration
ABS:
Stability control system:
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
clutch booster:
interior configuration
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

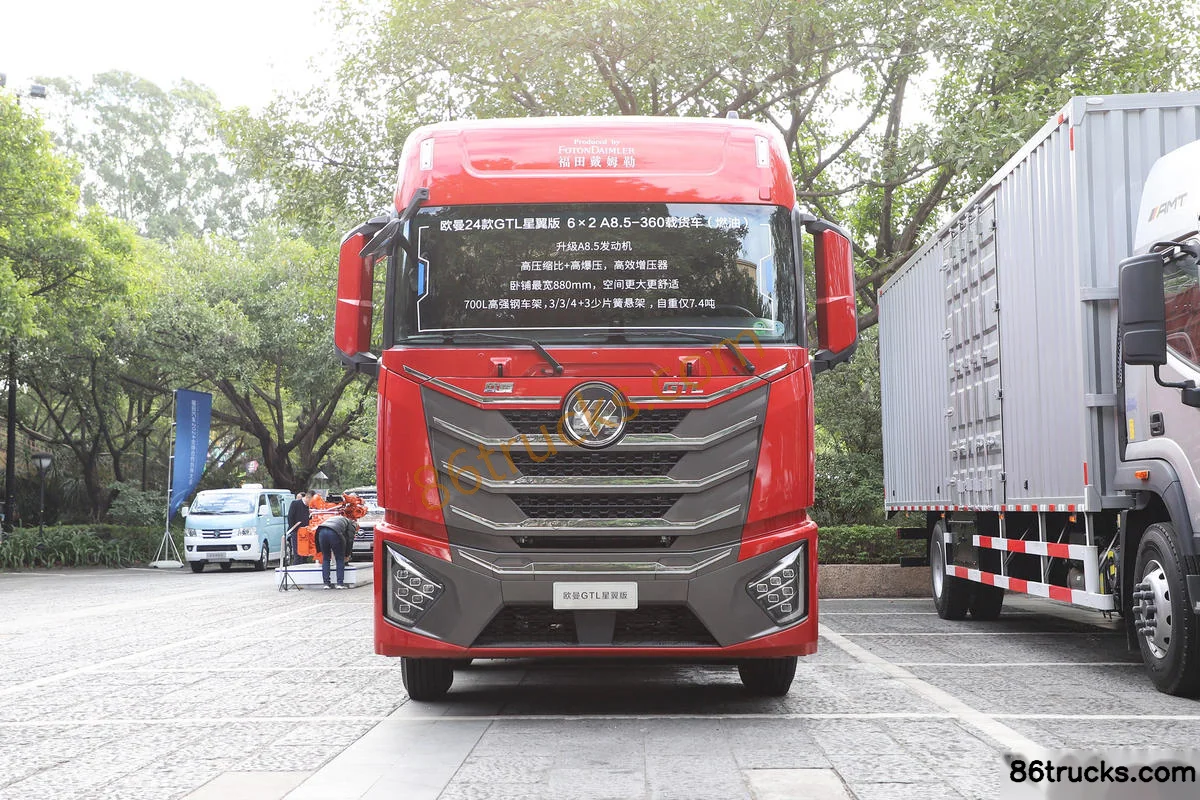

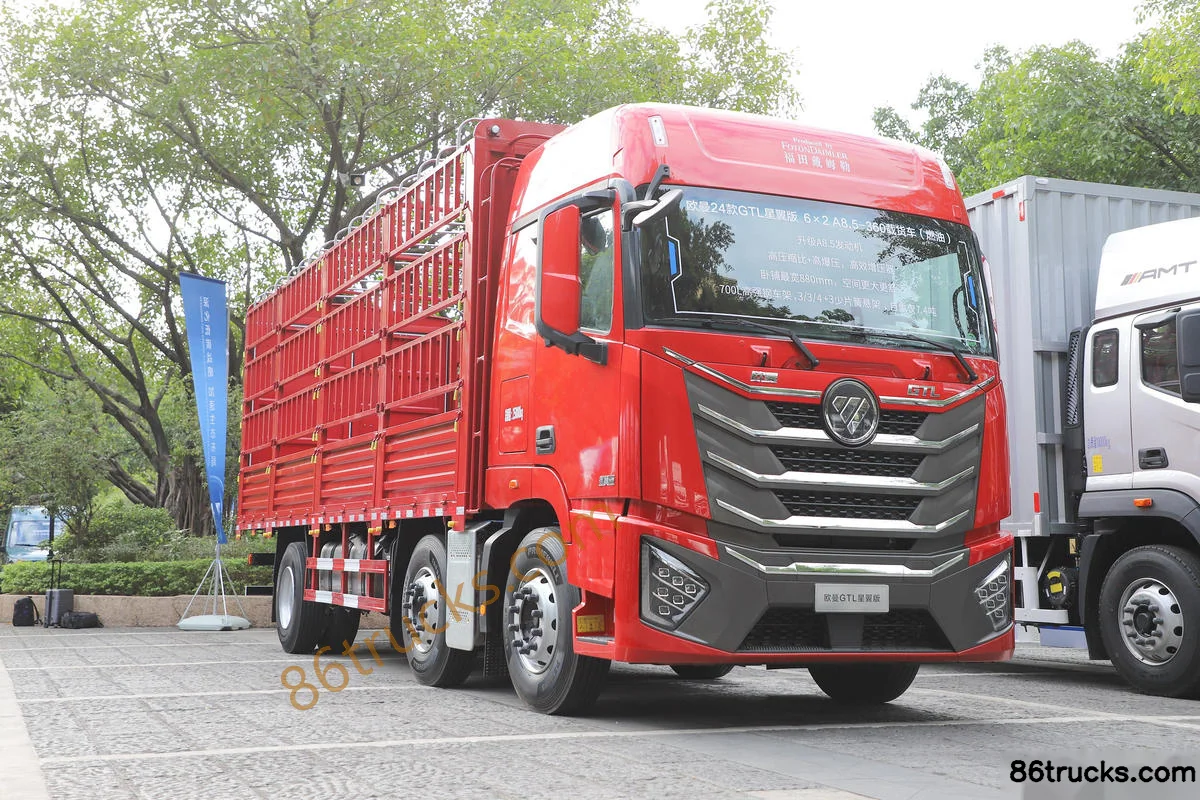

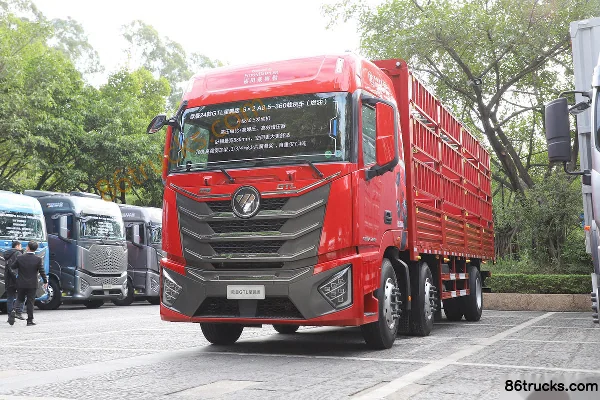

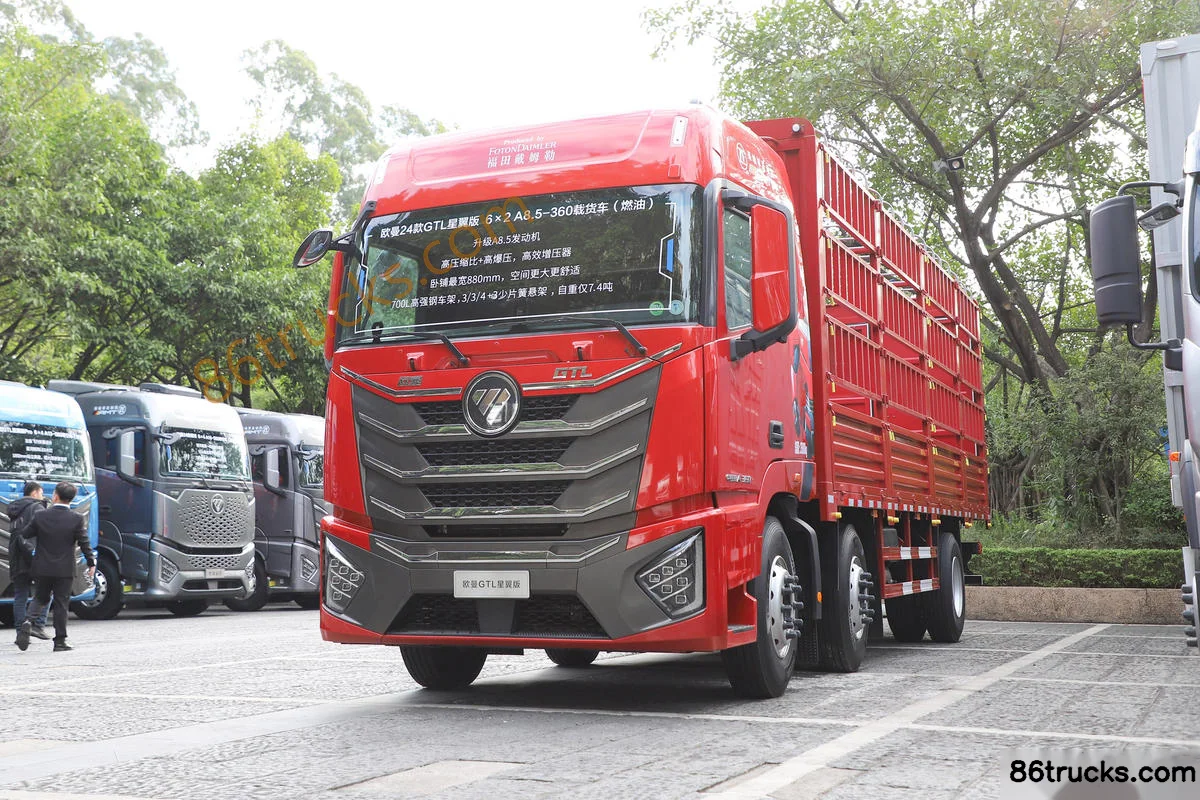

Exterior3

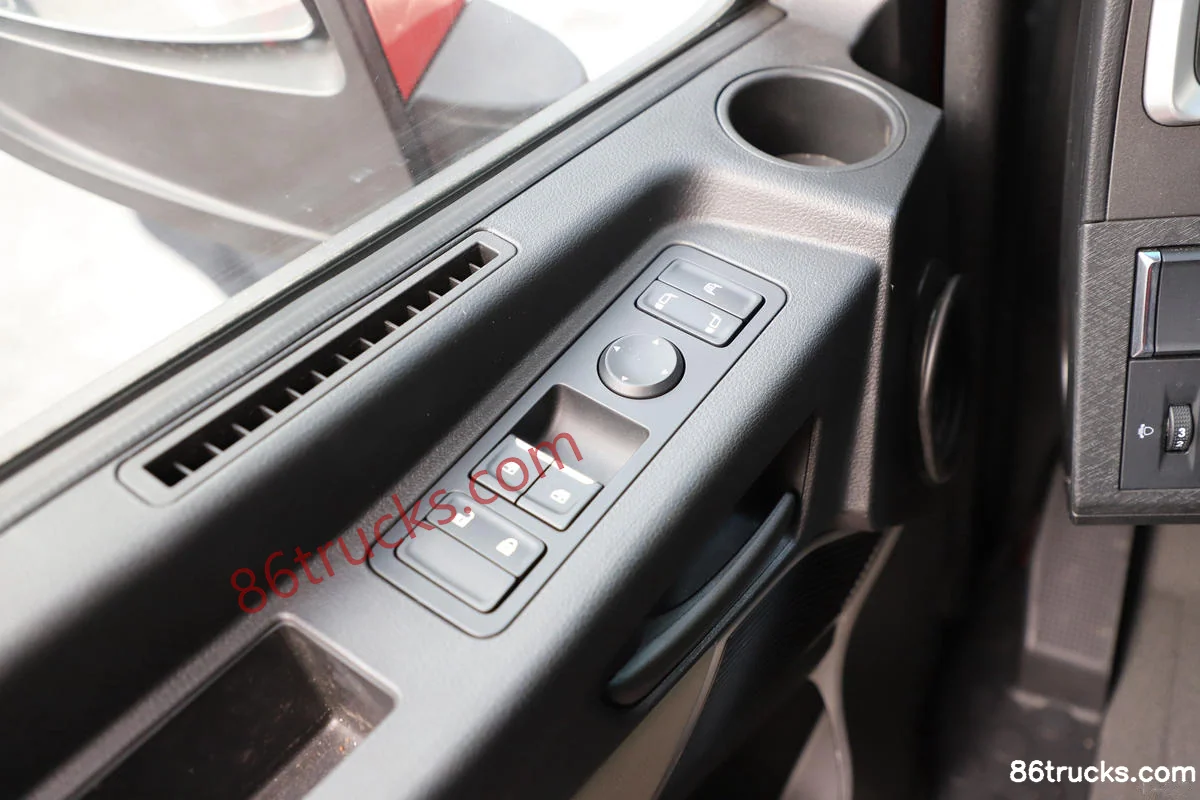

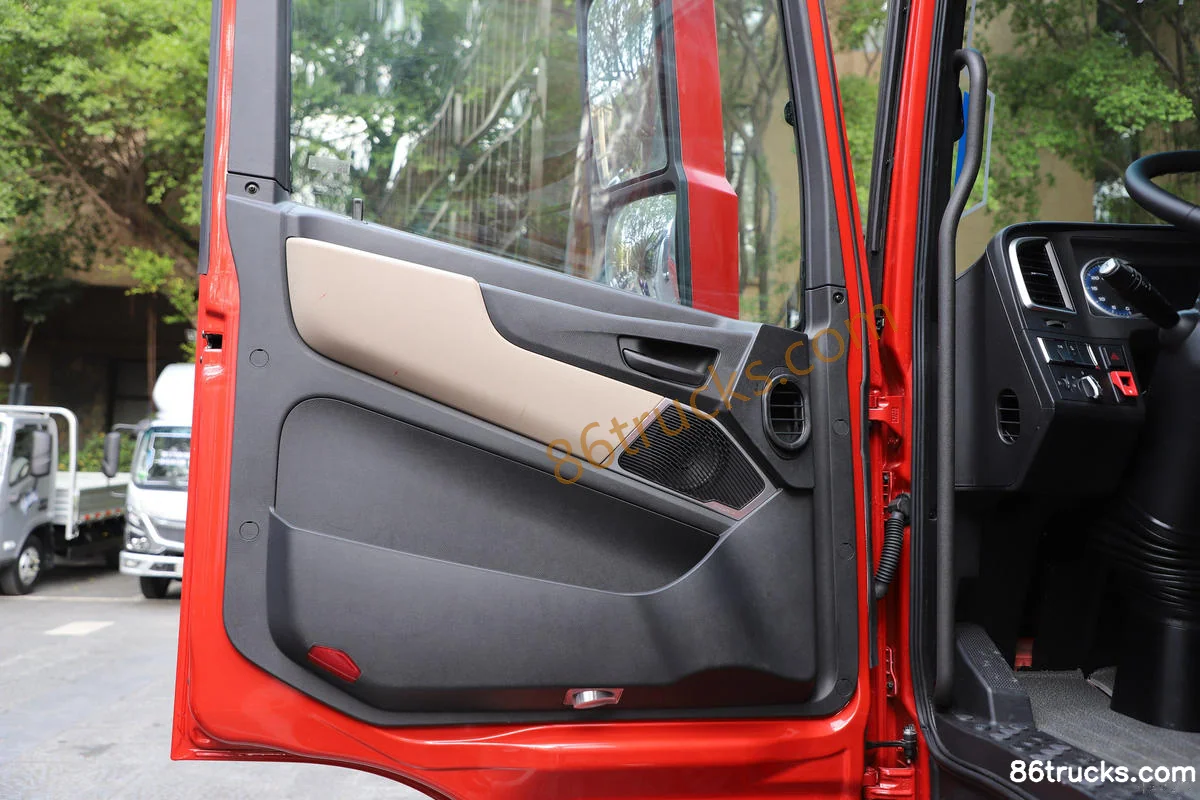

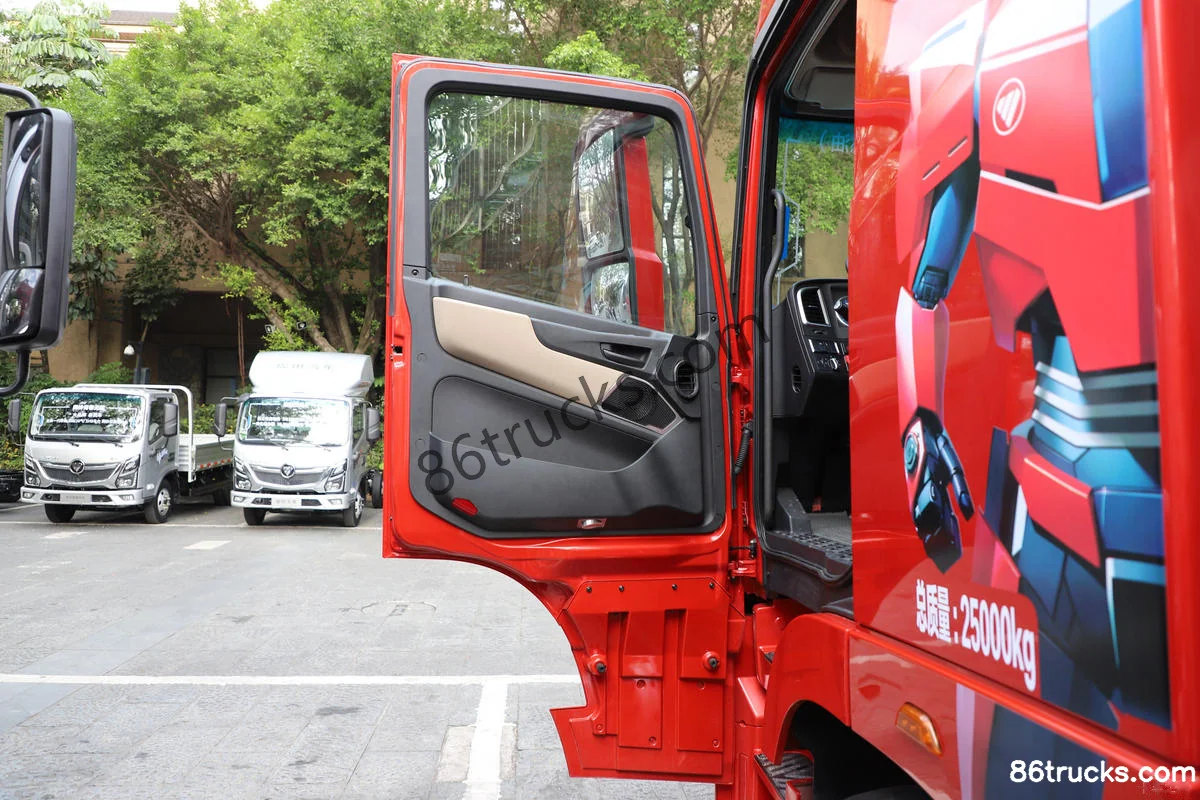

Cab3

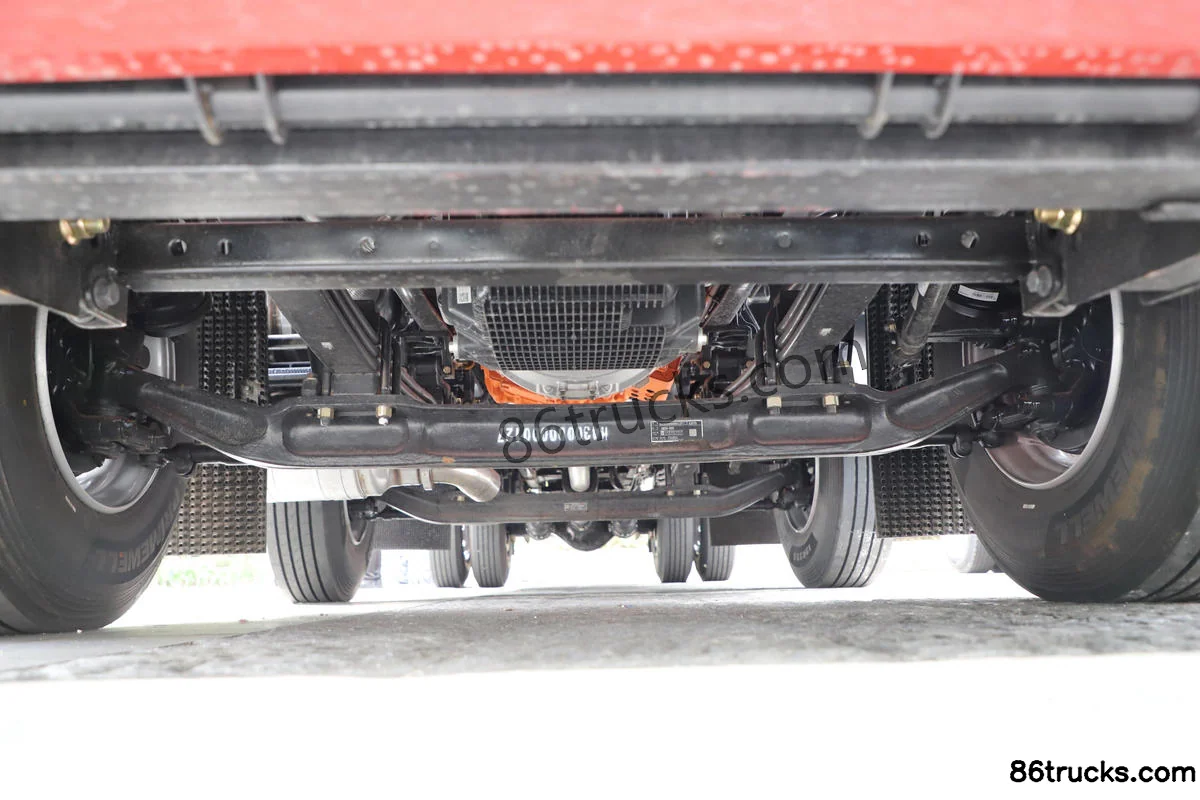

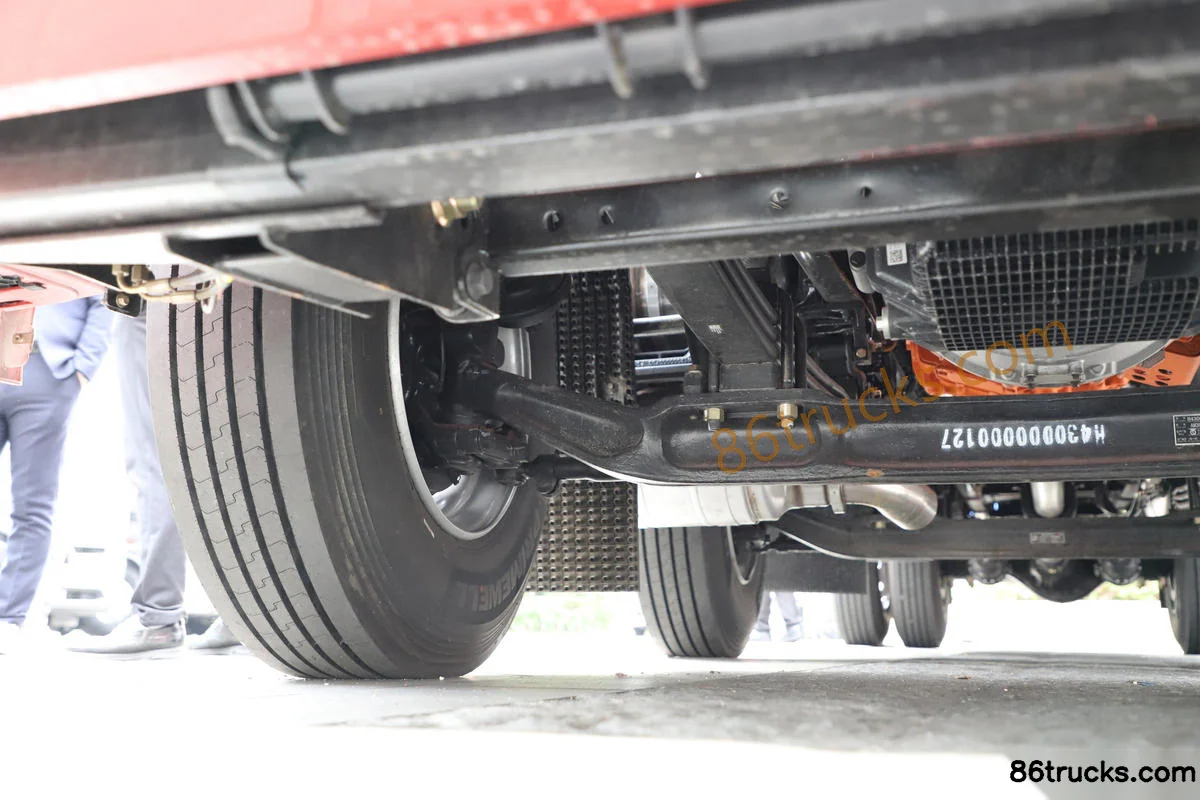

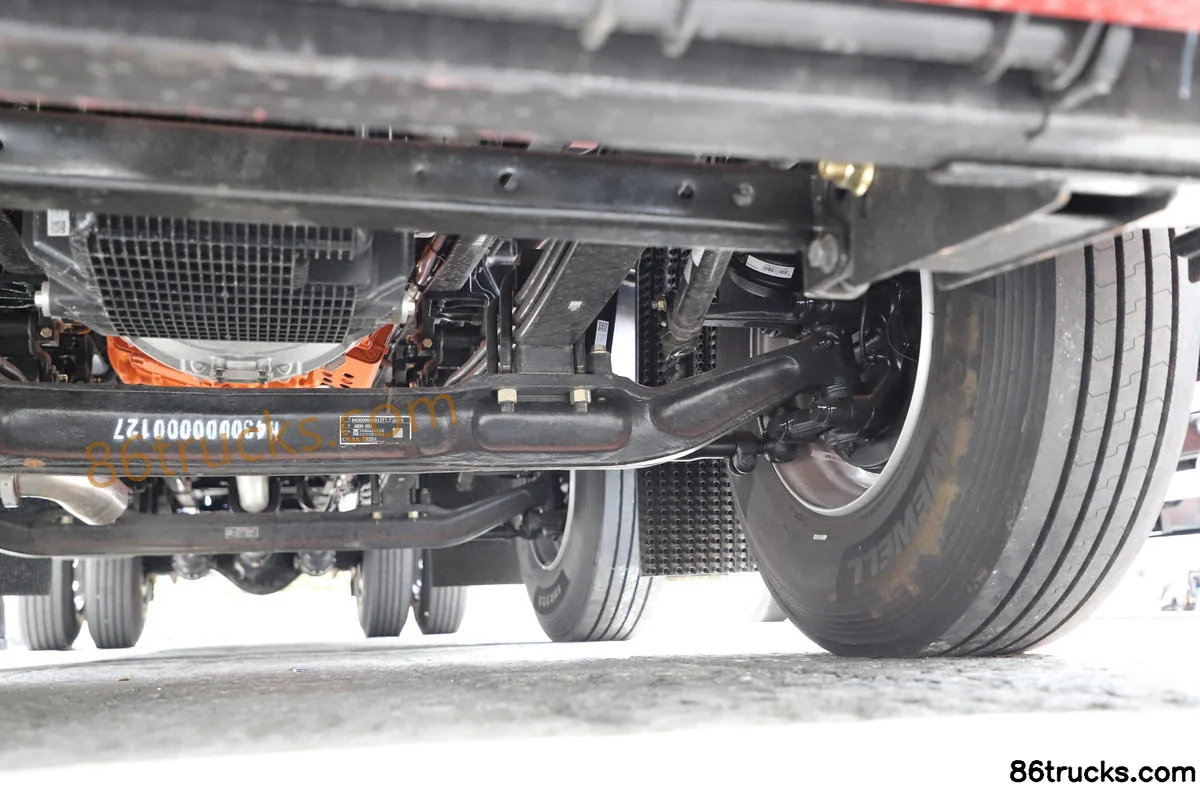

Chassis3

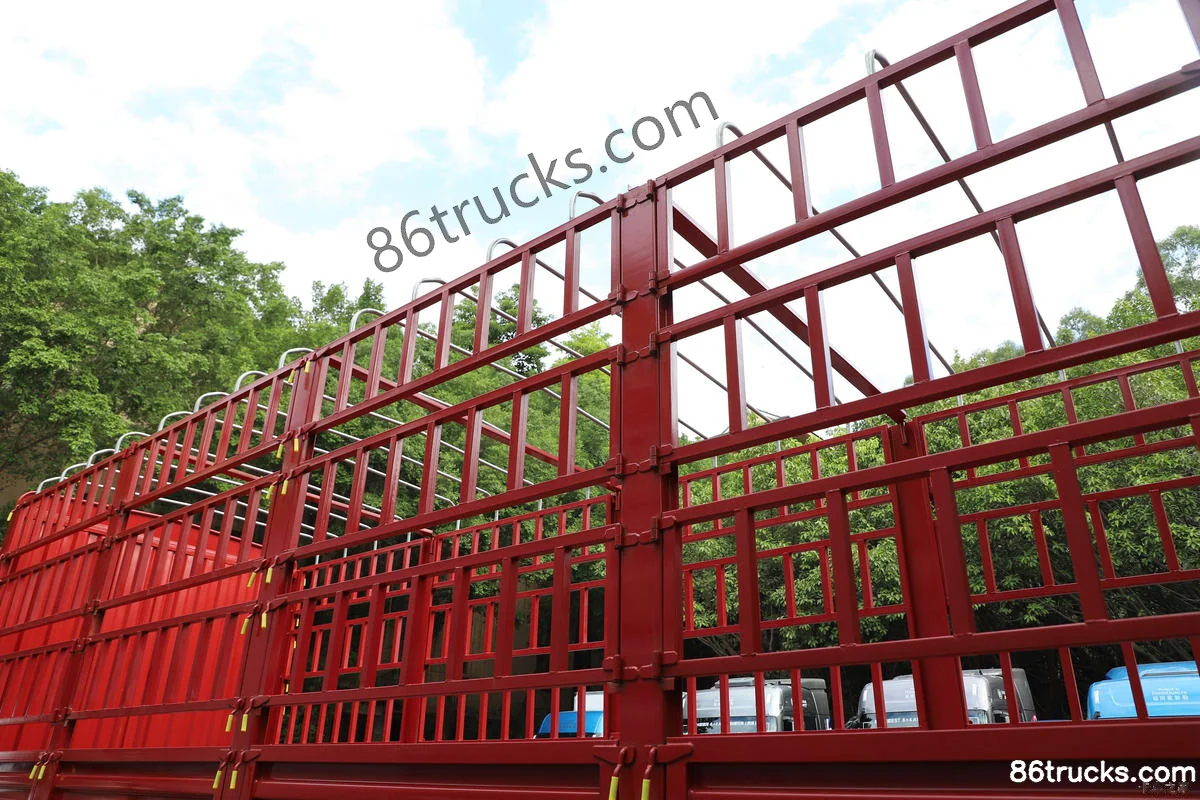

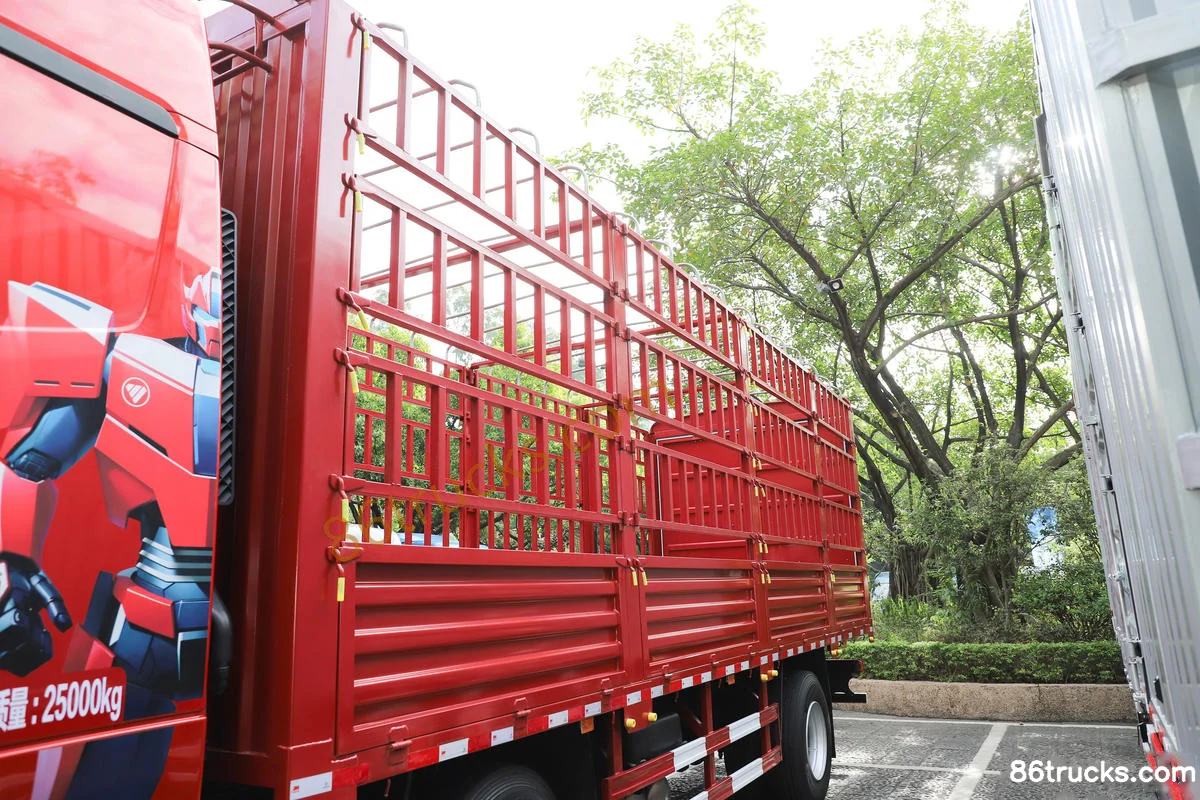

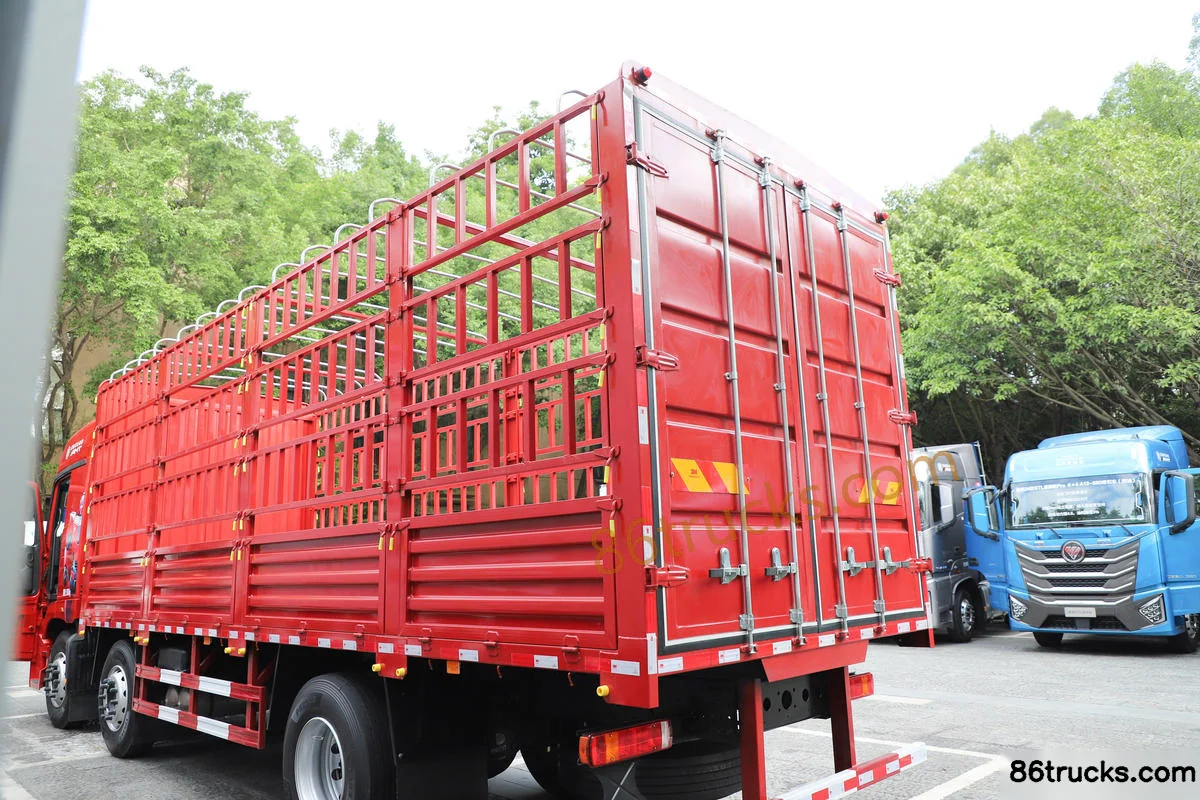

Body3

12 photos

FAQ

What is the export price of Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck, and what does it include?

Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck export reference is about From $53,000; MSRP is ¥38.16M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck?

Key specs of Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck: Drive: 8x4; Horsepower: 470 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang 11.8L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck suited for?

Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck differ from other variants in the same series?

Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck belongs to Foton Auman GTL Star Wing Edition (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton AumanGTL Star Wing Pro 11.8L Diesel 470hp 8X4(12 wheels) ZF 12-speed AMT Automatic 9.56m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
