Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 241
Emission: China VI
Fuel: Diesel
Engine: Isuzu6HK1
Transmission: Fast Gear
Curb Weight:: 9ton
seating capacity: 2Personnel
Rated payload: 8.75ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck is a Heavy-duty cargo trucks featuring 7.6m cargo length, Van body cargo body, 2Personnel volume and 8.75t payload. On the powertrain side, it comes with a Isuzu6HK1 engine, 241 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 241 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5180XXYGTFRJ
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5800mm
Box length class: 7.6m
engine: Qingling Isuzu6HK1-TCG61
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.555
Cab length: 10m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2060mm
rear track: 1855mm
Curb Weight: 9ton
Rated payload: 8.75ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Jiulongpo, Chongqing
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 17°
Front/rear suspension: 1.37/2.83m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu6HK1-TCG61
Engine info: Isuzu6HK1
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.79L
Emission standard: China VI
Max output power: 177kW
Max hp: 241Horsepower
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.6m
Cargo box width: 2.5m
Cargo box height: 2.62m
*Cargo box interior width: 2.5
Cab parameters
Cab suspension: 4-point mechanical suspension
Cab width: 2200mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.555
Leaf spring count: 7/6+8
Tire
Tire Size: 295/80R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Mirrors:
Electric Heated Rearview Mirror:
Multimedia features
Bluetooth / hands-free calling:
Radio:
LCD instrument cluster:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Exhaust brake:
smart configuration
Cruise control (CCS):

Photos

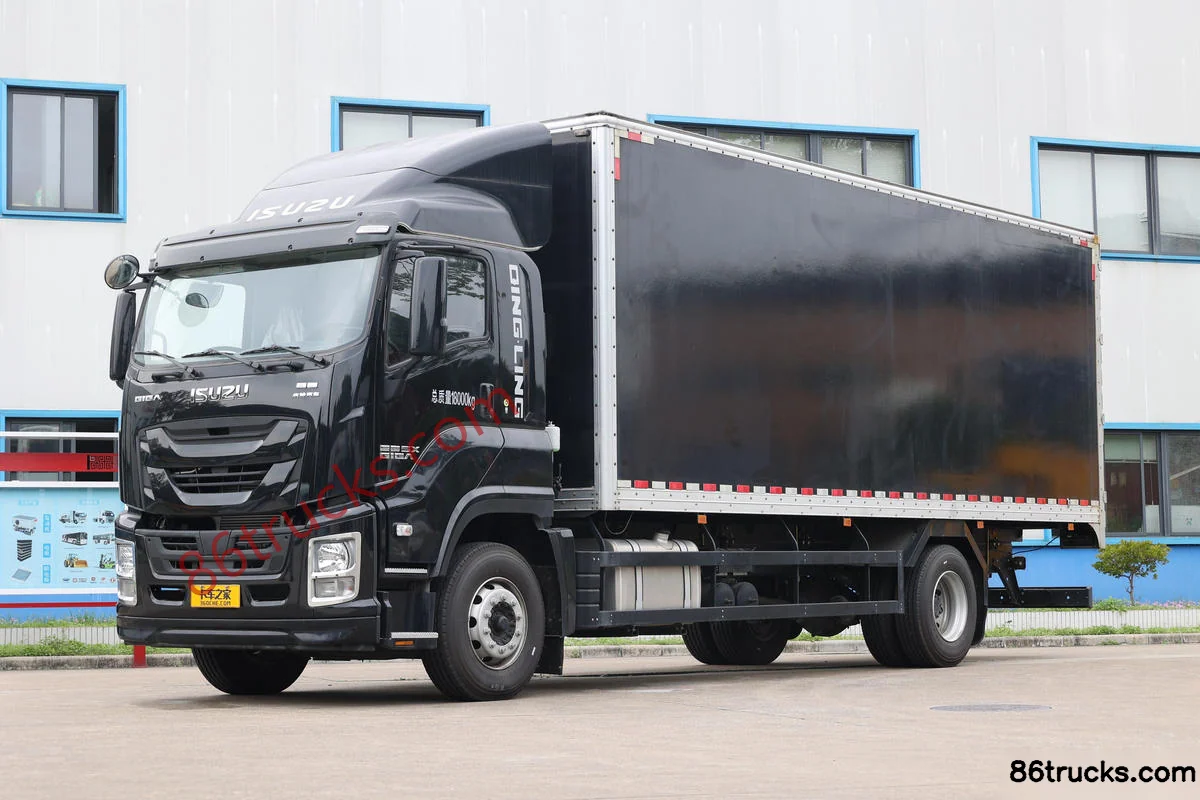

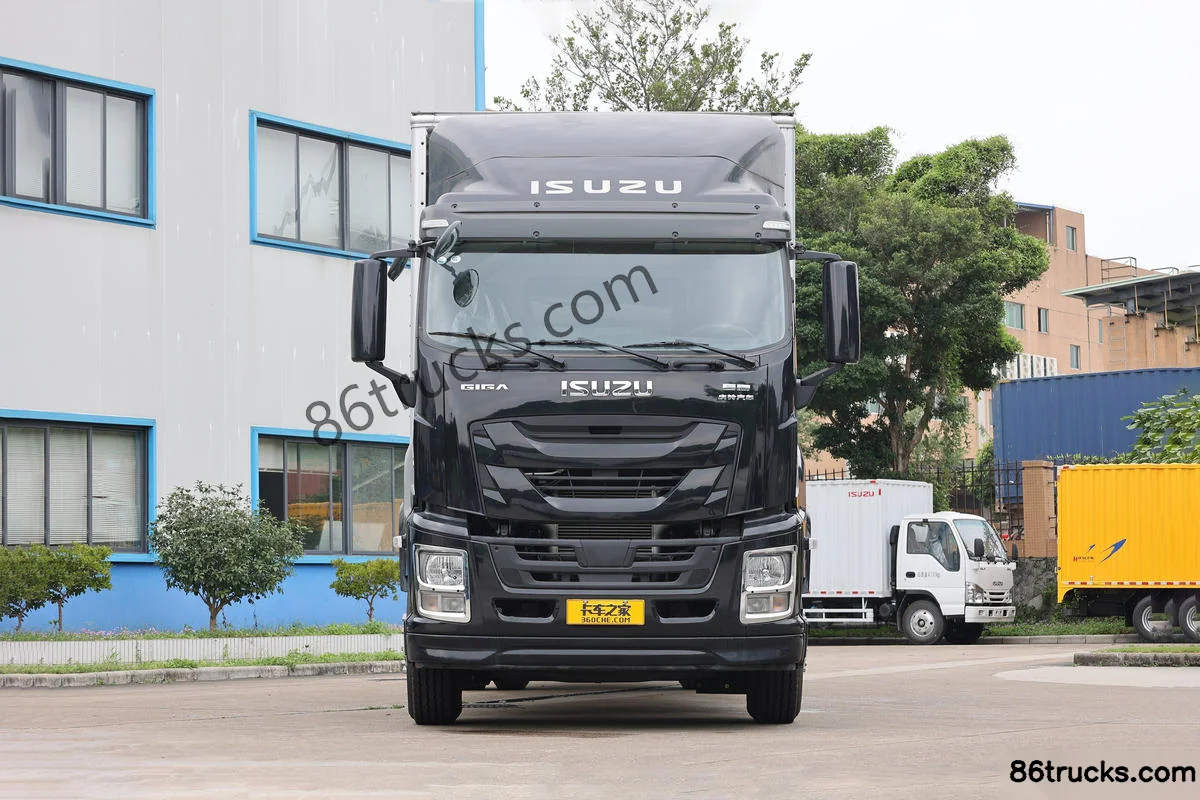

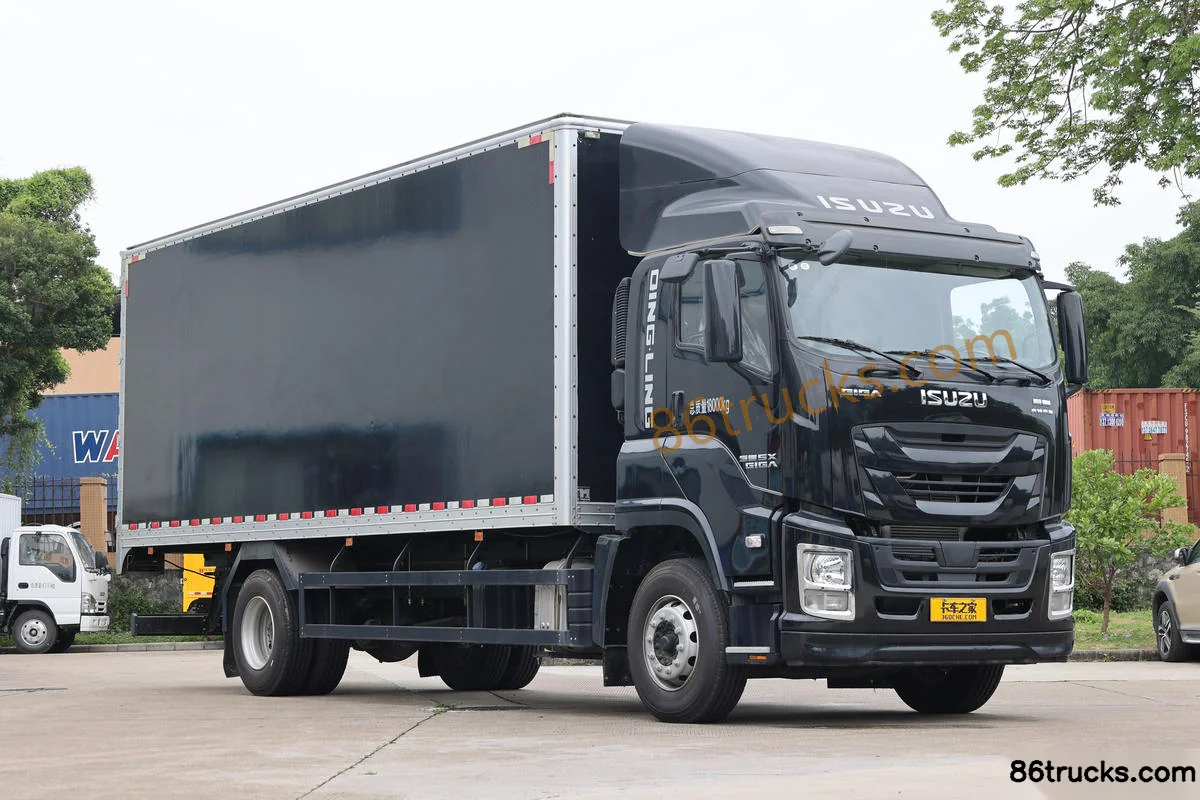

Exterior3

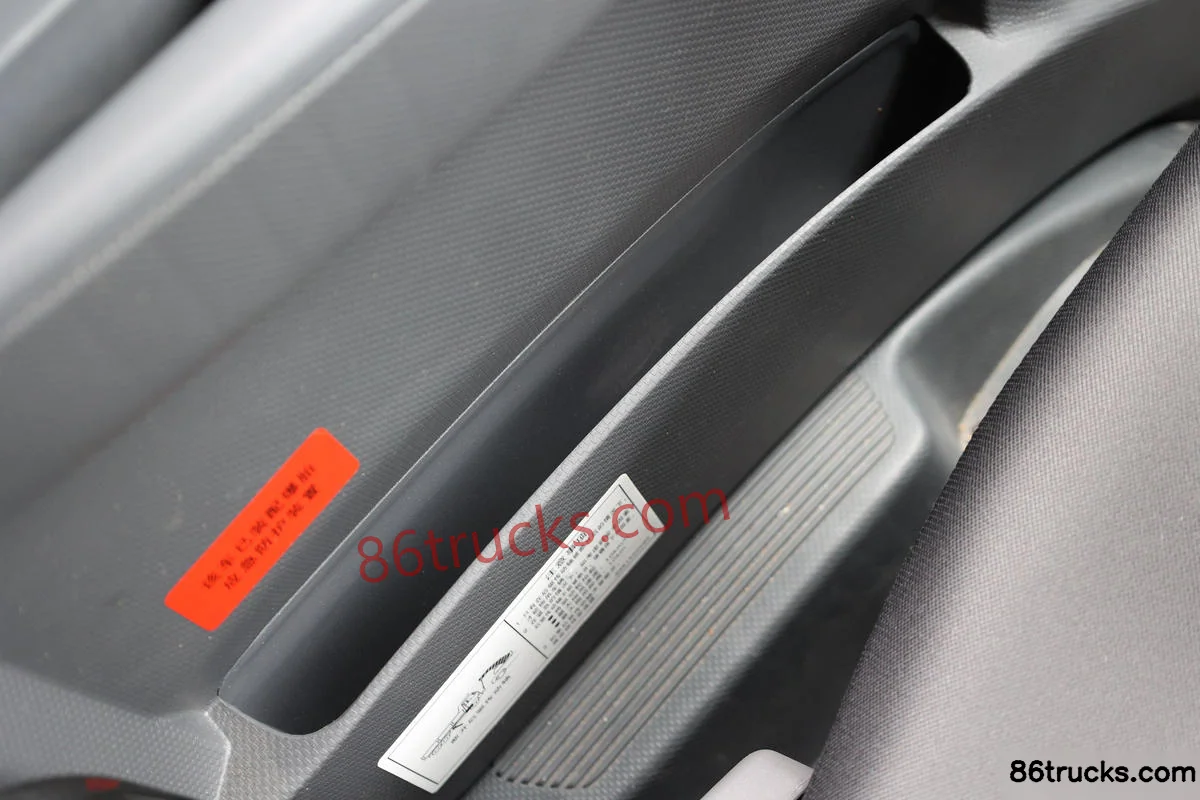

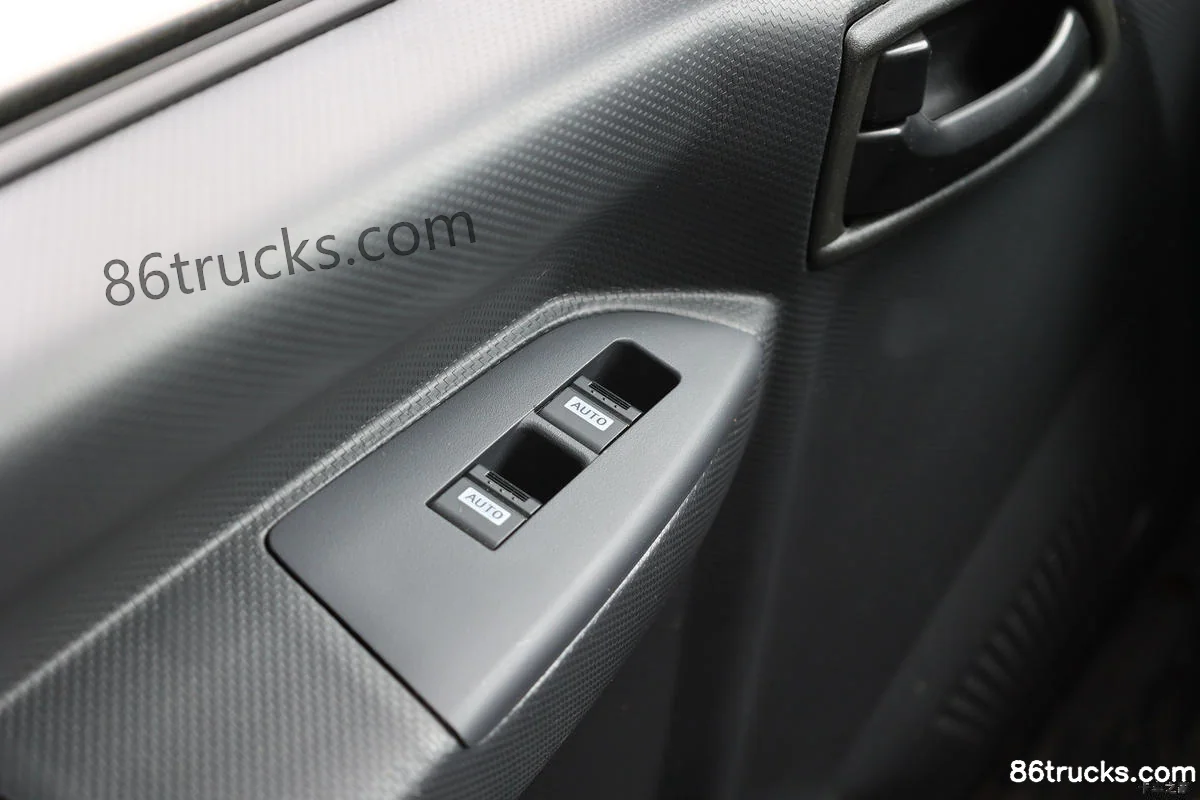

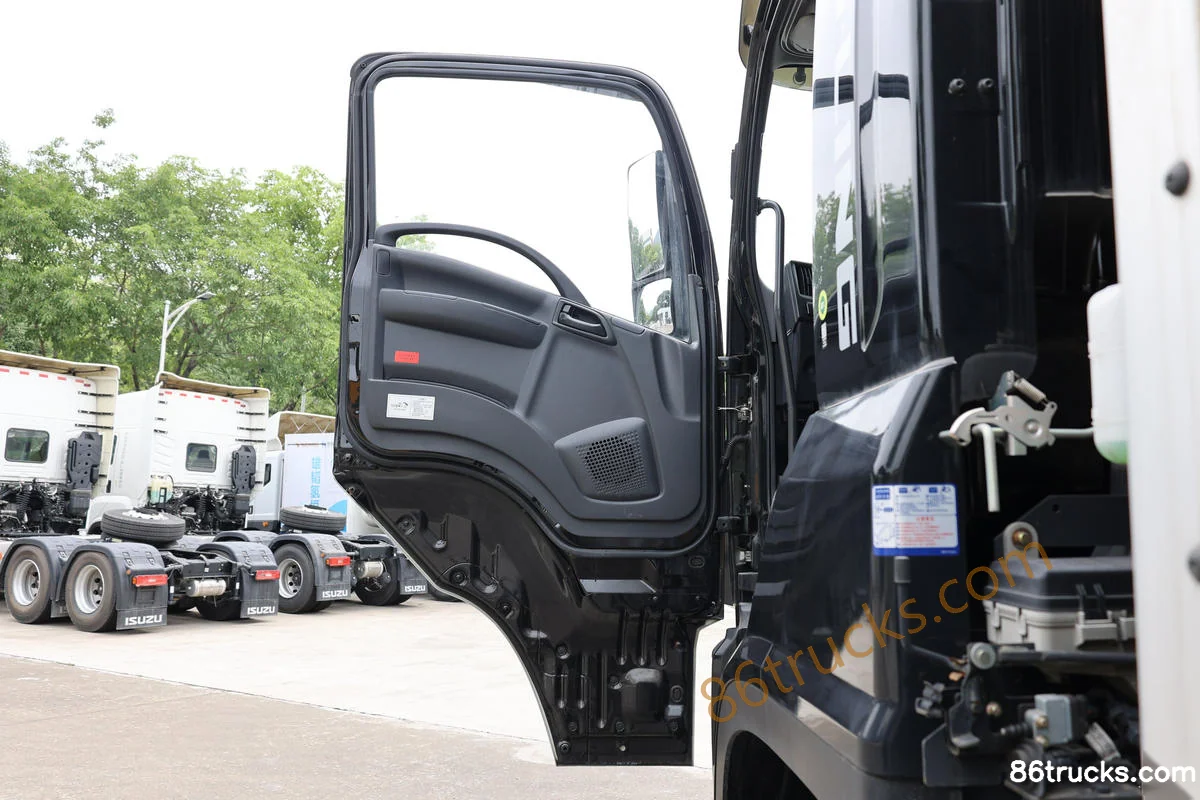

Cab3

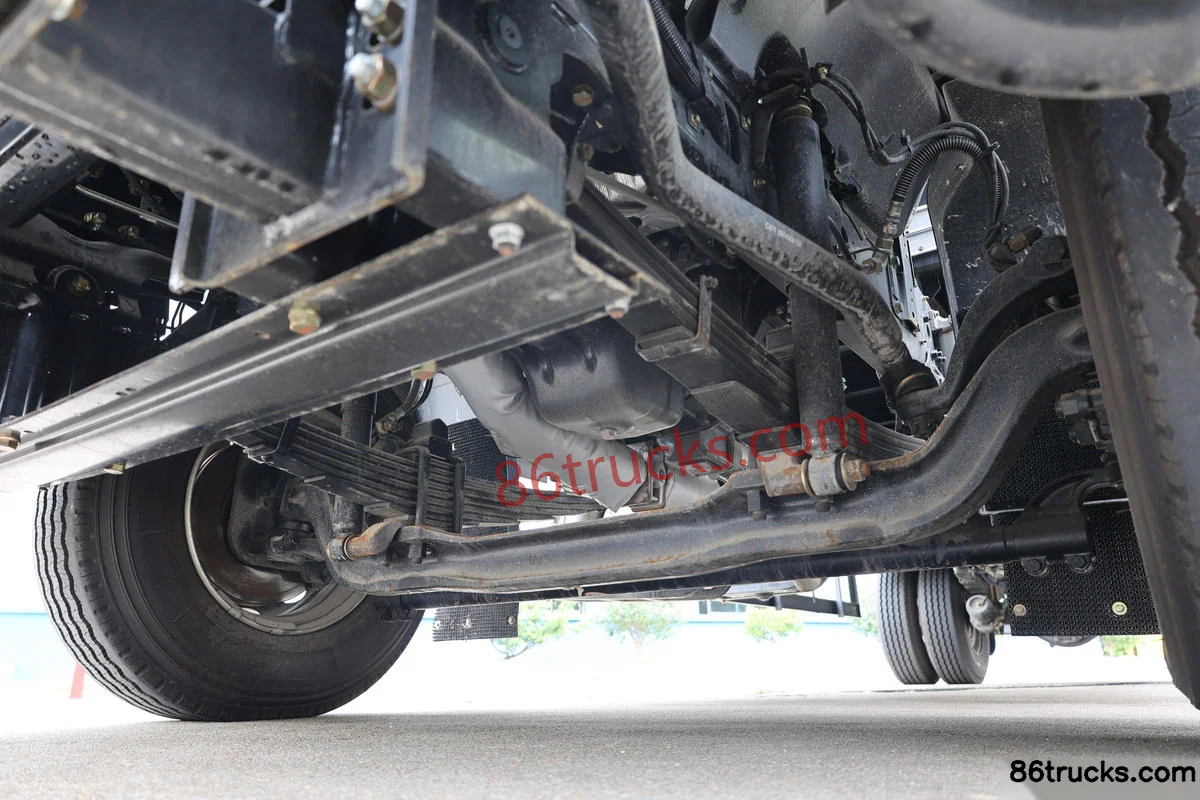

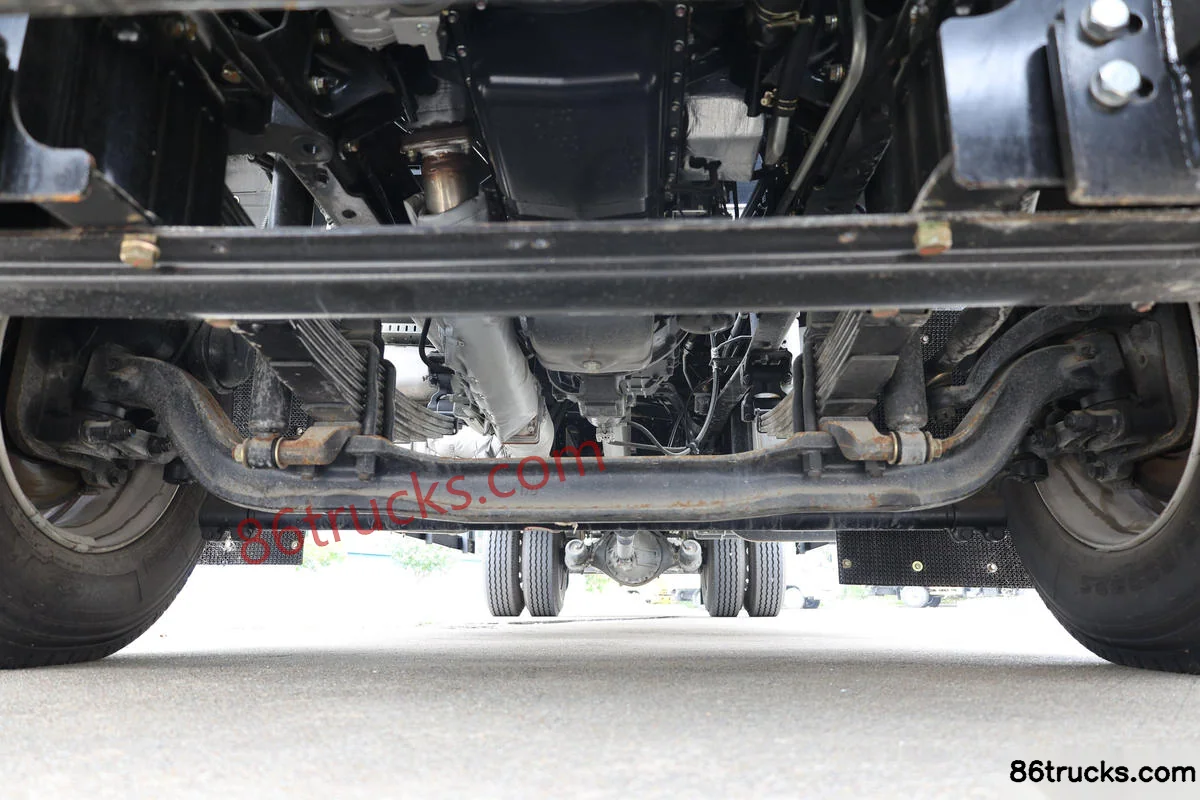

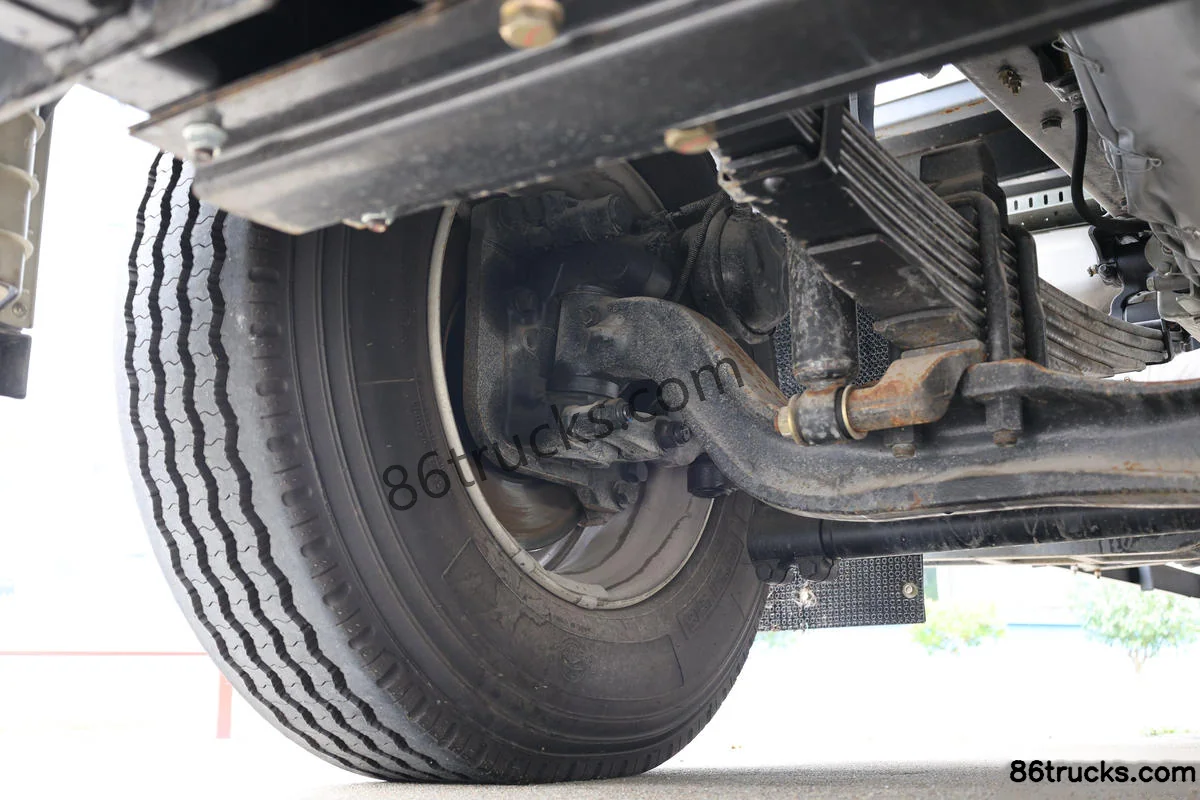

Chassis3

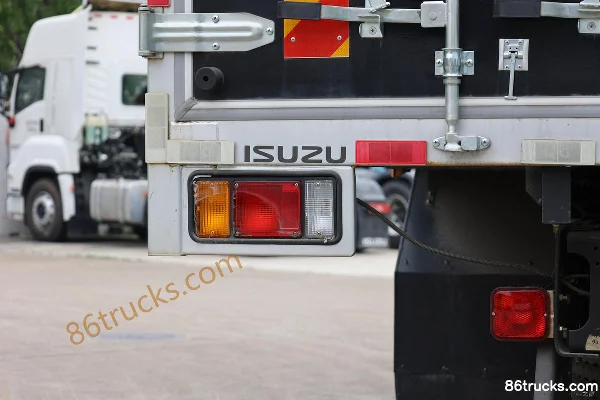

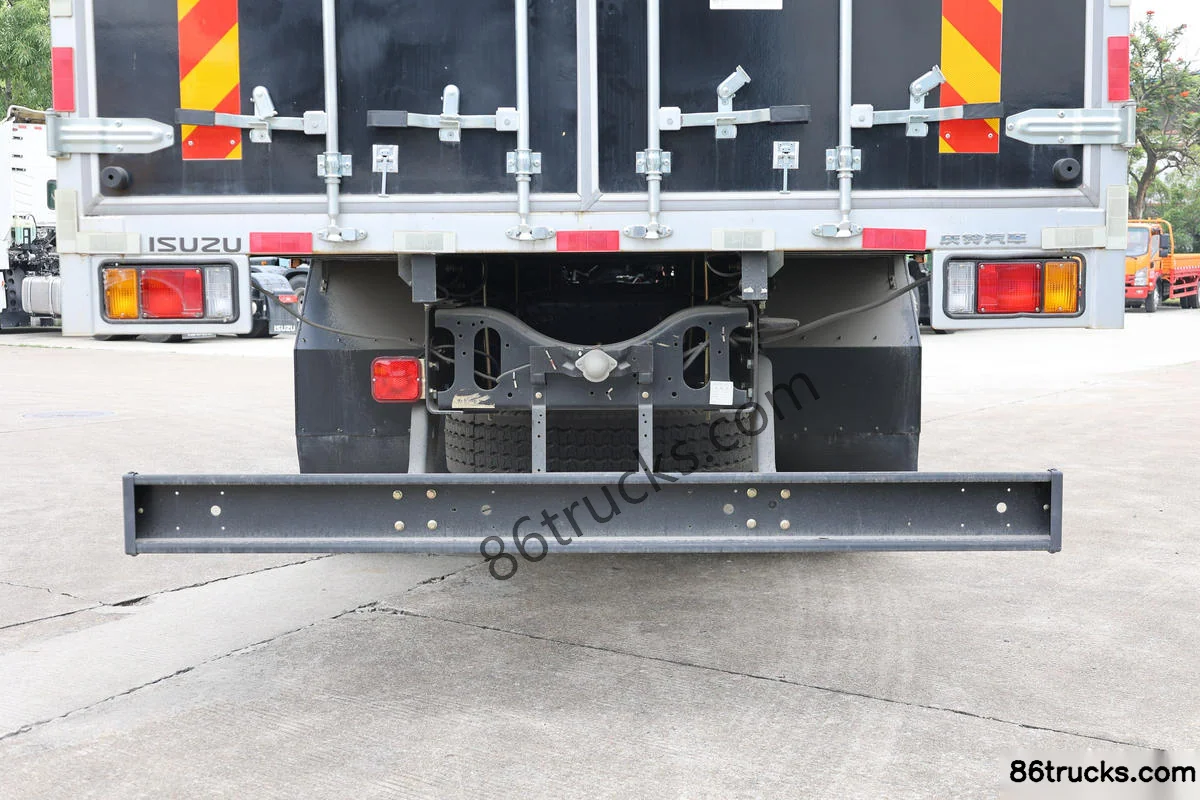

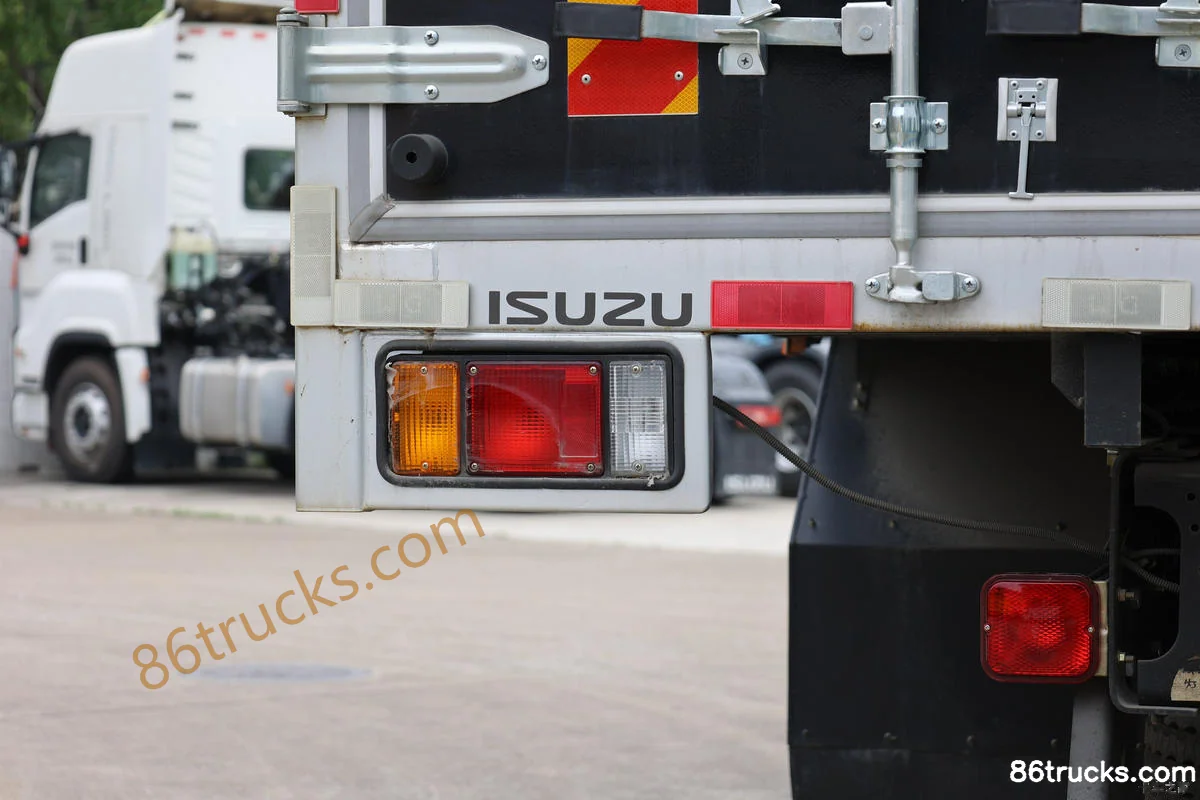

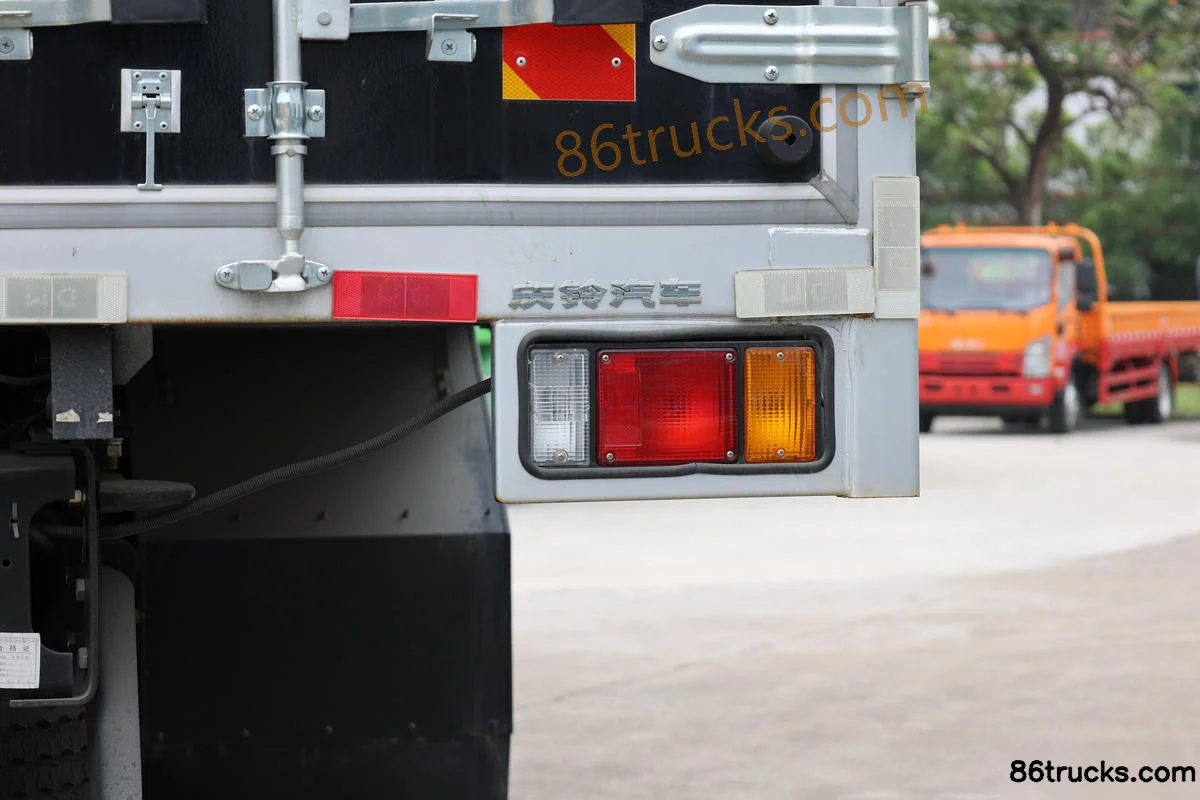

Body3

12 photos

FAQ

What emission standard does Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck?

Key specs of Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck: Drive: 4x2; Horsepower: 241 hp; Emission: China VI; Fuel: Diesel; Engine: Isuzu6HK1; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck suited for?

Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck differ from other variants in the same series?

Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck belongs to Qingling Isuzu Giga (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu Giga 240 hp 4X2(6 wheels) 7.6m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
