Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed)

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 4200+1400mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 14.6L
Drive 6X4 (10 wheels)
Horsepower 530
Emission China VI
Transmission Fast Gear

Overview

The Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed) is a Heavy truck featuring 6X4 (10 wheels) drive, 530 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a WeichaiWP15NG530E61 engine, Fast Gear transmission and LNG (liquefied natural gas) fuel.

China VI 530 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ4257V384HF1LB
Drive type: 6X4
Wheelbase: 4200+1400mm
engine: WeichaiWP15NG530E61
transmission: Fast GearF16JZ26A
Rear Axle Ratio: 3.36
Cab length: 7.89m
Cab width: 2.55m
Cab height: 3.94m
Front track width: 2041mm
Gross Trailer Weight: 40ton
rear track: 1830/1830mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Jinan, Shandong
tonnage class: Heavy truck
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP15NG530E61
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 14.6L
Emission standard: China VI
Max output power: 390kW
Max hp: 530Horsepower
Max torque: 2500N·m
Max torque speed: 950-1350rpm
Rated speed: 1700rpm
Transmission Parameters
Transmission Model: Fast GearF16JZ26A
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Air tank capacity: 1500L
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: VGD71S self-adjusting arm front axle
Fifth wheel: 90#
Front axle allowable load: 7000kg
rear axle description: MCJ12BGY self-adjusting tandem rear axle
Steering gear: Domestic
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.36
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
Headlight height adjustment:
Service brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

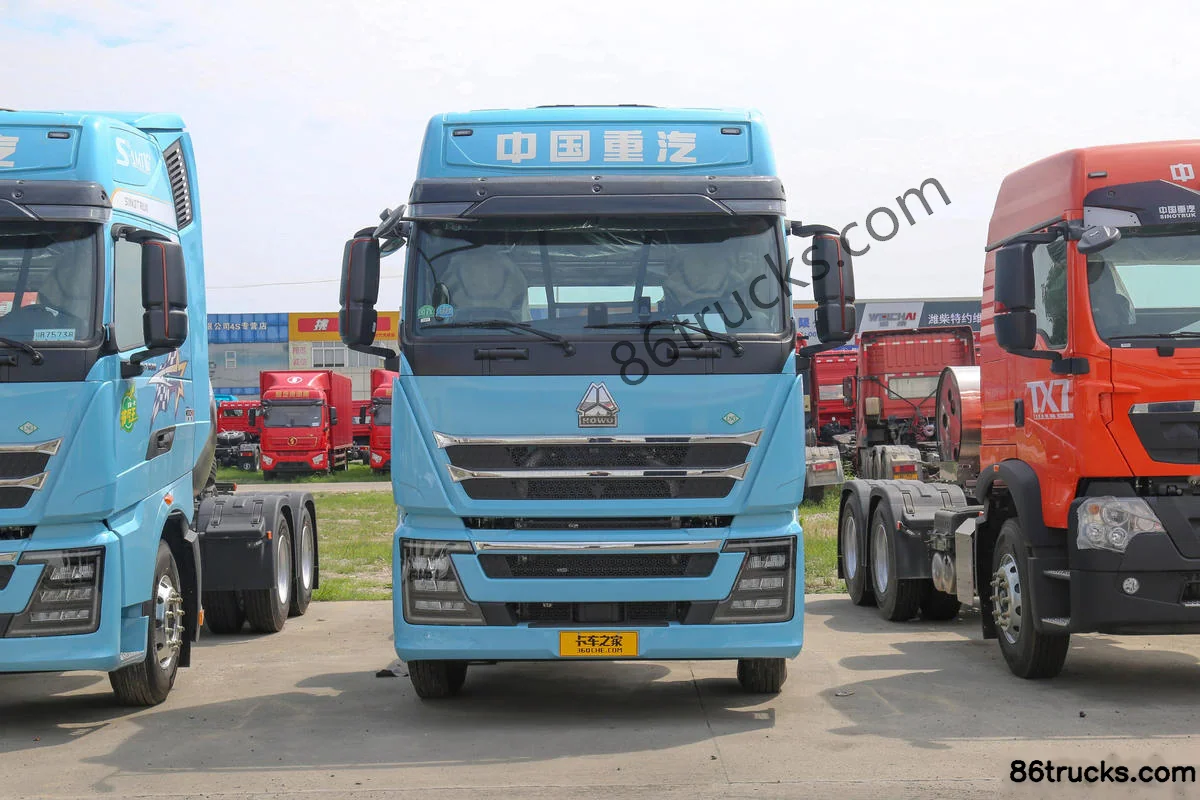

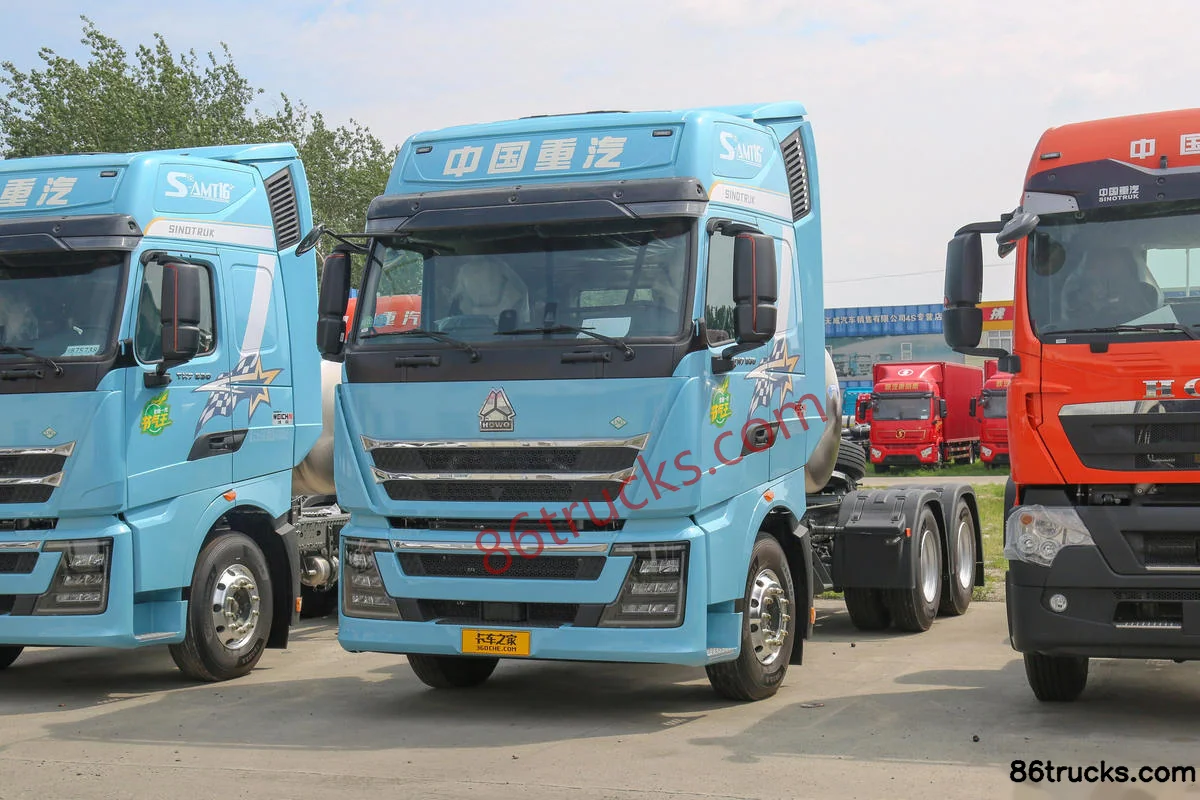

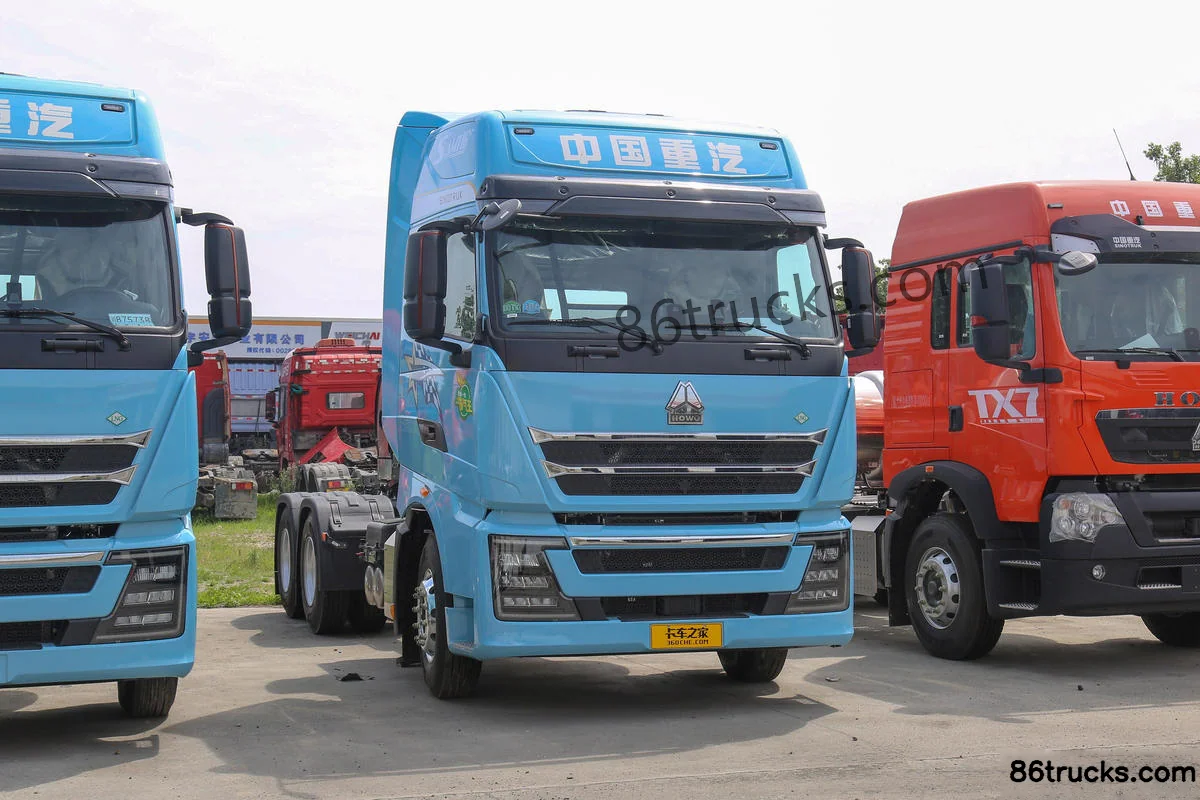

Exterior3

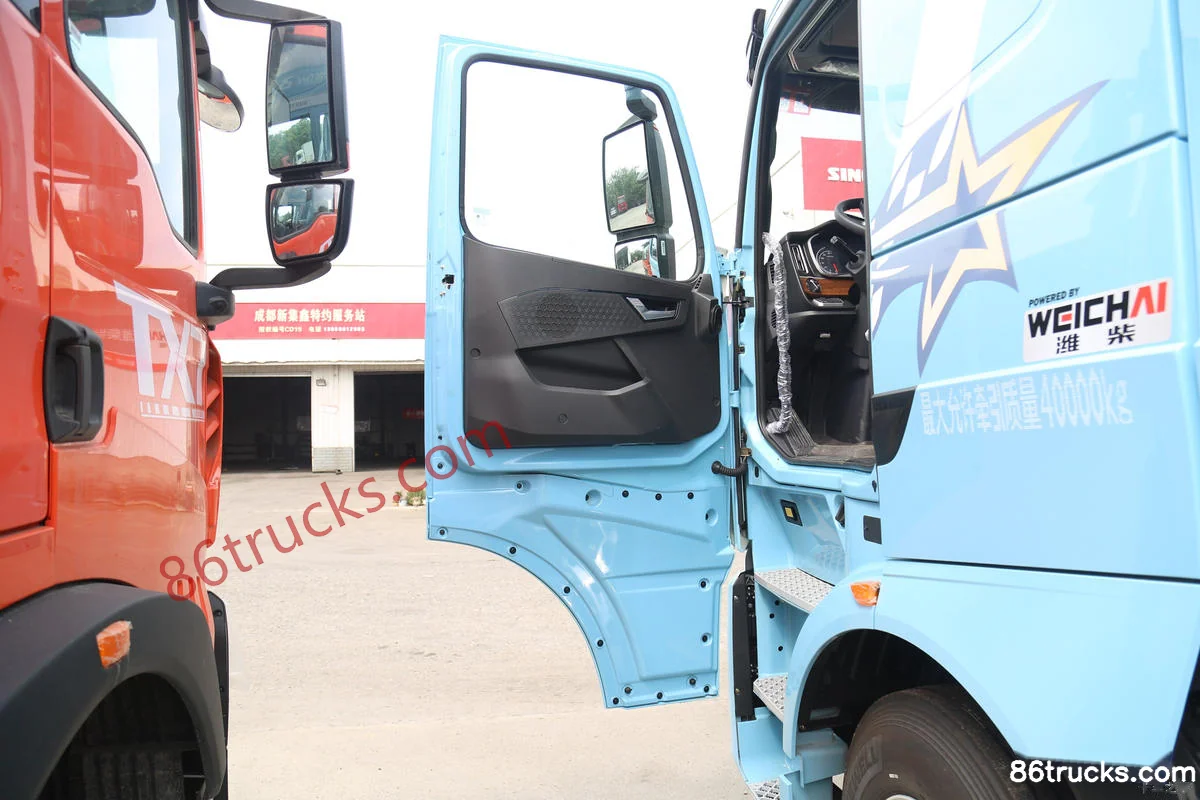

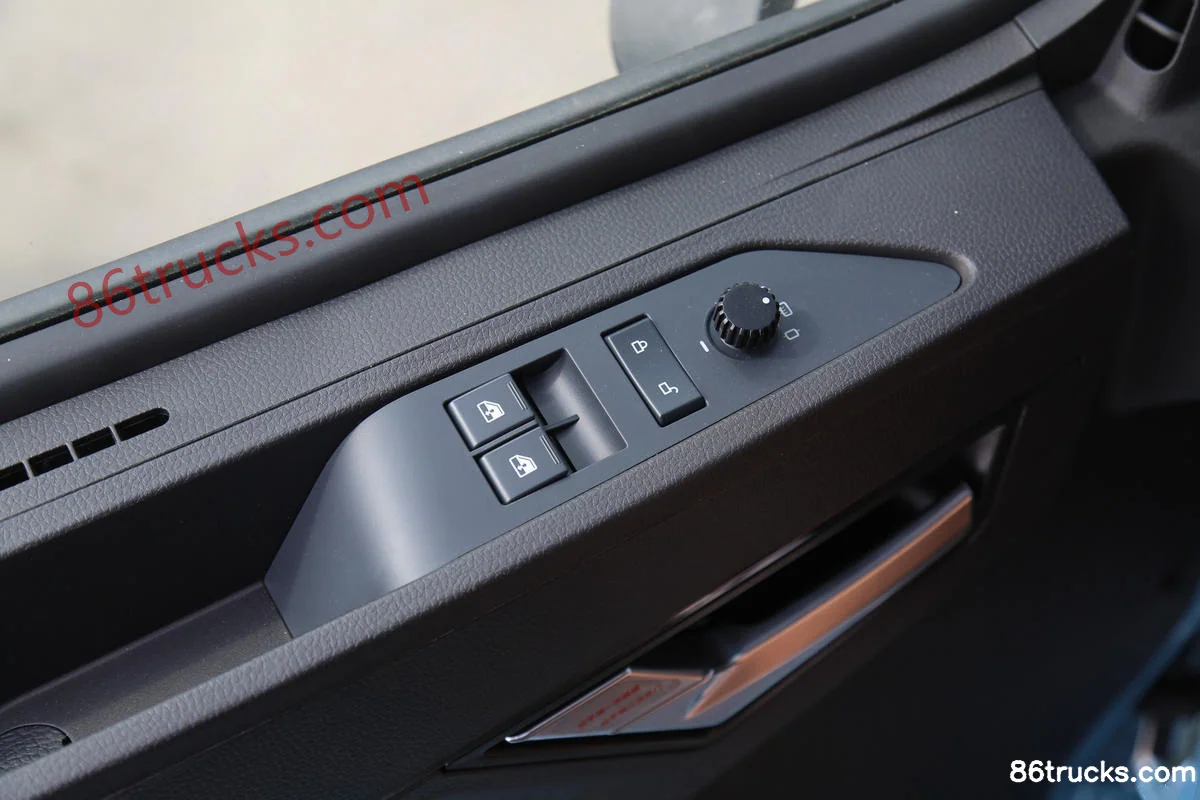

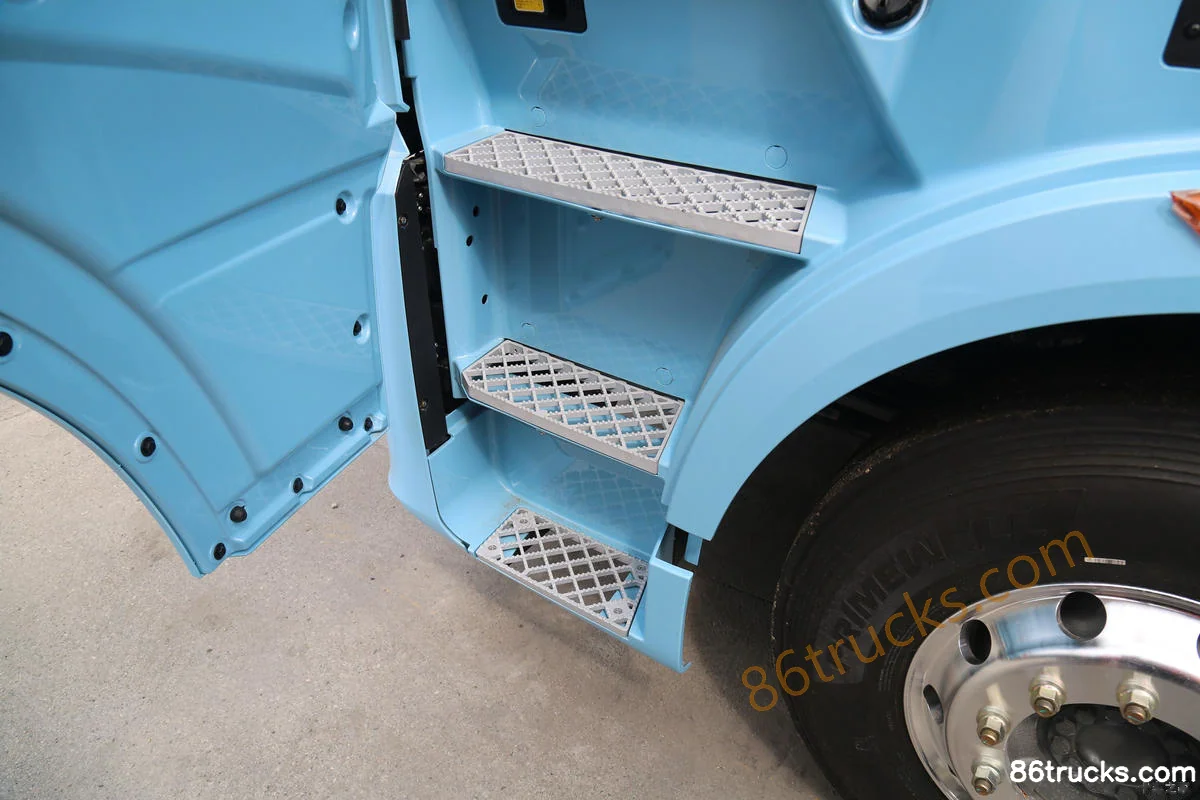

Cab3

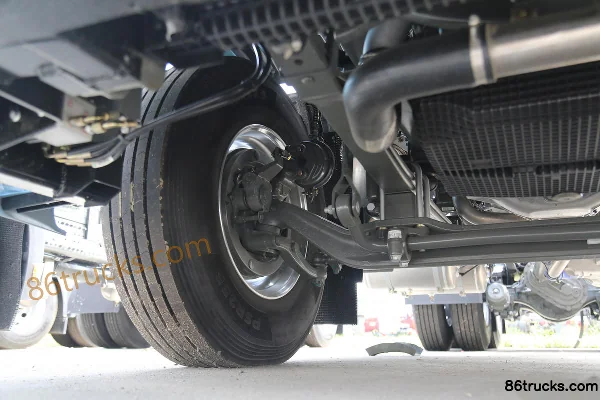

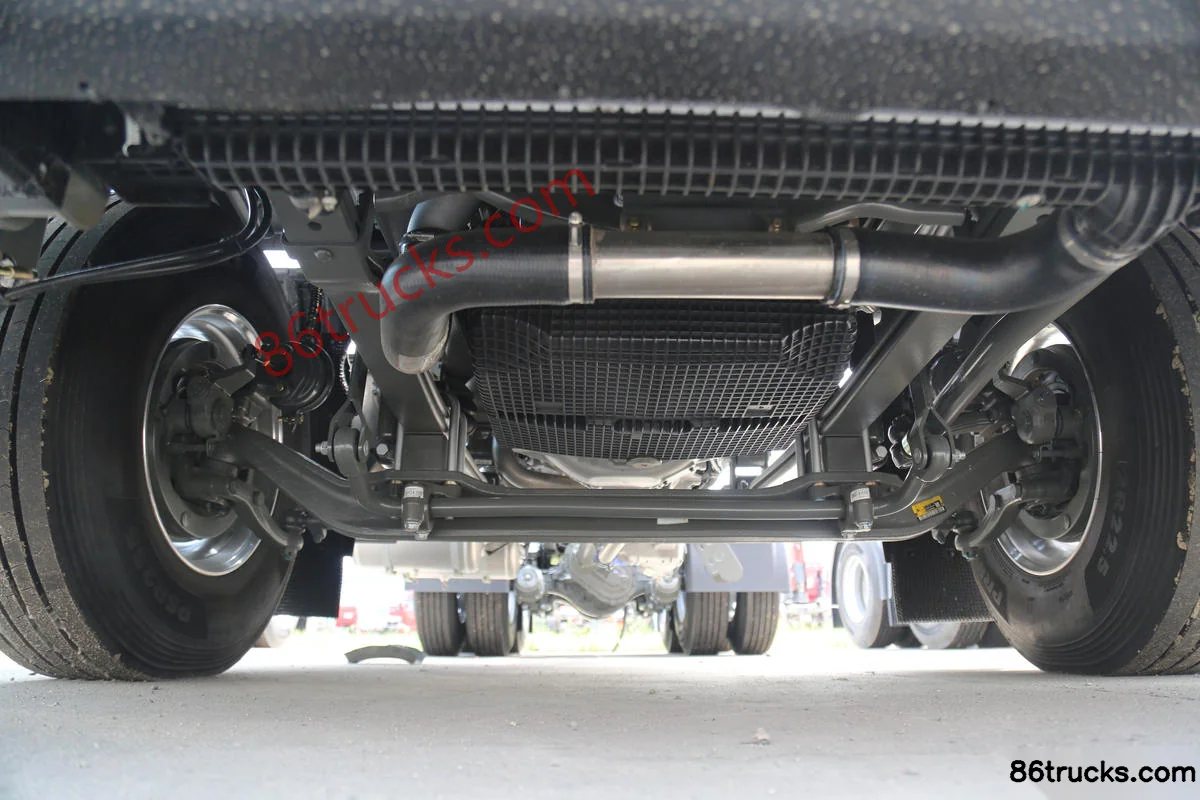

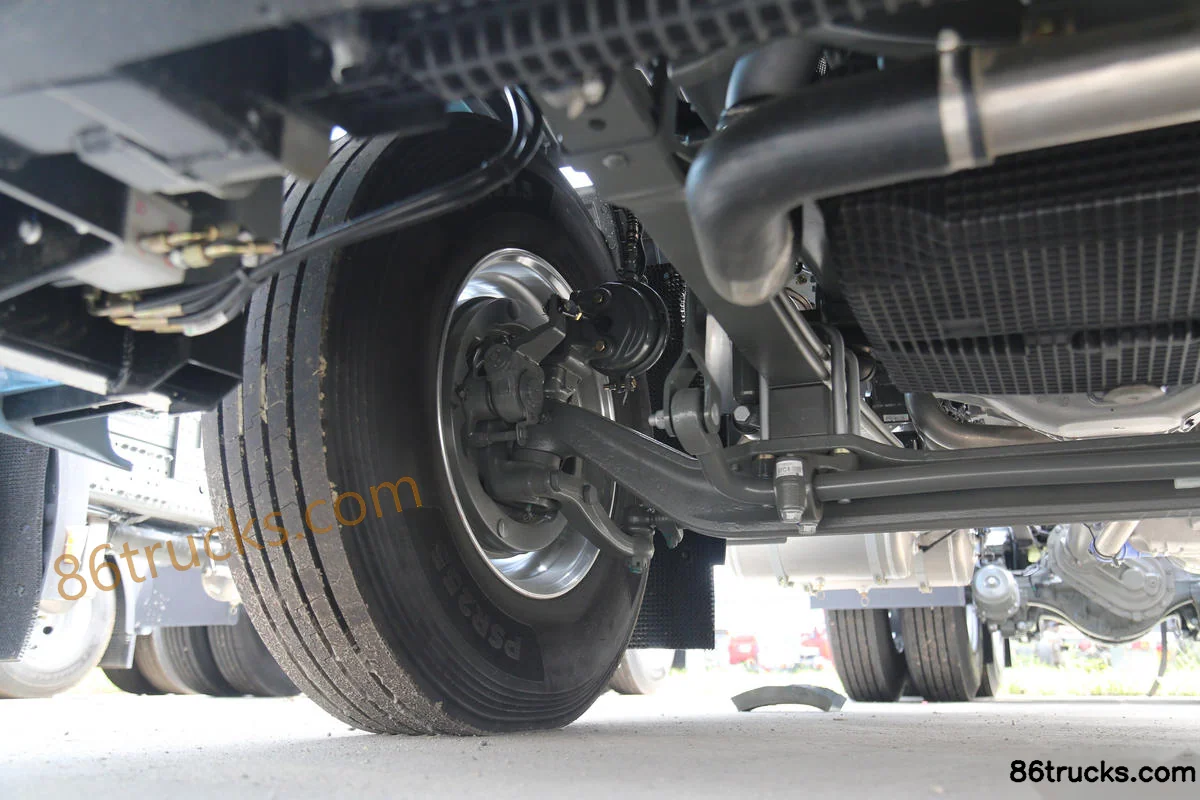

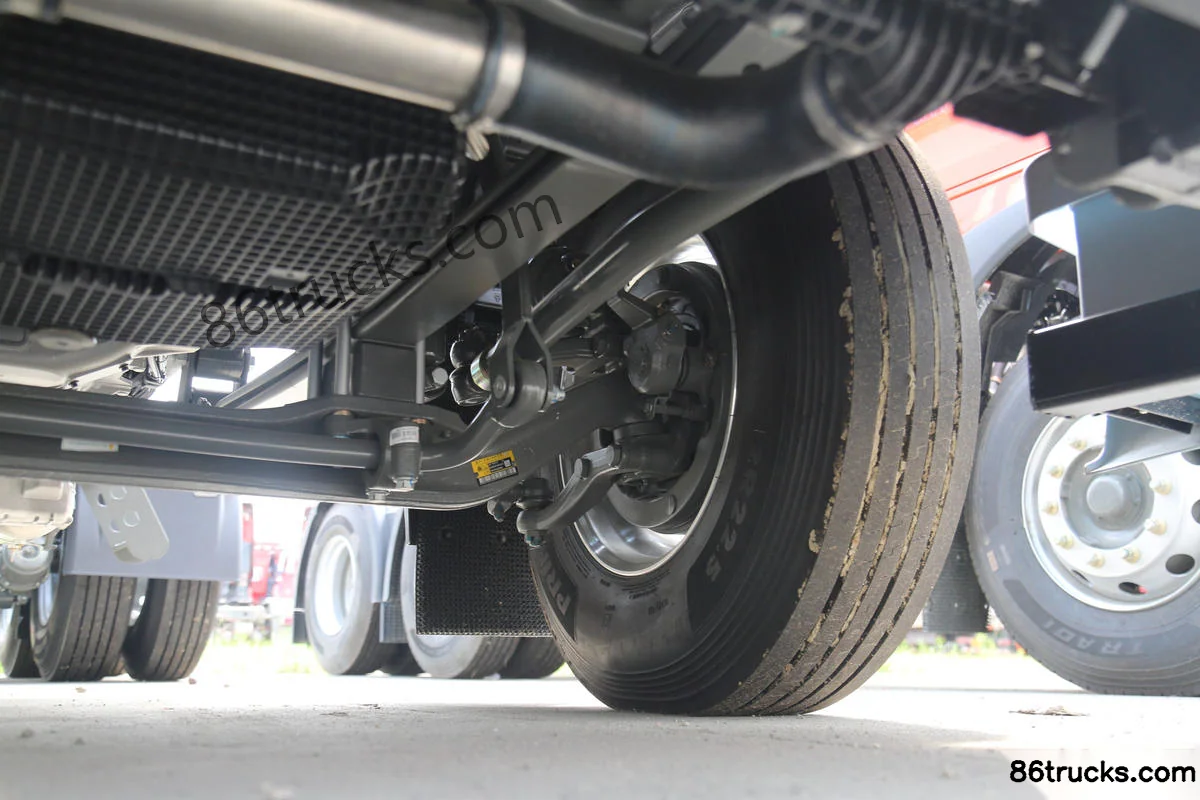

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed)?

Key specs of Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed): Drive: 6x4; Horsepower: 530 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed) suited for?

Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed) differ from other variants in the same series?

Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed) belongs to Sinotruk HOWO TH7 heavy-duty truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TH7 Heavy Truck 530hp 6X4(10 wheels) LNG Automatic Tractor Truck (Fast Gear 16-Speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
