Ouyang Jude 13m Low Flatbed Semi-Trailer

Export reference
From $10,417
MSRP ¥7.5M CNY
Cab width:: 3m
suspension:: -/2080,-/2280,-/2180,-/1880mm
Design load capacity:: 33.3ton
Cab height:: 1.55m
Number of wheels:: 12
Brake chamber:: 15
Axle Brand: Fuwa, Huajin, BPW
Curb Weight: 6.7ton
Cab length: 13m
Tire brand: Double Coin, Chaoyang

Overview

The Ouyang Jude 13m Low Flatbed Semi-Trailer is a Low-bed Semi-trailer featuring Fuwa, Huajin, BPW-axle setup, 6.7ton GVW, 13m length and 33.3ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 33.3ton
Cab length: 13m
Cab width: 3m
Cab height: 1.55m
Curb Weight: 6.7ton
Chassis Specs
Axle Brand: Fuwa, Huajin, BPW
Number of Axles: 3
Axle Load Rating: -/24000(tri-axle group)
Number of wheels: 12
suspension: -/2080,-/2280,-/2180,-/1880mm
Parts & accessories
Brake chamber: 15
Outrigger: Fuhua
ratchet tie-down: 24pcs
Spare Tire Carrier:
ABS: Yes
Body Parameters
Frame material: Super-strength steel
Floor Board: 4mm
Web Plate: 8mm
upper wing panel: 10mm
Lower Wing Plate: 12mm
Side beam: 140mm
Other notes
Lead time for customization: 15 days
warranty period: 1 year
warranty method: Factory pickup / Door-to-door
Other: This vehicle is only for transporting non-dismantlable objects. Platform height unladen (mm): 1150, 1100, 1050, 1000. The gooseneck section cannot carry cargo; max gooseneck width is 1400mm, 1450mm, 1500mm. Optional body side structure; optional air suspension; optional rectangular rear combination lamp/rear fog lamp. Protection: side/rear guard made of Q235B, welded to vehicle, rear guard section size 140mmx55mm, ground clearance 450mm.
Tire
Tire brand: Double Coin, Chaoyang
Tire Size: 8.25R20 16PR,8.25-20 16PR
Number of tires: 12pcs

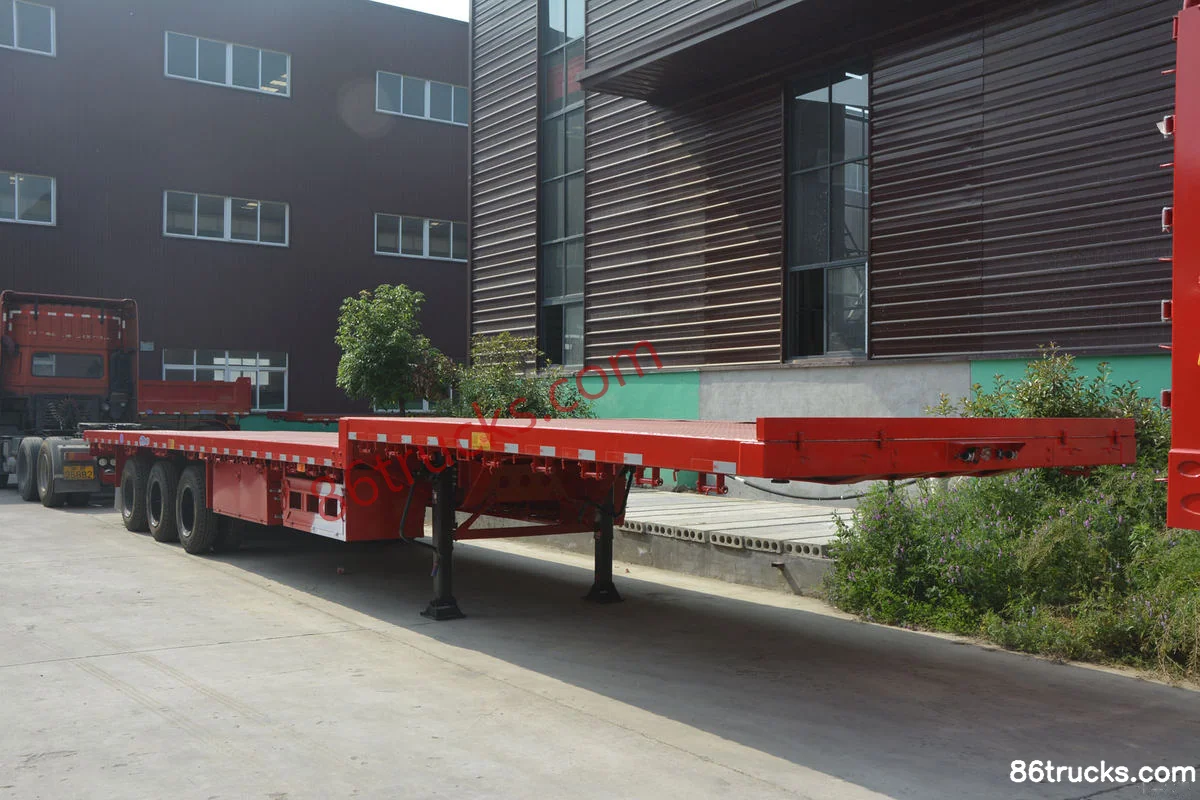

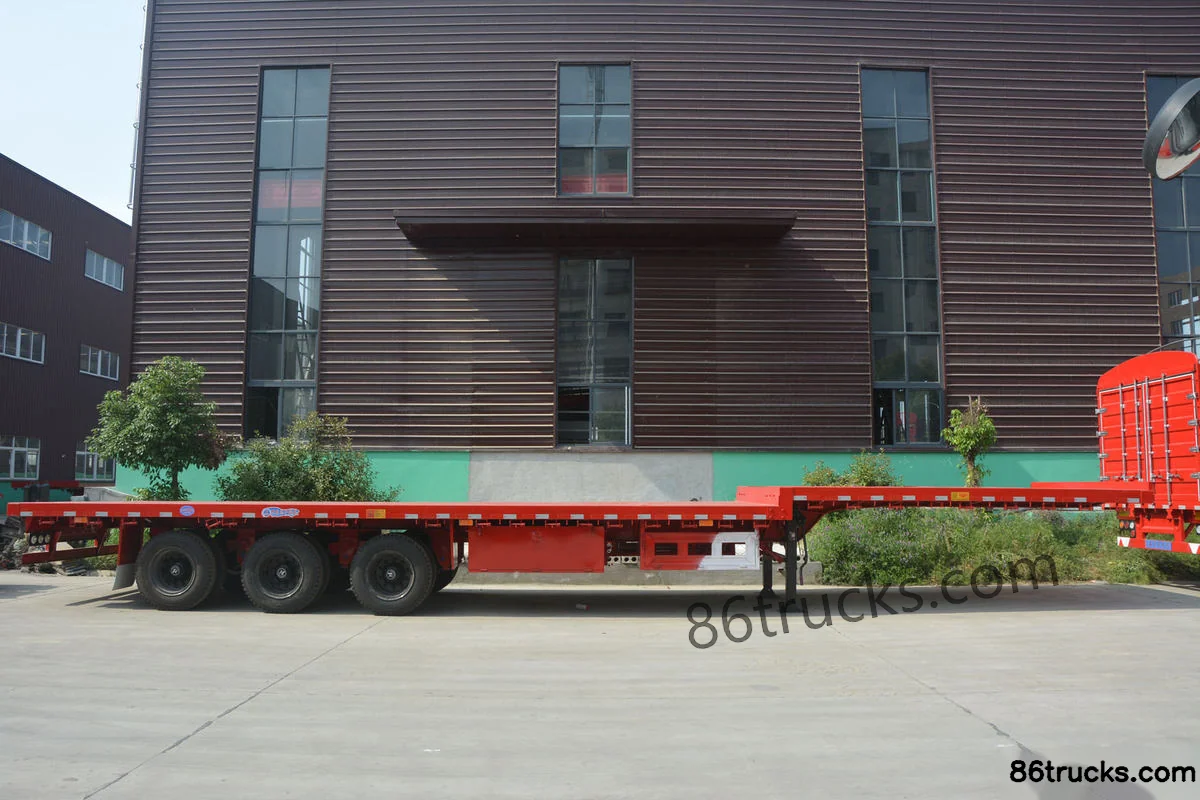

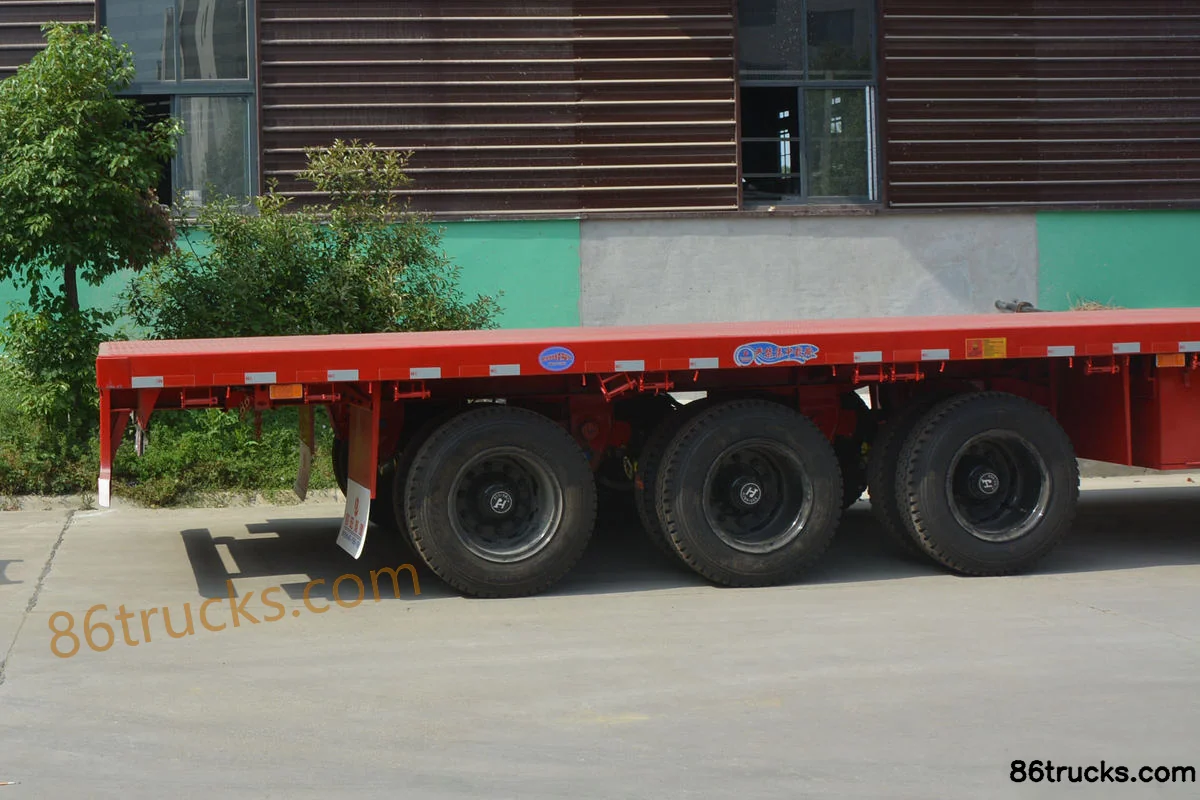

Photos

Exterior3

3 photos

FAQ

What is the export price of Ouyang Jude 13m Low Flatbed Semi-Trailer, and what does it include?

Ouyang Jude 13m Low Flatbed Semi-Trailer export reference is about From $10,417; MSRP is ¥7.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Ouyang Jude 13m Low Flatbed Semi-Trailer suited for?

Ouyang Jude 13m Low Flatbed Semi-Trailer is a Low-bed Semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Ouyang Jude 13m Low Flatbed Semi-Trailer differ from other variants in the same series?

Ouyang Jude 13m Low Flatbed Semi-Trailer belongs to Ouyang Huajun 13m Series (Low-bed Semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Ouyang Jude 13m Low Flatbed Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Ouyang Jude 13m Low Flatbed Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
