FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder)

Export reference
From $68,819
MSRP ¥49.55M CNY
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 4000mm
Tire brand:: Michelin
Front axle allowable load:: 6500kg
Displacement:: 12.52L
Drive 4X2 (6 wheels)
Horsepower 550
Emission China V
Transmission ZF

Overview

The FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder) is a Heavy truck featuring 4X2 (6 wheels) drive, 550 hp, 18t GVW and China V emissions. Its segment focus covers Logistics distribution and express delivery, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DM3-55E52 engine, ZF transmission and Diesel fuel.

China V 550 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4180P77K25E5
Drive type: 4X2
Wheelbase: 4000mm
engine: XichaiCA6DM3-55E52
transmission: ZFZF12TX2621TD
Rear Axle Ratio: 2.688
Cab length: 6.51m
Cab width: 2.55m
Cab height: 3.78m
Front track width: 2070mm
rear track: 1830mm
Gross Trailer Weight: 35ton
Curb Weight: 6.805ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy truck
market segment: Logistics distribution, express delivery
Remarks: Standard: lane keeping system, clutch assist, power steering, brake pad wear indicator, antenna gearshift lever, cable gearshift.
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM3-55E52
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.52L
Emission standard: China V
Max output power: 407kW
Max hp: 550Horsepower
Max torque: 2600N·m
Max torque speed: 1200-1300rpm
Rated speed: 1800rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: ZFZF12TX2621TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 4pcs
Housing Material: aluminum alloy
Cab parameters
Cab: High-roof flat floor
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Sunroof: Power Sunroof
fuel tank
Fuel tank capacity: 1400L
Chassis Specs
Front axle description: F7N front axle (ConMet hub)
Front axle allowable load: 6500kg
Fifth wheel: 50#
Frame Dimensions: 300×80×8mm
Steering gear: Domestic
rear axle description: Φ498 cast axle (ConMet hub)
rear axle allowable load: 11500kg
Axle ratio: 2.688
Leaf spring count: 2/-
Aluminum wheels:
clutch: Φ430
Tire
Tire brand: Michelin
Tire Size: 295/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
smart configuration
Trailer stability system:
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

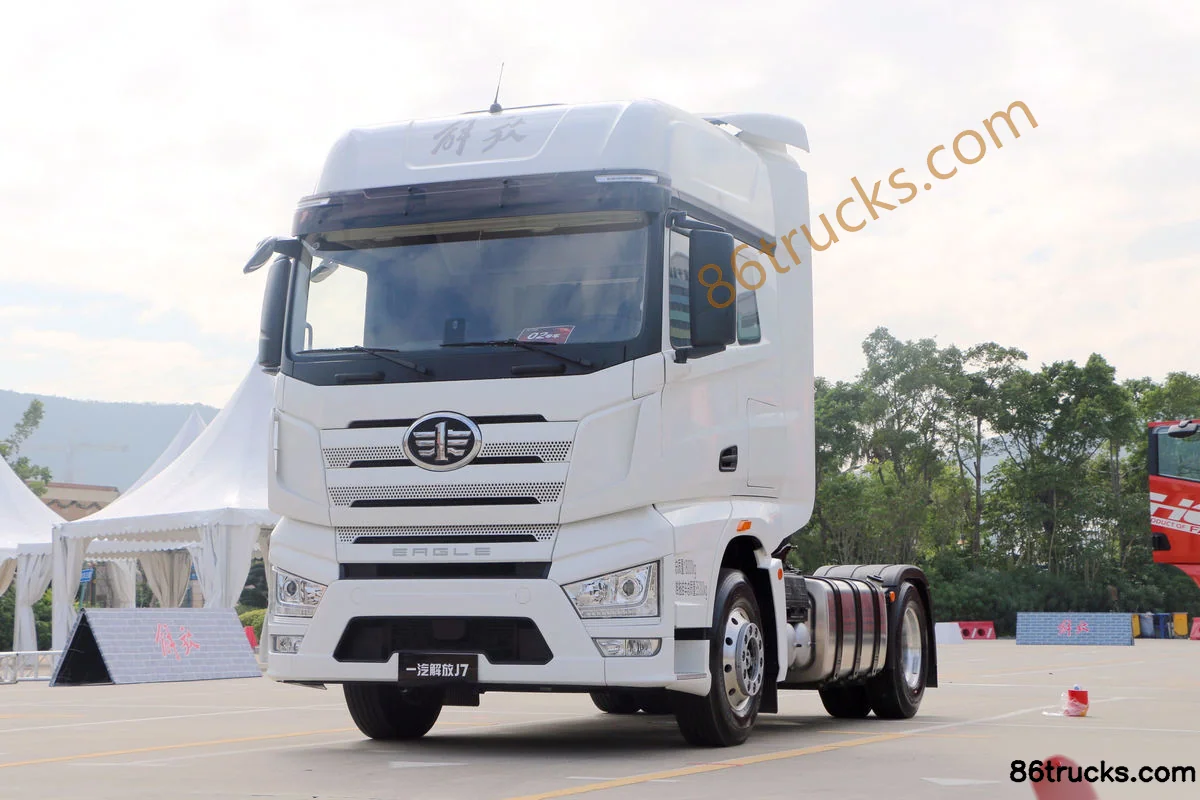

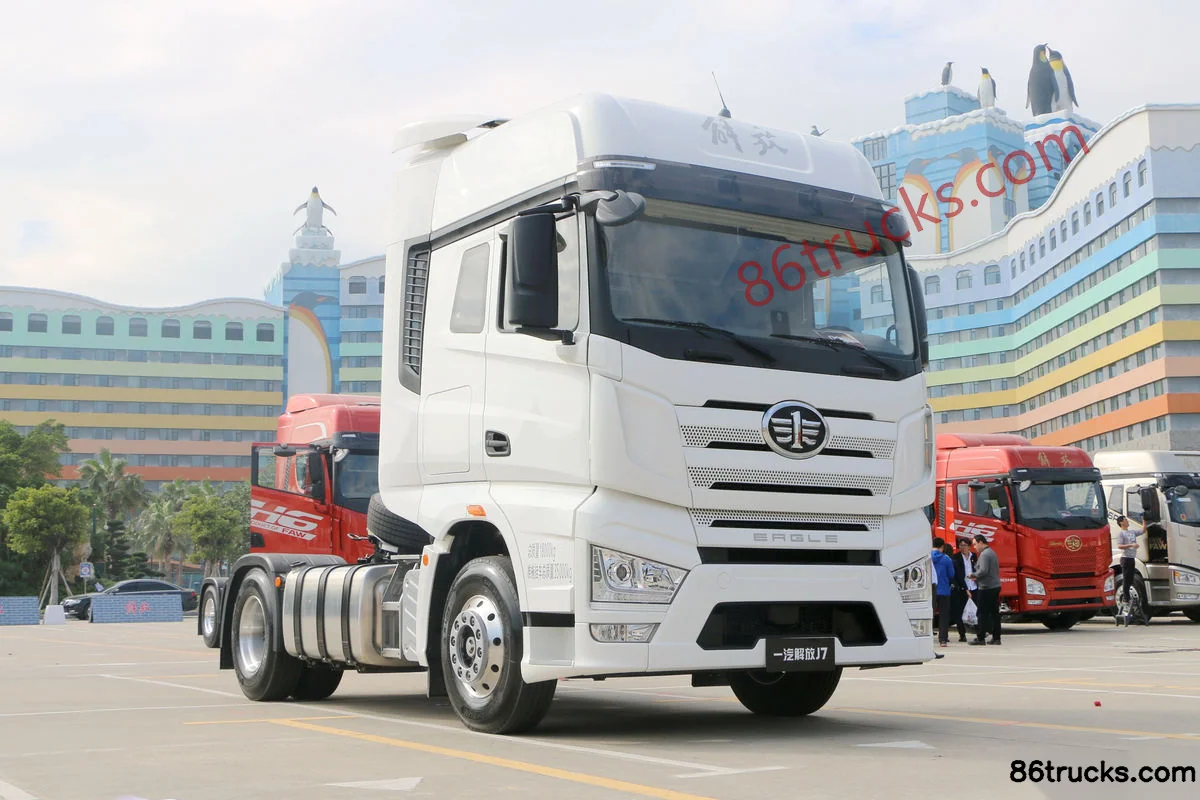

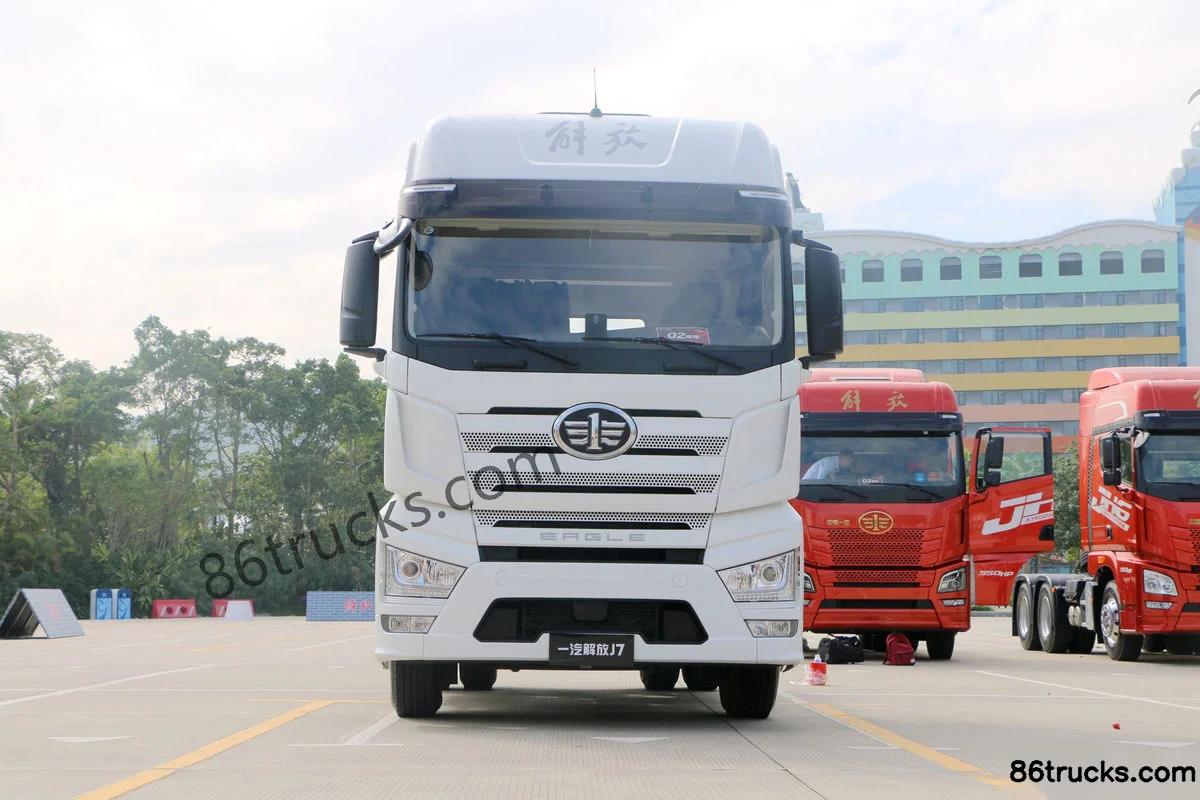

Exterior3

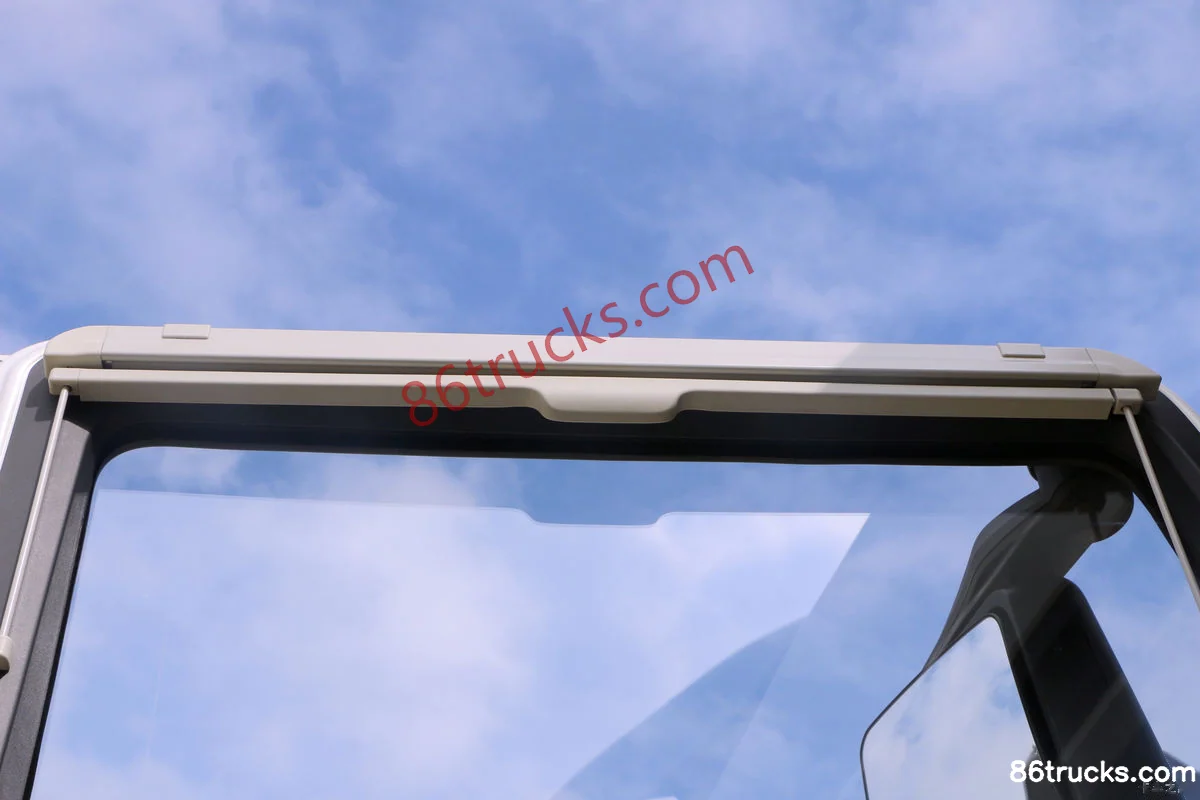

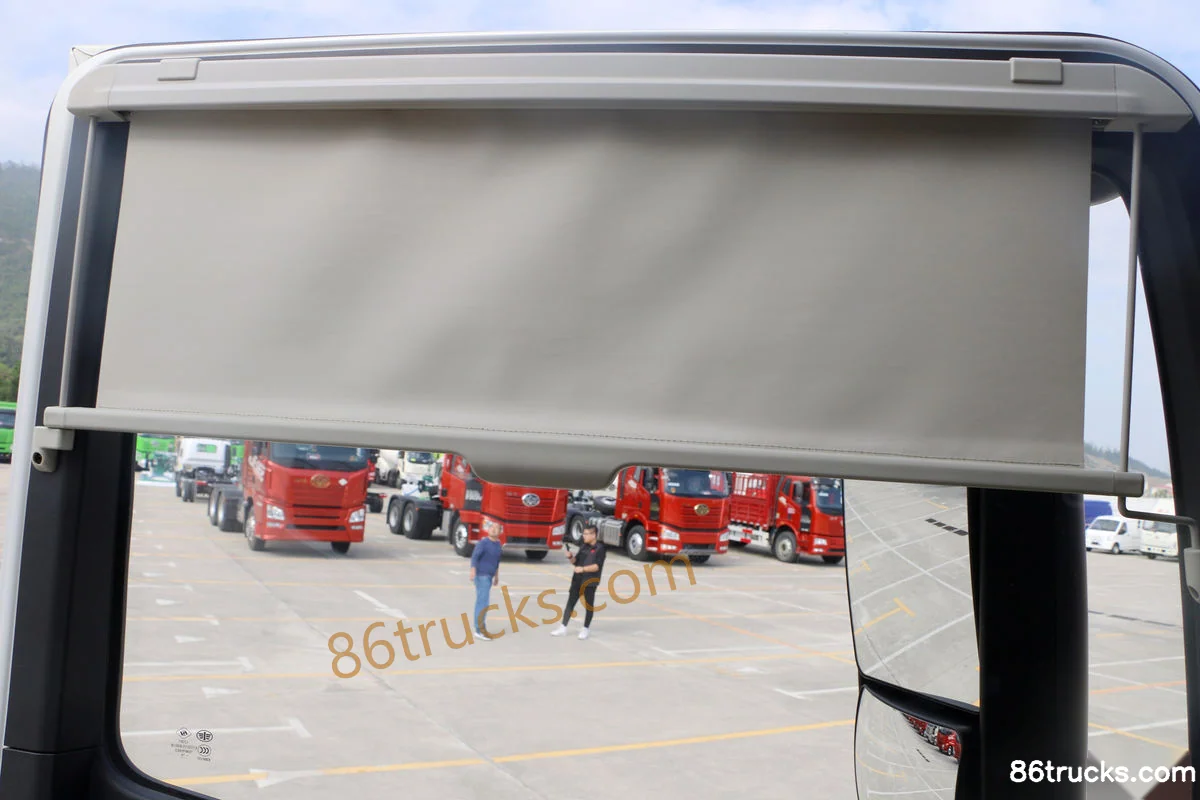

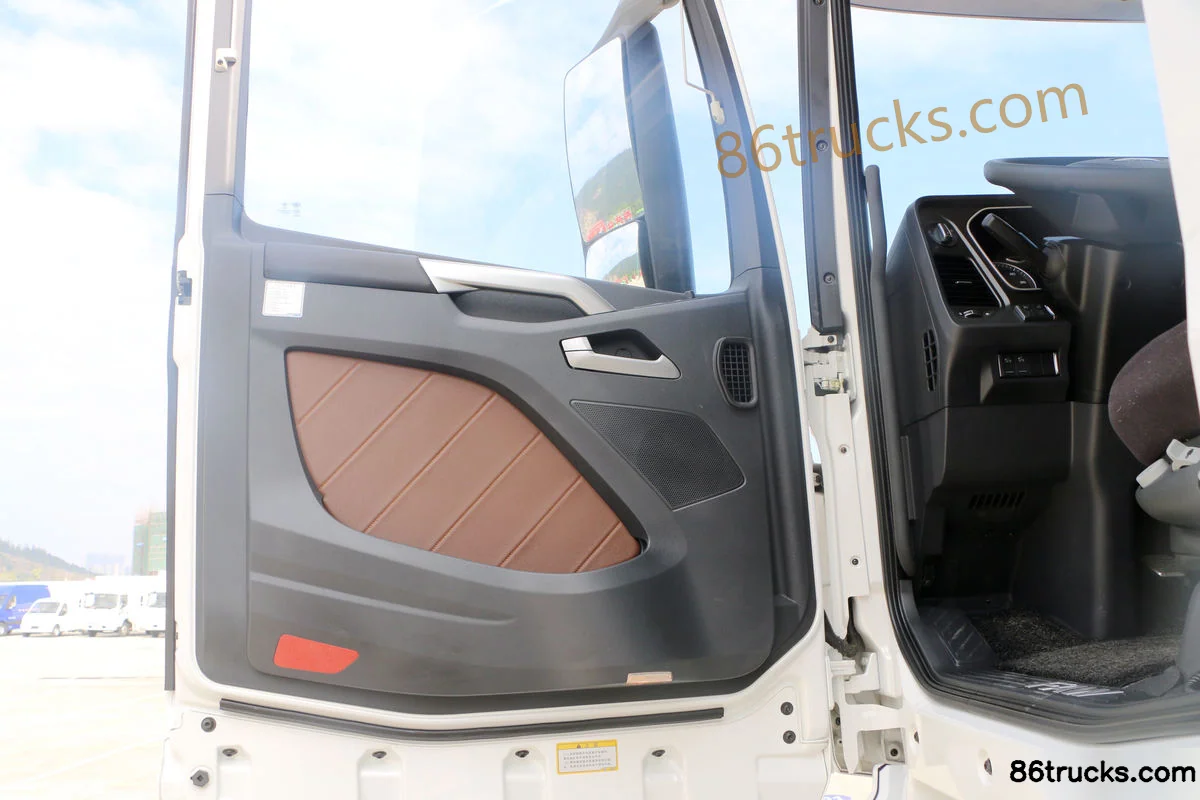

Cab3

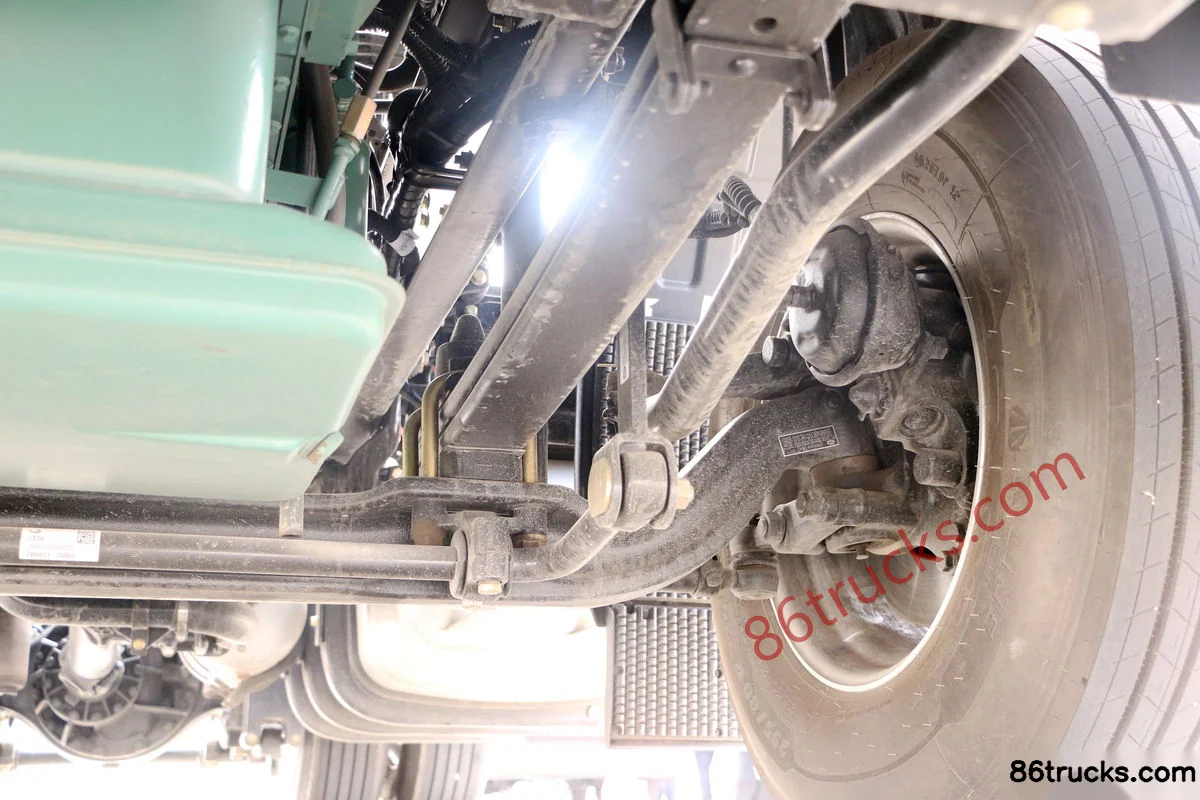

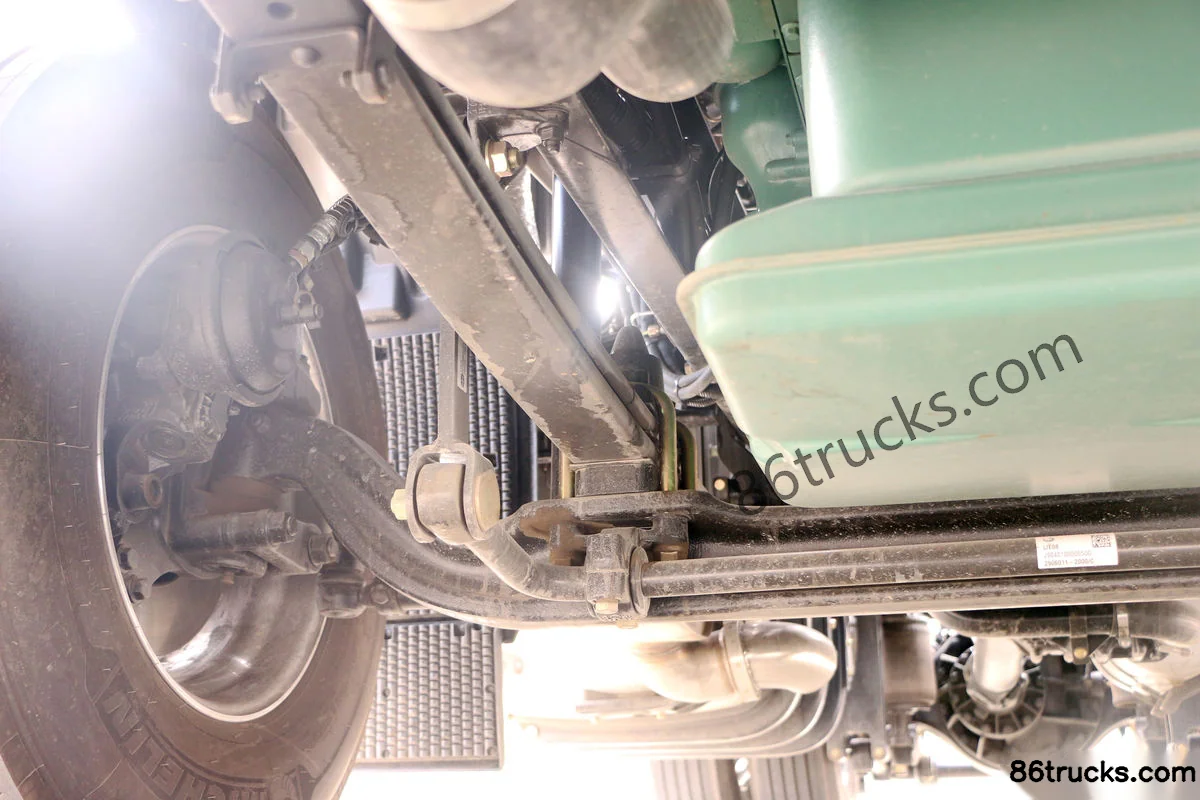

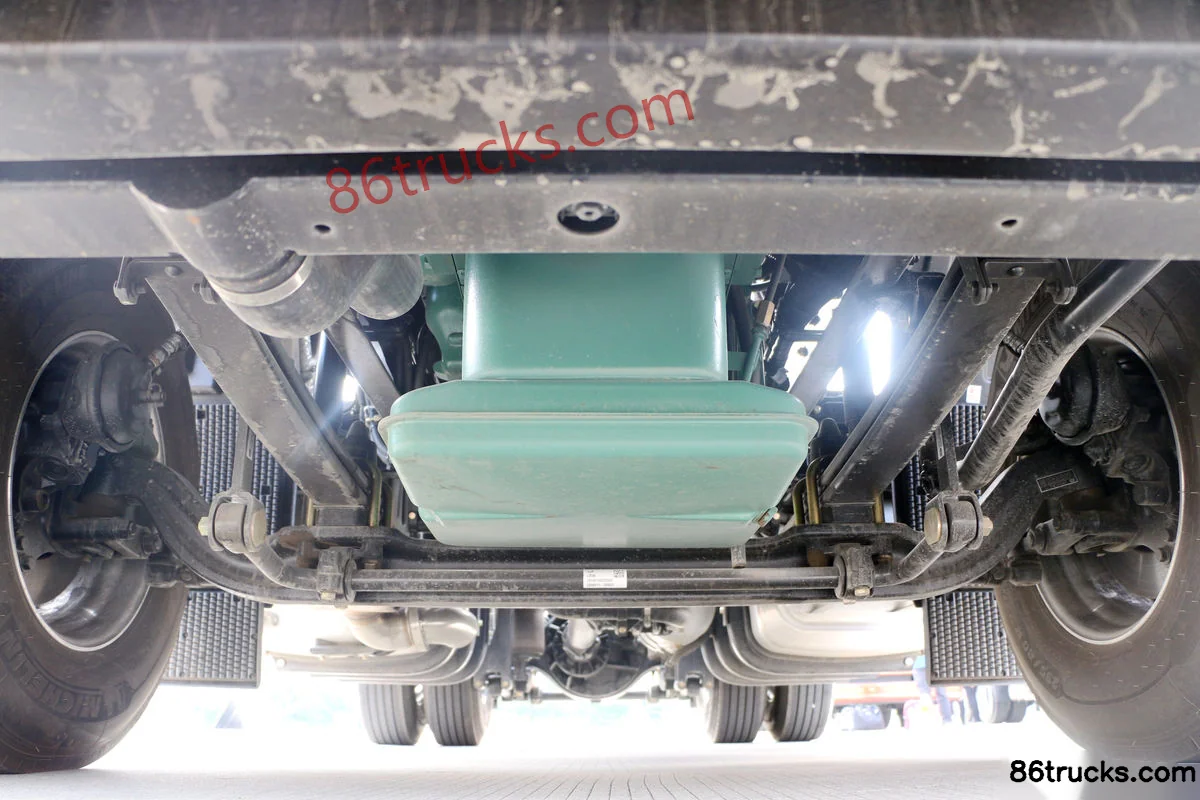

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder), and what does it include?

FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder) export reference is about From $68,819; MSRP is ¥49.55M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder)?

Key specs of FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder): Drive: 4x2; Horsepower: 550 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder) suited for?

FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder) differ from other variants in the same series?

FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder) belongs to FAW Jiefang J7 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J7 heavy truck 550hp 4X2(6 wheels) AMT automatic tractor truck (with hydraulic retarder)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
