Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck

Export reference
From $12,611
MSRP ¥9.08M CNY
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Isuzu493
Transmission: WLY
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck is a Light Truck featuring 4.17m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Isuzu493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LH5040CCY
Type: stake truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: IsuzuJE493ZLQ5
transmission: WLYWLY5TS40
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.1m
Front track width: 1503mm
rear track: 1494mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Lingyuan, Liaoning
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.15/1.545m
Energy Type: Diesel
Engine parameters
Engine Brand: Isuzu
Engine Model: Jiangxi IsuzuJE493ZLQ5
Engine info: Isuzu493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Inline, water-cooled, common rail, turbocharged intercooled, four-stroke
Transmission Parameters
Transmission Model: WLYWLY5TS40
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Housing Material: Steel shell
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.17m
Cargo box width: 2m
Cargo box material: Q235A
*Cargo box interior width: 2
Cab parameters
Cab: Flat roof
Cab width: 1835mm
Cab suspension: 4-point mechanical suspension
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Single Row
Driver seat type: Rigid connection seat
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 95L
Chassis Specs
Front axle description: 1.8T
Front axle allowable load: 1800kg
Frame Dimensions: 188mm
Steering gear: Domestic
rear axle description: 3.85T
rear axle allowable load: 2695kg
Axle ratio: 4.875
Leaf spring count: 9/9+5
Suspension (front/rear): Leaf spring
Tire
Tire brand: Double Happiness
Tire Size: 7.00R16,7.50R16
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
EBS electronic braking system:
clutch booster:
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

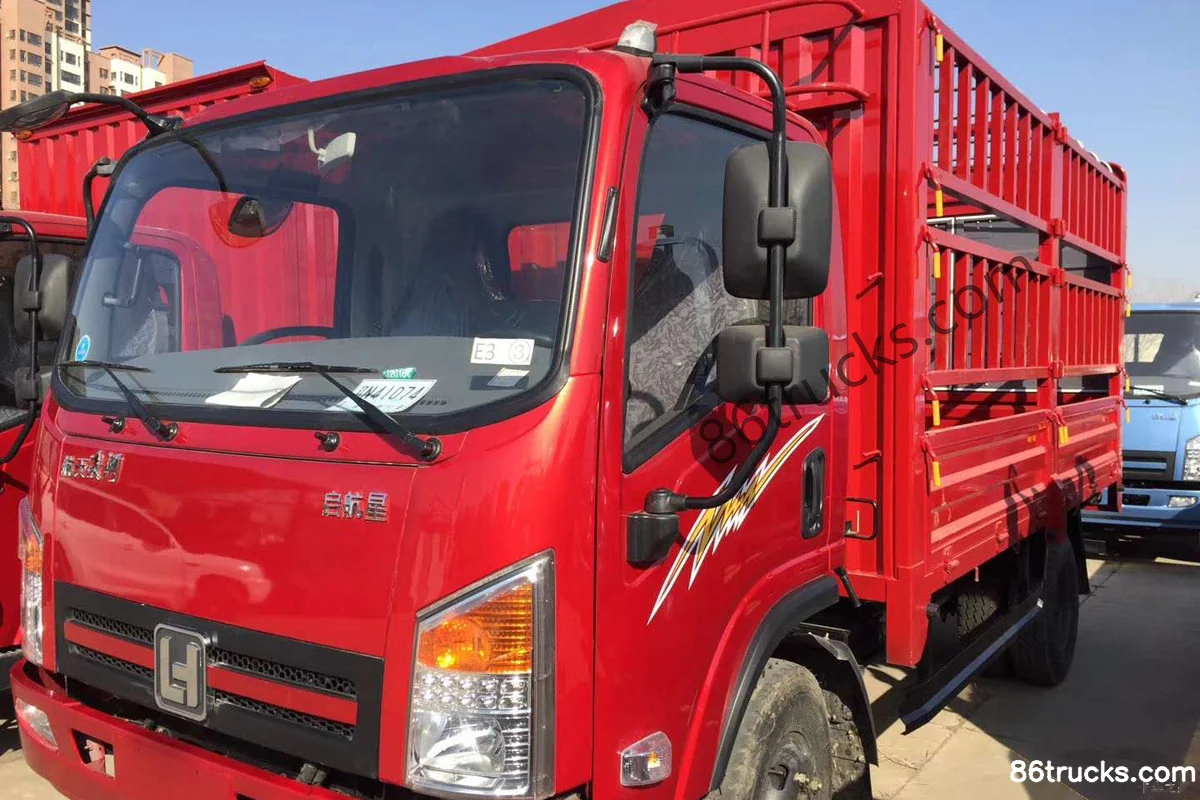

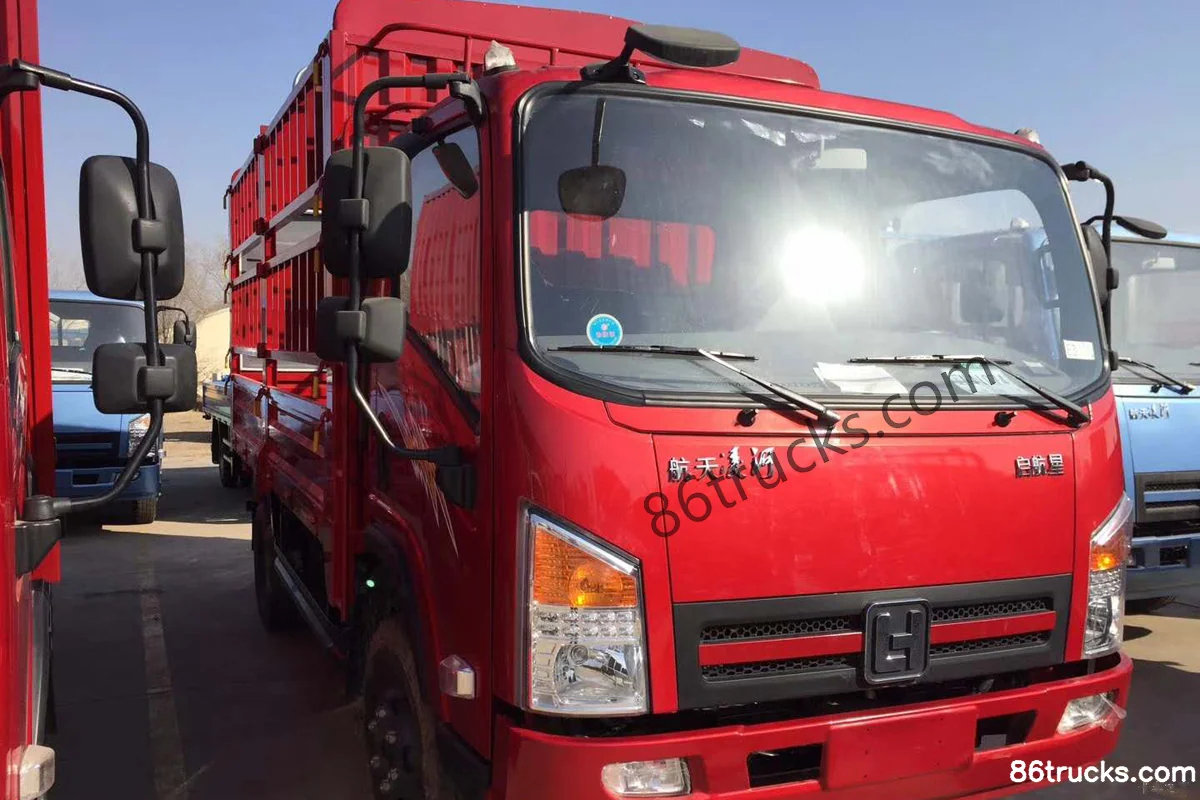

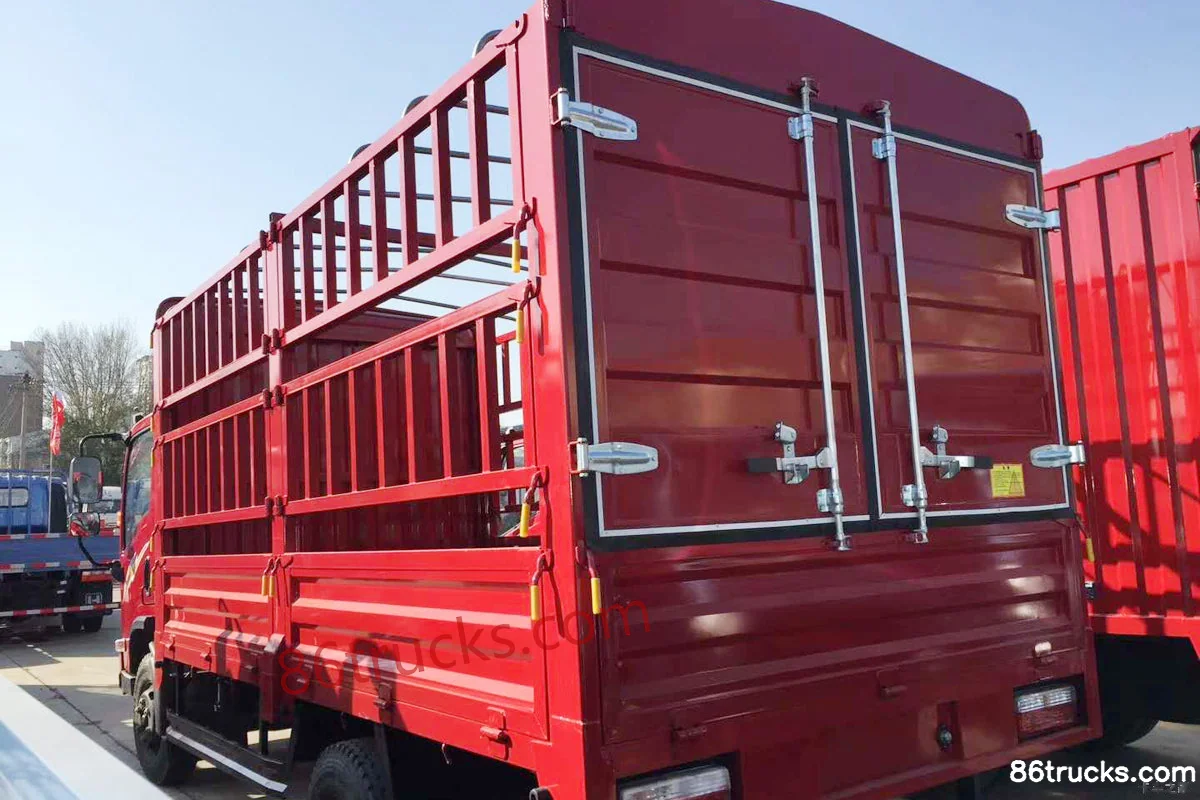

Photos

Exterior3

3 photos

FAQ

What is the export price of Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck, and what does it include?

Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck export reference is about From $12,611; MSRP is ¥9.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck?

Key specs of Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck suited for?

Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck differ from other variants in the same series?

Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck belongs to Aerospace Linghe Qihang Star light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Aerospace Linghe Qihangxing 116 hp 4X2(6 wheels) 4.17m single-row stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
