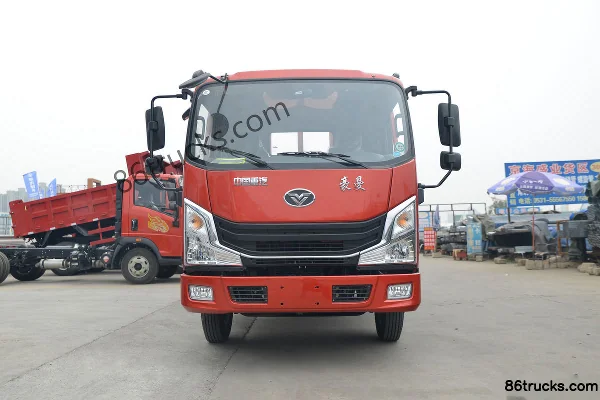

Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck

Export reference
From $17,083
MSRP ¥12.3M CNY
Horsepower: 130
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP2.3
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck is a Light Truck featuring 4.165m cargo length, stake body cargo body, 3Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP2.3 engine, 130 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1048G17FB5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 4.2m
engine: WeichaiWP2.3NQ130E61
transmission: WLYWLY6G40
Cab length: 5.998m
Cab width: 2.3m
Cab height: 2.52m
Front track width: 1605mm
rear track: 1595mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Building materials, agricultural products
Front/rear suspension: 1.175/1.52m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E61
Engine info: WeichaiWP2.3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: WLYWLY6G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.165m
Cargo box width: 2.15m
Cargo box height: 0.5m
*Cargo box interior width: 2.1500000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1785kg
rear axle allowable load: 2710kg
Leaf spring count: 3/5+3,8/9+6,11/9+7,9/12+9,11/11+7,9/10+8,3/5+2,3/3+2,3/3+4
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR,8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck, and what does it include?

Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck export reference is about From $17,083; MSRP is ¥12.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck?

Key specs of Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP2.3; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck suited for?

Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck differ from other variants in the same series?

Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman Pioneer H3 130hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
