FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 39.27ton
Wheelbase:: 4700+1350mm
Tire Size:: 295/80R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 15.56L
Drive 6X4 (10 wheels)
Horsepower 660
Emission China VI
Transmission FAW Jiefang

Overview

The FAW Jiefang Qingdao FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 660 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a XichaiCA6SX1A66E61N engine, FAW Jiefang transmission and LNG (liquefied natural gas) fuel.

China VI 660 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4259P35K15T1NE6A80
Drive type: 6X4
Wheelbase: 4700+1350mm
engine: XichaiCA6SX1A66E61N
transmission: FAW JiefangCA12TA300ART
Rear Axle Ratio: 2.867
Cab length: 8.335m
Cab width: 2.5m
Cab height: 3.96m
Front track width: 2020mm
rear track: 1830/1830mm
Gross Trailer Weight: 39.27ton
Curb Weight: 9.6ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Qingdao
tonnage class: Heavy truck
Version: Business Cabin
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: CA6SX1A66E61N
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 15.56L
Emission standard: China VI
Max output power: 484kW
Max hp: 660Horsepower
Max torque: 3000N·m
Max torque speed: 900-1200rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: CA12TA300ART
Transmission Brand: FAW Jiefang
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Air tank capacity: 1500L
Cab parameters
Cab: High-roof large row half flat floor cab
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: Q4663 front axle
Front axle allowable load: 7000kg
Frame Dimensions: 300×80×8mm
rear axle description: 440 Press-Welded Axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.867
Leaf spring count: 2/3
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
lighting configuration
LED headlight:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Disc
Rear Wheel Brake: Disc
smart configuration
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

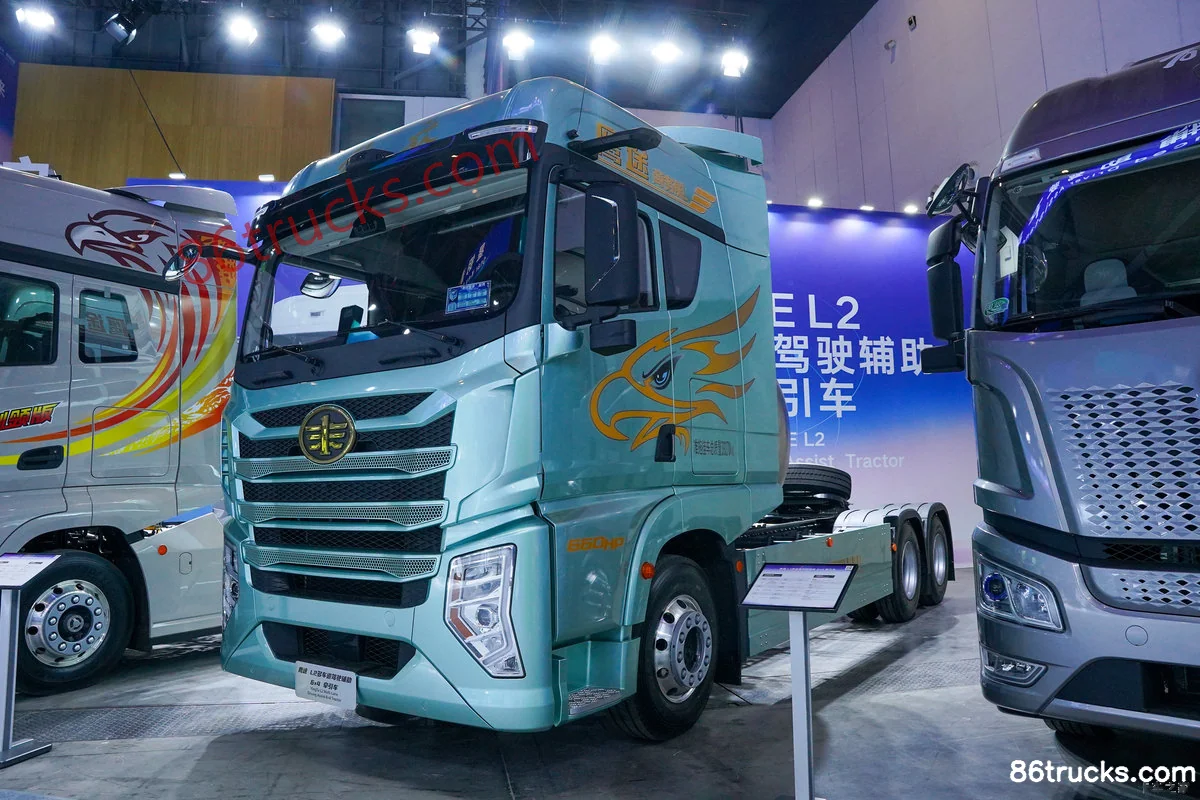

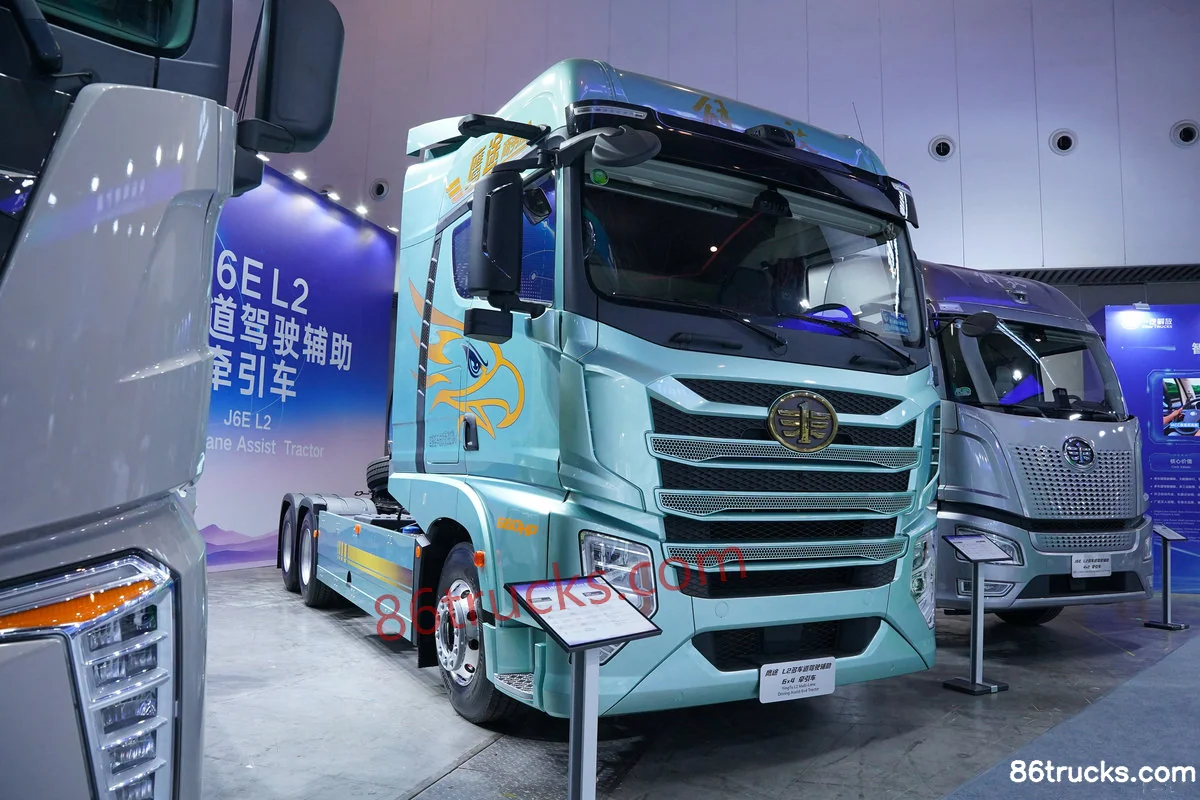

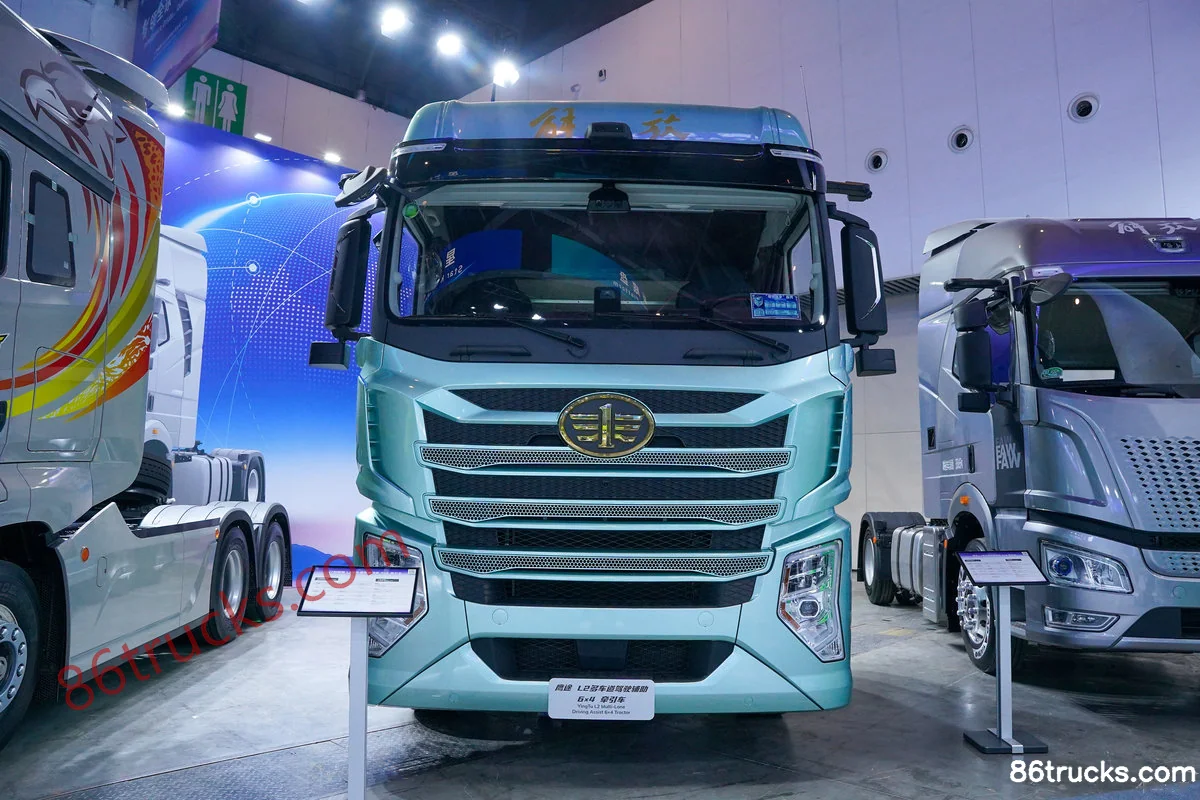

Exterior3

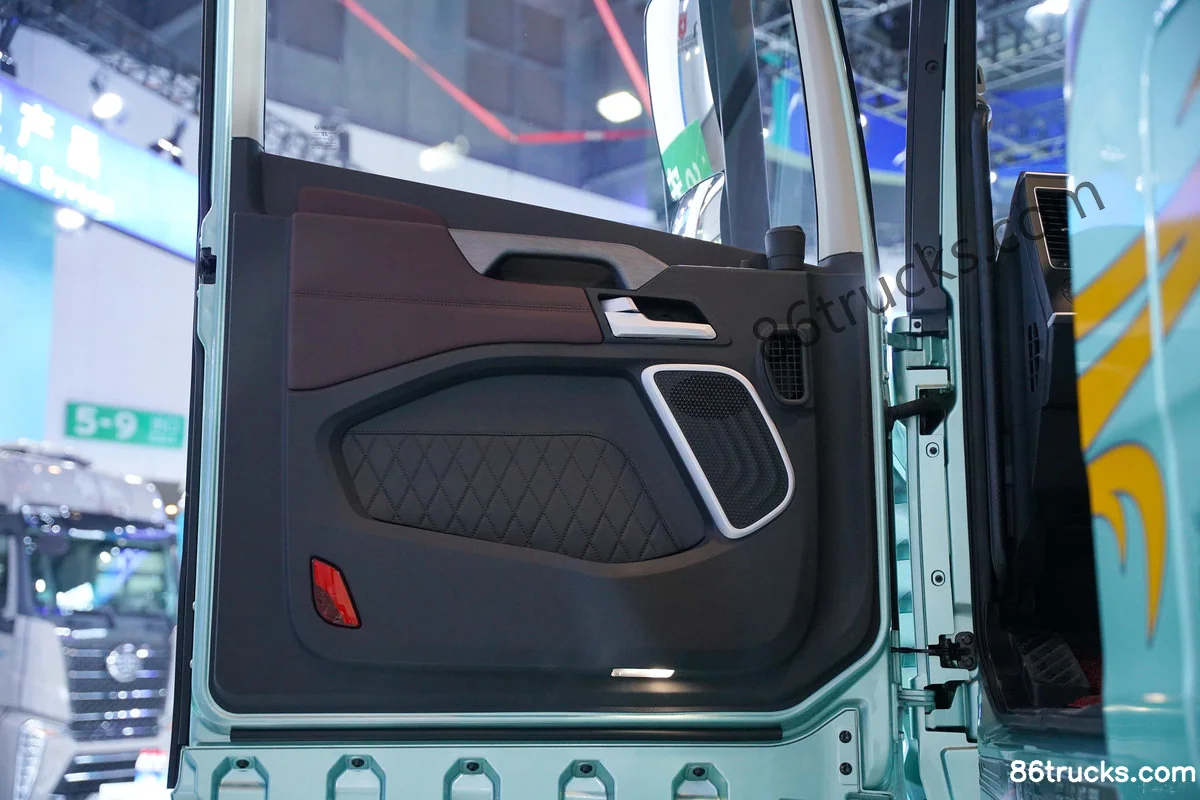

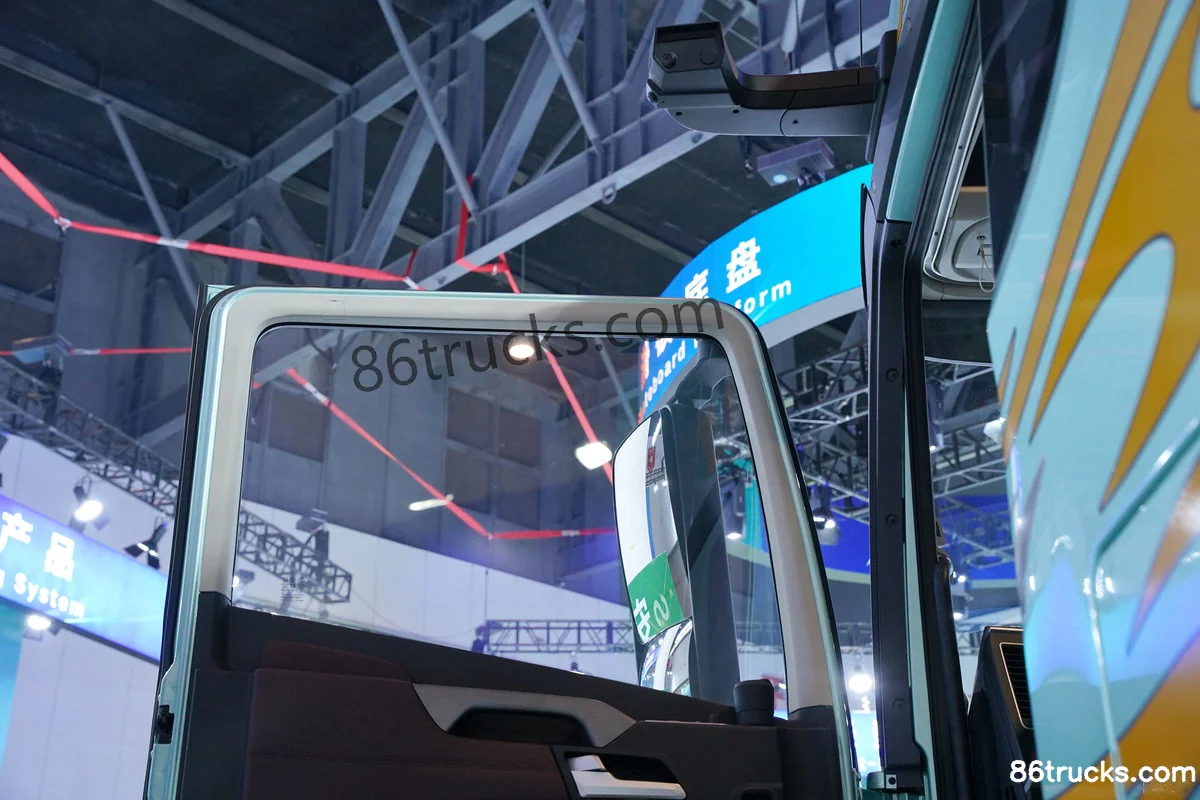

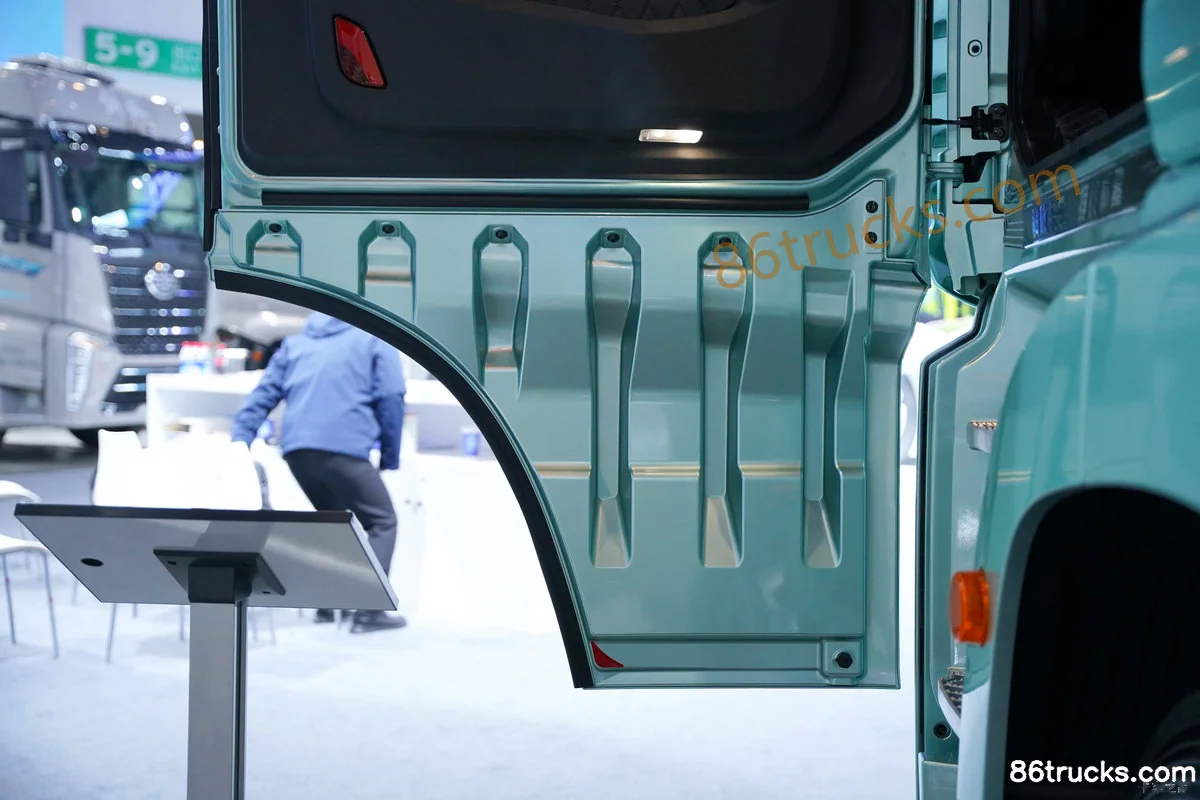

Cab3

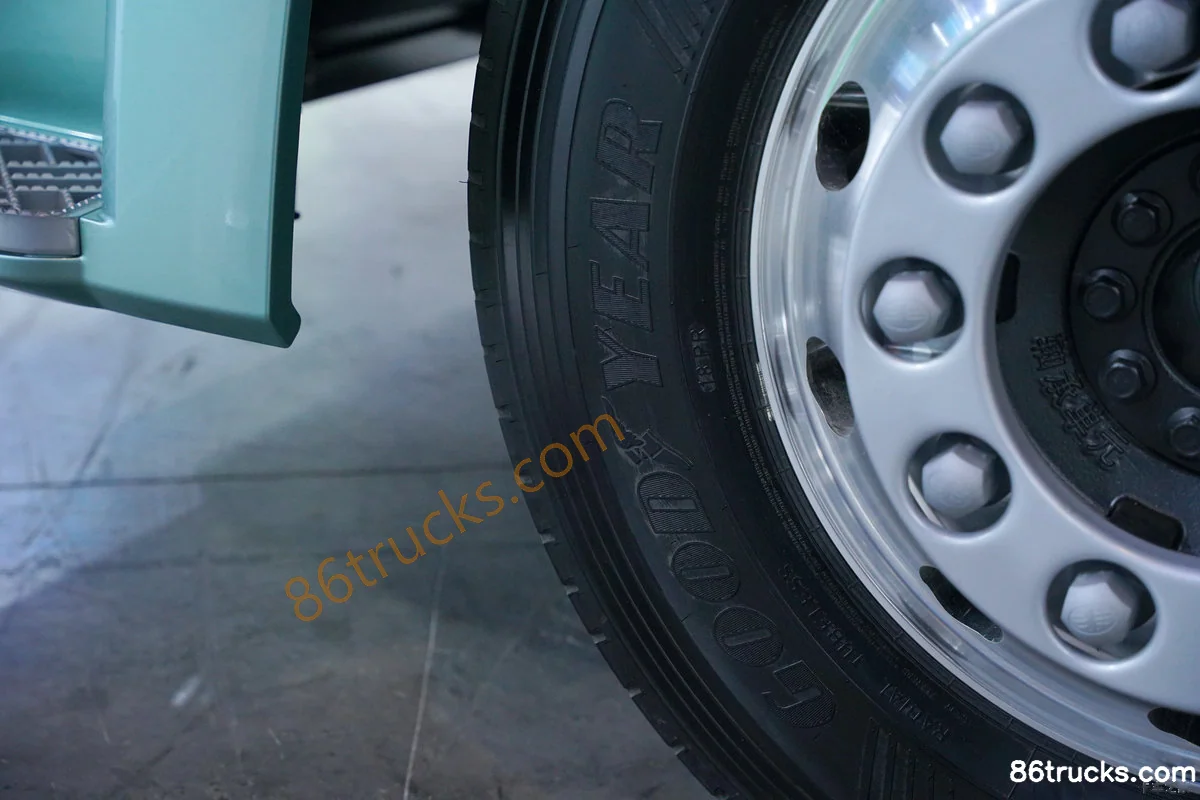

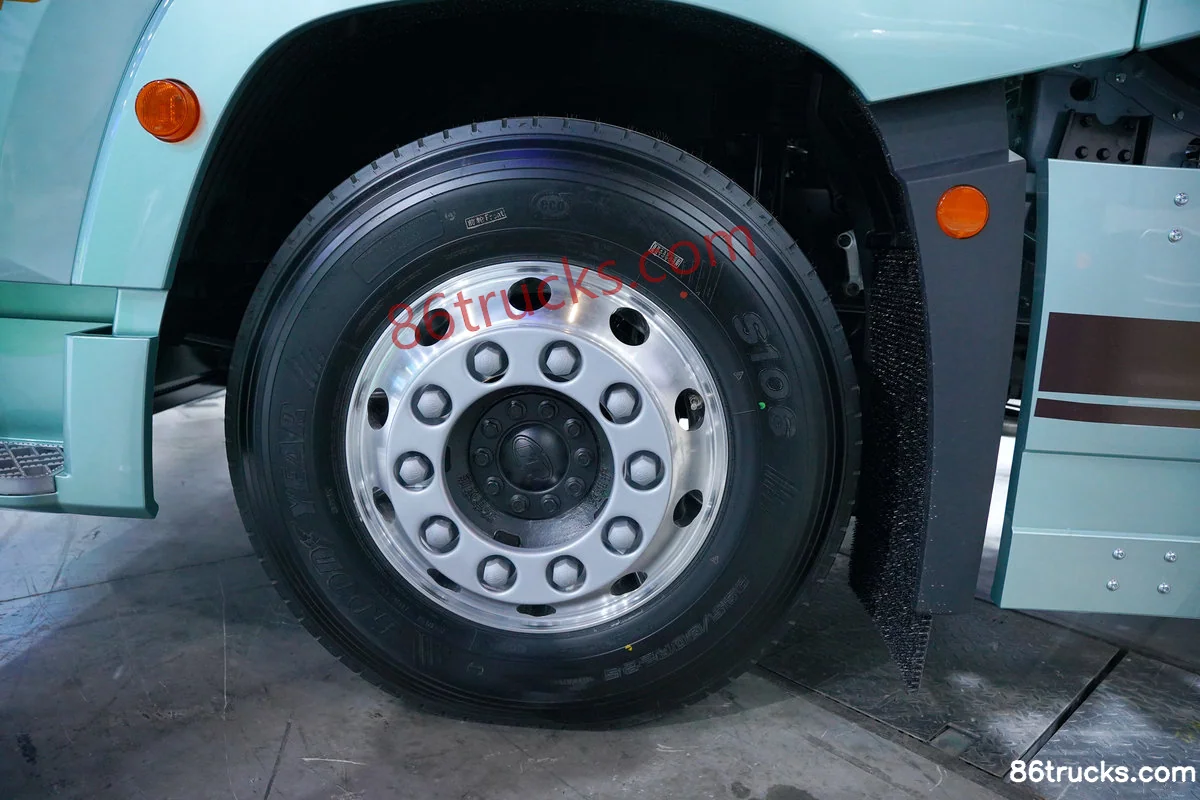

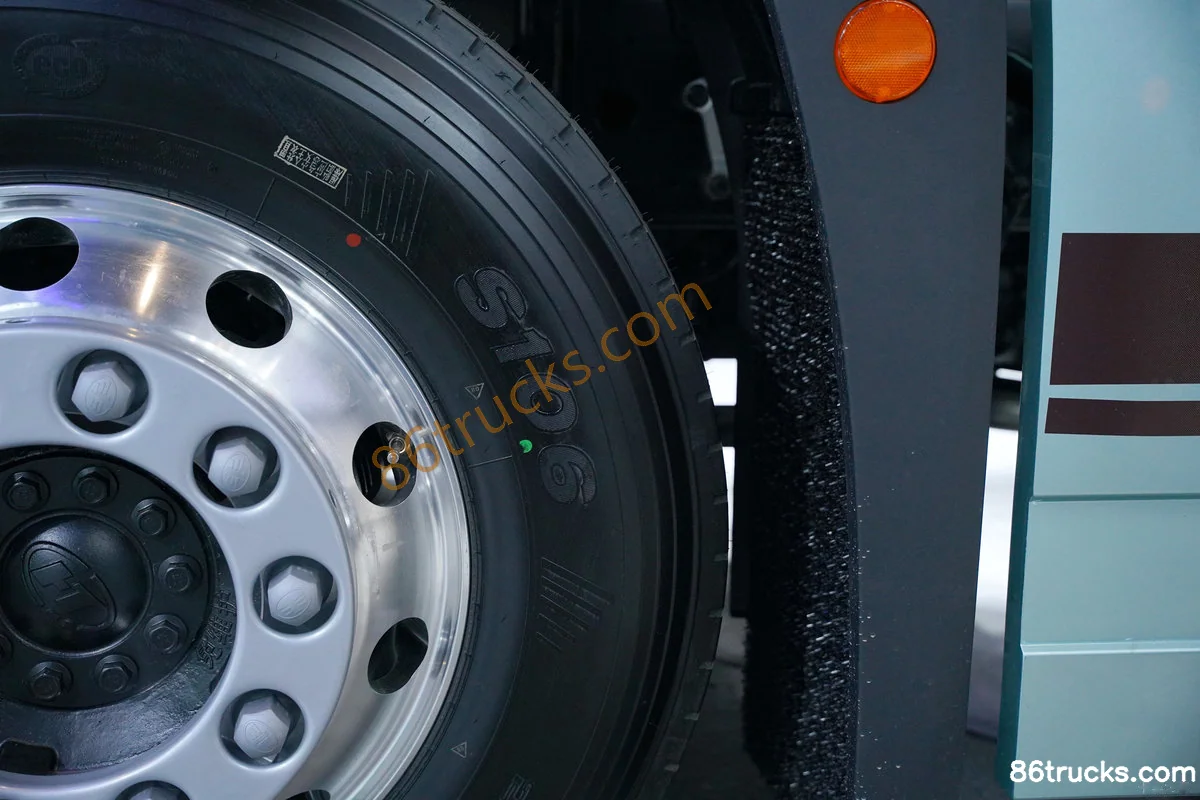

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck?

Key specs of FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck: Drive: 6x4; Horsepower: 660 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck suited for?

FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck differ from other variants in the same series?

FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck belongs to FAW Jiefang Qingdao Yingtu Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Yingtu Business Class 15.6L LNG 660 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic L2 Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
