Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels)

Export reference
MSRP N/A
Wheelbase:: 3360mm
Cargo box width:: 2.1m
Model code (announced):: QL5040XLCBEVBNHA
Cab length:: 5.995m
GVWR:: 4.495ton
Max. speed:: 100km/h
Drive 4x2 (6 wheels)
Motor 1 Brand: Jingjin
Curb Weight: 3.19ton
Rated payload: 1.11ton

Overview

The Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels) is a Electric Refrigerated Truck featuring Jingjin motor, 4x2 (6 wheels) drive, 1.11t payload and 2.1m cargo length.

4x2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5040XLCBEVBNHA
Drive type: 4x2
Wheelbase: 3360mm
Cab length: 5.995m
Cab width: 2.23m
Cab height: 3.3m
Curb Weight: 3.19ton
Rated payload: 1.11ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Jiulongpo, Chongqing
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ220XSA10
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 140kW
Chassis Specs
Chassis Series: Qingling Isuzu
Chassis Model: IsuzuEVM100
Leaf spring count: 3/3+2
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.1m

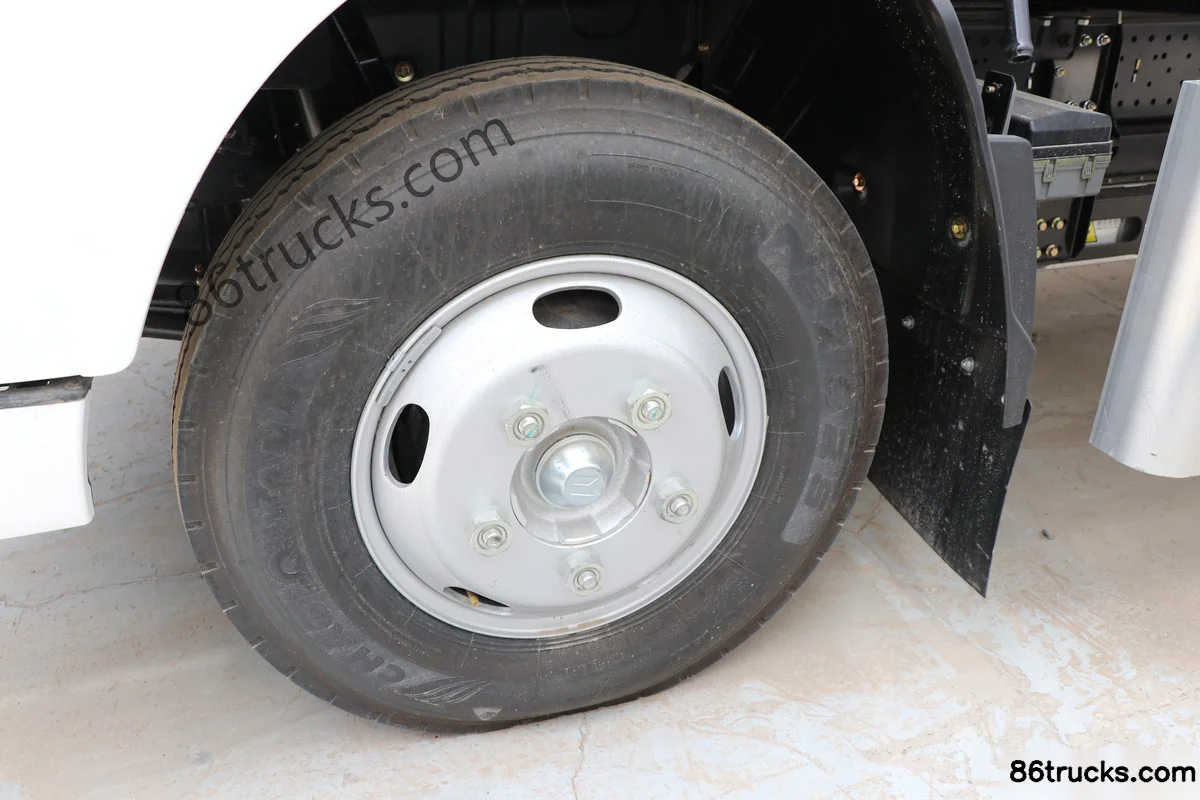

Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

Photos

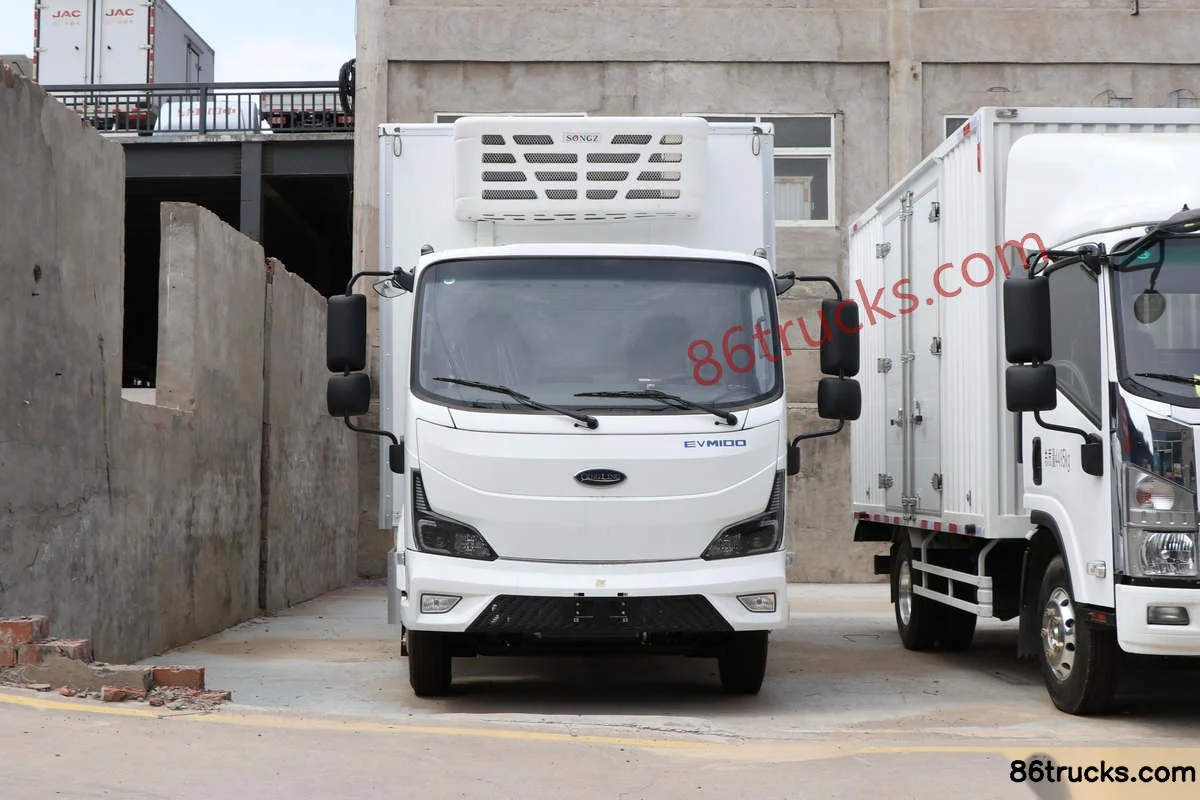

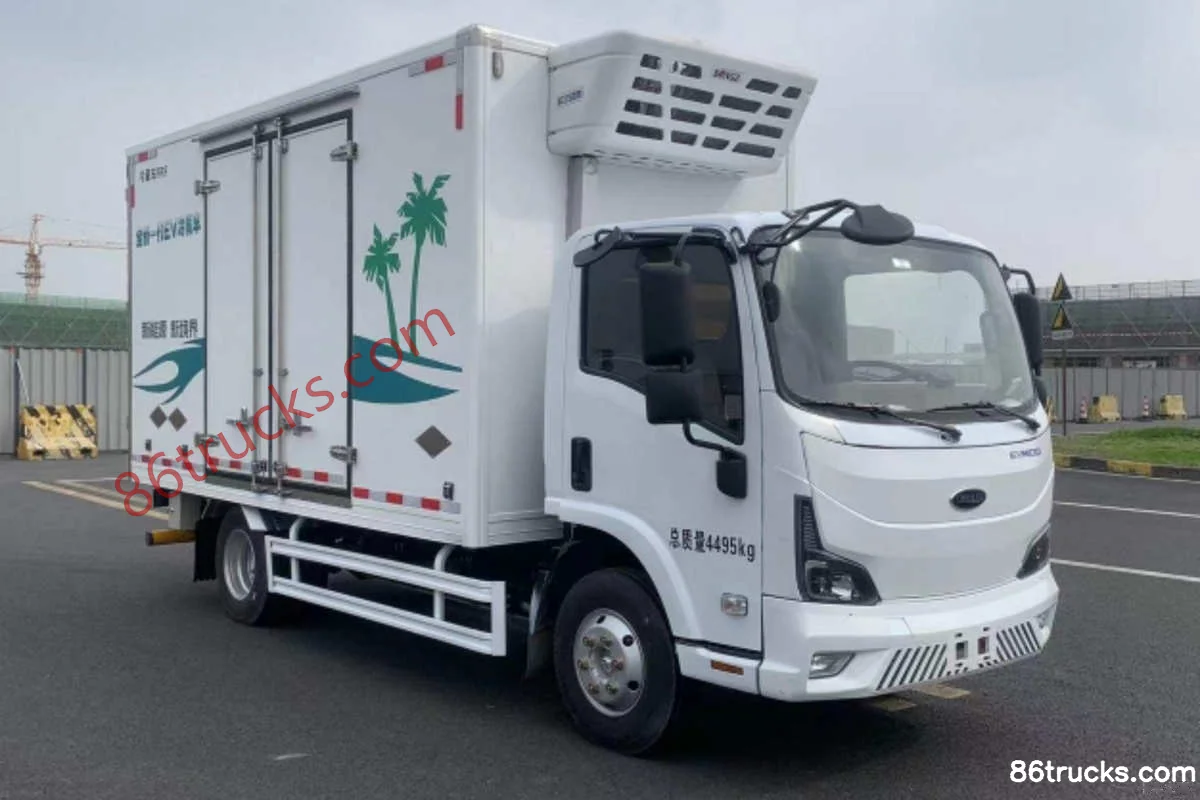

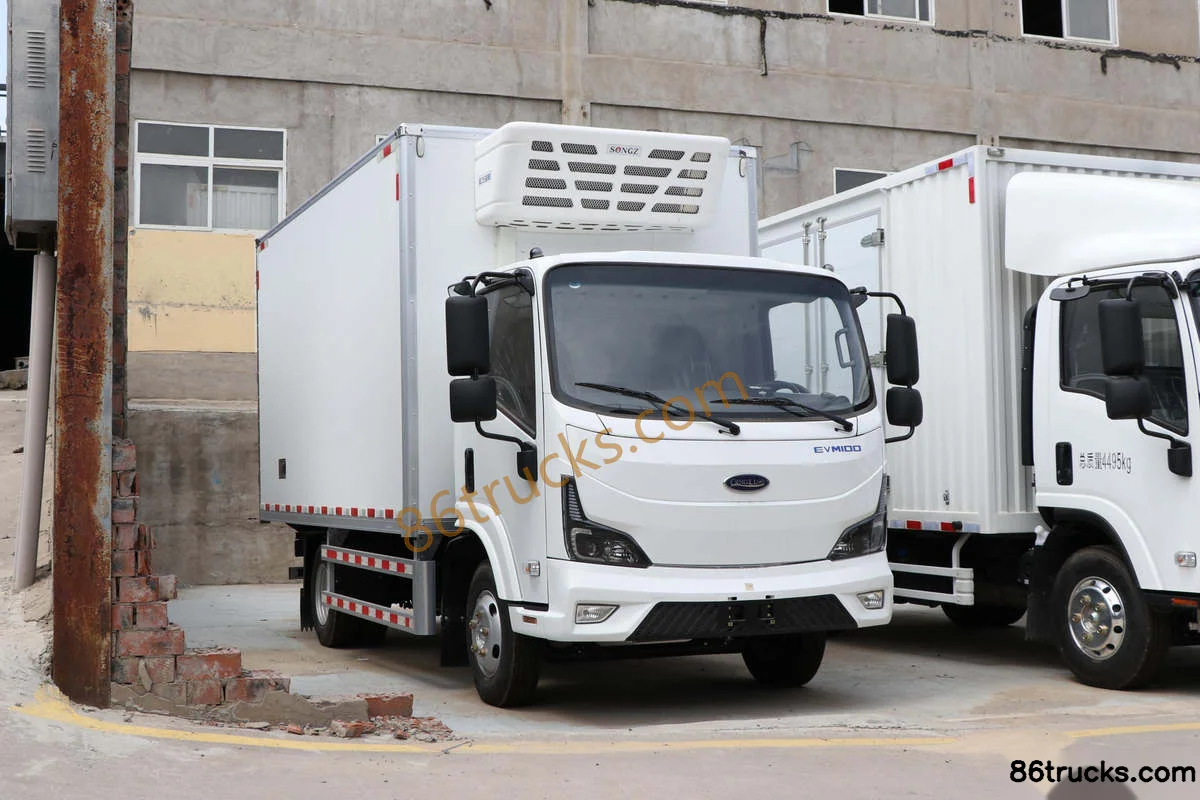

Exterior3

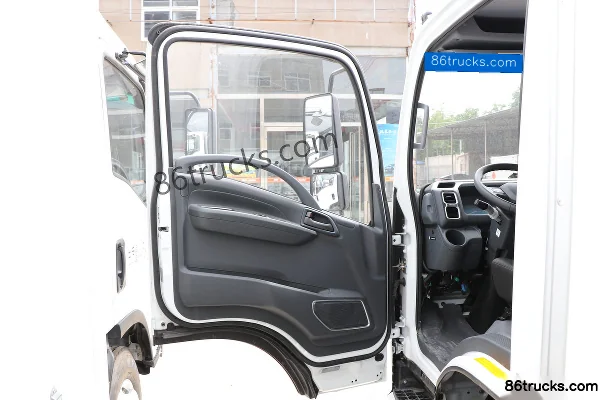

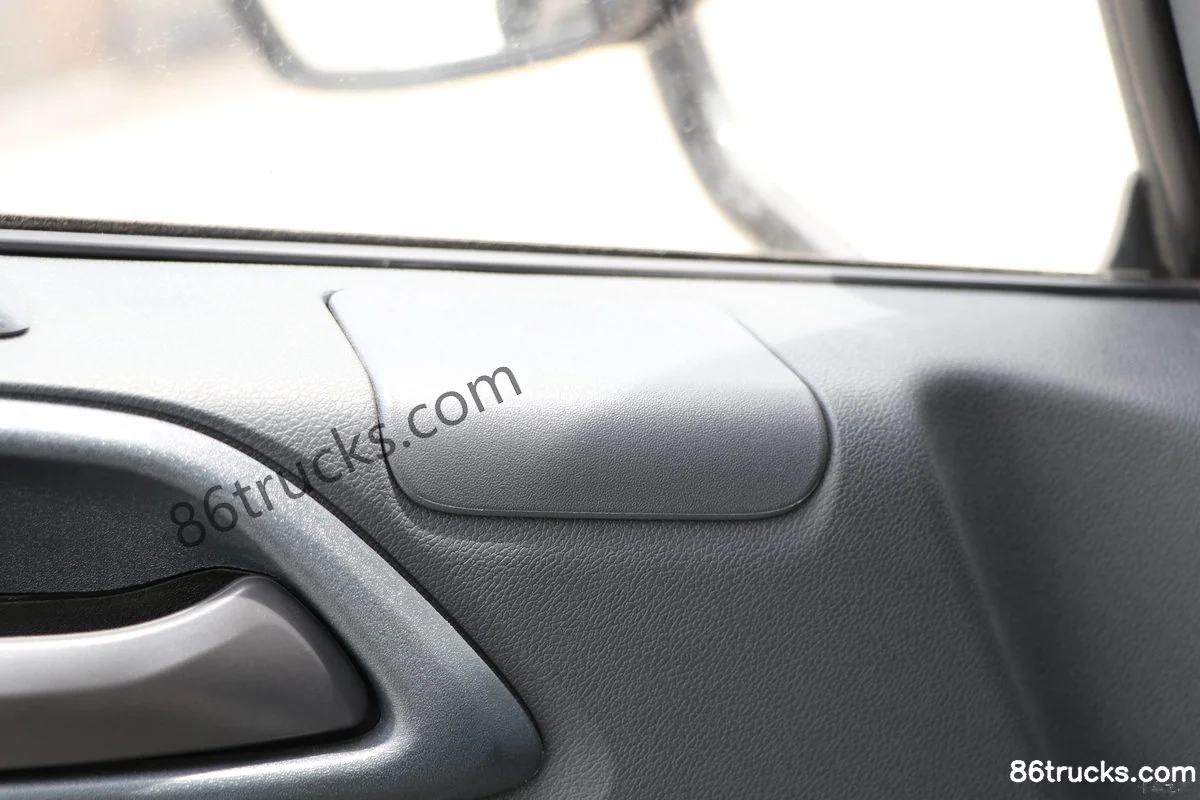

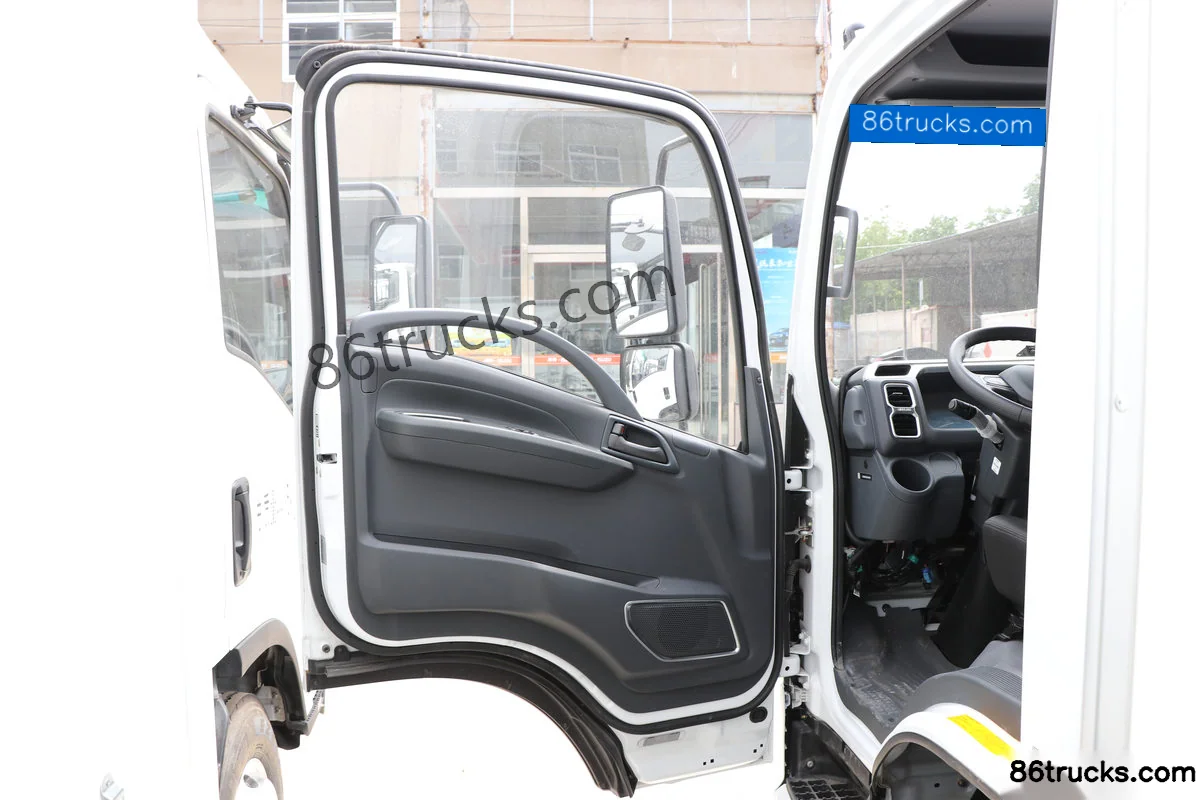

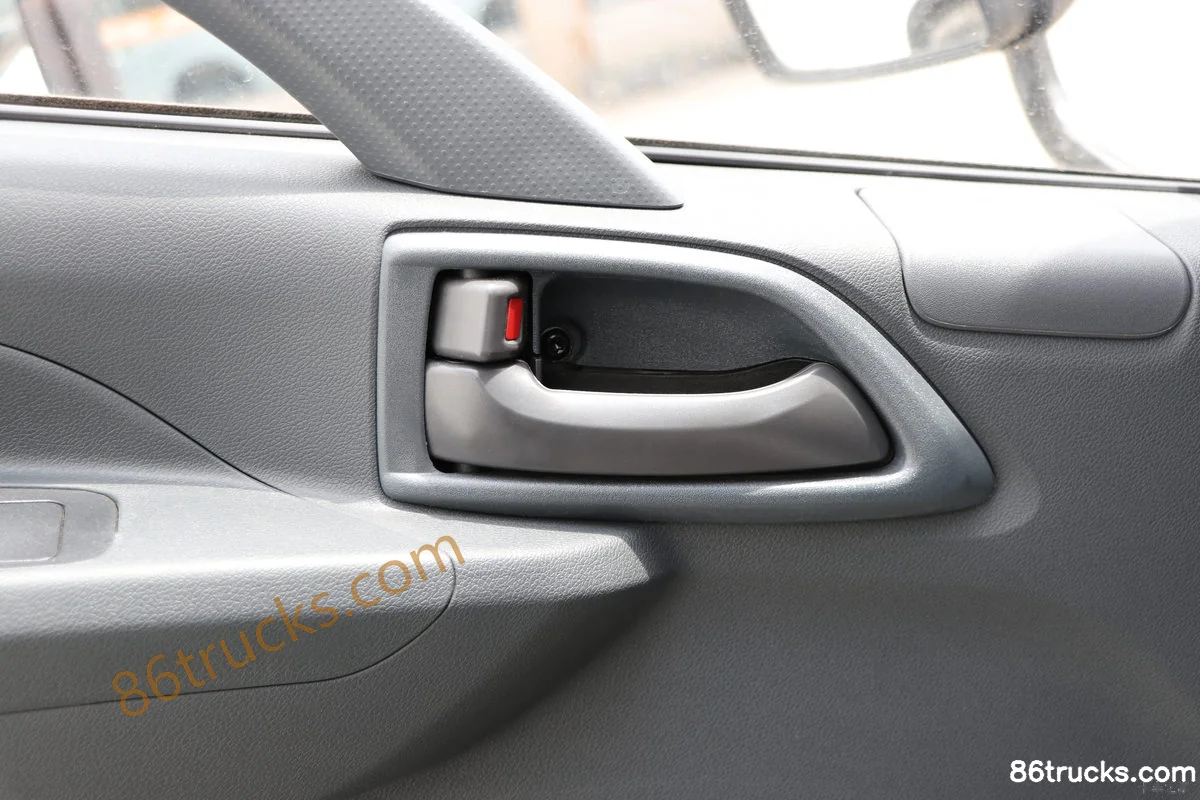

Cab3

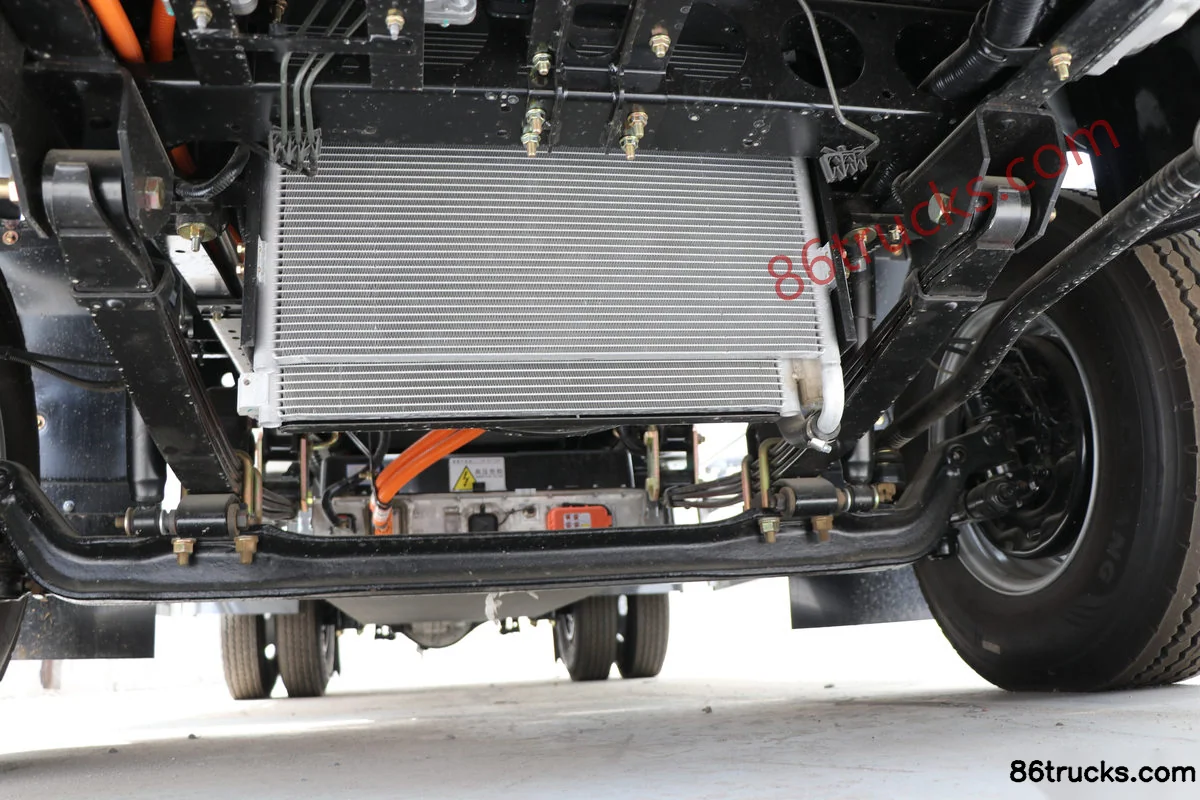

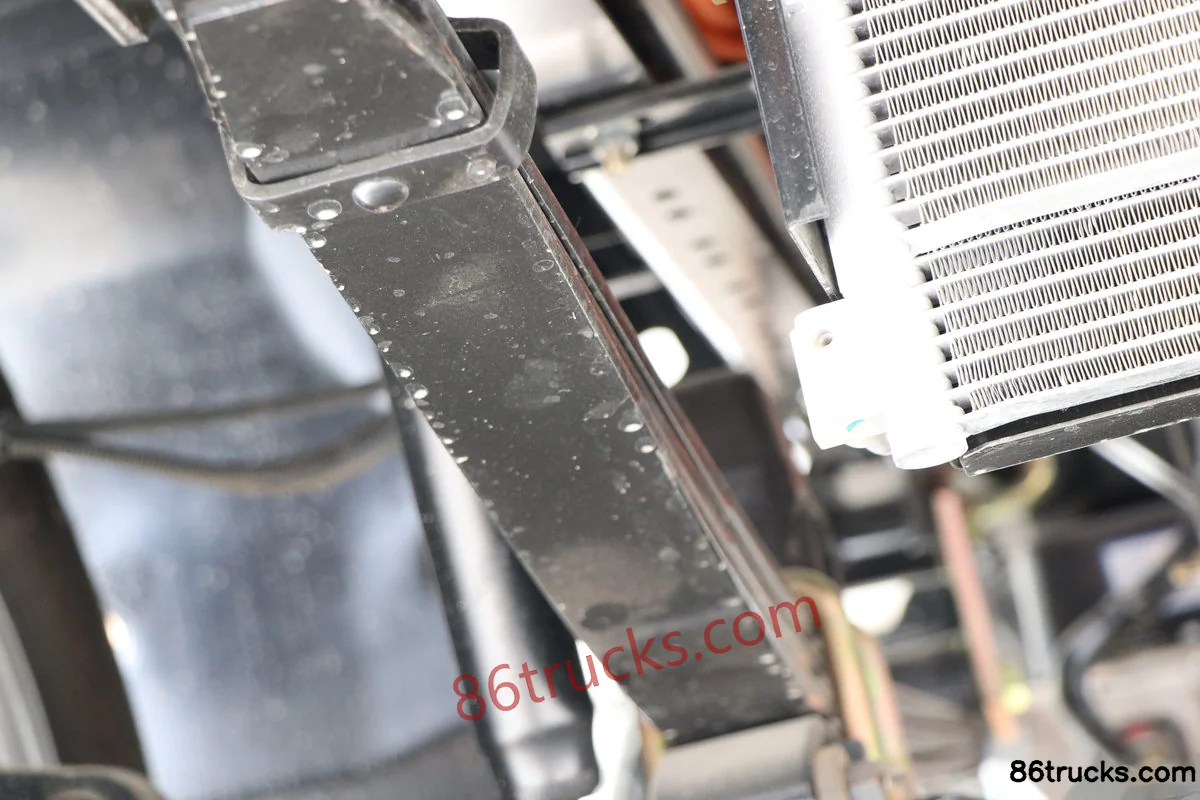

Chassis3

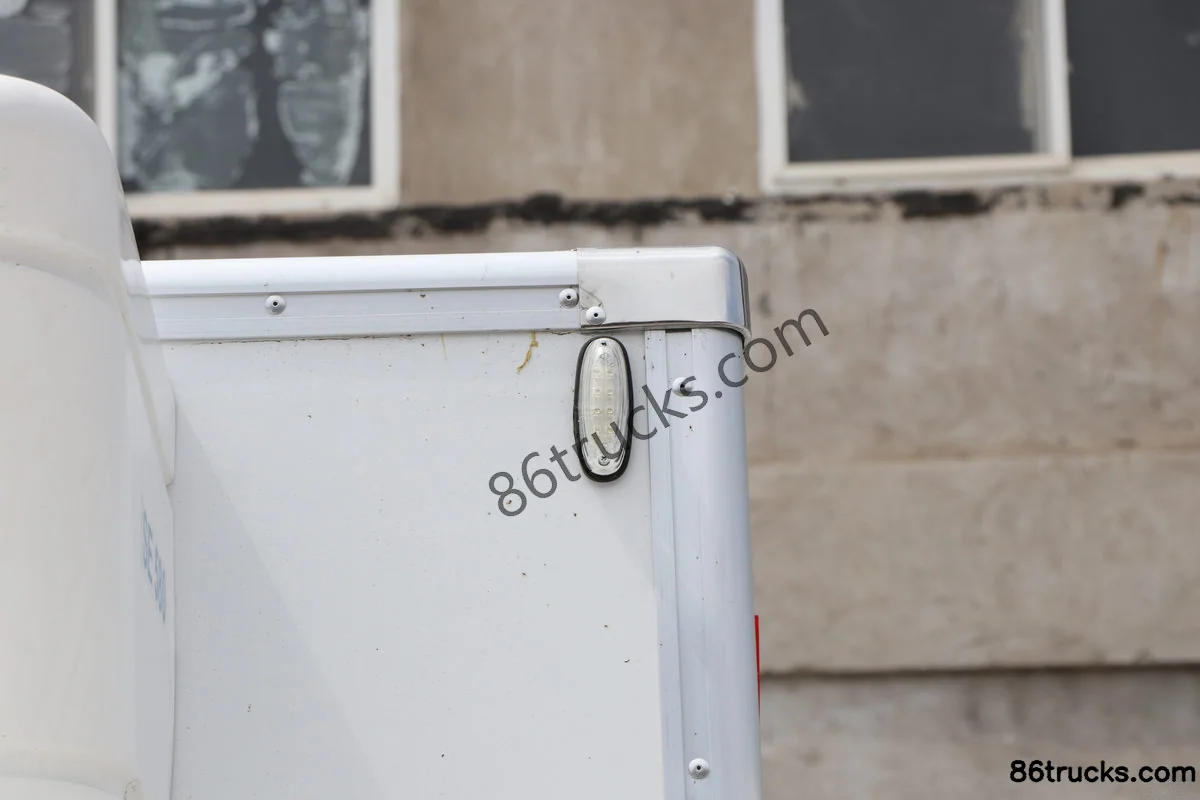

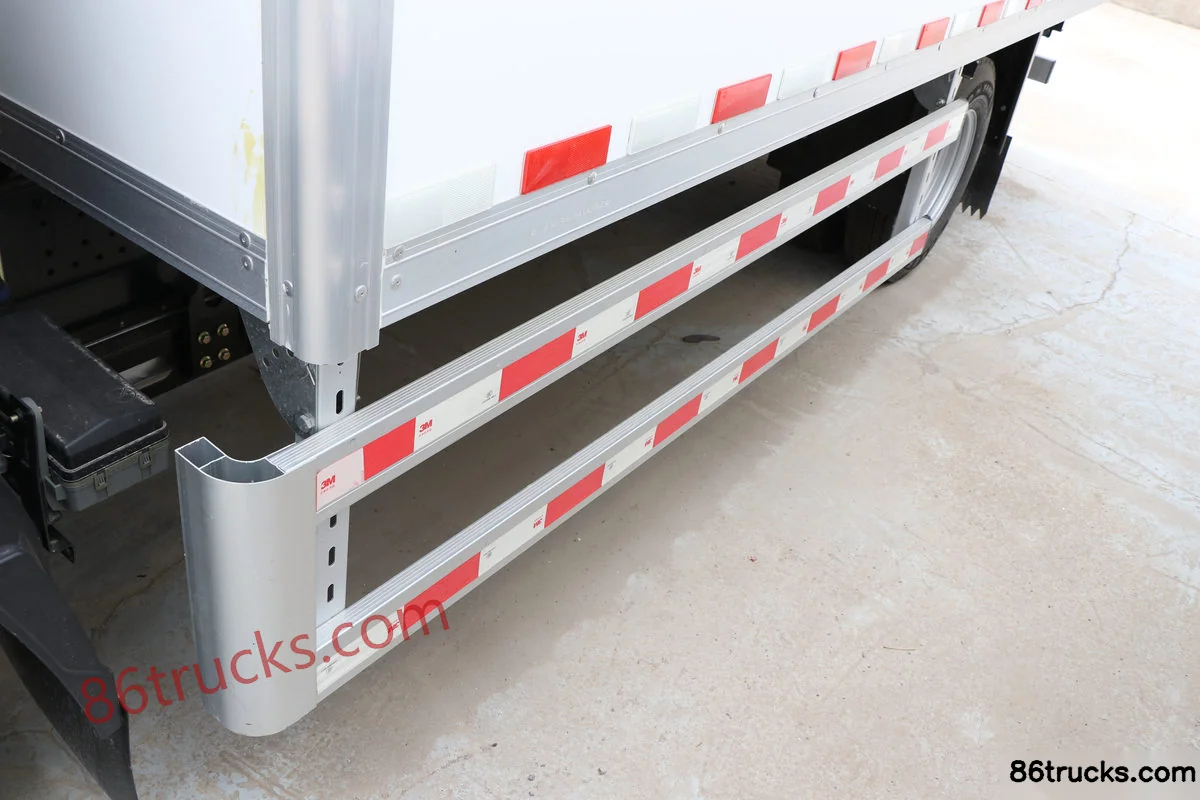

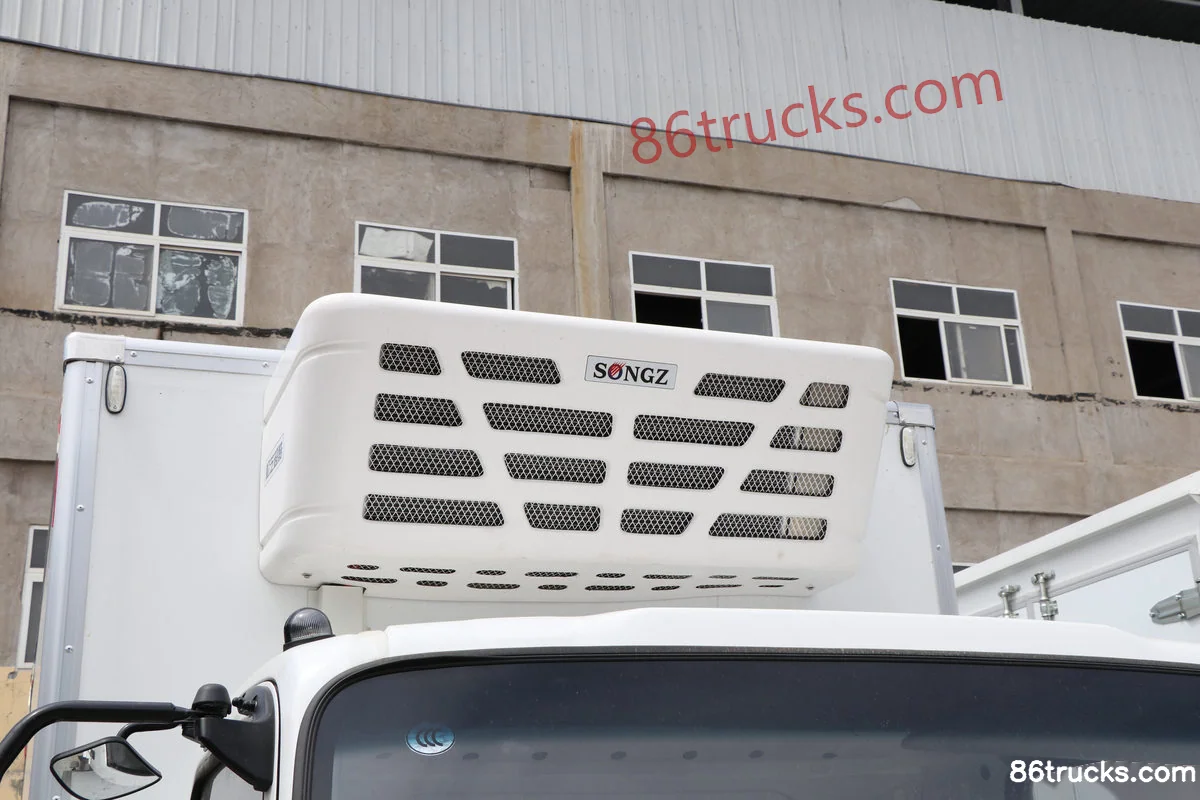

Body3

12 photos

FAQ

What are the key specs of Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels)?

Key specs of Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels) suited for?

Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels) differ from other variants in the same series?

Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels) belongs to Qingling IsuzuEVM100 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu EVM100 4.5T 4.015m Single Row Pure Electric Refrigerated Truck 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
