Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.265ton
Wheelbase:: 2800mm
Model code (announced):: HQG5045ZZZEV
Truck Type:: electric self-loading type
Cab length:: 5.5m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 219km
Motor 1 Brand: FinDreams
Curb Weight: 3.1ton

Overview

The Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels) is a Electric Garbage Truck featuring 219km battery/range, FinDreams motor, 4X2 (6 wheels) drive and 1.265t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HQG5045ZZZEV
Drive type: 4X2
Truck Type: electric self-loading type
Wheelbase: 2800mm
Cab length: 5.5m
Cab width: 1.85m
Cab height: 2.16m
CLTC range: 219km
Curb Weight: 3.1ton
Rated payload: 1.265ton
GVWR: 4.495ton
Max. speed: 85km/h
Origin: Suizhou, Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: FinDreams
Motor 1 Model: TZ180XSE
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 100kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.86kWh
Battery Model: CB320
Chassis Specs
Front axle load: 1500ton
Rear Axle Load: 2995ton
Chassis Series: Starry Sky
Chassis Model: HQG1045EV
Leaf spring count: 3/5
Body Parameters
Body Brand: Xinchufeng
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs

Photos

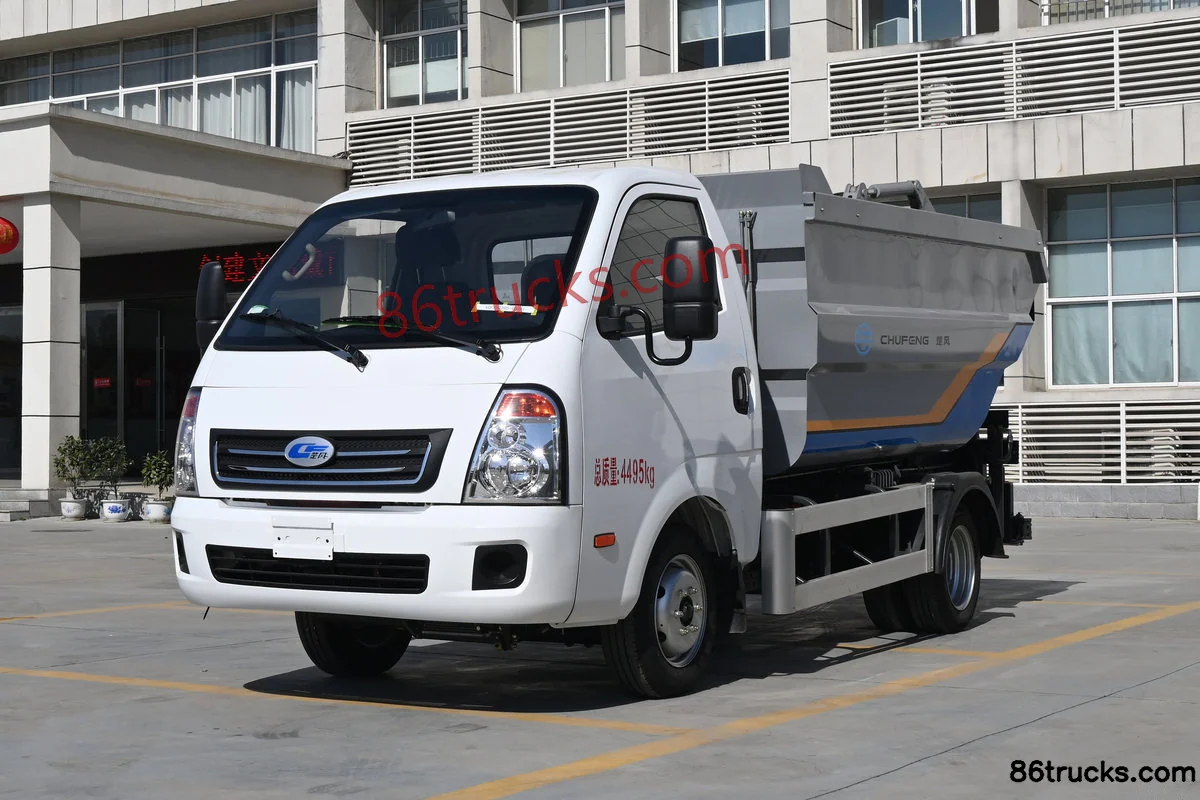

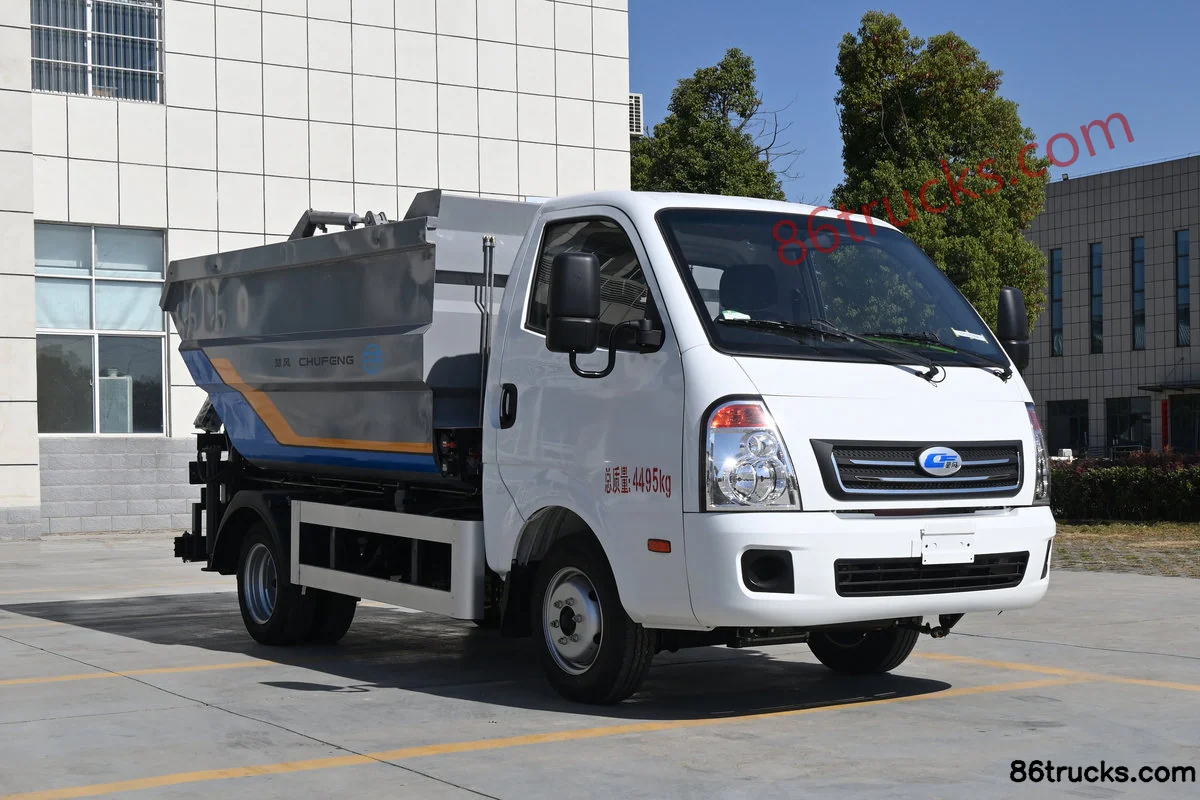

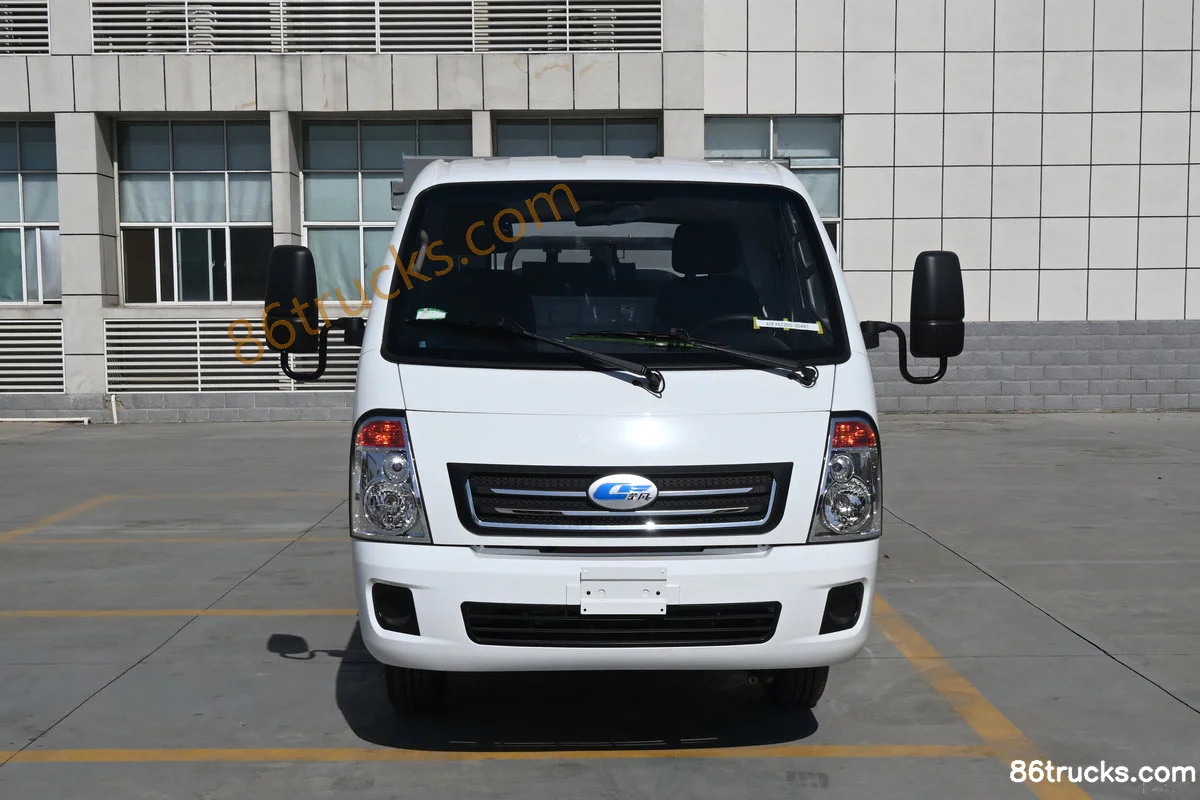

Exterior3

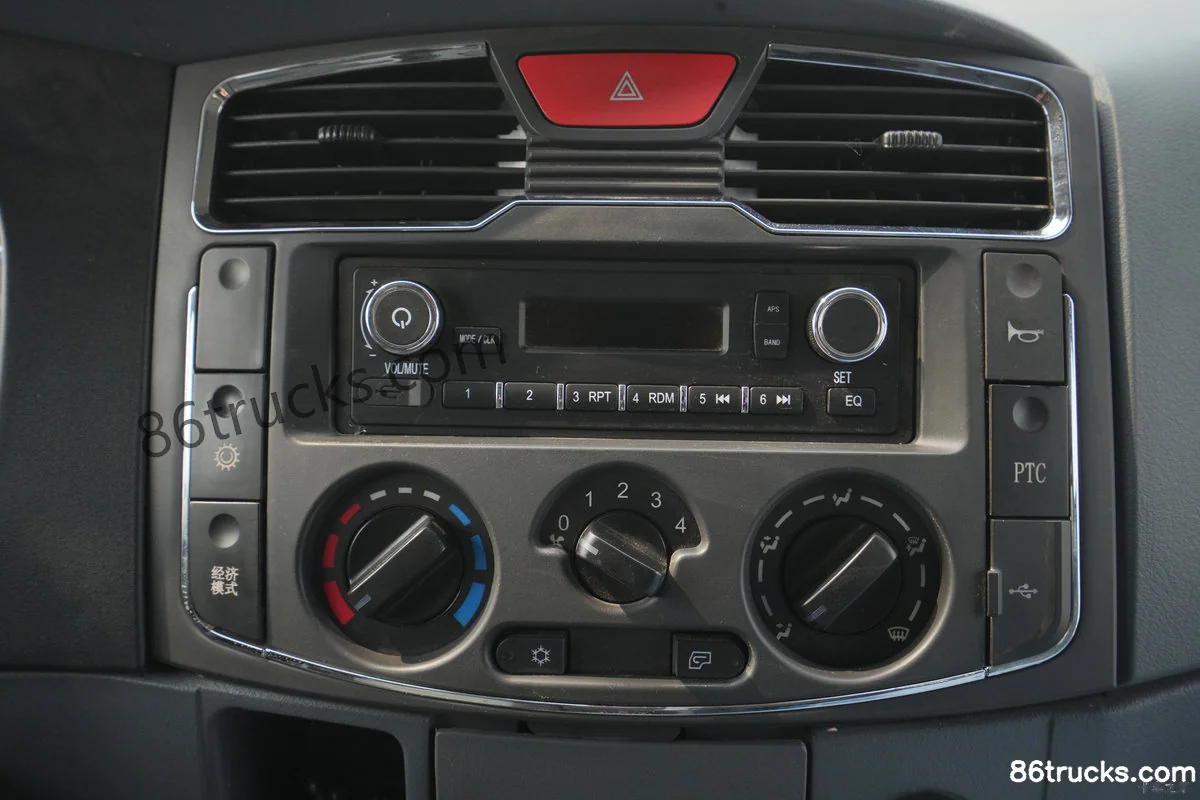

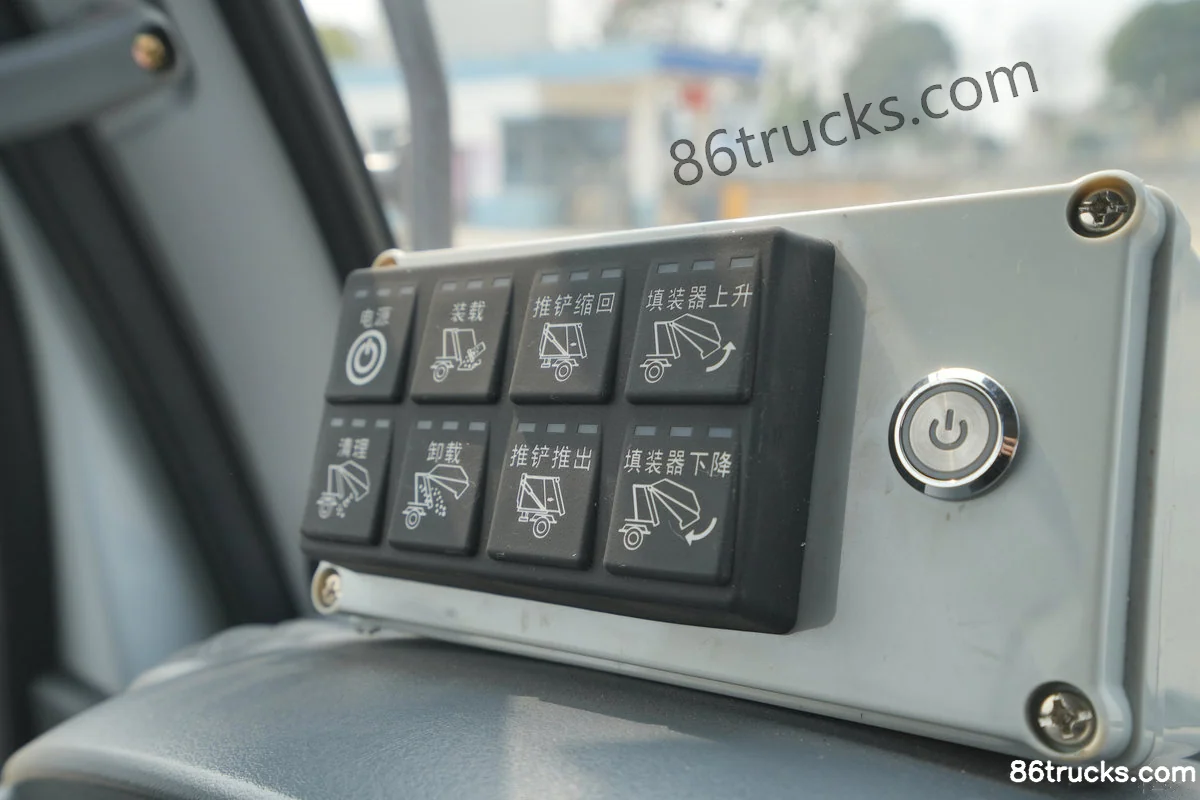

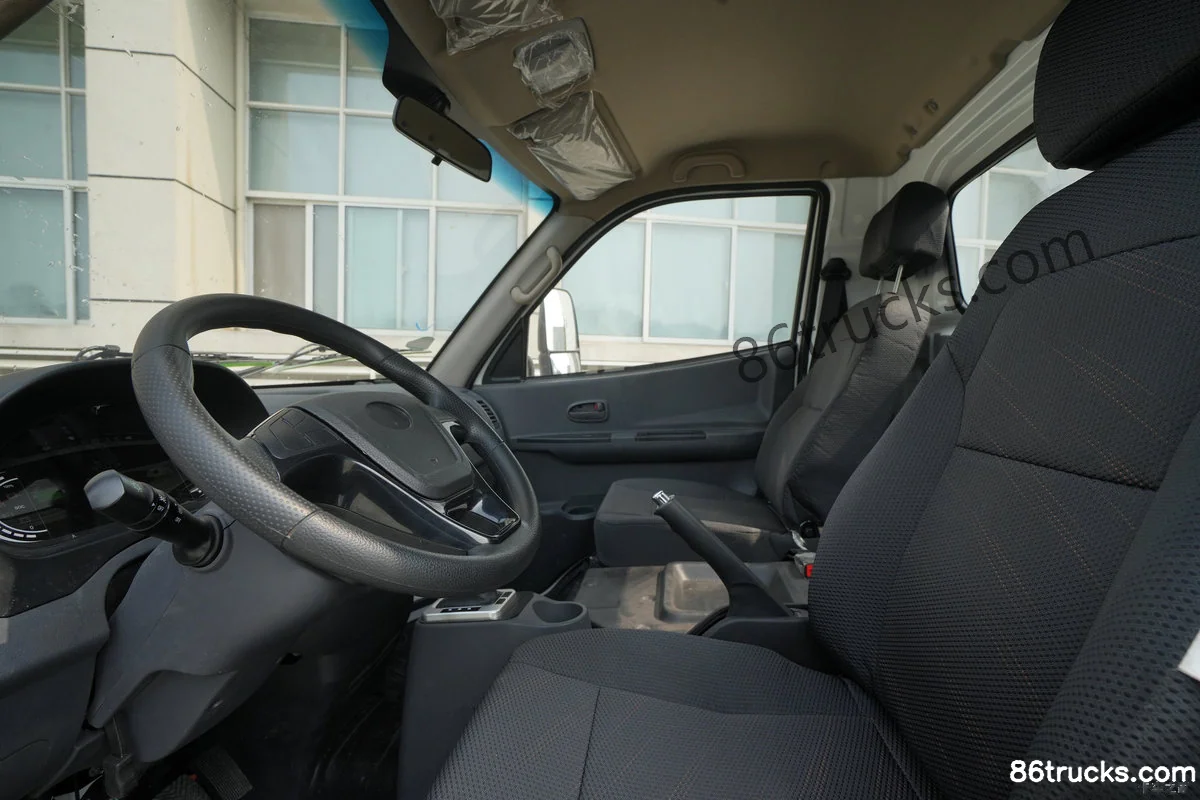

Cab3

6 photos

FAQ

What are the key specs of Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels)?

Key specs of Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels) suited for?

Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels) is a Electric Garbage Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels) differ from other variants in the same series?

Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels) belongs to Xinchufeng Mantianxing (formerly H5) (Electric Garbage Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Xinchufeng Mantianxing 4.5T 3.185m Electric Self-Loading Garbage Truck 41.86kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
