Lieniu 13m Low Flatbed Semi-Trailer (25.5T Payload)

Export reference
MSRP N/A
Cab width:: 3m
suspension:: Three-line six-axle
Design load capacity:: 25.5ton
Cab height:: 2.9m
Wheel brand:: Better
Brake chamber:: Runhao
Axle Brand: Leijin
Curb Weight: 11.5ton
Cab length: 13m
Tire brand: Chaoyang

Overview

The Lienew Lieniu 13m Low Flatbed Semi-Trailer (25.5T Payload) is a Low-bed Semi-trailer featuring Leijin-axle setup, 11.5ton GVW, 13m length and 25.5ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 25.5ton
Cab length: 13m
Cab width: 3m
Cab height: 2.9m
Curb Weight: 11.5ton
Chassis Specs
Axle Brand: Leijin
Number of Axles: 6
Axle Load Rating: 7000/7000/7000
Wheel brand: Better
Number of wheels: 24
suspension: Three-line six-axle
Wheel Material: Steel
Parts & accessories
Brake chamber: Runhao
Outrigger: JOST linked
Toolbox:
Spare Tire Carrier:
ABS: WABCO
Body Parameters
Frame material: T700 Full-thickness High-strength Steel
frame rail height: 550mm
Floor Board: 2.5mm
Web Plate: 8mm
upper wing panel: 12mm
Lower Wing Plate: 16mm
Side beam: I-beam
Other notes
Lead time for customization: 40 days
warranty period: 12 months
warranty method: Three guarantees policy
Other: Supplied with vehicle: crowbar, axle nut wrench, etc.
Tire
Tire brand: Chaoyang
Tire Size: 8.25R20
Number of tires: 24pcs

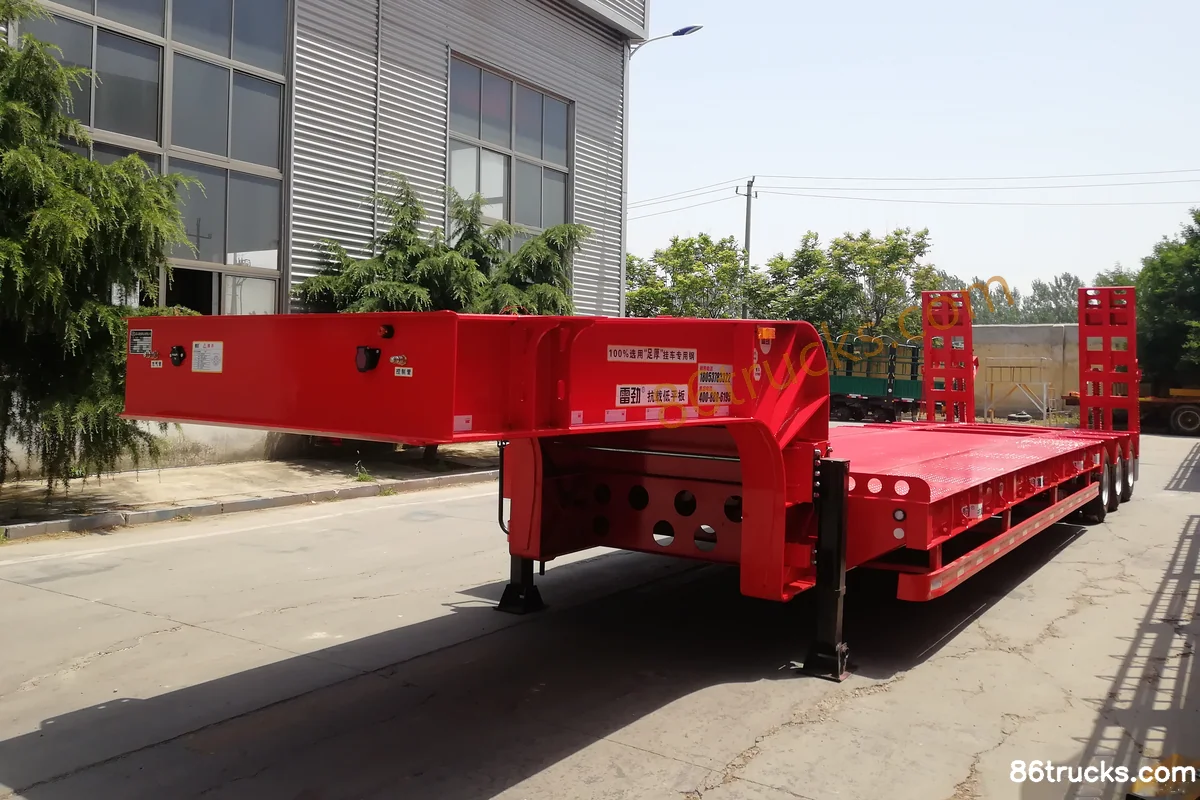

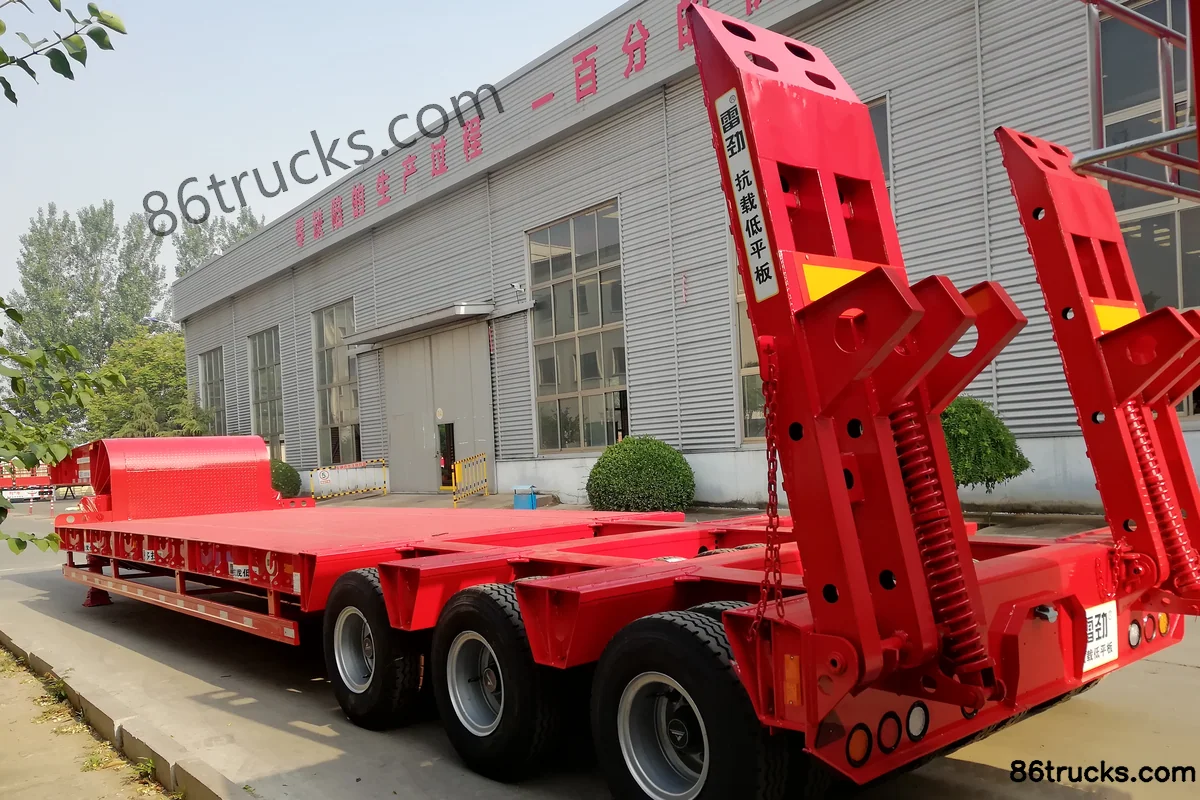

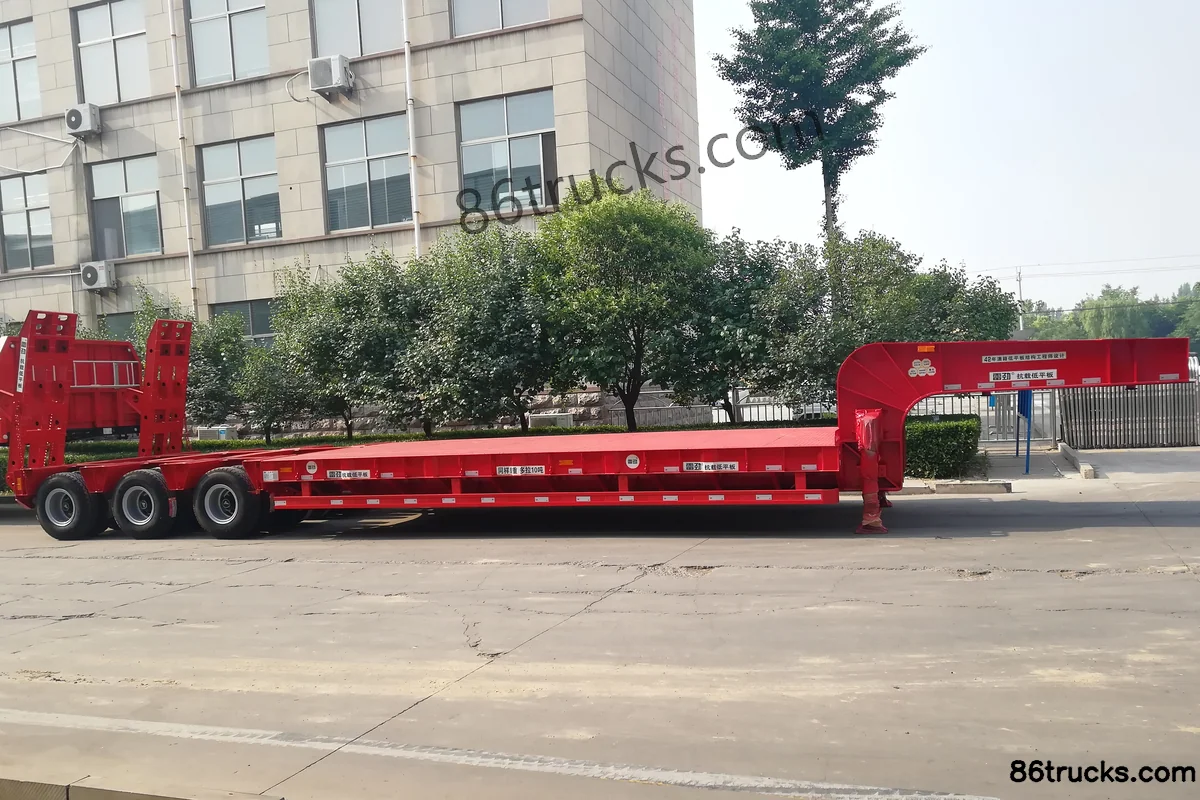

Photos

Exterior3

3 photos

FAQ

What transport jobs is Lieniu 13m Low Flatbed Semi-Trailer (25.5T Payload) suited for?

Lieniu 13m Low Flatbed Semi-Trailer (25.5T Payload) is a Low-bed Semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Lieniu 13m Low Flatbed Semi-Trailer (25.5T Payload) differ from other variants in the same series?

Lieniu 13m Low Flatbed Semi-Trailer (25.5T Payload) belongs to Lienew 13m Series (Low-bed Semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Lieniu 13m Low Flatbed Semi-Trailer (25.5T Payload)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Lieniu 13m Low Flatbed Semi-Trailer (25.5T Payload)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
