JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh

Export reference
From $28,611
MSRP ¥20.6M CNY
Wheelbase:: 2835mm
Cargo box volume:: 6.56
Model code (announced):: JX5040XXYTC-M5BEV
Cab length:: 4.944m
GVWR:: 3.51ton
Max. speed:: 120km/h
CLTC range: 400km
Motor 1 Brand: Dadihe
Curb Weight: 2.04ton
Rated payload: 1.275ton

Overview

The JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh is a Electric Panel Van featuring 400km battery/range, Dadihe motor, 1.275t payload and 6.56 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5040XXYTC-M5BEV
Wheelbase: 2835mm
Cab length: 4.944m
Cab width: 1.972m
Cab height: 2.215m
CLTC range: 400km
Curb Weight: 2.04ton
Rated payload: 1.275ton
GVWR: 3.51ton
Max. speed: 120km/h
Version: Business Type
Energy Type: Electric
electric motor
Motor 1 Brand: Dadihe
Motor 1 Model: TZ260XSDA4
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 120kW
total rated torque: 280N·m
total peak torque: 800N·m
Battery/Charging
Battery Brand: Lishen

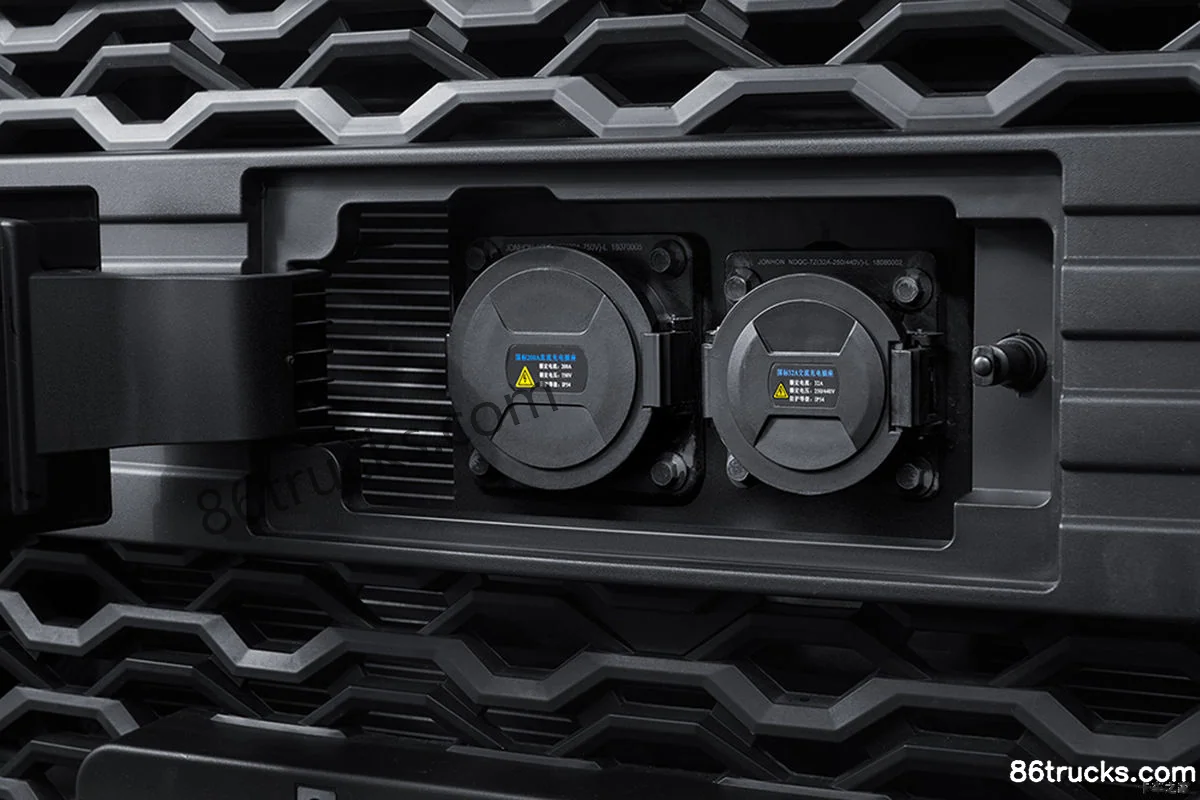

Charging method: DC Fast Charging
Battery type: NMC lithium battery pack
fast charge time: 0.7h
Battery capacity: 58.1kWh
Energy Density: 140
Battery total voltage: 525V
Body parameters

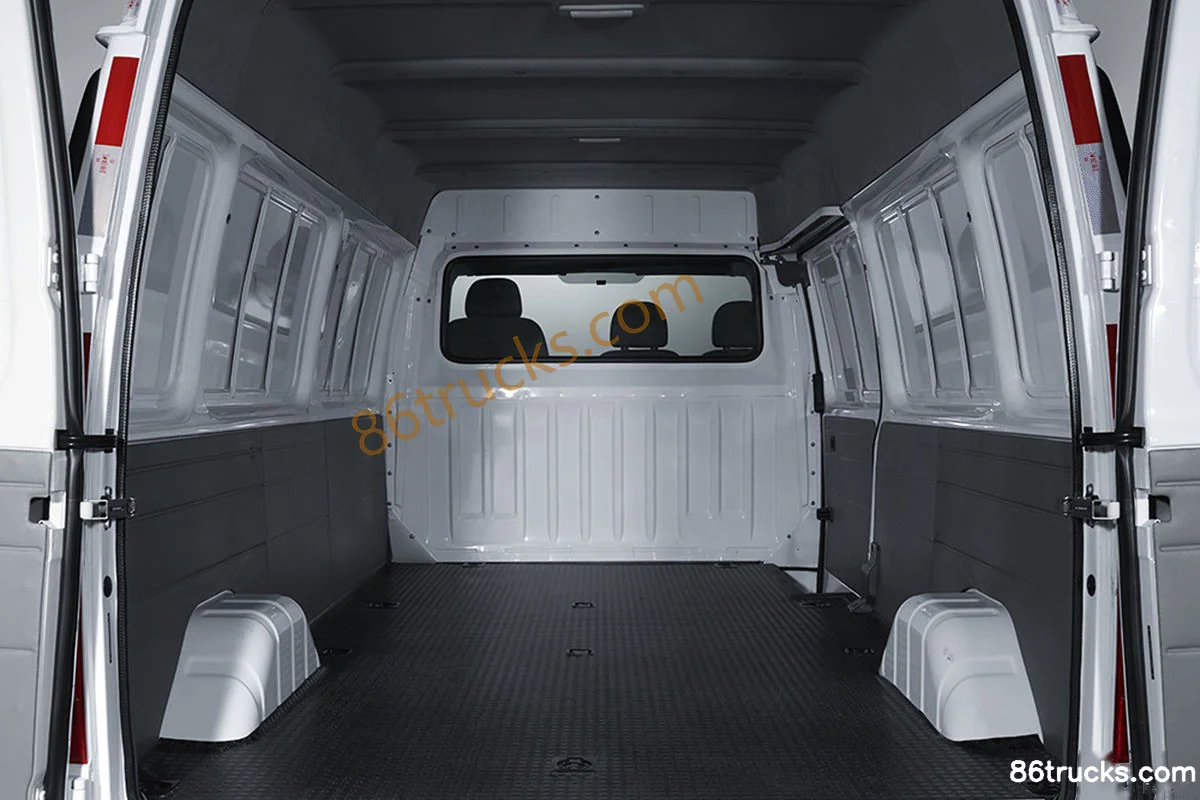

Cargo box volume: 6.56
Max body depth: 2.51
Max body width: 1.72
Cargo Box Height: 1.52
Chassis Specs
steering assist type: hydraulic power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 3Seats
Door Parameters
Number of Doors: 4
side door type: Side sliding door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 215/65R16C
Rear Wheel Specification: 215/65R16C
Cab parameters
Seat rows:
Safety features
Driver airbag:
passenger airbag:
Anti-theft alarm:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Power-Adjustable Rearview Mirror:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
lighting configuration
Front fog lamp:

Photos

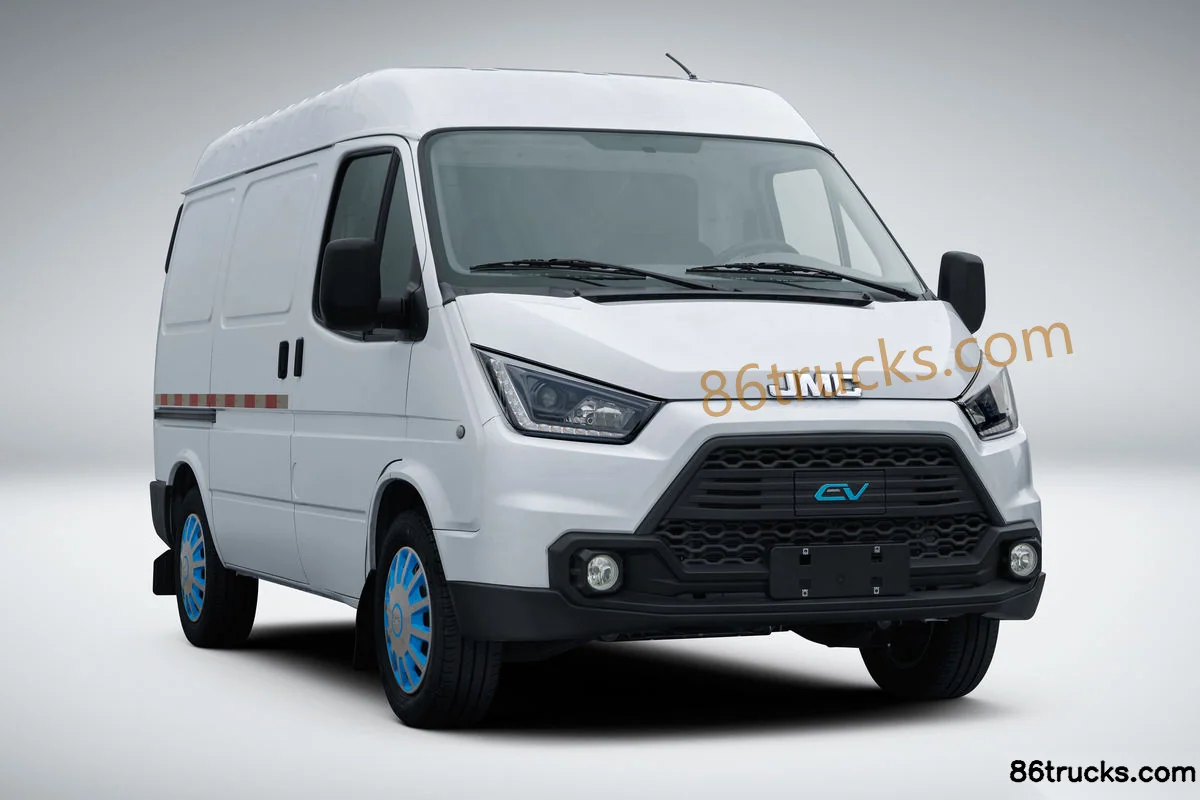

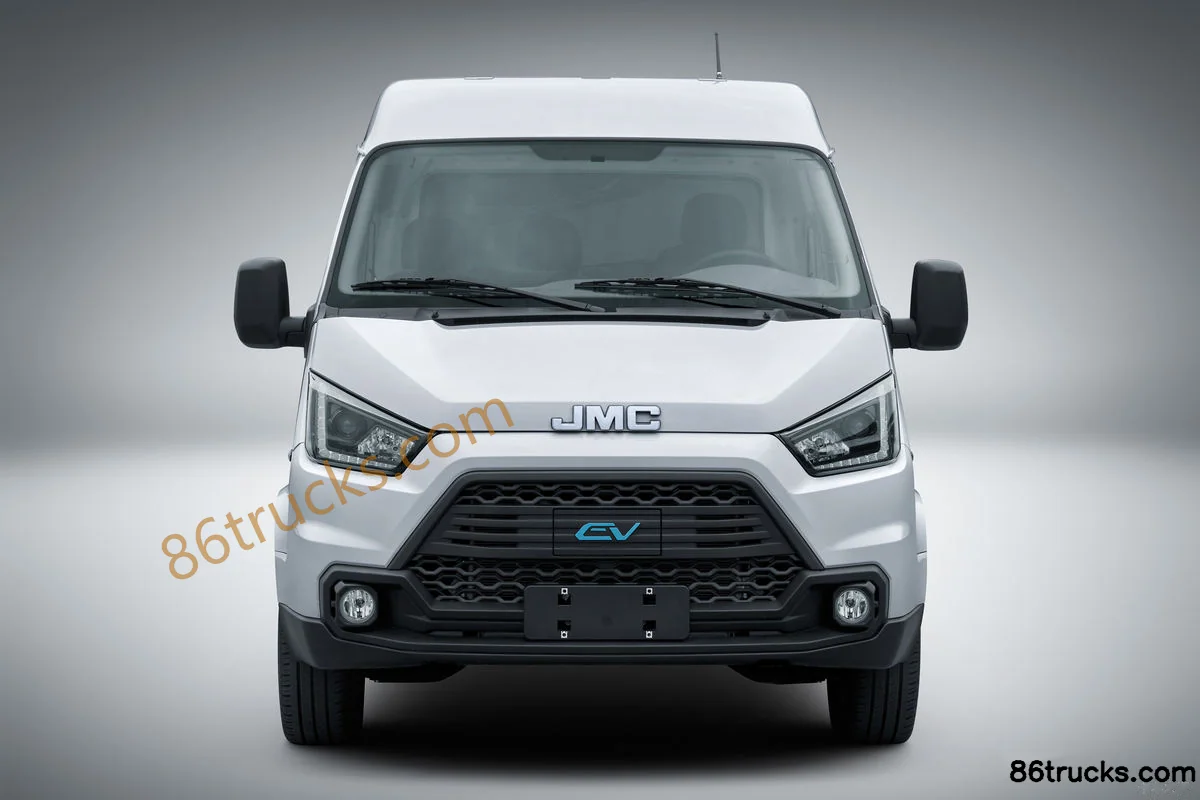

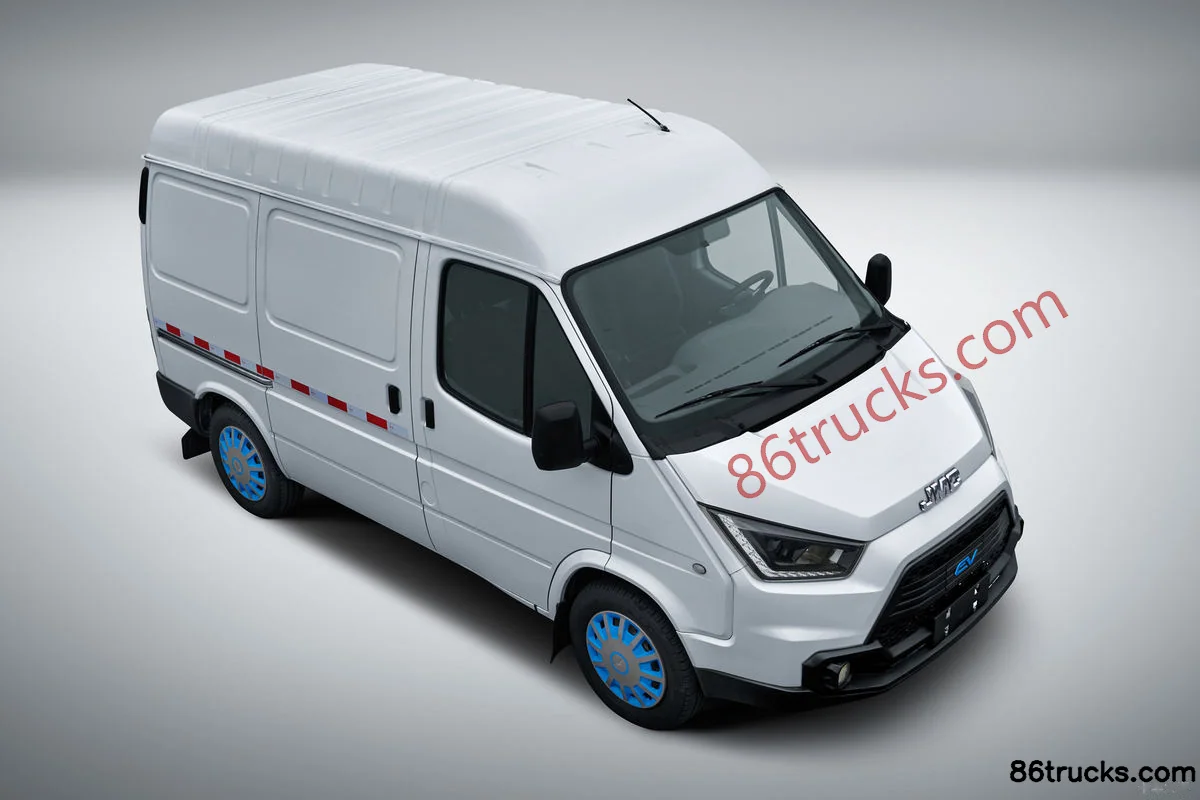

Exterior3

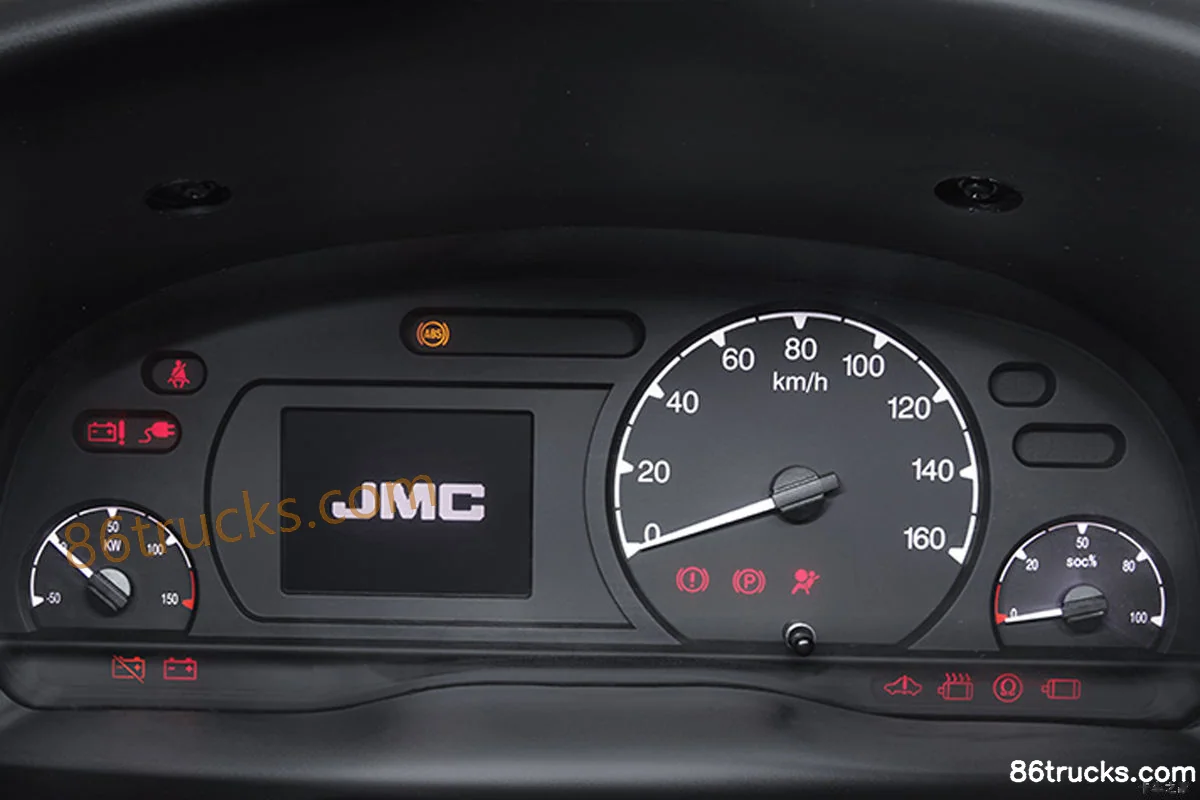

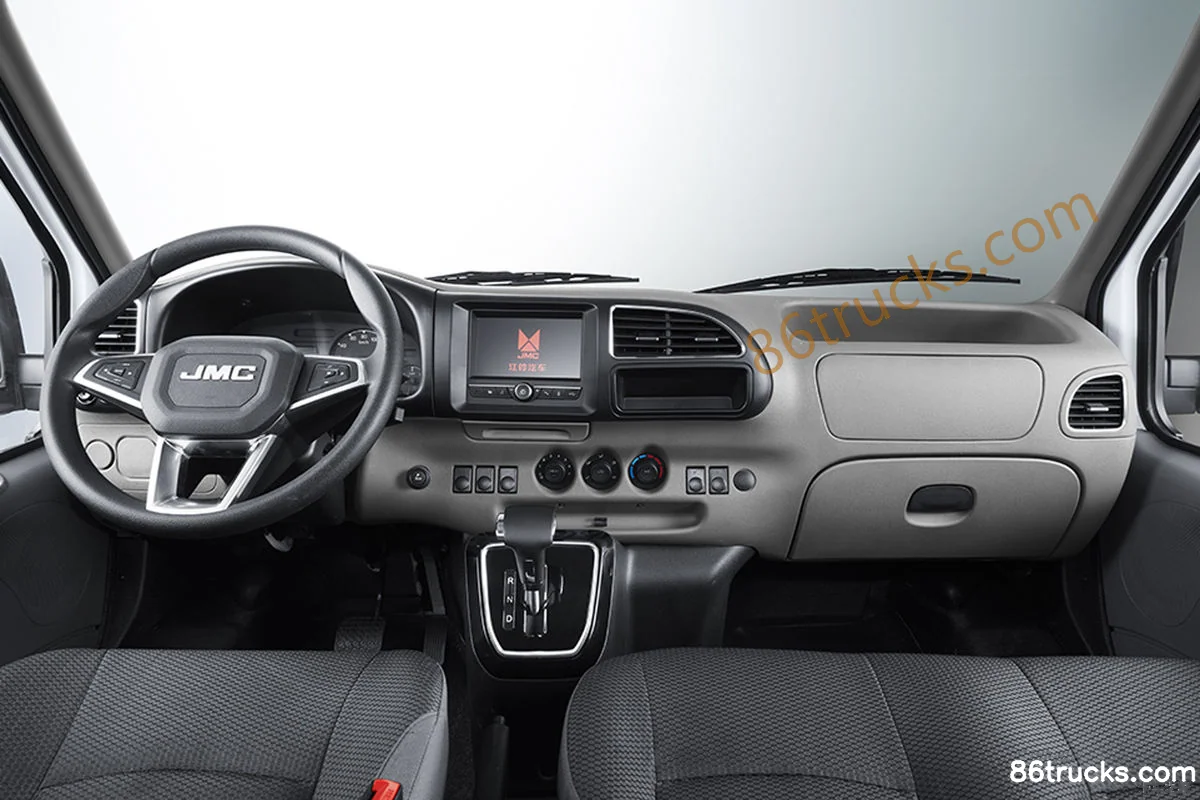

Cab3

Chassis1

7 photos

FAQ

What is the export price of JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh, and what does it include?

JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh export reference is about From $28,611; MSRP is ¥20.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh suited for?

JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh differ from other variants in the same series?

JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh belongs to JMC Teshun EV (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Teshun EV Commercial Type 4.94m Pure Electric Short Wheelbase Van (Mid Roof) 58.1kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
